Model Details

ABLT-1000

ABLT-1000

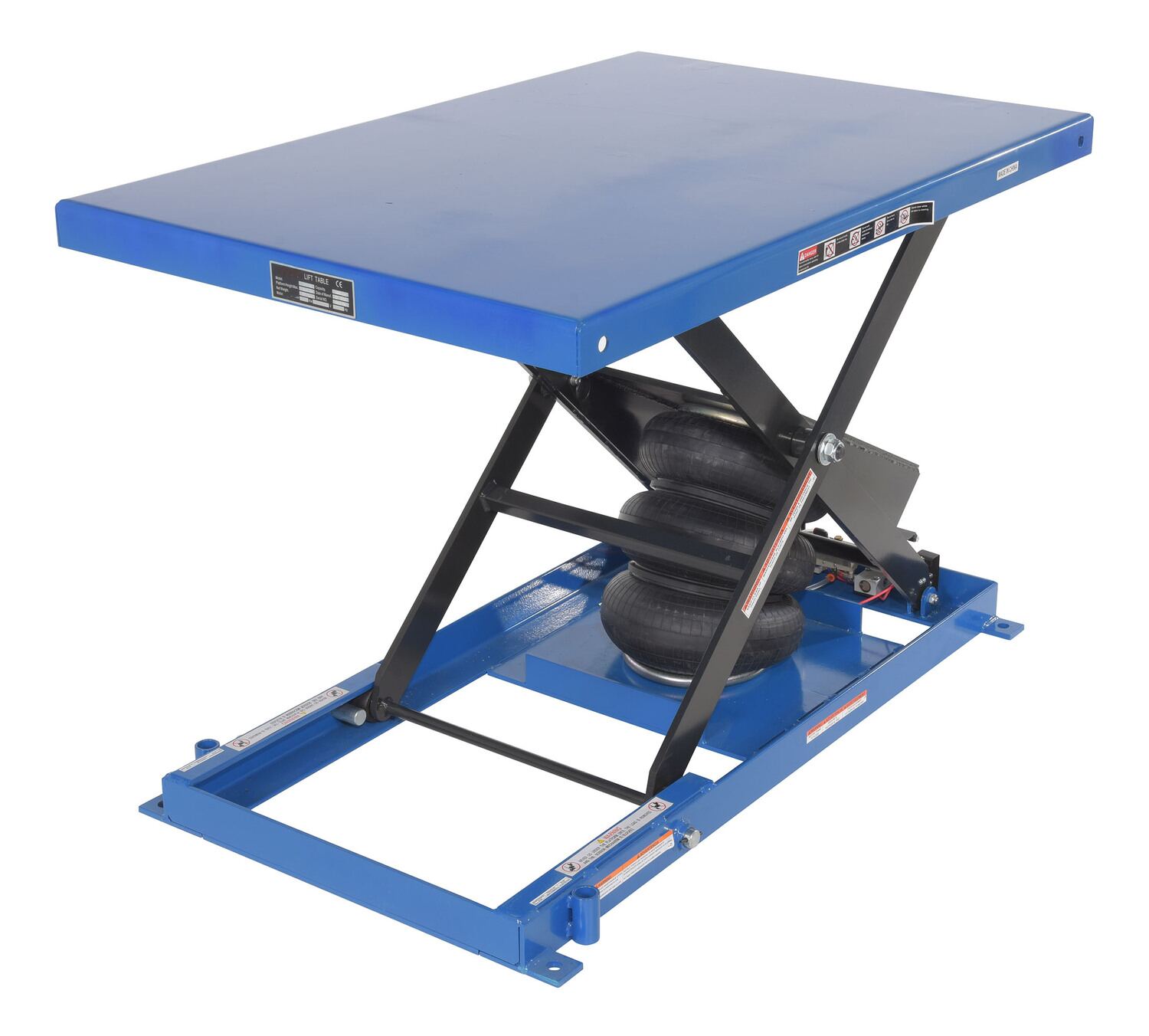

Steel Heavy-Duty Air Bag Scissor Lift Table 48 In. x 32 In. 1,000 Lb. Capacity Blue

The heavy-duty air bag scissor lift table uses factory air for clean, dependable, maintenance free operation. The safety features include a pressure relief valve, pinch point guard, and a standard foot control. The incoming air must be clean, dry, and regulated with a filter required. The standard features include an adjustable upper travel limit valve, state-of-the-art lifetime lubricated bearings, and maintenance prop.

  • Uses factory air for a clean and maintenance free operation

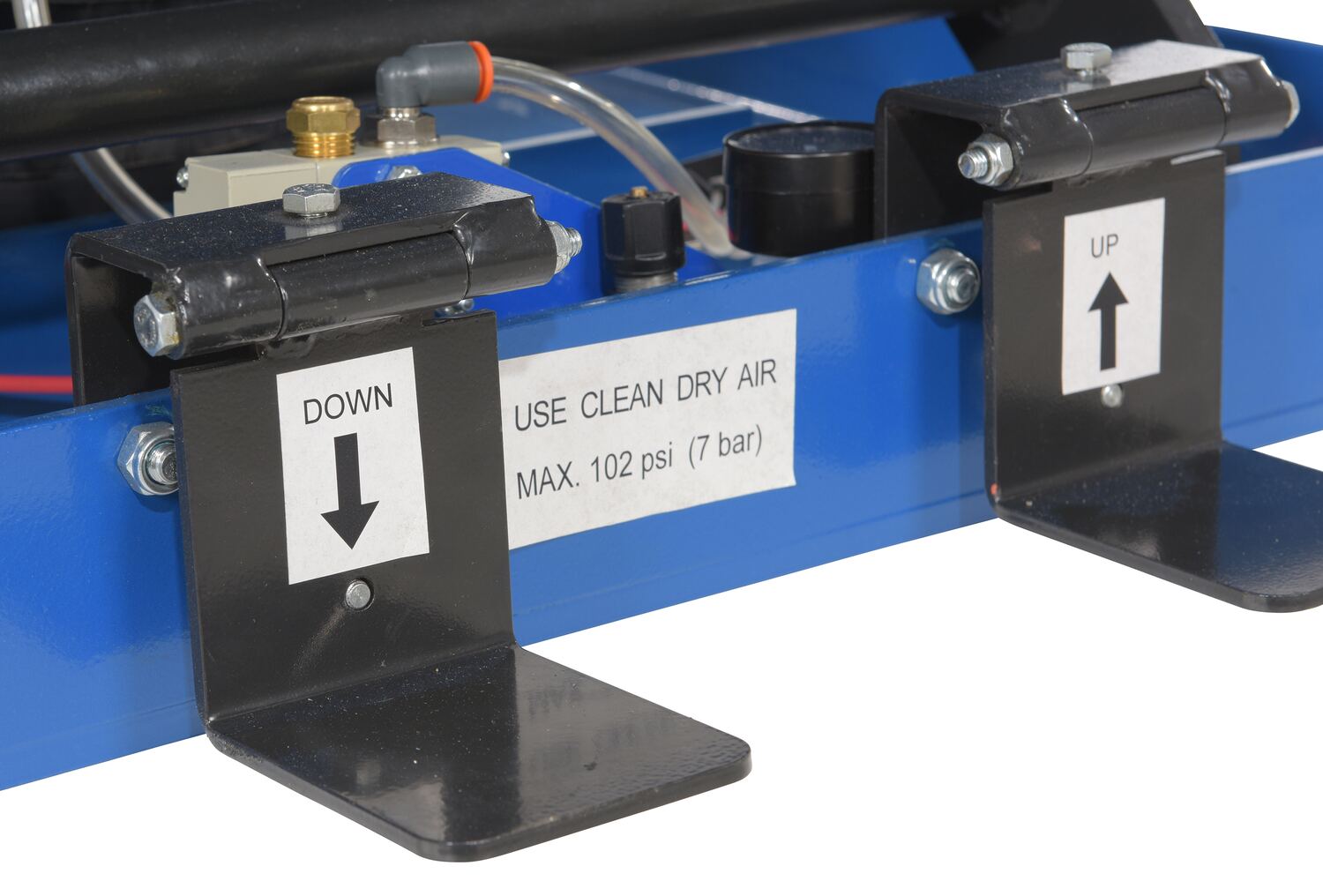

  • Includes a pressure relief valve, pinch point guard, and foot control
  • Incoming air must be clean, dry, and regulated with a filter
  • Features an adjustable upper travel limit valve and lifetime lubricated bearings
Total Ship Wt.(lbs.): 357 (only 1 package) Size: 48"W x 32"L x 9"H Color: Blue

Uniform Capacity (lb.): 1,000 Lowered Height (in.): 9 Raised Height (in.): 33
Minimum (psi): 80 Required Incoming Airline (in.): 1/2 Platform Length (in.): 32
Platform Width (in.): 48 Operation Method: Foot Control

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ABLT-1000


ABLT-1000

Steel Heavy-Duty Air Bag Scissor Lift Table 48 In. x 32 In. 1,000 Lb. Capacity Blue

The heavy-duty air bag scissor lift table uses factory air for clean, dependable, maintenance free operation. The safety features include a pressure relief valve, pinch point guard, and a standard foot control. The incoming air must be clean, dry, and regulated with a filter required. The standard features include an adjustable upper travel limit valve, state-of-the-art lifetime lubricated bearings, and maintenance prop.

  • Uses factory air for a clean and maintenance free operation
  • Includes a pressure relief valve, pinch point guard, and foot control
  • Incoming air must be clean, dry, and regulated with a filter
  • Features an adjustable upper travel limit valve and lifetime lubricated bearings
Dimensions: 48"W x 32"L x 9"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215082655 GTIN: 00691215082655
Warranty: -- Shipping Weight: 357 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Lowered Height (in.): 9 Raised Height (in.): 33
Minimum (psi): 80 Required Incoming Airline (in.): 1/2 Platform Length (in.): 32
Platform Width (in.): 48 Operation Method: Foot Control
