Model Details

AHA-4-12-8-ALO

Printer Friendly
AHA-4-12-8-ALO

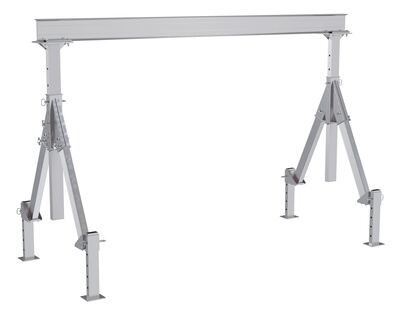

Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity Silver

An adjustable height aluminum gantry crane is a valuable asset in warehousing and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable leveling legs allow the crane to be raised or lowered in 4" increments on uneven surfaces. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support.

  • Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately
Total Ship Wt.(lbs.): 314 (only 1 package) Size: 64"W x 144"L x 114.125"H Color: Silver

Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 68.125 Raised Height (in.): 106.125
Base Plate Width (in.): 6 Base Plate Width (in.): 7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHA-4-12-8-ALO
AHA-4-12-8-ALO

Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity Silver

An adjustable height aluminum gantry crane is a valuable asset in warehousing and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable leveling legs allow the crane to be raised or lowered in 4" increments on uneven surfaces. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support.

  • Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately
Dimensions: 64"W x 144"L x 114.125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215373548 GTIN: 00691215373548
Warranty: -- Shipping Weight: 314 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 68.125 Raised Height (in.): 106.125
Base Plate Width (in.): 6 Base Plate Width (in.): 7
