Model Details
The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.
Uniform Capacity (lb.): 6000 | Overall I-Beam Length (ft.): 15 | I-Beam Height (In.): 12 |
I-Beam Flange Width (in.): 7 | Under I-Beam Range (in.): 74 to 98 | Base Width (in.): 64-11/16 |
Caster Quantity/Diameter/Width (in.): (4) 8 x 3 | Caster Type: Swivel (4) Position Locking Casters | Caster Material: Phenolic |
Caster Top Plate (in.): 4 x 4 1/2 | Usable Trolley Travel Distance (in.): 156-1/4 | Increment Height Adjustment (in.): 6 |
Details For Model: AHA-6-15-8 |
|||||||||||||||||||||||||||||

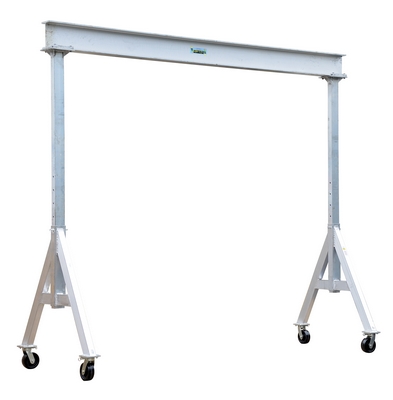

Aluminum Adjustable Height Gantry Crane with Phenolic Casters 15 Ft.Wide x 8 Ft. Max Usable Height 6,000 Lb. Capacity SilverThe adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
