Model Details

AHSN-4-10-12

Printer Friendly
AHSN-4-10-12

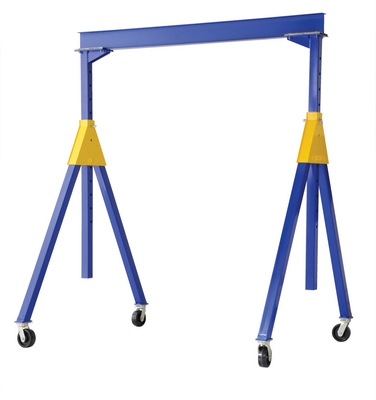

Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 10 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Assembly is required.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 909 (Multiple Packages: P1: 759 lbs + P2: 150 lbs) Size: 79.75"W x 119.75"L x 151.9375"H Color: Blue

Uniform Capacity (lb.): 4000 Overall I-Beam Length (ft.): 10 I-Beam Height (In.): 8-1/8
I-Beam Flange Width (in.): 4 Under I-Beam Usable Height (in.): 90 to 144 Base Width (in.): 79-3/4
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Style: Swivel (4) Position Locking Casters Caster Material: Glass-Filled Nylon
Usable Travel Distance (in.): 89-3/4 Increment Height Adjustment (in.): 6 Style: Knock-Down

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHSN-4-10-12
AHSN-4-10-12

Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 10 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Assembly is required.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 79.75"W x 119.75"L x 151.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215108515 GTIN: 00691215108515
Warranty: -- Shipping Weight: 759 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4000 Overall I-Beam Length (ft.): 10 I-Beam Height (In.): 8-1/8
I-Beam Flange Width (in.): 4 Under I-Beam Usable Height (in.): 90 to 144 Base Width (in.): 79-3/4
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Style: Swivel (4) Position Locking Casters Caster Material: Glass-Filled Nylon
Usable Travel Distance (in.): 89-3/4 Increment Height Adjustment (in.): 6 Style: Knock-Down
