Model Details

APG-M-38

Printer Friendly
APG-M-38

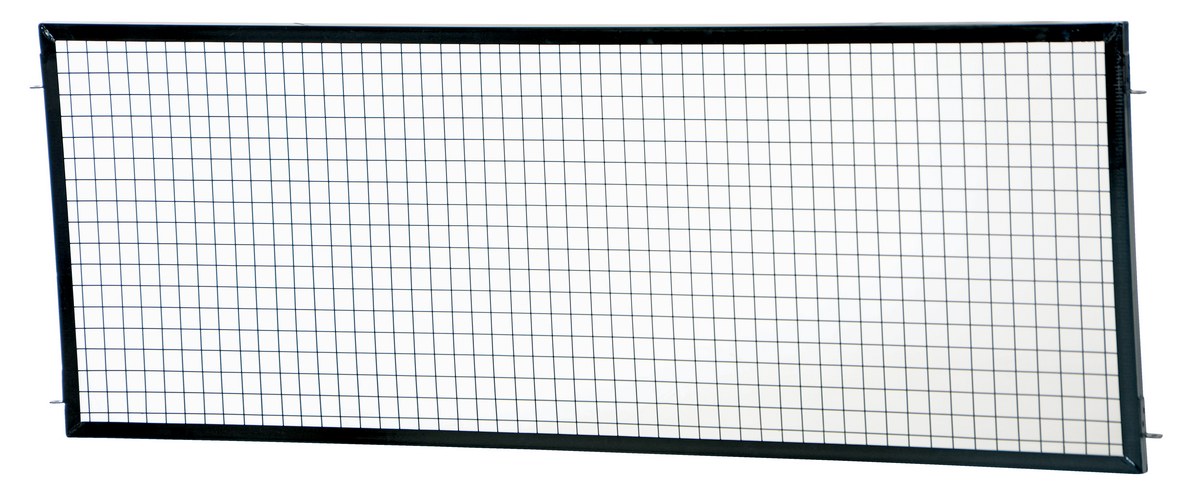

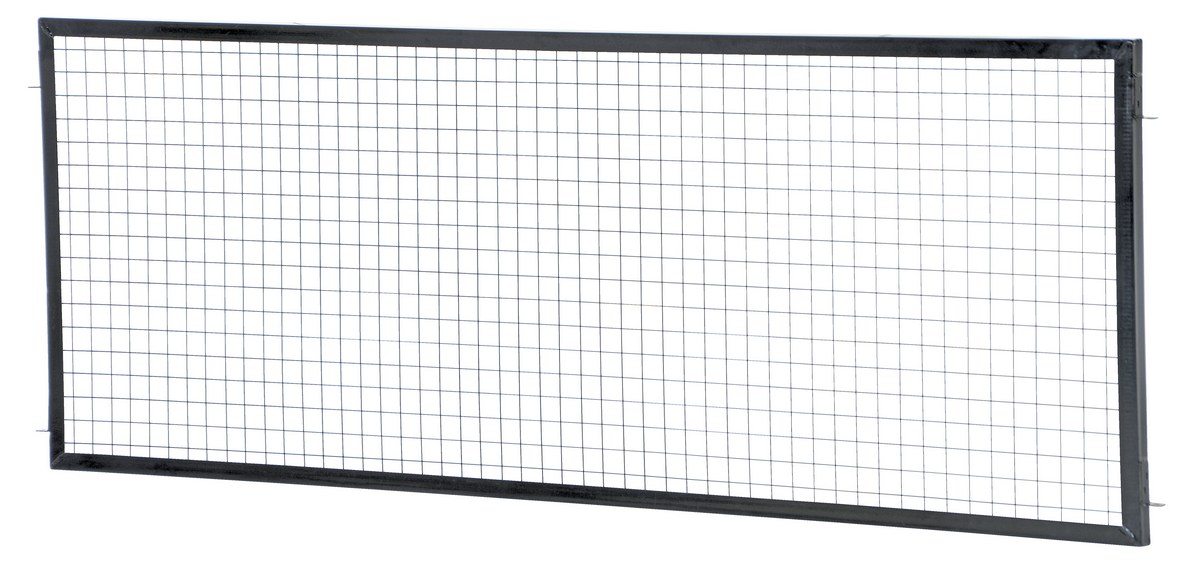

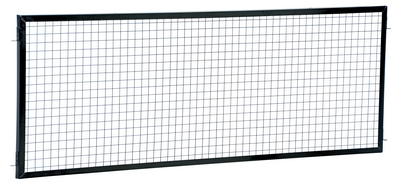

Steel Adjustable Perimeter Guard Systems Guard Panel 3 Ft. x 8 Ft. Black

Adjustable perimeter guard system is designed for use as perimeter barrier around equipment and machinery. Several different sizes to choose from to custom-fit each application. Panels may be installed at any angle and feature woven wire inserts. The unit has an industrial powder-coat finish for durability. The units are sold separately and must be assembled/installed on-site.

  • Barrier design protects equipment and machinery
  • Hinged door includes keyed lock for safety
  • Pre-drilled base plates make installation quick and easy
  • Comply with OSHA, EPA and ANSI specifications
Total Ship Wt.(lbs.): 60 (only 1 package) Size: 96"W x 1.5"L x 36"H Color: Black

Panel Angle (degree): 0 to 180 Woven Wire Insert Gauge: 8 Angle Frame Gauge: 12
Square Tubing Length (in.): 2 Square Tubing Width (in.): 2 Square Tubing Thickness (in.): 1/8
Component Description: Panel Includes: Installation Hardware, Reflective surface, and Interlocking Features

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: APG-M-38
APG-M-38

Steel Adjustable Perimeter Guard Systems Guard Panel 3 Ft. x 8 Ft. Black

Adjustable perimeter guard system is designed for use as perimeter barrier around equipment and machinery. Several different sizes to choose from to custom-fit each application. Panels may be installed at any angle and feature woven wire inserts. The unit has an industrial powder-coat finish for durability. The units are sold separately and must be assembled/installed on-site.

  • Barrier design protects equipment and machinery
  • Hinged door includes keyed lock for safety
  • Pre-drilled base plates make installation quick and easy
  • Comply with OSHA, EPA and ANSI specifications
Dimensions: 96"W x 1.5"L x 36"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215083249 GTIN: 00691215083249
Warranty: -- Shipping Weight: 60 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Panel Angle (degree): 0 to 180 Woven Wire Insert Gauge: 8 Angle Frame Gauge: 12
Square Tubing Length (in.): 2 Square Tubing Width (in.): 2 Square Tubing Thickness (in.): 1/8
Component Description: Panel Includes: Installation Hardware, Reflective surface, and Interlocking Features
