Model Details

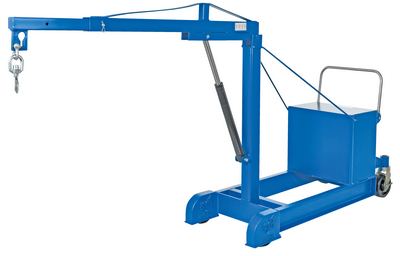

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised by utilizing and air operation function. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.
Uniform Capacity (lb.): 500 | Uniform Capacity extended 39-1/4"(lb.): 500 | Uniform Capacity extended 51-1/4" (lb.): 400 |
Uniform Capacity extended 63-5/16" (lb.): 300 | Lowered Arm Fully Extended (in.): 5 | Raised Arm Fully Extended (in.): 90 |
Base Length (in.): 70 | Base Width (in.): 29 | Boom Length Minimum/Maximum (in.): 53-1/2 to 77-1/2 |
Design: Counter Balance | Function: Floor Crane | Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2 |
Rigid Caster Material: Glass-Filled Nylon | Swivel Caster w/Side Brake Quantity/Diameter/Width (in.): (2)8 x 3 | Swivel Caster Material: Phenolic |
Details For Model: CBFC-500-AIR |
||||||||||||||||||||||||||||||||
Steel Air Counter Balance Floor Crane 500 Lb. Capacity BlueThis crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised by utilizing and air operation function. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
