Model Details

CONV-0330-120

CONV-0330-120

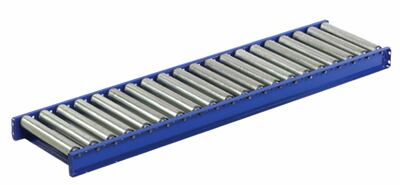

Steel Conveyor 3" Roller Center 30 In. x 120 In. 1400 Lb. Capacity Blue

Are you drained from constantly lifting heavy boxes? Are you looking for a simple transition from workstation to workstation? Is that a yes? Then check out our roller conveyors! With a conveyor, the hard work is done by the individual rollers. The lightest of touch or push will simply assist the item to glide over the rollers and down the conveyor. Rollers are secured to a steel channel border. This conveyor is to be permanently installed into each work area.

  • Welded cross bracing
  • Spring loaded axle
  • Frame built of 10 gauge steel
  • 1.9" roller diameter
Total Ship Wt.(lbs.): 289 (only 1 package) Size: 30"W x 120"L x 3.875"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 1400 Capacity per Foot (lb.): 140 Overall Length (in.): 120
Overall Width (in.): 30 Overall Height (in.): 3.875 Roller Diameter (in.): 1.9
Roller Spacing Centers (in.): 3 Standard Frame Size (ft.): 10 Steel (gauge): 10

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CONV-0330-120


CONV-0330-120

Steel Conveyor 3" Roller Center 30 In. x 120 In. 1400 Lb. Capacity Blue

Are you drained from constantly lifting heavy boxes? Are you looking for a simple transition from workstation to workstation? Is that a yes? Then check out our roller conveyors! With a conveyor, the hard work is done by the individual rollers. The lightest of touch or push will simply assist the item to glide over the rollers and down the conveyor. Rollers are secured to a steel channel border. This conveyor is to be permanently installed into each work area.

  • Welded cross bracing
  • Spring loaded axle
  • Frame built of 10 gauge steel
  • 1.9" roller diameter
Dimensions: 30"W x 120"L x 3.875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215374750 GTIN: 00691215374750
Warranty: -- Shipping Weight: 289 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: USA
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1400 Capacity per Foot (lb.): 140 Overall Length (in.): 120
Overall Width (in.): 30 Overall Height (in.): 3.875 Roller Diameter (in.): 1.9
Roller Spacing Centers (in.): 3 Standard Frame Size (ft.): 10 Steel (gauge): 10
