Model Details

DBH-100-3

DBH-100-3

Steel Drop Bottom Hopper 1 Cubic Yard 3,000 Lb. Capacity Blue

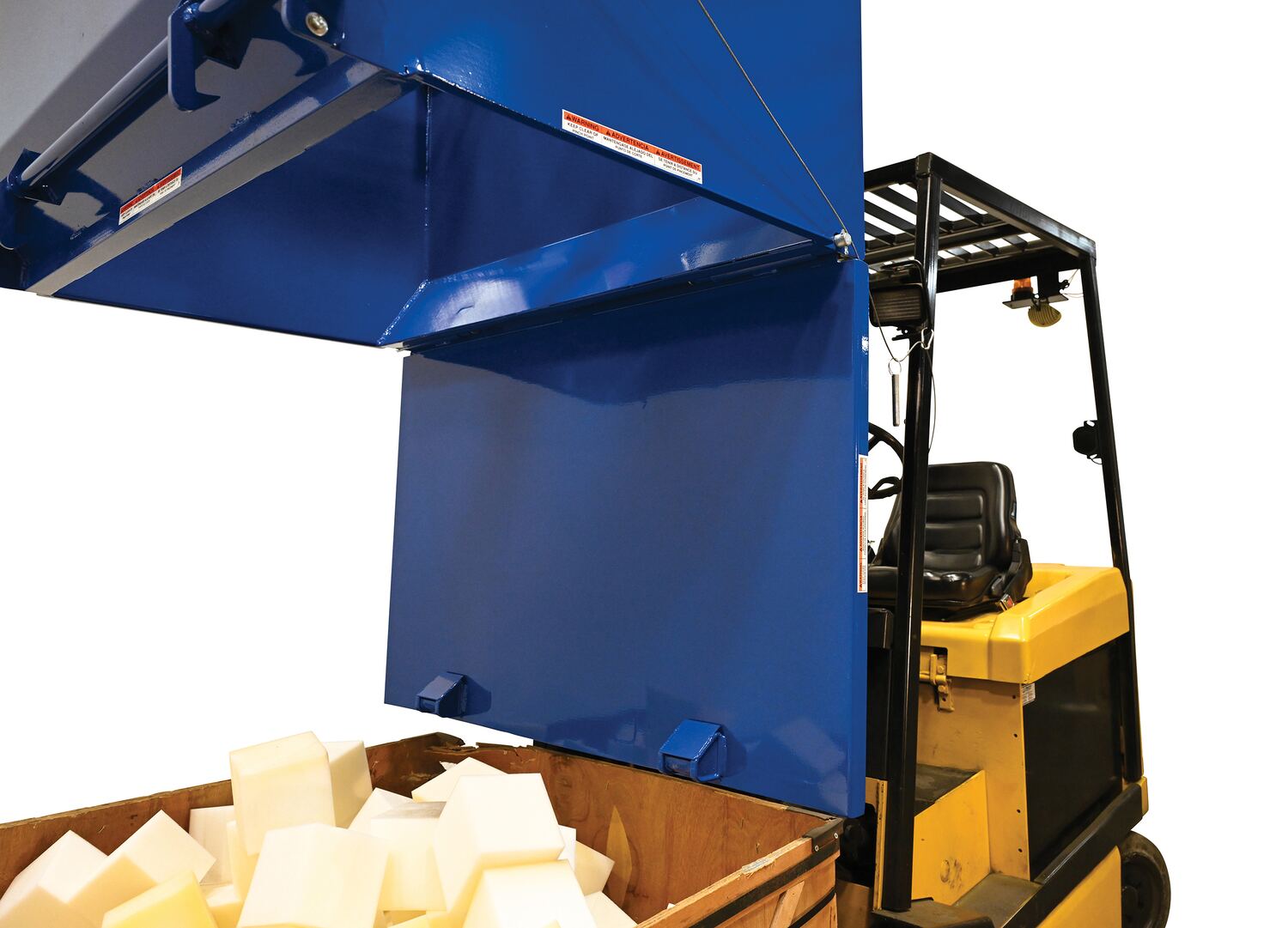

A hopper with a bottom dump feature is a unique design not typical to classic hoppers. With a bottom dump hopper there is limited wasted space. Unlike standard hoppers that have angled sides to encourage the product to flow out, the bottom dump hopper utilizes all of the space in the hopper. There are built-in fork pockets to pick up hopper from the top, allowing the bottom to open and the hopper to be quickly emptied. An attached cable lets the user continue to be seated while opening the bottom hatch, minimizing down time and the need for additional personnel. Blue powder coat finish.

  • Open top, no lid design
  • Single bottom door
  • Safety restraint secures hopper to fork truck
  • 8" wide fork pockets
Total Ship Wt.(lbs.): 420 (only 1 package) Size: 54"W x 38"L x 33"H Color: Blue

Uniform Capacity (lbs): 3,000 Volume (Cu. Yrds.): 1

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DBH-100-3


DBH-100-3

Steel Drop Bottom Hopper 1 Cubic Yard 3,000 Lb. Capacity Blue

A hopper with a bottom dump feature is a unique design not typical to classic hoppers. With a bottom dump hopper there is limited wasted space. Unlike standard hoppers that have angled sides to encourage the product to flow out, the bottom dump hopper utilizes all of the space in the hopper. There are built-in fork pockets to pick up hopper from the top, allowing the bottom to open and the hopper to be quickly emptied. An attached cable lets the user continue to be seated while opening the bottom hatch, minimizing down time and the need for additional personnel. Blue powder coat finish.

  • Open top, no lid design
  • Single bottom door
  • Safety restraint secures hopper to fork truck
  • 8" wide fork pockets
Dimensions: 54"W x 38"L x 33"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215375597 GTIN: 00691215375597
Warranty: -- Shipping Weight: 420 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 3,000 Volume (Cu. Yrds.): 1
