Model Details

DLT-25

Printer Friendly
DLT-25

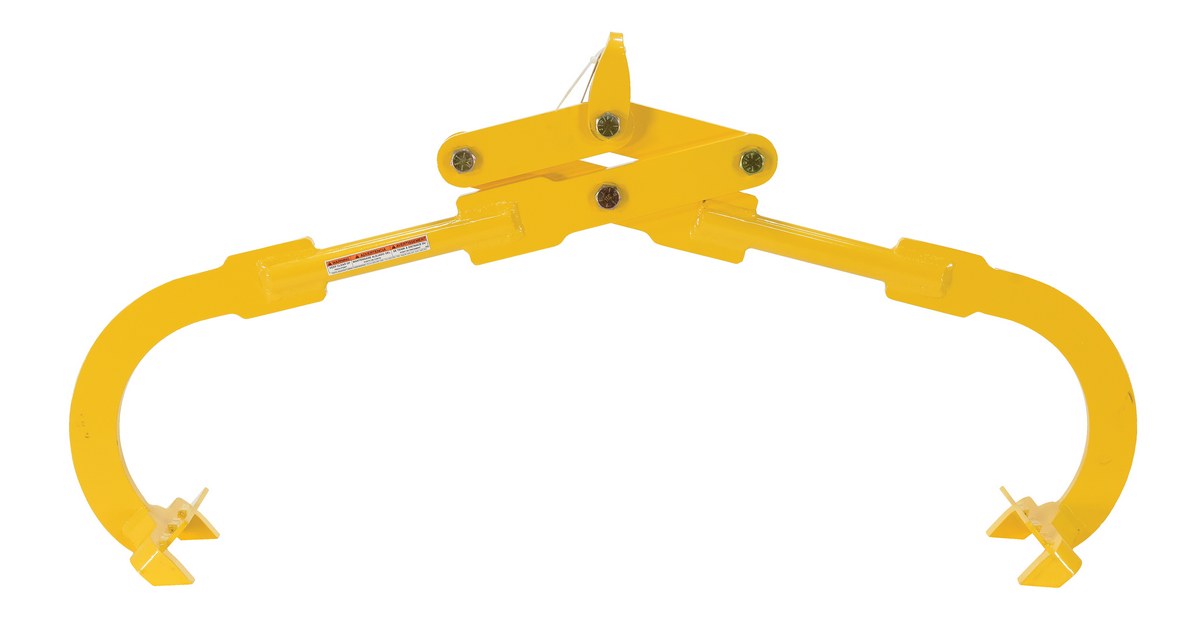

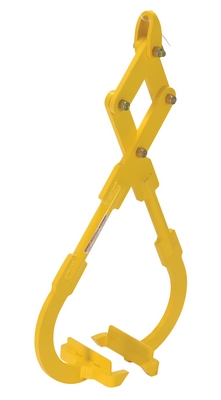

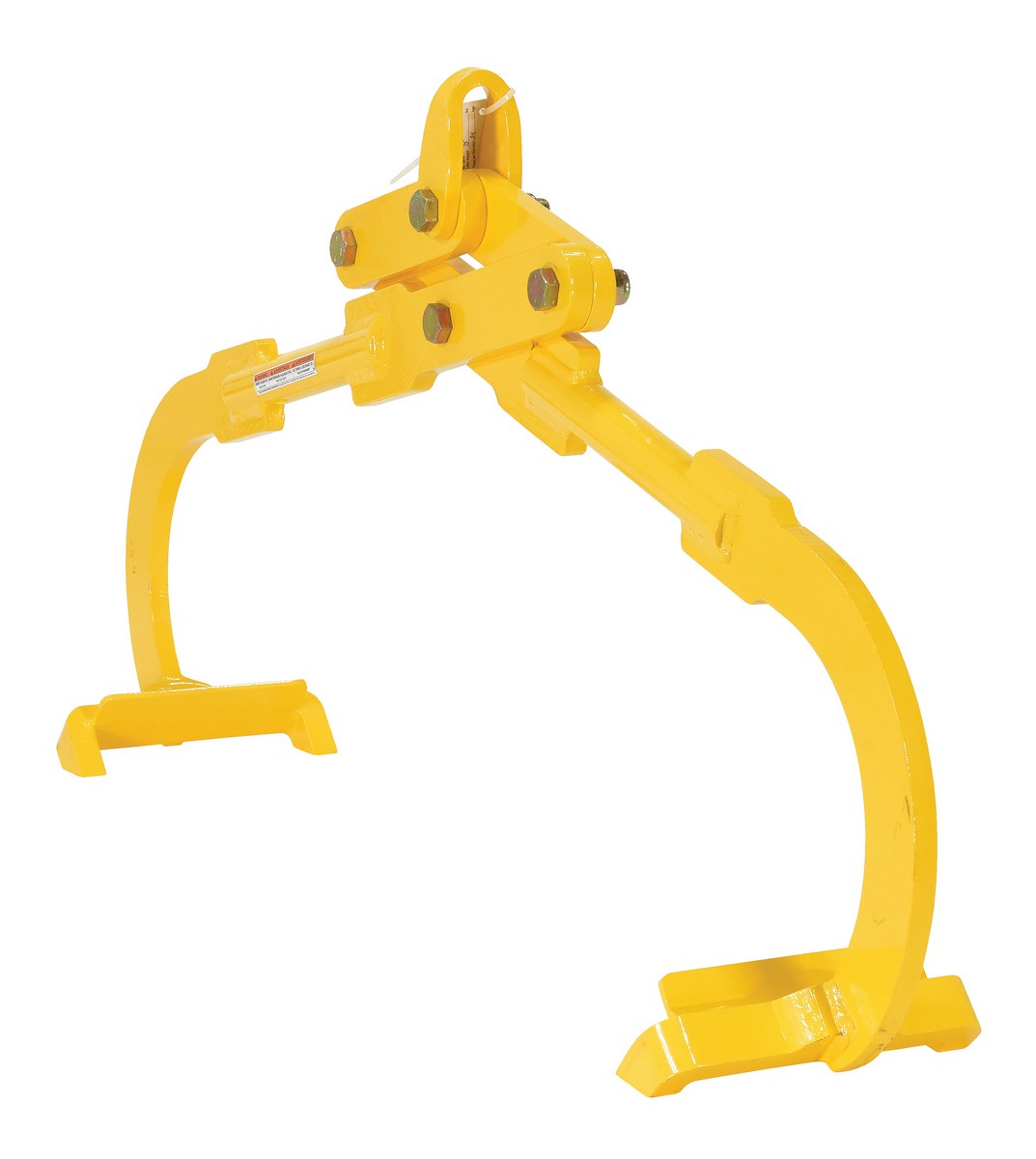

Steel Heavy Duty Die Lifting Tongs 28-1/2 In. Maximum Opening Width 2500 Lb. Capacity Yellow

The heavy-duty lifting tong is a great addition to the material handling capabilities of manufacturing facilities. The unit is constructed of powder coated steel for strength and durability while lifting heavy loads. The yellow finish promotes a clearly visible unit when safely transferring products.

  • Tong is designed for lifting dies with overhead lifting devices
  • Use with either an overhead chain or fork truck for optimal use
  • Manufactured to ASME B30.20 standards
  • Includes lifting ring for easy use with overhead hoist
Total Ship Wt.(lbs.): 76 (only 1 package) Size: 44.2188"W x 10"L x 45.0313"H Color: Yellow

Uniform Capacity (lb.): 2,500 Maximum Width Opening (in.): 28-1/2 Clevis Bracket Opening Width (in.): 1-5/8
Clevis Bracket Inside Width (in.): 1-5/8 Clevis Bracket Inside Length (in.): 3-1/4 Clevis Bracket Thickness (in.): 1/2
Pin diameter (in.): 3/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: DLT-25
DLT-25

Steel Heavy Duty Die Lifting Tongs 28-1/2 In. Maximum Opening Width 2500 Lb. Capacity Yellow

The heavy-duty lifting tong is a great addition to the material handling capabilities of manufacturing facilities. The unit is constructed of powder coated steel for strength and durability while lifting heavy loads. The yellow finish promotes a clearly visible unit when safely transferring products.

  • Tong is designed for lifting dies with overhead lifting devices
  • Use with either an overhead chain or fork truck for optimal use
  • Manufactured to ASME B30.20 standards
  • Includes lifting ring for easy use with overhead hoist
Dimensions: 44.2188"W x 10"L x 45.0313"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054812 GTIN: 00691215054812
Warranty: -- Shipping Weight: 76 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,500 Maximum Width Opening (in.): 28-1/2 Clevis Bracket Opening Width (in.): 1-5/8
Clevis Bracket Inside Width (in.): 1-5/8 Clevis Bracket Inside Length (in.): 3-1/4 Clevis Bracket Thickness (in.): 1/2
Pin diameter (in.): 3/4
