E-3024

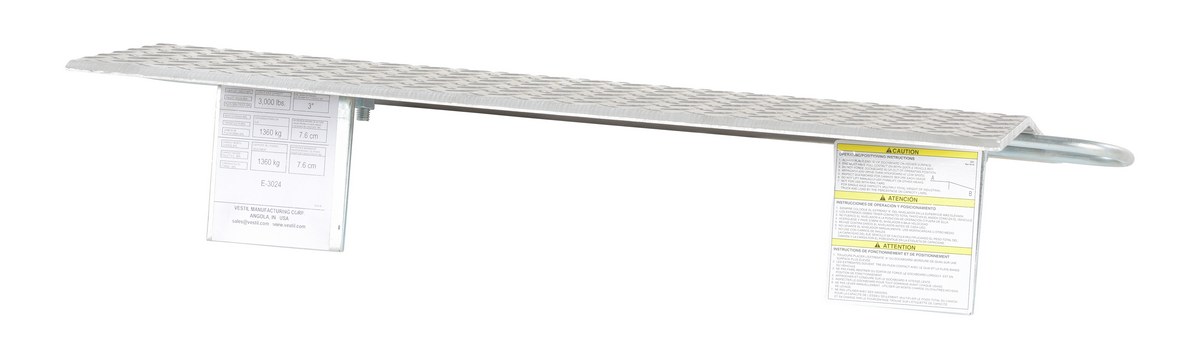

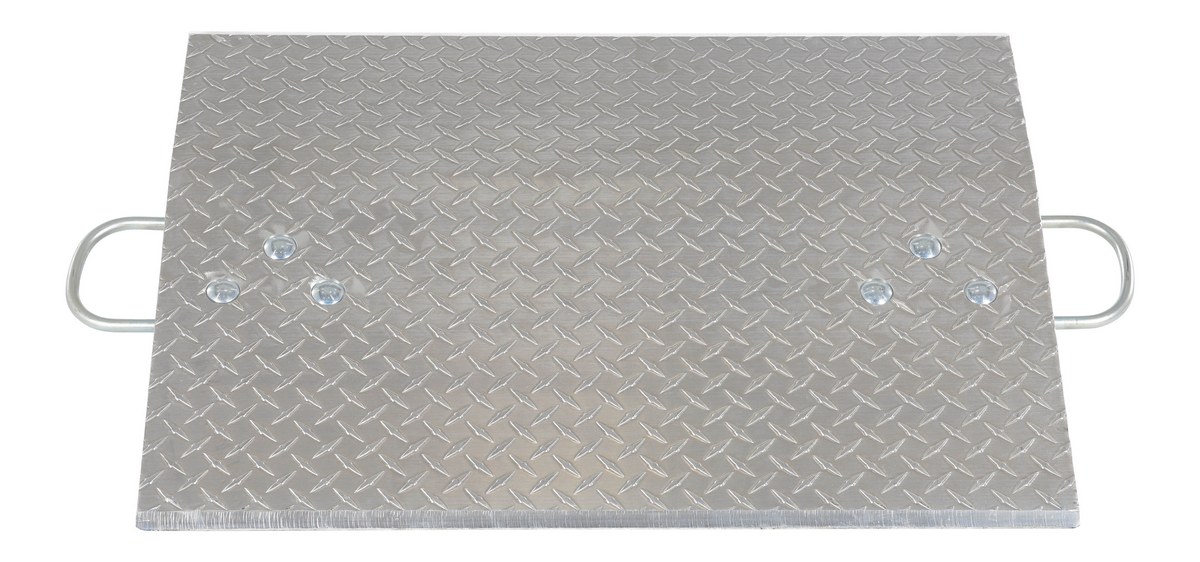

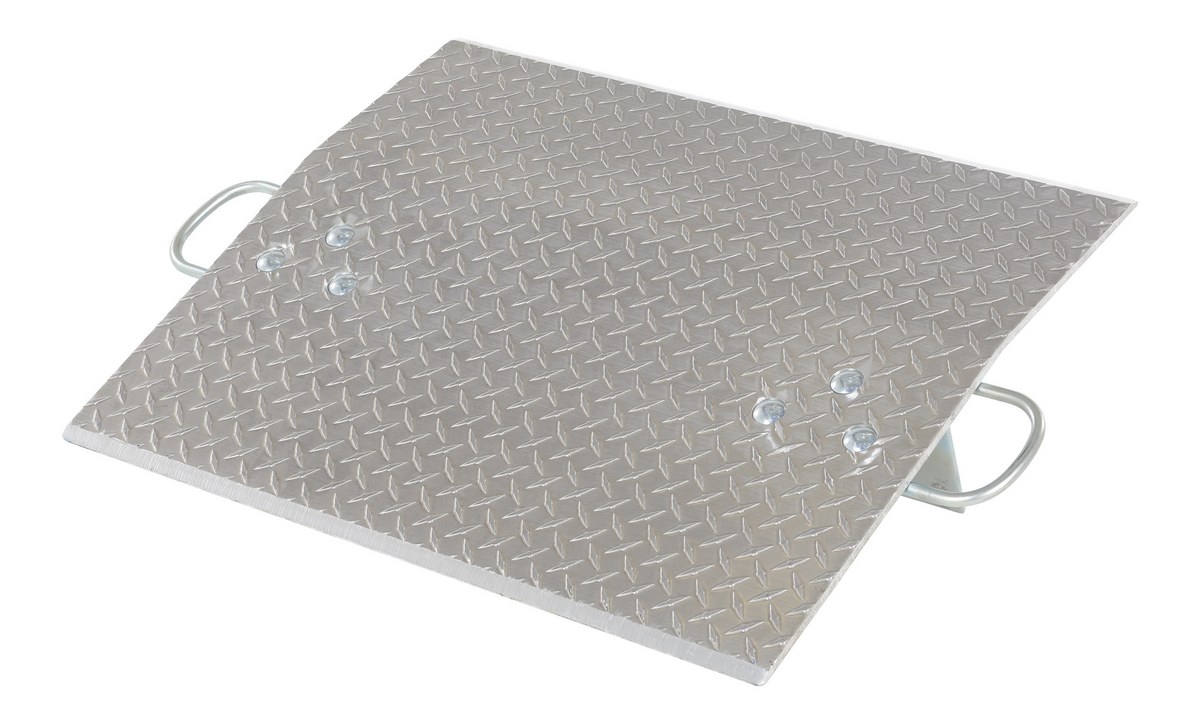

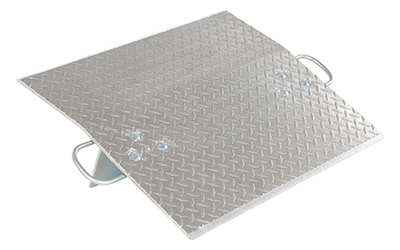

Aluminum Economizer Dock Plate Usable 30 In. x 24 In. 3/8 In. Plate Thickness 3000 Lb. Capacity

The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

  • Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs and lifting handles are OSHA compliant
  • Beveled entrance and exit edges allow for smoother transition

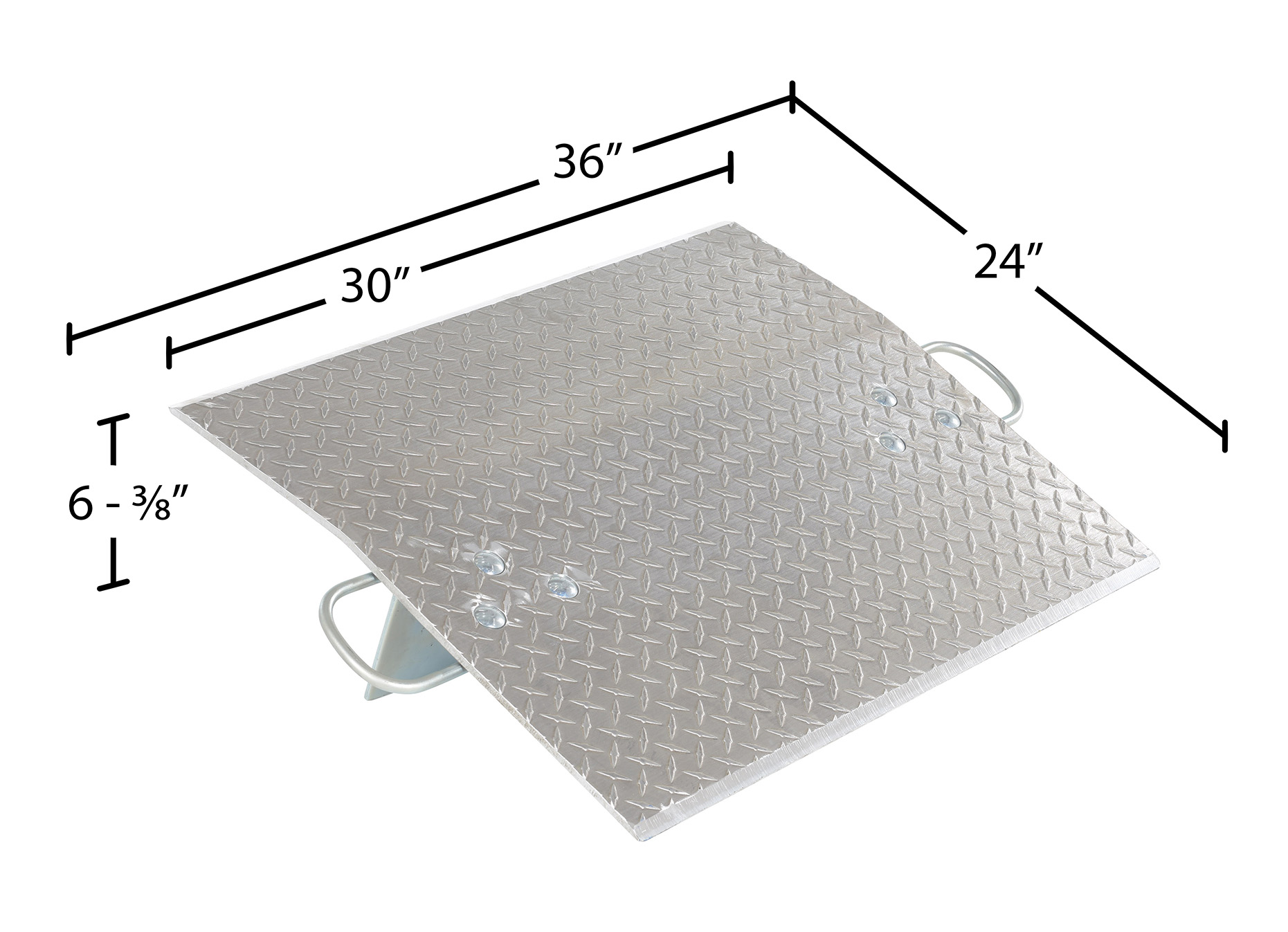

Total Ship Wt.(lbs.): 35 (Multiple Packages: P1: 23 lbs + P2: 12 lbs) Size: 36"W x 24"L x 6.375"H Color: Silver

Uniform Capacity (lb.): 3000 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 30 Usable Length (in.): 24 Plate Thickness (in.): 3/8
Height Difference Between Truck and Door (in.): 3 Leg Height (in.): 6 OSHA: 1910.30(a)
ANSI: MH 30.2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: E-3024
E-3024

Aluminum Economizer Dock Plate Usable 30 In. x 24 In. 3/8 In. Plate Thickness 3000 Lb. Capacity

The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

  • Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs and lifting handles are OSHA compliant
  • Beveled entrance and exit edges allow for smoother transition
Dimensions: 36"W x 24"L x 6.375"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215016025 GTIN: 00691215016025
Warranty: -- Shipping Weight: 23 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3000 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 30 Usable Length (in.): 24 Plate Thickness (in.): 3/8
Height Difference Between Truck and Door (in.): 3 Leg Height (in.): 6 OSHA: 1910.30(a)
ANSI: MH 30.2
