Model Details
The electric hydraulic dock leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. It includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers.
Uniform Capacity (lb.): 50,000 | Service Range Above Dock (in.): 12 | Service Range Below Dock (in.): 12 |
Voltage/Phase: 460/3 | Platform Thickness (in.): 3/8 | Motor Horsepower: 2 |
Installation Type: Crew must install (due to electrical requirements) | Laminated Bumper Length (in.): 4.5 | Laminated Bumper Width (in.): 14 |
Laminated Bumper Height (in.): 10 | Unit Width (in.): 86 | Unit Depth (in.): 24 |

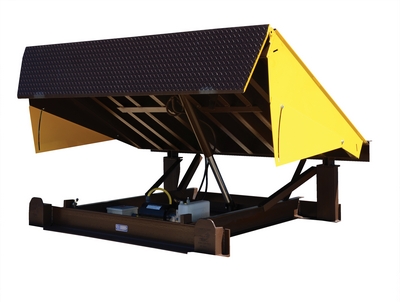

Details For Model: EH-75-50 |
|||||||||||||||||||||||||||||
Steel Electric Hydraulic Dock Leveler 84"W x 50"L x 23-1/2"D Pit Dimensions, 50000 Lb. Capacity Brown/YellowThe electric hydraulic dock leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. It includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers.
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
