Model Details

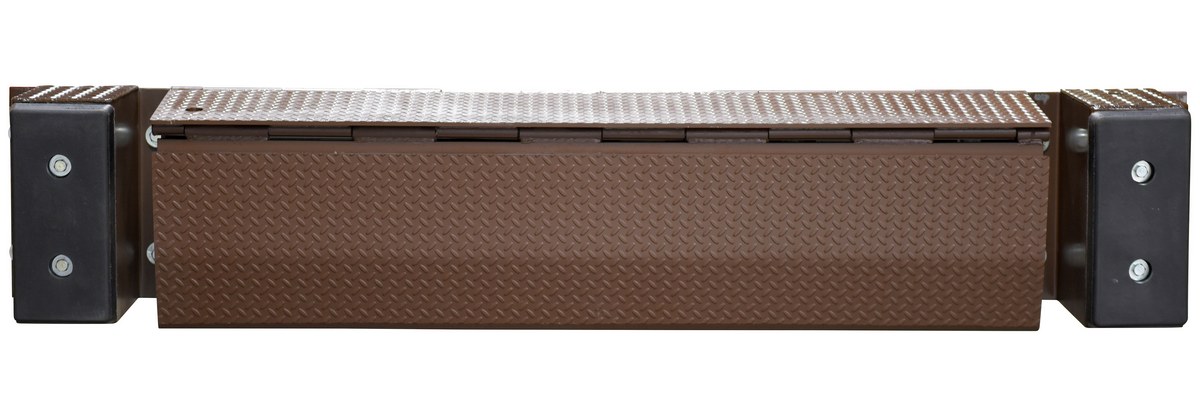

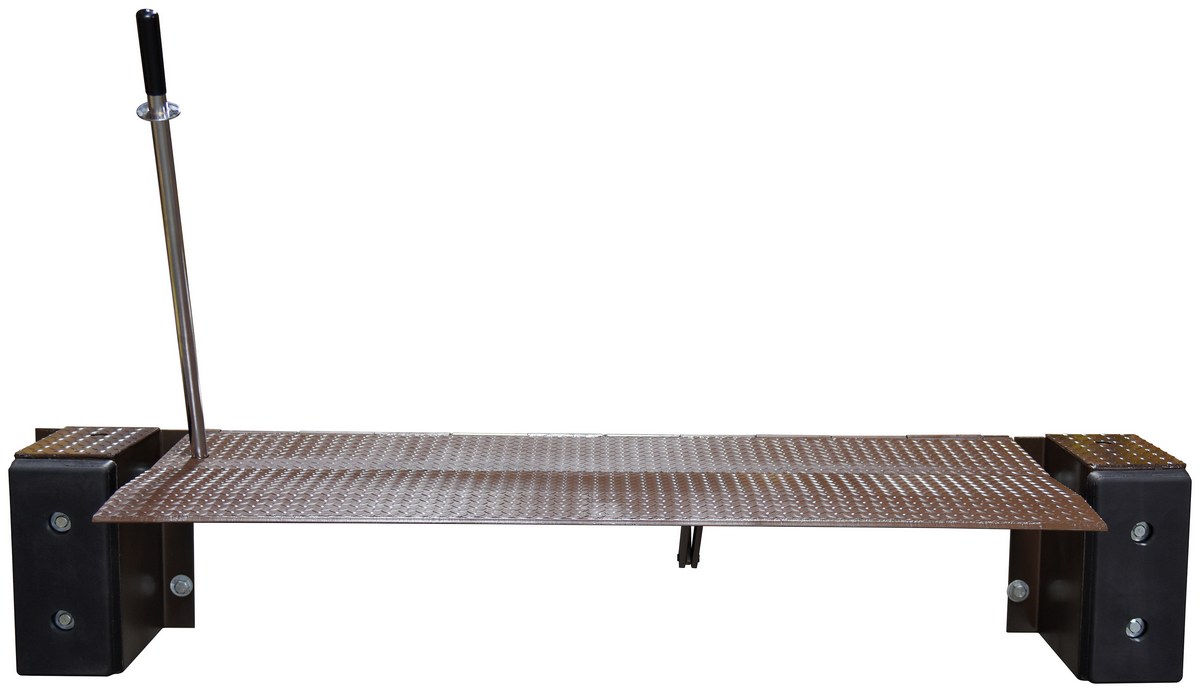

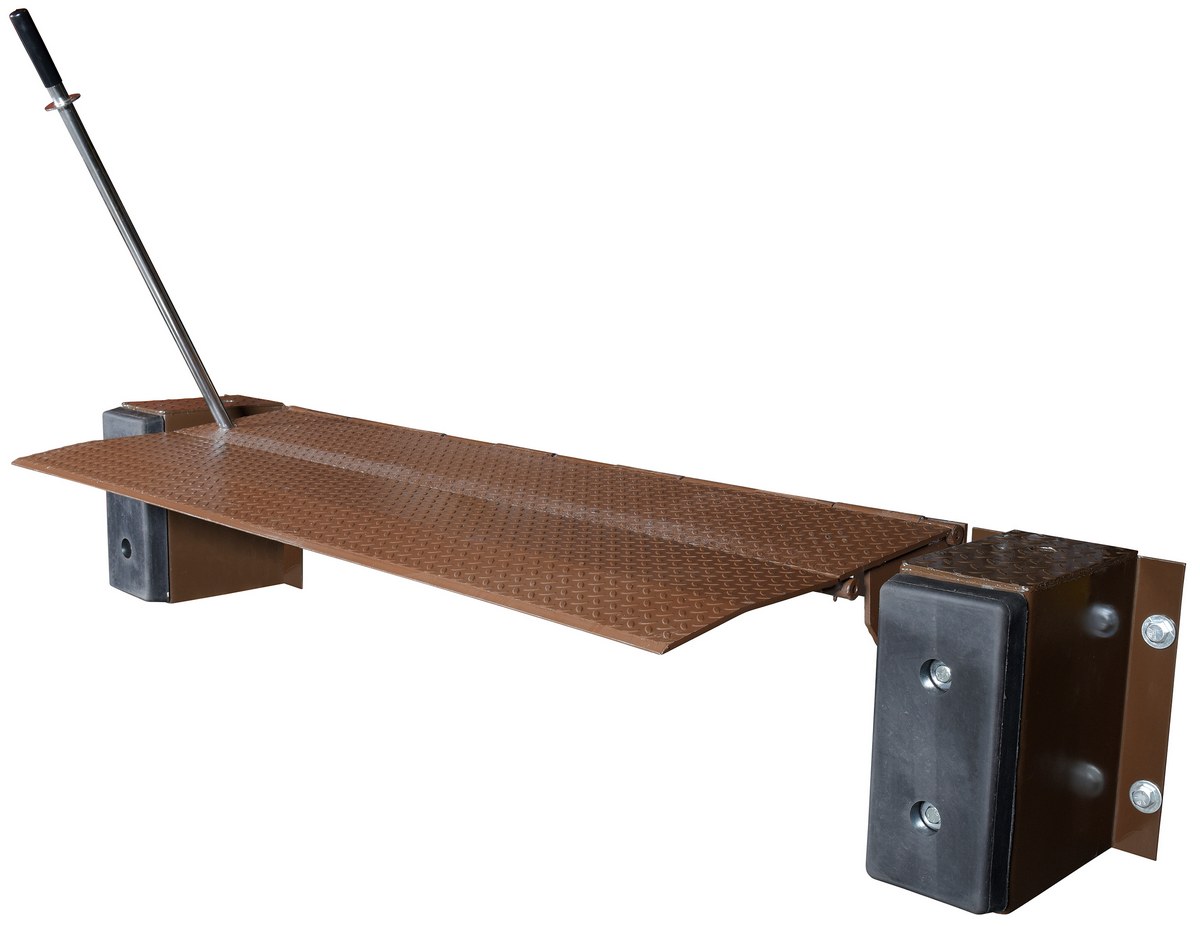

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. It comes complete with bumpers and installation instructions. Standard ramping is twenty-nine (29) inches. A steel dock edge, or approach ramp is required for proper installation. The mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.

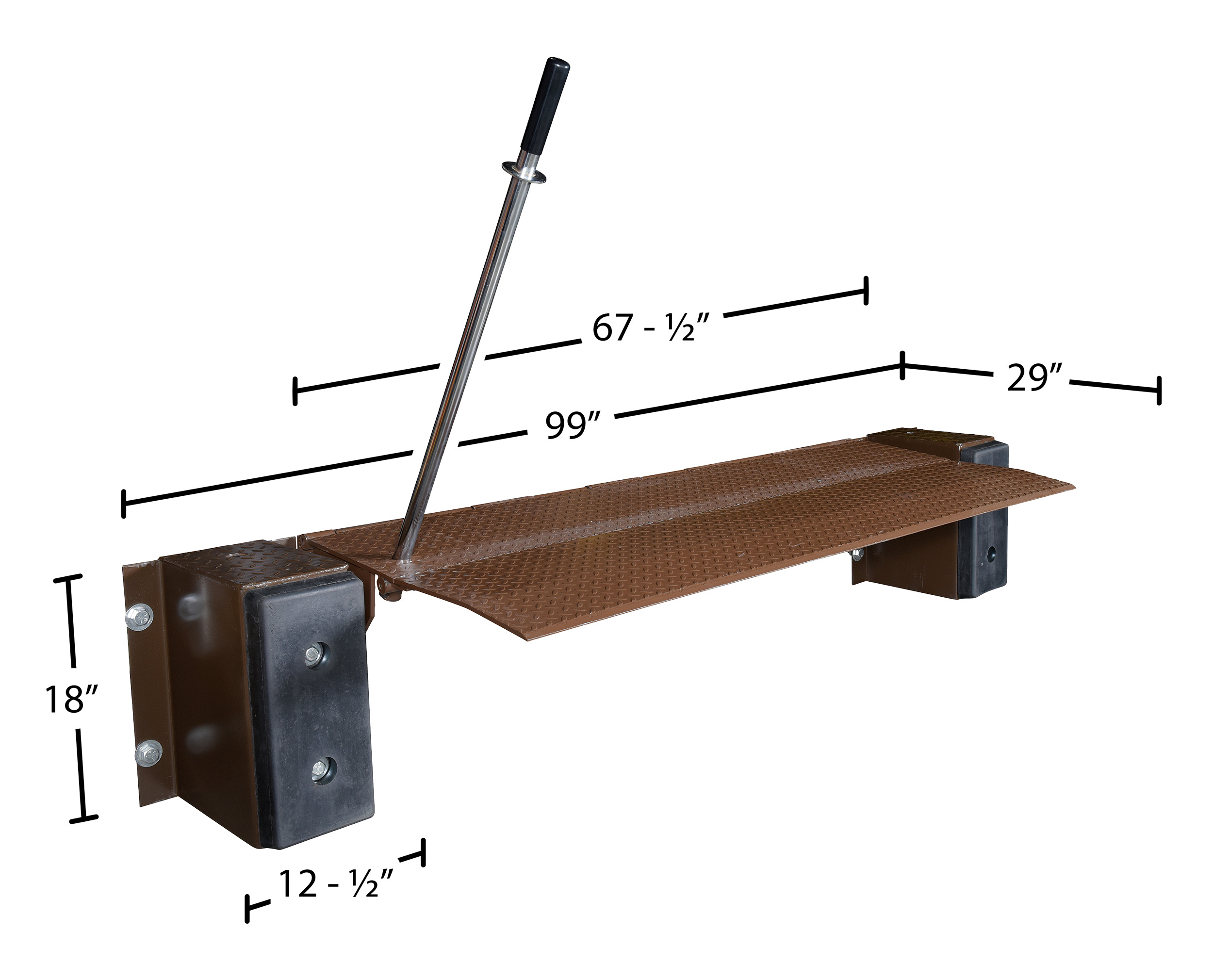

Uniform Capacity (lb.): 25000 | Service range above dock (in.): 5 | Service range below dock (in.): 5 |
Bumper Width (in.): 8 | Bumper Length (in.): 2 | Bumper Height (in.): 18 |
Ramp Width (in.): 72 | Ramping Length (in.): 29 | Bumper projection including rubber bumper (in.): 15 |

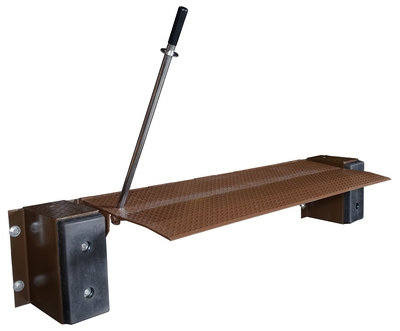

Details For Model: FM-2572 |
||||||||||||||||||||||||||
Steel Mechanical Edge O Dock Leveler 72 In. Ramp Width 25,000 Lb. Capacity BrownThe Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. It comes complete with bumpers and installation instructions. Standard ramping is twenty-nine (29) inches. A steel dock edge, or approach ramp is required for proper installation. The mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
