LAD-FM-72

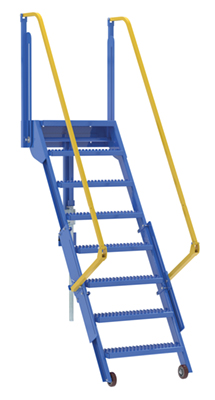

Steel Folding Mezzanine Ladder 72 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue

The mezzanine ladders are used for infrequent usage to access mezzanines. They are ratcheted into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder. The mezzanine ladder allows for quick installation with mounting bracket provided for bolt-on installation or welded installation. Customer must provide their mezzanine height at time of purchase. Baked-in powder-coated toughness. Meets or exceeds all OSHA requirements. Ships knockdown, some assembly required.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Collapsible handrail
  • Attached casters provide simple maneuvering
Total Ship Wt.(lbs.): 282 (only 1 package) Size: 32.25"W x 49.75"L x 103.625"H Color: Blue / Yellow Non-Returnable

Uniform Capacity (lb.): 350 Incline Angle (degree): 58 Mezzanine Height (in.): 72
Step Height Spacing (in.): 9 Step Depth (in.): 7 Usable Step Width (in.): 24-1/4
Collapsed Length (in.): 14-5/8 Handrail Height (in.): 31-5/8 Step Material: Serrated Steel
Wheel Quantity/Diameter/Width (in.): (2) 4 x 1-1/4 Wheel Type: Poly-on-Poly

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-FM-72
LAD-FM-72

Steel Folding Mezzanine Ladder 72 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue

The mezzanine ladders are used for infrequent usage to access mezzanines. They are ratcheted into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder. The mezzanine ladder allows for quick installation with mounting bracket provided for bolt-on installation or welded installation. Customer must provide their mezzanine height at time of purchase. Baked-in powder-coated toughness. Meets or exceeds all OSHA requirements. Ships knockdown, some assembly required.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Collapsible handrail
  • Attached casters provide simple maneuvering
Dimensions: 32.25"W x 49.75"L x 103.625"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215127554 GTIN: 00691215127554
Warranty: -- Shipping Weight: 282 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 350 Incline Angle (degree): 58 Mezzanine Height (in.): 72
Step Height Spacing (in.): 9 Step Depth (in.): 7 Usable Step Width (in.): 24-1/4
Collapsed Length (in.): 14-5/8 Handrail Height (in.): 31-5/8 Step Material: Serrated Steel
Wheel Quantity/Diameter/Width (in.): (2) 4 x 1-1/4 Wheel Type: Poly-on-Poly
