Model Details

LAD-PW-32-9-G

Printer Friendly
LAD-PW-32-9-G

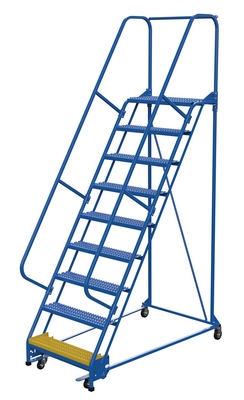

Steel Standard Slope Ladder 58 Degree 9 Grip Strut 30-1/4 In. Step Width 350 Lb. Capacity Blue

The standard slope ladder is a portable warehouse ladder for every-day use applications. Grip strut steps, handrail included, welded square tubular steel construction with powder-coat blue finish. Rubber feet provided for floor protection. Unit has bottom step lock casters for safe use when climbing.

  • Portable design easily moves through the warehouse
  • Top tread design provides a safe non-slip grip
  • Bottom step caster lock provides added safety when climbing
  • Heavy-duty formed steel construction offers maximum strength
Total Ship Wt.(lbs.): 356 (only 1 package) Size: 38.9375"W x 68.875"L x 120"H Color: Blue

Uniform Capacity (lb.): 350 Step Angle (degrees): 58 Step Depth (in.): 7
Top Step Depth (in.): 14 Step Length (in.): 30-1/4 Step (qty.): 9
Rear Caster Quantity/Diameter/Width (in.): (2) 4x1-1/4 Rear Caster Material: Poly-on-Poly Rear Caster Type: Rigid
Front Caster Quantity/Diameter/Width (in.): (2) 3x1-1/4 Front Caster Material: Poly-on-Poly Front Caster Type: Spring Loaded Swivel
Handrail: Yes Step Type: Grip Strut OSHA: 1910.29
ANSI: A14.7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-PW-32-9-G
LAD-PW-32-9-G

Steel Standard Slope Ladder 58 Degree 9 Grip Strut 30-1/4 In. Step Width 350 Lb. Capacity Blue

The standard slope ladder is a portable warehouse ladder for every-day use applications. Grip strut steps, handrail included, welded square tubular steel construction with powder-coat blue finish. Rubber feet provided for floor protection. Unit has bottom step lock casters for safe use when climbing.

  • Portable design easily moves through the warehouse
  • Top tread design provides a safe non-slip grip
  • Bottom step caster lock provides added safety when climbing
  • Heavy-duty formed steel construction offers maximum strength
Dimensions: 38.9375"W x 68.875"L x 120"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215126205 GTIN: 00691215126205
Warranty: -- Shipping Weight: 356 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Step Angle (degrees): 58 Step Depth (in.): 7
Top Step Depth (in.): 14 Step Length (in.): 30-1/4 Step (qty.): 9
Rear Caster Quantity/Diameter/Width (in.): (2) 4x1-1/4 Rear Caster Material: Poly-on-Poly Rear Caster Type: Rigid
Front Caster Quantity/Diameter/Width (in.): (2) 3x1-1/4 Front Caster Material: Poly-on-Poly Front Caster Type: Spring Loaded Swivel
Handrail: Yes Step Type: Grip Strut OSHA: 1910.29
ANSI: A14.7
