Model Details

← All Products- ← Ergonomic Solutions- ← Pallet Truck Accessories -← Pallet Truck Caddies- P-CADDY-CWN-HDW

P-CADDY-CWN-HDW

Printer Friendly
Available
P-CADDY-CWN-HDW
P-CADDY-CWN-HDW

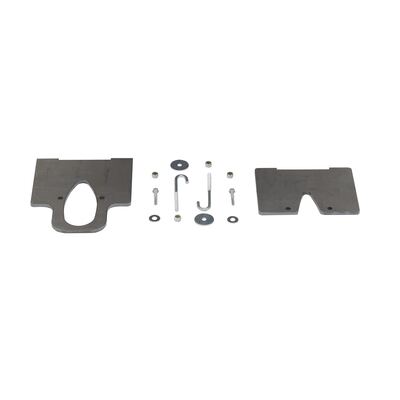

Pallet Truck Caddy Hardware Kit Unfinished Gray

A pallet truck caddy hardware kit makes the installation process easier! With all of the proper pieces included, one can now simply get the caddy fixed into the correct position. Screws, nuts, washers, and more are all included!

  • 12 hardware pieces included
  • Durable strength construction
  • Convenient for unit detachment, if needed
  • Kit design takes guessing out of installation
Assembled Wt.(lbs.): 4.55 Assembled Size: "W x "L x "H

Total Ship Wt.(lbs.): 6 (only 1 package) Package 1 Size: 5"W x 7"D x 3"H Color: GRAY Non-Returnable

Hex Nut Quantity: 2 Grade A Zinc Plated Hex Nut Size (in.): 1/4-20 Washer Quantity: 2
USS Zinc Plated Washer Size (in.): 1/4 Lock Nut Quantity: 2 Nylon Grade 2 Zinc Finish Lock Nut Size (in.): 1/4
Screw Quantity: 2 Screw Size (mm.): 5.55 Screw Thread Count: 24
Fender Washer Quantity: 2 Steel Fender Washer Size (in.): 1/4 J-Bolt Quantity: 2
Interior Bracket Quantity: 1 Interior Bracket Length (in.): 4-7/8 Interior Bracket Width (in.): 6-1/2
Interior Bracket Depth (in.): 1/4 Interior Bracket Material: Unfinished Hot Rolled Steel Interior Bracket Steel Grade: A-36
Exterior Bracket Quantity: 1 Exterior Bracket Length (in.): 7-7/8 Exterior Bracket Width (in.): 6-1/2
Exterior Bracket Depth (in.): 1/4 Exterior Bracket Material: Unfinished Hot Rolled Steel Exterior Bracket Steel Grade: A-36

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Limited Warranty

Details For Model: P-CADDY-CWN-HDW
Available
P-CADDY-CWN-HDW

Pallet Truck Caddy Hardware Kit Unfinished Gray

A pallet truck caddy hardware kit makes the installation process easier! With all of the proper pieces included, one can now simply get the caddy fixed into the correct position. Screws, nuts, washers, and more are all included!

  • 12 hardware pieces included
  • Durable strength construction
  • Convenient for unit detachment, if needed
  • Kit design takes guessing out of installation
Dimensions: Sell UOM: -- Color: GRAY
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 6 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Hex Nut Quantity: 2 Grade A Zinc Plated Hex Nut Size (in.): 1/4-20 Washer Quantity: 2
USS Zinc Plated Washer Size (in.): 1/4 Lock Nut Quantity: 2 Nylon Grade 2 Zinc Finish Lock Nut Size (in.): 1/4
Screw Quantity: 2 Screw Size (mm.): 5.55 Screw Thread Count: 24
Fender Washer Quantity: 2 Steel Fender Washer Size (in.): 1/4 J-Bolt Quantity: 2
Interior Bracket Quantity: 1 Interior Bracket Length (in.): 4-7/8 Interior Bracket Width (in.): 6-1/2
Interior Bracket Depth (in.): 1/4 Interior Bracket Material: Unfinished Hot Rolled Steel Interior Bracket Steel Grade: A-36
Exterior Bracket Quantity: 1 Exterior Bracket Length (in.): 7-7/8 Exterior Bracket Width (in.): 6-1/2
Exterior Bracket Depth (in.): 1/4 Exterior Bracket Material: Unfinished Hot Rolled Steel Exterior Bracket Steel Grade: A-36
