RT-MS-62-AF

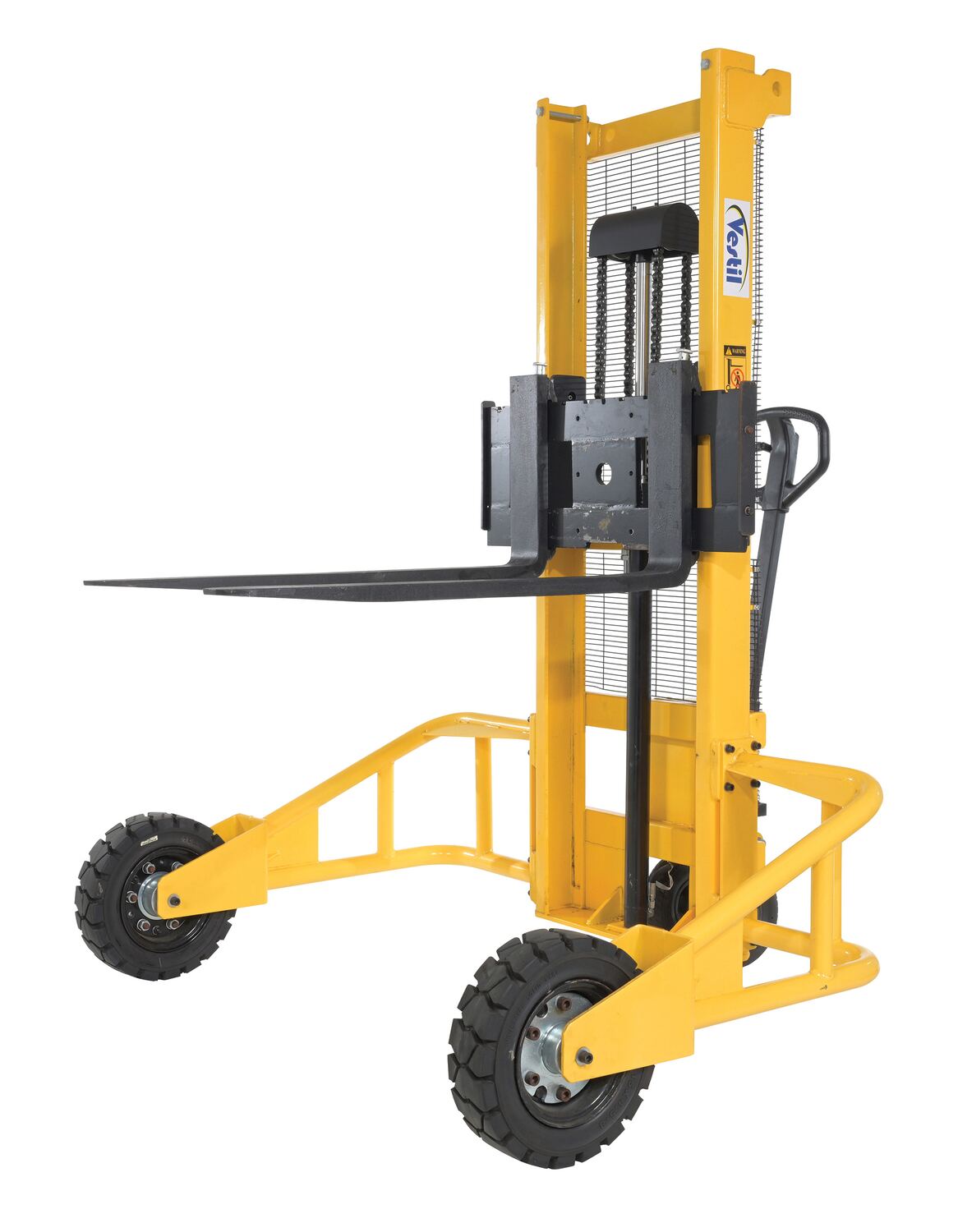

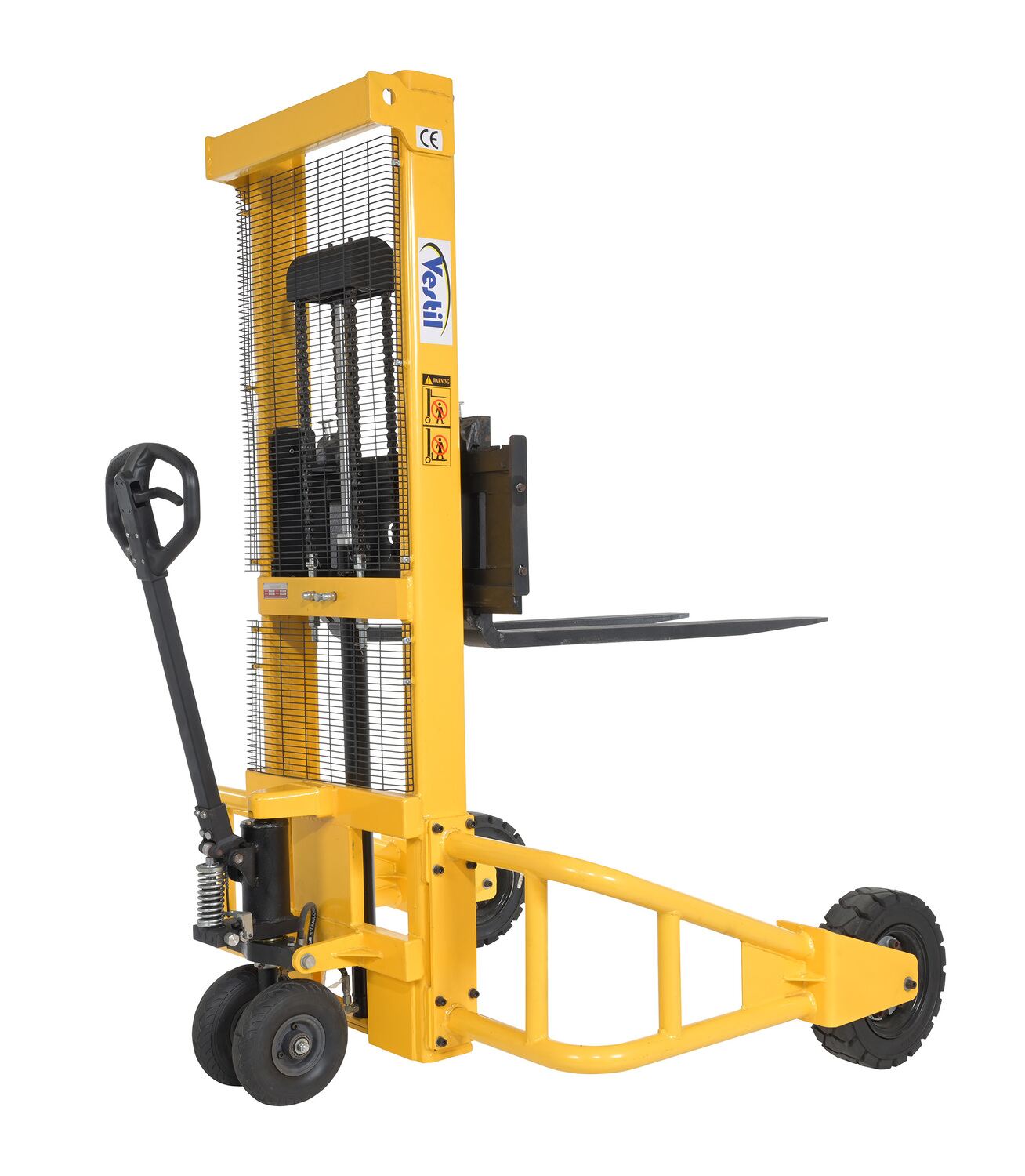

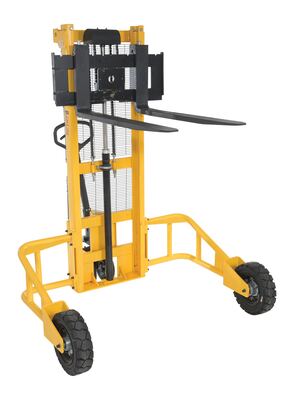

Steel Manual Rough Terrain Stacker 62 In. Raised Height 2,000 Lb. Capacity Yellow

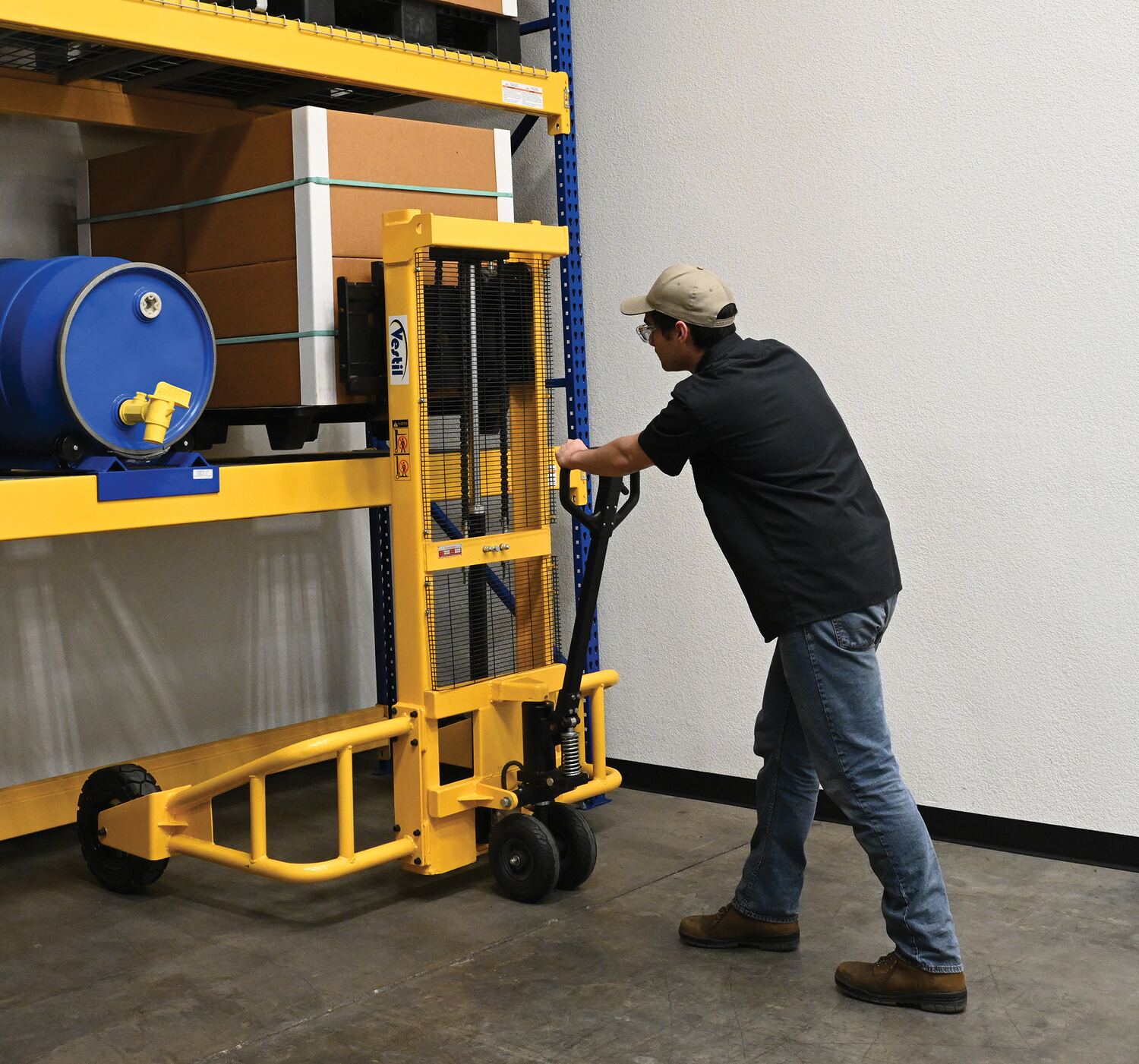

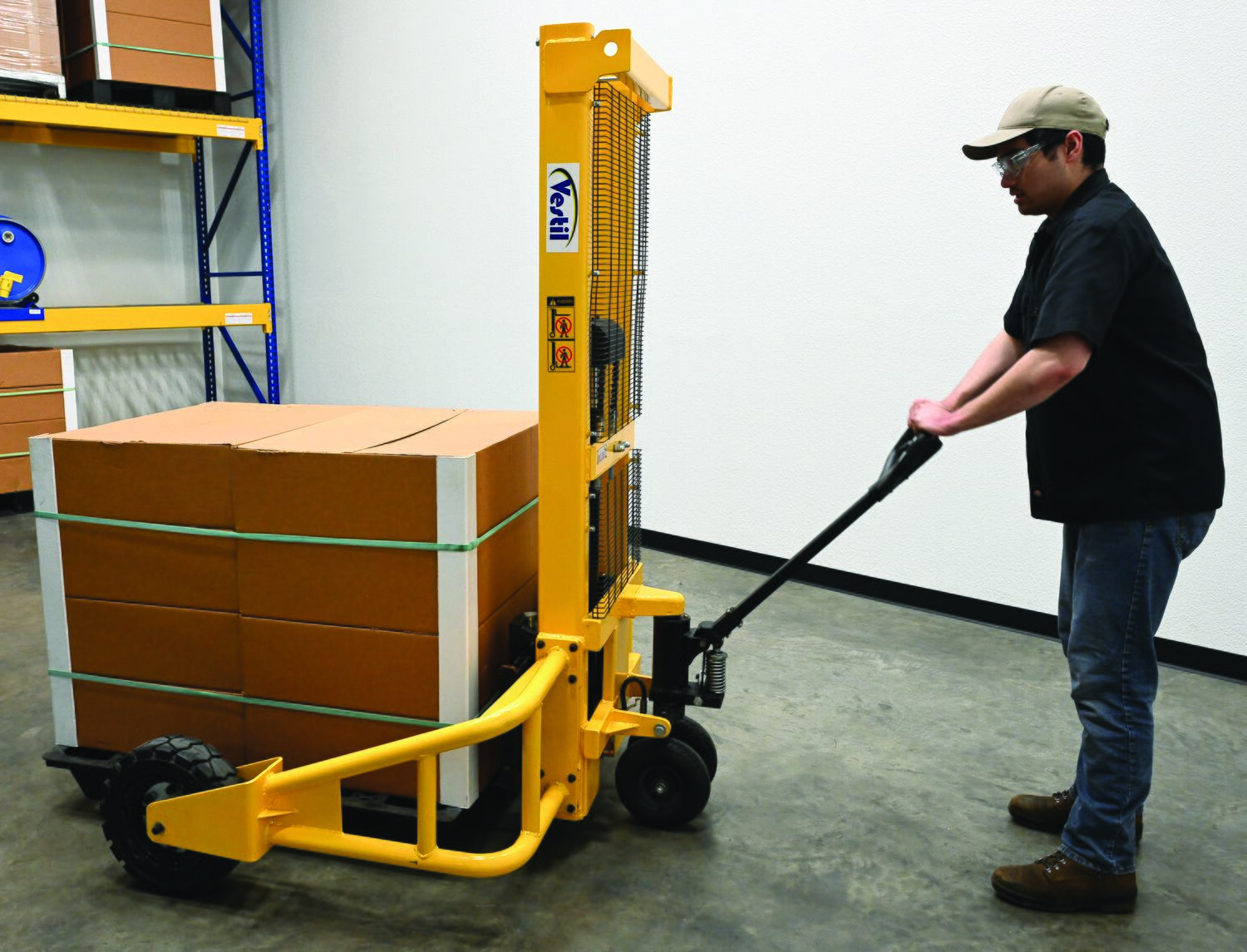

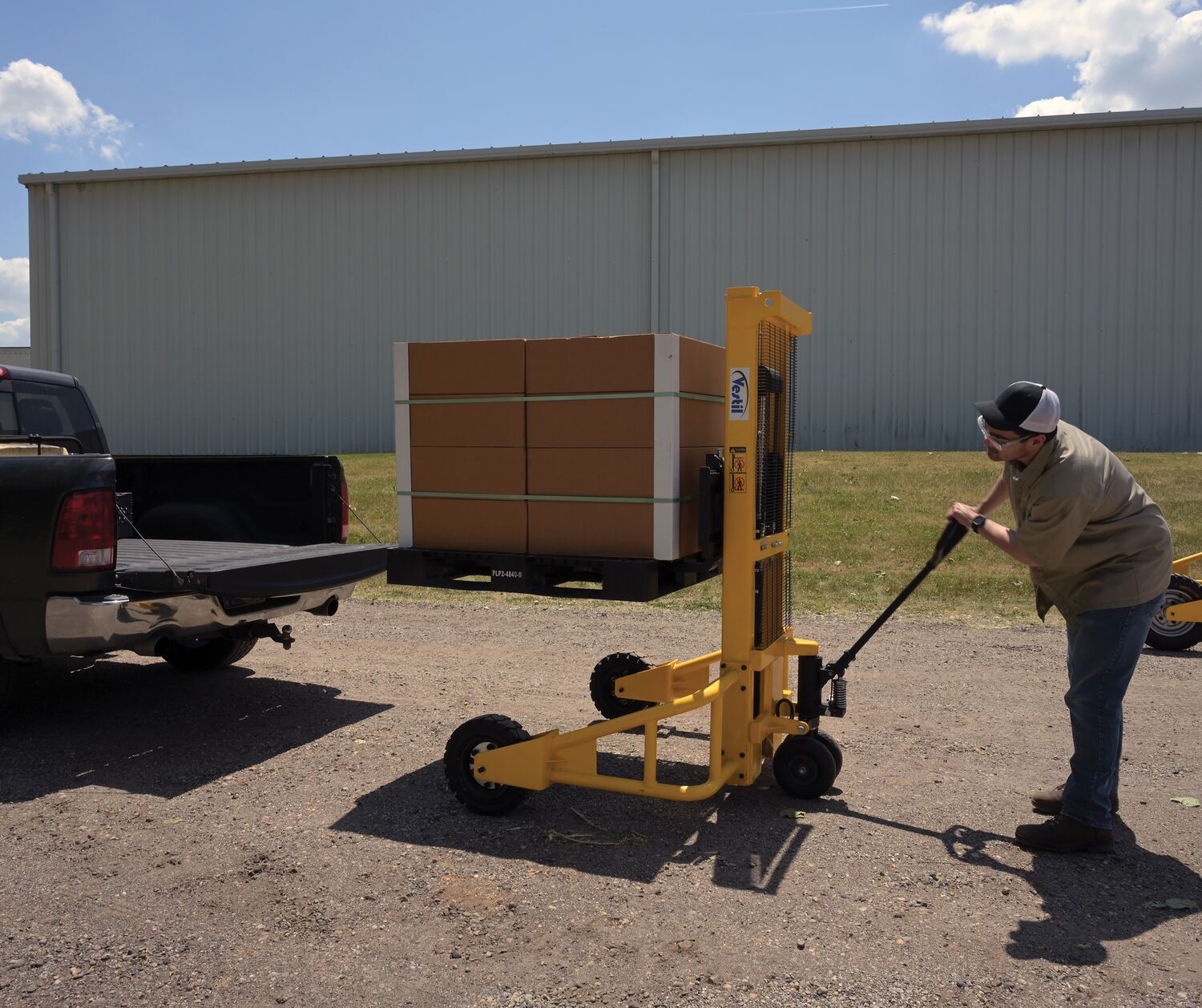

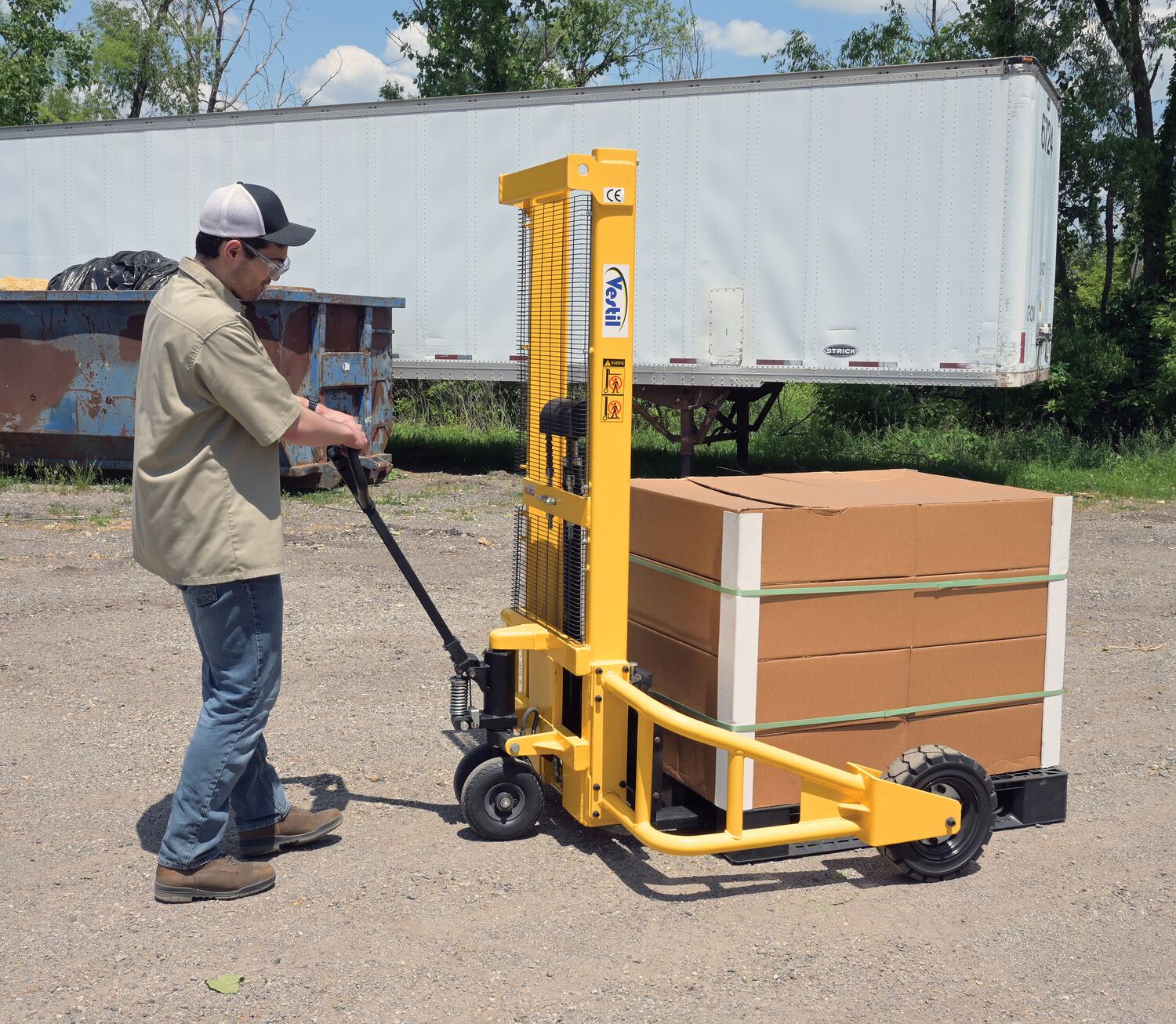

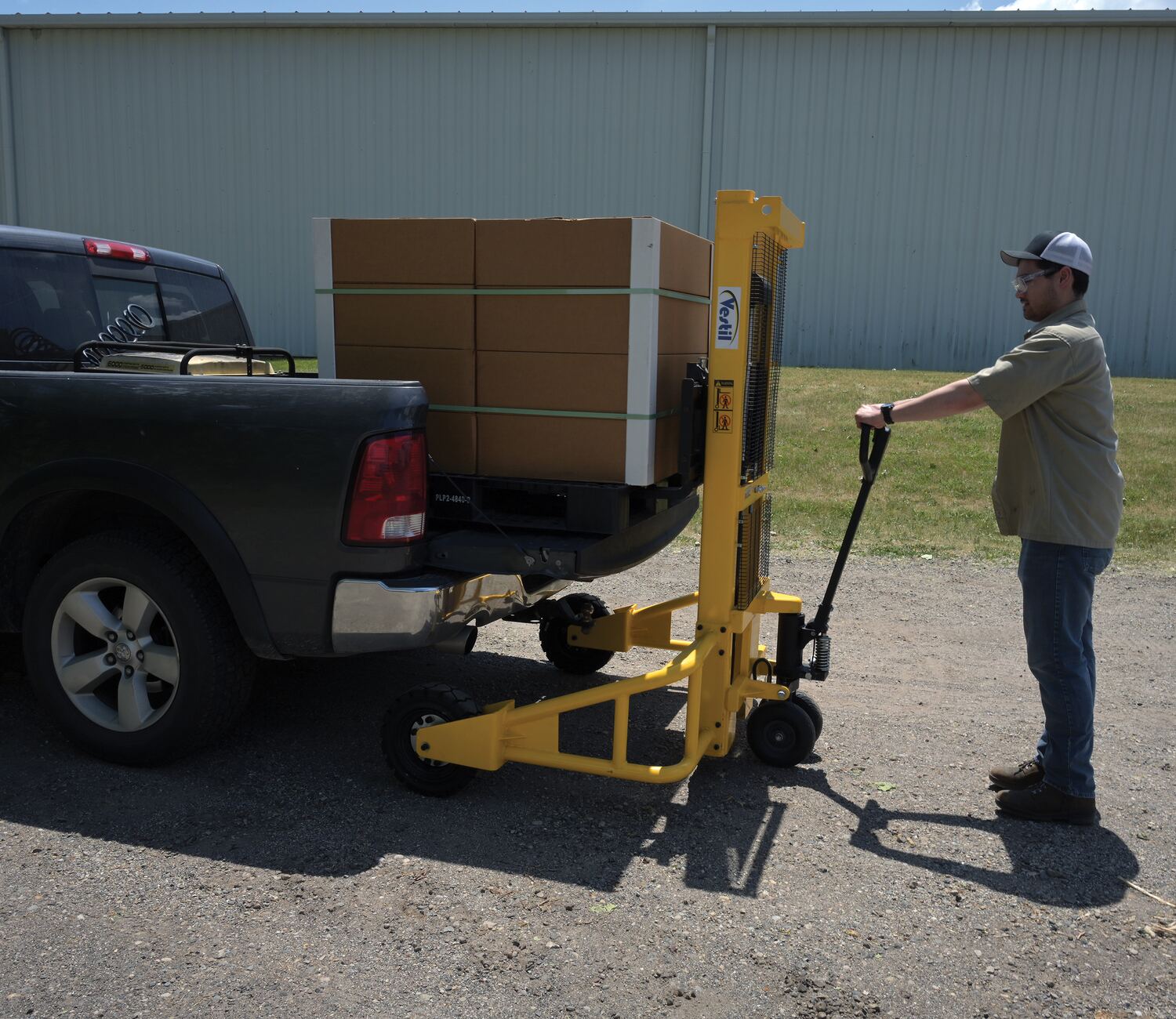

A rough terrain stacker is capable of going where other stackers can't. The manual design benefits the user by giving precise movement of the unit in particular areas. A simple handle pump lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

  • 2.125" to 62" service range

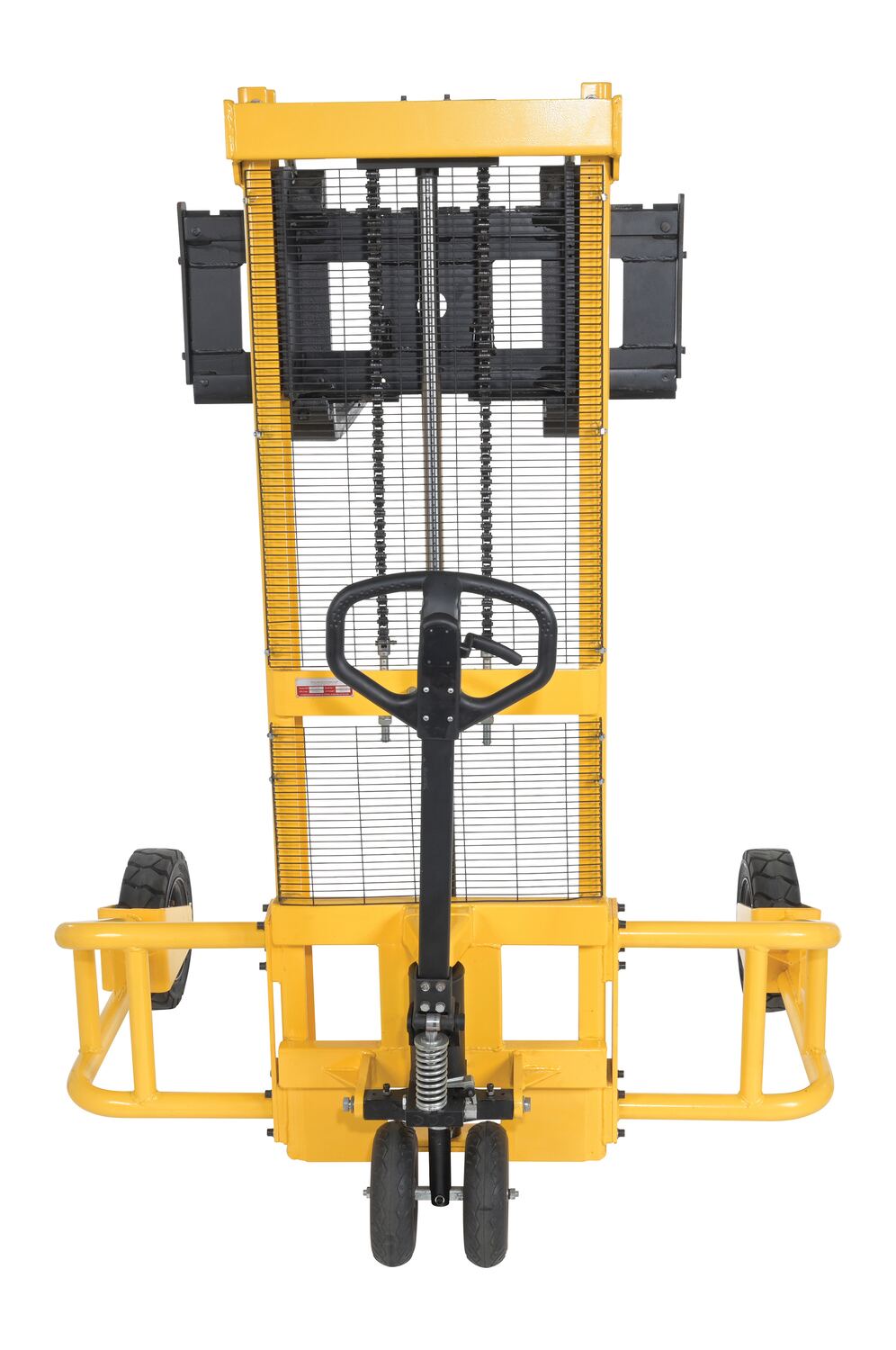

  • Wide, straddle based design

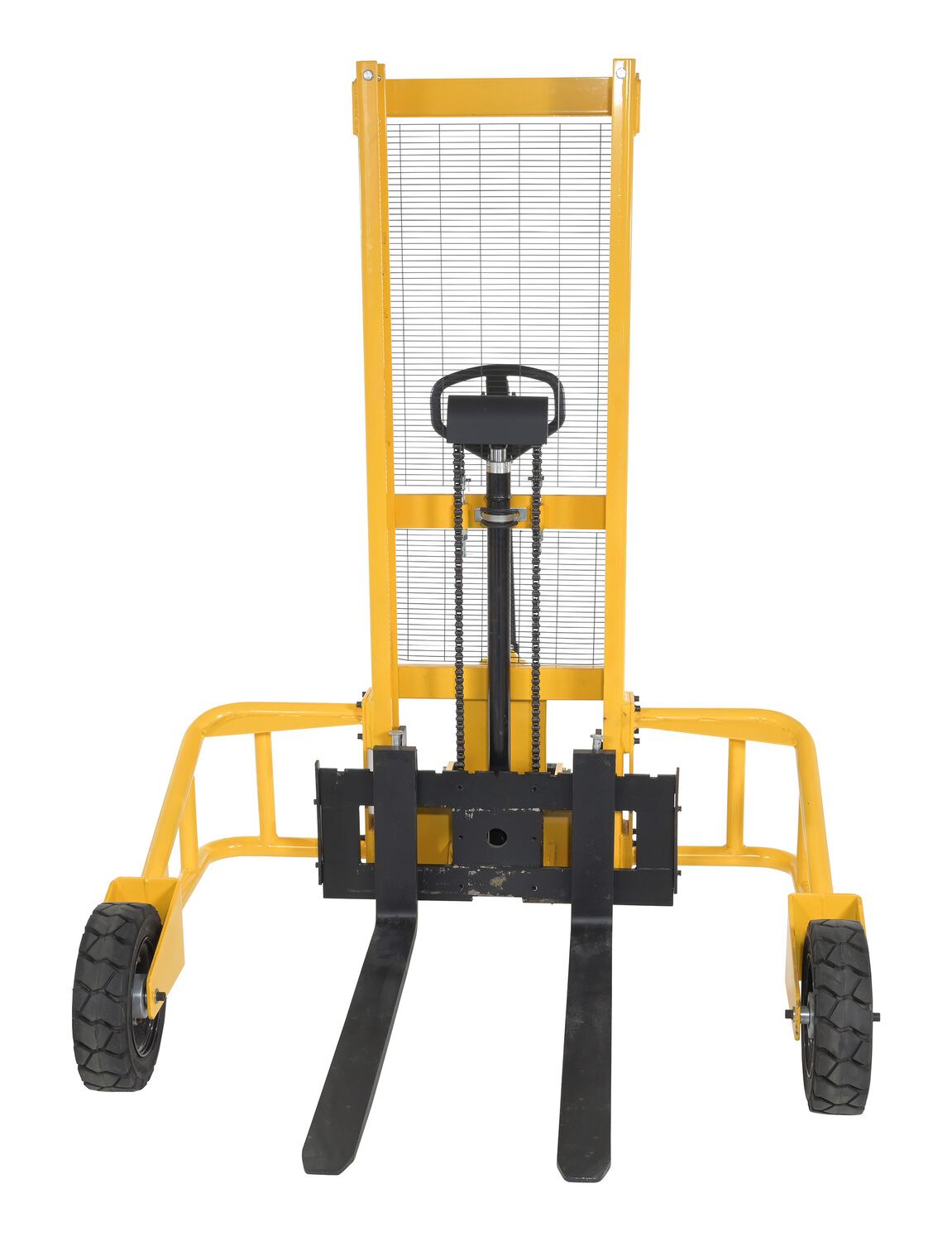

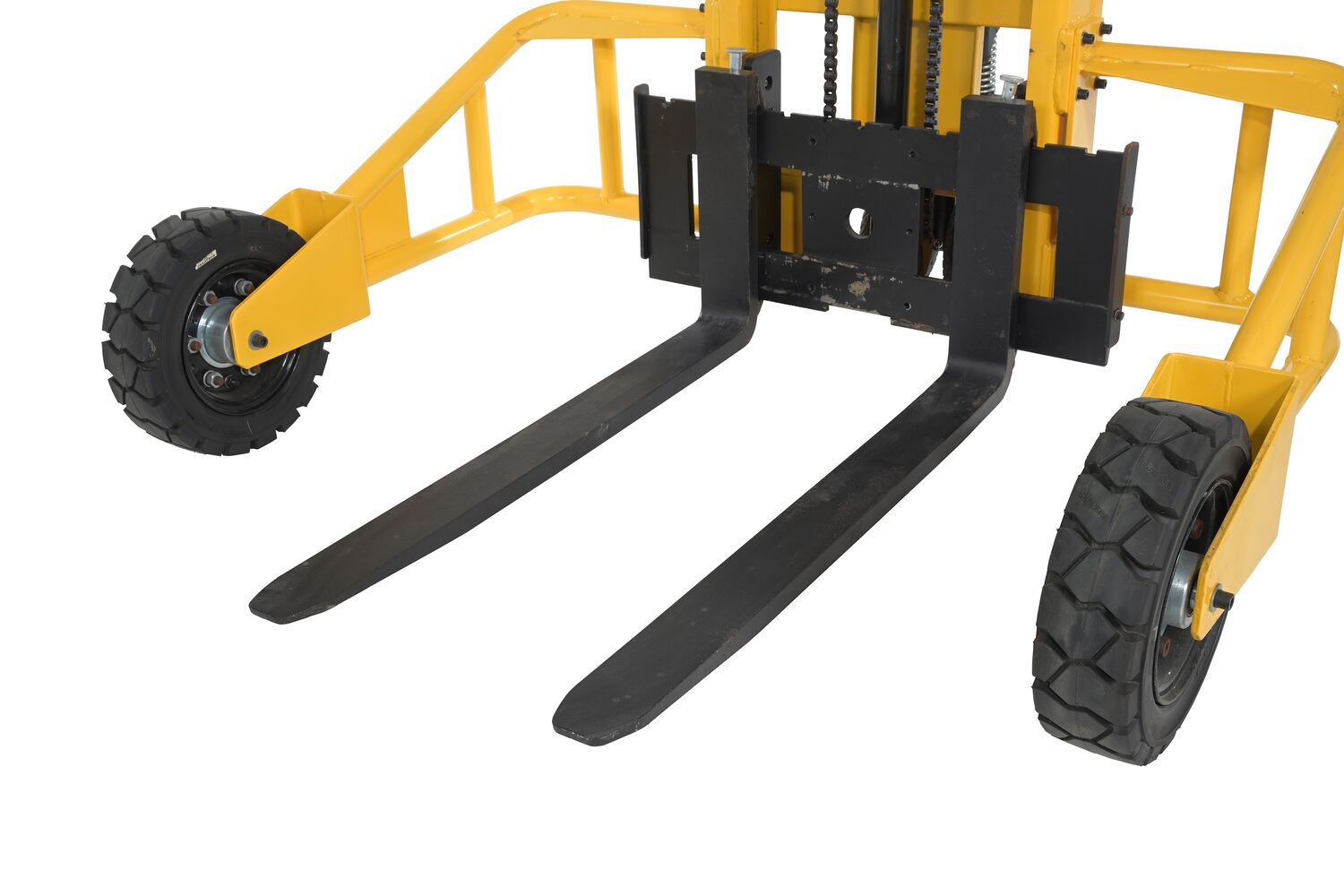

  • Adjustable forks
  • Full height wire-mesh back guard
Total Ship Wt.(lbs.): 868 (only 1 package) Size: 64"W x 63"L x 80"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 2,000 Raised Height: 62" Lowered Height: 2-1/8"

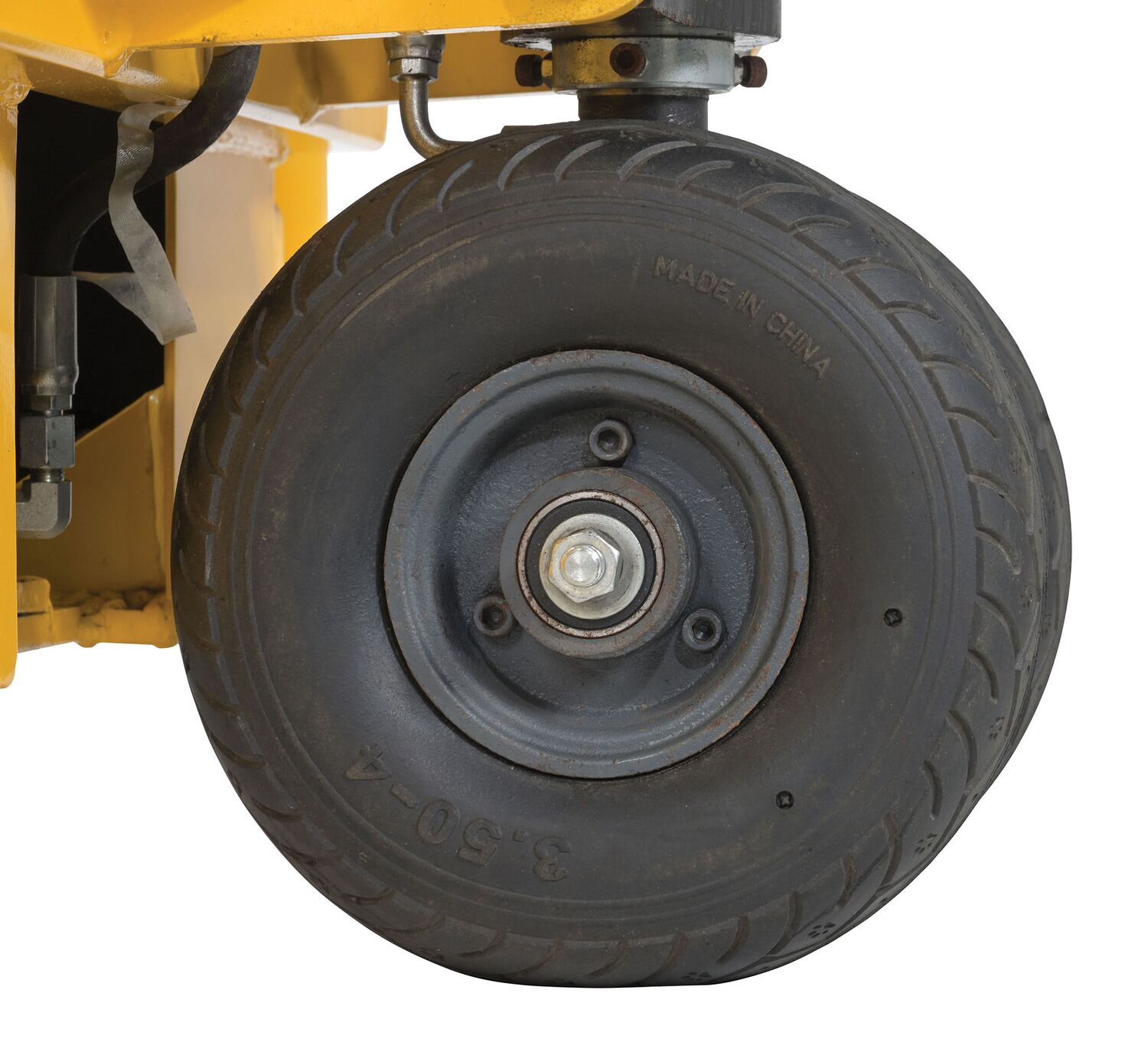

Fork (WxL): 4"x42" Handle Length (in): 49 Rubber Drive Wheel: (2) 3"x10"

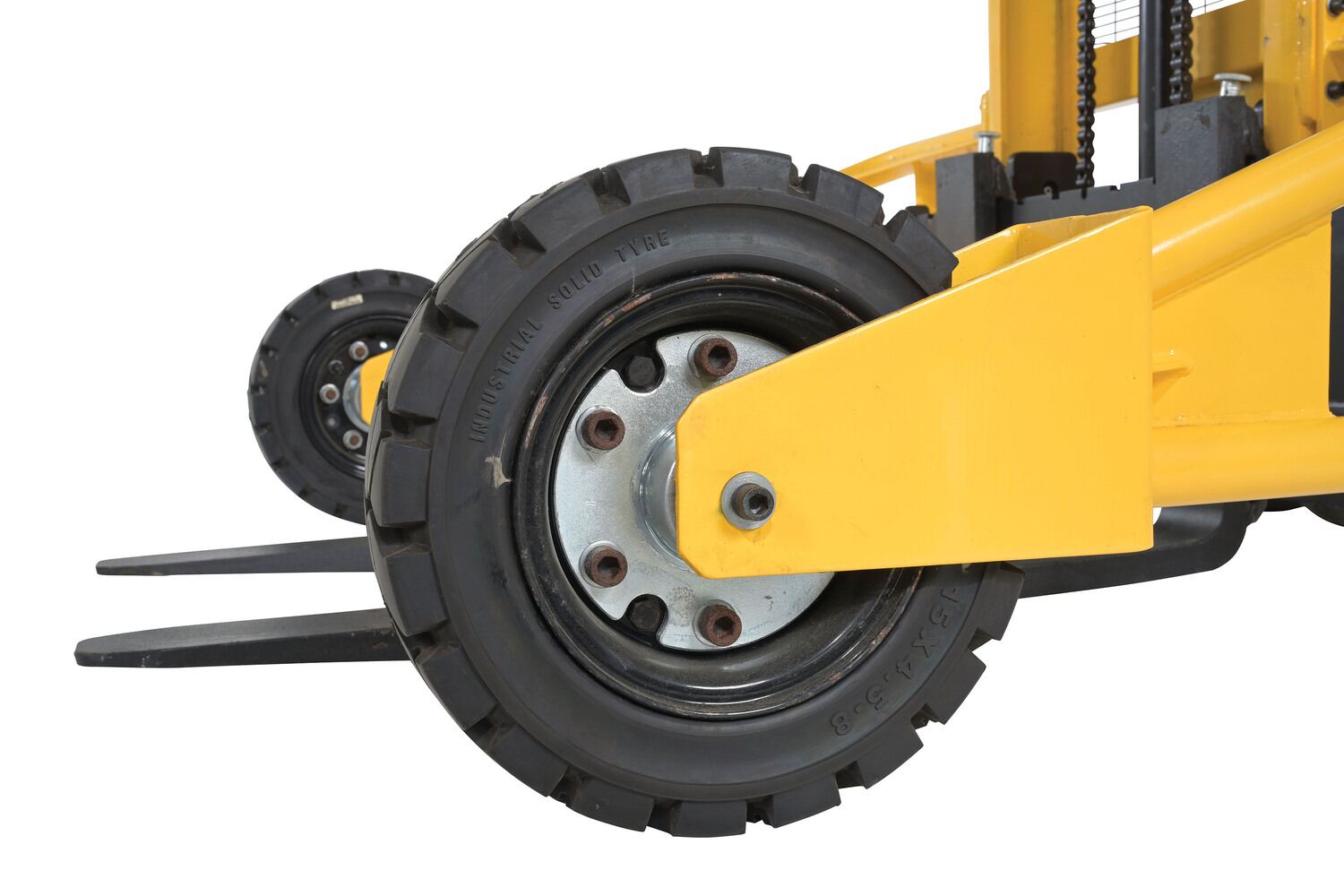

Rubber Front Wheel: (2) 4.5"x15"

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: RT-MS-62-AF
RT-MS-62-AF

Steel Manual Rough Terrain Stacker 62 In. Raised Height 2,000 Lb. Capacity Yellow

A rough terrain stacker is capable of going where other stackers can't. The manual design benefits the user by giving precise movement of the unit in particular areas. A simple handle pump lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

  • 2.125" to 62" service range
  • Wide, straddle based design
  • Adjustable forks
  • Full height wire-mesh back guard
Dimensions: 64"W x 63"L x 80"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215375719 GTIN: 00691215375719
Warranty: -- Shipping Weight: 868 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2,000 Raised Height: 62" Lowered Height: 2-1/8"
Fork (WxL): 4"x42" Handle Length (in): 49 Rubber Drive Wheel: (2) 3"x10"
Rubber Front Wheel: (2) 4.5"x15"
