Model Details
The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.
Uniform Capacity: 40000 | Individual Wheel Riser Length (in.): 96.0625 | Individual Wheel Riser Width (in.): 24 |
Individual Wheel Riser Height (in.): 12.25 | Width Between Wheel Risers (in.): 53.125 | Fork Pocket Width (in.): 7.5 |
Fork Pocket Height (in.): 2.5 | Fork Pocket Center (in.): 24 |
Details For Model: SWR-CPL-24-12-96 |
|||||||||||||||||||||||||

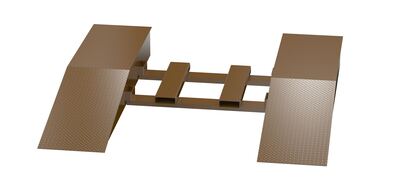

Steel Wheel Risers With Pick-Up Loop 96" X 24" X 12.25" 40,000 Lb. Capacity BrownThe steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.
|
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
