WP-3648

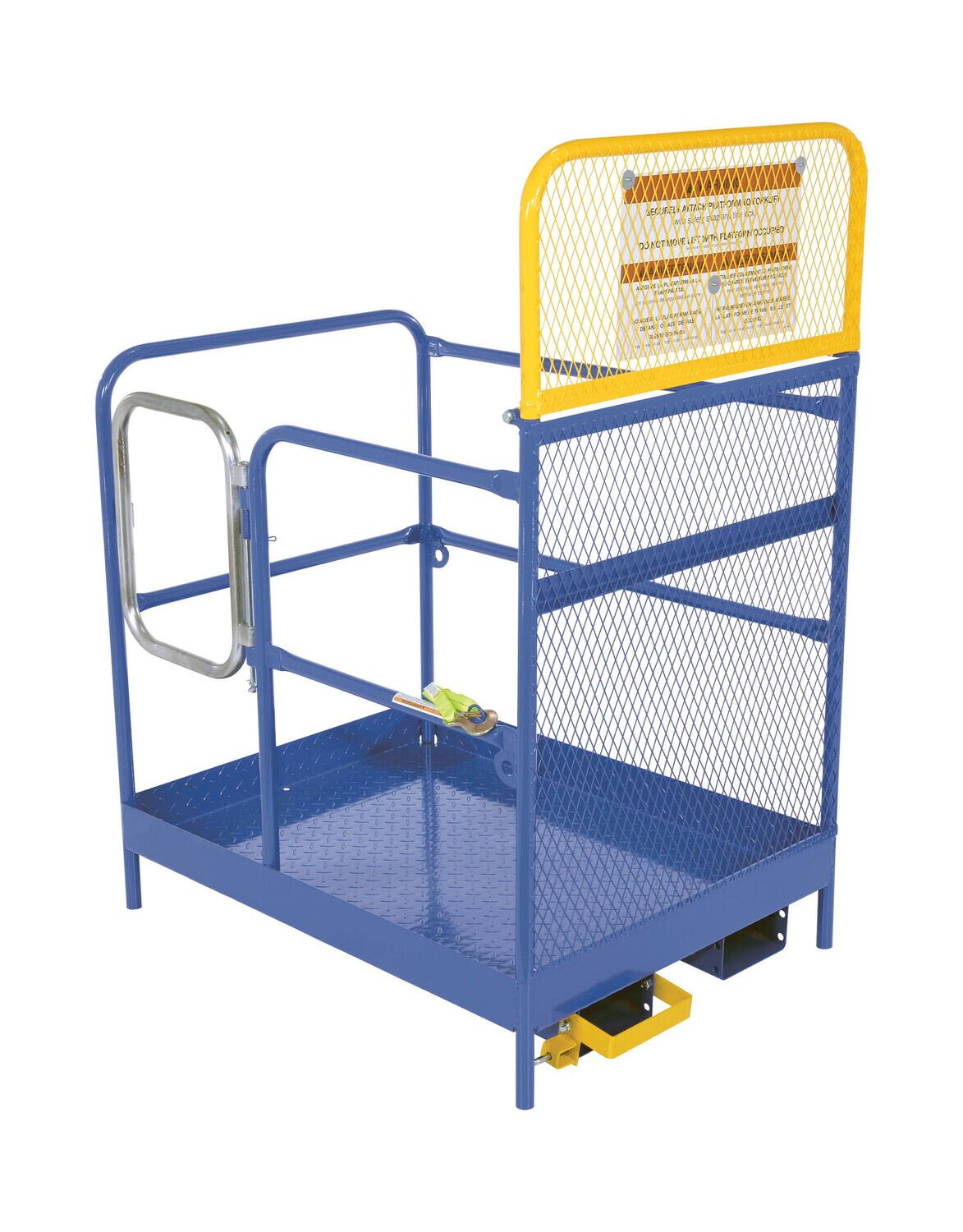

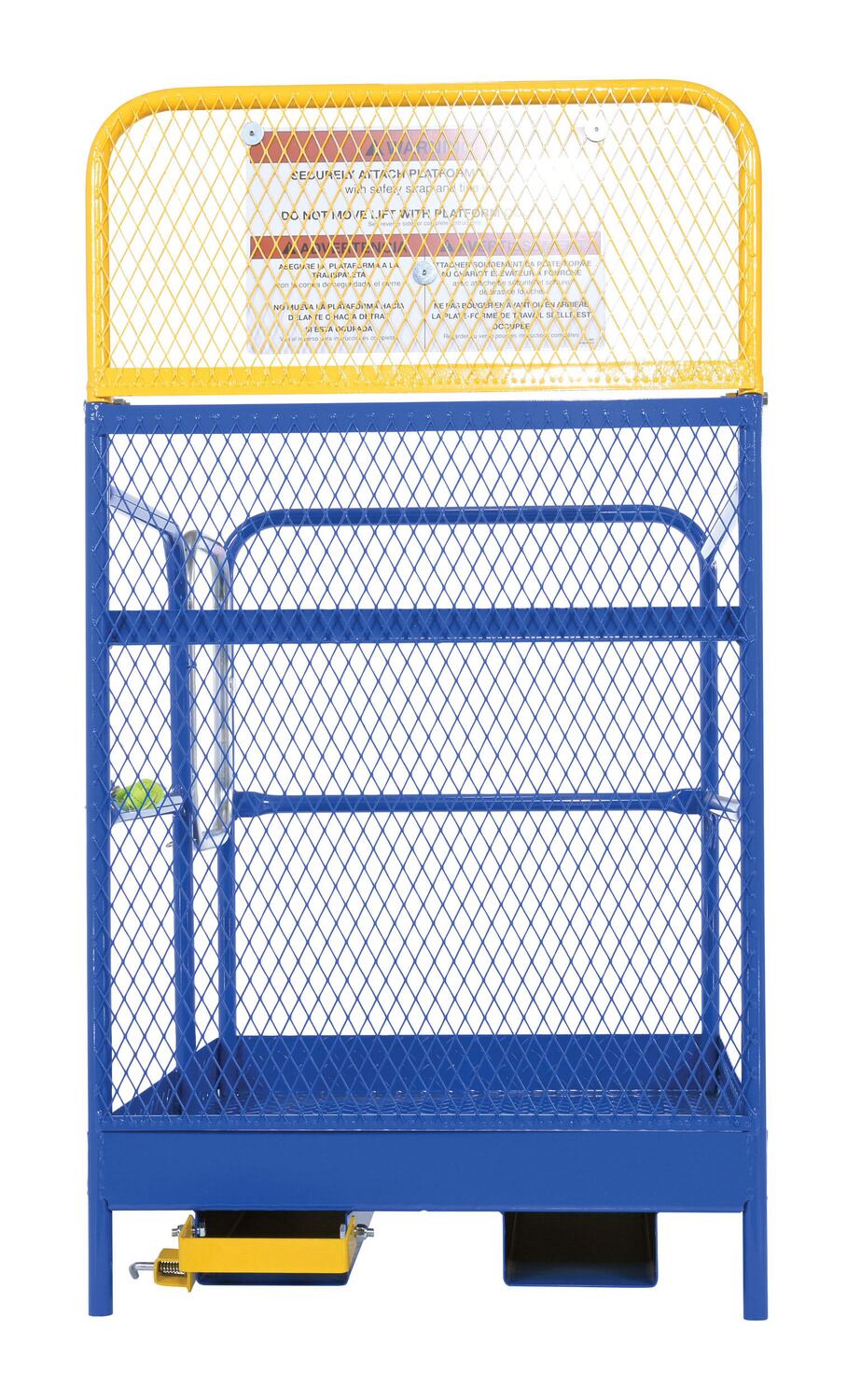

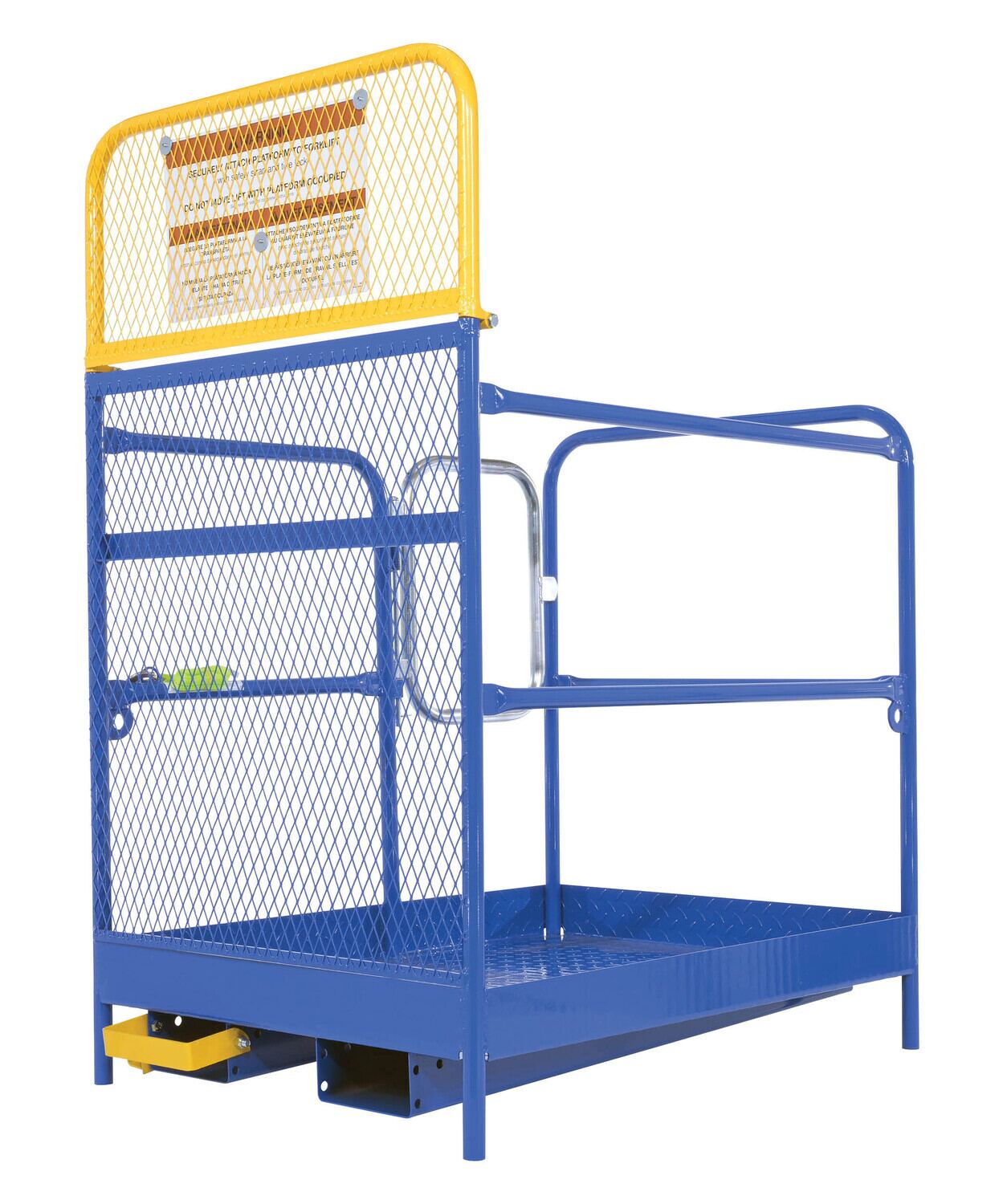

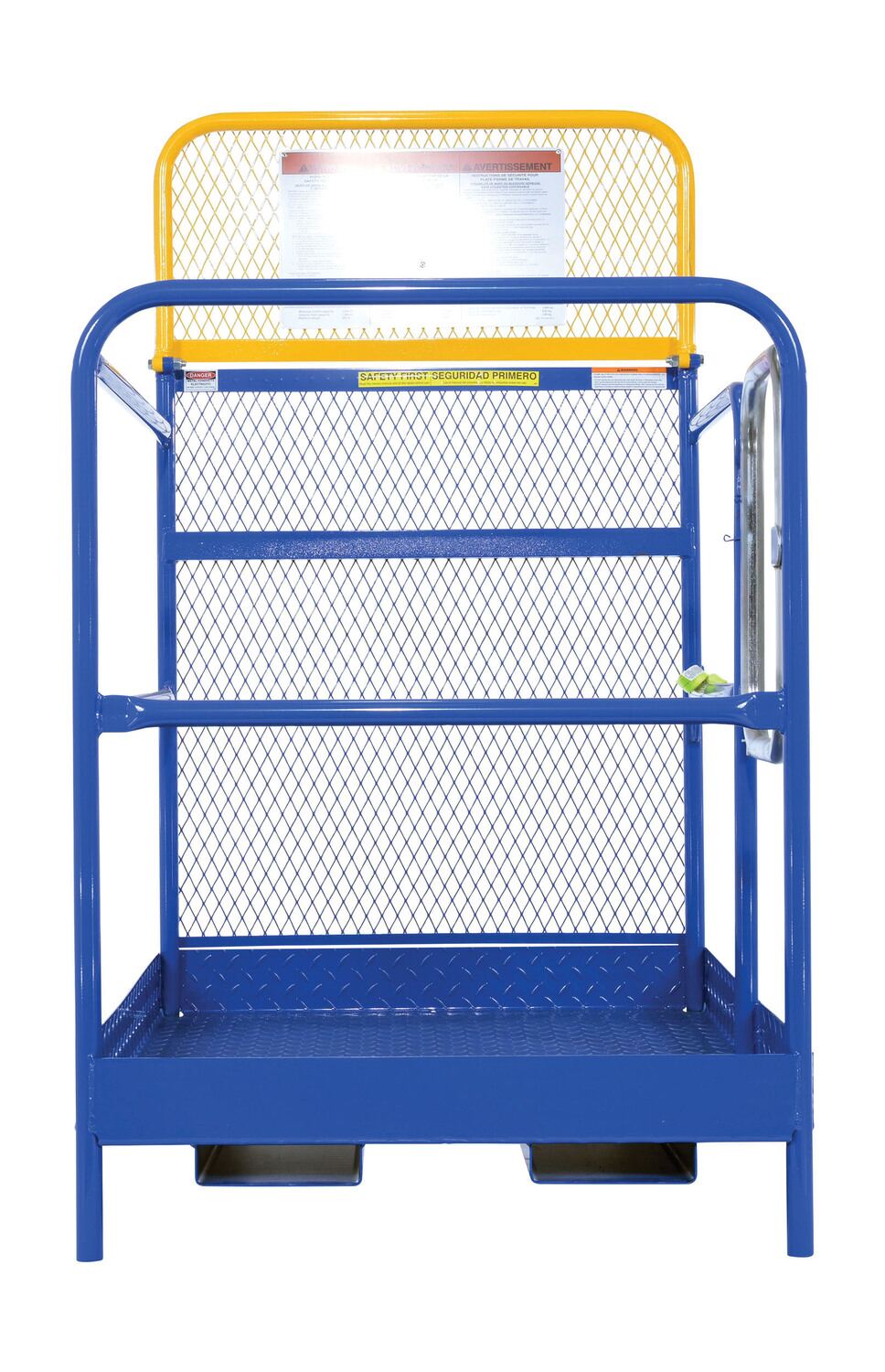

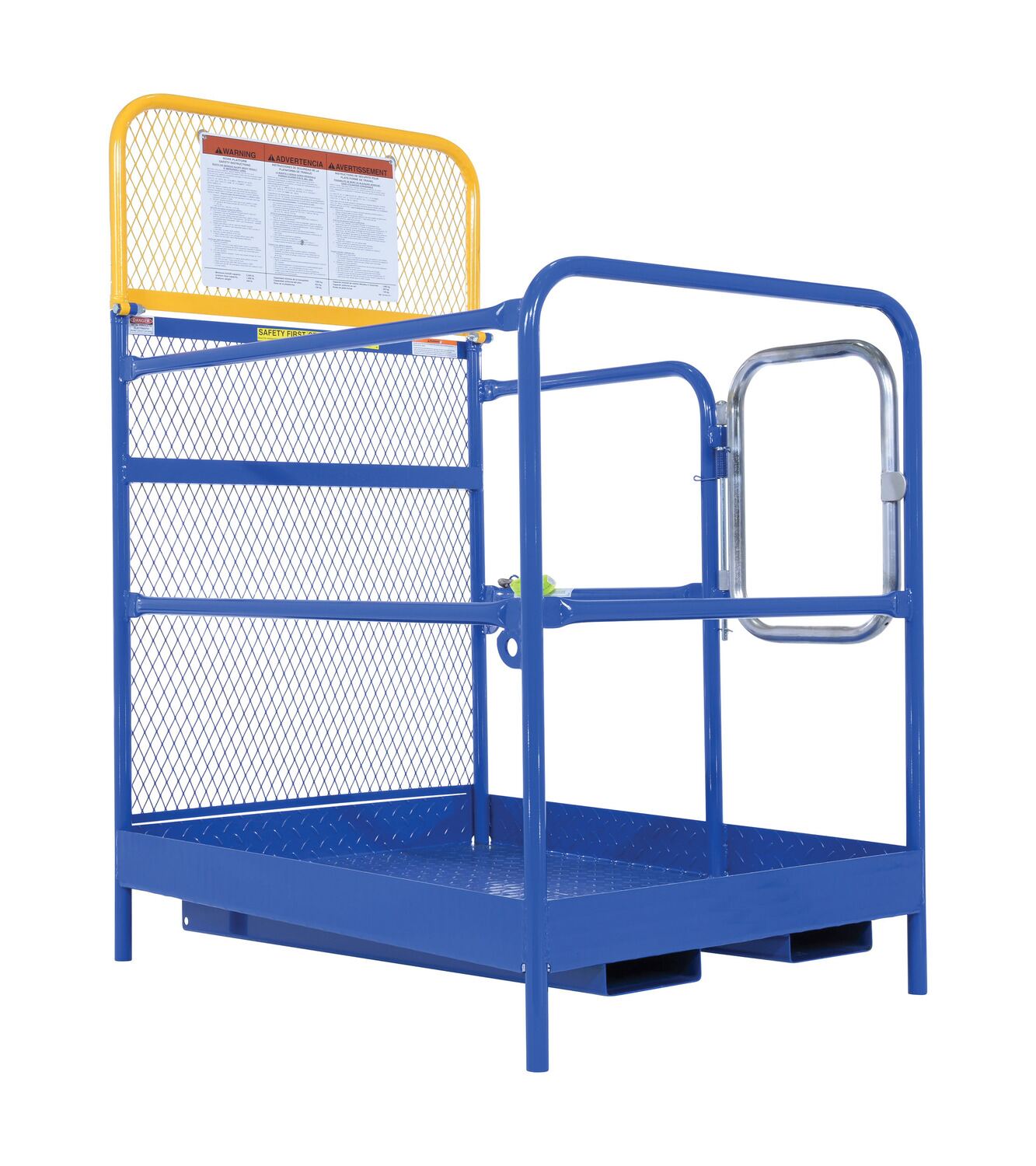

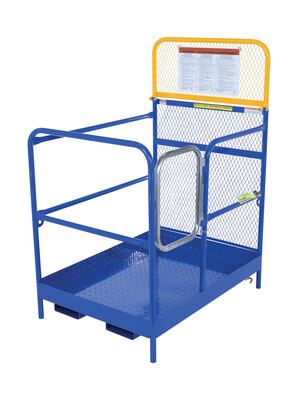

Steel Work Platform 36 In. x 48 In. 1,000 Lb. Capacity Blue

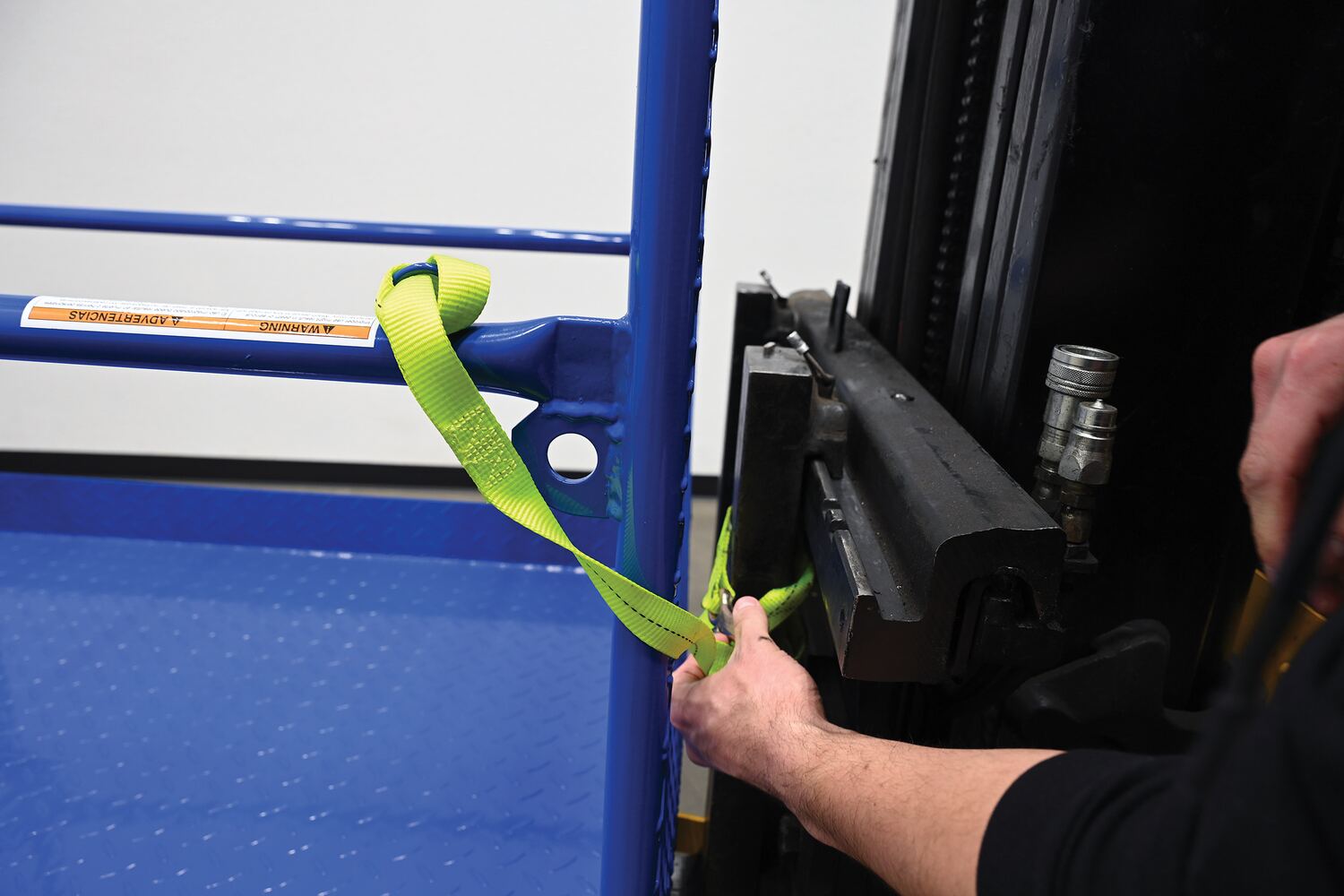

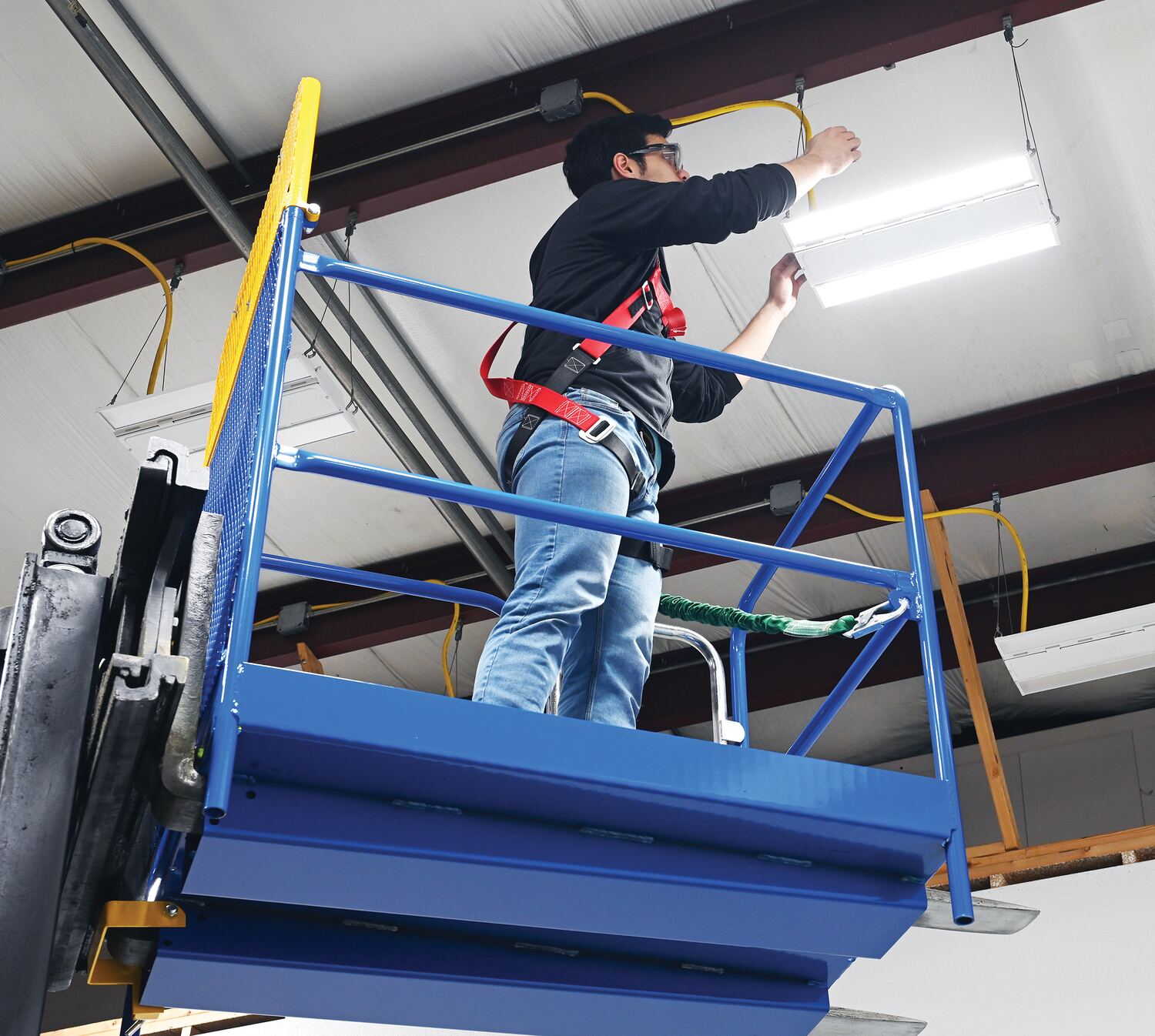

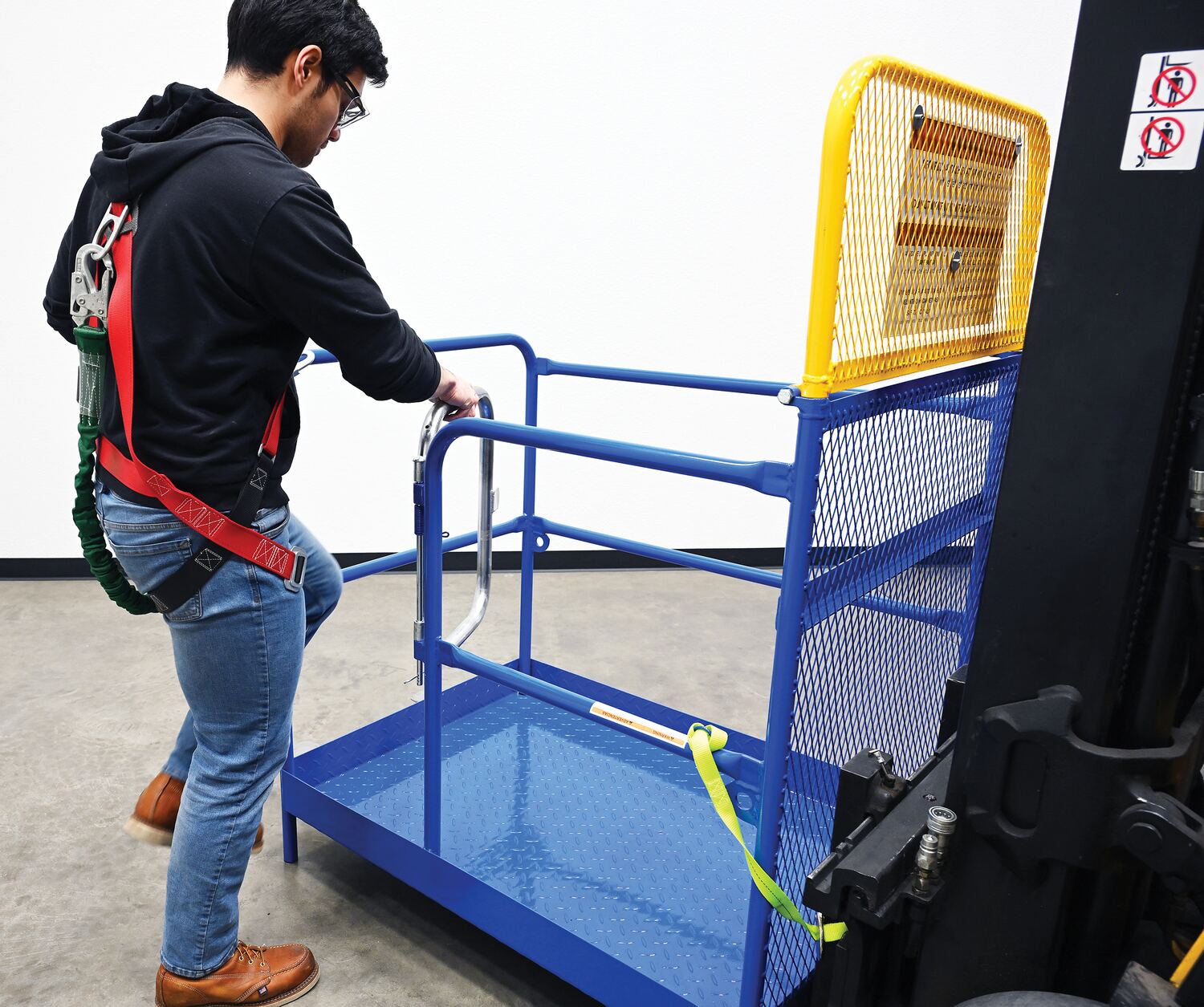

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides with expanded metal backing on the fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time.

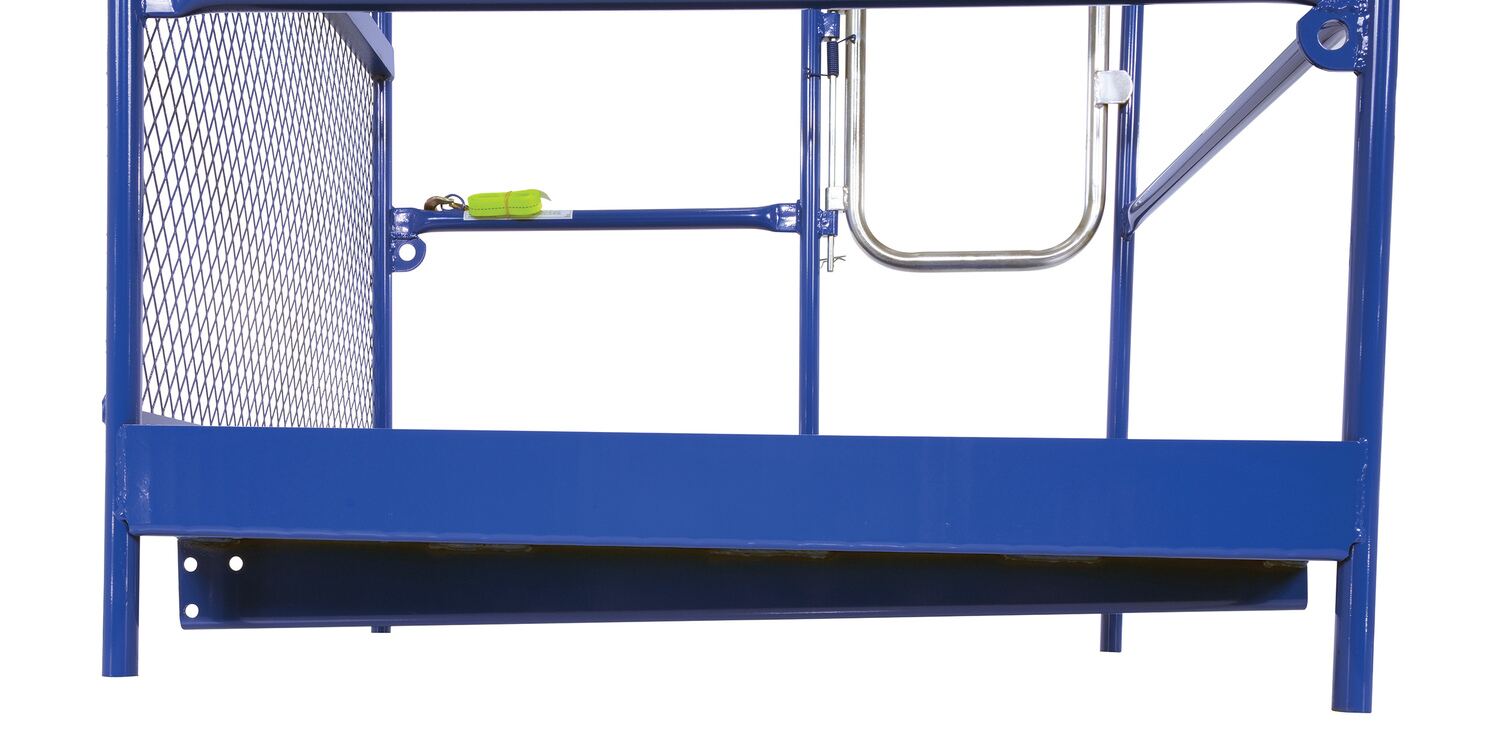

  • Patented automatic locking gate with extra chain lock ensures maximum safety

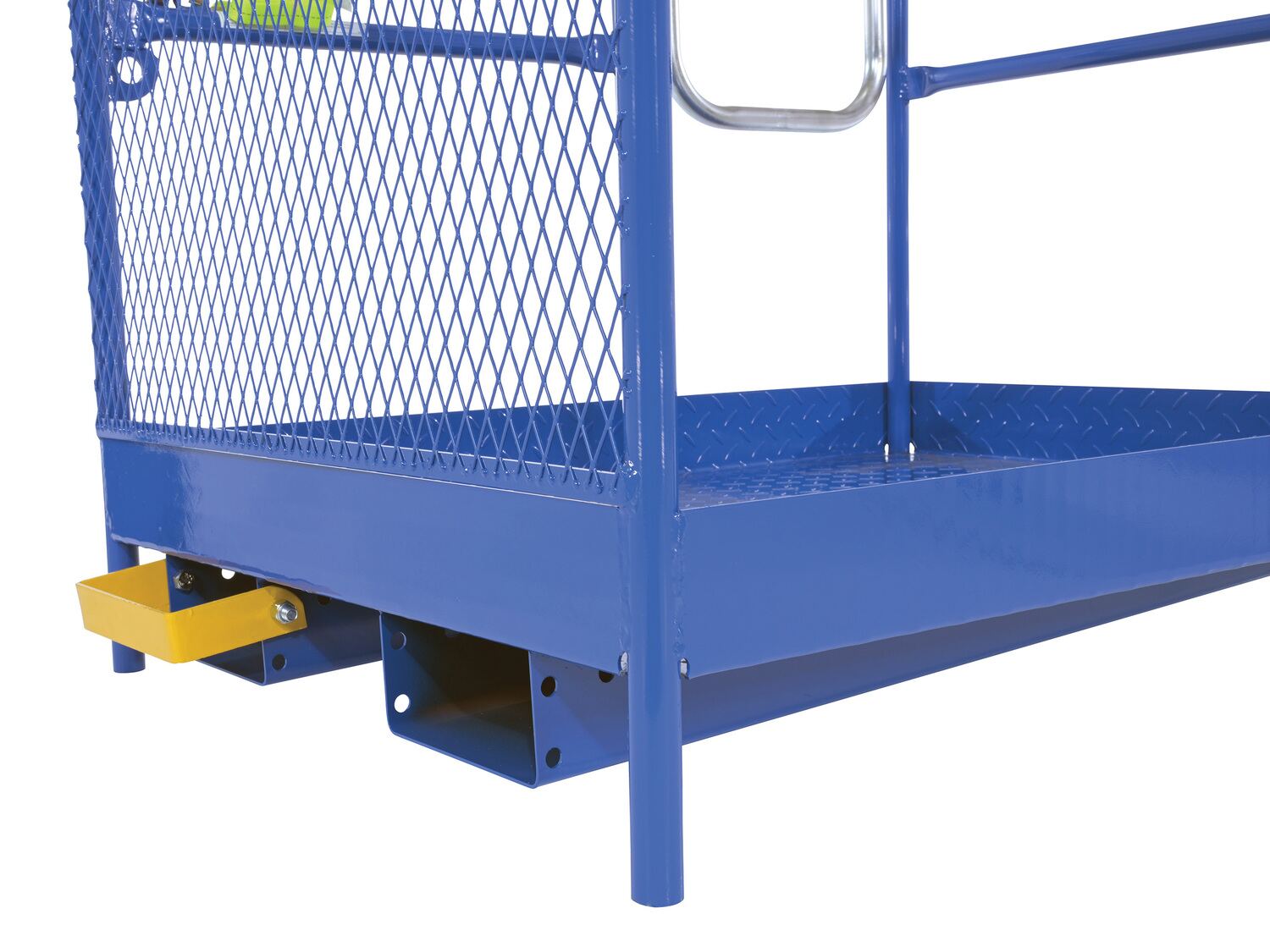

  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip

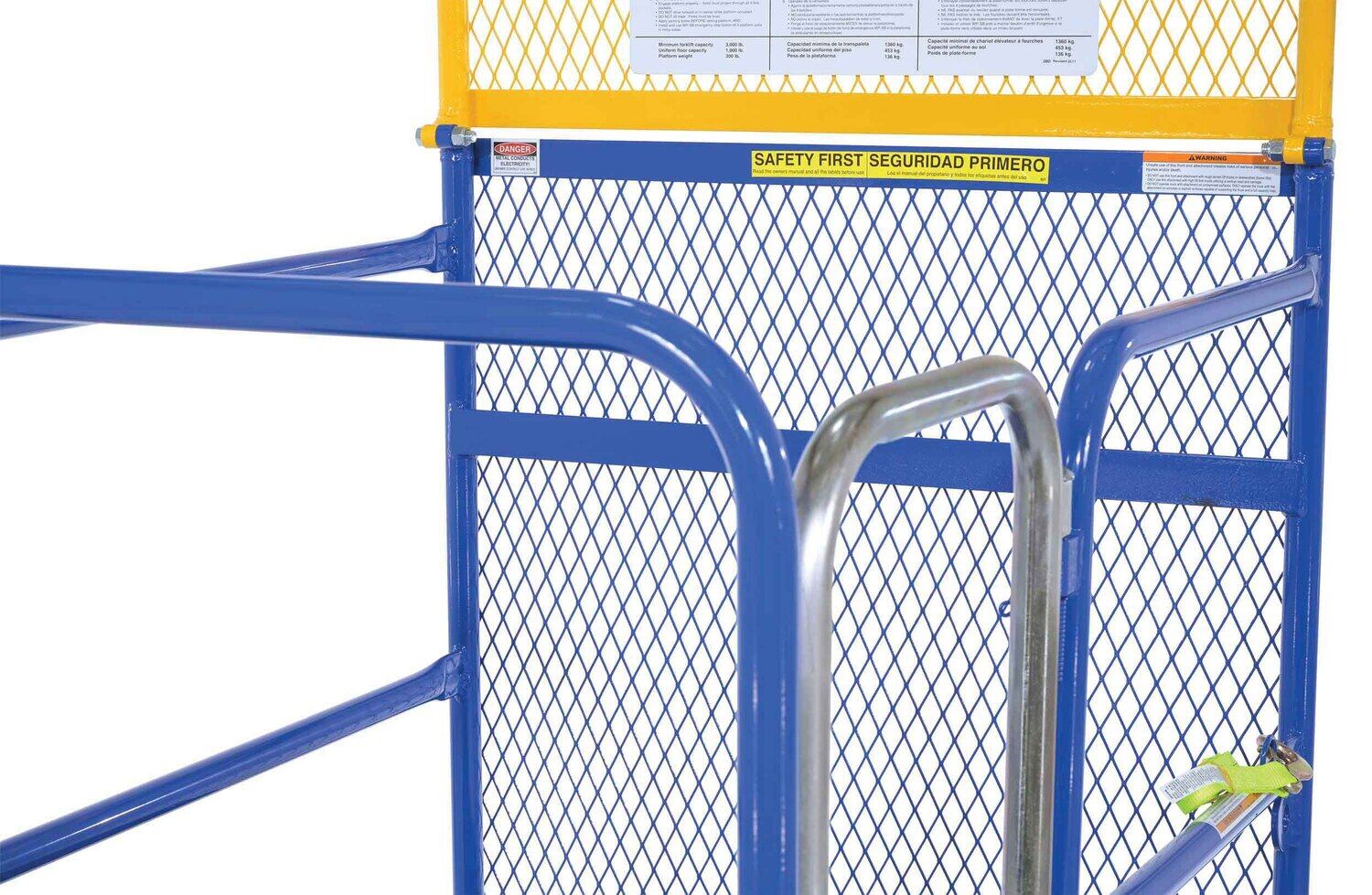

  • Dual handrails on three sides ensures worker safety
Total Ship Wt.(lbs.): 206 (only 1 package) Size: 36.1875"W x 51"L x 65.625"H Color: Blue (Frame), Yellow (Upper Back)

Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 16 Front and Rear Fork Pocket Usable Width (in.): 7-3/4
Rear Fork Pocket Usable Height (in.): 3-7/8 Front Fork Pocket Usable Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16

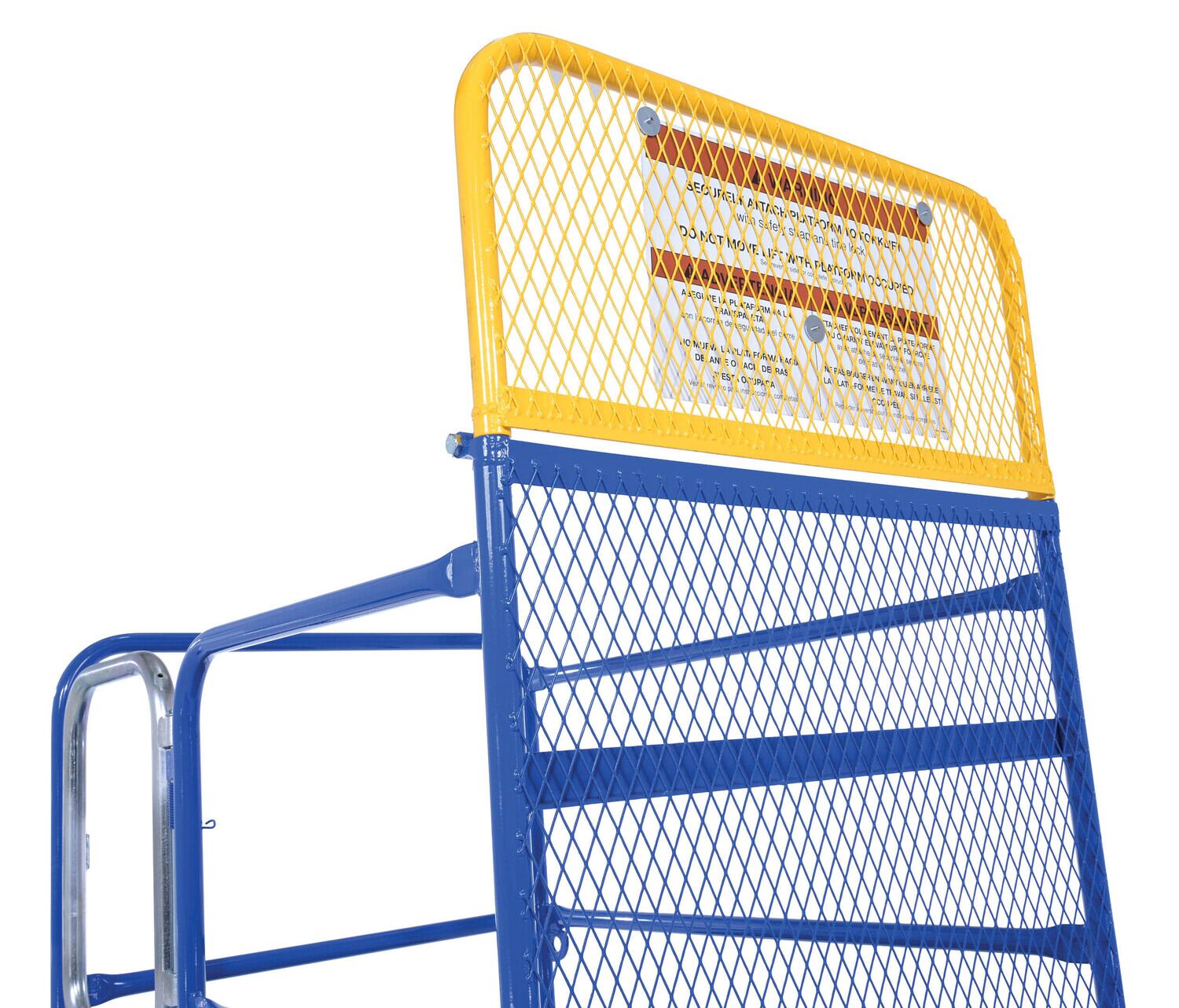

High Back Height (in.): 60 Overall Width (in.): 36-3/16 Usable Width (in.): 33-3/8
Overall Length (in.): 51 Usable Width (in.): 45-3/8 Anchor Point Capacity (lbs.): 350

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WP-3648
WP-3648

Steel Work Platform 36 In. x 48 In. 1,000 Lb. Capacity Blue

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides with expanded metal backing on the fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time.

  • Patented automatic locking gate with extra chain lock ensures maximum safety
  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip
  • Dual handrails on three sides ensures worker safety
Dimensions: 36.1875"W x 51"L x 65.625"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Upper Back)
Material: Steel UPC: 691215047630 GTIN: 00691215047630
Warranty: -- Shipping Weight: 206 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 16 Front and Rear Fork Pocket Usable Width (in.): 7-3/4
Rear Fork Pocket Usable Height (in.): 3-7/8 Front Fork Pocket Usable Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16
High Back Height (in.): 60 Overall Width (in.): 36-3/16 Usable Width (in.): 33-3/8
Overall Length (in.): 51 Usable Width (in.): 45-3/8 Anchor Point Capacity (lbs.): 350
