Model Details

WP-4848

Printer Friendly
WP-4848

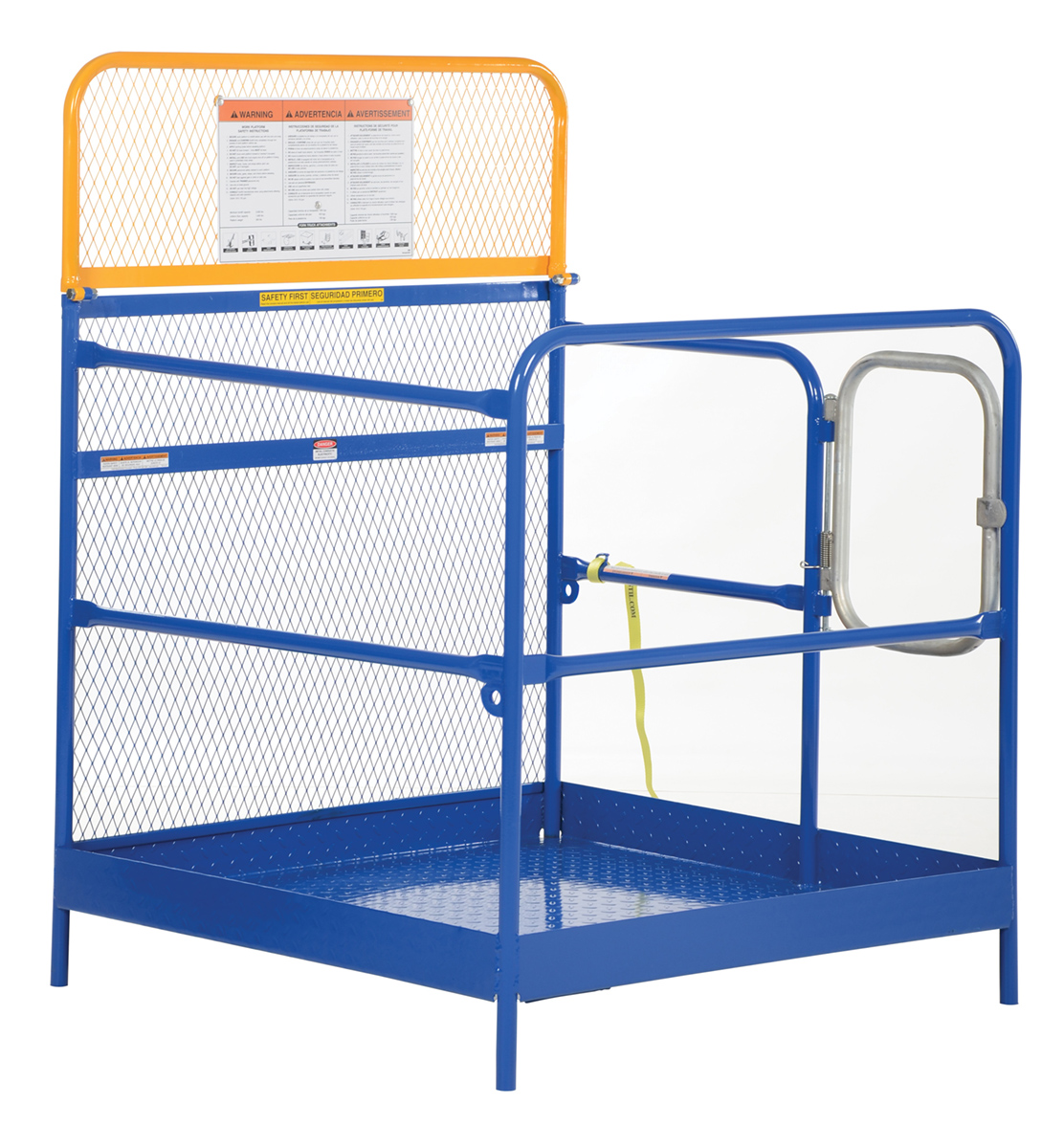

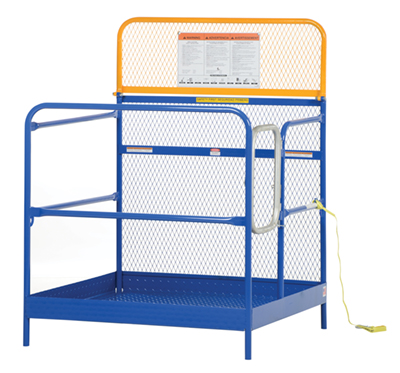

Steel Work Platform 48 In. x 48 In. 1,000 Lb. Capacity Blue

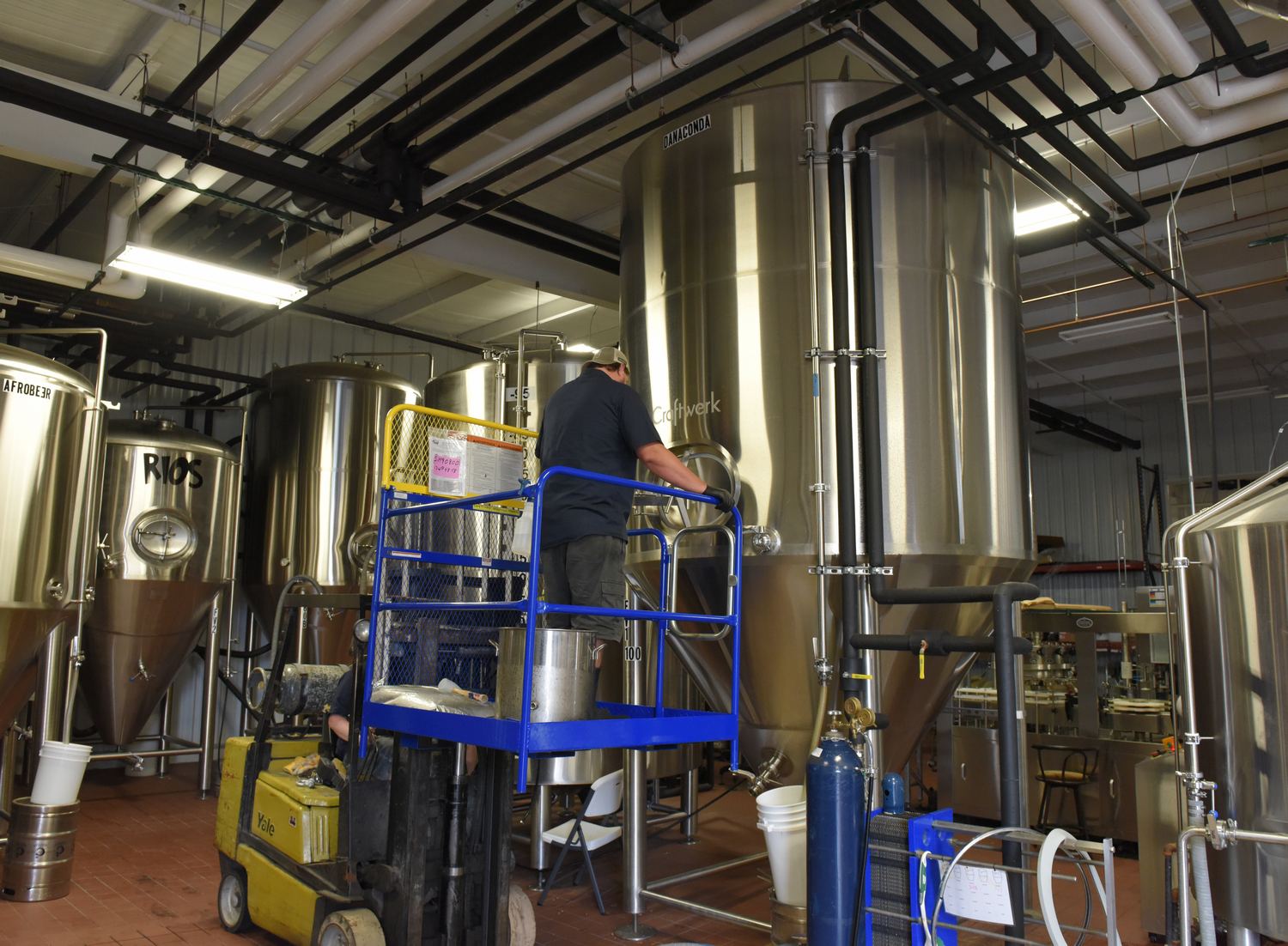

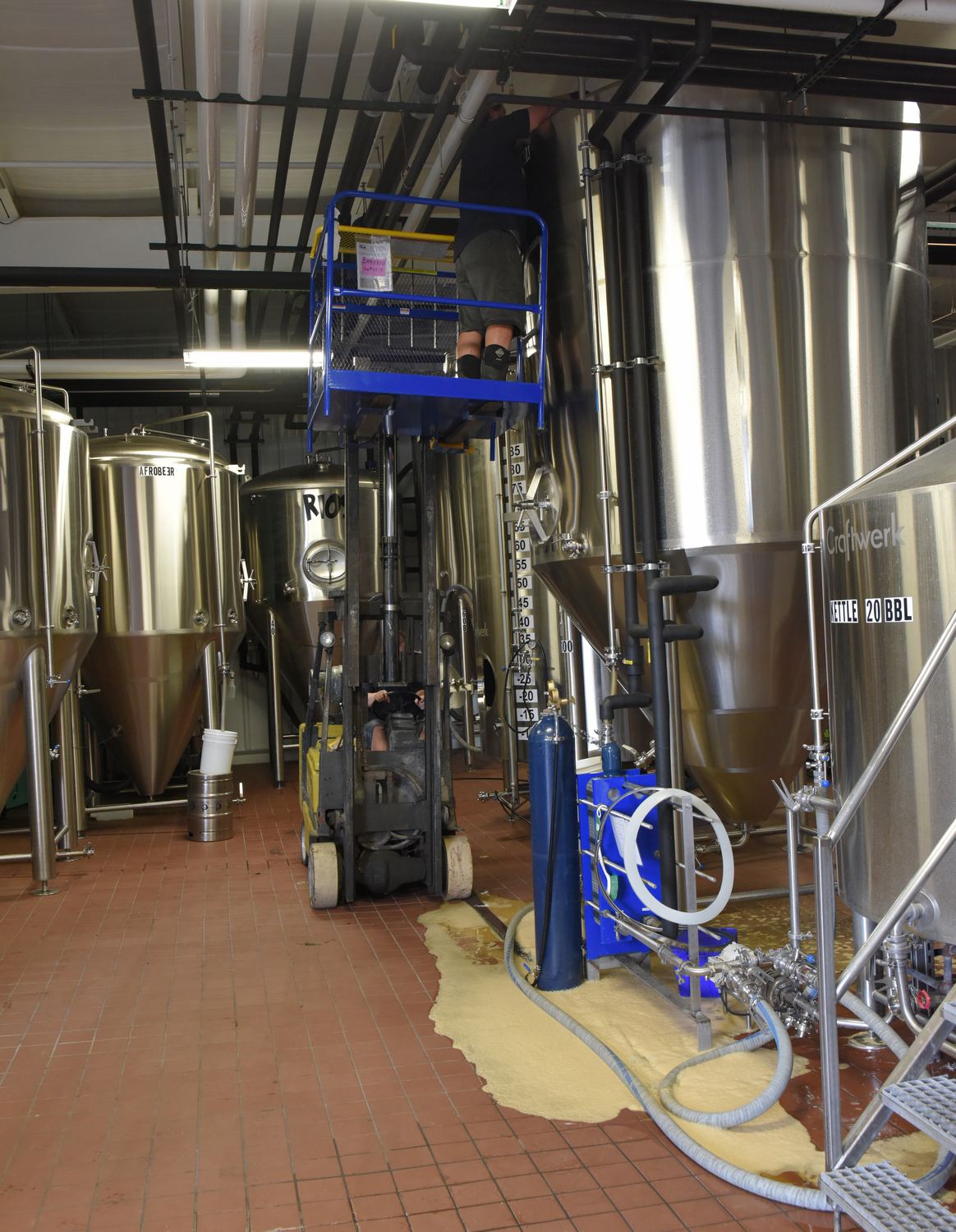

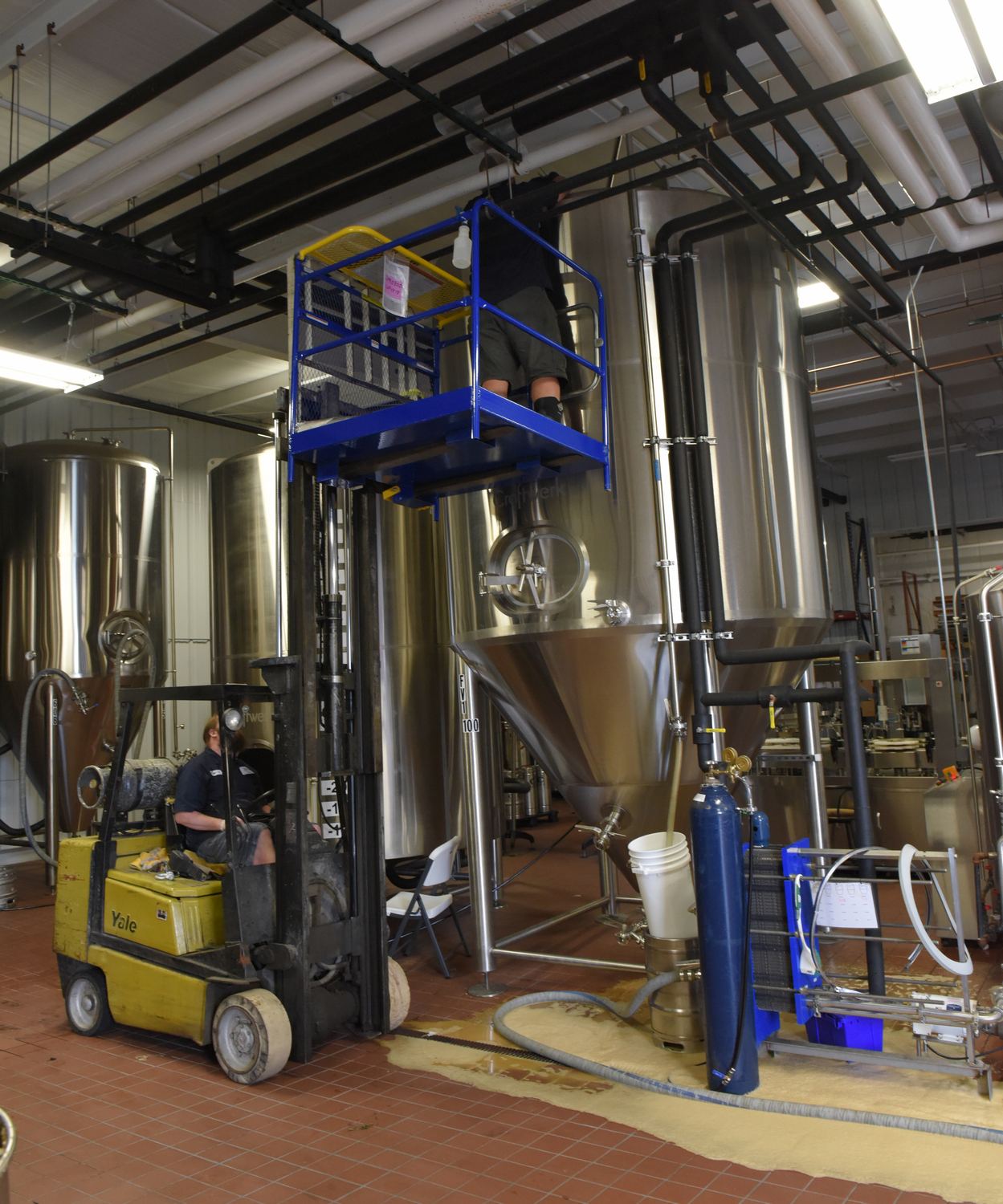

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides with expanded metal backing on the fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time.

  • Patented automatic locking gate with extra chain lock ensures maximum safety
  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip
  • Dual handrails on three sides ensures worker safety
Total Ship Wt.(lbs.): 236 (only 1 package) Size: 48.25"W x 51"L x 65.625"H Color: Blue (Frame), Yellow (Upper Back)

Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 24 Front and Rear Fork Pocket Width (in.): 7-3/4
Rear Fork Pocket Height (in.): 3-7/8 Front Fork Pocket Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16
High Back Height (in.): 60 Overall Width (in.): 48-1/4 Usable Width (in.): 45-3/8
Overall Length (in.): 51 Usable Length (in.): 45-3/8 Anchor Point Capacity (lbs.): 350

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WP-4848
WP-4848

Steel Work Platform 48 In. x 48 In. 1,000 Lb. Capacity Blue

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides with expanded metal backing on the fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time.

  • Patented automatic locking gate with extra chain lock ensures maximum safety
  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip
  • Dual handrails on three sides ensures worker safety
Dimensions: 48.25"W x 51"L x 65.625"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Upper Back)
Material: Steel UPC: 691215047722 GTIN: 00691215047722
Warranty: -- Shipping Weight: 236 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 24 Front and Rear Fork Pocket Width (in.): 7-3/4
Rear Fork Pocket Height (in.): 3-7/8 Front Fork Pocket Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16
High Back Height (in.): 60 Overall Width (in.): 48-1/4 Usable Width (in.): 45-3/8
Overall Length (in.): 51 Usable Length (in.): 45-3/8 Anchor Point Capacity (lbs.): 350
