Model Details

EPFC-CB-15

Printer Friendly
EPFC-CB-15

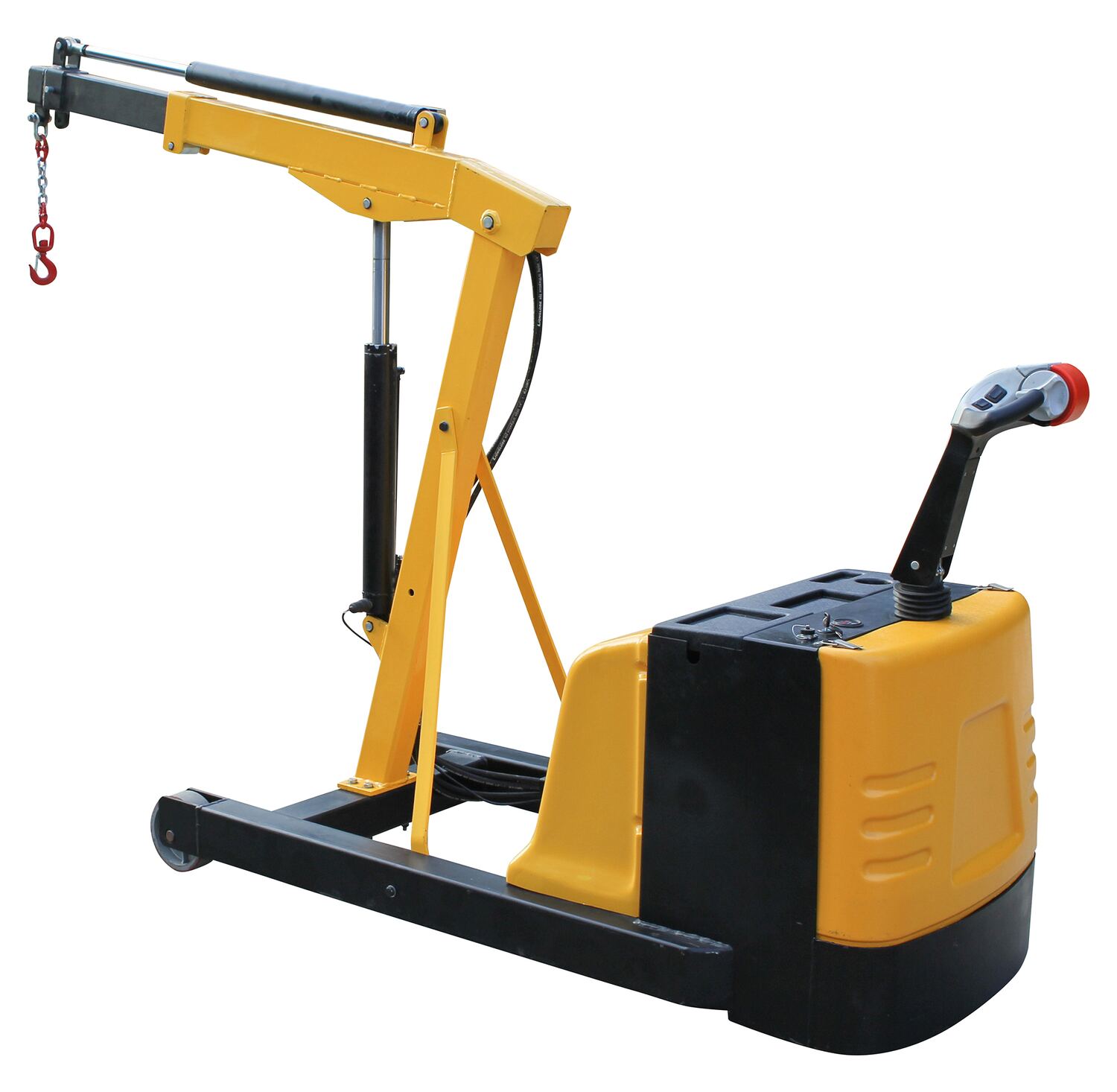

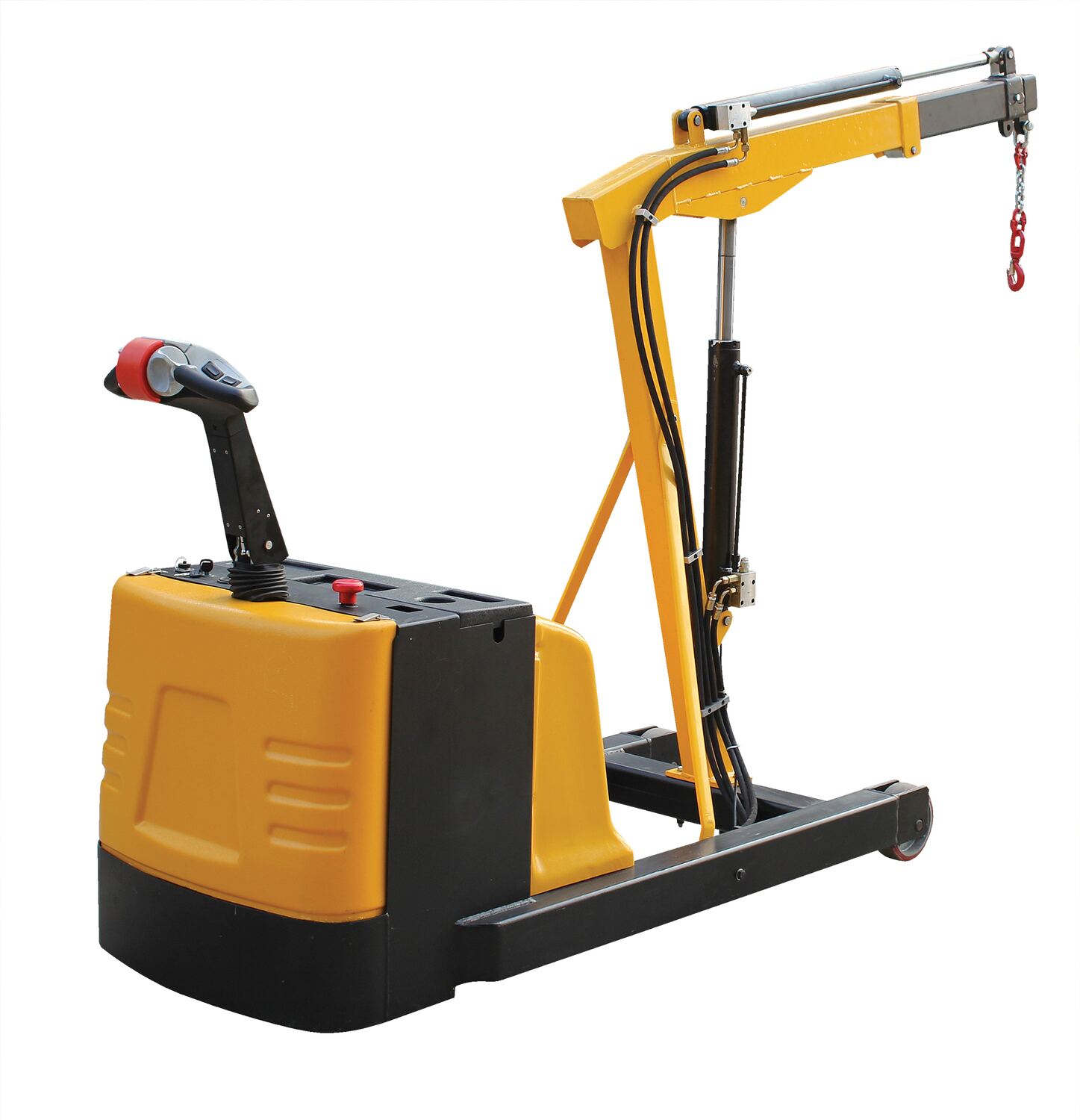

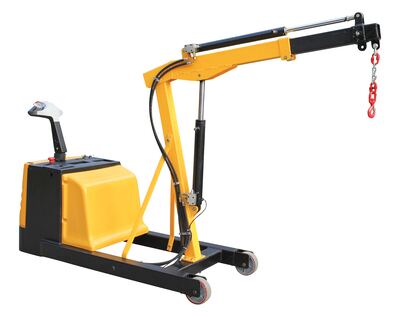

Steel Electric Powered Counter Balanced Floor Crane 1500 Lb. Retracted Capacity Yellow

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. The ergonomic handle features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The powered shop crane has two (2) 12V batteries, an integral battery charger, and a battery level gauge. Batteries capable of 3-4 hour operation at full charge, with up to 8 hours when used intermittently. Features also include poly-on-steel steer and load wheels and a rigid hook with safety latch.

  • Counter balance design for heavy lifting
  • Fixed legs for constant size
  • Emergency reverse belly switch instantly reverses direction
  • Stand up user design for quick action
Total Ship Wt.(lbs.): 1899 (only 1 package) Size: 33.875"W x 107.5"L x 68.375"H Color: Yellow

Uniform Capacity Retracted (lb.): 1,500 Uniform Capacity Boom Half-Way Extended (lb.): 800 Uniform Capacity Boom Fully Extended (lb.): 400
Maximum Height - Crane Extended (in.): 105 Lift Range - Retracted (in.): 44-1/4 Lift Range - Extended (in.): 97
Drive Motor: DC24V / 0.7KW Lift Motor: DC24V / 2KW Battery (qty.): 2
Battery Type: 12V Battery Charger: 24V / 12 amp Battery Charger Power Cord: 115V AC
Minimum Service Per Charge (hrs.): 8 Lift Speed w/o Load (sec): 0.7 Lift Speed w/ Load (sec): 0.5
Lower down speed w/o load (sec): 0.25 Lower down speed w/ Load (sec): 0.75 Travel speed w/o load (mph): 2.8
Travel speed w/load (mph): 2.18

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EPFC-CB-15
EPFC-CB-15

Steel Electric Powered Counter Balanced Floor Crane 1500 Lb. Retracted Capacity Yellow

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. The ergonomic handle features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The powered shop crane has two (2) 12V batteries, an integral battery charger, and a battery level gauge. Batteries capable of 3-4 hour operation at full charge, with up to 8 hours when used intermittently. Features also include poly-on-steel steer and load wheels and a rigid hook with safety latch.

  • Counter balance design for heavy lifting
  • Fixed legs for constant size
  • Emergency reverse belly switch instantly reverses direction
  • Stand up user design for quick action
Dimensions: 33.875"W x 107.5"L x 68.375"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215129183 GTIN: 00691215129183
Warranty: -- Shipping Weight: 1899 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity Retracted (lb.): 1,500 Uniform Capacity Boom Half-Way Extended (lb.): 800 Uniform Capacity Boom Fully Extended (lb.): 400
Maximum Height - Crane Extended (in.): 105 Lift Range - Retracted (in.): 44-1/4 Lift Range - Extended (in.): 97
Drive Motor: DC24V / 0.7KW Lift Motor: DC24V / 2KW Battery (qty.): 2
Battery Type: 12V Battery Charger: 24V / 12 amp Battery Charger Power Cord: 115V AC
Minimum Service Per Charge (hrs.): 8 Lift Speed w/o Load (sec): 0.7 Lift Speed w/ Load (sec): 0.5
Lower down speed w/o load (sec): 0.25 Lower down speed w/ Load (sec): 0.75 Travel speed w/o load (mph): 2.8
Travel speed w/load (mph): 2.18
