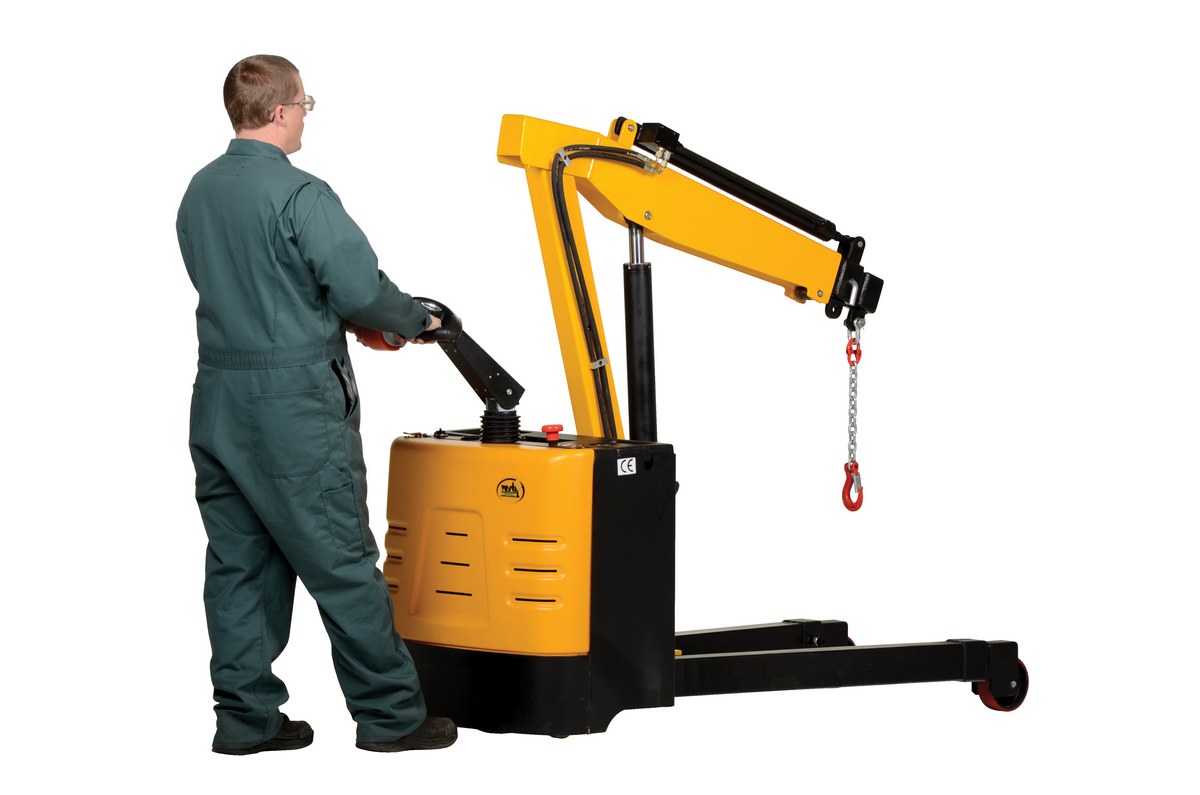

Electric Powered Floor Cranes
Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.

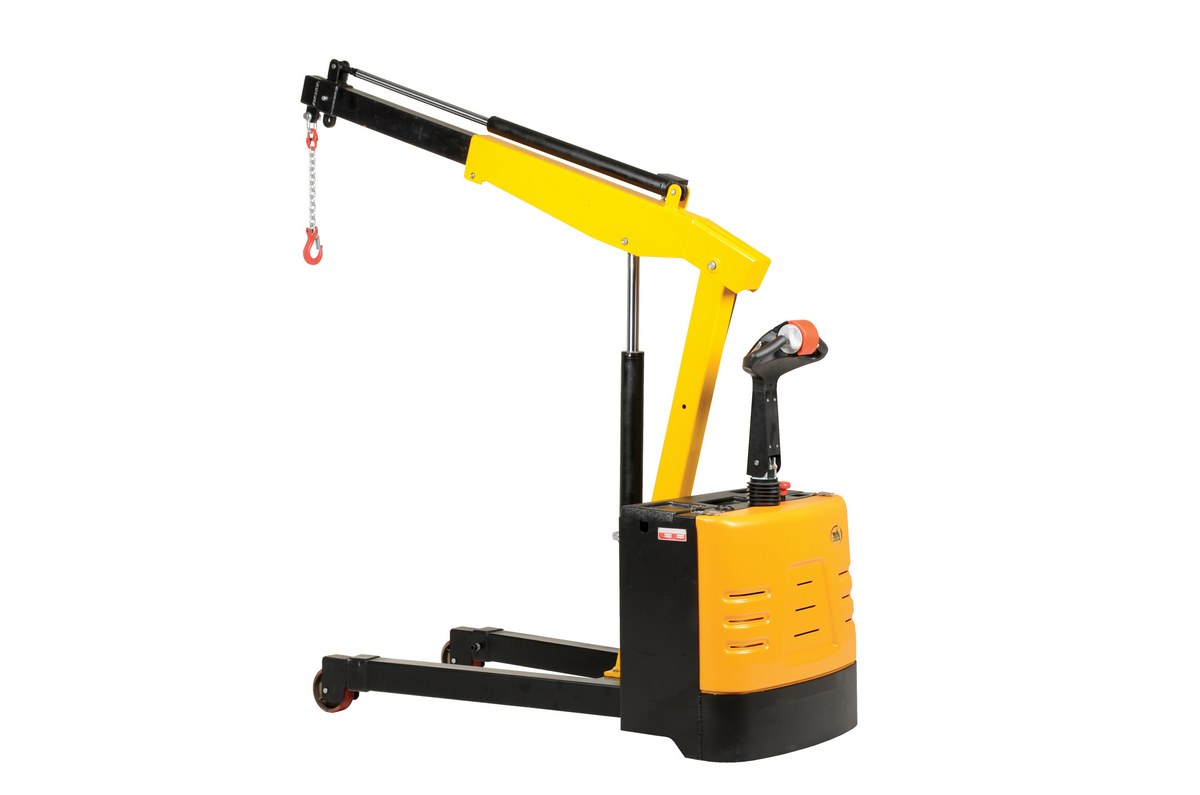

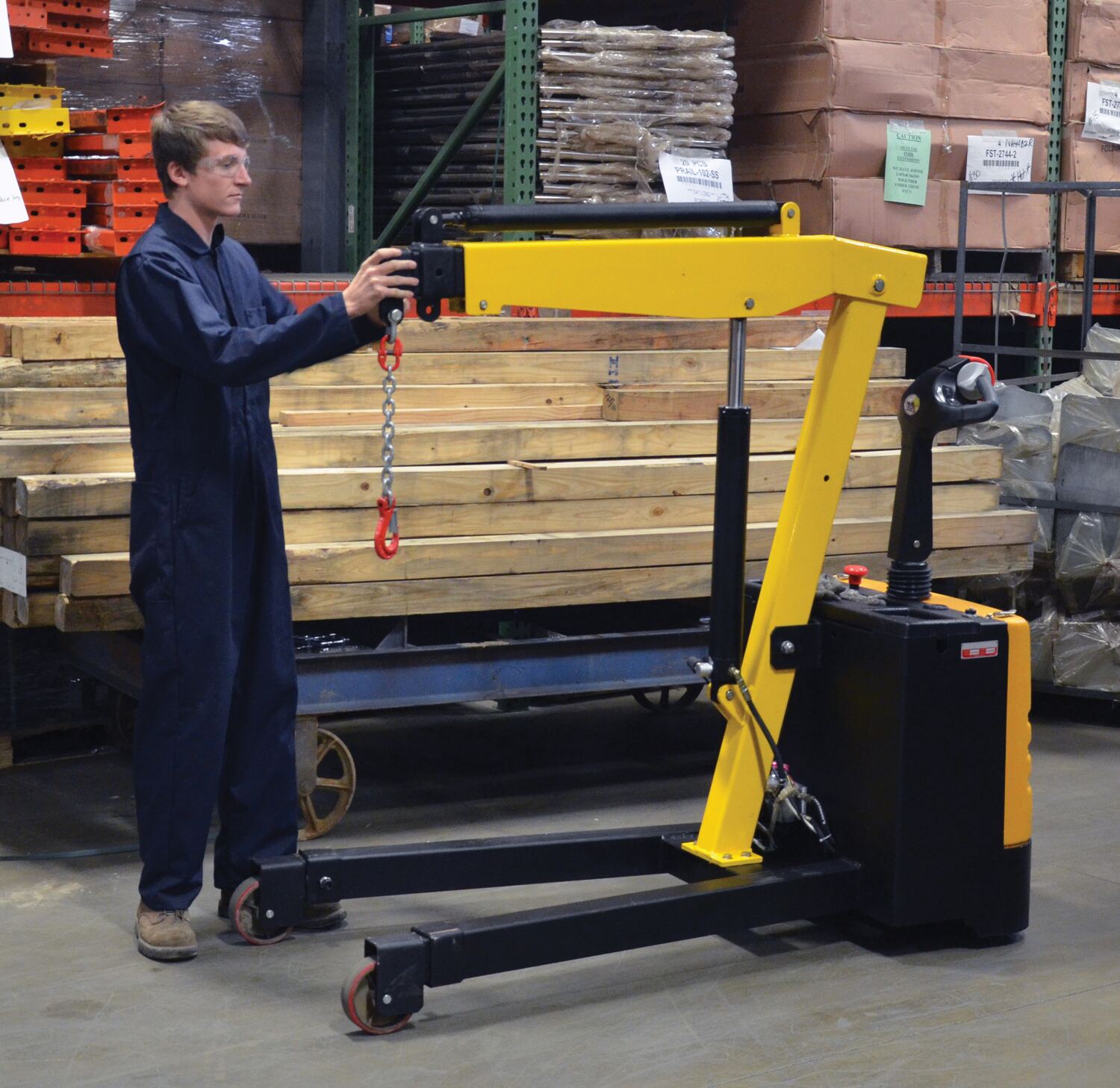

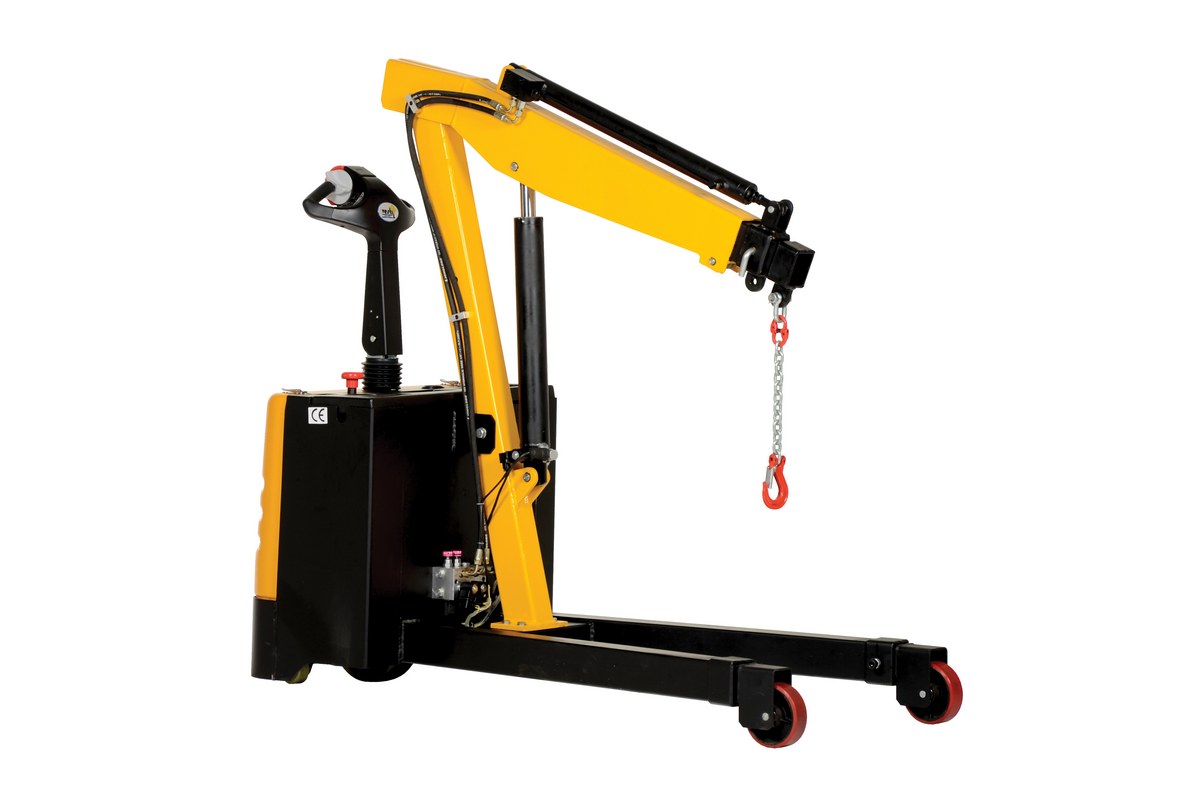

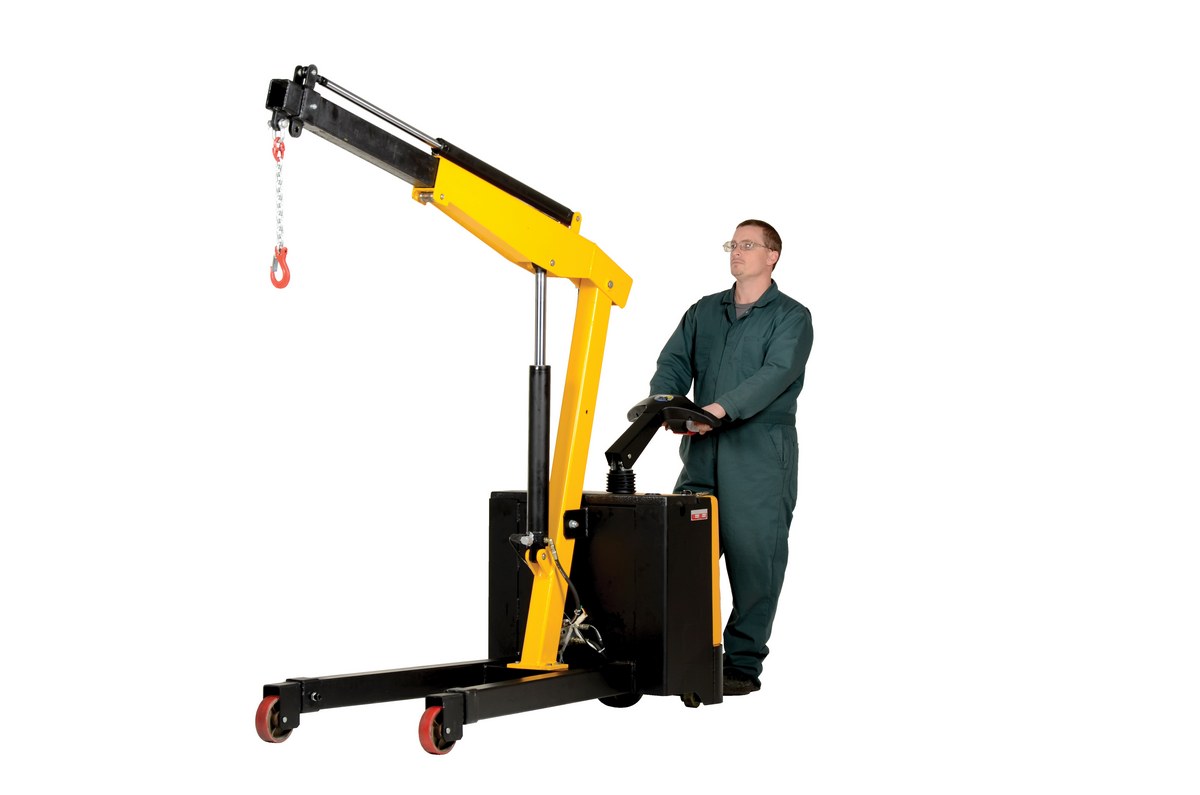

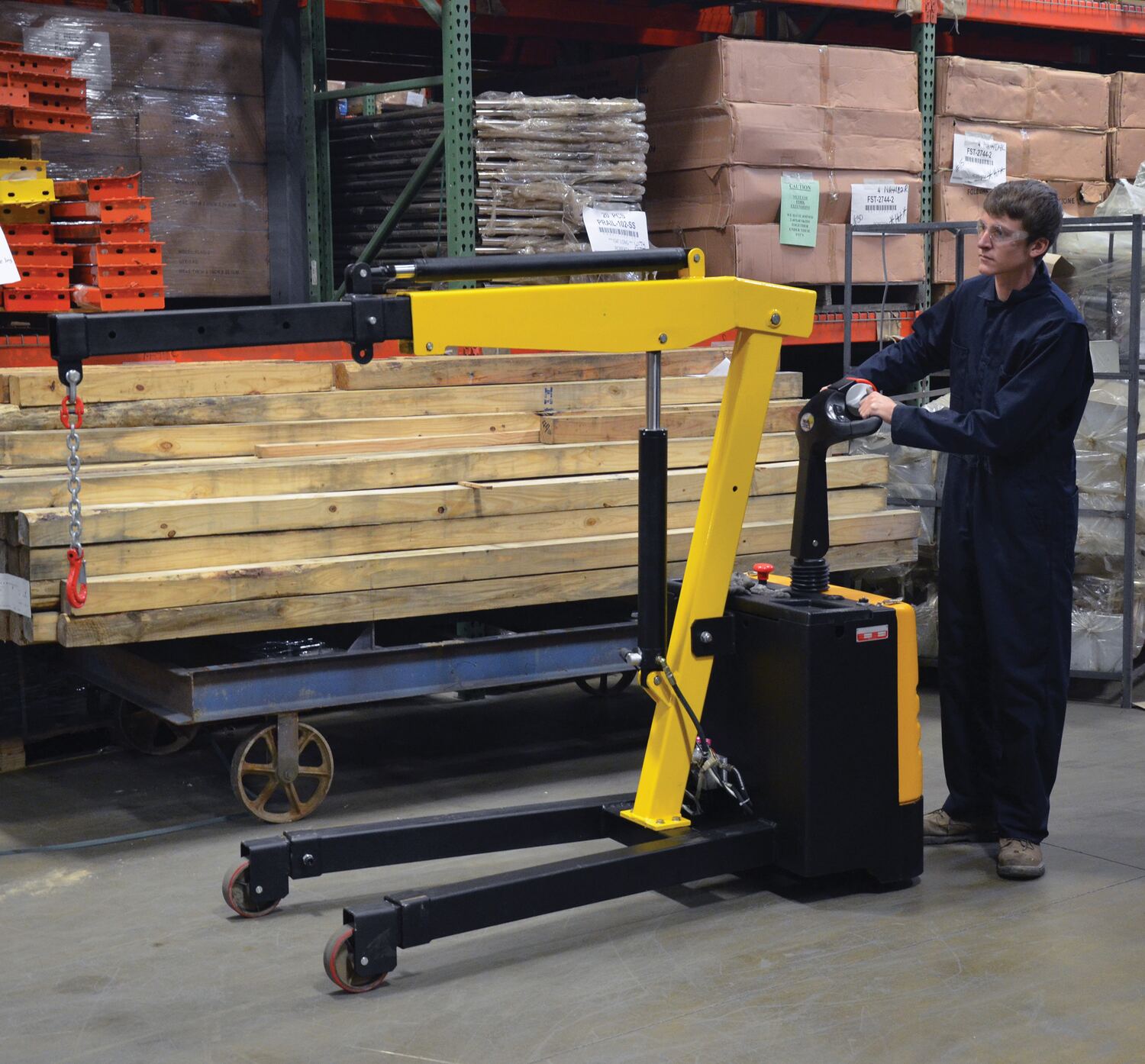

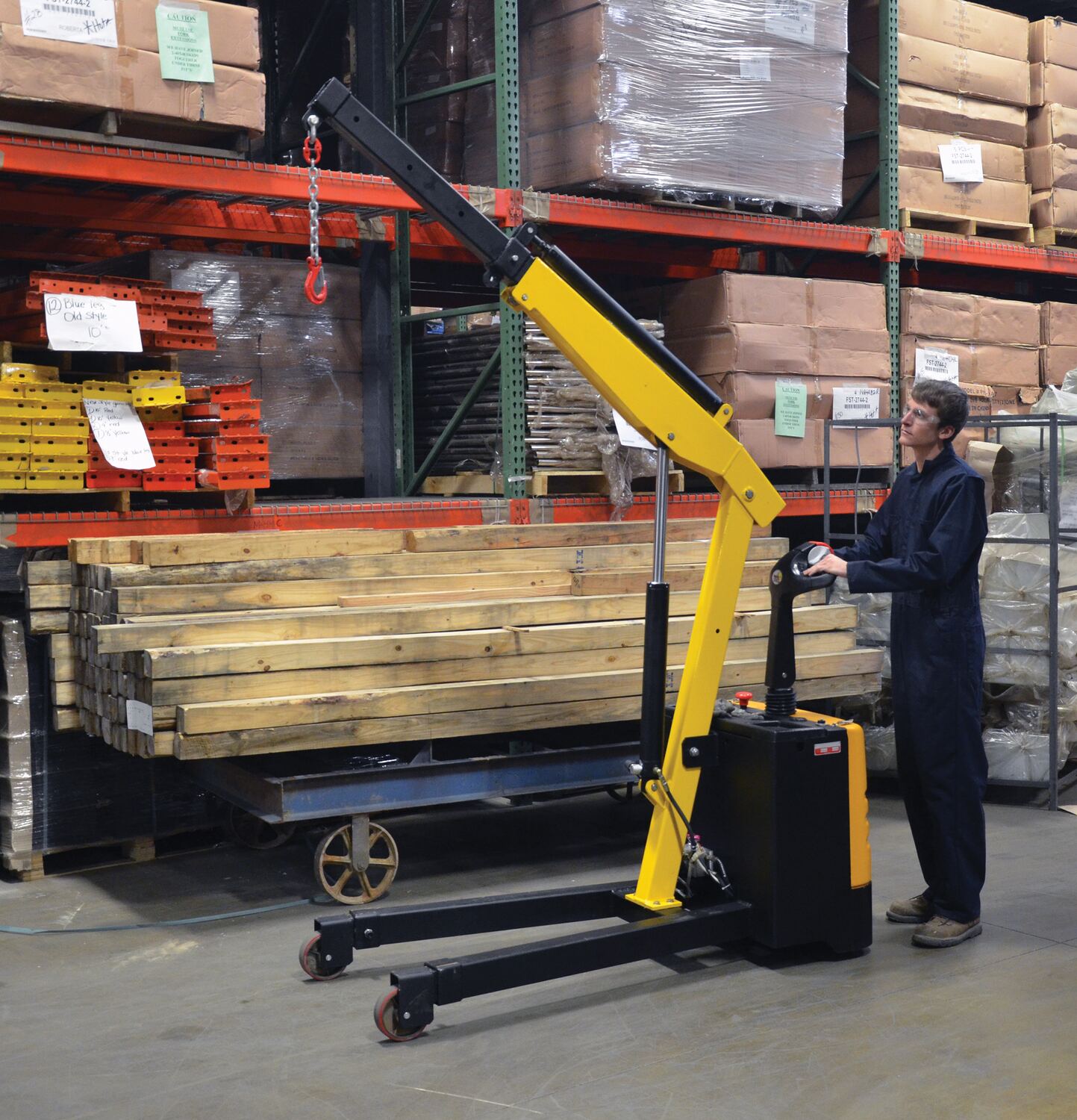

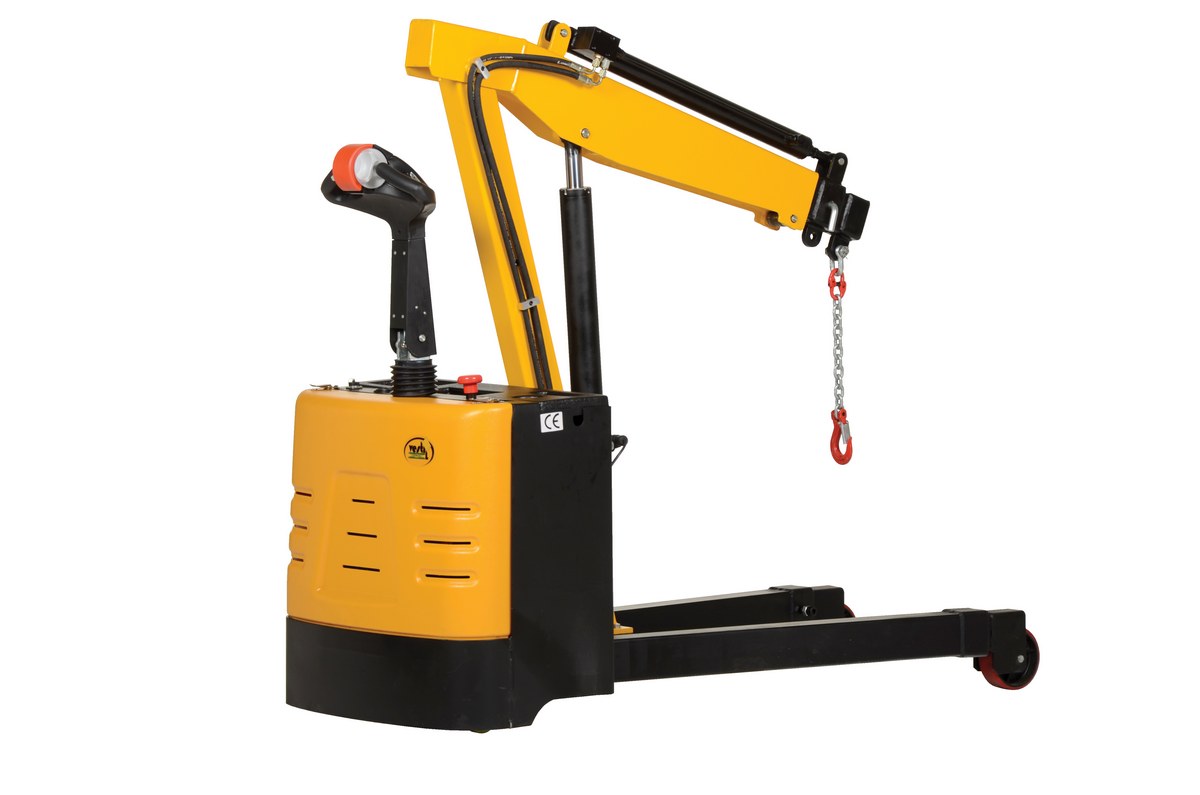

- Model EPFC-25 features adjustable length legs.

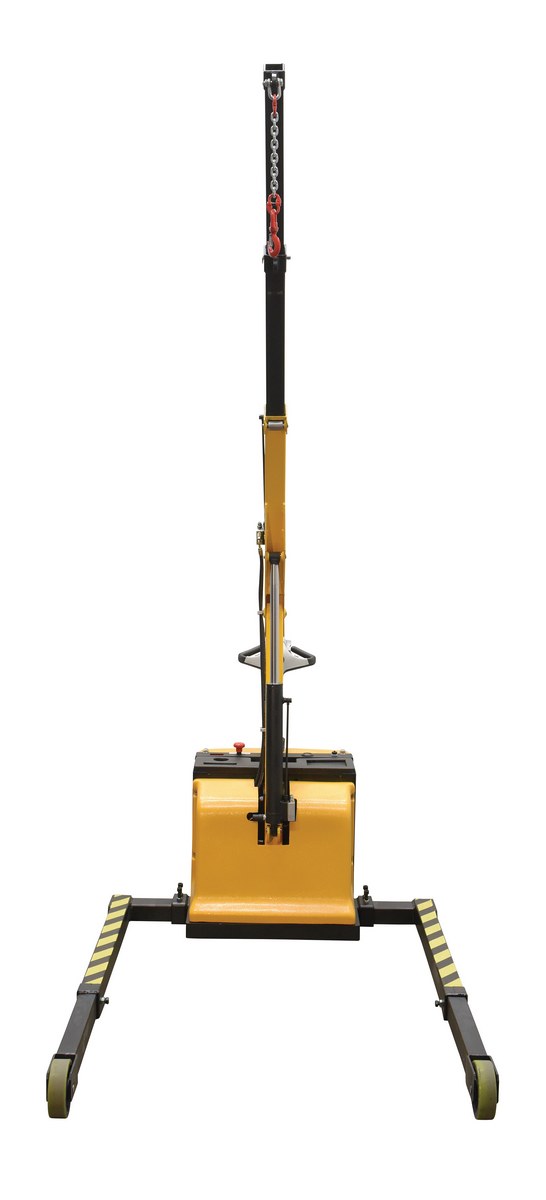

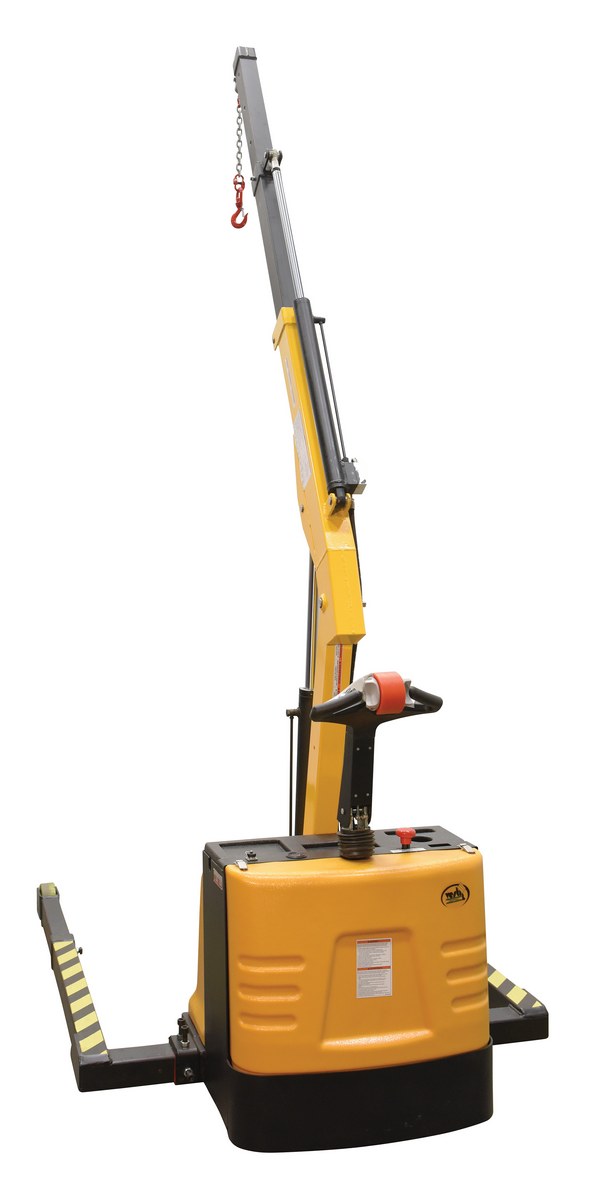

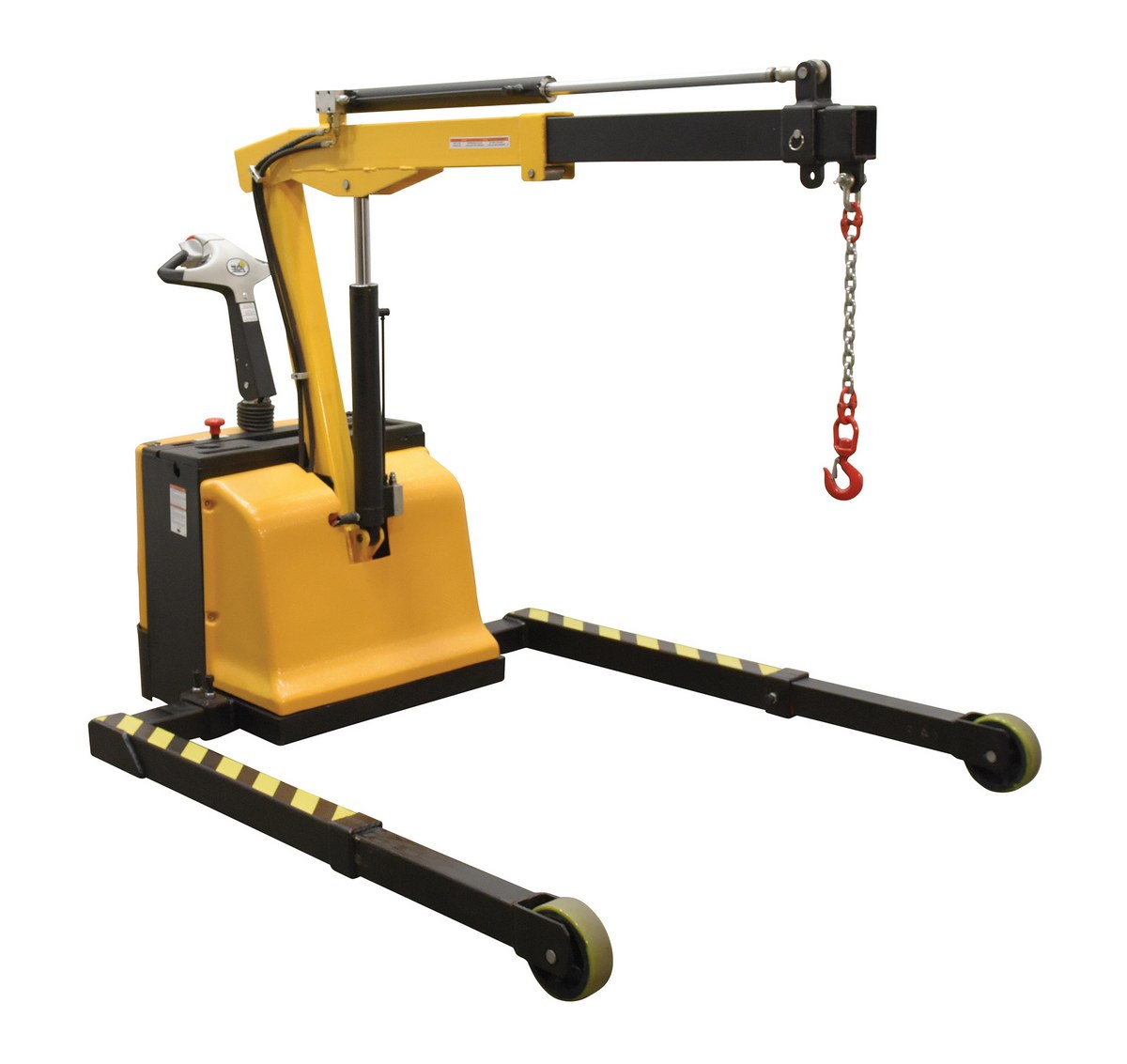

- Model EPFC-25-AA features adjustable length legs and adjustable width legs.

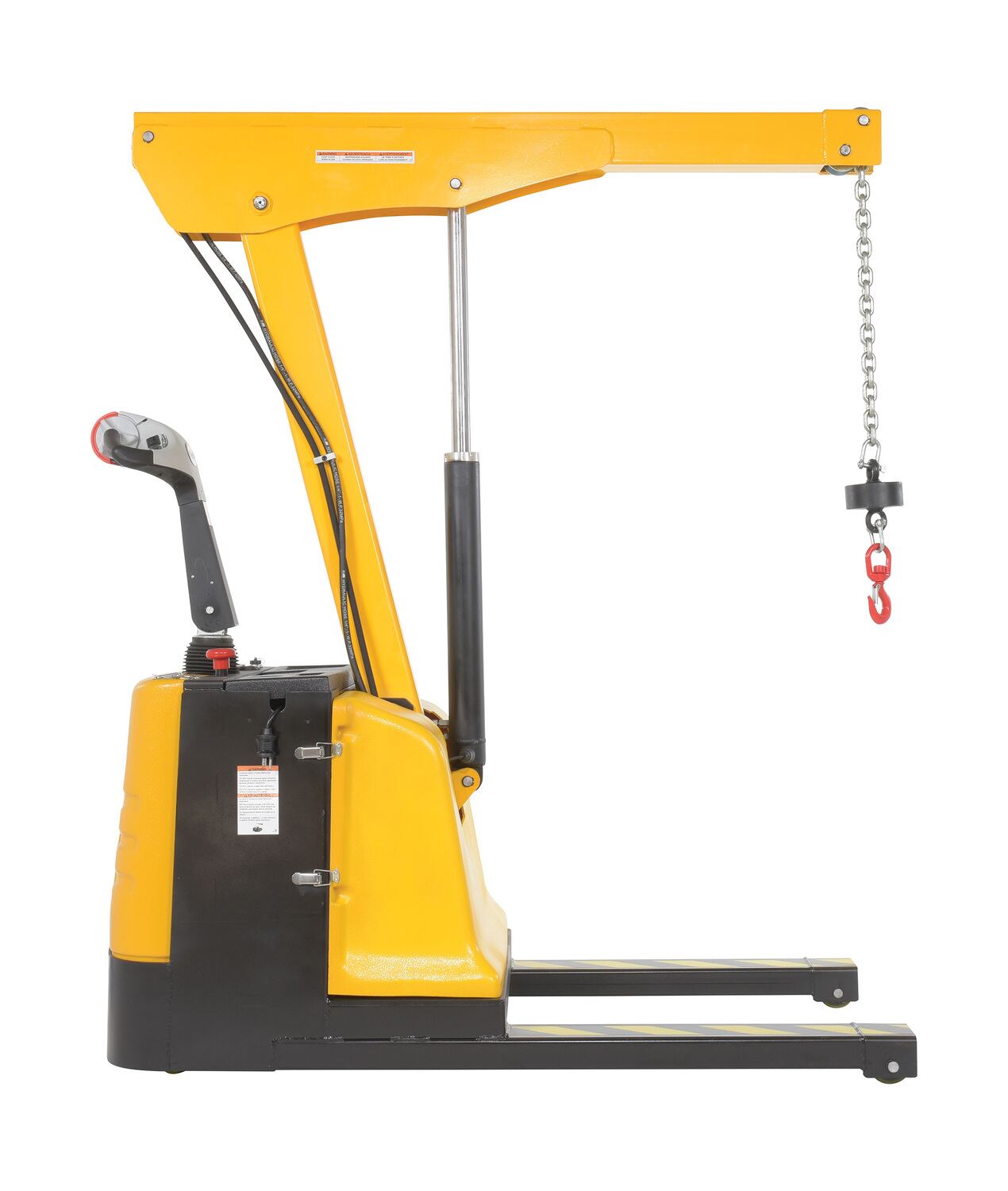

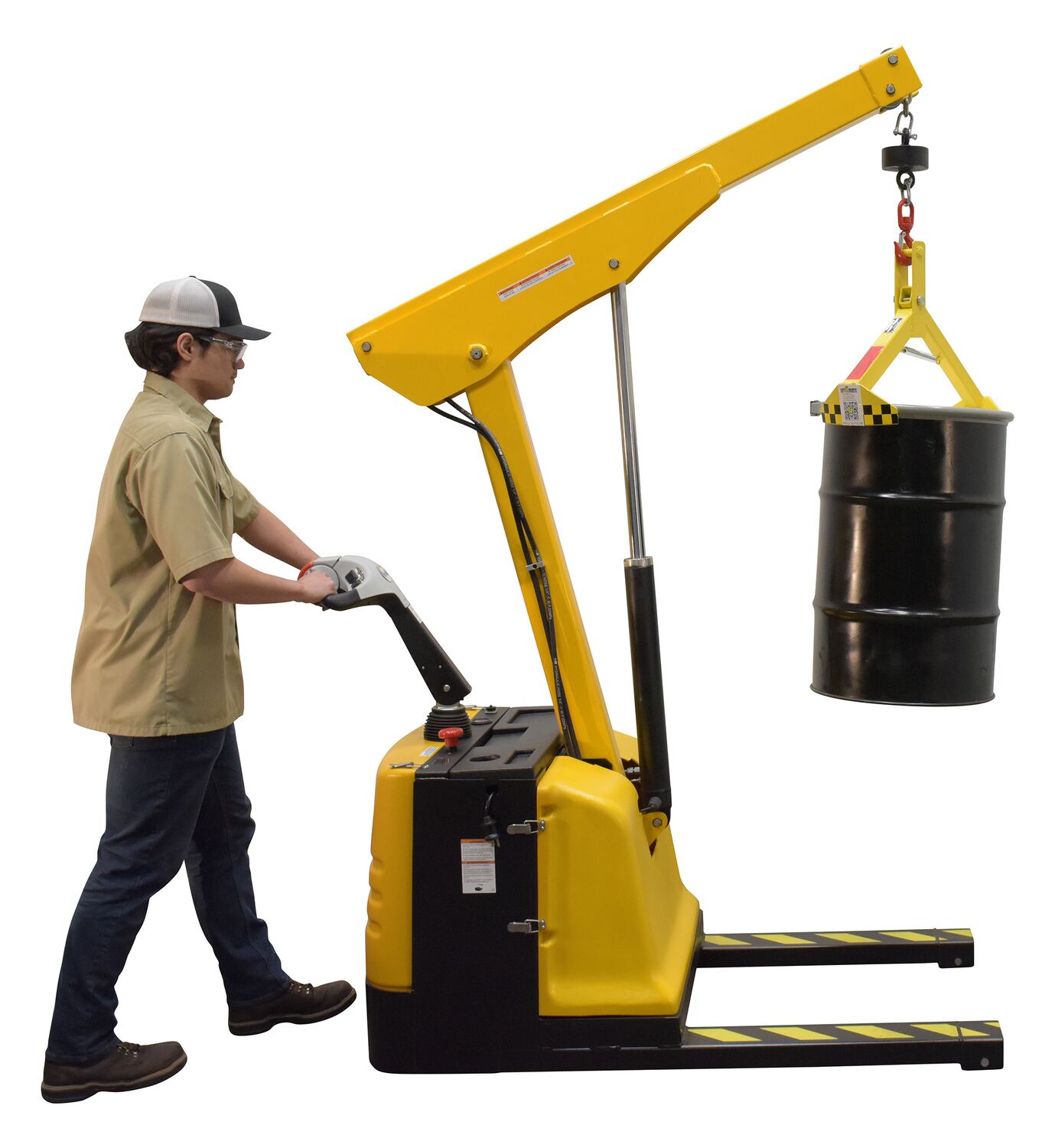

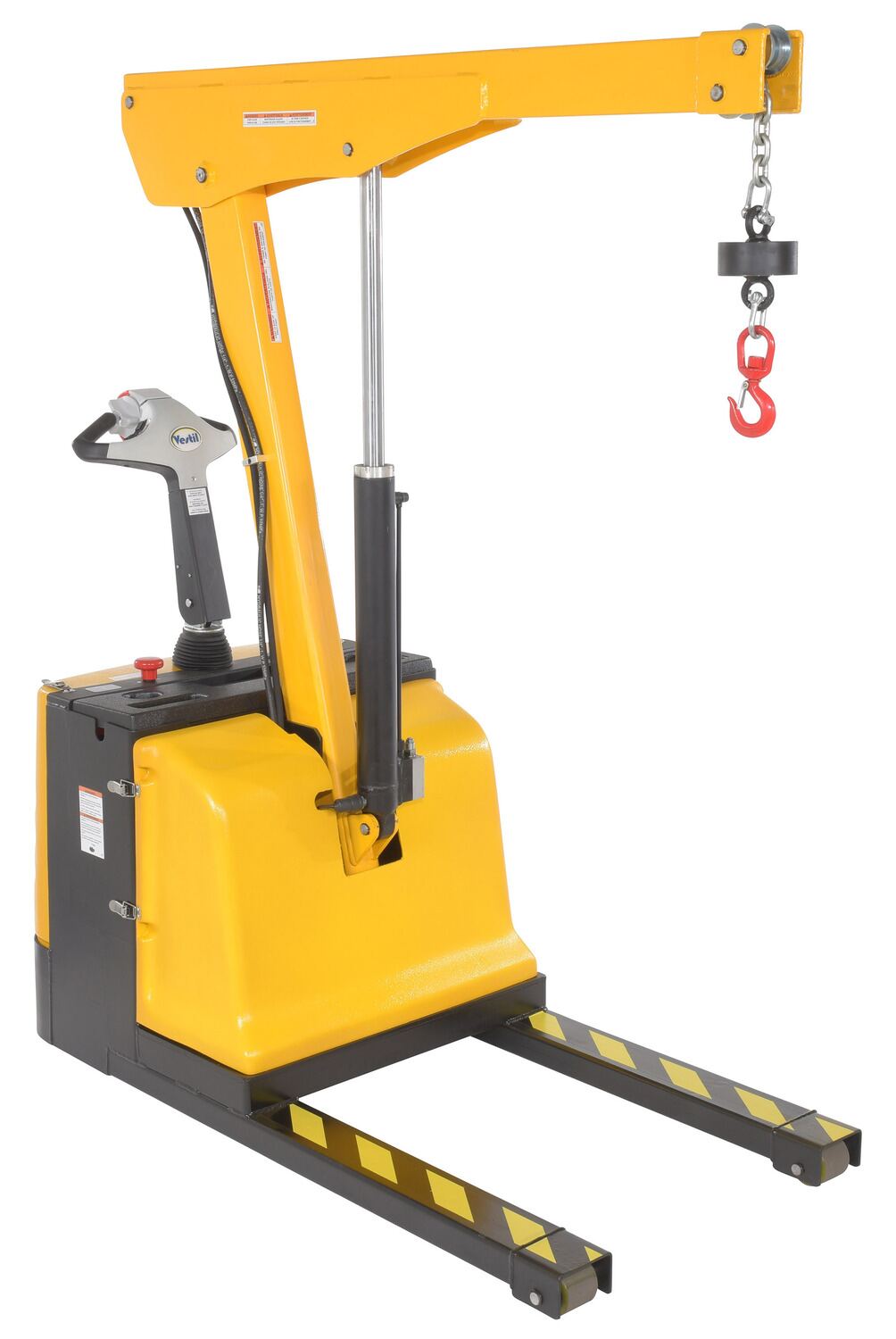

- Model EPFC-16-LP features low profile design to maneuver in narrow and crowded warehouses. Boom is fixed and hook lowering and raising is powered.

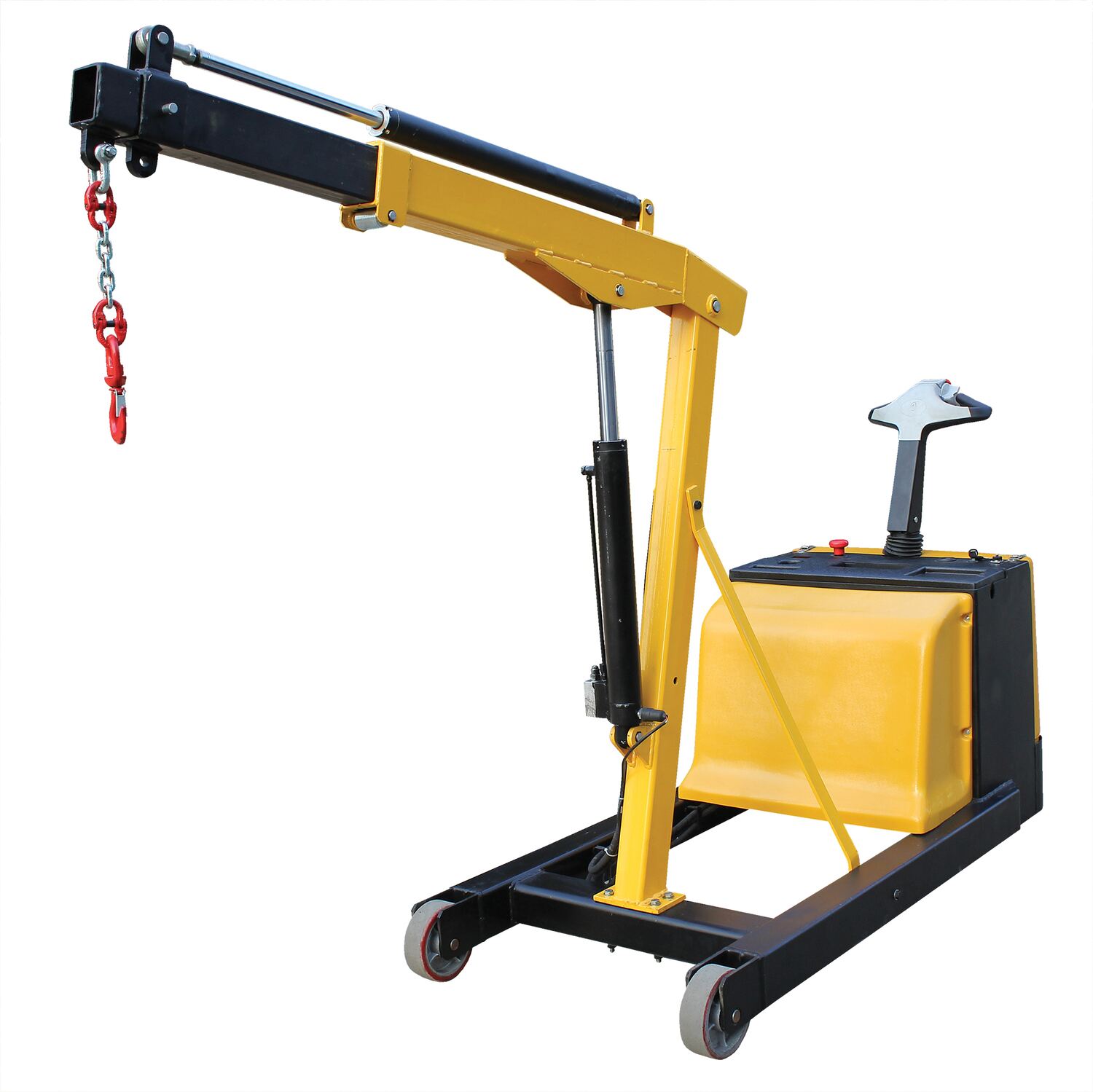

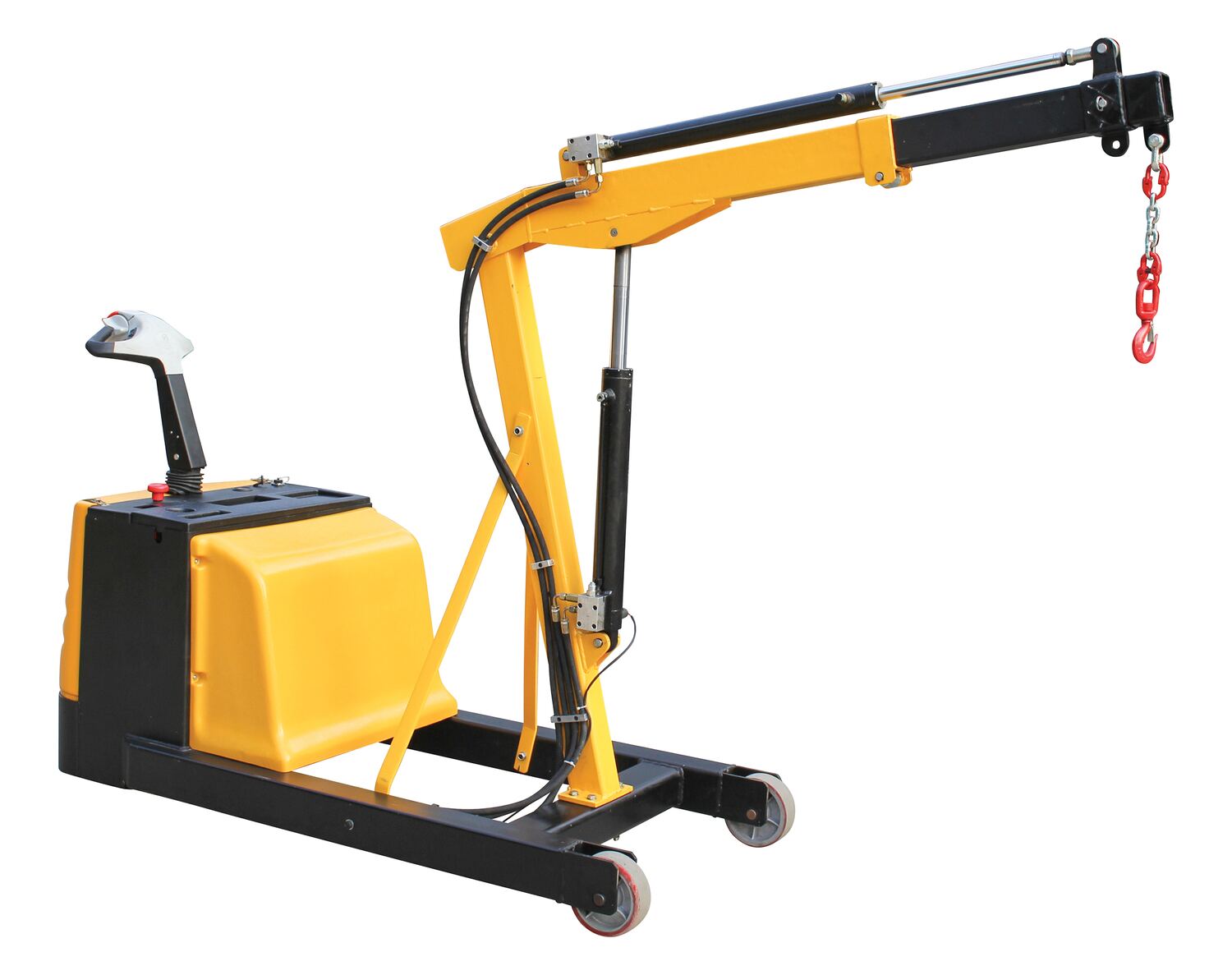

- Model EPFC-CB-15 features fixed legs and counter balance design.
Pallet Truck Hoist
Hitch-Mounted Truck Jib Crane
Winch Operated Truck Jib Cranes
Shop Crane Engine HoistsAdditional Models In This Family
EPFC-25
EPFC-16-LP
EPFC-25-AA
EPFC-25
EPFC-HC
EPFC-25
EPFC-HC
EPFC-25
EPFC-25-AA
EPFC-25-AA
EPFC-16-LP
EPFC-25-AA
EPFC-CB-15
EPFC-25-AA
EPFC-CB-15
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| EPFC-25 | | 1 Year Limited Warranty | Steel Electric Powered Floor Crane 2500 Lb. Retracted Capacity Yellow | Uniform Capacity Retracted (lb.): 2,500 Uniform Capacity Boom Half-Way Extended (lb.): 1300 | 1006 | ||
| EPFC-25-AA | POPULAR |  | 1 Year Limited Warranty | Steel Adjustable Electric Powered Floor Crane 2500 Lb. Retracted Capacity Yellow | Uniform Capacity Retracted (lb.): 2,500 Uniform Capacity Boom Half-Way Extended (lb.): 1300 | 1198 | |
| EPFC-CB-15 | POPULAR |  | 1 Year Limited Warranty | Steel Electric Powered Counter Balanced Floor Crane 1500 Lb. Retracted Capacity Yellow | Uniform Capacity Retracted (lb.): 1,500 Uniform Capacity Boom Half-Way Extended (lb.): 800 | 1888 | |
| EPFC-16-LP | NEW | | 1 Year Limited Warranty | Steel Electric Powered Low Profile Floor Crane 1600 Lb. Capacity Yellow | Uniform Capacity (lbs.): 1,600 Raised Height (in.): 77.75 | 1064 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Retracted (lb.): 1,500
Uniform Capacity Boom Half-Way Extended (lb.): 800
Uniform Capacity Retracted (lb.): 1,500
Uniform Capacity Boom Half-Way Extended (lb.): 800
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 1,600
Raised Height (in.): 77.75
Uniform Capacity (lbs.): 1,600
Raised Height (in.): 77.75
For More Details of the Option Click the Red Model Button

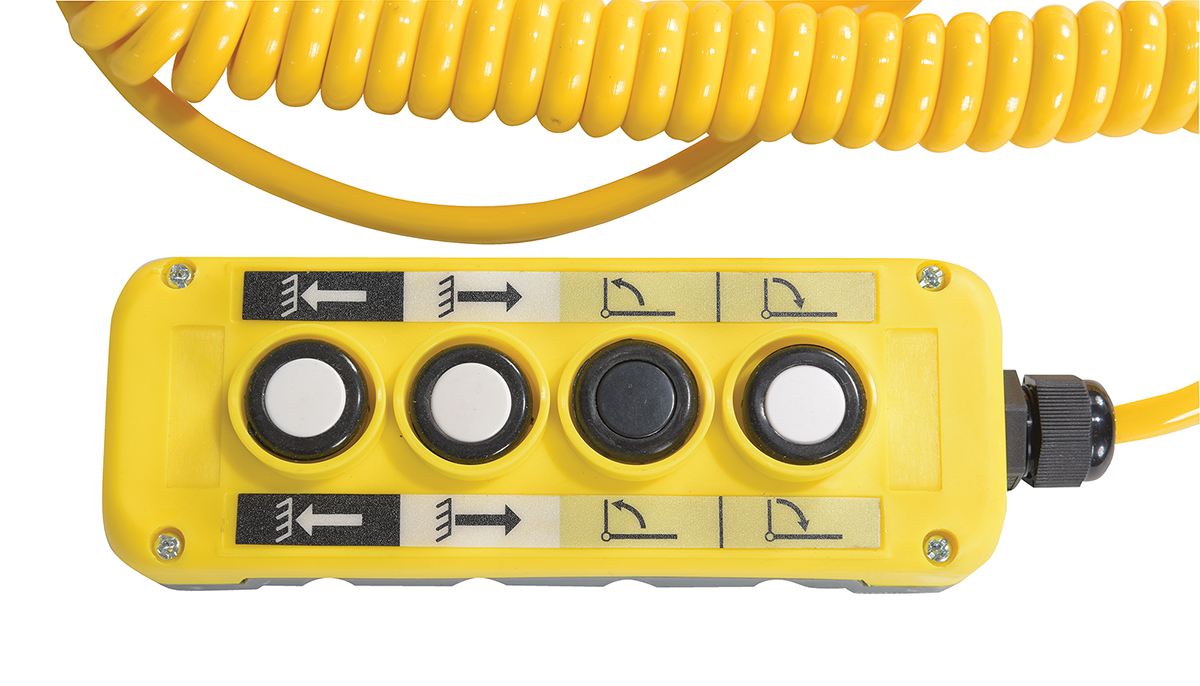

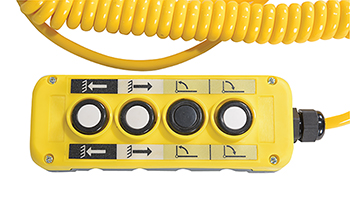

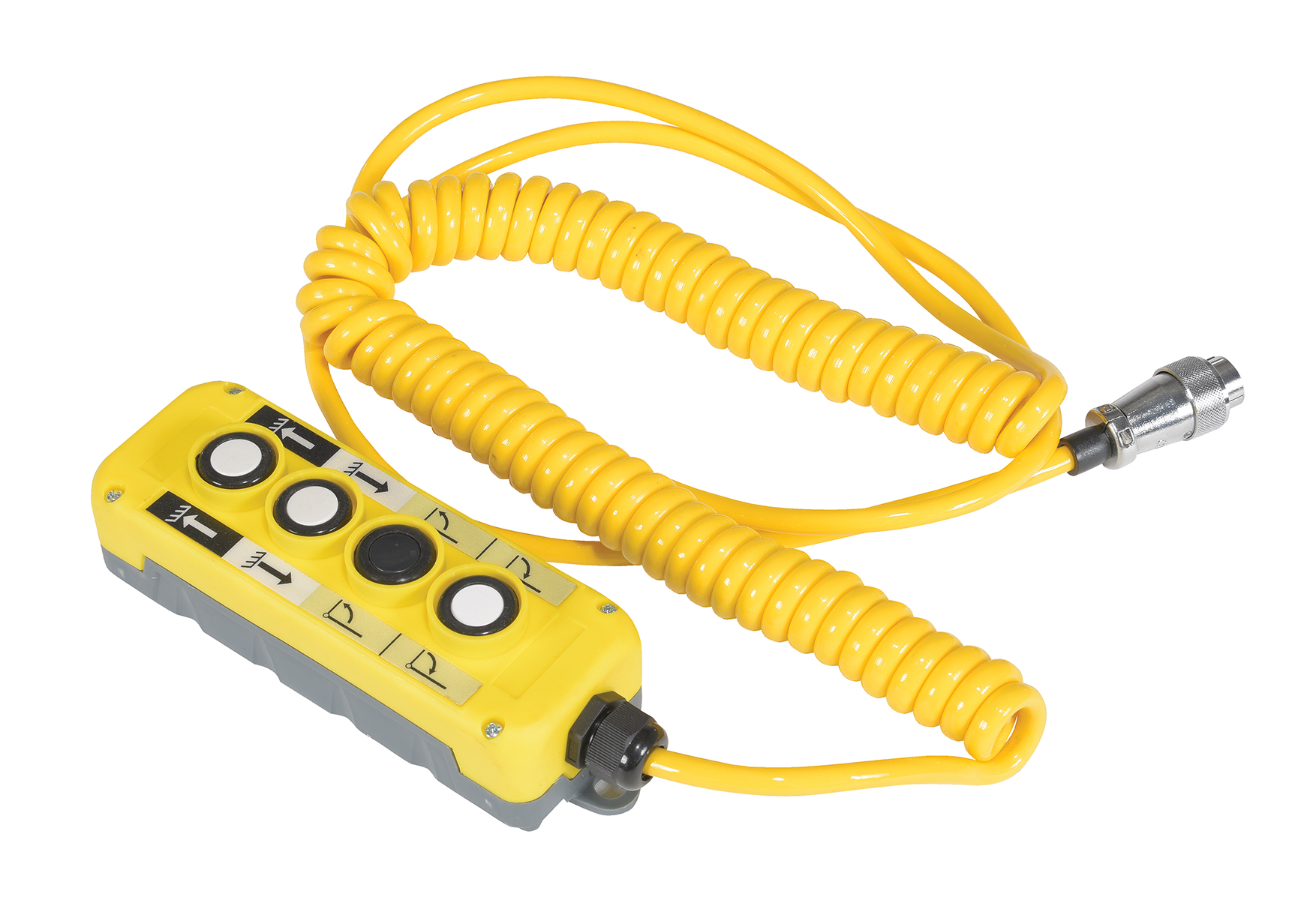

| EPFC-HC | | 90 Days Limited Warranty | Plastic Power Lift Hand Control For Fully Powered Electric Floor Crane Models Yellow | Speeds: 4 Symbol Display: Yes | 3 |
| Model | Image | Description | Wt (lbs.) | |||||||
| AGM-UPG-2-12V |  |
AGM Upgrade Battery (2) 12V (Purchase w/ New Unit Only) | 120 | |||||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPFC-25
Hydraulic Oil SDS Sheet for: EPFC-25
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPFC-25-AA
Hydraulic Oil SDS Sheet for: EPFC-25-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPFC-CB-15
Hydraulic Oil SDS Sheet for: EPFC-CB-15
Hydraulic Oil SDS Sheet for: EPFC-16-LP
Other PDF's
 Electric Powered Floor Crane Mailing Brochure |
Counter-Balanced Electric Powered Floor Crane Mailing Brochure |
Directory Links Of Available PDF's For All Products

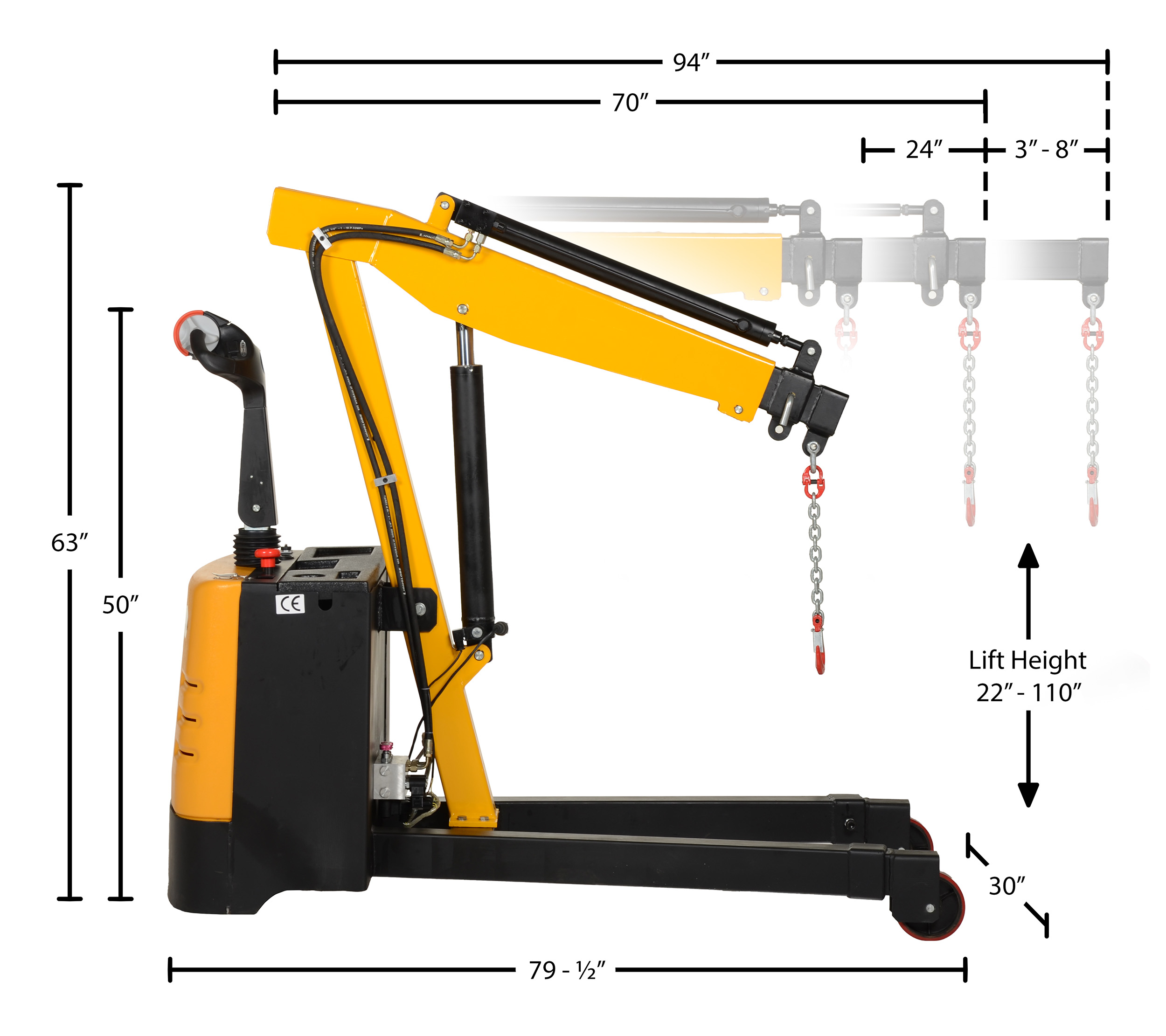

Q: What angle is the boom when it is fully extended?
A: When fully extended the boom is at a 50 degree angle.
Q: Can I upgrade to AGM batteries?
A: Yes! Please ask for part # AGM-UPG-2-12V when placing your order for a new electric powered floor crane.
Q: Do these units meets PASE or PALD standards?
A: These floor cranes meet the PASE/PALD standards.
 |
|||||||||||||||||||||||||||
