LC-BTA-72-84

Printer Friendly
Available
LC-BTA-72-84
LC-BTA-72-84 LC-BTA-72-84 LC-BTA-72-84 LC-BTA-72-84 LC-BTA-72-84 LC-BTA-72-84 LC-BTA-72-84

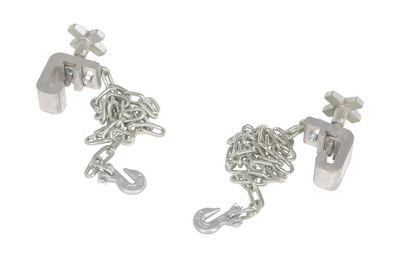

Steel Curb Lifting Chains 60 In. Length For Aluminum Dock Boards Silver

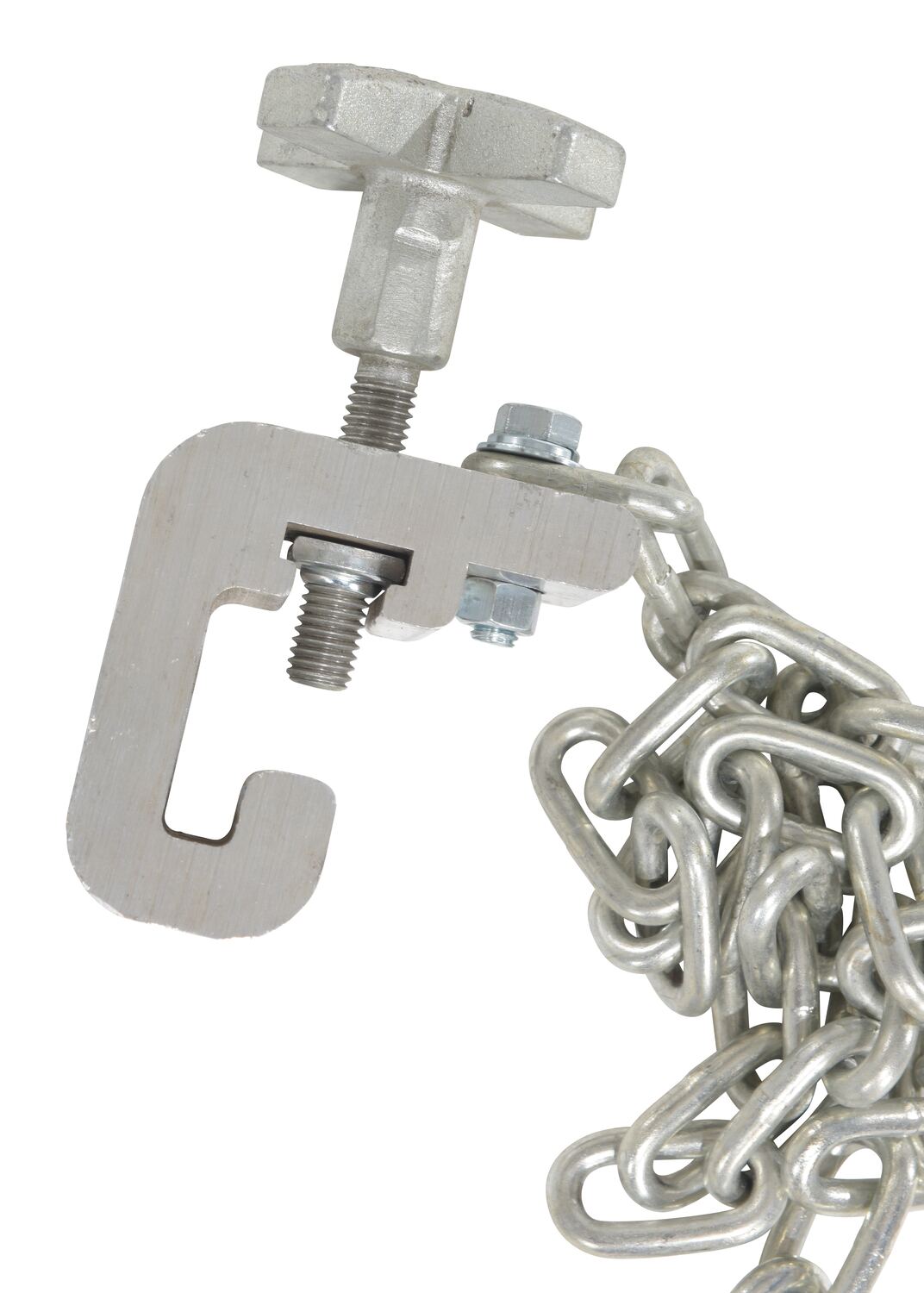

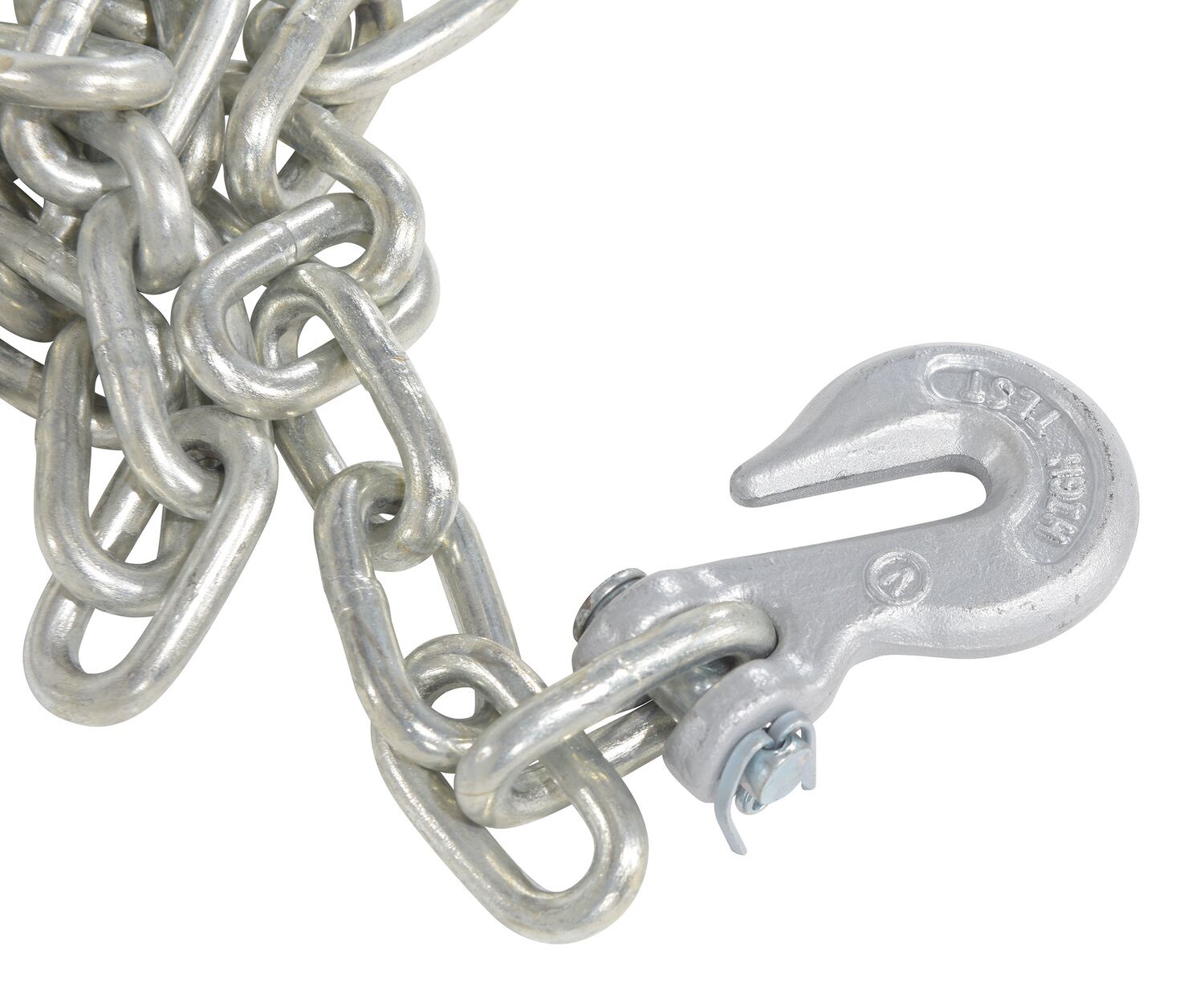

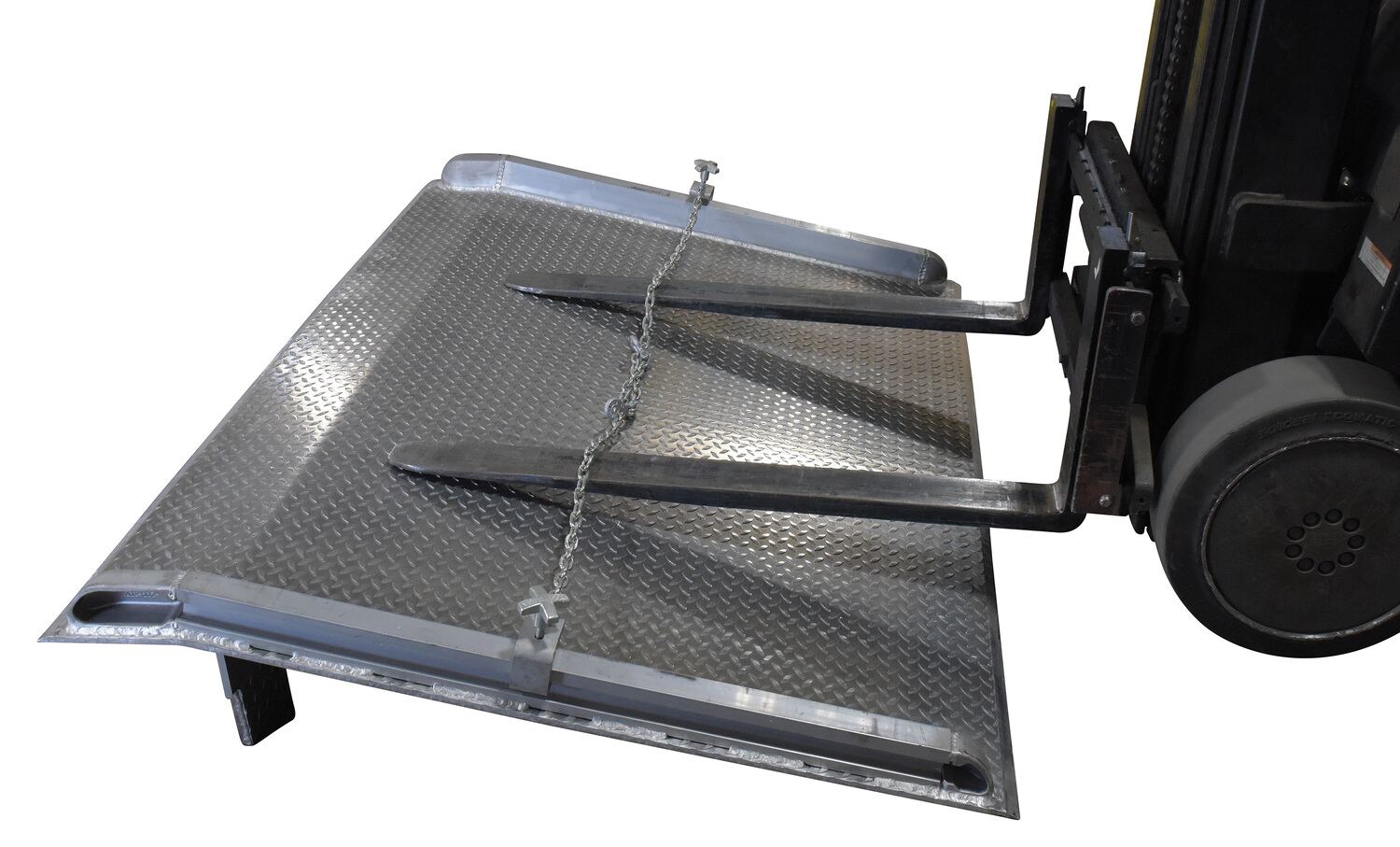

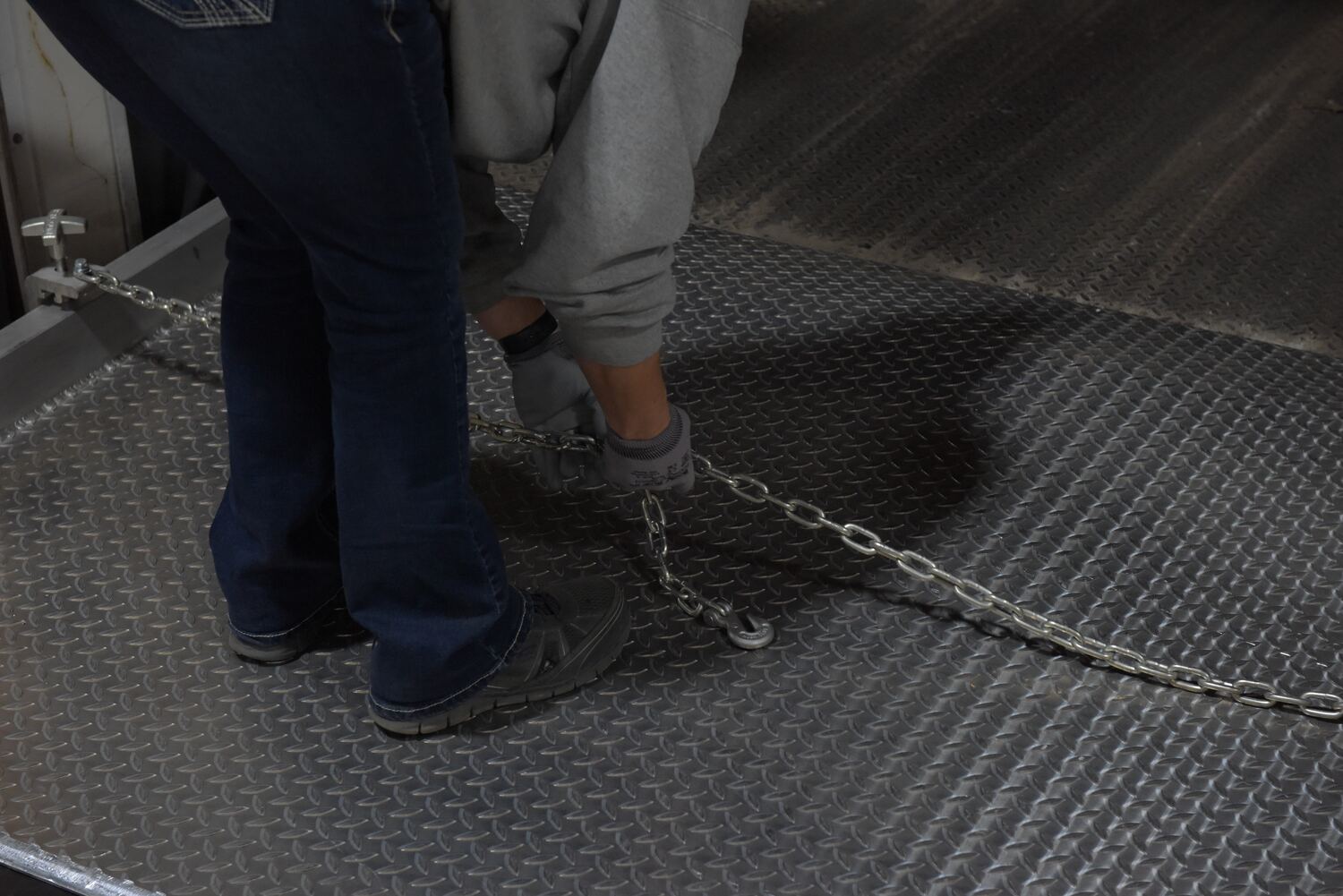

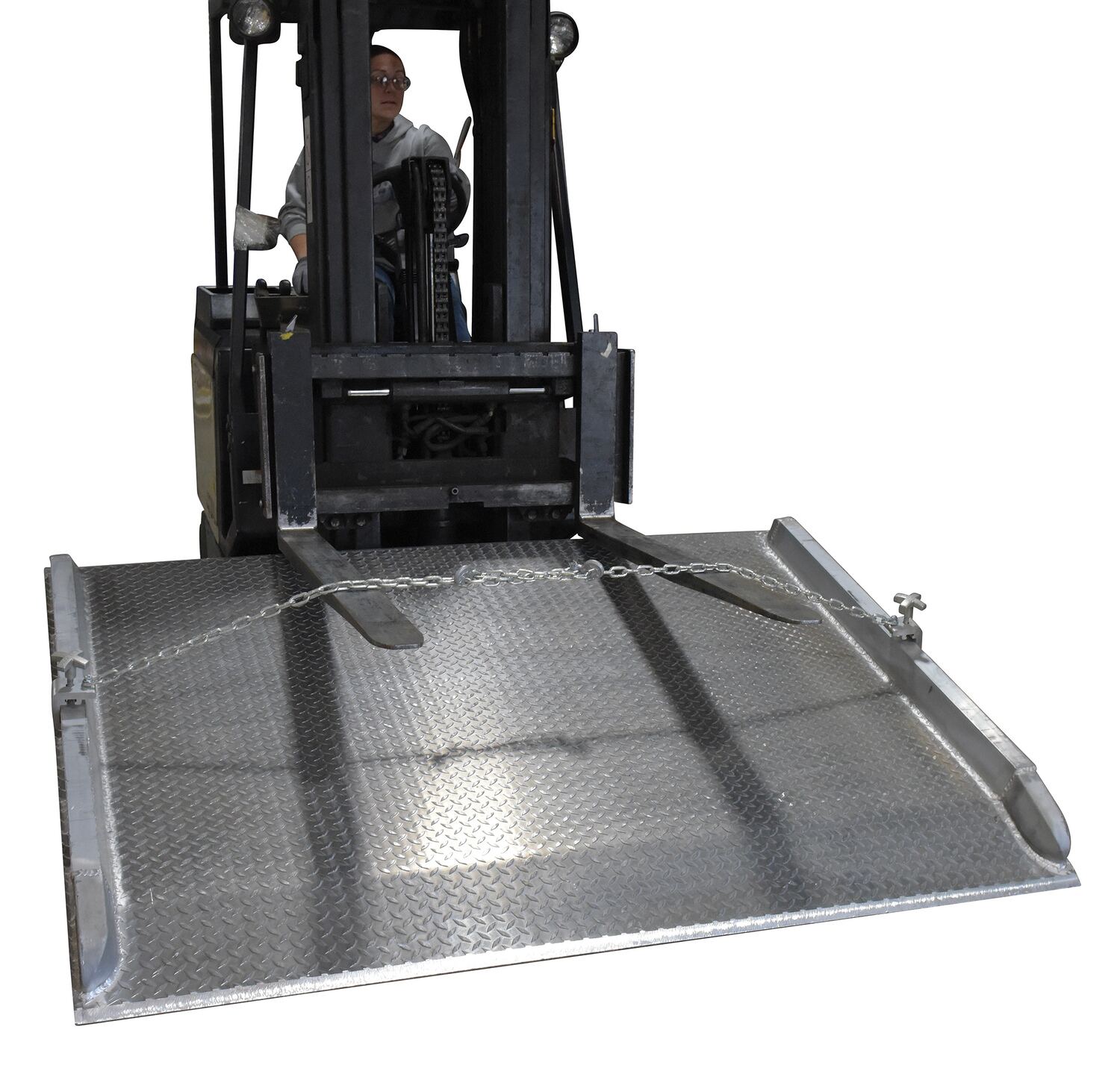

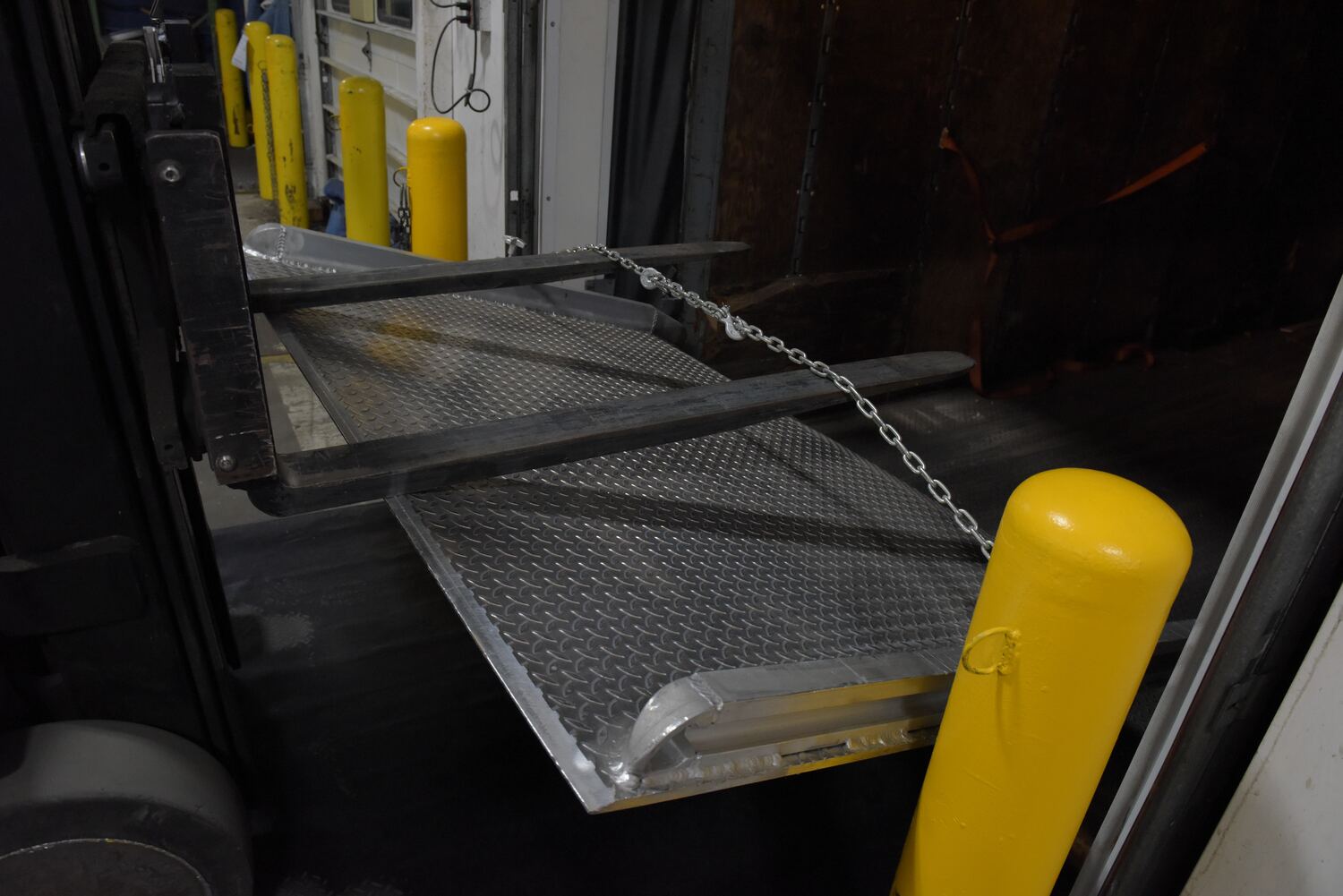

A lifting chain minimizes the manual labor associated with maneuvering heavy oversized dock boards. The chains provide a central point to be securely grasped by a lifting device, such as a fork lift. A bracket with a knob for quick hand tightening is included and can be attached to the side of a dock board to assist with the chain tightening.

  • Chains provide efficient lifting capabilities
  • Rugged construction for long lasting use
  • Bracket fits snugly to side of dock board
  • Chain link width supports safe securing
Assembled Wt.(lbs.): 10 Assembled Size: 3"W x 66.75"L x 3"H

Total Ship Wt.(lbs.): 11 (only 1 package) Package 1 Size: 7.00"W x 8.00"D x 6.00"H Color: Silver Non-Returnable

Chain Length (in.): 60 Chain Diameter (in.): .25 Chain Bracket Depth (in.): 3
Chain Bracket Height (in.): 5.8125 Chain Bracket Length (in.): 3.375 Bracket Knobs Size (in.): 3.375
Bracket Knobs Thread Size (in.): .5 Chain Bracket Mount Material: Aluminum

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: LC-BTA-72-84
Available
LC-BTA-72-84

Steel Curb Lifting Chains 60 In. Length For Aluminum Dock Boards Silver

A lifting chain minimizes the manual labor associated with maneuvering heavy oversized dock boards. The chains provide a central point to be securely grasped by a lifting device, such as a fork lift. A bracket with a knob for quick hand tightening is included and can be attached to the side of a dock board to assist with the chain tightening.

  • Chains provide efficient lifting capabilities
  • Rugged construction for long lasting use
  • Bracket fits snugly to side of dock board
  • Chain link width supports safe securing
Dimensions: 3"W x 66.75"L x 3"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 11 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Chain Length (in.): 60 Chain Diameter (in.): .25 Chain Bracket Depth (in.): 3
Chain Bracket Height (in.): 5.8125 Chain Bracket Length (in.): 3.375 Bracket Knobs Size (in.): 3.375
Bracket Knobs Thread Size (in.): .5 Chain Bracket Mount Material: Aluminum
