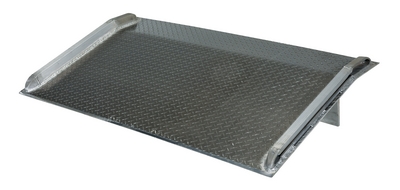

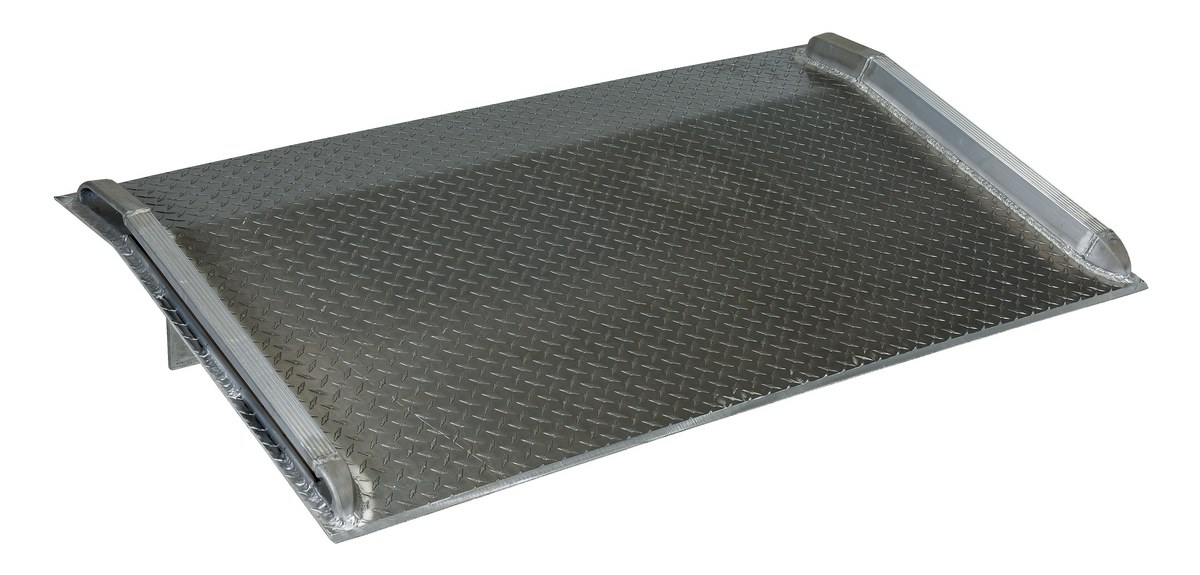

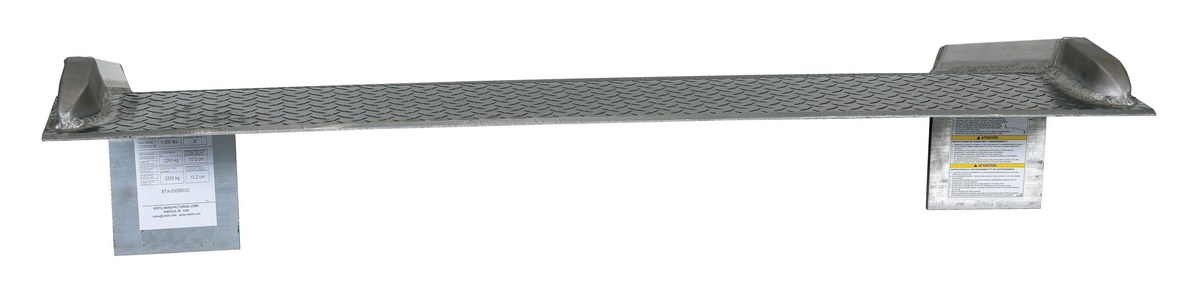

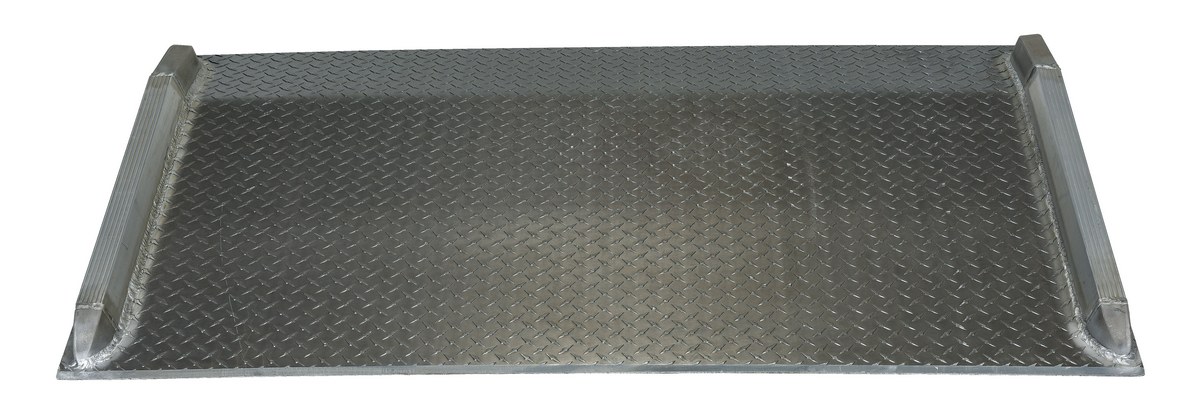

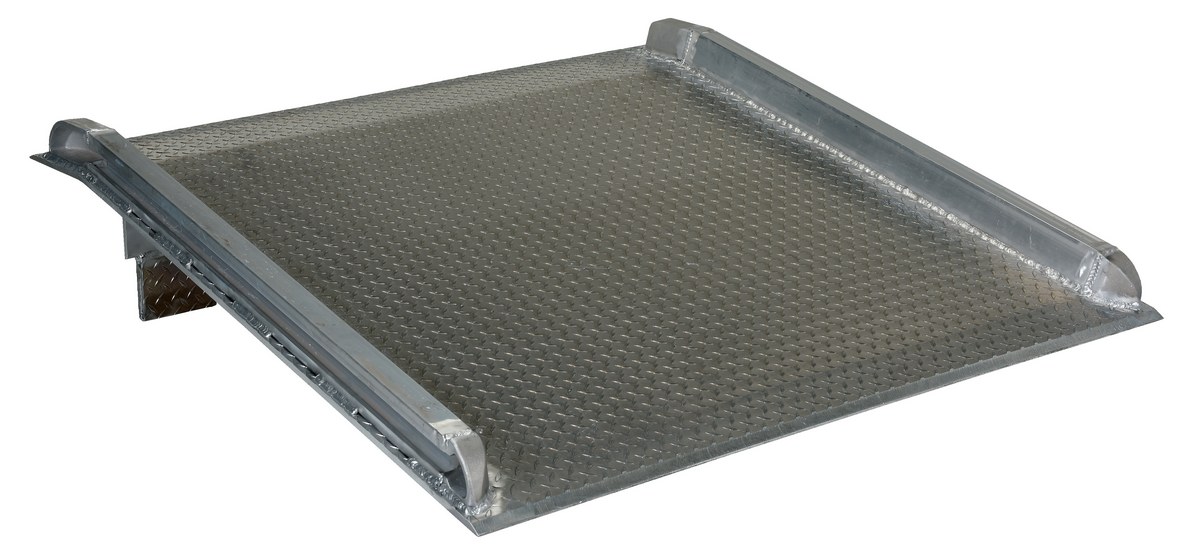

Aluminum Truck Dockboards (Welded Aluminum Curbs)

model: BTA-05006030


Aluminum Truck Dockboards (Welded Aluminum Curbs)
SERIES: BTA

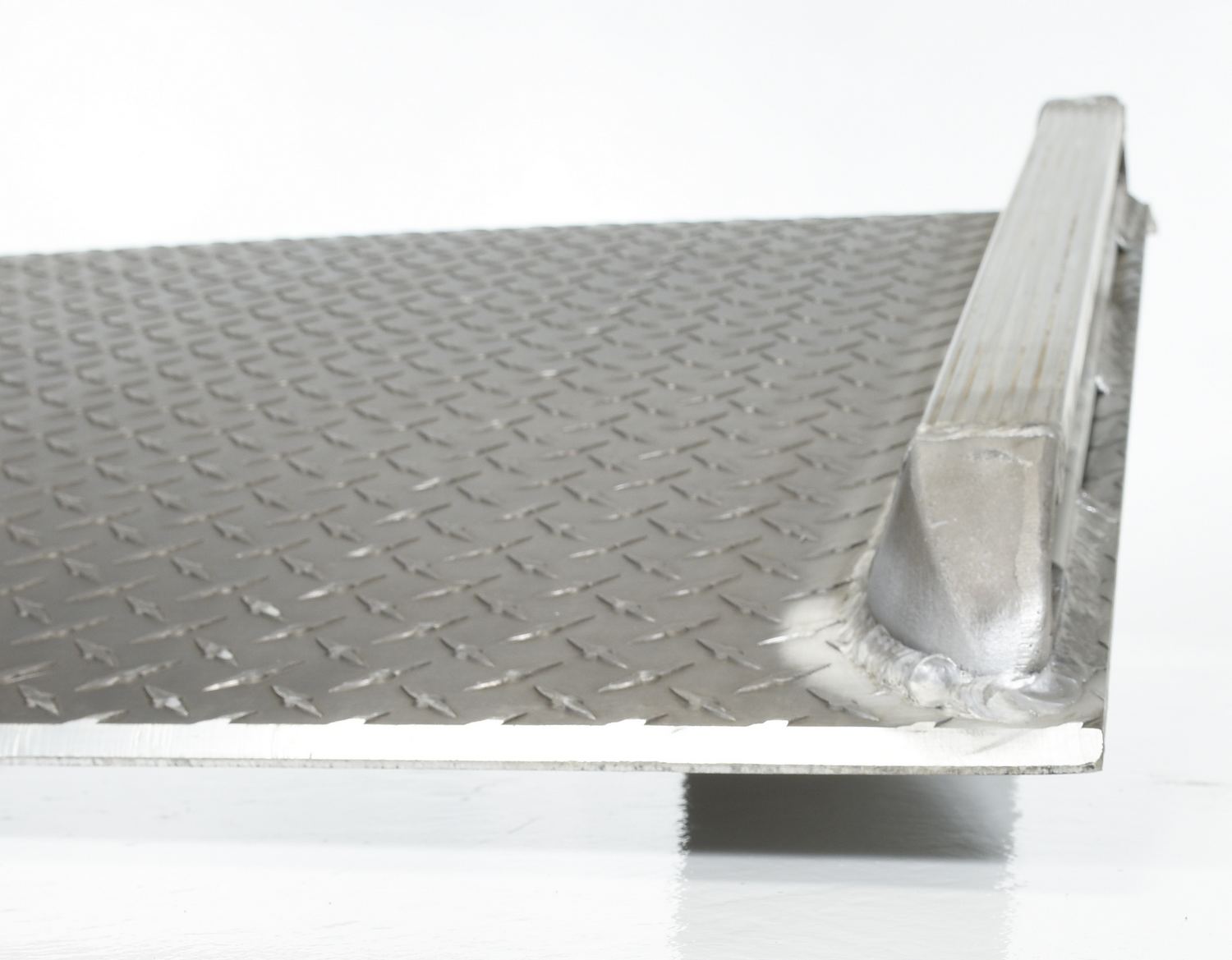

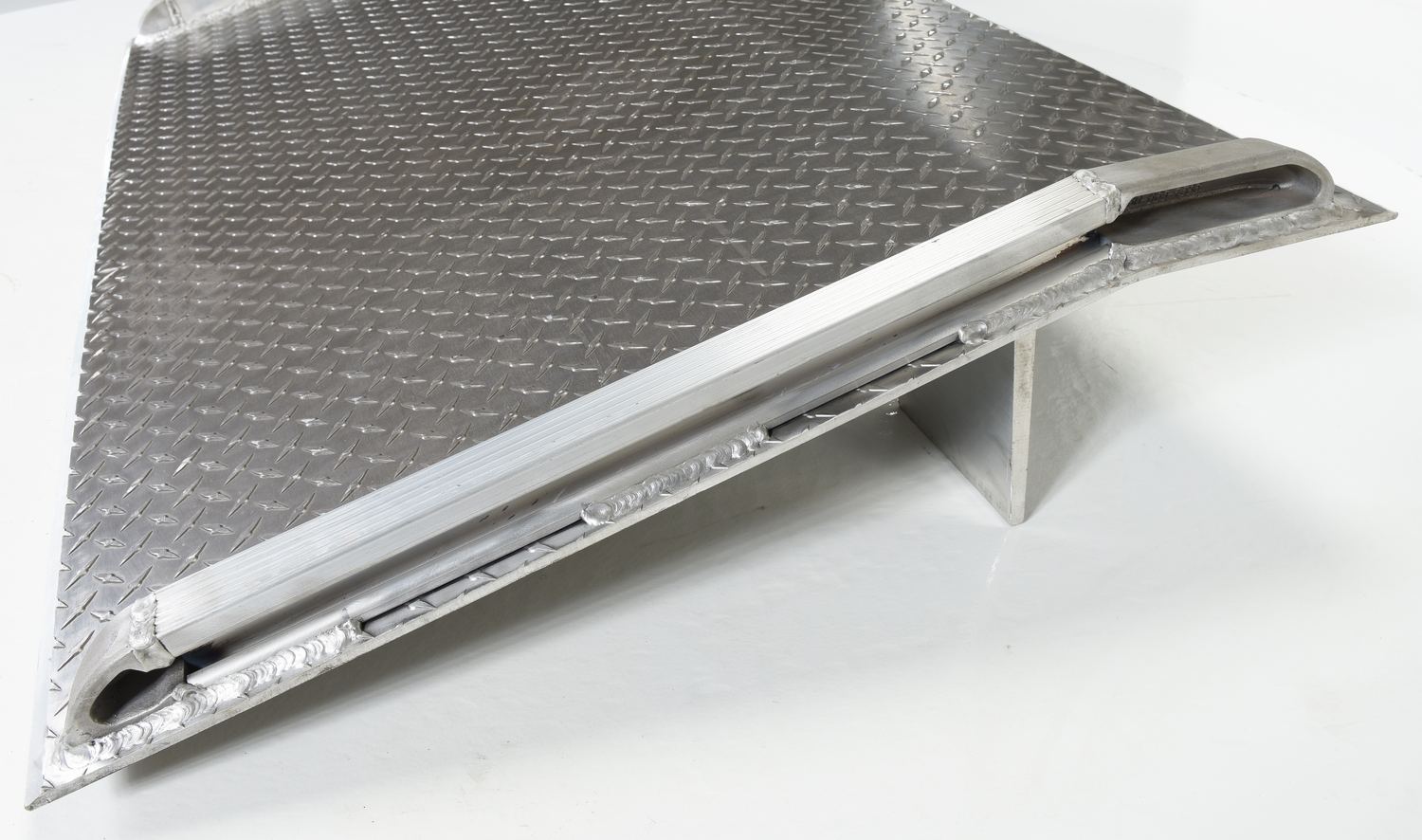

The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

  • 100% Aluminum construction provides rugged long lasting use
  • Raised-diamond tread plate dock board surface
  • Welded aluminum locking legs underneath dock board
  • Beveled entry and exit edges provide a smooth transition

MODEL = BTA - (capacity)(width)(length)

Aluminum Truck Dockboards (Welded Aluminum Curbs)

model: BTA-05006030

Model # Description Attributes Net Wt.
(lbs)

* Custom Sizes Available As Special Order

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

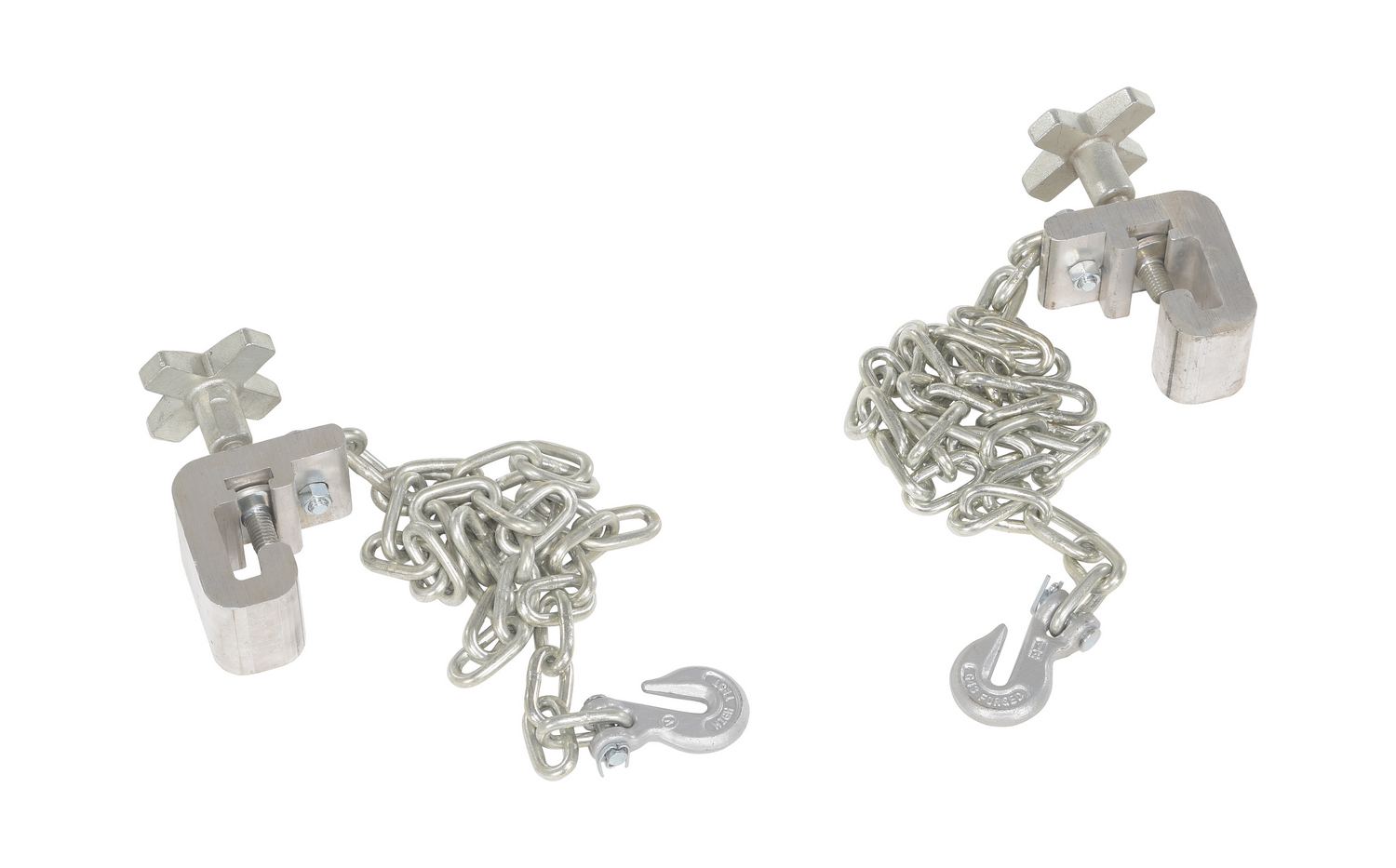

LC-BTA-48-66 LC-BTA-48-66Steel Curb Lifting Chains 42 In. Length For Aluminum Dock Bo…10

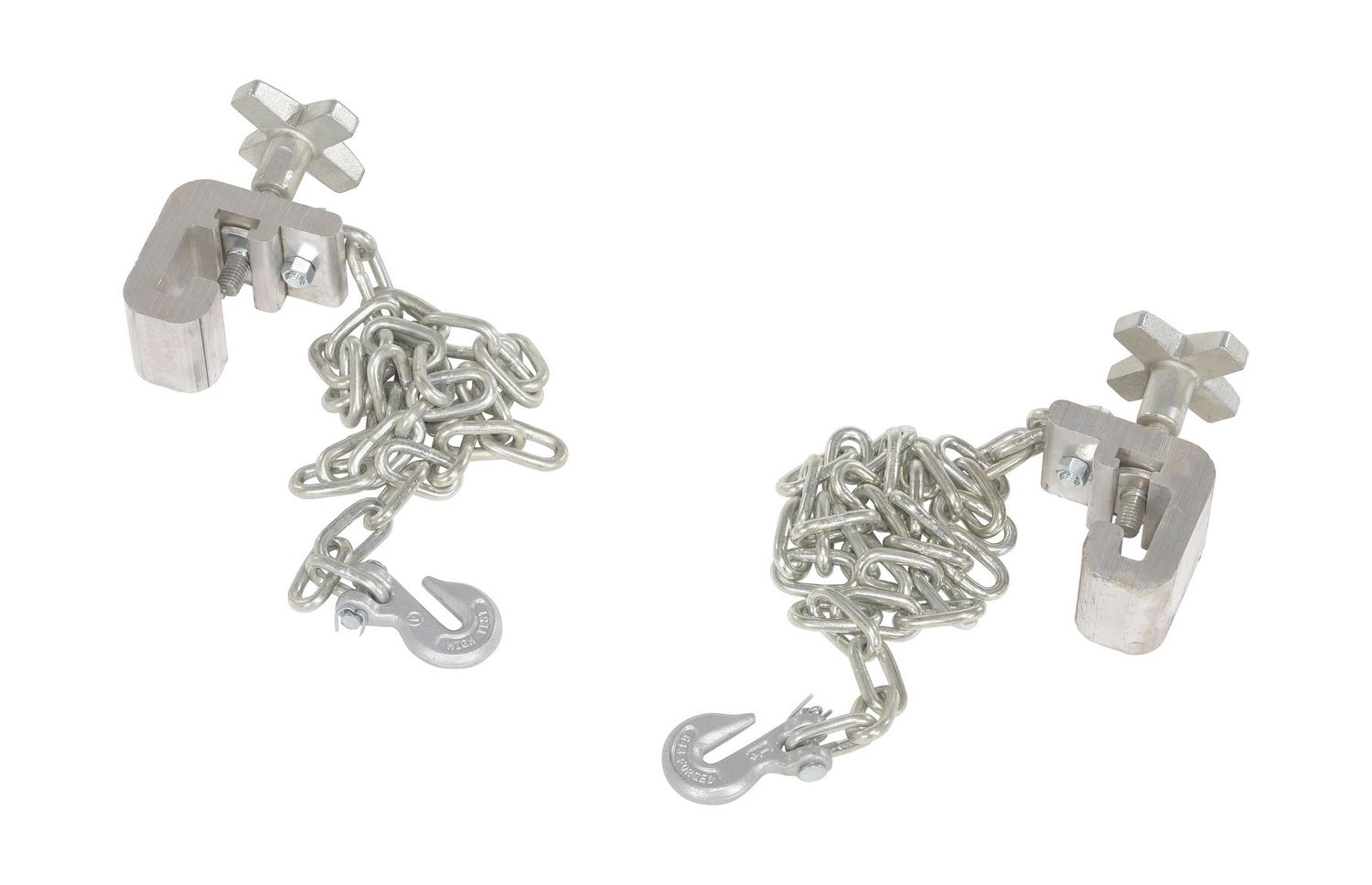

LC-BTA-72-84 LC-BTA-72-84Steel Curb Lifting Chains 60 In. Length For Aluminum Dock Bo…11

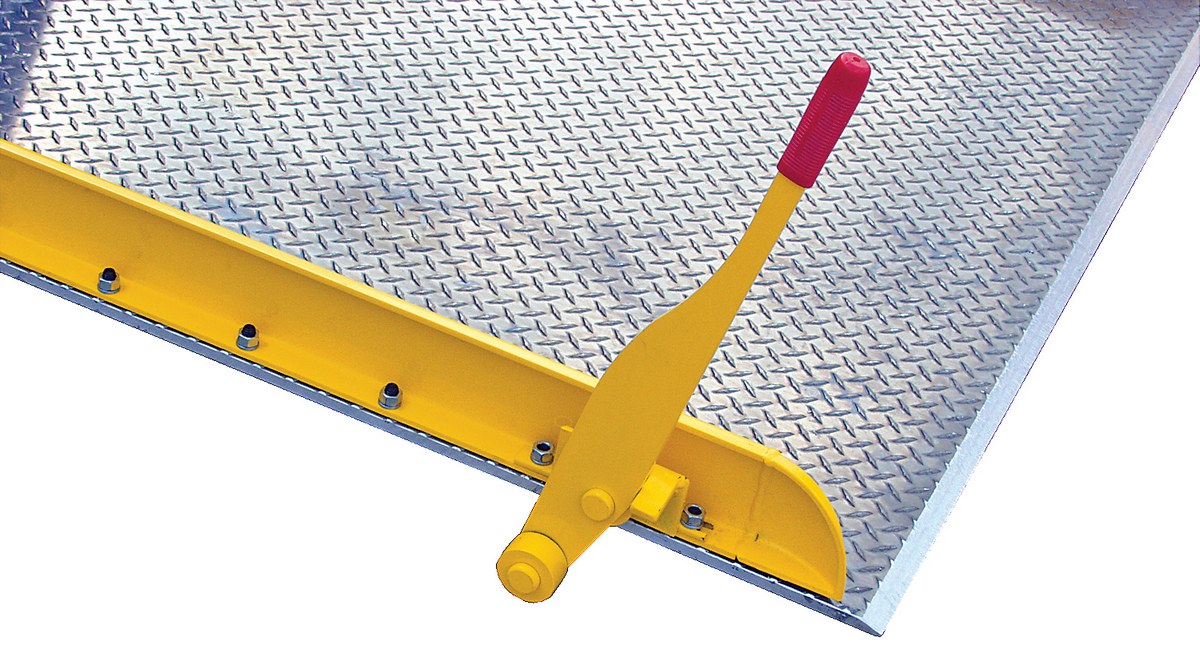

ALL ALLSteel Lever Lift 24-1/2 In. Height For Aluminum Dock Boards …15
HOLE Factory Installed Extra Span Holes For Aluminum Dock Boards
PIN Factory Installed Extra Span Pins For Aluminum Dock Boards12
SP Factory Installed Aluminum Dock Board Span Pins/Holes

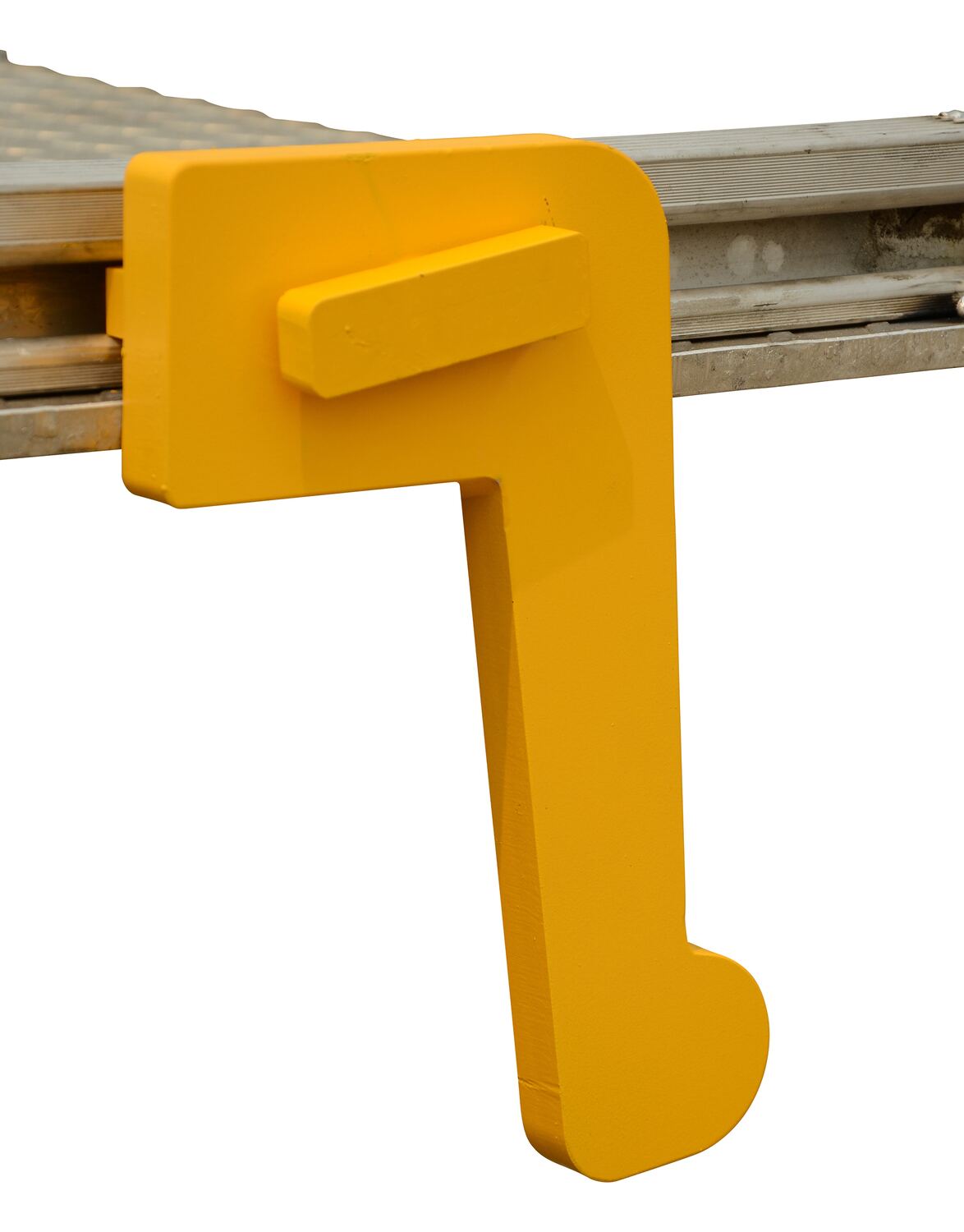

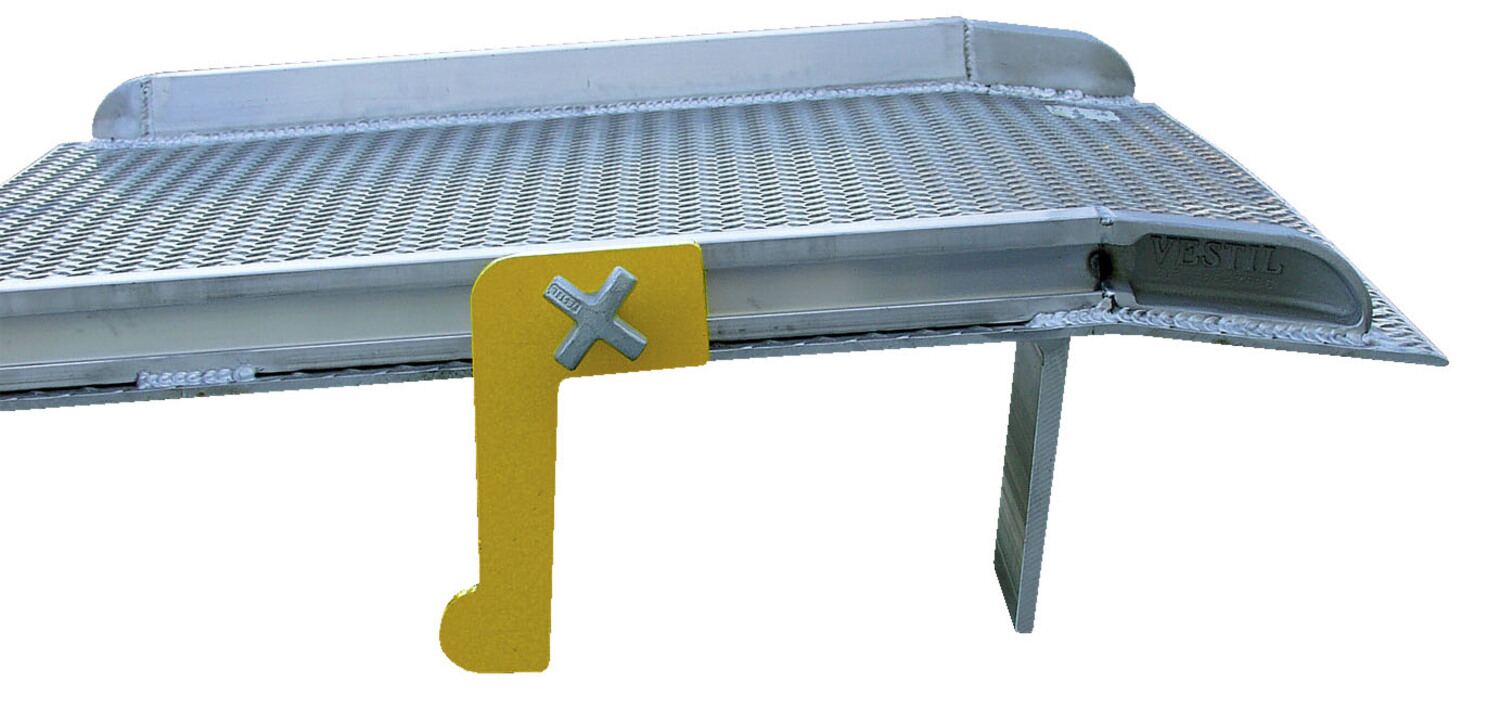

SSL SSLFactory Installed Sliding Span Locks For Aluminum Dock Board…5
Aluminum Dockboard Accessories
Model Image PDF Description
RPL-ALUM Compliance Certificate Removable Pickup Loops
SBL Compliance Certificate Special Bend Location
S2B Compliance Certificate Second Bend Location
ATC-12 Compliance Certificate Anti-Theft Chain (144")
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

Survey Sheets

Engineering Drawings

Testing Certificates

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product




Aluminum Truck Dockboards (Wel...




The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

  • 100% Aluminum construction provides rugged long lasting use
  • Raised-diamond tread plate dock board surface
  • Welded aluminum locking legs underneath dock board
  • Beveled entry and exit edges provide a smooth transition

MODEL = BTA - (capacity)(width)(length)



Model # Description Attributes Net Wt.
(lbs)
BTA-05005454 BTA-05005454Aluminum Truck Dock Board 54 In. x 54 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 6
117
BTA-05005466 BTA-05005466Aluminum Truck Dock Board 66 In. x 54 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8
134
BTA-05005478 BTA-05005478Aluminum Truck Dock Board 78 In. x 54 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 9
168

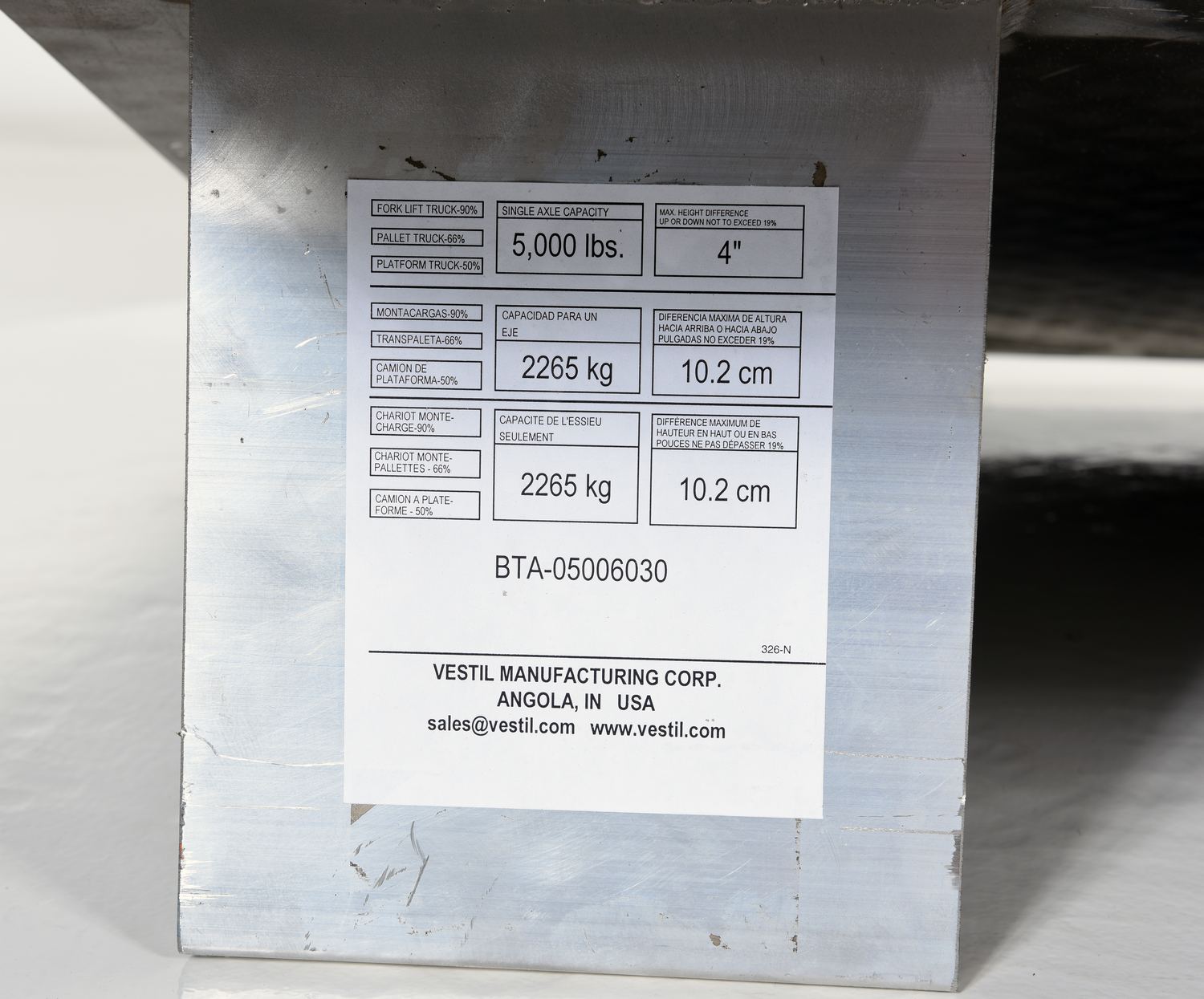

BTA-05006030 BTA-05006030Aluminum Truck Dock Board 30 In. x 60 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 3
72
BTA-05006036 BTA-05006036Aluminum Truck Dock Board 36 In. x 60 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 4
82
BTA-05006048 BTA-05006048Aluminum Truck Dock Board 48 In. x 60 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 5-1/2
105
BTA-05006060 BTA-05006060Aluminum Truck Dock Board 60 In. x 60 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 7
133
BTA-05006072 BTA-05006072Aluminum Truck Dock Board 72 In. x 60 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8-1/2
163
BTA-05006660 BTA-05006660Aluminum Truck Dock Board 60 In. x 66 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 7
126
BTA-05006666 BTA-05006666Aluminum Truck Dock Board 66 In. x 66 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8
135
BTA-05006672 BTA-05006672Aluminum Truck Dock Board 72 In. x 66 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8-1/2
171
BTA-05007230 BTA-05007230Aluminum Truck Dock Board 30 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 3
85
BTA-05007236 BTA-05007236Aluminum Truck Dock Board 36 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 4
92
BTA-05007242 BTA-05007242Aluminum Truck Dock Board 42 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 5
111
BTA-05007248 BTA-05007248Aluminum Truck Dock Board 48 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 5-1/2
152
BTA-05007254 BTA-05007254Aluminum Truck Dock Board 54 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 6
171
BTA-05007260 BTA-05007260Aluminum Truck Dock Board 60 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 7
195
BTA-05007266 BTA-05007266Aluminum Truck Dock Board 66 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8
212
BTA-05007272 BTA-05007272Aluminum Truck Dock Board 72 In. x 72 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8-1/2
281
BTA-05007830 BTA-05007830Aluminum Truck Dock Board 30 In. x 78 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 3
156
BTA-05007836 BTA-05007836Aluminum Truck Dock Board 36 In. x 78 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 4
164
BTA-05007842 BTA-05007842Aluminum Truck Dock Board 42 In. x 78 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 5
173
BTA-05007854 BTA-05007854Aluminum Truck Dock Board 54 In. x 78 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 6
212
BTA-05007866 BTA-05007866Aluminum Truck Dock Board 66 In. x 78 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8
255
BTA-05007872 BTA-05007872Aluminum Truck Dock Board 72 In. x 78 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8-1/2
267
BTA-05008430 BTA-05008430Aluminum Truck Dock Board 30 In. x 84 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 3
94
BTA-05008442 BTA-05008442Aluminum Truck Dock Board 42 In. x 84 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 5
116
BTA-05008454 BTA-05008454Aluminum Truck Dock Board 54 In. x 84 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 6
182
BTA-05008466 BTA-05008466Aluminum Truck Dock Board 66 In. x 84 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5000
Height Difference (in.): 8 degree/17 percent: 8
275
BTA-06005430 BTA-06005430Aluminum Truck Dock Board 30 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 3
65
BTA-06005442 BTA-06005442Aluminum Truck Dock Board 42 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5
102
BTA-06005454 BTA-06005454Aluminum Truck Dock Board 54 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 6
118
BTA-06005466 BTA-06005466Aluminum Truck Dock Board 66 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8
144
BTA-06005478 BTA-06005478Aluminum Truck Dock Board 78 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 9
185
BTA-06005484 BTA-06005484Aluminum Truck Dock Board 84 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 10
201
BTA-06006054 BTA-06006054Aluminum Truck Dock Board 54 In. x 60 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 6
132
BTA-06006060 BTA-06006060Aluminum Truck Dock Board 60 In. x 60 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 7
144
BTA-06006072 BTA-06006072Aluminum Truck Dock Board 72 In. x 60 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8-1/2
164
BTA-06006084 BTA-06006084Aluminum Truck Dock Board 84 In. x 60 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 10
185
BTA-06006636 BTA-06006636Aluminum Truck Dock Board 36 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 4
150
BTA-06006642 BTA-06006642Aluminum Truck Dock Board 42 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5
179
BTA-06006648 BTA-06006648Aluminum Truck Dock Board 48 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5-1/2
208
BTA-06006654 BTA-06006654Aluminum Truck Dock Board 54 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 6
236
BTA-06006660 BTA-06006660Aluminum Truck Dock Board 60 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 7
241
BTA-06006666 BTA-06006666Aluminum Truck Dock Board 66 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8
258
BTA-06006672 BTA-06006672Aluminum Truck Dock Board 72 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8-1/2
279
BTA-06007236 BTA-06007236Aluminum Truck Dock Board 72 In. x 36 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 4
91
BTA-06007242 BTA-06007242Aluminum Truck Dock Board 72 In. x 42 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5
111
BTA-06007254 BTA-06007254Aluminum Truck Dock Board 72 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 6
165
BTA-06007266 BTA-06007266Aluminum Truck Dock Board 72 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8
289
BTA-06007830 BTA-06007830Aluminum Truck Dock Board 78 In. x 30 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 3
149
BTA-06007836 BTA-06007836Aluminum Truck Dock Board 78 In. x 36 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 4
158
BTA-06007842 BTA-06007842Aluminum Truck Dock Board 78 In. x 42 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5
166
BTA-06007848 BTA-06007848Aluminum Truck Dock Board 78 In. x 48 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5-1/2
171
BTA-06007854 BTA-06007854Aluminum Truck Dock Board 78 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 6
178
BTA-06007860 BTA-06007860Aluminum Truck Dock Board 78 In. x 60 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 7
186
BTA-06007866 BTA-06007866Aluminum Truck Dock Board 78 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8
192

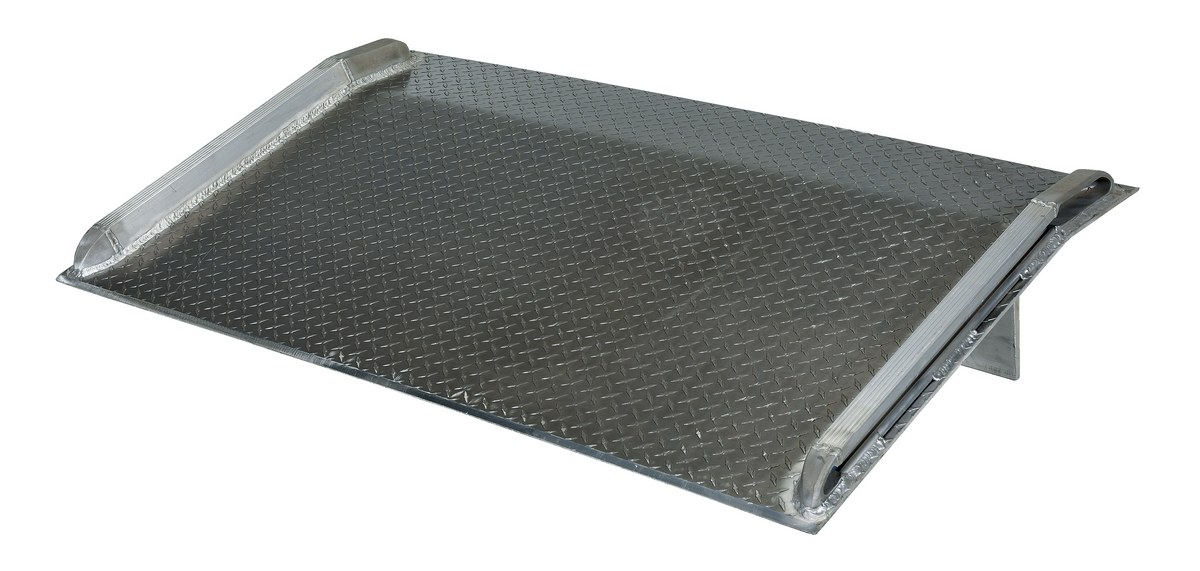

BTA-06007872 BTA-06007872Aluminum Truck Dock Board 78 In. x 72 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8-1/2
201
BTA-06008430 BTA-06008430Aluminum Truck Dock Board 84 In. x 30 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 3
205
BTA-06008436 BTA-06008436Aluminum Truck Dock Board 84 In. x 36 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 4
209
BTA-06008442 BTA-06008442Aluminum Truck Dock Board 84 In. x 42 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5
214
BTA-06008448 BTA-06008448Aluminum Truck Dock Board 84 In. x 48 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 5-1/2
218
BTA-06008454 BTA-06008454Aluminum Truck Dock Board 84 In. x 54 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 6
224
BTA-06008460 BTA-06008460Aluminum Truck Dock Board 84 In. x 60 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 7
235
BTA-06008466 BTA-06008466Aluminum Truck Dock Board 84 In. x 66 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8
248
BTA-06008472 BTA-06008472Aluminum Truck Dock Board 84 In. x 72 In. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Height Difference (in.): 8 degree/17 percent: 8-1/2
255
BTA-07005454 BTA-07005454Aluminum Truck Dock Board 54 In. x 54 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 6
121
BTA-07005466 BTA-07005466Aluminum Truck Dock Board 54 In. x 66 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 8
155
BTA-07006066 BTA-07006066Aluminum Truck Dock Board 60 In. x 66 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 8
168
BTA-07006630 BTA-07006630Aluminum Truck Dock Board 66 In. x 30 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 3
90
BTA-07006636 BTA-07006636Aluminum Truck Dock Board 66 In. x 36 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 4
95
BTA-07006642 BTA-07006642Aluminum Truck Dock Board 66 In. x 42 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 5
106
BTA-07006654 BTA-07006654Aluminum Truck Dock Board 66 In. x 54 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 6
144
BTA-07006666 BTA-07006666Aluminum Truck Dock Board 66 In. x 66 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 8
157
BTA-07007230 BTA-07007230Aluminum Truck Dock Board 72 In. x 30 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 3
130
BTA-07007236 BTA-07007236Aluminum Truck Dock Board 72 In. x 36 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 4
145
BTA-07007248 BTA-07007248Aluminum Truck Dock Board 72 In. x 48 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 5-1/2
163
BTA-07007254 BTA-07007254Aluminum Truck Dock Board 72 In. x 54 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 6
173

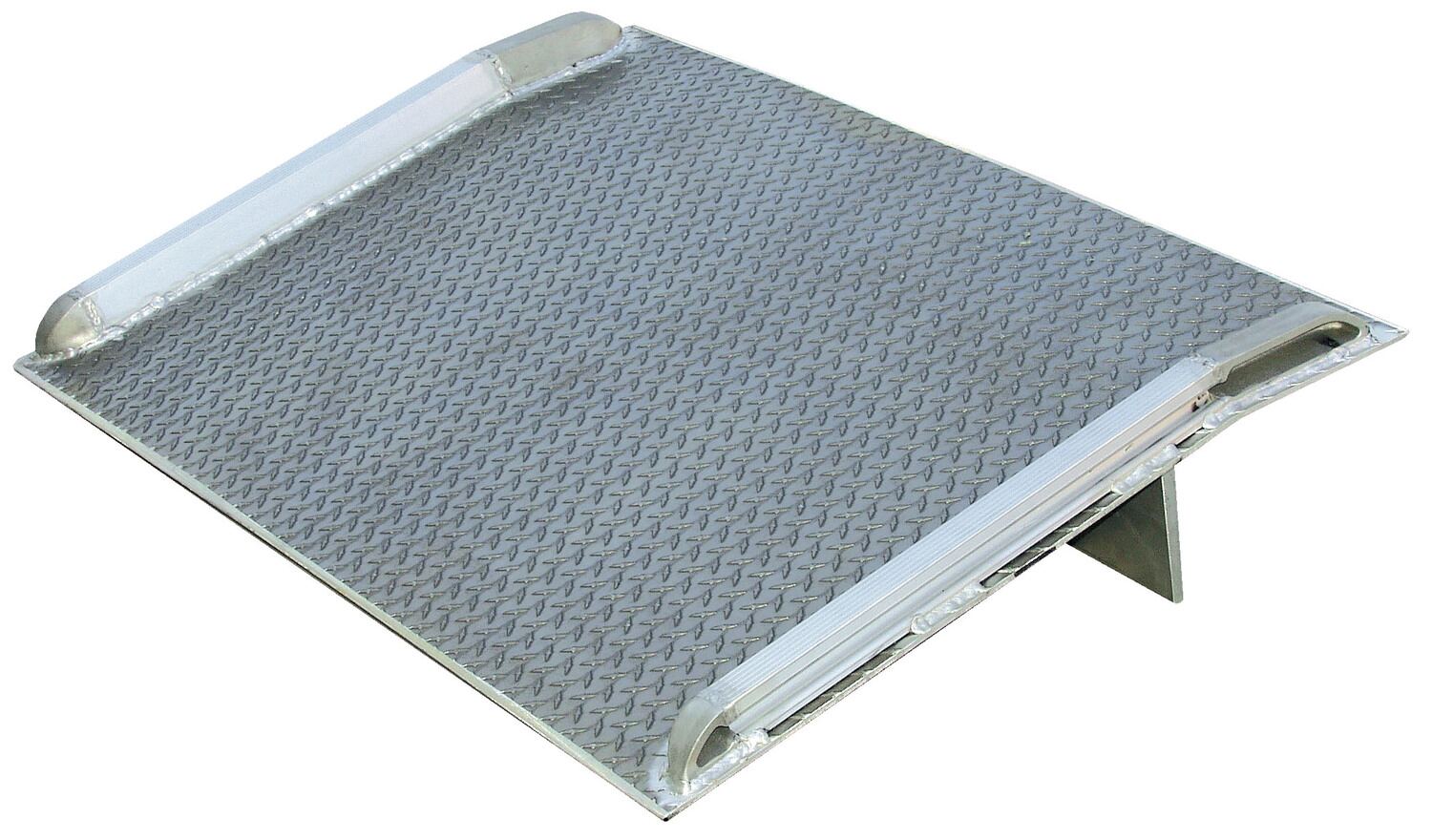

BTA-07007268 BTA-07007268Aluminum Truck Dock Board 72 In. x 68 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Overall Width (in.): 68
242
BTA-07007272 BTA-07007272Aluminum Truck Dock Board 72 In. x 72 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 8-1/2
220
BTA-07007830 BTA-07007830Aluminum Truck Dock Board 78 In. x 30 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 3
162
BTA-07007842 BTA-07007842Aluminum Truck Dock Board 78 In. x 42 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 5
215
BTA-07007848 BTA-07007848Aluminum Truck Dock Board 78 In. x 48 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 5-1/2
220
BTA-07007854 BTA-07007854Aluminum Truck Dock Board 78 In. x 54 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 6
225
BTA-07007860 BTA-07007860Aluminum Truck Dock Board 78 In. x 60 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 7
228
BTA-07007866 BTA-07007866Aluminum Truck Dock Board 78 In. x 66 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 8
231
BTA-07007872 BTA-07007872Aluminum Truck Dock Board 78 In. x 72 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 8-1/2
242
BTA-07008430 BTA-07008430Aluminum Truck Dock Board 84 In. x 30 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 3
173
BTA-07008436 BTA-07008436Aluminum Truck Dock Board 84 In. x 36 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 4
201
BTA-07008442 BTA-07008442Aluminum Truck Dock Board 84 In. x 42 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 5
225
BTA-07008454 BTA-07008454Aluminum Truck Dock Board 84 In. x 54 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 6
248
BTA-07008460 BTA-07008460Aluminum Truck Dock Board 84 In. x 60 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 7
252
BTA-07008466 BTA-07008466Aluminum Truck Dock Board 84 In. x 66 In. 7000 Lb. Capacity SilverUniform Capacity (lb.): 7000
Height Difference (in.): 8 degree/17 percent: 8
255
BTA-08005430 BTA-08005430Aluminum Truck Dock Board 54 In. x 30 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 3
110
BTA-08005442 BTA-08005442Aluminum Truck Dock Board 54 In. x 42 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 5
115
BTA-08005454 BTA-08005454Aluminum Truck Dock Board 54 In. x 54 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 6
137
BTA-08005466 BTA-08005466Aluminum Truck Dock Board 54 In. x 66 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8
178
BTA-08005472 BTA-08005472Aluminum Truck Dock Board 54 In. x 72 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8-1/2
182
BTA-08005484 BTA-08005484Aluminum Truck Dock Board 54 In. x 84 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 10
202
BTA-08006078 BTA-08006078Aluminum Truck Dock Board 60 In. x 78 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 9
202
BTA-08006084 BTA-08006084Aluminum Truck Dock Board 60 In. x 84 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 10
205
BTA-08006630 BTA-08006630Aluminum Truck Dock Board 66 In. x 30 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 3
101
BTA-08006636 BTA-08006636Aluminum Truck Dock Board 66 In. x 36 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 4
112
BTA-08006642 BTA-08006642Aluminum Truck Dock Board 66 In. x 42 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 5
120
BTA-08006654 BTA-08006654Aluminum Truck Dock Board 66 In. x 54 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 6
206
BTA-08006660 BTA-08006660Aluminum Truck Dock Board 66 In. x 60 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 7
214
BTA-08006666 BTA-08006666Aluminum Truck Dock Board 66 In. x 66 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8
235
BTA-08006672 BTA-08006672Aluminum Truck Dock Board 66 In. x 72 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8-1/2
238
BTA-08007236 BTA-08007236Aluminum Truck Dock Board 72 In. x 36 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 4
145
BTA-08007254 BTA-08007254Aluminum Truck Dock Board 72 In. x 54 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 6
210
BTA-08007260 BTA-08007260Aluminum Truck Dock Board 72 In. x 60 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 7
212
BTA-08007266 BTA-08007266Aluminum Truck Dock Board 72 In. x 66 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8
215
BTA-08007272 BTA-08007272Aluminum Truck Dock Board 72 In. x 72 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8-1/2
218
BTA-08007830 BTA-08007830Aluminum Truck Dock Board 78 In. x 30 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 3
162
BTA-08007836 BTA-08007836Aluminum Truck Dock Board 78 In. x 36 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 4
188
BTA-08007842 BTA-08007842Aluminum Truck Dock Board 78 In. x 42 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 5
194
BTA-08007848 BTA-08007848Aluminum Truck Dock Board 78 In. x 48 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 5-1/2
196
BTA-08007854 BTA-08007854Aluminum Truck Dock Board 78 In. x 54 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 6
200
BTA-08007860 BTA-08007860Aluminum Truck Dock Board 78 In. x 60 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 7
206
BTA-08007872 BTA-08007872Aluminum Truck Dock Board 78 In. x 72 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8-1/2
214
BTA-08008442 BTA-08008442Aluminum Truck Dock Board 84 In. x 42 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 5
132
BTA-08008454 BTA-08008454Aluminum Truck Dock Board 84 In. x 54 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 6
175
BTA-08008460 BTA-08008460Aluminum Truck Dock Board 84 In. x 60 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 7
188
BTA-08008466 BTA-08008466Aluminum Truck Dock Board 84 In. x 66 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8
211
BTA-08008472 BTA-08008472Aluminum Truck Dock Board 84 In. x 72 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 8000
Height Difference (in.): 8 degree/17 percent: 8-1/2
221
BTA-09006054 BTA-09006054Aluminum Truck Dock Board 60 In. x 54 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 6
181
BTA-09006060 BTA-09006060Aluminum Truck Dock Board 60 In. x 60 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 7
185
BTA-09006066 BTA-09006066Aluminum Truck Dock Board 60 In. x 66 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8
187
BTA-09006072 BTA-09006072Aluminum Truck Dock Board 60 In. x 72 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8-1/2
191
BTA-09006630 BTA-09006630Aluminum Truck Dock Board 66 In. x 30 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 3
85
BTA-09006636 BTA-09006636Aluminum Truck Dock Board 66 In. x 36 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 4
101
BTA-09006648 BTA-09006648Aluminum Truck Dock Board 66 In. x 48 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 5-1/2
108
BTA-09006654 BTA-09006654Aluminum Truck Dock Board 66 In. x 54 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 6
115
BTA-09006660 BTA-09006660Aluminum Truck Dock Board 66 In. x 60 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 7
119
BTA-09006666 BTA-09006666Aluminum Truck Dock Board 66 In. x 66 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8
122
BTA-09006672 BTA-09006672Aluminum Truck Dock Board 66 In. x 72 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8-1/2
125
BTA-09007236 BTA-09007236Aluminum Truck Dock Board 72 In. x 36 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 4
111
BTA-09007242 BTA-09007242Aluminum Truck Dock Board 72 In. x 42 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 5
122
BTA-09007248 BTA-09007248Aluminum Truck Dock Board 72 In. x 48 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 5-1/2
168
BTA-09007254 BTA-09007254Aluminum Truck Dock Board 72 In. x 54 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 6
179
BTA-09007260 BTA-09007260Aluminum Truck Dock Board 72 In. x 60 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 7
198
BTA-09007266 BTA-09007266Aluminum Truck Dock Board 72 In. x 66 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8
212
BTA-09007830 BTA-09007830Aluminum Truck Dock Board 78 In. x 30 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 3
165
BTA-09007836 BTA-09007836Aluminum Truck Dock Board 78 In. x 36 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 4
175
BTA-09007842 BTA-09007842Aluminum Truck Dock Board 78 In. x 42 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 5
182
BTA-09007848 BTA-09007848Aluminum Truck Dock Board 78 In. x 48 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 5-1/2
198
BTA-09007854 BTA-09007854Aluminum Truck Dock Board 78 In. x 54 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 6
201
BTA-09007860 BTA-09007860Aluminum Truck Dock Board 78 In. x 60 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 7
211
BTA-09007866 BTA-09007866Aluminum Truck Dock Board 78 In. x 66 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8
215
BTA-09007872 BTA-09007872Aluminum Truck Dock Board 78 In. x 72 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8-1/2
219
BTA-09008436 BTA-09008436Aluminum Truck Dock Board 84 In. x 36 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 4
188
BTA-09008442 BTA-09008442Aluminum Truck Dock Board 84 In. x 42 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 5
199
BTA-09008448 BTA-09008448Aluminum Truck Dock Board 84 In. x 48 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 5-1/2
205
BTA-09008454 BTA-09008454Aluminum Truck Dock Board 84 In. x 54 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 6
223
BTA-09008460 BTA-09008460Aluminum Truck Dock Board 84 In. x 60 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 7
231
BTA-09008466 BTA-09008466Aluminum Truck Dock Board 84 In. x 66 In. 9000 Lb. Capacity SilverUniform Capacity (lb.): 9000
Height Difference (in.): 8 degree/17 percent: 8
241
BTA-10005448 BTA-10005448Aluminum Truck Dock Board 54 In. x 48 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 5-1/2
152
BTA-10005460 BTA-10005460Aluminum Truck Dock Board 54 In. x 60 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 7
165
BTA-10005472 BTA-10005472Aluminum Truck Dock Board 54 In. x 72 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8-1/2
177
BTA-10006036 BTA-10006036Aluminum Truck Dock Board 60 In. x 36 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 4
123
BTA-10006048 BTA-10006048Aluminum Truck Dock Board 60 In. x 48 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 5-1/2
173
BTA-10006060 BTA-10006060Aluminum Truck Dock Board 60 In. x 60 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 7
197
BTA-10006072 BTA-10006072Aluminum Truck Dock Board 60 In. x 72 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8-1/2
251
BTA-10006078 BTA-10006078Aluminum Truck Dock Board 60 In. x 78 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 9
264
BTA-10006630 BTA-10006630Aluminum Truck Dock Board 66 In. x 30 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 3
127
BTA-10006642 BTA-10006642Aluminum Truck Dock Board 66 In. x 42 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 5
177
BTA-10006654 BTA-10006654Aluminum Truck Dock Board 66 In. x 54 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 6
215
BTA-10006666 BTA-10006666Aluminum Truck Dock Board 66 In. x 66 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8
255
BTA-10006672 BTA-10006672Aluminum Truck Dock Board 66 In. x 72 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8-1/2
262
BTA-10007236 BTA-10007236Aluminum Truck Dock Board 72 In. x 36 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 4
161
BTA-10007248 BTA-10007248Aluminum Truck Dock Board 72 In. x 48 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 5-1/2
189
BTA-10007254 BTA-10007254Aluminum Truck Dock Board 72 In. x 54 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 6
199
BTA-10007260 BTA-10007260Aluminum Truck Dock Board 72 In. x 60 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 7
247
BTA-10007266 BTA-10007266Aluminum Truck Dock Board 72 In. x 66 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8
311
BTA-10007272 BTA-10007272Aluminum Truck Dock Board 72 In. x 72 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8-1/2
319
BTA-10007842 BTA-10007842Aluminum Truck Dock Board 78 In. x 42 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 5
189
BTA-10007854 BTA-10007854Aluminum Truck Dock Board 78 In. x 54 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 6
245
BTA-10007860 BTA-10007860Aluminum Truck Dock Board 78 In. x 60 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 7
276
BTA-10007866 BTA-10007866Aluminum Truck Dock Board 78 In. x 66 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8
288
BTA-10007872 BTA-10007872Aluminum Truck Dock Board 78 In. x 72 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8-1/2
299
BTA-10008442 BTA-10008442Aluminum Truck Dock Board 84 In. x 42 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 5
204
BTA-10008466 BTA-10008466Aluminum Truck Dock Board 84 In. x 66 In. 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference (in.): 8 degree/17 percent: 8
258
BTA-11006042 BTA-11006042Aluminum Truck Dock Board 60 In. x 42 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 5
144
BTA-11006054 BTA-11006054Aluminum Truck Dock Board 60 In. x 54 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 6
191
BTA-11006060 BTA-11006060Aluminum Truck Dock Board 60 In. x 60 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 7
211
BTA-11006066 BTA-11006066Aluminum Truck Dock Board 60 In. x 66 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 8
226
BTA-11006072 BTA-11006072Aluminum Truck Dock Board 60 In. x 72 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 8-1/2
240
BTA-11006630 BTA-11006630Aluminum Truck Dock Board 66 In. x 30 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 3
151
BTA-11006636 BTA-11006636Aluminum Truck Dock Board 66 In. x 36 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 4
162
BTA-11006648 BTA-11006648Aluminum Truck Dock Board 66 In. x 48 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 5-1/2
178
BTA-11006654 BTA-11006654Aluminum Truck Dock Board 66 In. x 54 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 6
285
BTA-11006660 BTA-11006660Aluminum Truck Dock Board 66 In. x 60 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 7
317
BTA-11006672 BTA-11006672Aluminum Truck Dock Board 66 In. x 72 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 8-1/2
345
BTA-11007230 BTA-11007230Aluminum Truck Dock Board 72 In. x 30 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 3
154
BTA-11007242 BTA-11007242Aluminum Truck Dock Board 72 In. x 42 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 5
182
BTA-11007248 BTA-11007248Aluminum Truck Dock Board 72 In. x 48 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 5-1/2
210
BTA-11007254 BTA-11007254Aluminum Truck Dock Board 72 In. x 54 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 6
223
BTA-11007260 BTA-11007260Aluminum Truck Dock Board 72 In. x 60 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 7
241
BTA-11007266 BTA-11007266Aluminum Truck Dock Board 72 In. x 66 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 8
255
BTA-11007830 BTA-11007830Aluminum Truck Dock Board 78 In. x 30 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 3
164
BTA-11007836 BTA-11007836Aluminum Truck Dock Board 78 In. x 36 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 4
216
BTA-11007842 BTA-11007842Aluminum Truck Dock Board 78 In. x 42 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 5
235
BTA-11007848 BTA-11007848Aluminum Truck Dock Board 78 In. x 48 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 5-1/2
255
BTA-11007860 BTA-11007860Aluminum Truck Dock Board 78 In. x 60 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 7
266
BTA-11007866 BTA-11007866Aluminum Truck Dock Board 78 In. x 66 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 8
299
BTA-11007872 BTA-11007872Aluminum Truck Dock Board 78 In. x 72 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 8-1/2
341
BTA-11008448 BTA-11008448Aluminum Truck Dock Board 84 In. x 48 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 5-1/2
255
BTA-11008454 BTA-11008454Aluminum Truck Dock Board 84 In. x 54 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 6
262
BTA-11008472 BTA-11008472Aluminum Truck Dock Board 84 In. x 72 In. 11000 Lb. Capacity SilverUniform Capacity (lb.): 11000
Height Difference (in.): 8 degree/17 percent: 8-1/2
272
BTA-12006042 BTA-12006042Aluminum Truck Dock Board 60 In. x 42 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 5
166
BTA-12006054 BTA-12006054Aluminum Truck Dock Board 60 In. x 54 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 6
210
BTA-12006066 BTA-12006066Aluminum Truck Dock Board 60 In. x 66 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 8
275
BTA-12006078 BTA-12006078Aluminum Truck Dock Board 60 In. x 78 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 9
292
BTA-12006642 BTA-12006642Aluminum Truck Dock Board 66 In. x 42 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 5
188
BTA-12006648 BTA-12006648Aluminum Truck Dock Board 66 In. x 48 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 5-1/2
204
BTA-12006654 BTA-12006654Aluminum Truck Dock Board 66 In. x 54 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 6
235
BTA-12006660 BTA-12006660Aluminum Truck Dock Board 66 In. x 60 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 7
254
BTA-12006666 BTA-12006666Aluminum Truck Dock Board 66 In. x 66 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 8
312
BTA-12006672 BTA-12006672Aluminum Truck Dock Board 66 In. x 72 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 8-1/2
322
BTA-12007230 BTA-12007230Aluminum Truck Dock Board 72 In. x 30 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 3
144
BTA-12007242 BTA-12007242Aluminum Truck Dock Board 72 In. x 42 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 5
205
BTA-12007254 BTA-12007254Aluminum Truck Dock Board 72 In. x 54 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 6
257
BTA-12007266 BTA-12007266Aluminum Truck Dock Board 72 In. x 66 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 8
318
BTA-12007830 BTA-12007830Aluminum Truck Dock Board 78 In. x 30 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 3
177
BTA-12007836 BTA-12007836Aluminum Truck Dock Board 78 In. x 36 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 4
195
BTA-12007842 BTA-12007842Aluminum Truck Dock Board 78 In. x 42 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 5
222
BTA-12007848 BTA-12007848Aluminum Truck Dock Board 78 In. x 48 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 5-1/2
233
BTA-12007854 BTA-12007854Aluminum Truck Dock Board 78 In. x 54 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 6
255
BTA-12007860 BTA-12007860Aluminum Truck Dock Board 78 In. x 60 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 7
273
BTA-12007866 BTA-12007866Aluminum Truck Dock Board 78 In. x 66 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 8
352
BTA-12008430 BTA-12008430Aluminum Truck Dock Board 84 In. x 30 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 3
145
BTA-12008454 BTA-12008454Aluminum Truck Dock Board 84 In. x 54 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 6
268
BTA-12008466 BTA-12008466Aluminum Truck Dock Board 84 In. x 66 In. 12000 Lb. Capacity SilverUniform Capacity (lb.): 12000
Height Difference (in.): 8 degree/17 percent: 8
275
BTA-15005436 BTA-15005436Aluminum Truck Dock Board 54 In. x 36 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 4
151
BTA-15005448 BTA-15005448Aluminum Truck Dock Board 54 In. x 48 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 5-1/2
208
BTA-15005472 BTA-15005472Aluminum Truck Dock Board 54 In. x 72 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8-1/2
308
BTA-15006036 BTA-15006036Aluminum Truck Dock Board 60 In. x 36 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 4
141
BTA-15006048 BTA-15006048Aluminum Truck Dock Board 60 In. x 48 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 5-1/2
180
BTA-15006060 BTA-15006060Aluminum Truck Dock Board 60 In. x 60 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 7
235
BTA-15006066 BTA-15006066Aluminum Truck Dock Board 60 In. x 66 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8
256
BTA-15006072 BTA-15006072Aluminum Truck Dock Board 60 In. x 72 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8-1/2
284
BTA-15006636 BTA-15006636Aluminum Truck Dock Board 66 In. x 36 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 4
151
BTA-15006642 BTA-15006642Aluminum Truck Dock Board 66 In. x 42 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 5
183
BTA-15006666 BTA-15006666Aluminum Truck Dock Board 66 In. x 66 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8
280

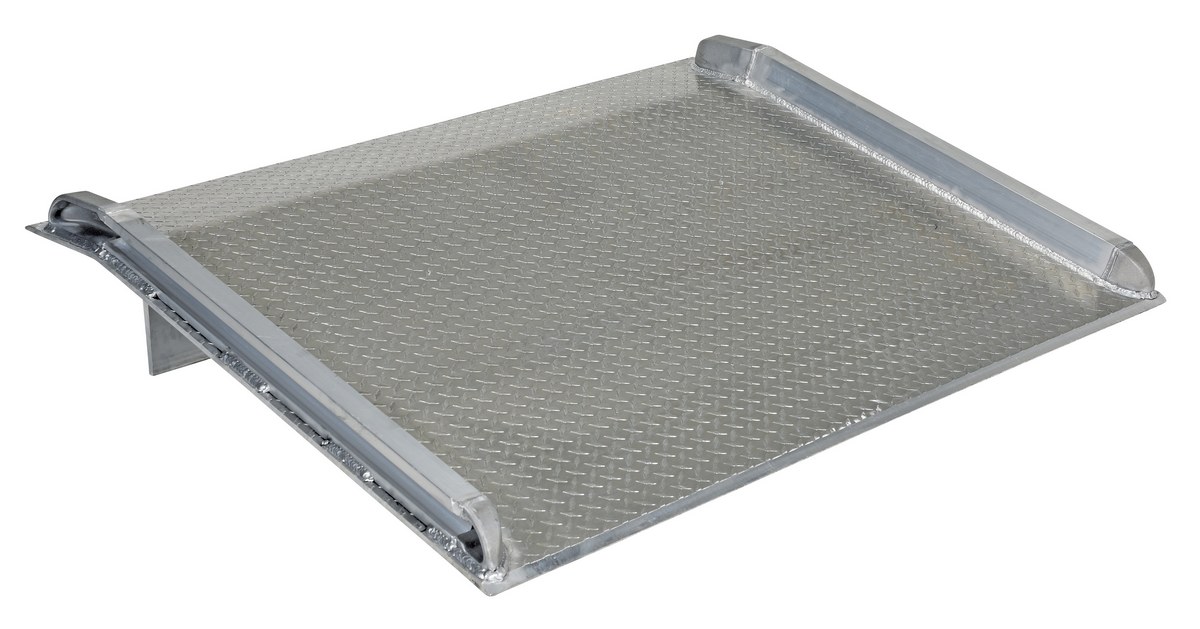

BTA-15006672 BTA-15006672Aluminum Truck Dock Board 66 In. x 72 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8-1/2
306
BTA-15007236 BTA-15007236Aluminum Truck Dock Board 72 In. x 36 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 4
162
BTA-15007242 BTA-15007242Aluminum Truck Dock Board 72 In. x 42 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 5
191
BTA-15007248 BTA-15007248Aluminum Truck Dock Board 72 In. x 48 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 5-1/2
212
BTA-15007260 BTA-15007260Aluminum Truck Dock Board 72 In. x 60 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 7
269
BTA-15007266 BTA-15007266Aluminum Truck Dock Board 72 In. x 66 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8
304
BTA-15007272 BTA-15007272Aluminum Truck Dock Board 72 In. x 72 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8-1/2
386
BTA-15007836 BTA-15007836Aluminum Truck Dock Board 78 In. x 36 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 4
213
BTA-15007842 BTA-15007842Aluminum Truck Dock Board 78 In. x 42 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 5
220
BTA-15007866 BTA-15007866Aluminum Truck Dock Board 78 In. x 66 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8
401
BTA-15008442 BTA-15008442Aluminum Truck Dock Board 84 In. x 42 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 5
252
BTA-15008466 BTA-15008466Aluminum Truck Dock Board 84 In. x 66 In. 15000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference (in.): 8 degree/17 percent: 8
365
BTA-20006036 BTA-20006036Aluminum Truck Dock Board 60 In. x 36 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 4
177
BTA-20006048 BTA-20006048Aluminum Truck Dock Board 60 In. x 48 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 5-1/2
206
BTA-20006054 BTA-20006054Aluminum Truck Dock Board 60 In. x 54 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 6
250
BTA-20006060 BTA-20006060Aluminum Truck Dock Board 60 In. x 60 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 7
278
BTA-20006066 BTA-20006066Aluminum Truck Dock Board 60 In. x 66 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 8
305
BTA-20006072 BTA-20006072Aluminum Truck Dock Board 60 In. x 72 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 8-1/2
357
BTA-20006630 BTA-20006630Aluminum Truck Dock Board 66 In. x 30 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 3
184
BTA-20006636 BTA-20006636Aluminum Truck Dock Board 66 In. x 36 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 4
192
BTA-20006642 BTA-20006642Aluminum Truck Dock Board 66 In. x 42 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 5
204
BTA-20006654 BTA-20006654Aluminum Truck Dock Board 66 In. x 54 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 6
261
BTA-20006660 BTA-20006660Aluminum Truck Dock Board 66 In. x 60 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 7
265
BTA-20006672 BTA-20006672Aluminum Truck Dock Board 66 In. x 72 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 8-1/2
274
BTA-20007236 BTA-20007236Aluminum Truck Dock Board 72 In. x 36 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 4
195
BTA-20007248 BTA-20007248Aluminum Truck Dock Board 72 In. x 48 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 5-1/2
228
BTA-20007254 BTA-20007254Aluminum Truck Dock Board 72 In. x 54 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 6
304
BTA-20007260 BTA-20007260Aluminum Truck Dock Board 72 In. x 60 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 7
326
BTA-20007266 BTA-20007266Aluminum Truck Dock Board 72 In. x 66 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 8
338
BTA-20007272 BTA-20007272Aluminum Truck Dock Board 72 In. x 72 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 8-1/2
350
BTA-20007830 BTA-20007830Aluminum Truck Dock Board 78 In. x 30 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 3
215
BTA-20007836 BTA-20007836Aluminum Truck Dock Board 78 In. x 36 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 4
235
BTA-20007842 BTA-20007842Aluminum Truck Dock Board 78 In. x 42 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 5
241
BTA-20008454 BTA-20008454Aluminum Truck Dock Board 84 In. x 54 In. 20000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference (in.): 8 degree/17 percent: 6
380

Options


Aluminum Dockboard Accessories
Model Image PDF Description
RPL-ALUM Compliance Certificate Removable Pickup Loops
SBL Compliance Certificate Special Bend Location
S2B Compliance Certificate Second Bend Location
ATC-12 Compliance Certificate Anti-Theft Chain (144")

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
