TCD-U-72-DC

Printer Friendly
Available
TCD-U-72-DC
TCD-U-72-DC

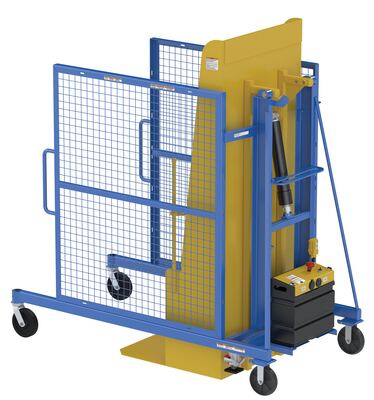

Steel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / Yellow

The DC powered Hydraulic trash can dumper is designed for one person to easily dump contents of trash cans no matter how heavy they are. The versatile adjustable unit works with only the trash cans listed or approved equal. The DC powered units include an on-board battery charger and battery charger indicator gauge.

  • Two (2) rigid and two (2) swivel casters for portability
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last
Assembled Wt.(lbs.): 888 Assembled Size: 45.25"W x 87.625"L x 90.0625"H

Total Ship Wt.(lbs.): 1071 (only 1 package) Package 1 Size: 50"W x 97"D x 96"H Color: Blue / Yellow

Uniform Capacity (lb.): 400 Dump Height (in.): 72 Maximum Dump Angle (degree): 135
Works with Trash Cans with a Width between (in.): 17-1/2 to 34 Works with Trash Cans with a Length between (in.): 20-1/2 to 35-7/8 Works with Trash Cans with a Height between (in.): 27 to 50
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Material: Glass Filled Nylon Caster Type: (2) Rigid (2) Swivel
Usable Chute Width (in.): 34-3/4 Usable Chute Depth (in.): 35-7/8 Overall Rotated Height (in.): 160-15/16
Maximum Rotated Angle (degree): 45 Number of Adjustable Floor Locks: 2 Power Unit: 12V DC
Battery Quantity: 1 Horsepower (hp): 2 Overall Length (in.): 87-5/8
Overall Width (in.): 45-1/4 Overall Height (in.): 90-1/16 Control: Handheld Push Button w/ 8 ft. Coil Cord

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: TCD-U-72-DC
Available
TCD-U-72-DC

Steel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / Yellow

The DC powered Hydraulic trash can dumper is designed for one person to easily dump contents of trash cans no matter how heavy they are. The versatile adjustable unit works with only the trash cans listed or approved equal. The DC powered units include an on-board battery charger and battery charger indicator gauge.

  • Two (2) rigid and two (2) swivel casters for portability
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last
Dimensions: 45.25"W x 87.625"L x 90.0625"H Sell UOM: -- Color: Blue / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1071 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 400 Dump Height (in.): 72 Maximum Dump Angle (degree): 135
Works with Trash Cans with a Width between (in.): 17-1/2 to 34 Works with Trash Cans with a Length between (in.): 20-1/2 to 35-7/8 Works with Trash Cans with a Height between (in.): 27 to 50
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Material: Glass Filled Nylon Caster Type: (2) Rigid (2) Swivel
Usable Chute Width (in.): 34-3/4 Usable Chute Depth (in.): 35-7/8 Overall Rotated Height (in.): 160-15/16
Maximum Rotated Angle (degree): 45 Number of Adjustable Floor Locks: 2 Power Unit: 12V DC
Battery Quantity: 1 Horsepower (hp): 2 Overall Length (in.): 87-5/8
Overall Width (in.): 45-1/4 Overall Height (in.): 90-1/16 Control: Handheld Push Button w/ 8 ft. Coil Cord
