Model Details

VAN-J-AC

Printer Friendly
VAN-J-AC

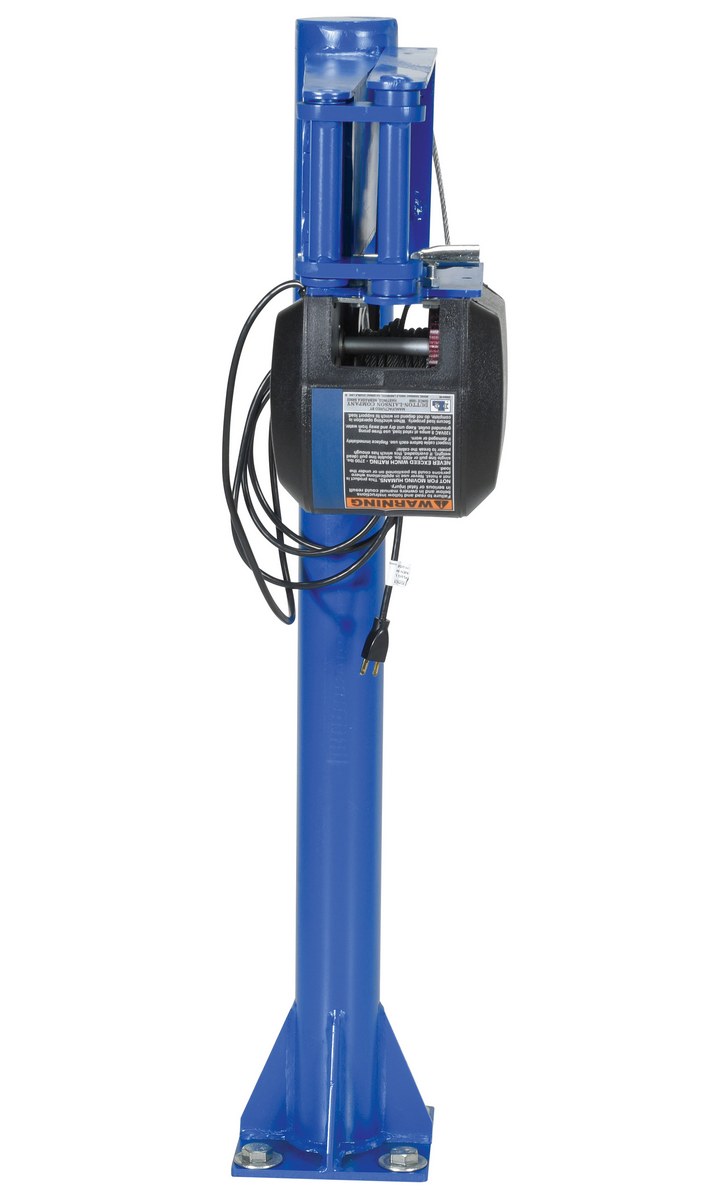

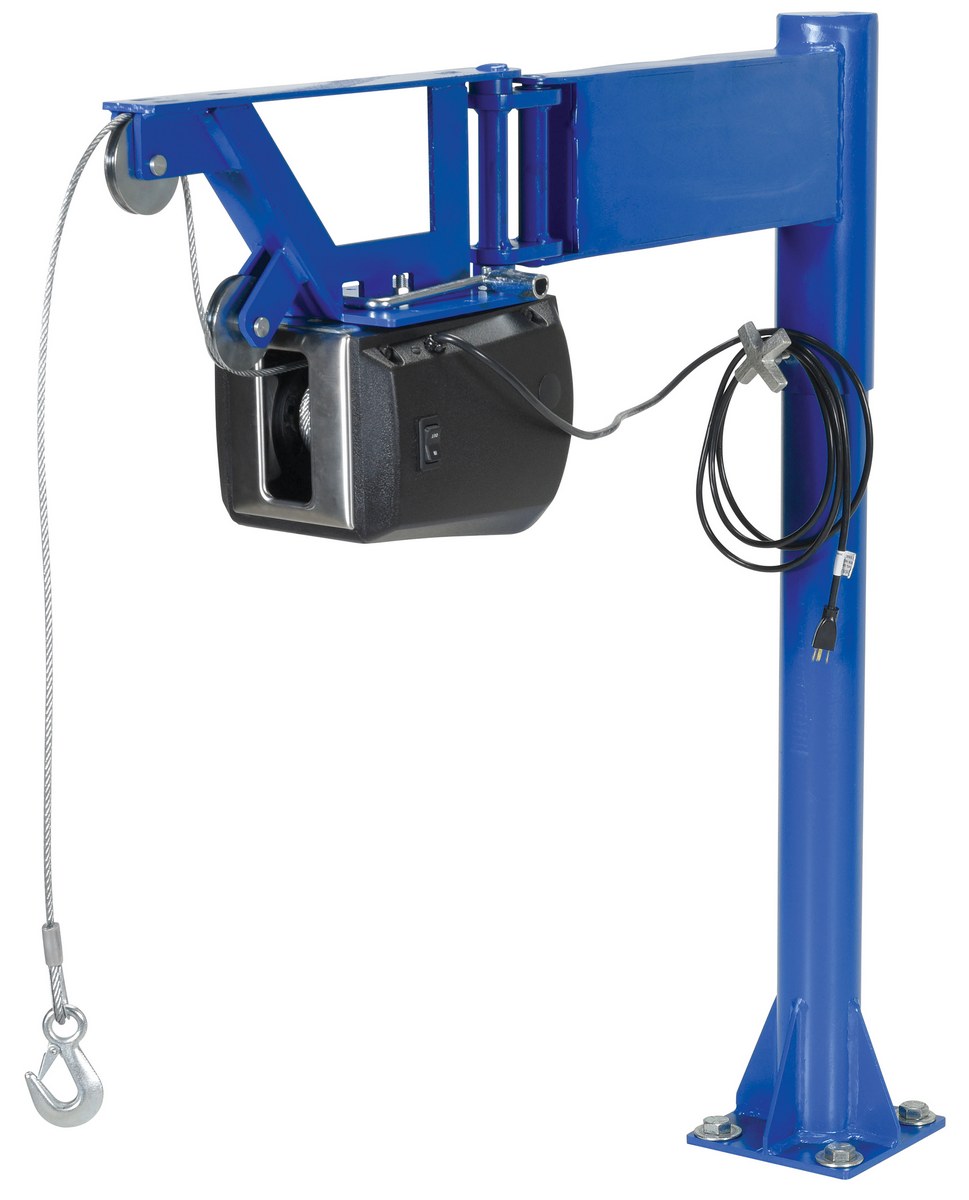

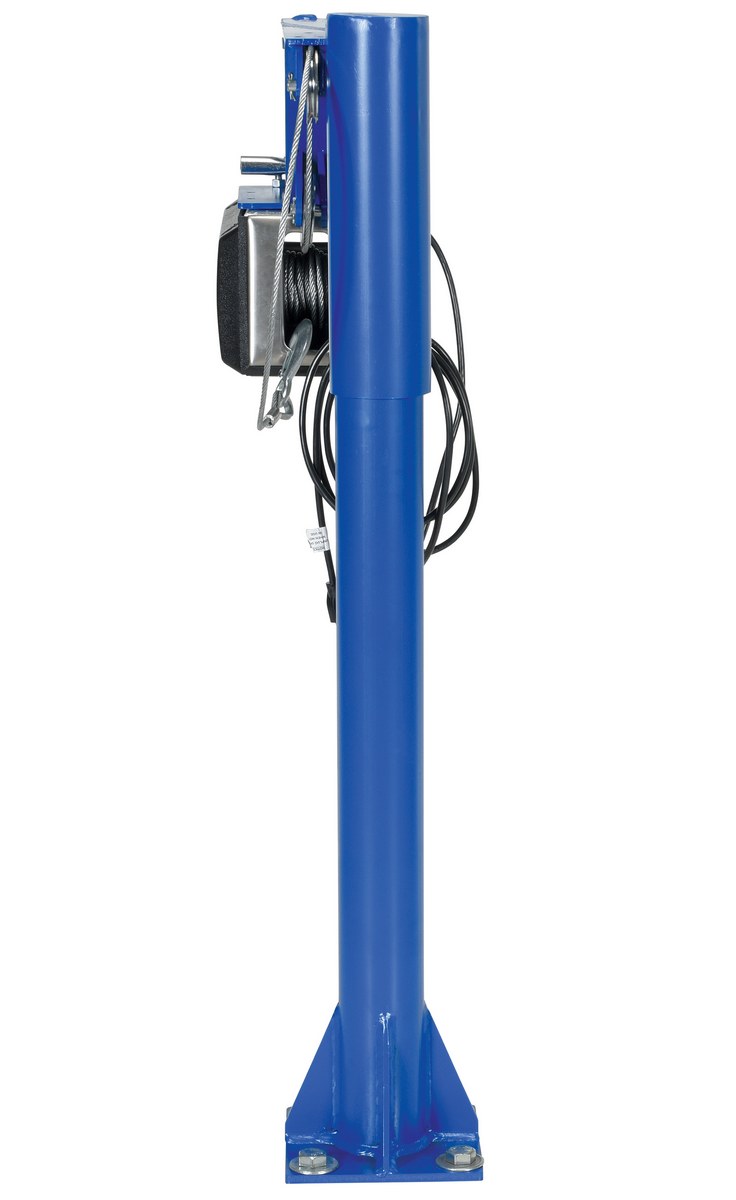

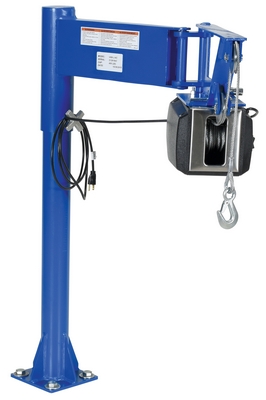

Steel AC Powered Lifter Jib 400 Lb. Capacity Blue

Lift items from ground to van floor height then rotate cargo into area. This is an AC powered winch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Double-arm design allows for better operation and use in tight spaces
  • Arm manually rotates 360 degrees for maximum versatility
  • Welded steel construction offers a rugged long lasting use
  • Pre-drilled mounting holes make installation quick and easy
Total Ship Wt.(lbs.): 145 (only 1 package) Size: 9.9375"W x 45.75"L x 46.0625"H Color: Blue

Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 Overall Cable Length (ft.): 25
Mounting Plate Length/Width (in.): 8 x 8 Power: AC/115V/Phase 1 Rotation Degree: 360
Ground Clearance (in.): 30-1/8 Hook Height (in.): 36-1/8 Winch Speed Full Load (feet per minute): 10
Mast Diameter (in.): 4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VAN-J-AC
VAN-J-AC

Steel AC Powered Lifter Jib 400 Lb. Capacity Blue

Lift items from ground to van floor height then rotate cargo into area. This is an AC powered winch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Double-arm design allows for better operation and use in tight spaces
  • Arm manually rotates 360 degrees for maximum versatility
  • Welded steel construction offers a rugged long lasting use
  • Pre-drilled mounting holes make installation quick and easy
Dimensions: 9.9375"W x 45.75"L x 46.0625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215107983 GTIN: 00691215107983
Warranty: -- Shipping Weight: 145 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 Overall Cable Length (ft.): 25
Mounting Plate Length/Width (in.): 8 x 8 Power: AC/115V/Phase 1 Rotation Degree: 360
Ground Clearance (in.): 30-1/8 Hook Height (in.): 36-1/8 Winch Speed Full Load (feet per minute): 10
Mast Diameter (in.): 4
