Lifter Jibs

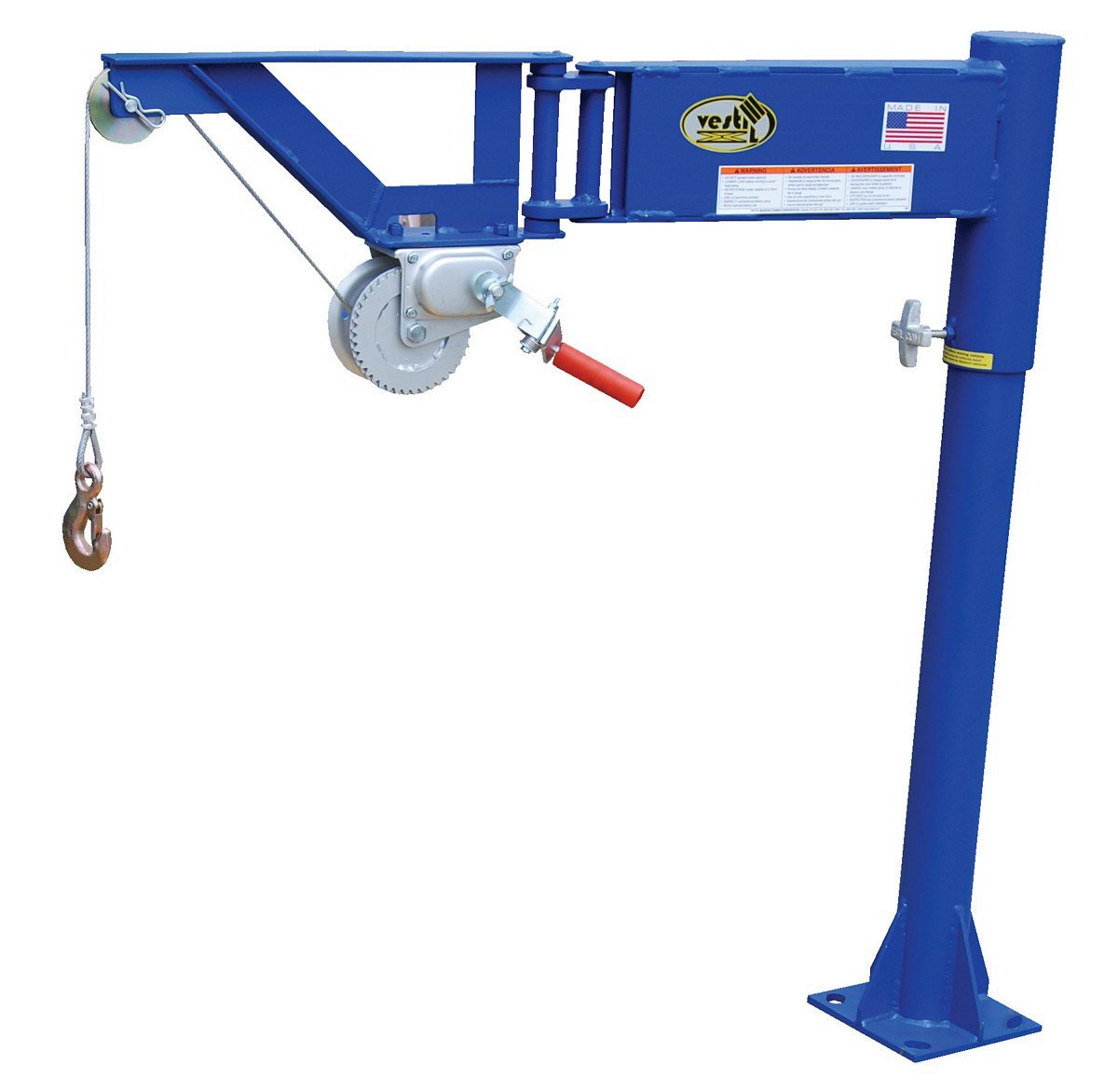

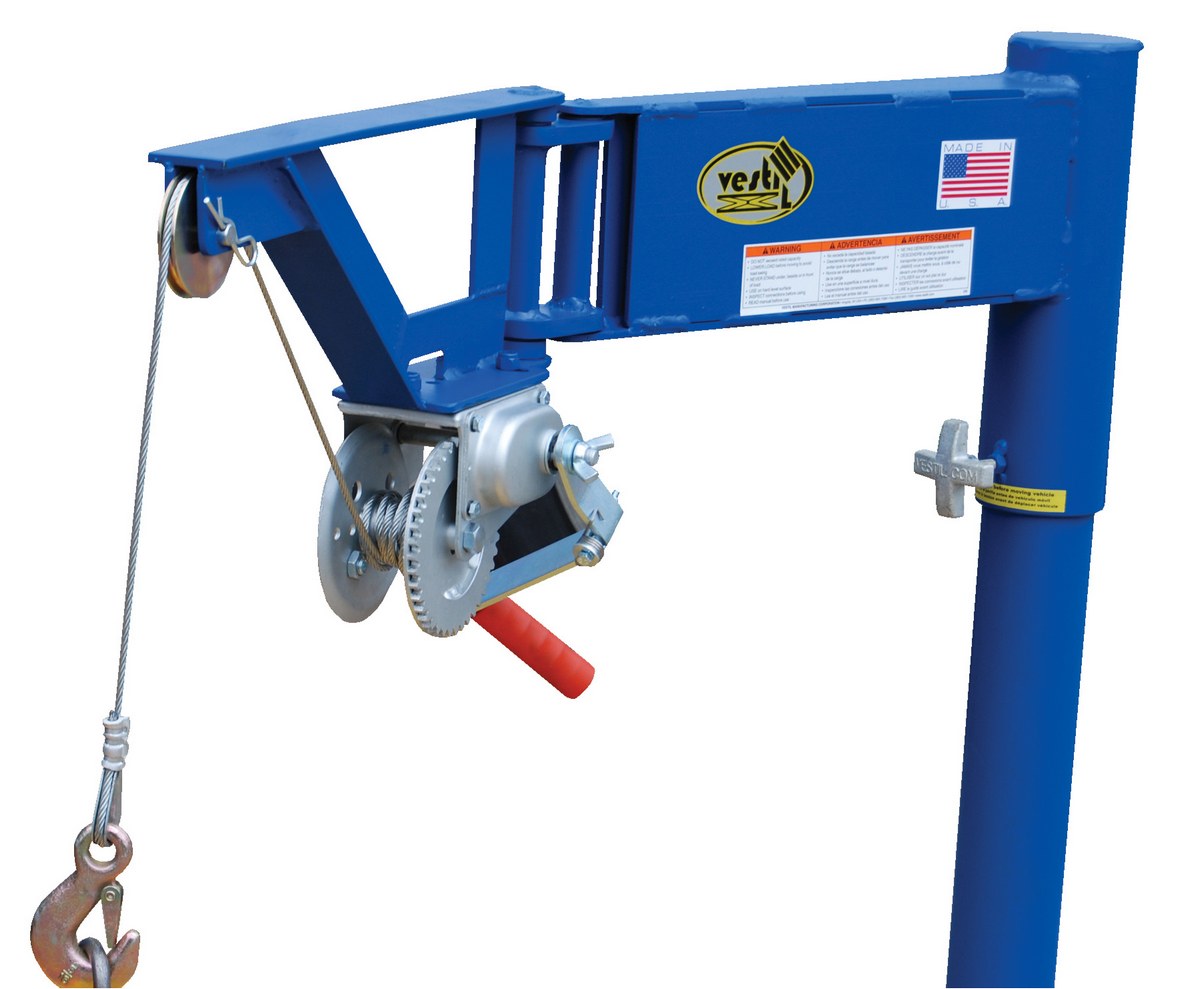

model: VAN-J

VAN-J_A.jpg VAN-J_B.jpg More Images +
Lifter Jibs
SERIES: VAN

Lift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery powered, and AC electrically powered winches are available. AC powered winch has a lift speed of 10 ft. per minute and DC powered at 7 ft. per minute at full capacity load. AC powered winch includes toggle switch. DC powered winch includes a pendant control. Battery powered winch includes 36" long leads. Battery not included. Van floor to raised hook height is 36-1/8". Double-pivot arm for use in tight spaces. Overall height is 46-1/16". Swing reach is 0" to 39-3/4". Steel construction. Painted finish. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Double-arm design allows for better operation and use in tight spaces
  • Arm manually rotates 360 degrees for maximum versatility
  • Welded steel construction offers a rugged long lasting use
  • Pre-drilled mounting holes make installation quick and easy
Lifter Jibs

model: VAN-J

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
VAN-J VAN-J90 Days Limited WarrantySteel Manual Lifter Jib 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4		143

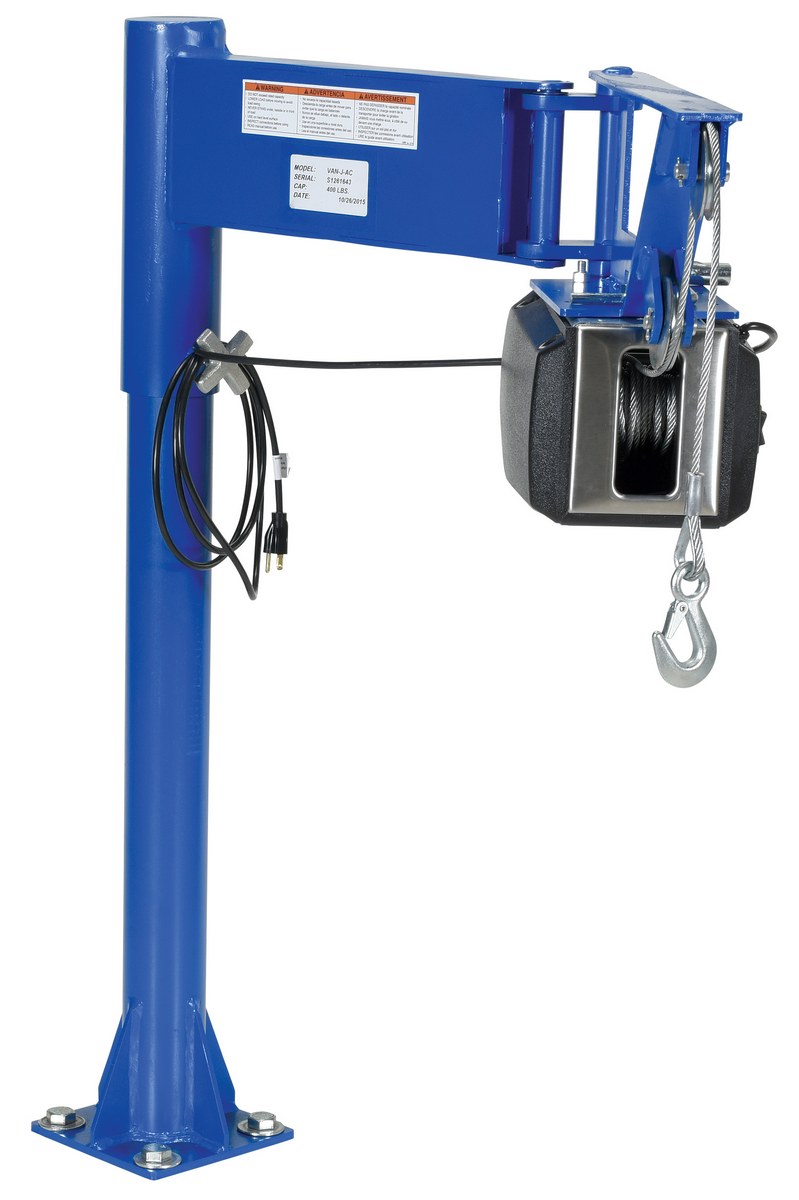

VAN-J-AC VAN-J-AC90 Days Limited WarrantySteel AC Powered Lifter Jib 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4		145

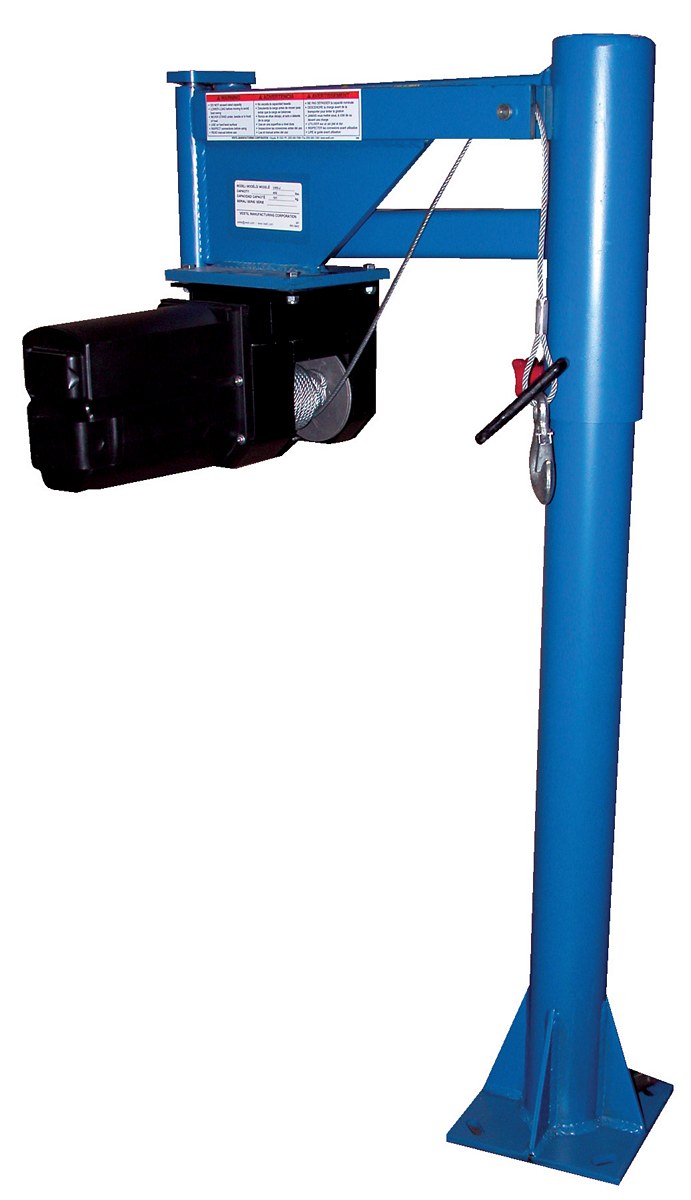

VAN-J-DC POPULAR VAN-J-DC90 Days Limited WarrantySteel DC Powered Lifter Jib 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4		145

* VAN-J-DC INCLUDES BATTERY-POWERED WINCH WITH 46 FEET OF CABLE

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VAN-J
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4

VAN-J-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4

VAN-J-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
Uniform Capacity (lb.): 400
Swing Reach (in.): 0 to 39-3/4
For More Details of the Option Click the Red Model Button

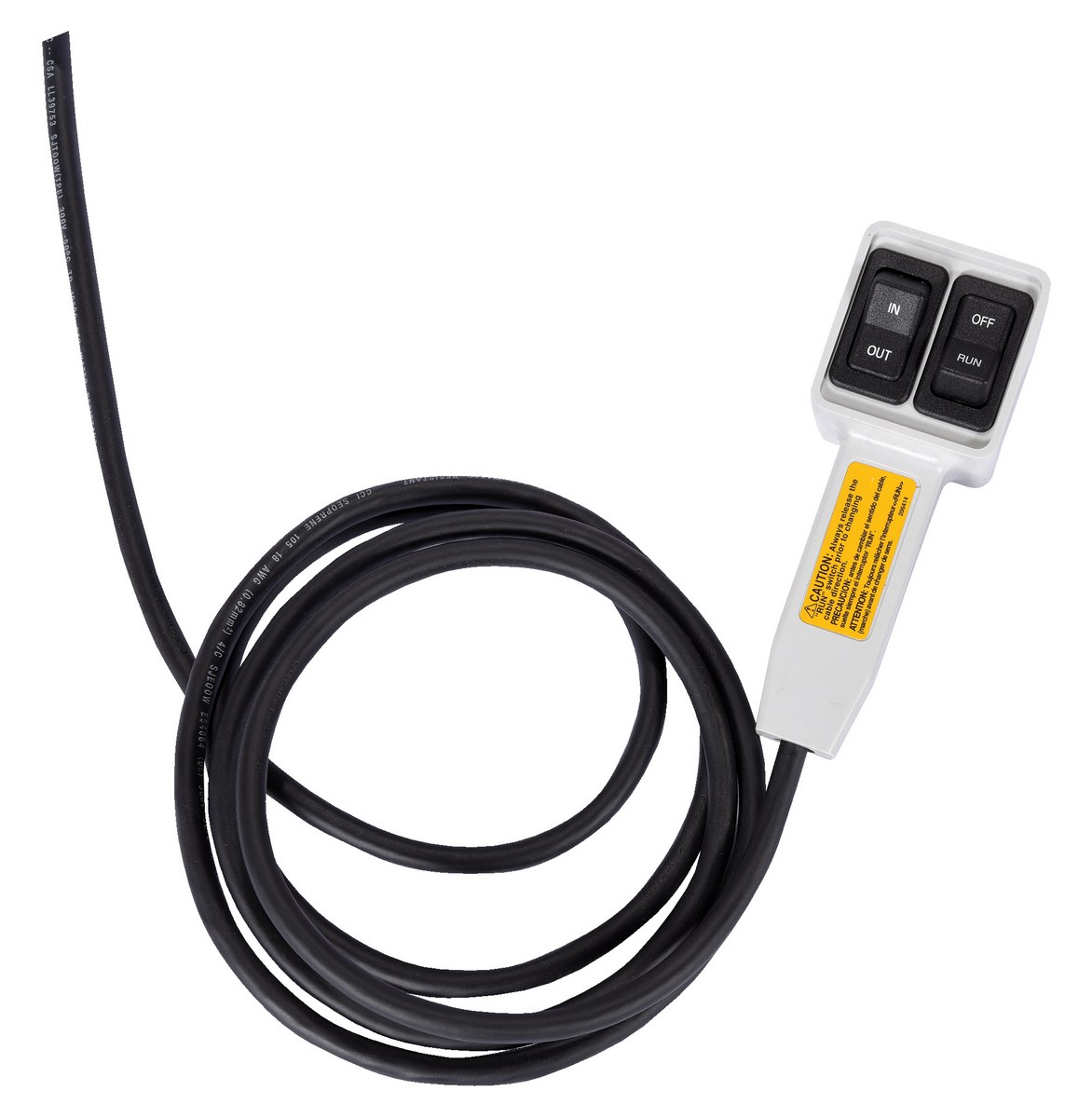

WINCH-AC-HHPB WINCH-AC-HHPB30 Days Limited WarrantyFactory Installed Hand Held Push Button Control For AC Powered Jib CranesCord Length (in.): 96
5

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Lifter Jibs PDF's will open in a new window when clicked.

Manuals


VAN-J
Owners Manual

Survey Sheets


VAN-J
Survey Sheet

Approval Drawings


VAN-J

VAN-J-AC

VAN-J-DC

Testing Certificates


VAN-J

VAN-J-AC

VAN-J-DC

WINCH-AC-HHPB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Can the JIB be used outside?

A: The VAN-J and the VAN-J-DC are powder-coat carbon steel, however the winch is not waterproof and cannot be used outside.

Q: What is the diameter of the "Pole".

A: The diameter of the pole is 3-1/2".
