Programmable Lift Table Height Controls for Repeat Workstation Positioning
Programmable height controls provide a factory-installed lift table option for applications that require repeat positioning at consistent working heights. Designed for assembly, packaging, inspection, loading, ergonomic workstations, and production environments, this system helps reduce unnecessary bending, manual jogging, and repeated trial-and-error height adjustments.
Preset Height Control
The controller can be programmed for up to four preset heights, allowing operators to move the lift table to common working positions at the touch of a button. Incremental height adjustment also supports controlled jogging when small positioning changes are needed.

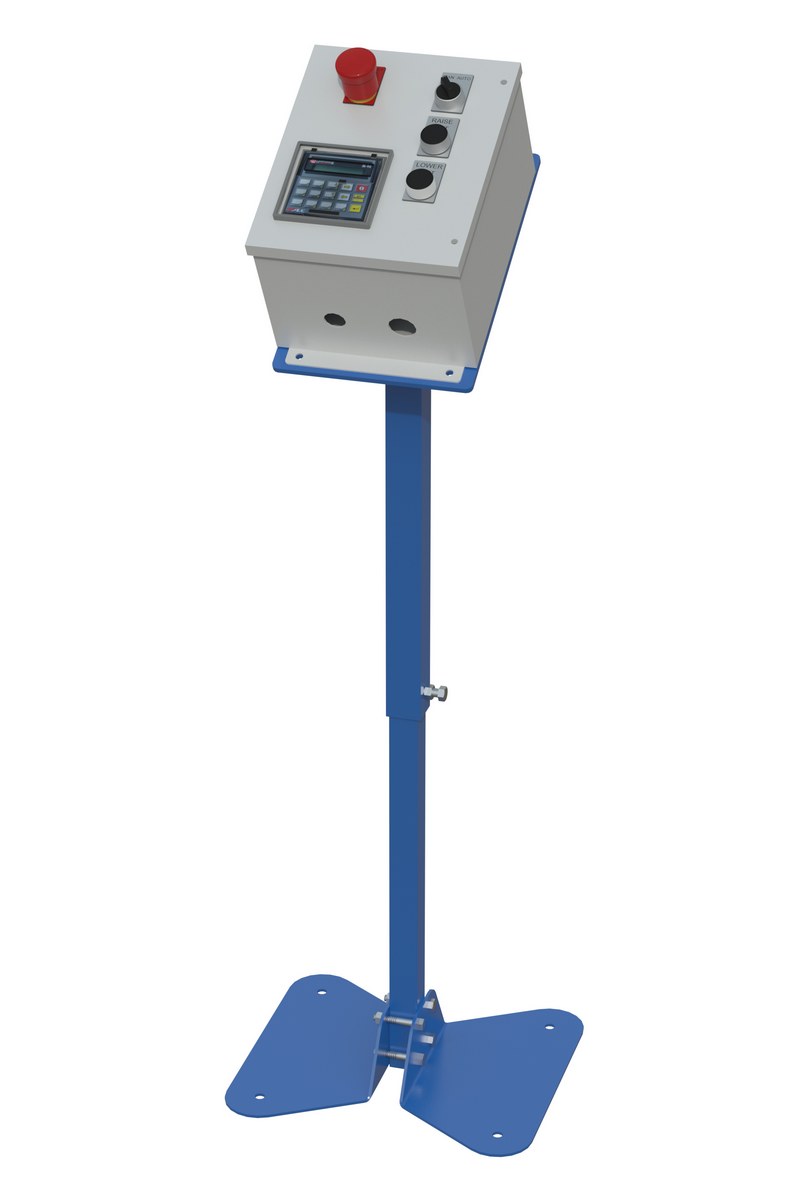

Integrated Keypad and Display
A fully integrated controller with LCD display and 15-button keypad provides raise, lower, preset, and adjustment functions in one operator-friendly interface. Hybrid technology linear sensor control helps position the platform accurately at selected preset heights for repeatable performance.
Compatible Lift Table Models
This 24 volt programmable height option is available for select EHLT, EHLTD, EHLTS, EHLTSD, and EHLTG series scissor lift tables. A minimum 30 inch x 48 inch deck size is required. Scissor table is not included, making this option best suited for new lift table configurations where repeat ergonomic positioning is important.
