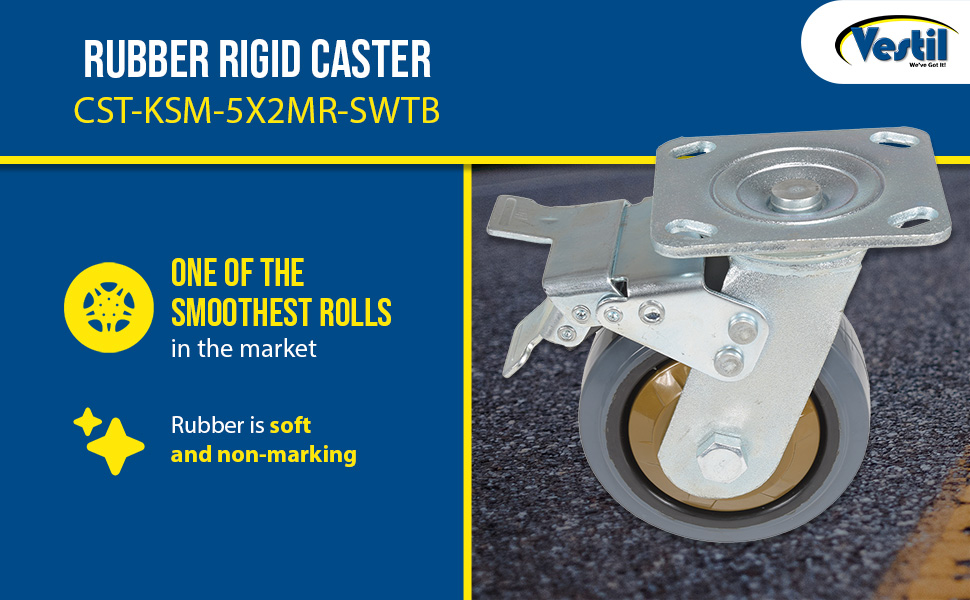

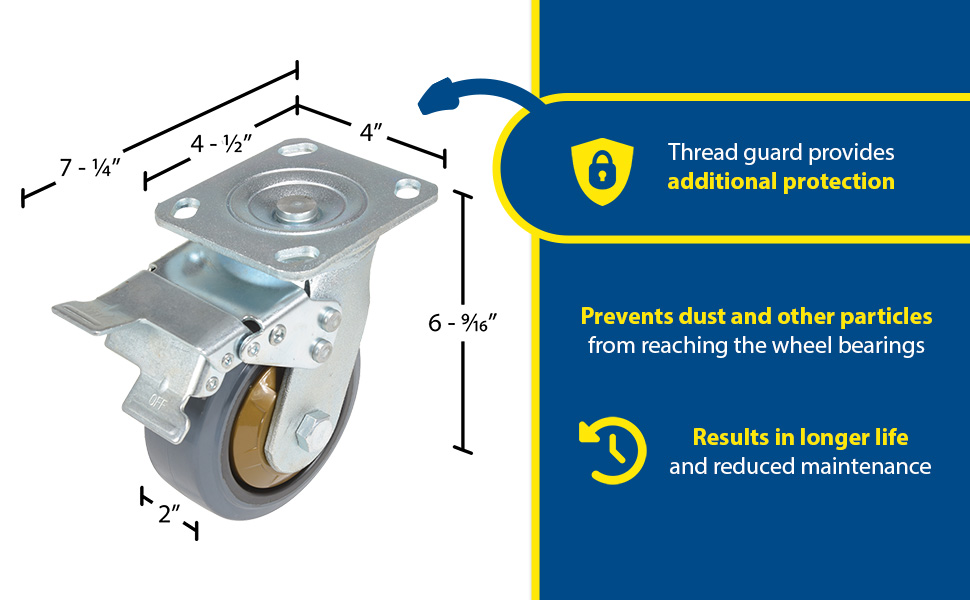

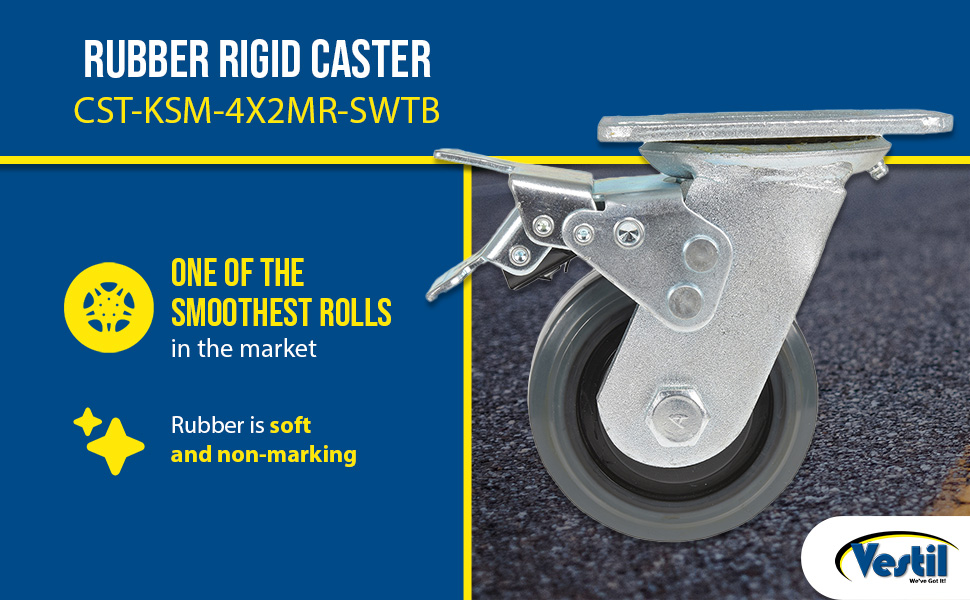

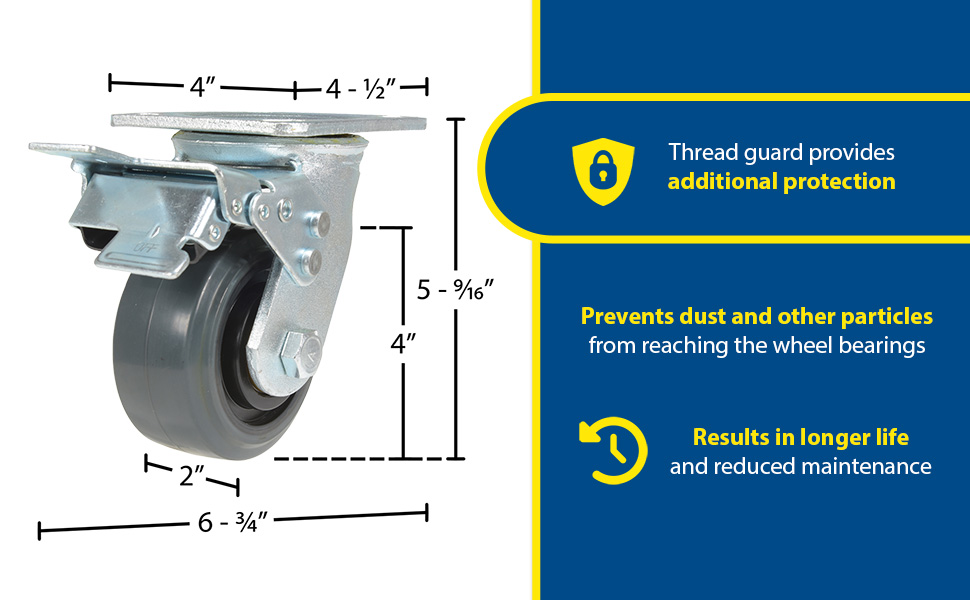

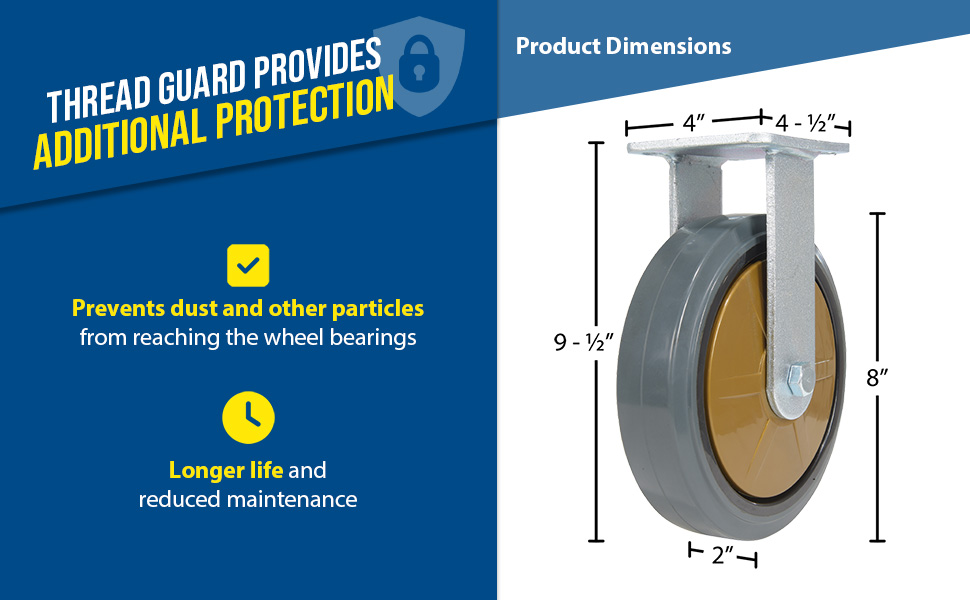

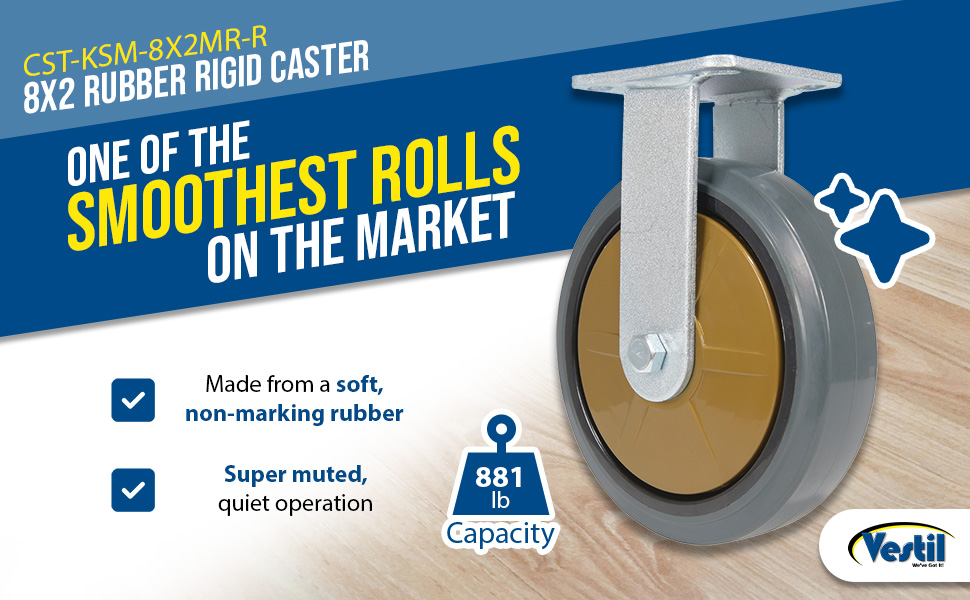

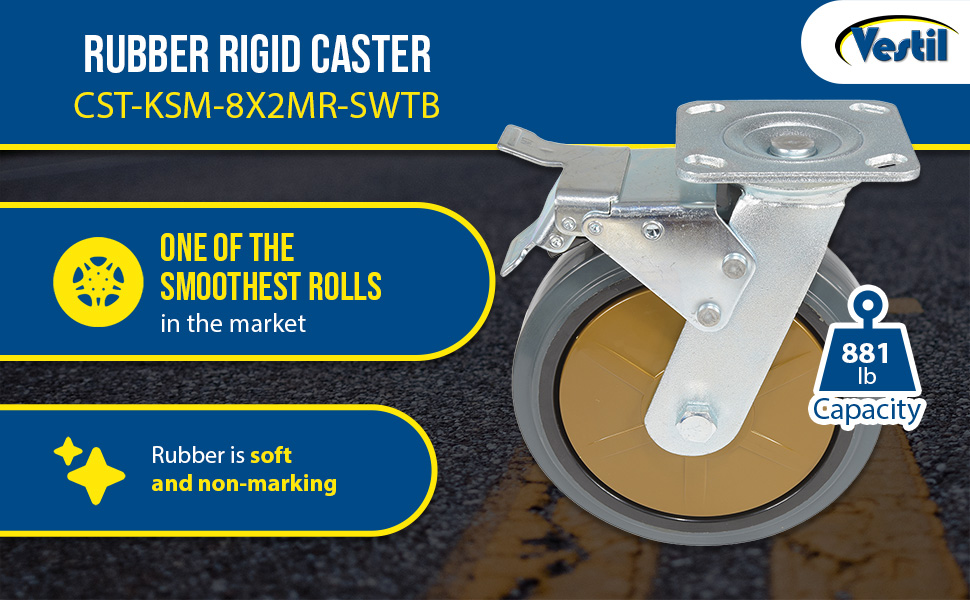

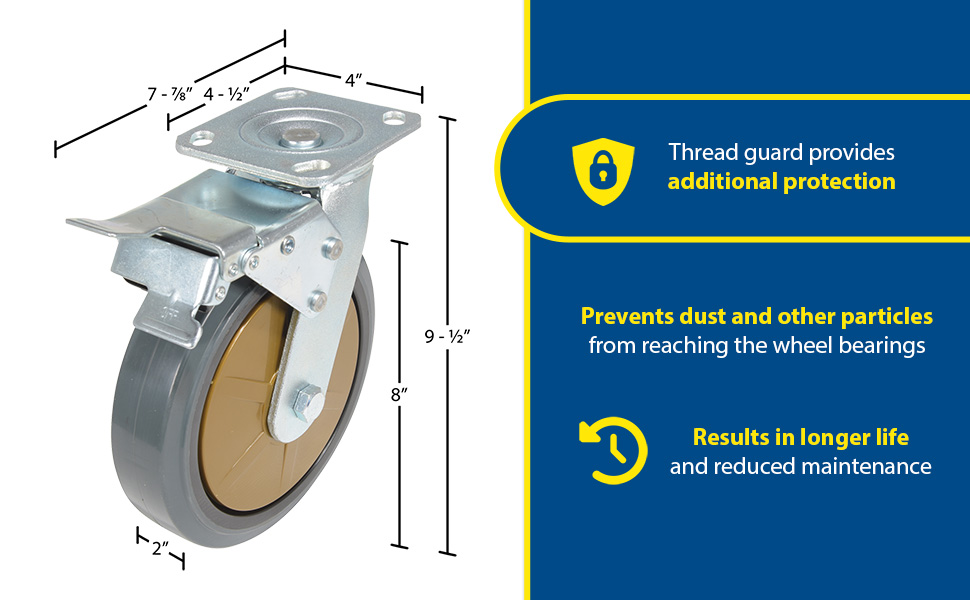

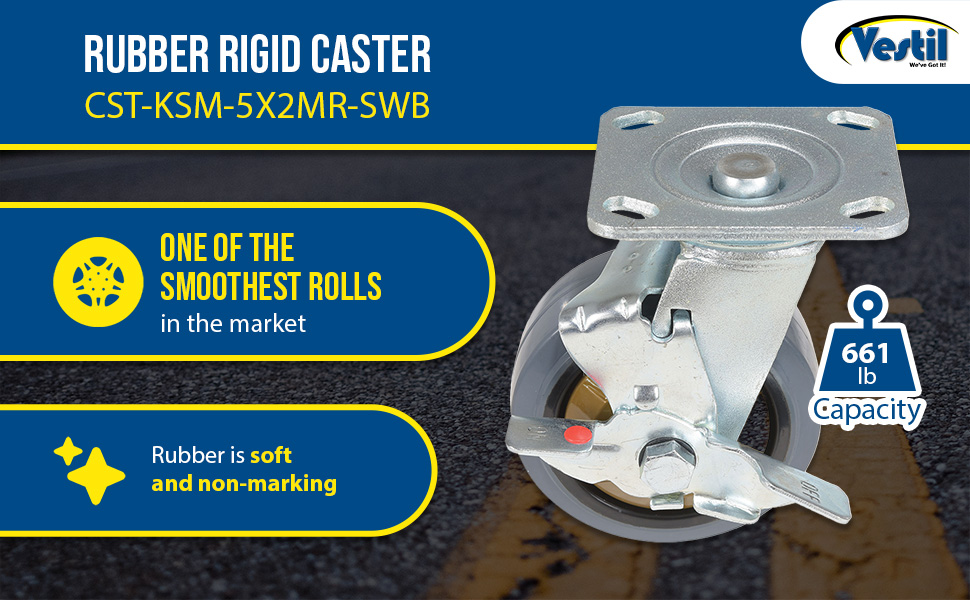

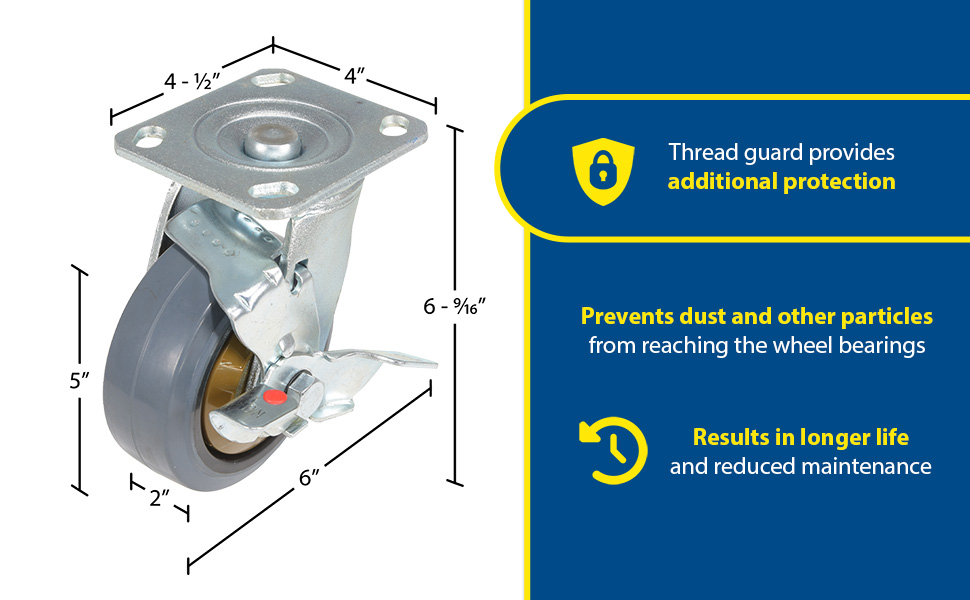

Rubber CastersMade from a soft non-marking rubber, the super muting caster provides one of the quietest, smoothest rolls in the market. the thread guard provides additional protection by preventing dust and other particles from reaching the wheel bearings, Resulting in longer life and reduced maintenance.
- Quiet operation
- Smooth ride performance
- Non-marking
- High capacity
- Nylon thread guard
- Anti-corrosive & rust resistant zinc plated finish
- Precision ball bearings
Upgraded Glass Filled Nylon, Light Duty (RX) Casters
Polyurethane (SI - Electrostatic Dissipating) Casters
Mold On Rubber (On Aluminum) Casters
Polyurethane Casters (Yellow)Additional Models In This Family
CST-KSM-4X2MR-SWB
CST-KSM-6X2MR-S
CST-KSM-6X2MR-R
CST-KSM-5X2MR-S
CST-KSM-6X2MR-SWB
CST-KSM-6X2MR-SWTB
CST-KSM-8X2MR-SWB
CST-KSM-4X2MR-SWB
CST-KSM-5X2MR-SWB
CST-KSM-8X2MR-SWB
CST-KSM-8X2MR-SWB
CST-KSM-5X2MR-SWTB
CST-KSM-5X2MR-SWB
CST-KSM-5X2MR-SWB
CST-KSM-5X2MR-R
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

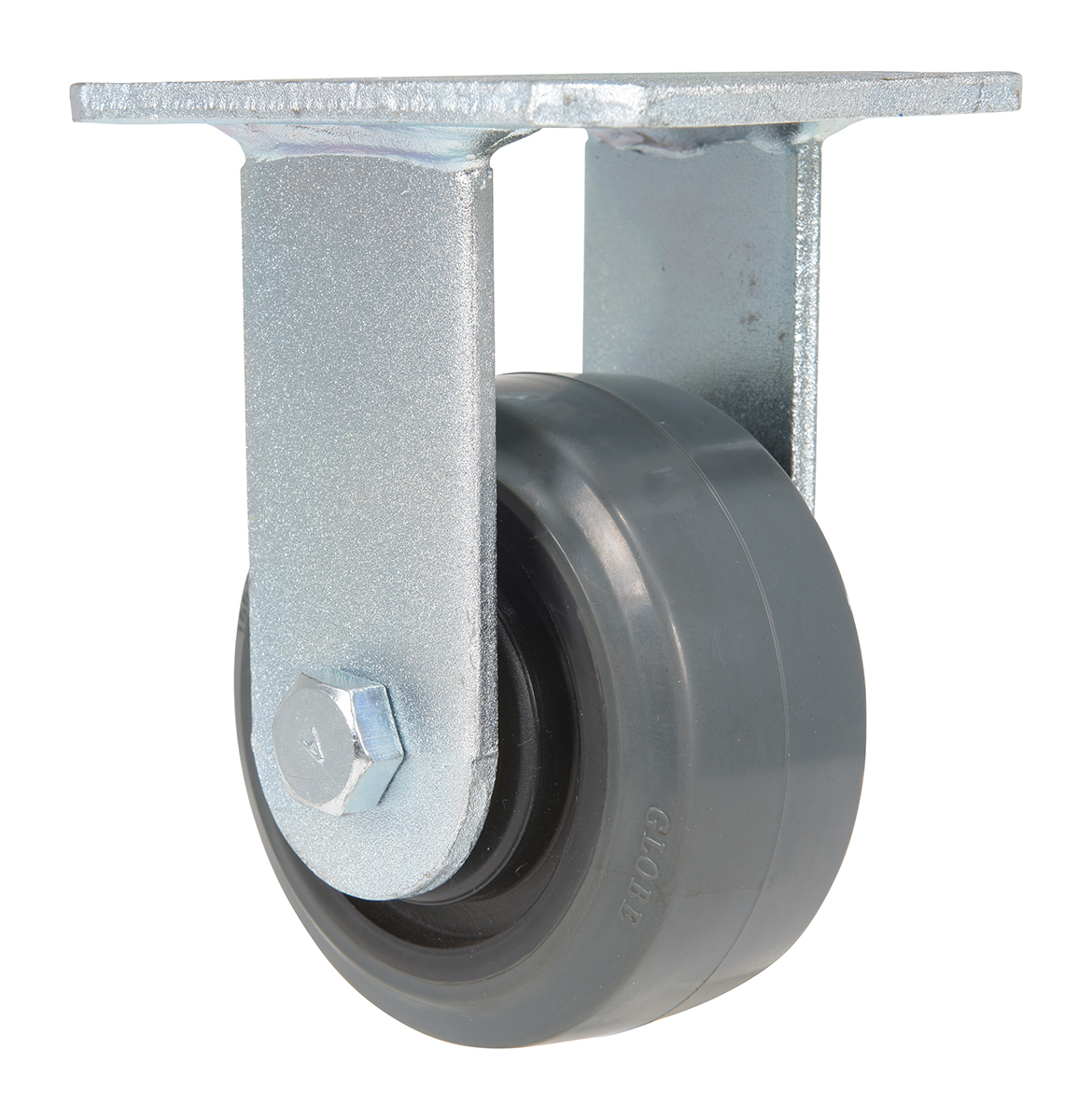

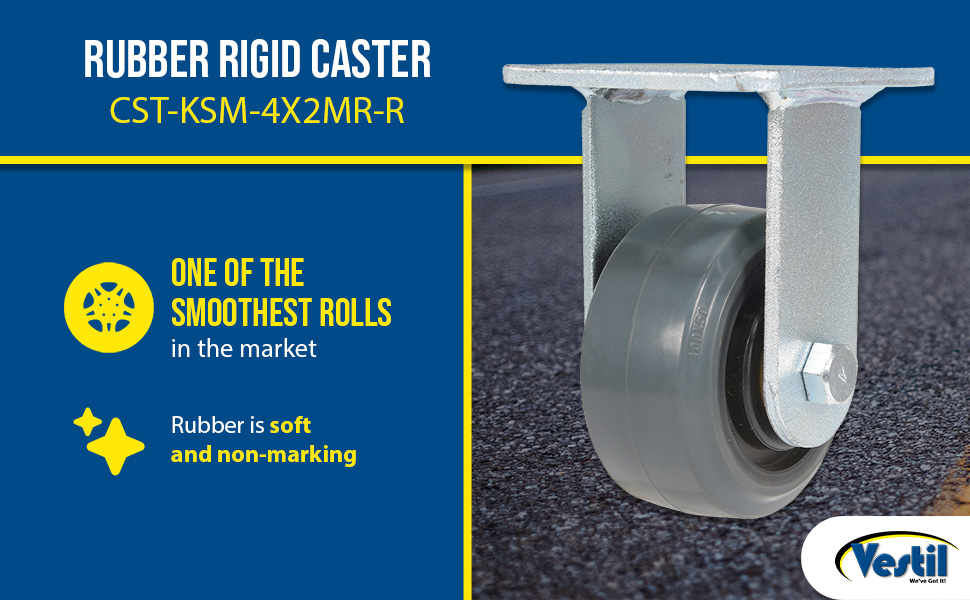

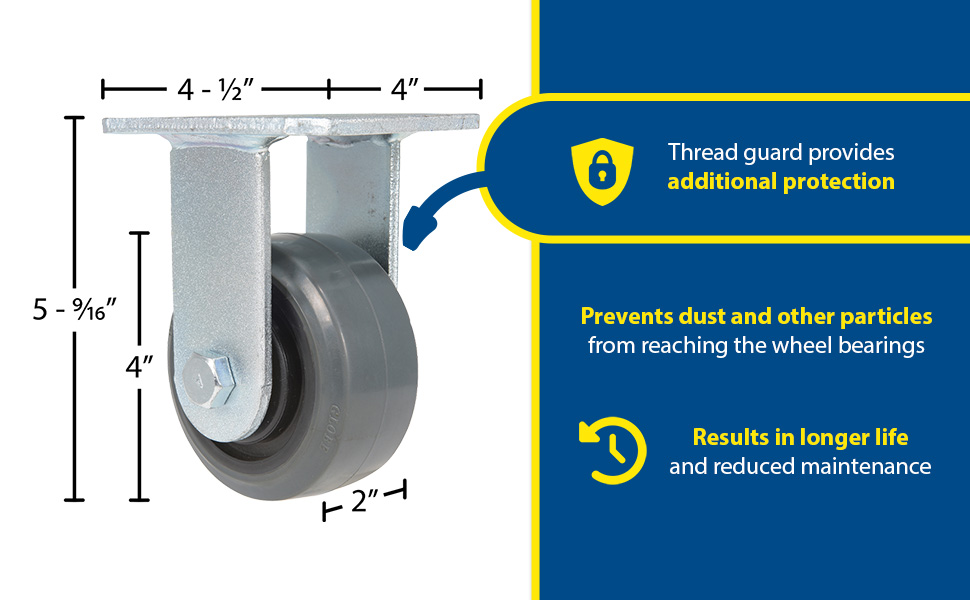

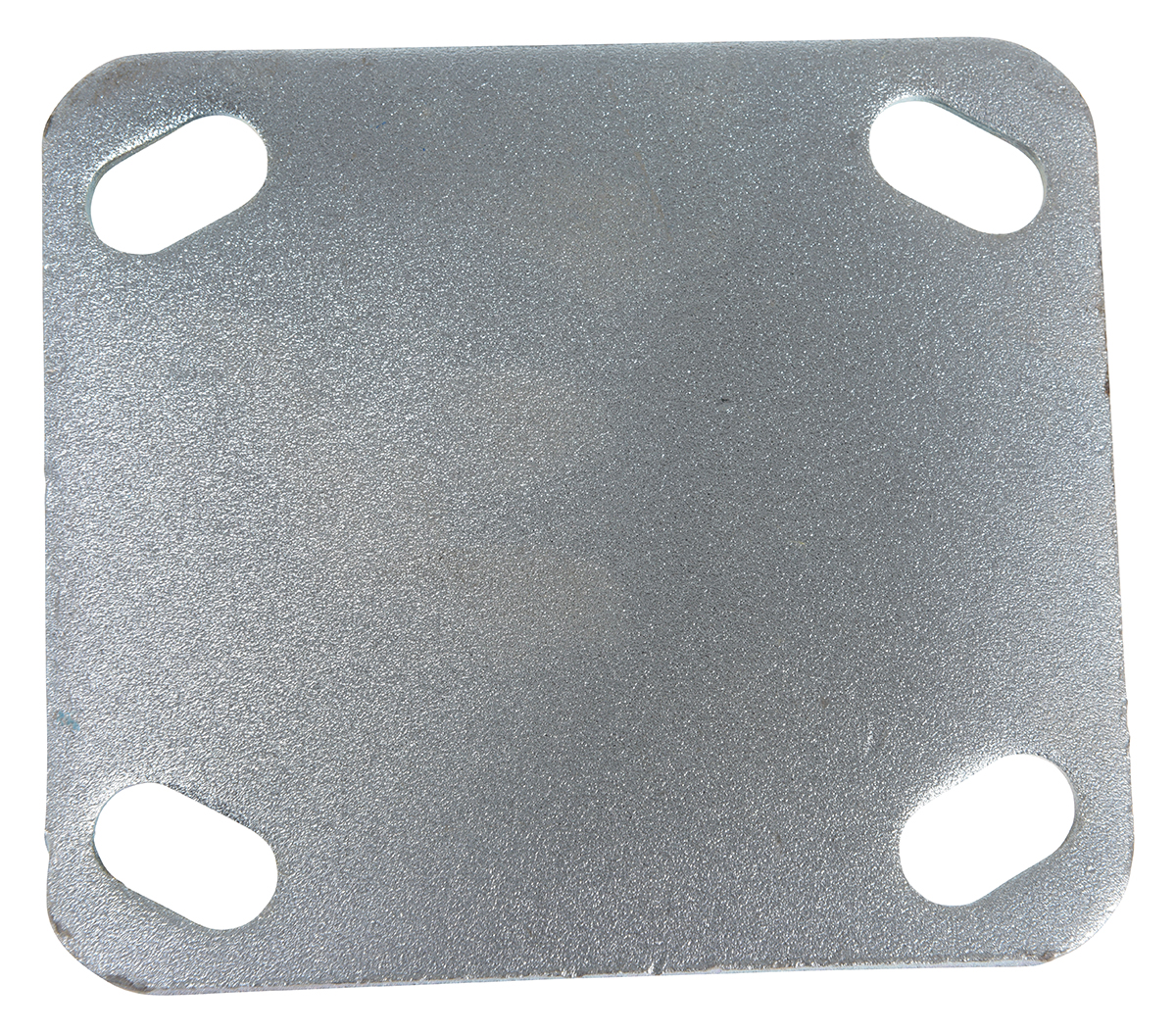

| CST-KSM-4X2MR-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 551 | 5-9/16 | 4 x 4-1/2 | 5 |
| CST-KSM-5X2MR-R | | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 661 | 6-9/16 | 4 x 4-1/2 | 5 |

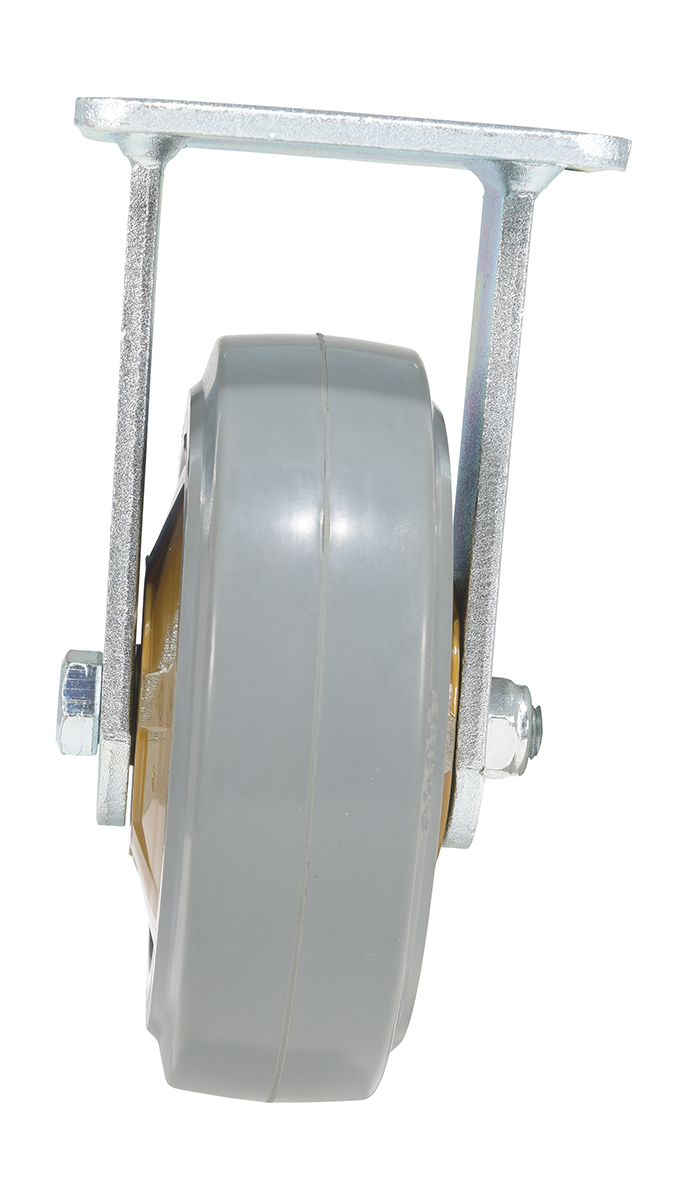

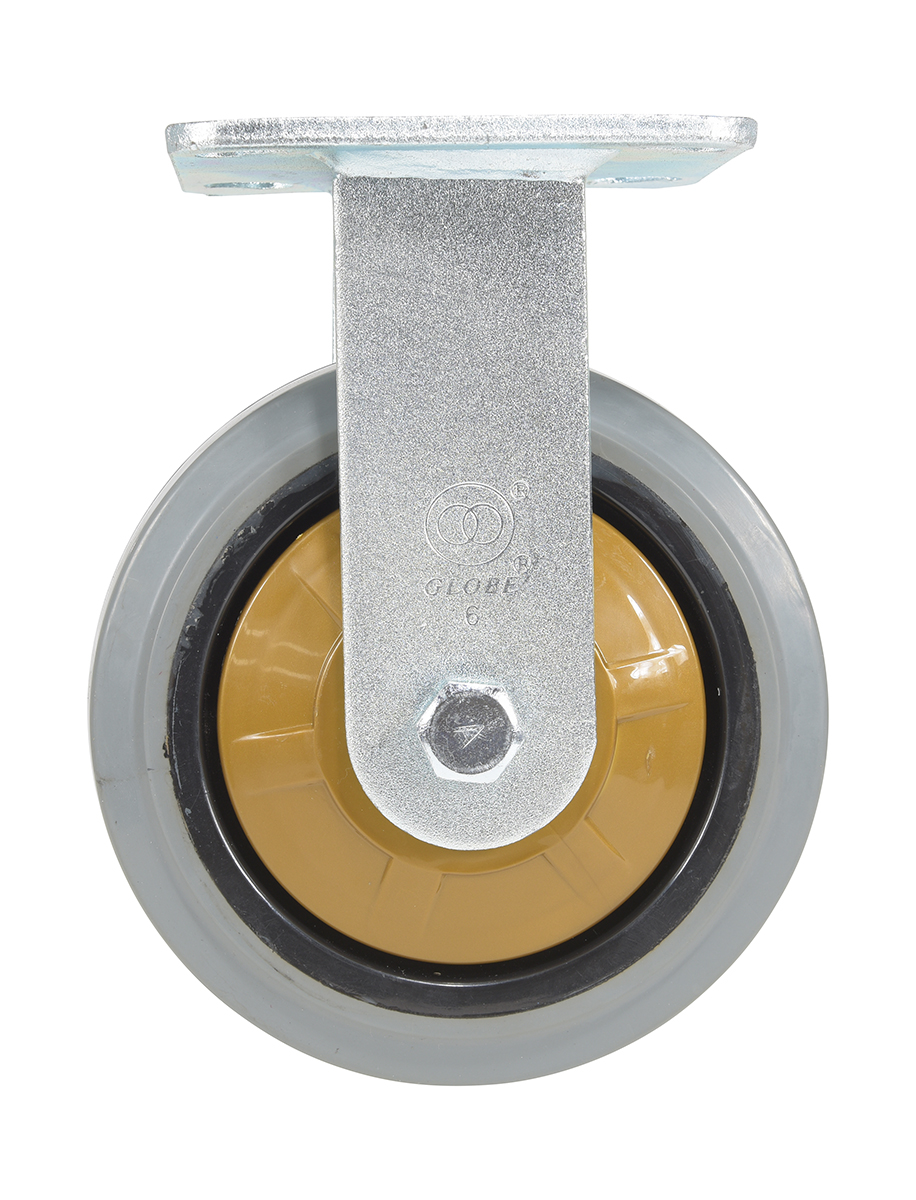

| CST-KSM-6X2MR-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 771 | 7-1/2 | 4 x 4-1/2 | 6 |
| CST-KSM-8X2MR-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 881 | 9-1/2 | 4 x 4-1/2 | 7 |

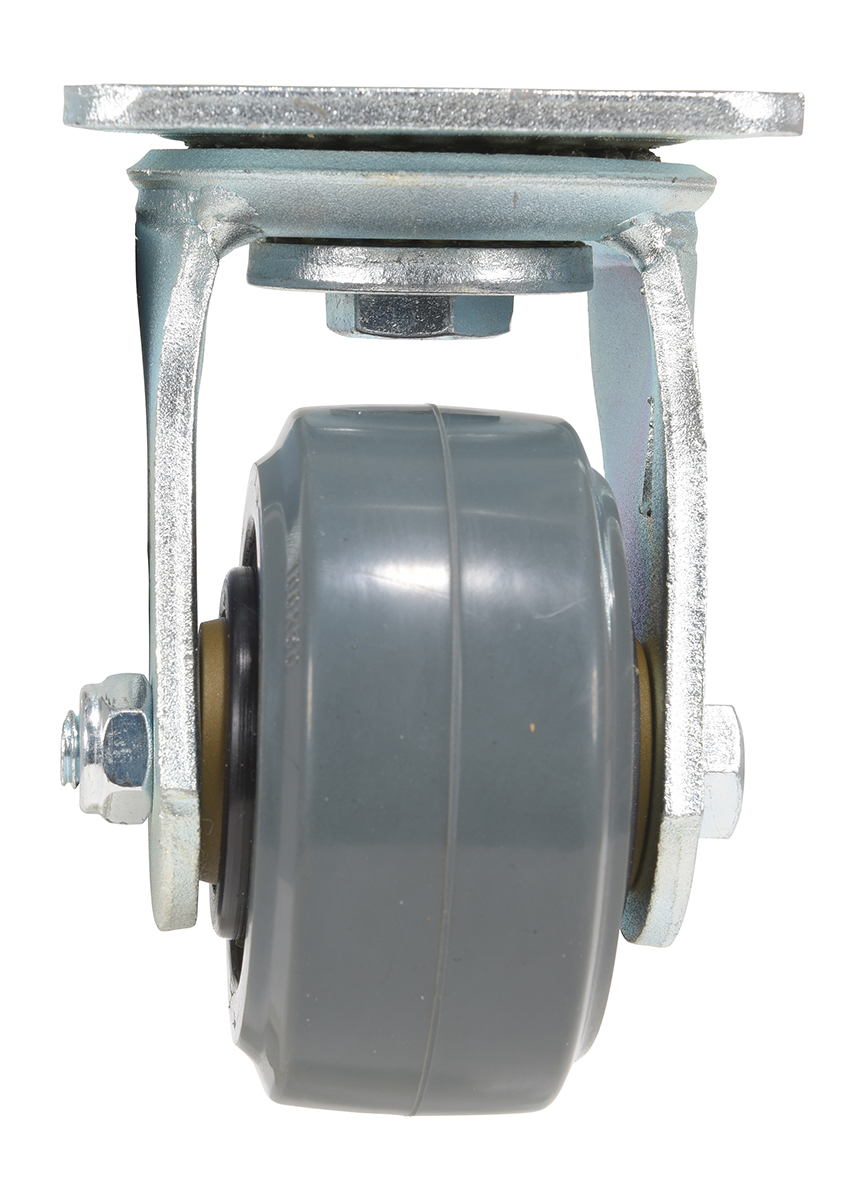

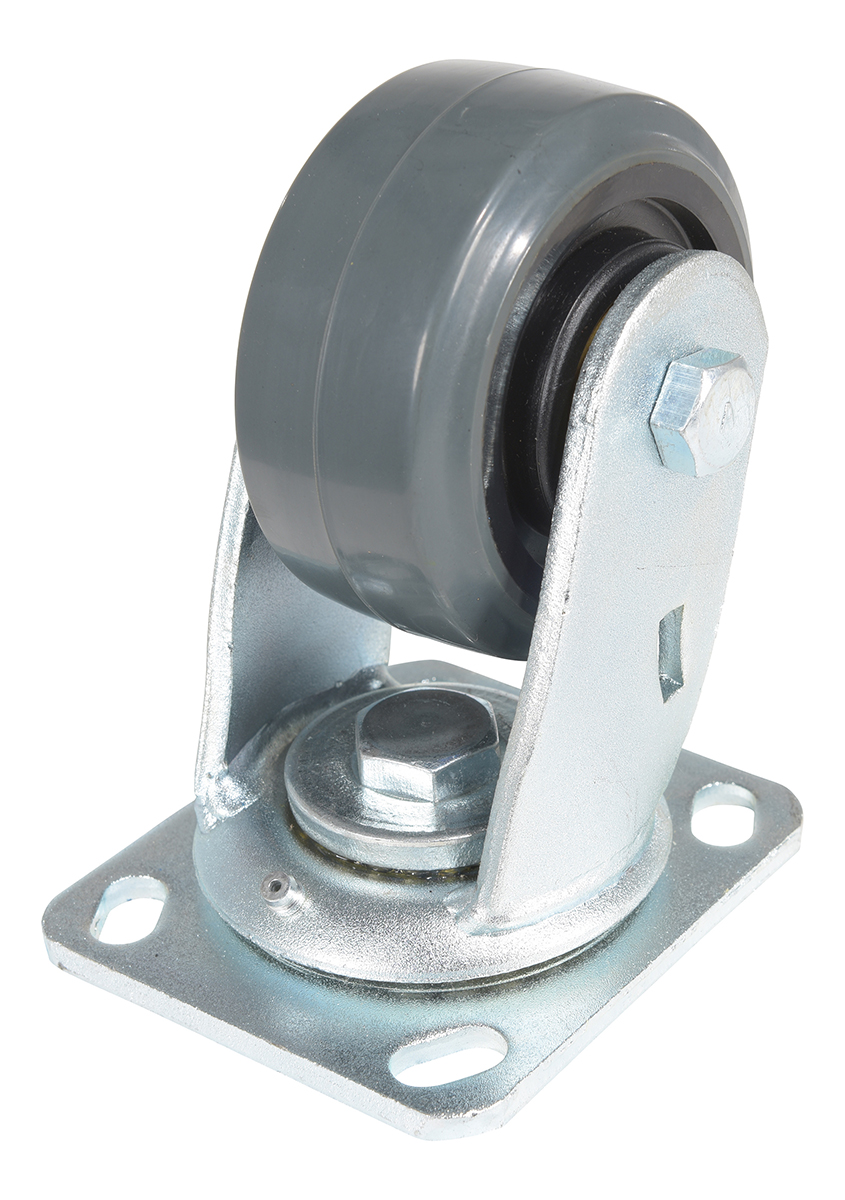

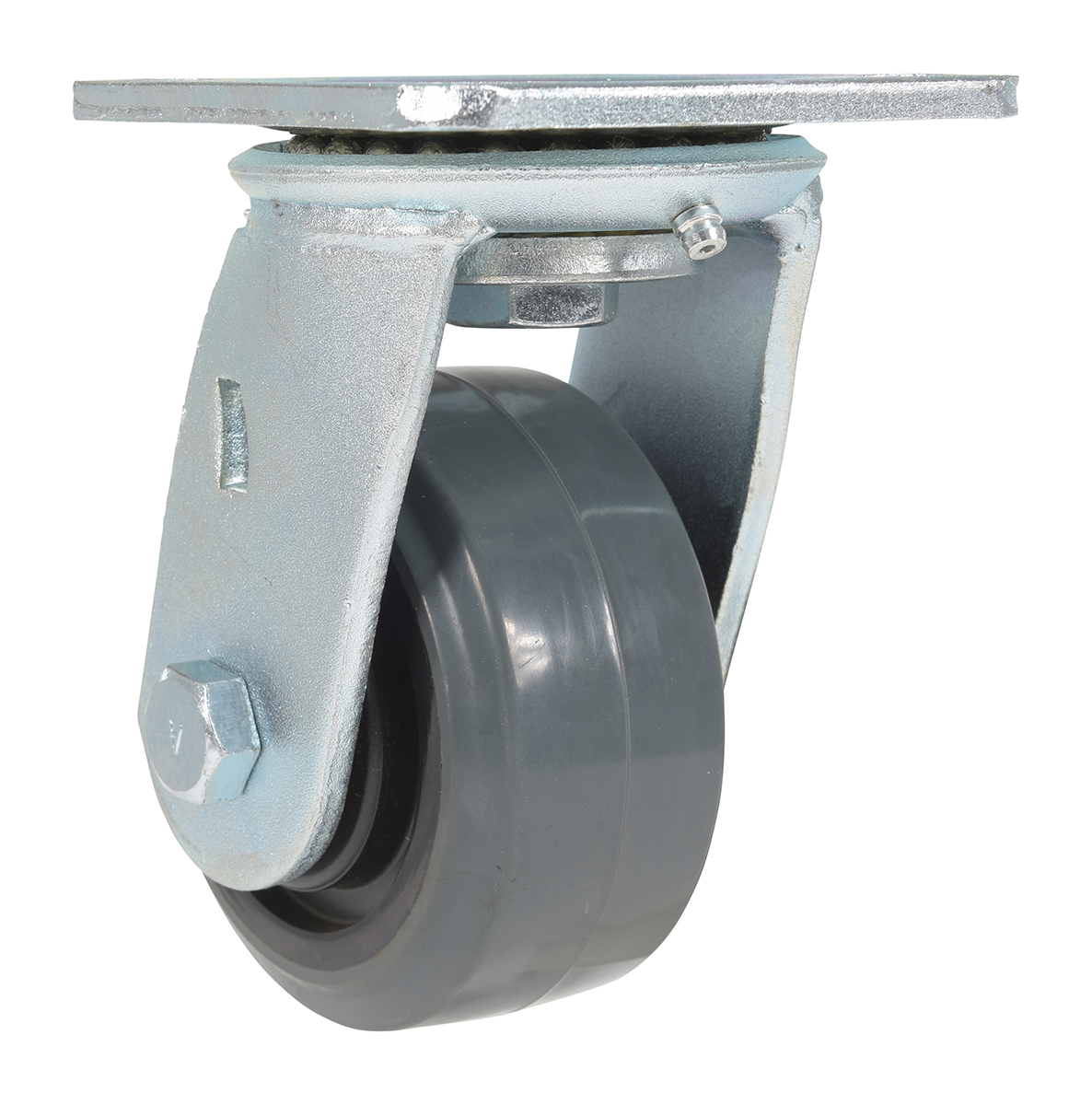

| CST-KSM-4X2MR-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 551 | 5-9/16 | 4 x 4-1/2 | 6 |

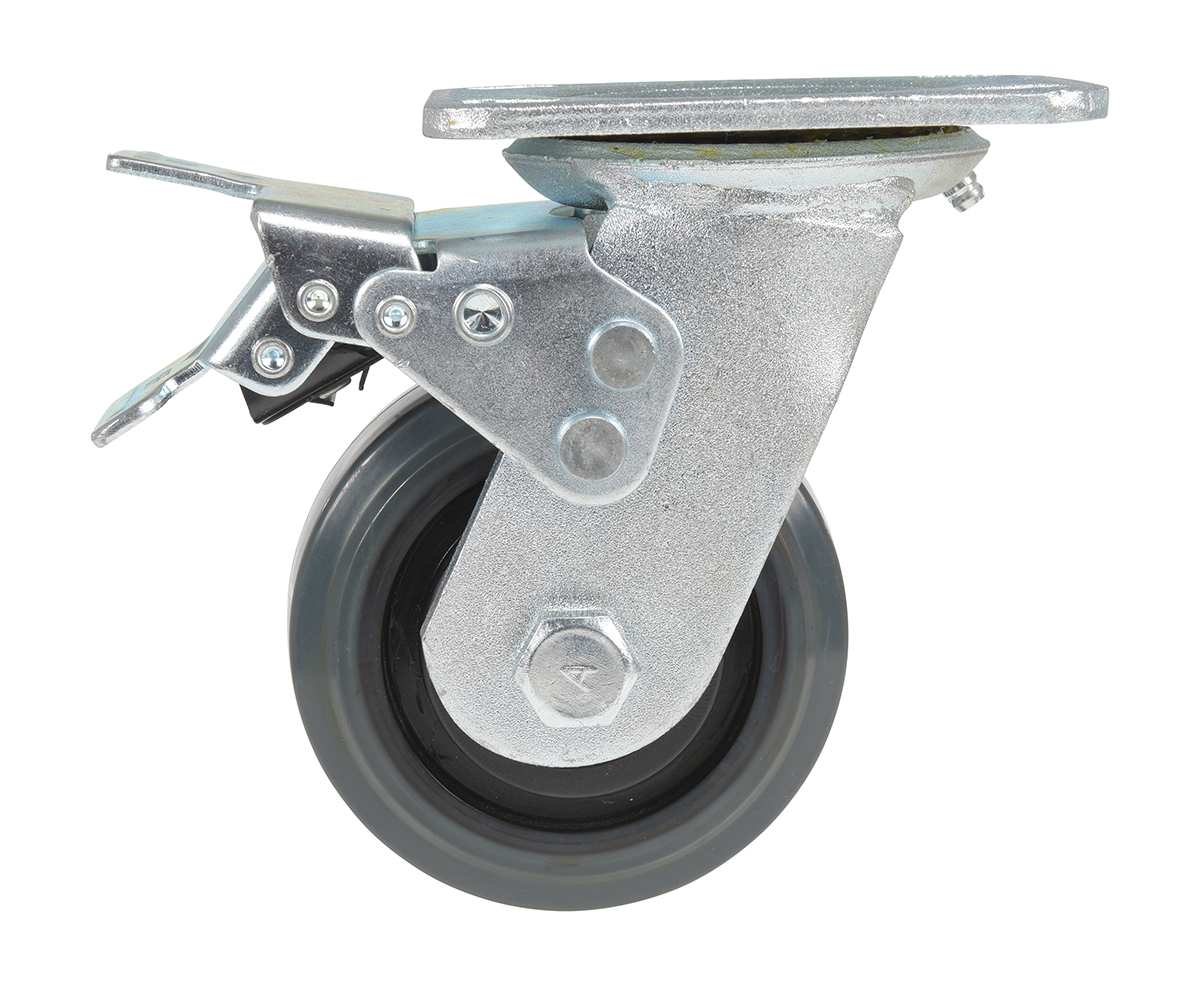

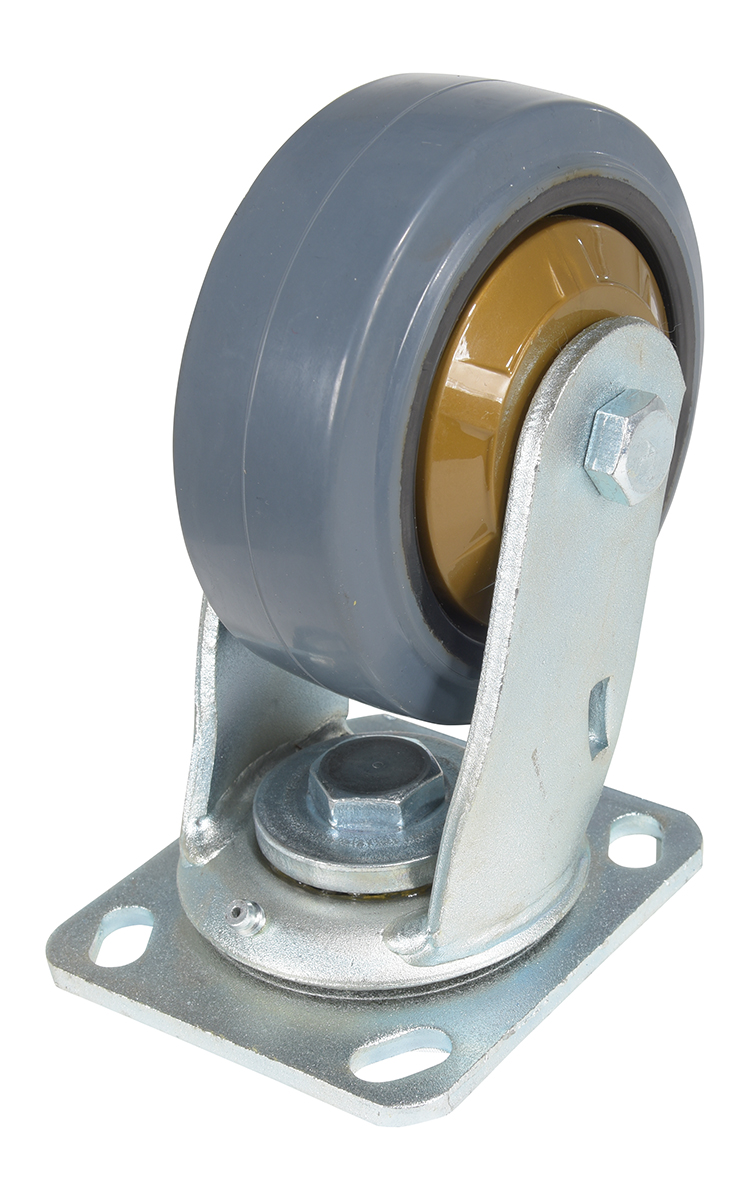

| CST-KSM-5X2MR-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 661 | 6.5625 | 4 x 4-1/2 | 7 |
| CST-KSM-6X2MR-S | | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 771 | 7-1/2 | 4 x 4-1/2 | 7 |

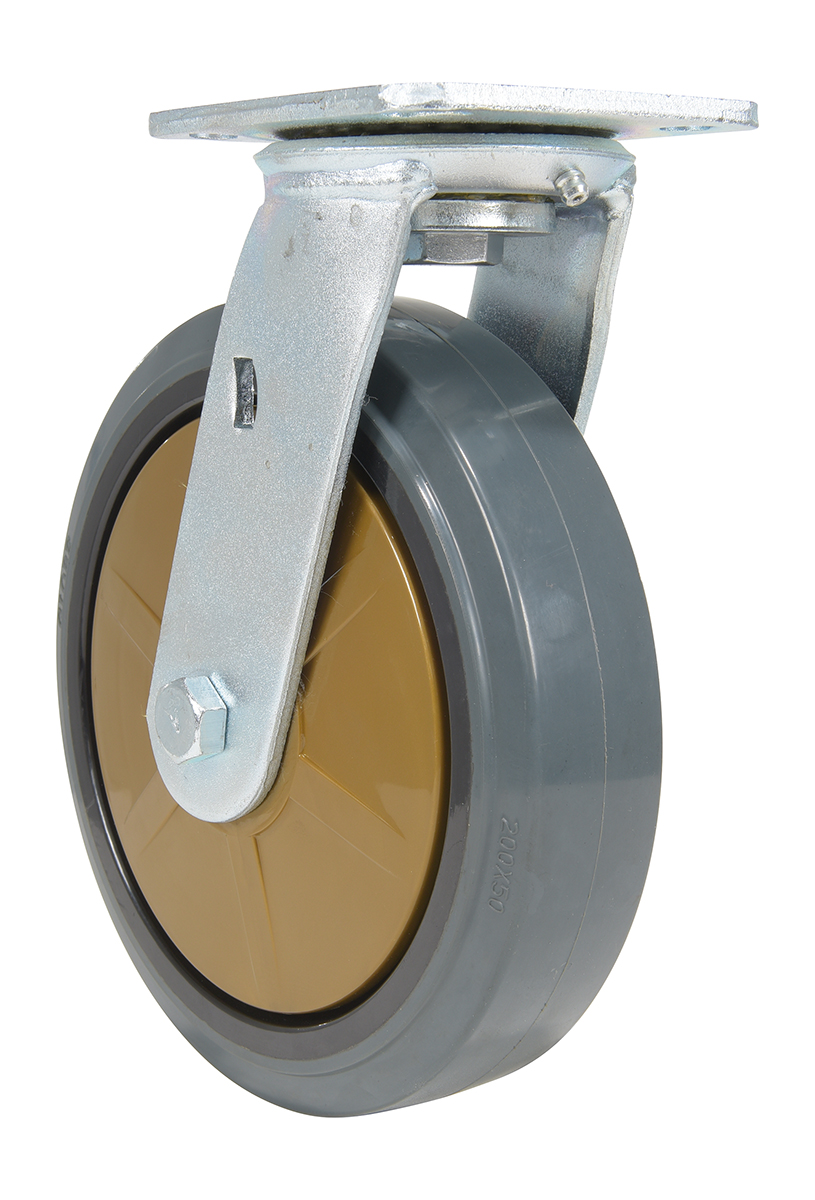

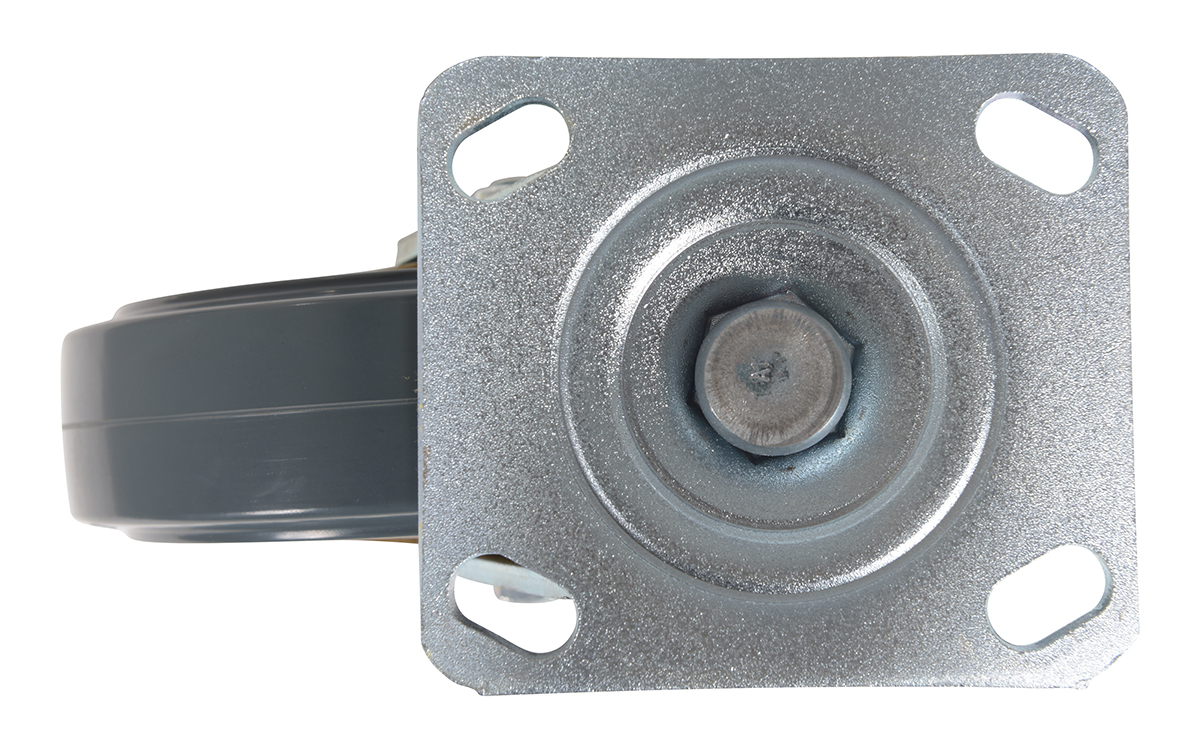

| CST-KSM-8X2MR-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 881 | 9-1/2 | 4 x 4-1/2 | 8 |

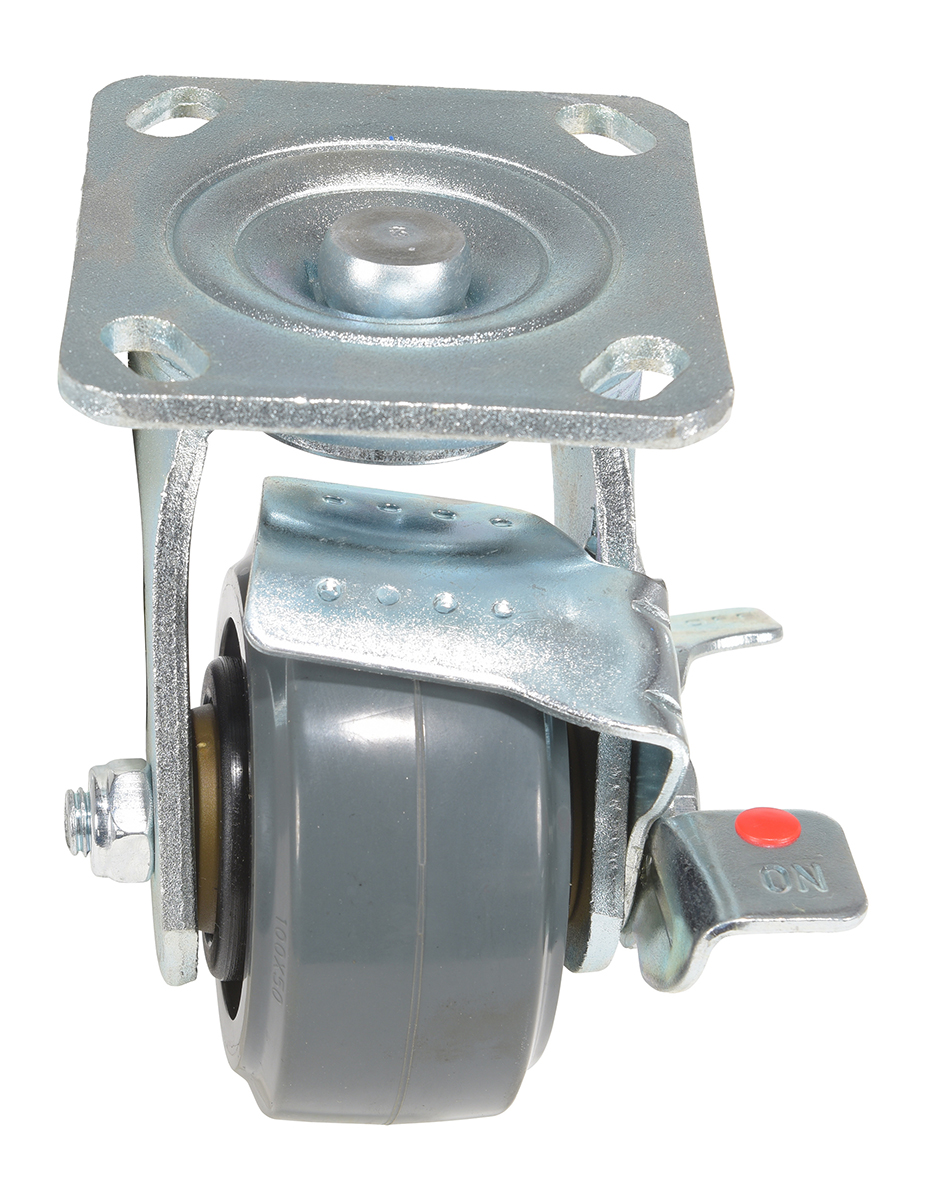

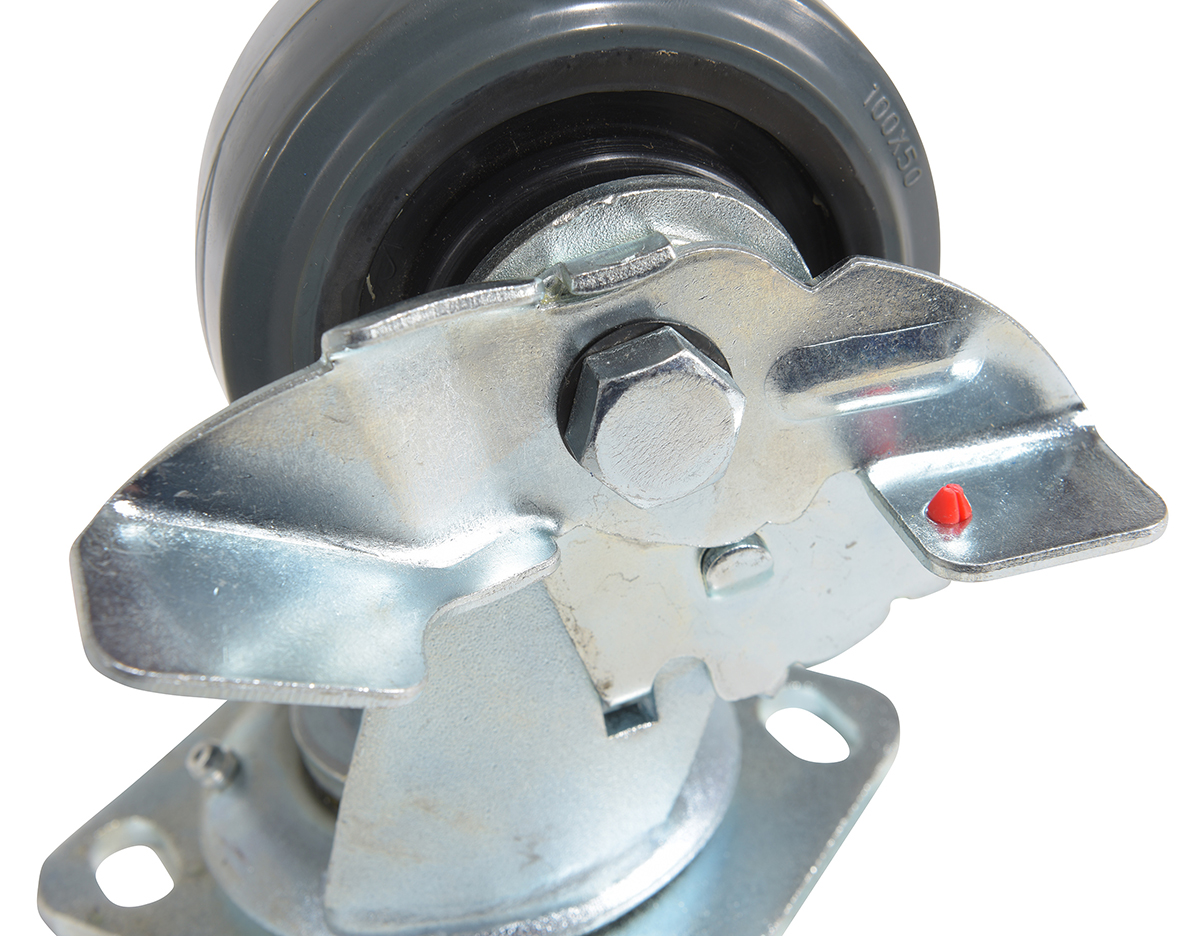

| CST-KSM-4X2MR-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 551 | 5-9/16 | 4 x 4-1/2 | 6 |

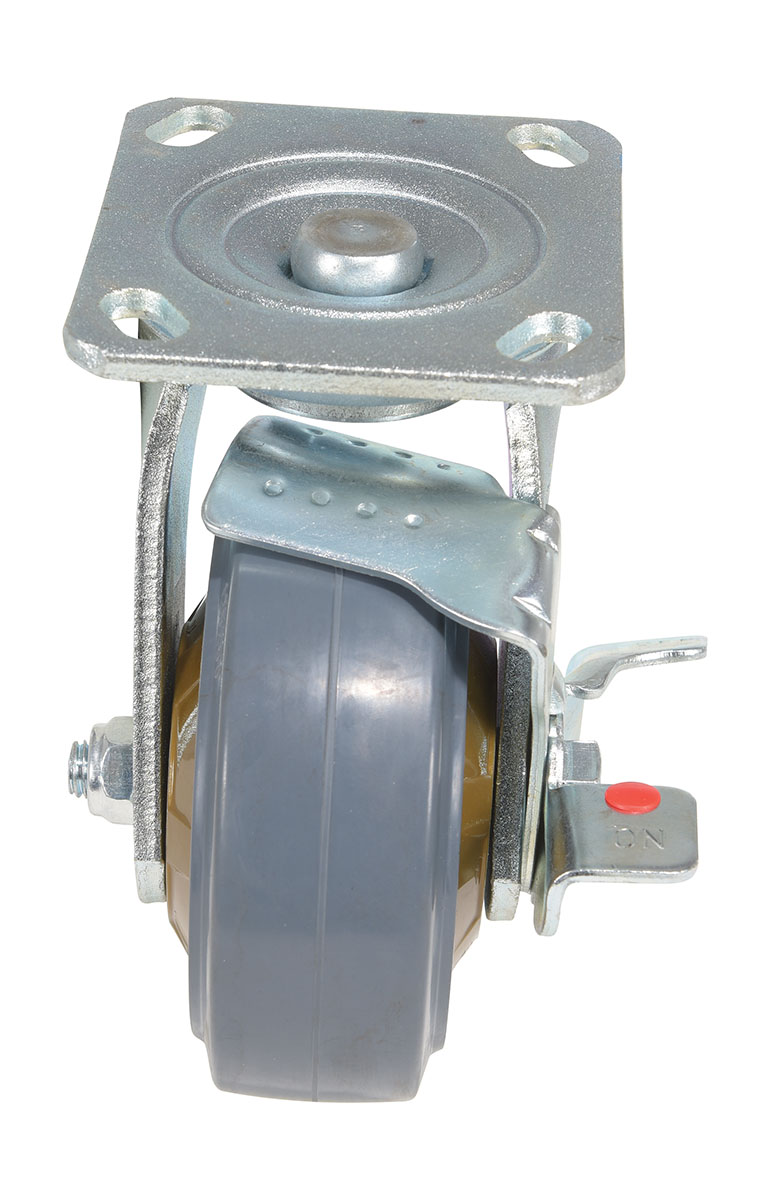

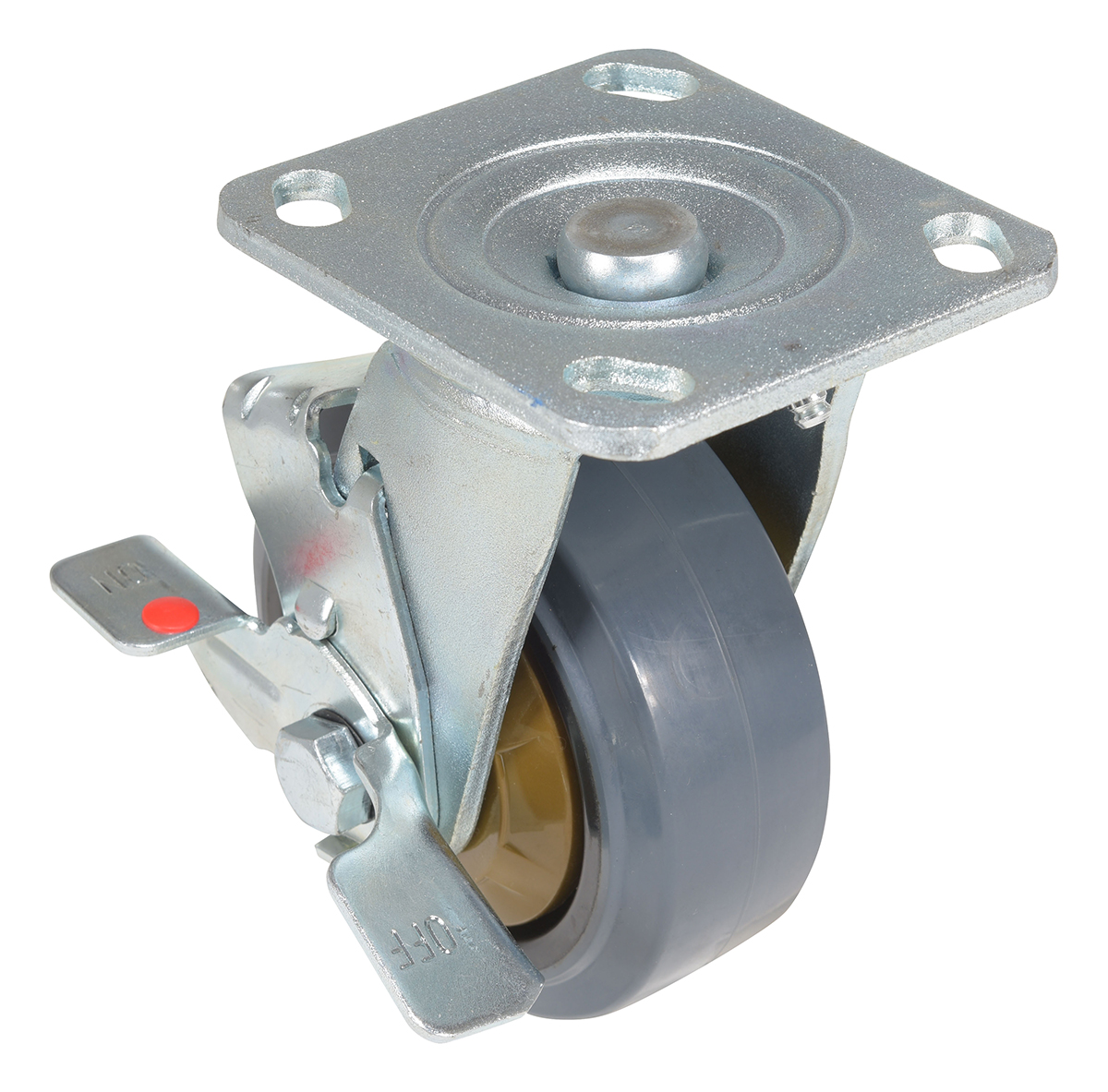

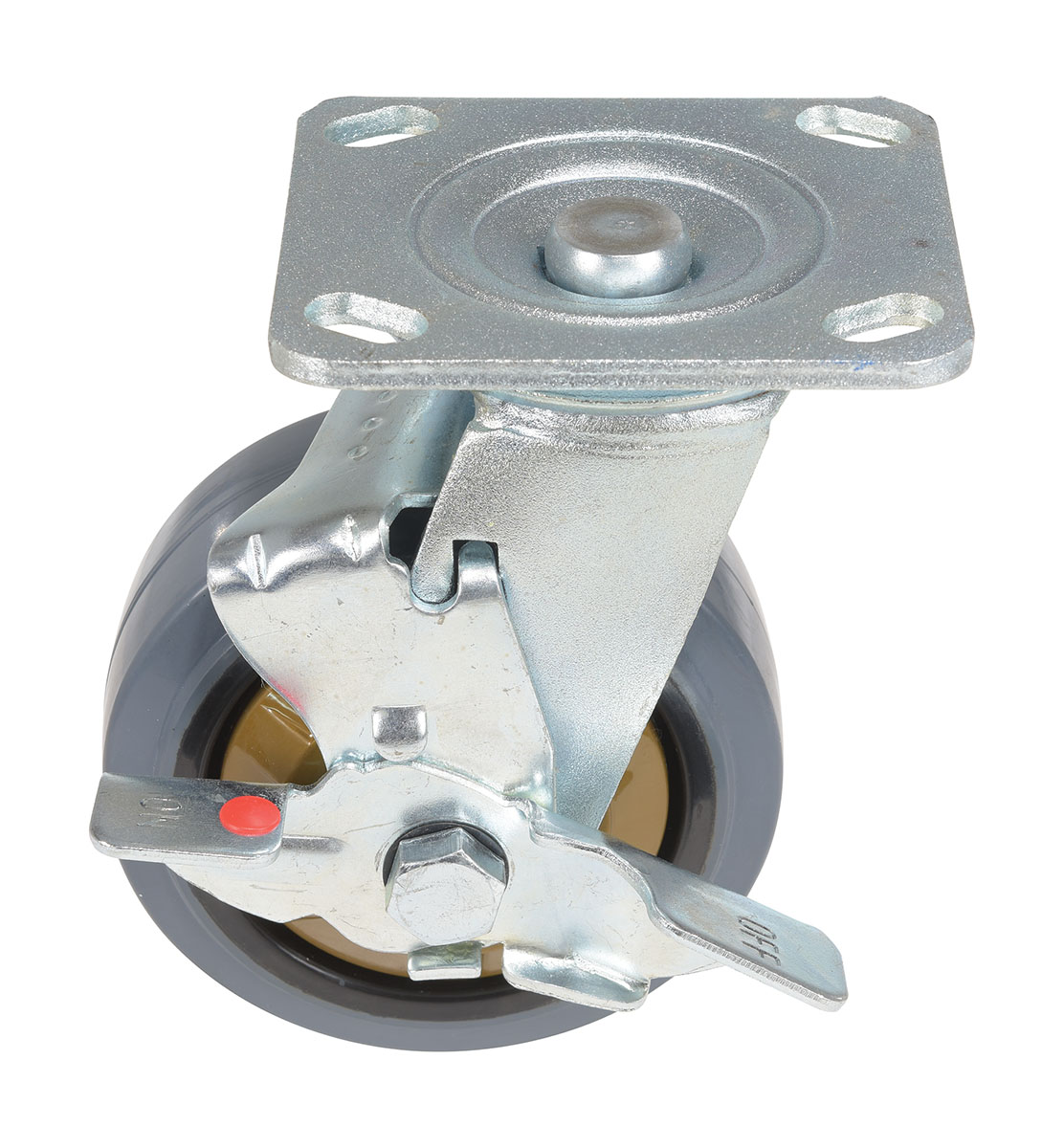

| CST-KSM-5X2MR-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 661 | 6-9/16 | 4 x 4-1/2 | 7 |
| CST-KSM-6X2MR-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 771 | 7-1/2 | 4 x 4-1/2 | 7 |

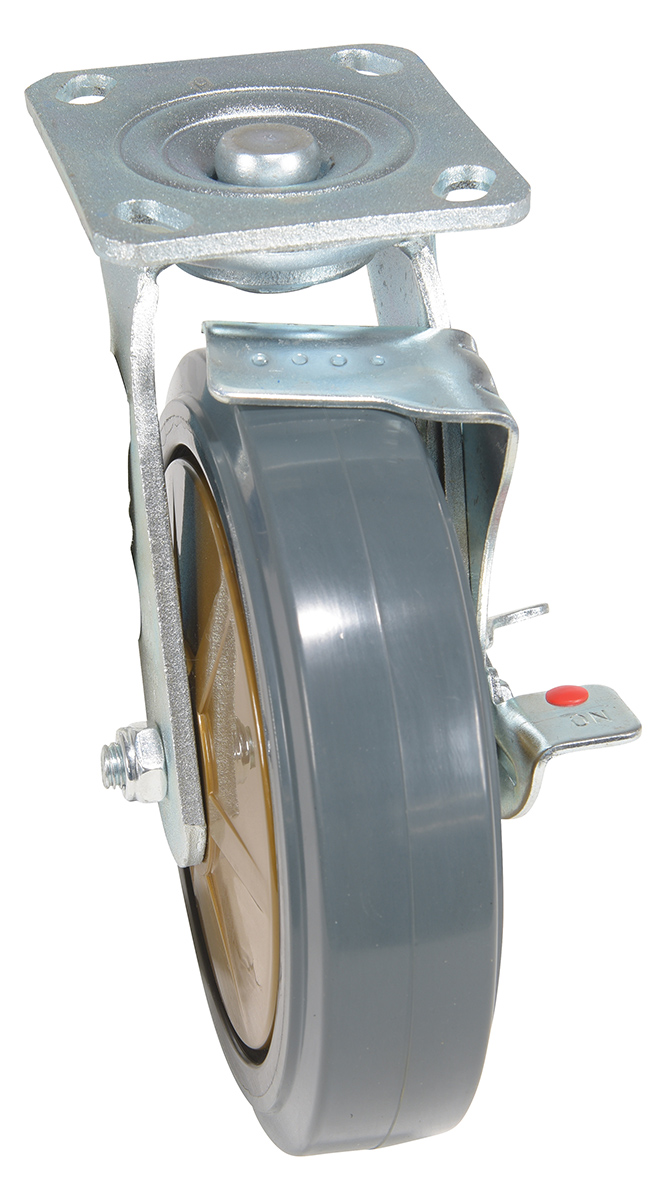

| CST-KSM-8X2MR-SWB | | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 881 | 9-1/2 | 4 x 4-1/2 | 9 |

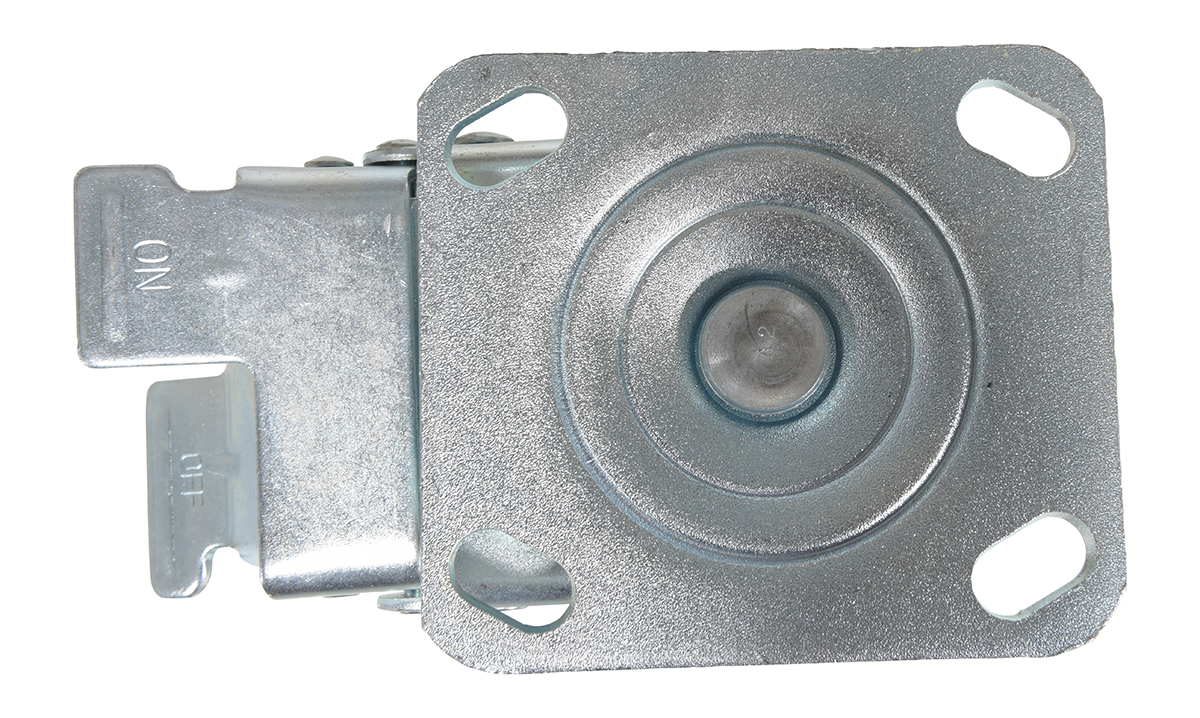

| CST-KSM-4X2MR-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 551 | 5-9/16 | 4 x 4-1/2 | 7 |

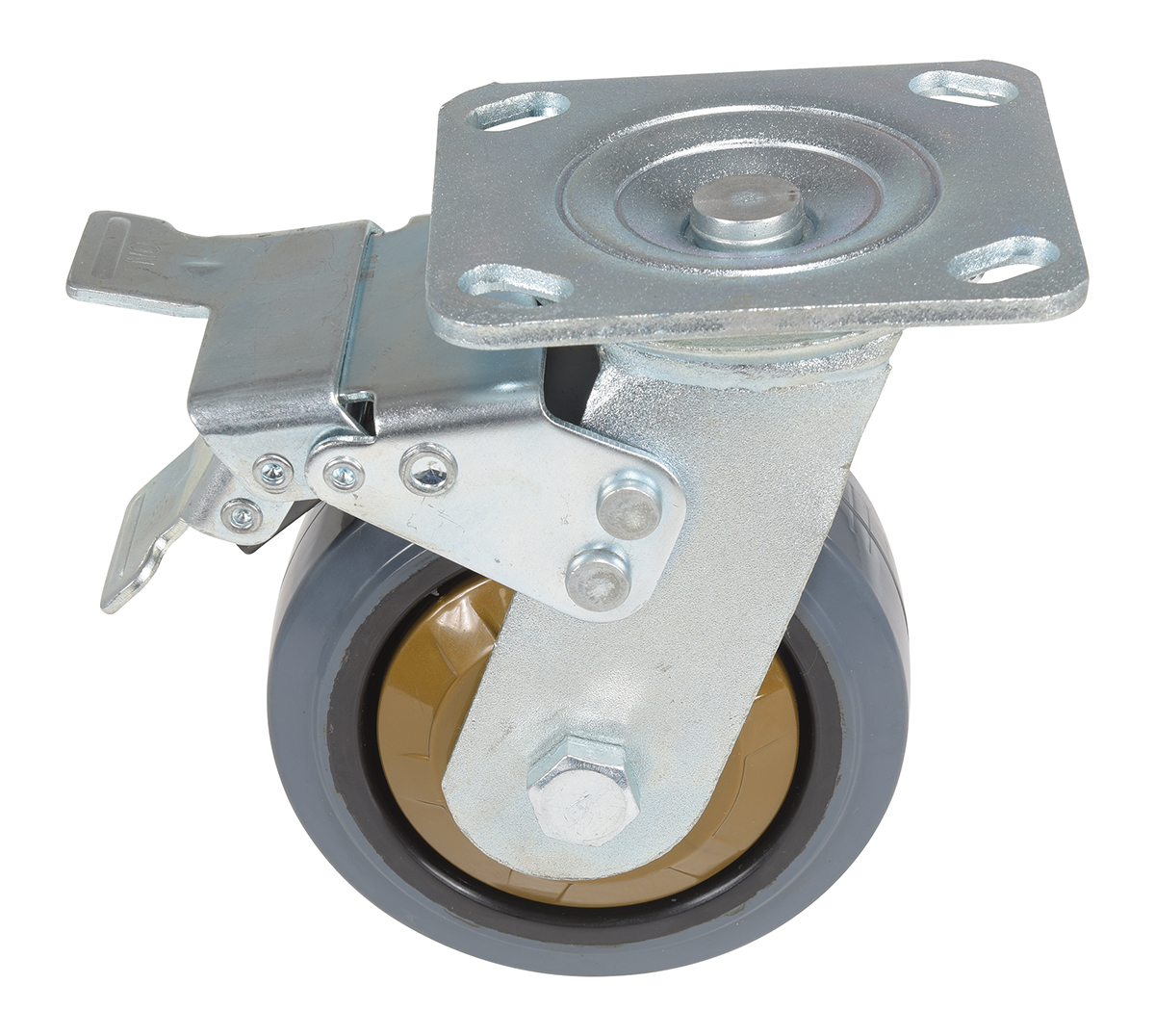

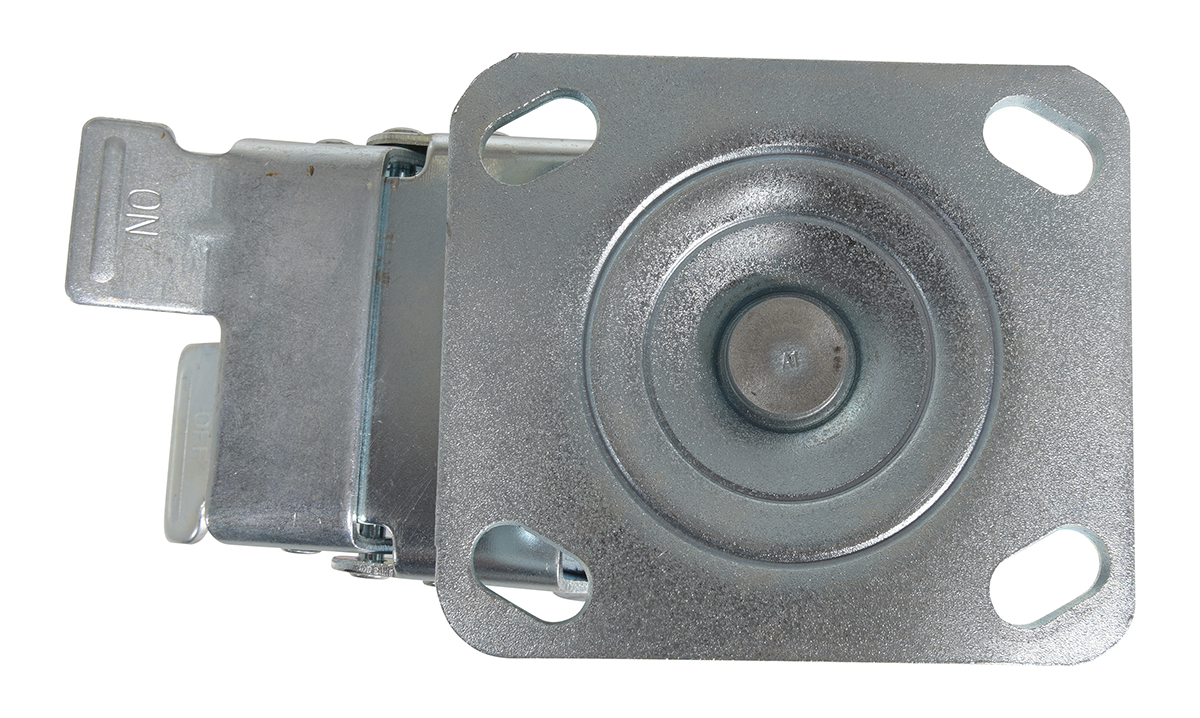

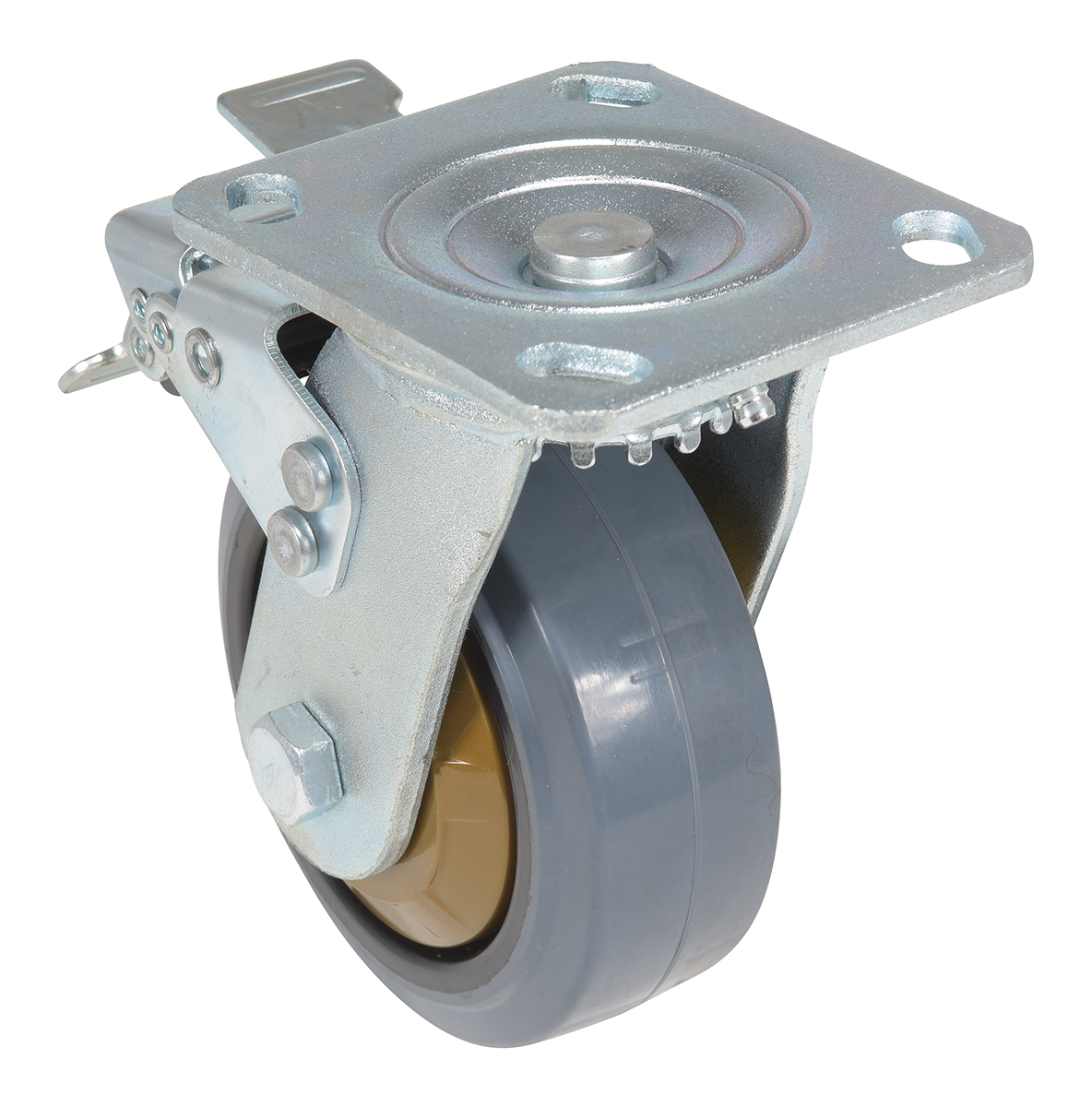

| CST-KSM-5X2MR-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 661 | 6-9/16 | 4 x 4-1/2 | 7 |

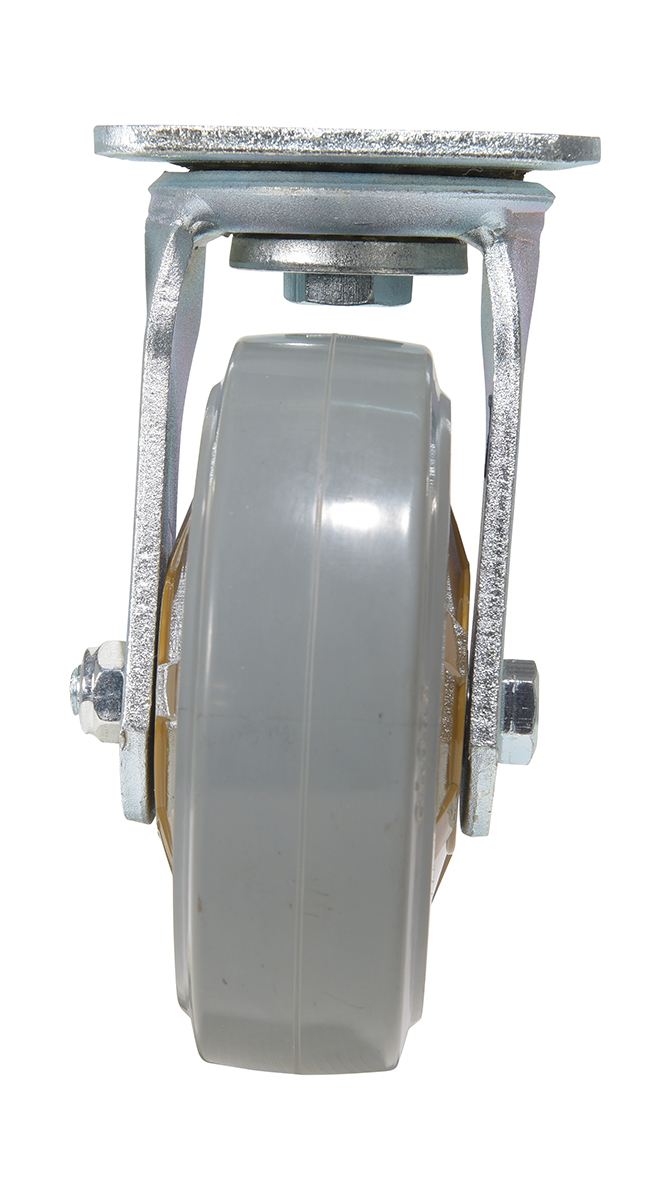

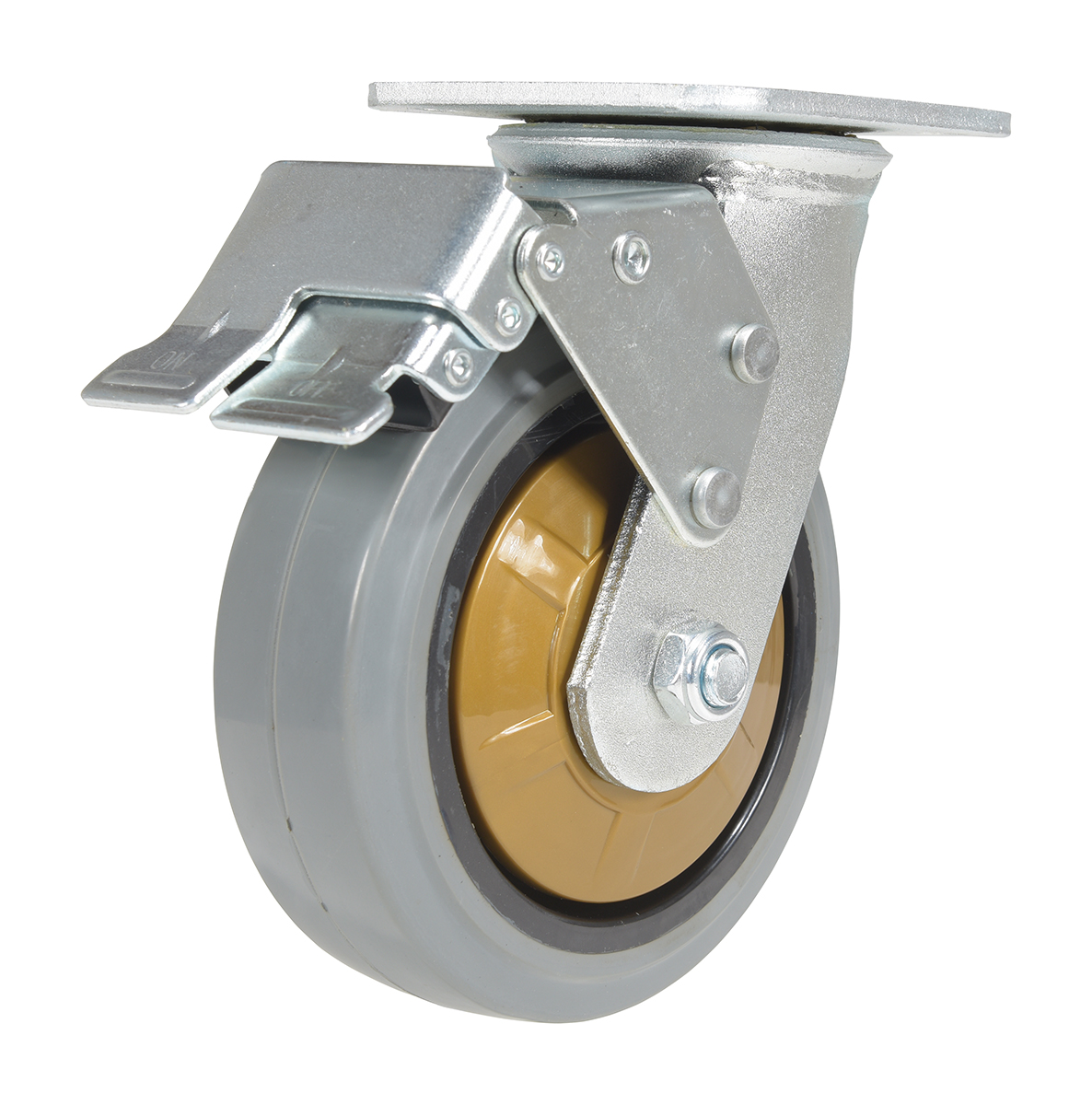

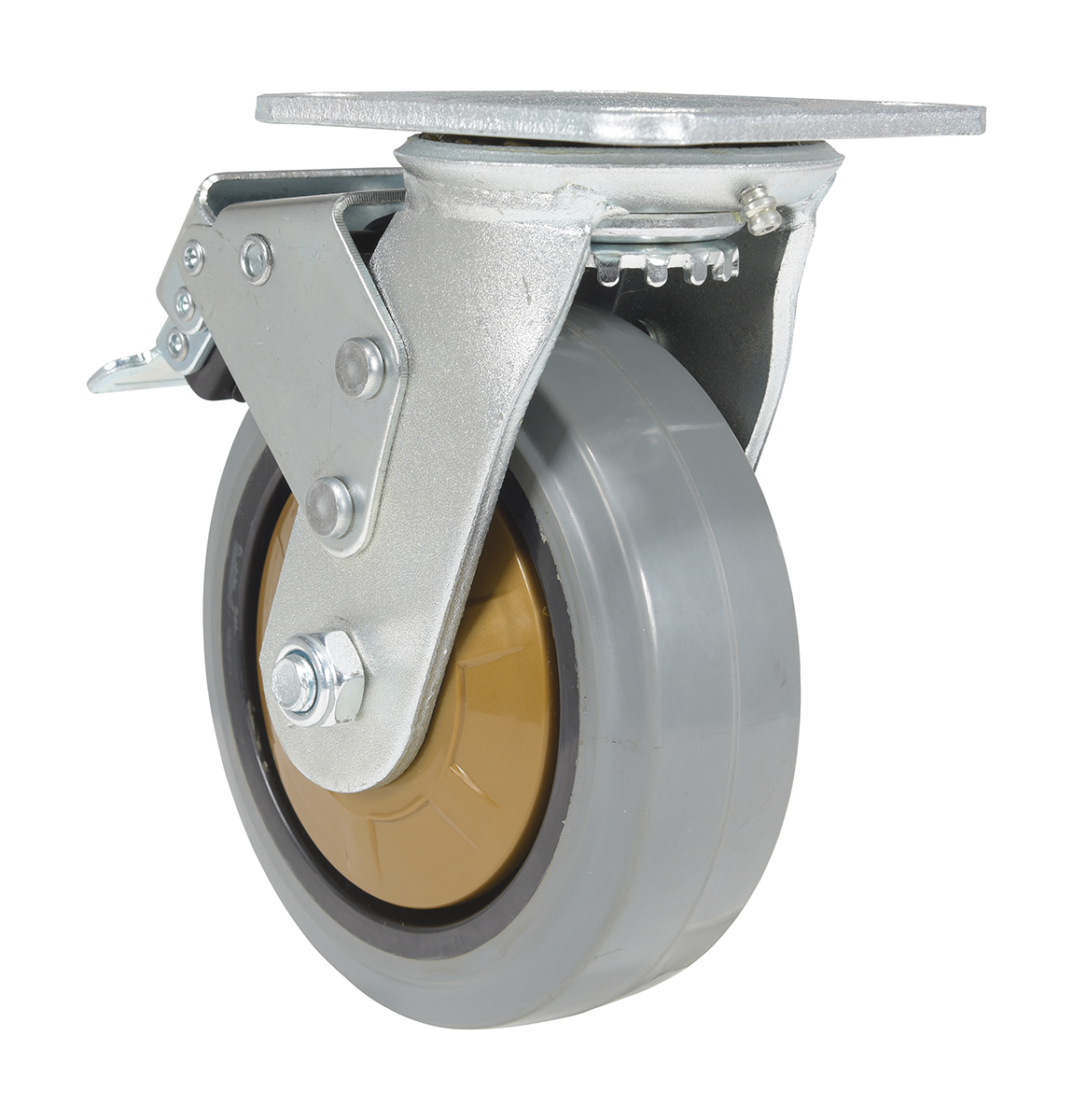

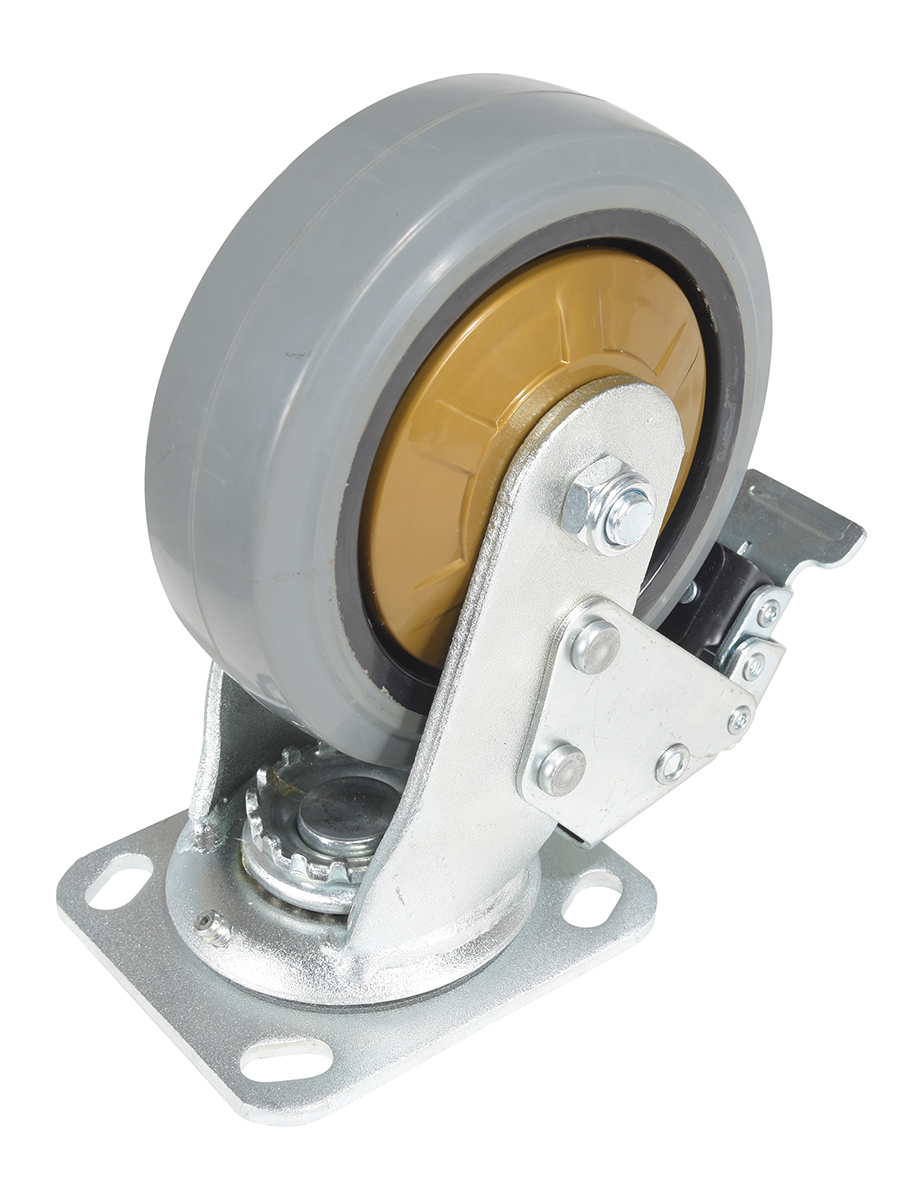

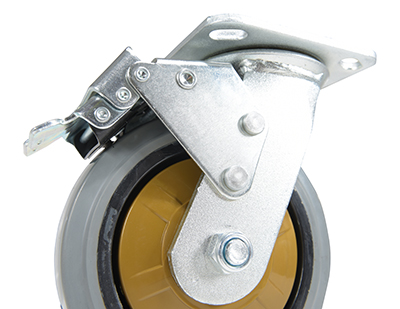

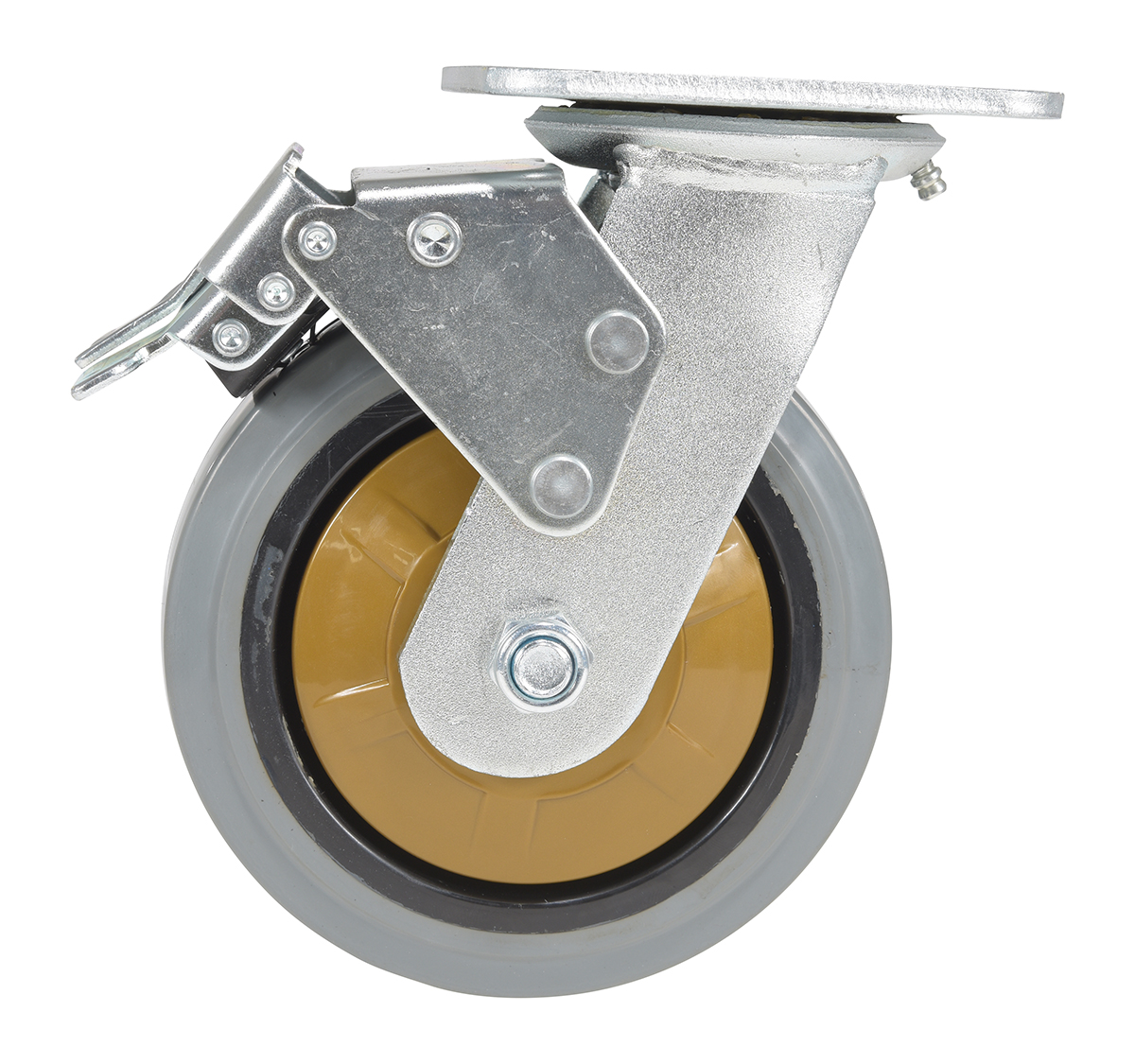

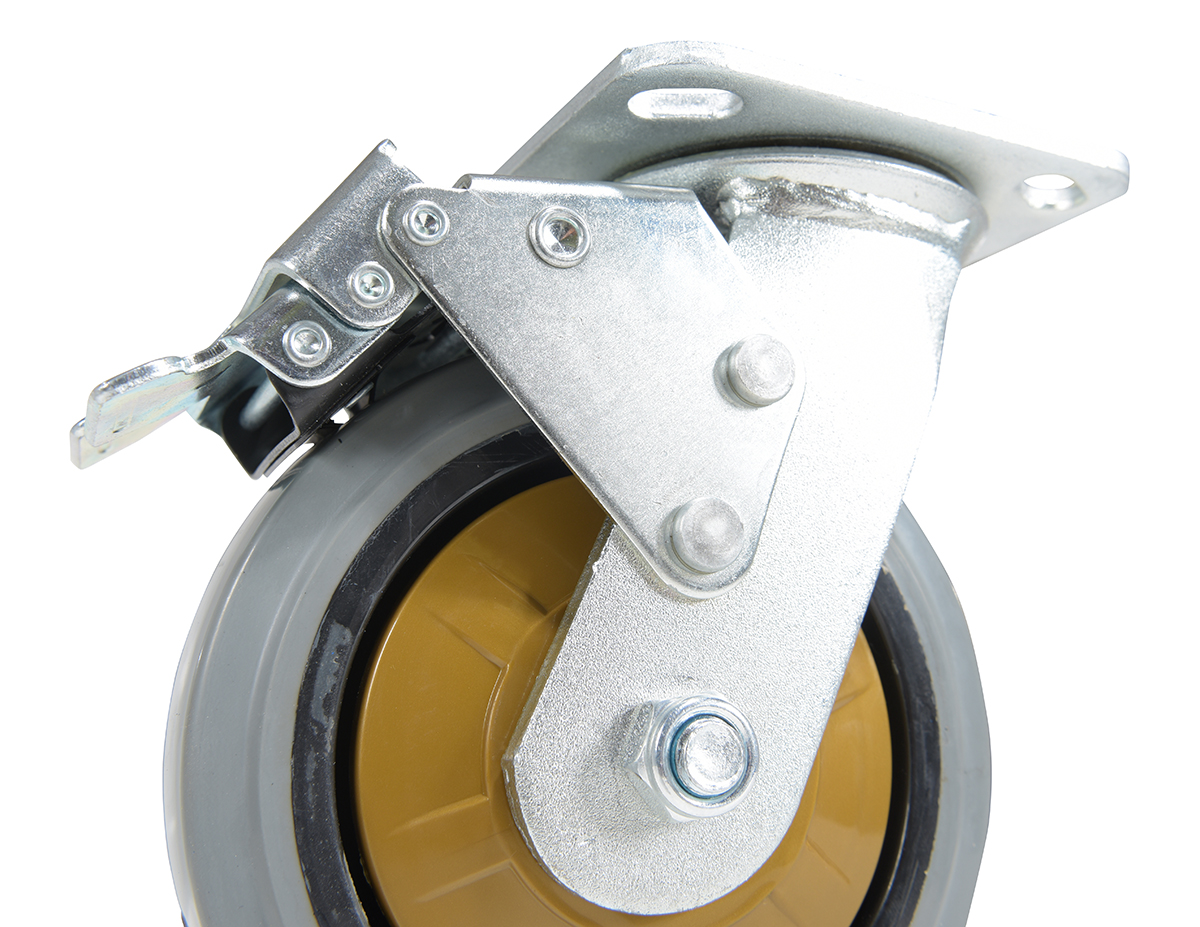

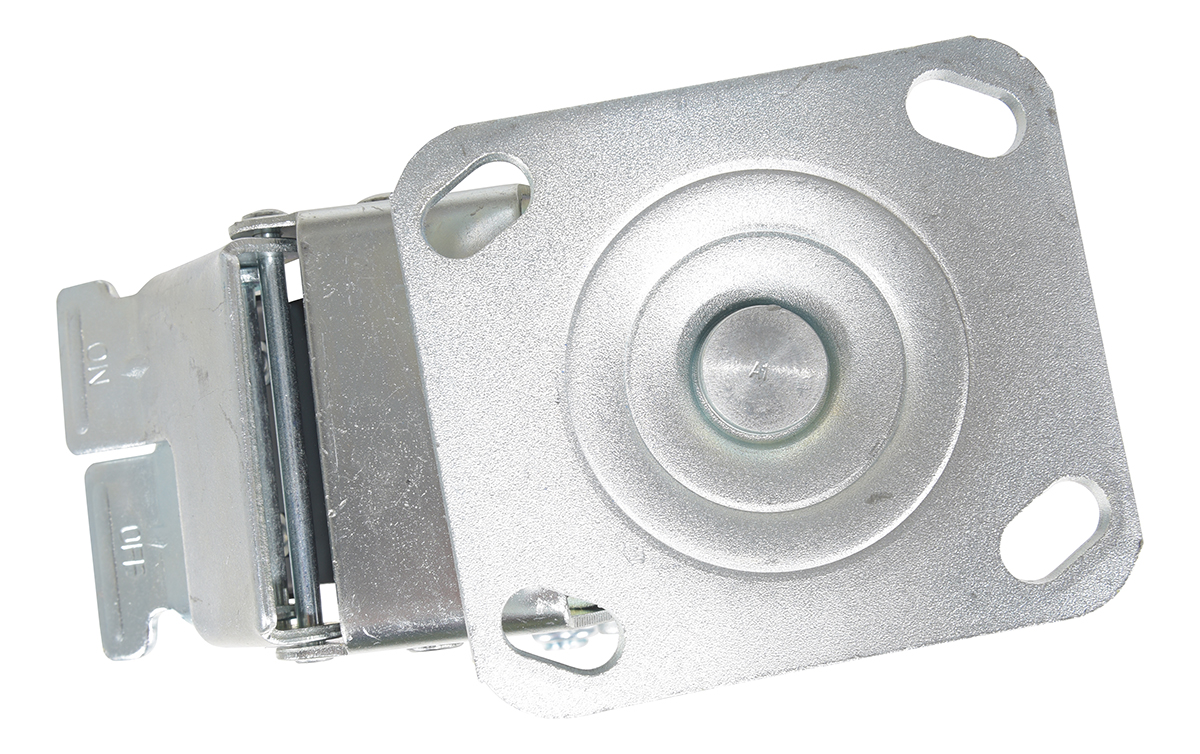

| CST-KSM-6X2MR-SWTB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 771 | 7-1/2 | 4 x 4-1/2 | 8 |

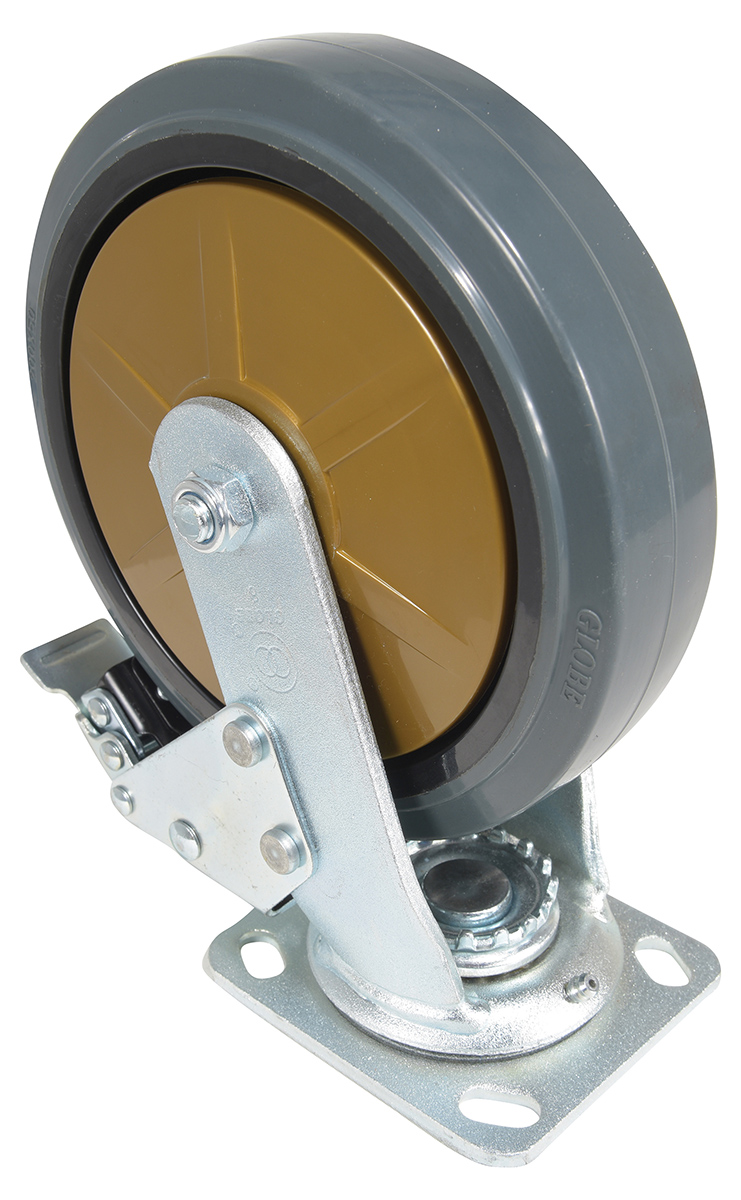

| CST-KSM-8X2MR-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 881 | 9-1/2 | 4 x 4-1/2 | 9 |
