Glass Filled Nylon CastersThese glass filled nylon casters are constructed of a thermoplastic compound that is perfect for industrial and institutional applications. Resistant to most chemicals, salts, solvents, and steam. This tread does not absorb water and is non-marking. Black tread color. Wheel core is glass-filled nylon. 65 +/-5 Shore D.
- RESISTANT TO MOST CHEMICALS
- EASY ROLL PERFORMANCE
- ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
- HARDENED DOUBLE BALL RACEWAY
- GREASE ZERK FITTINGS
- ROLLER BEARINGS
Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters
Phenolic Casters
Flat-Free (Foam-Filled) CastersAdditional Models In This Family
CST-VE-8X2GFN-R
CST-VE-5X2GFN-SWB
CST-VE-5X2GFN-R
CST-VE-8X2GFN-R
CST-VE-6X2GFN-R
CST-VE-4X2GFN-R
CST-VE-6X2GFN-S
CST-VE-4X2GFN-R
CST-VE-6X2GFN-SWTB
CST-VE-6X2GFN-S
CST-VE-4X2GFN-R
CST-VE-6X2GFN-S
CST-VE-6X2GFN-R
CST-VE-5X2GFN-SWB
CST-VE-8X2GFN-S
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

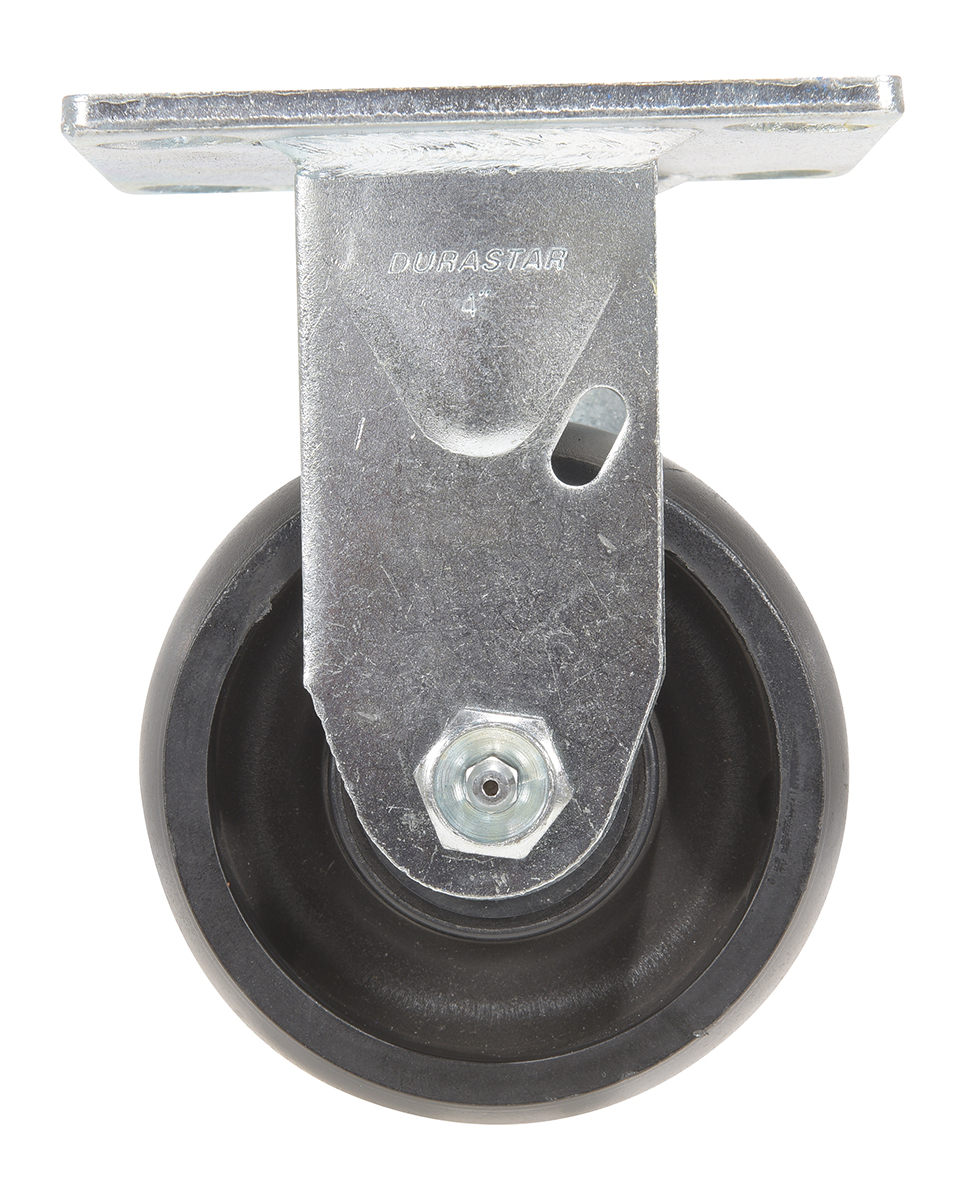

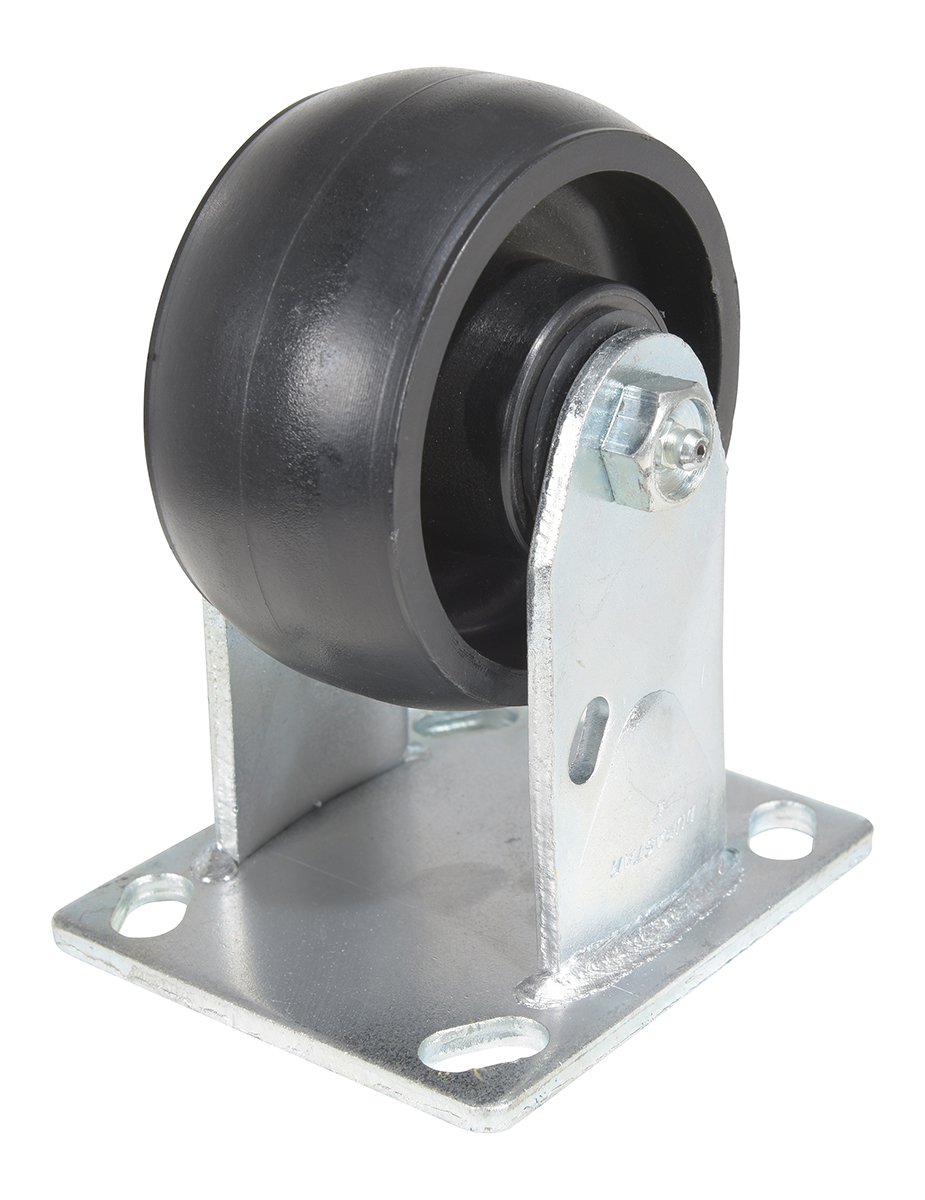

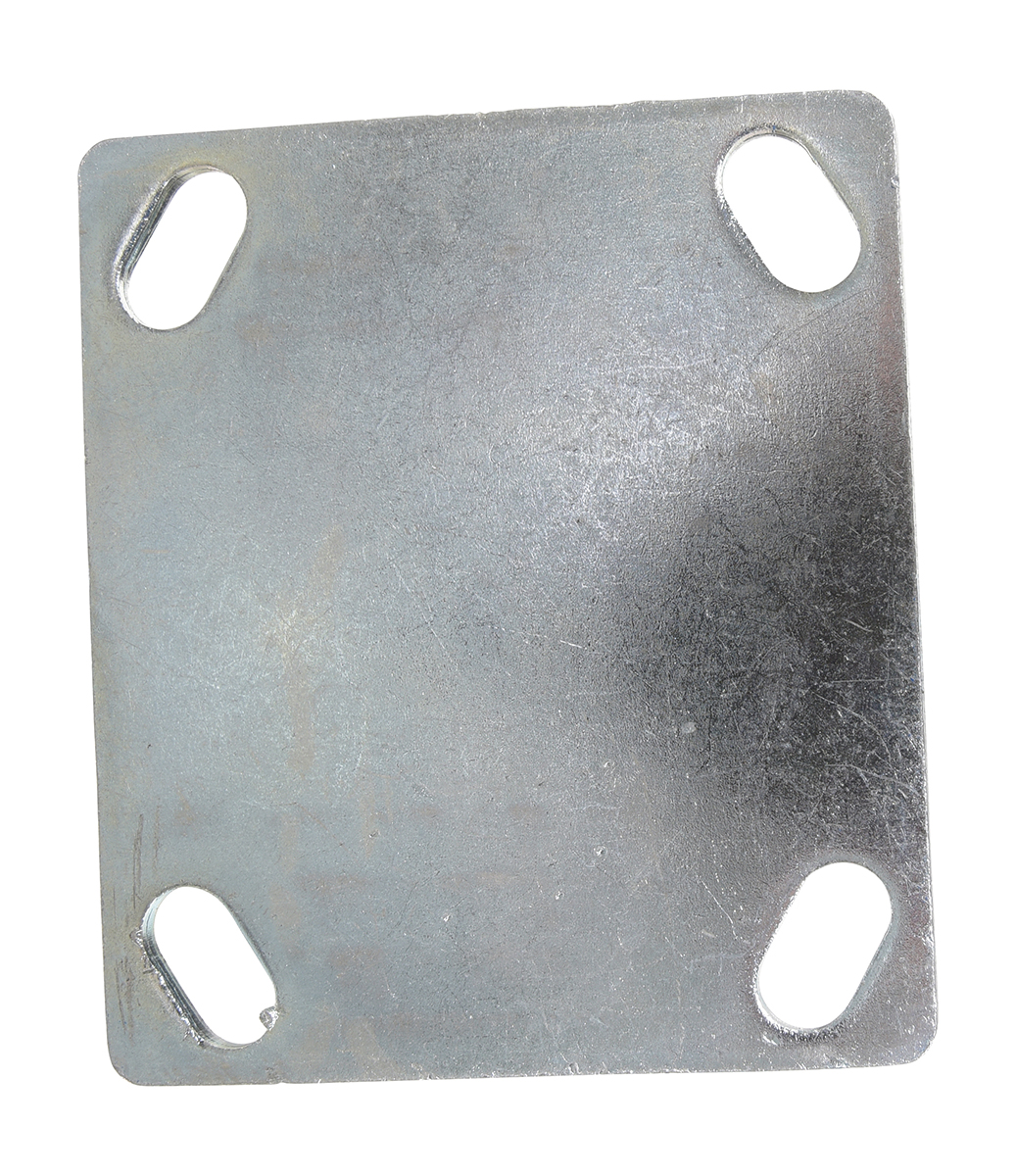

| CST-VE-4X2GFN-R | | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 800 | 5-1/2 | 4 x 4-1/2 | 4 |
| CST-VE-5X2GFN-R | | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 1000 | 6-1/2 | 4 x 4-1/2 | 4 |

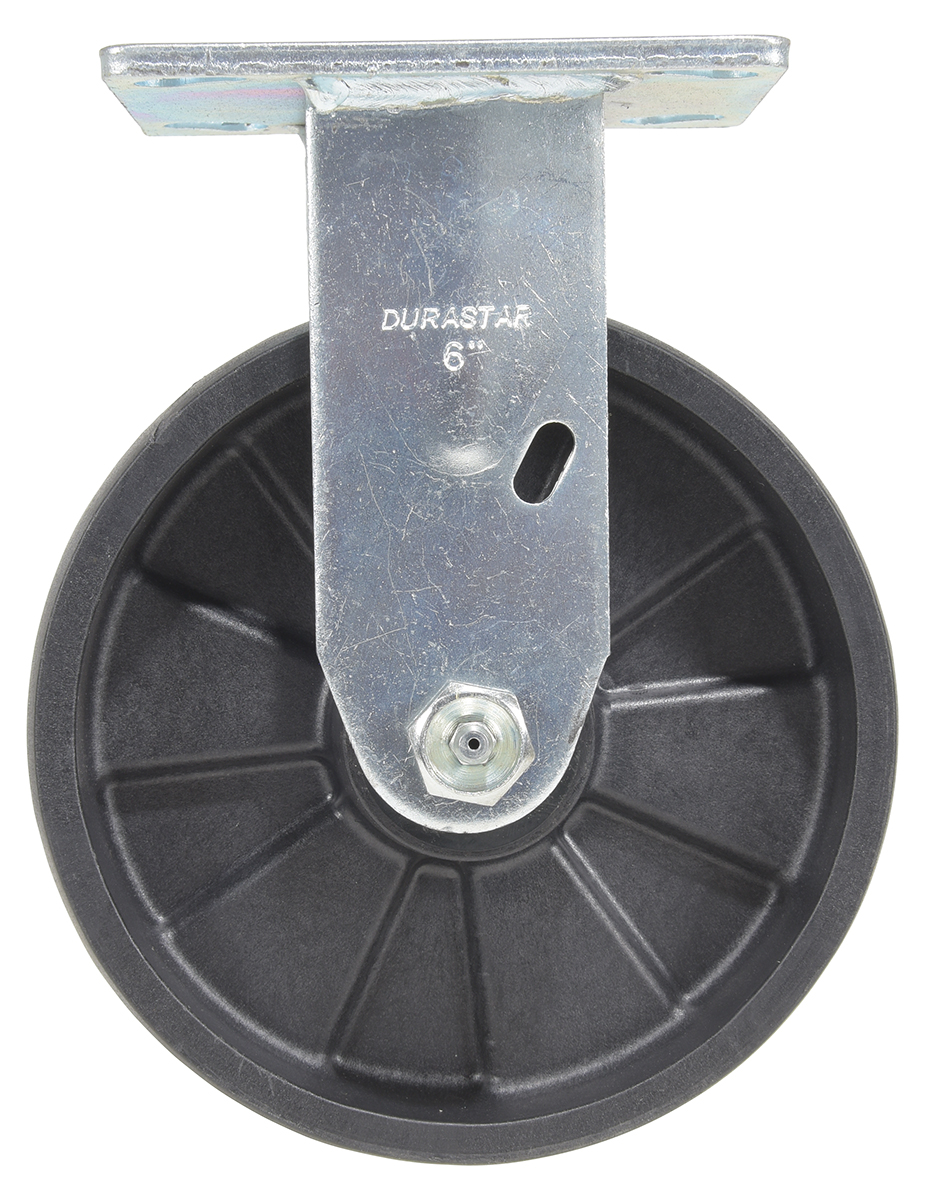

| CST-VE-6X2GFN-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 1200 | 7-1/2 | 4 x 4-1/2 | 5 |

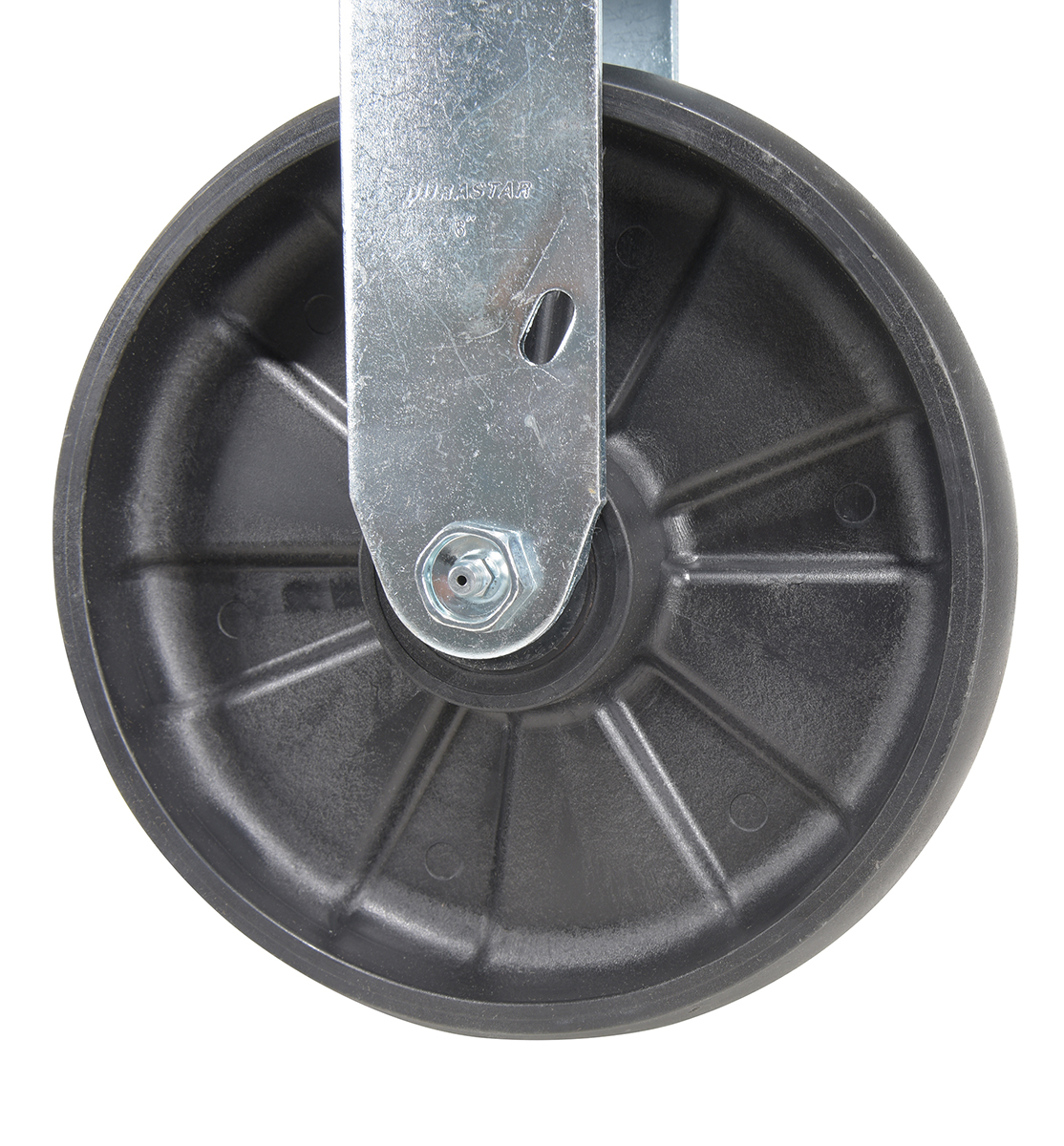

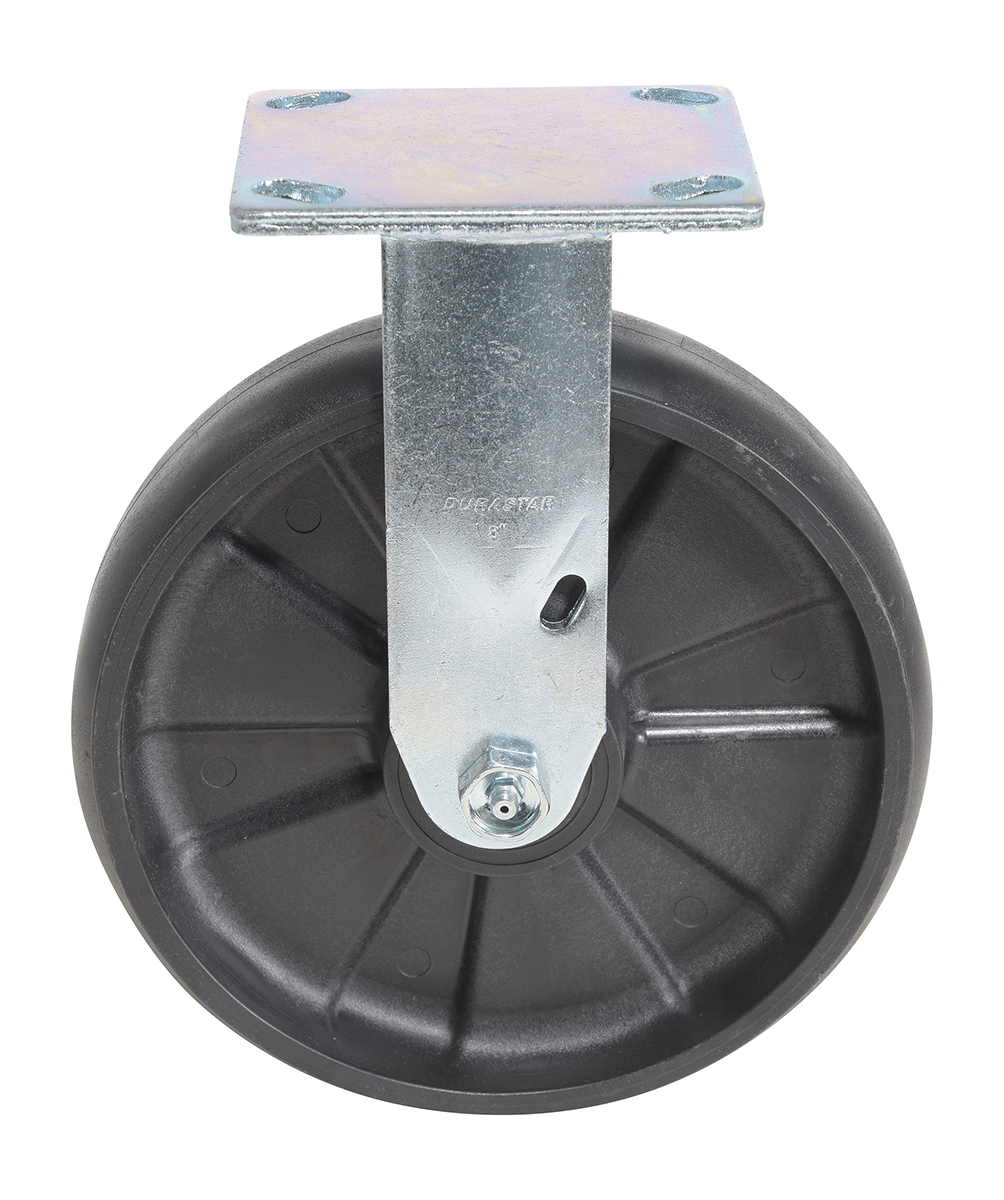

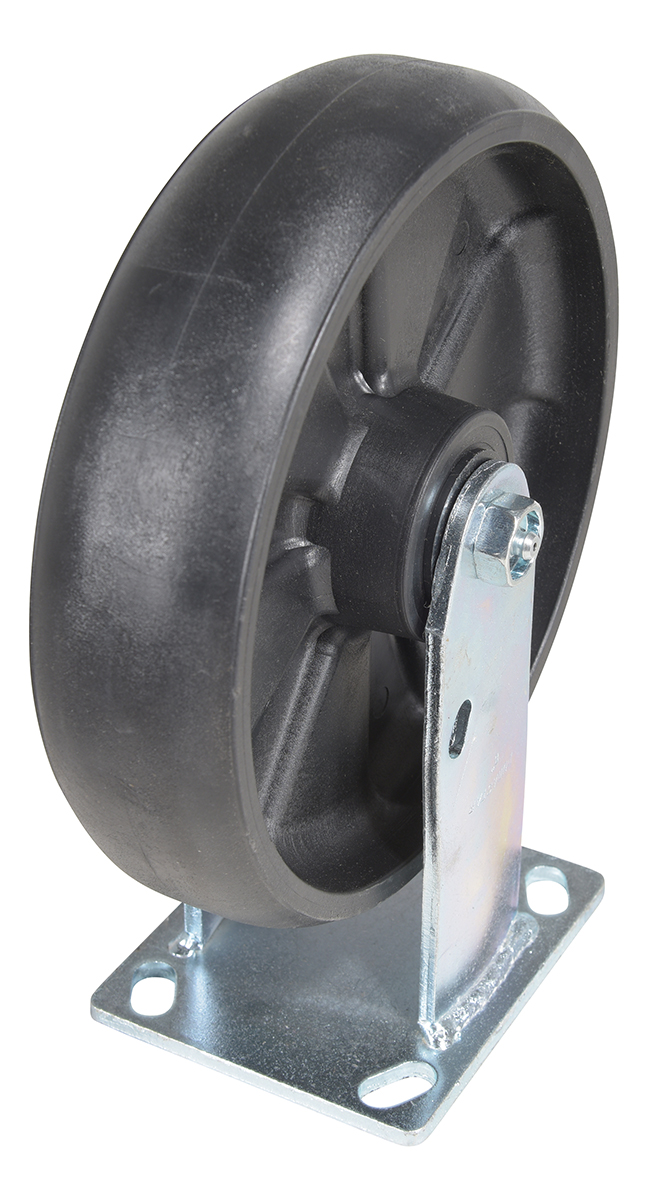

| CST-VE-8X2GFN-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 1250 | 4 x 4-1/2 | 7 | |

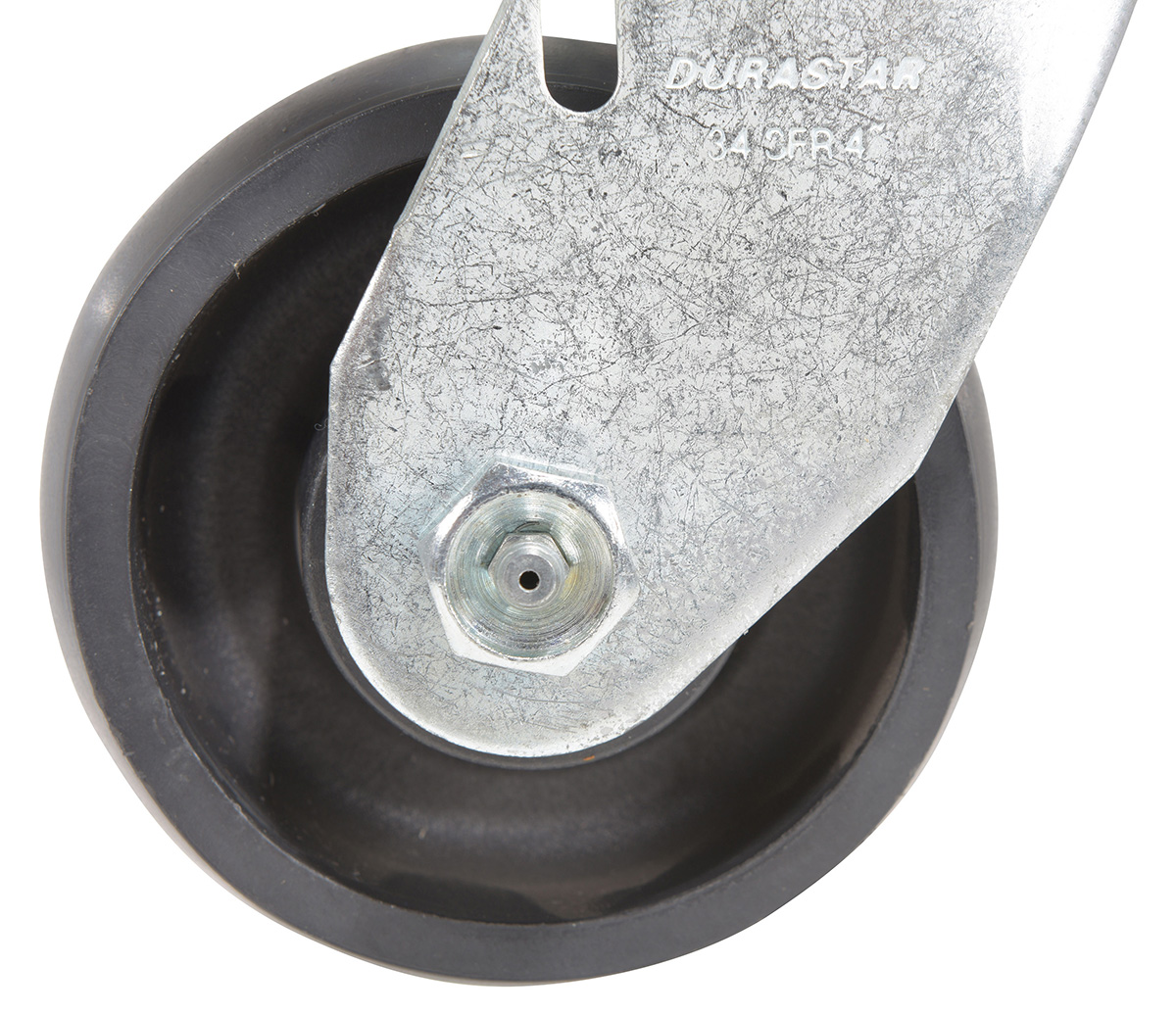

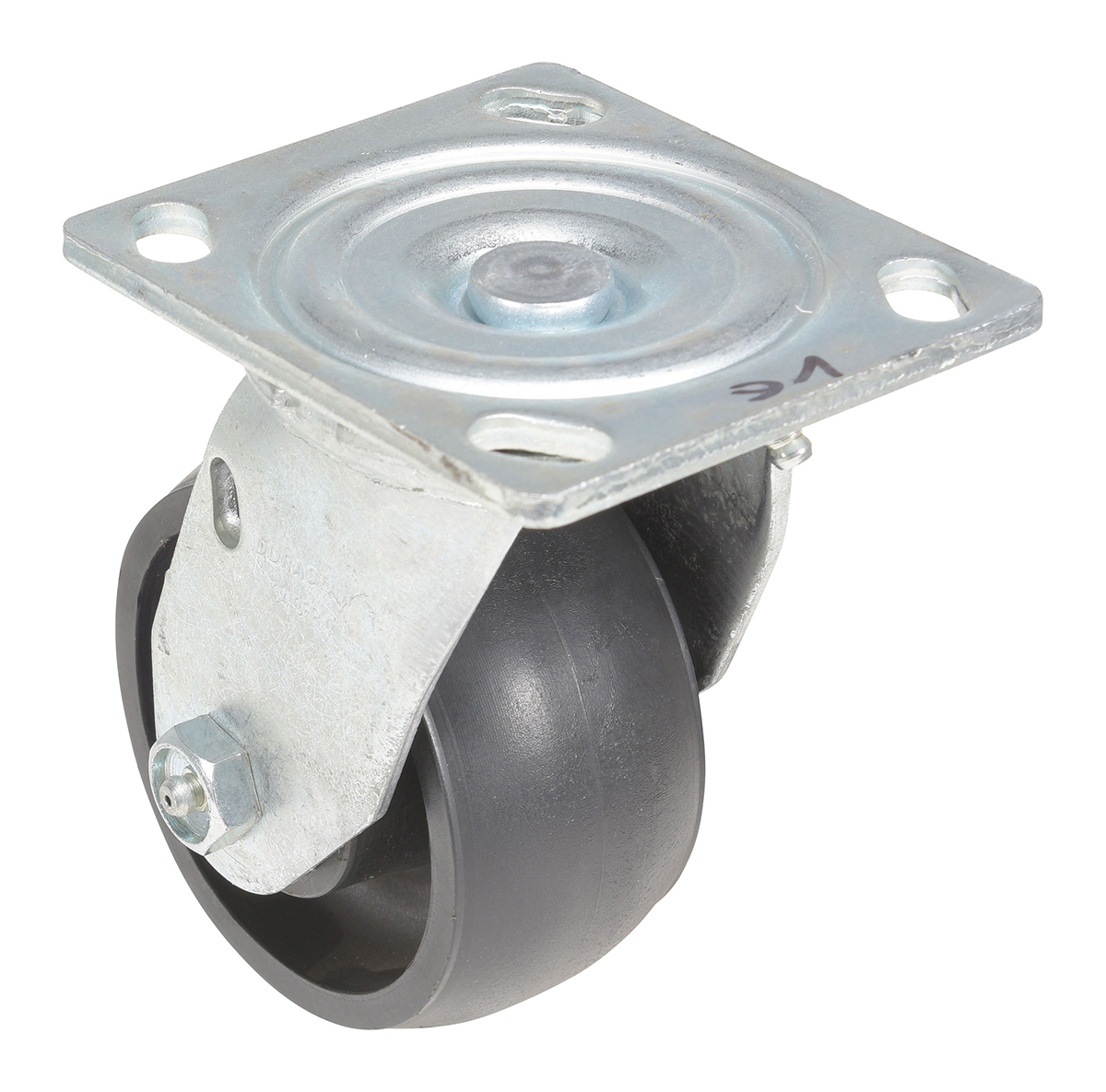

| CST-VE-4X2GFN-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 800 | 5-1/2 | 4 x 4-1/2 | 5 |

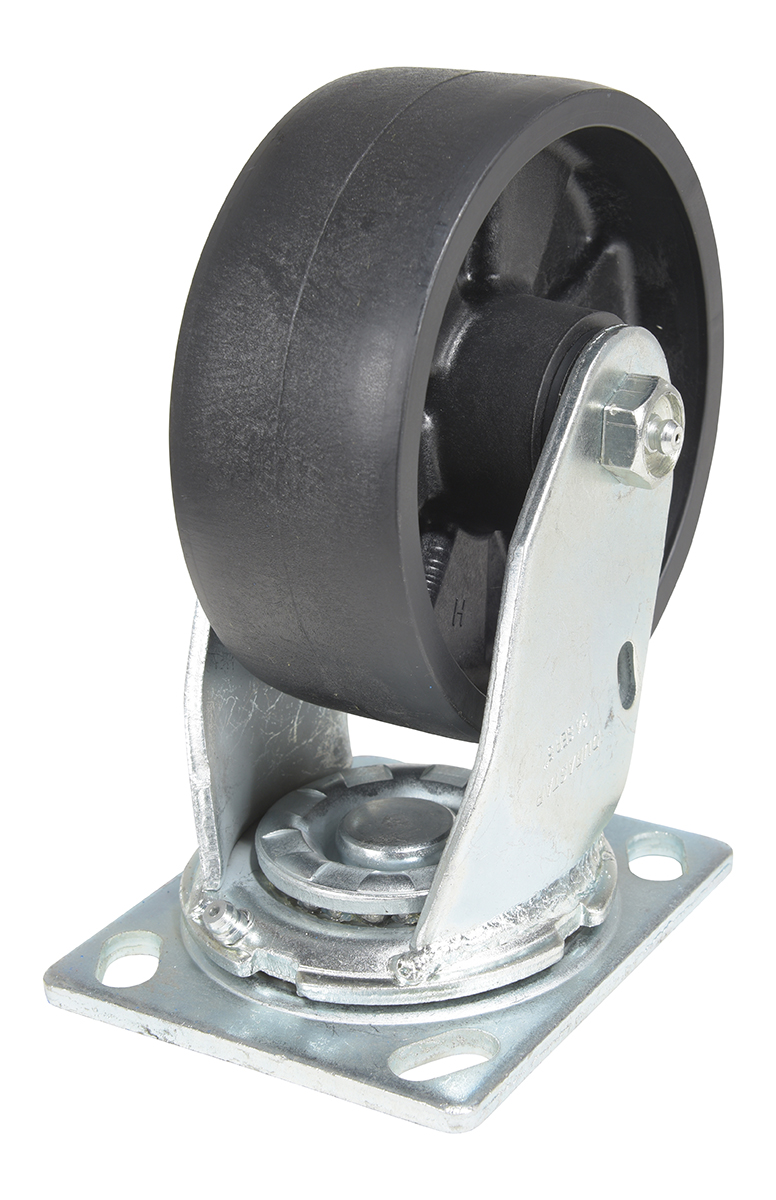

| CST-VE-5X2GFN-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 1000 | 6.5 | 4 x 4-1/2 | 5 |

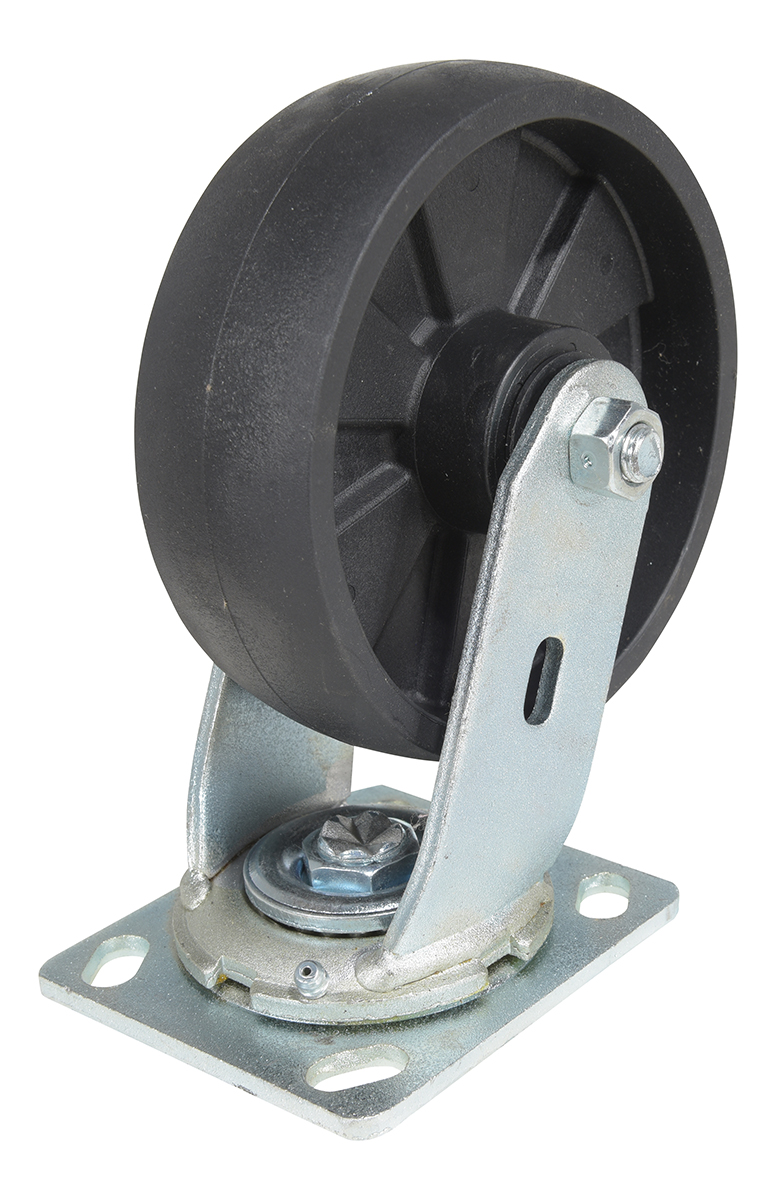

| CST-VE-6X2GFN-S | | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 1200 | 9-1/2 | 4 x 4-1/2 | 7 |

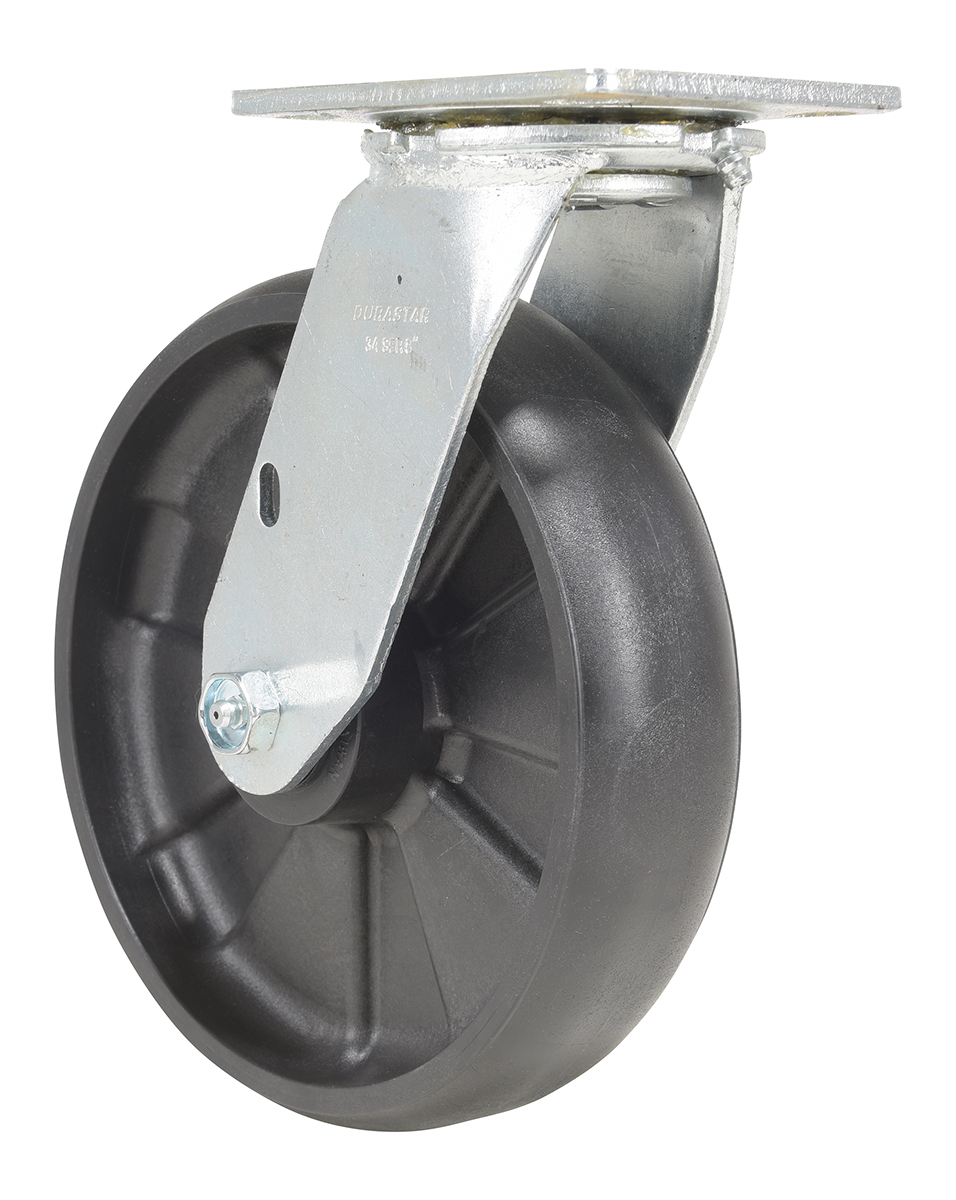

| CST-VE-8X2GFN-S | | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 1250 | 4 x 4-1/2 | 8 | |

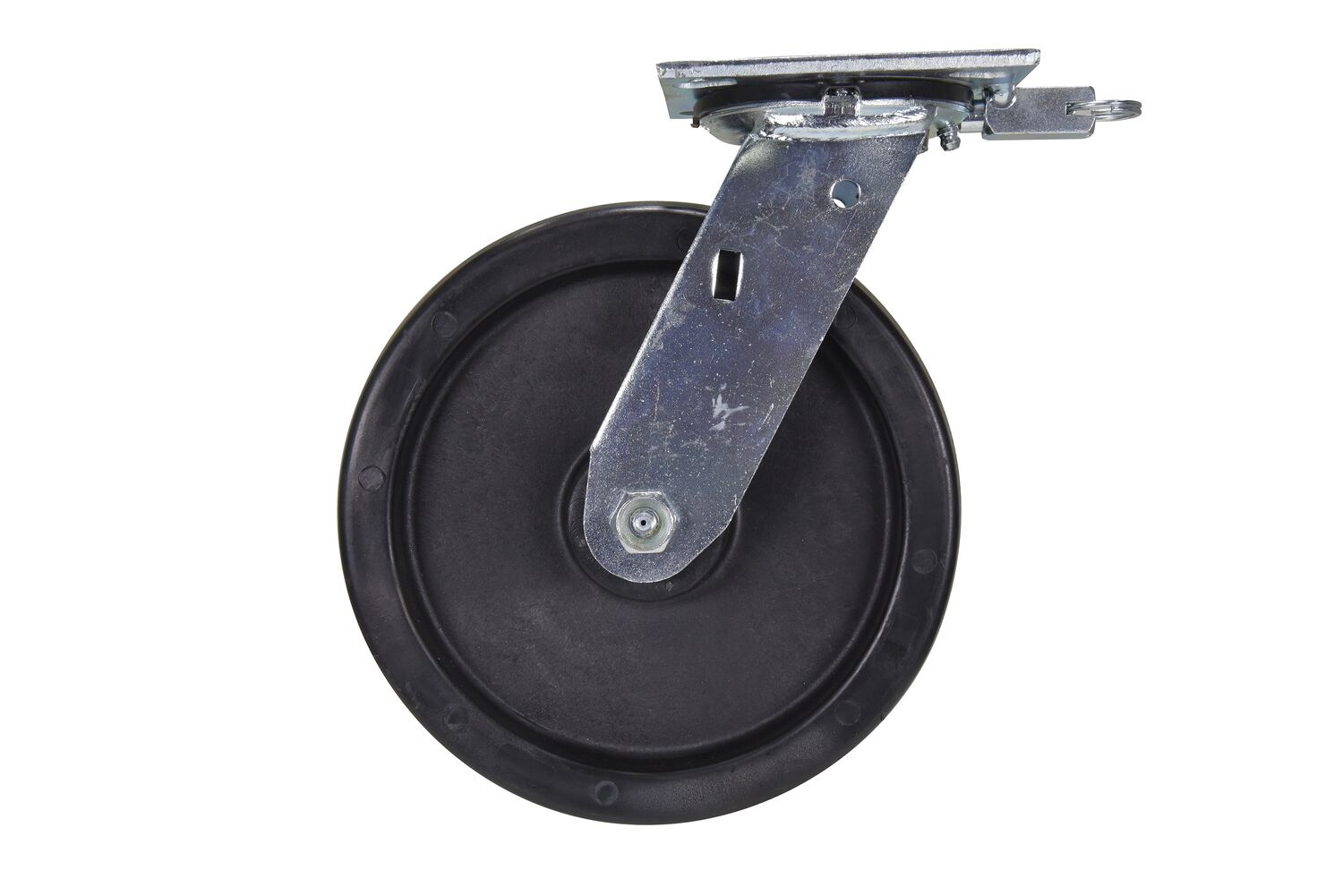

| CST-VE-8X2GFN-4PSL |  | Limited Warranty | 8 x 2 | SWIVEL 4 LOCK | 1250 | 9 | ||
| CST-VE-4X2GFN-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 800 | 5-1/2 | 4 x 4-1/2 | 5 |

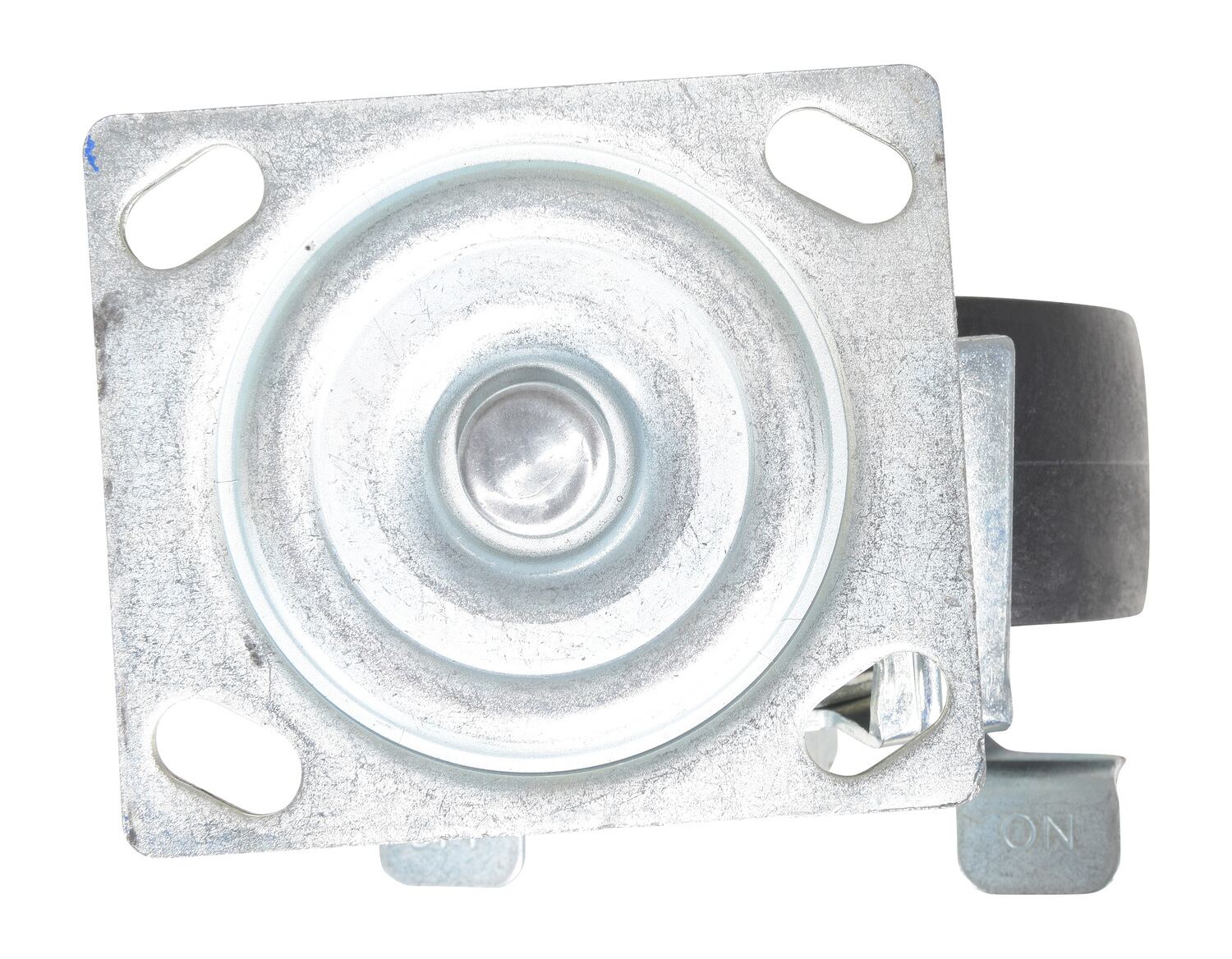

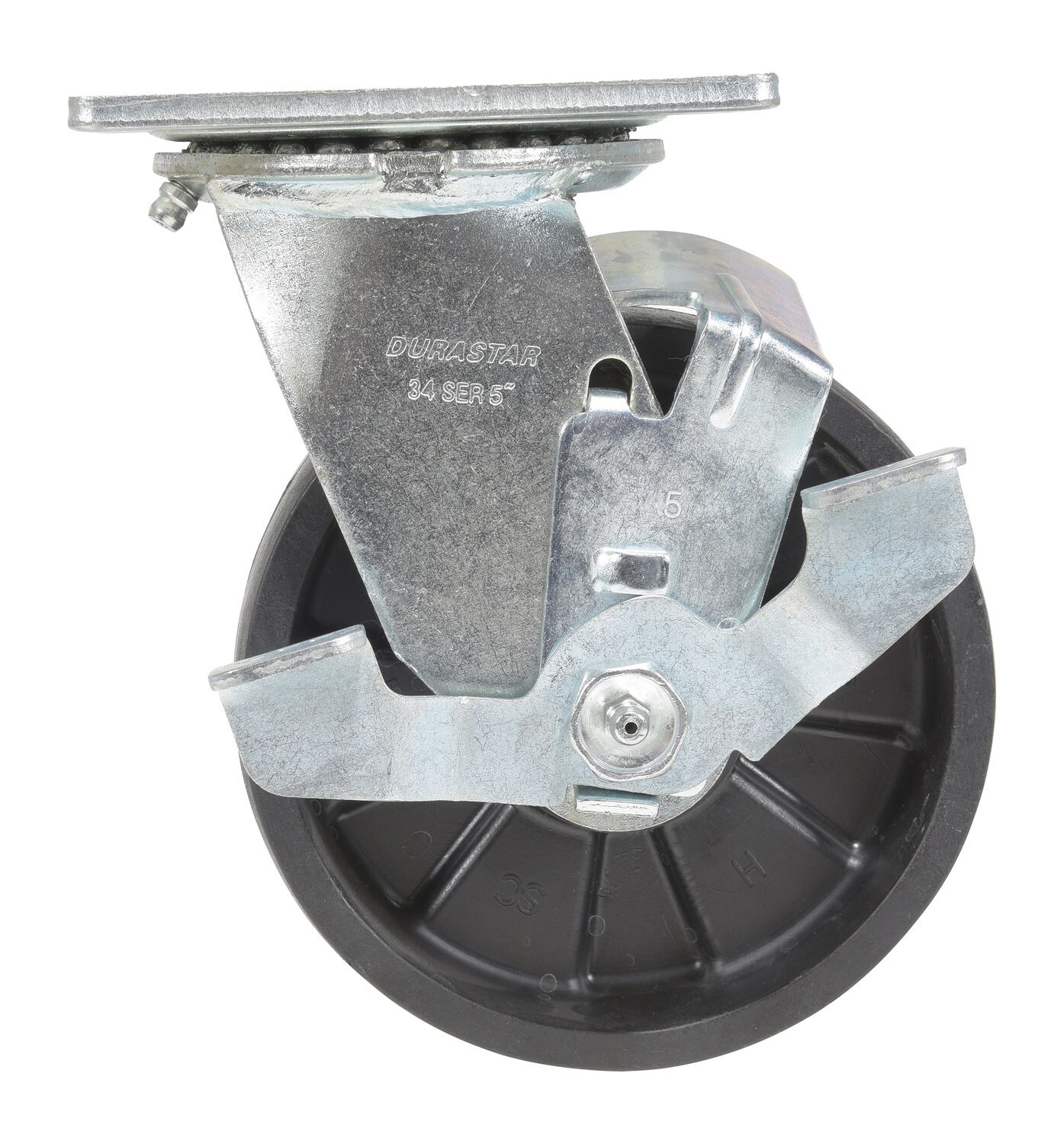

| CST-VE-5X2GFN-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 1000 | 6.5 | 4 x 4-1/2 | 5 |

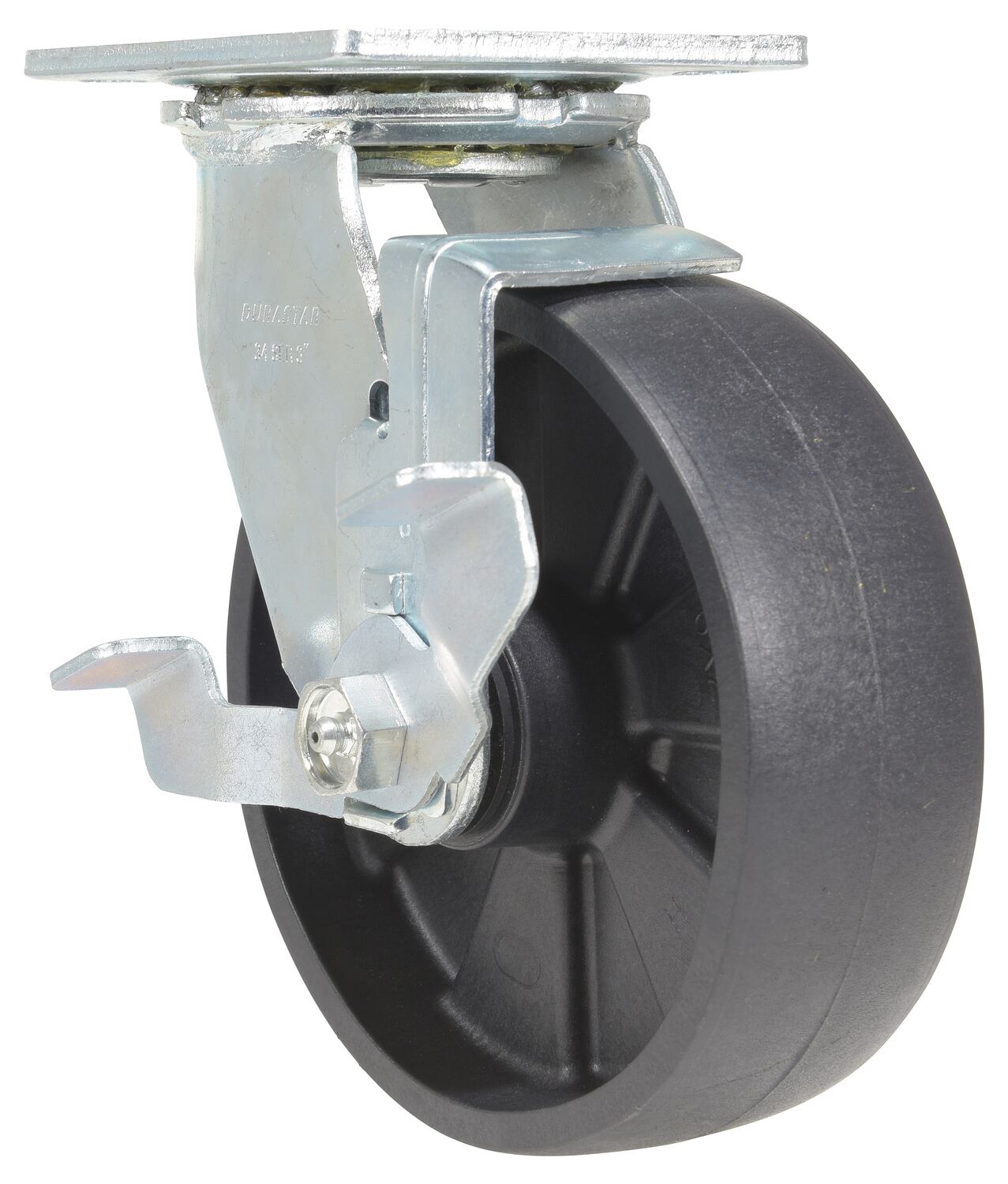

| CST-VE-6X2GFN-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 1200 | 7-1/2 | 4 x 4-1/2 | 6 |

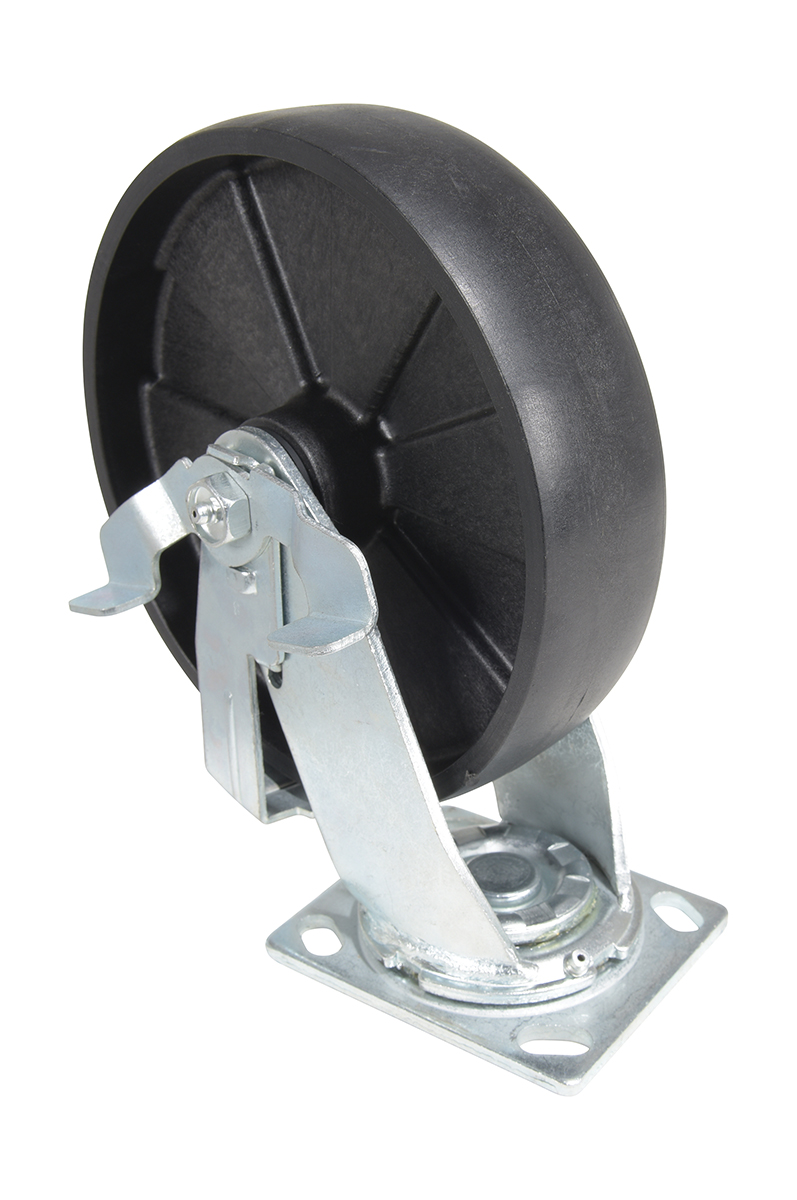

| CST-VE-8X2GFN-SWB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 1250 | 9-1/2 | 4 x 4-1/2 | 7 |

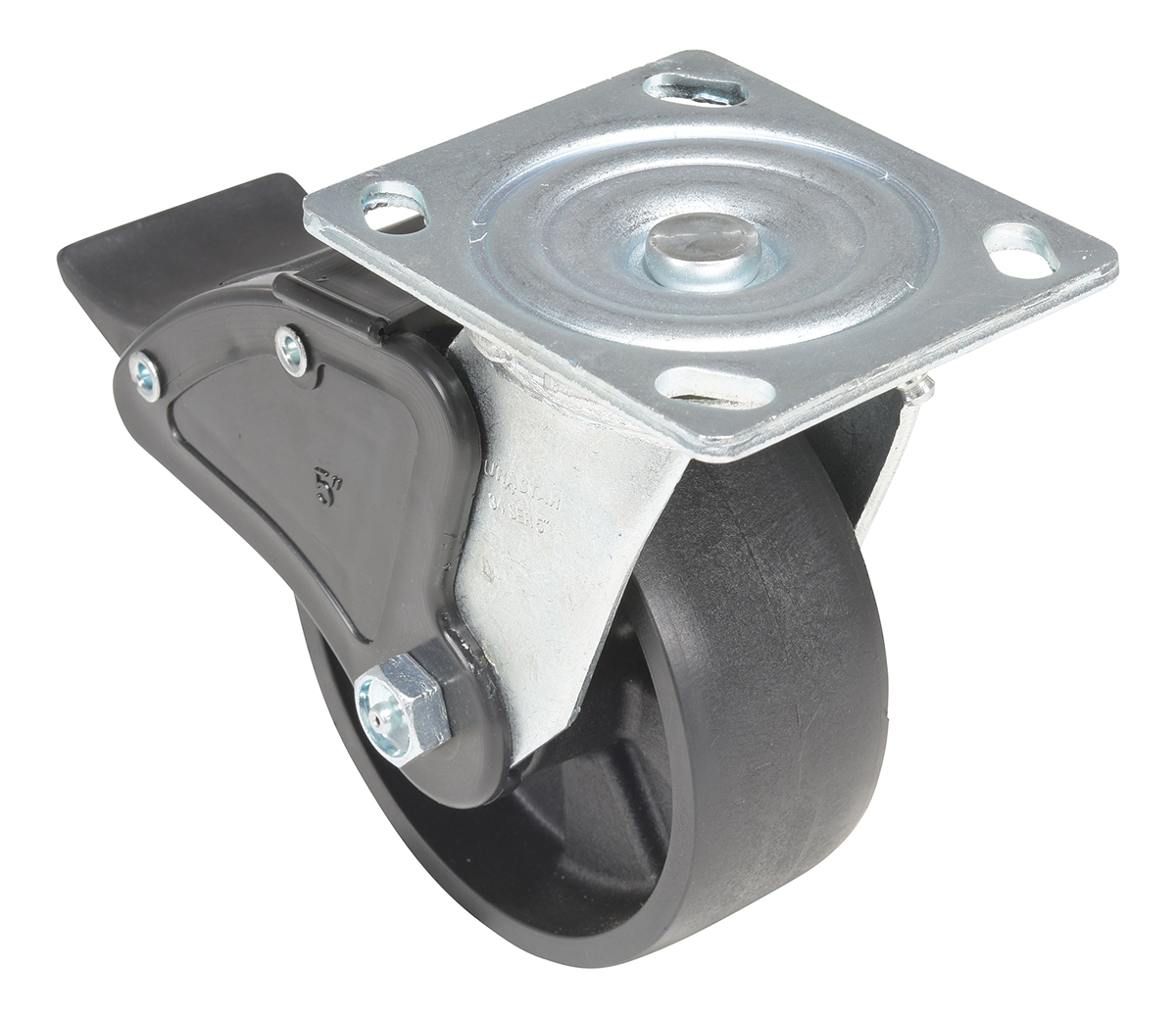

| CST-VE-4X2GFN-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 800 | 5-1/2 | 4 x 4-1/2 | 5 |
| CST-VE-5X2GFN-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 1000 | 4 x 4-1/2 | 7 | |

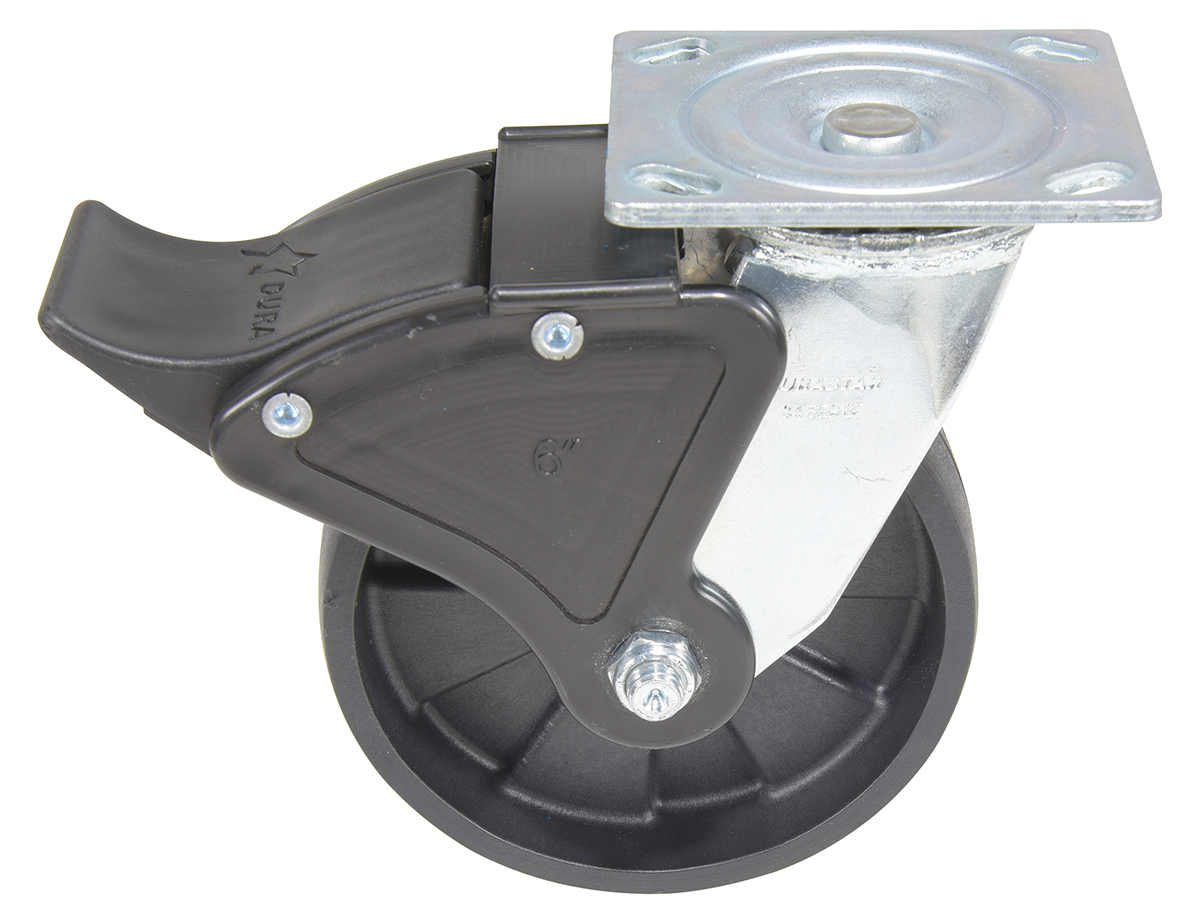

| CST-VE-6X2GFN-SWTB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 1200 | 7-1/2 | 4 x 4-1/2 | 6 |

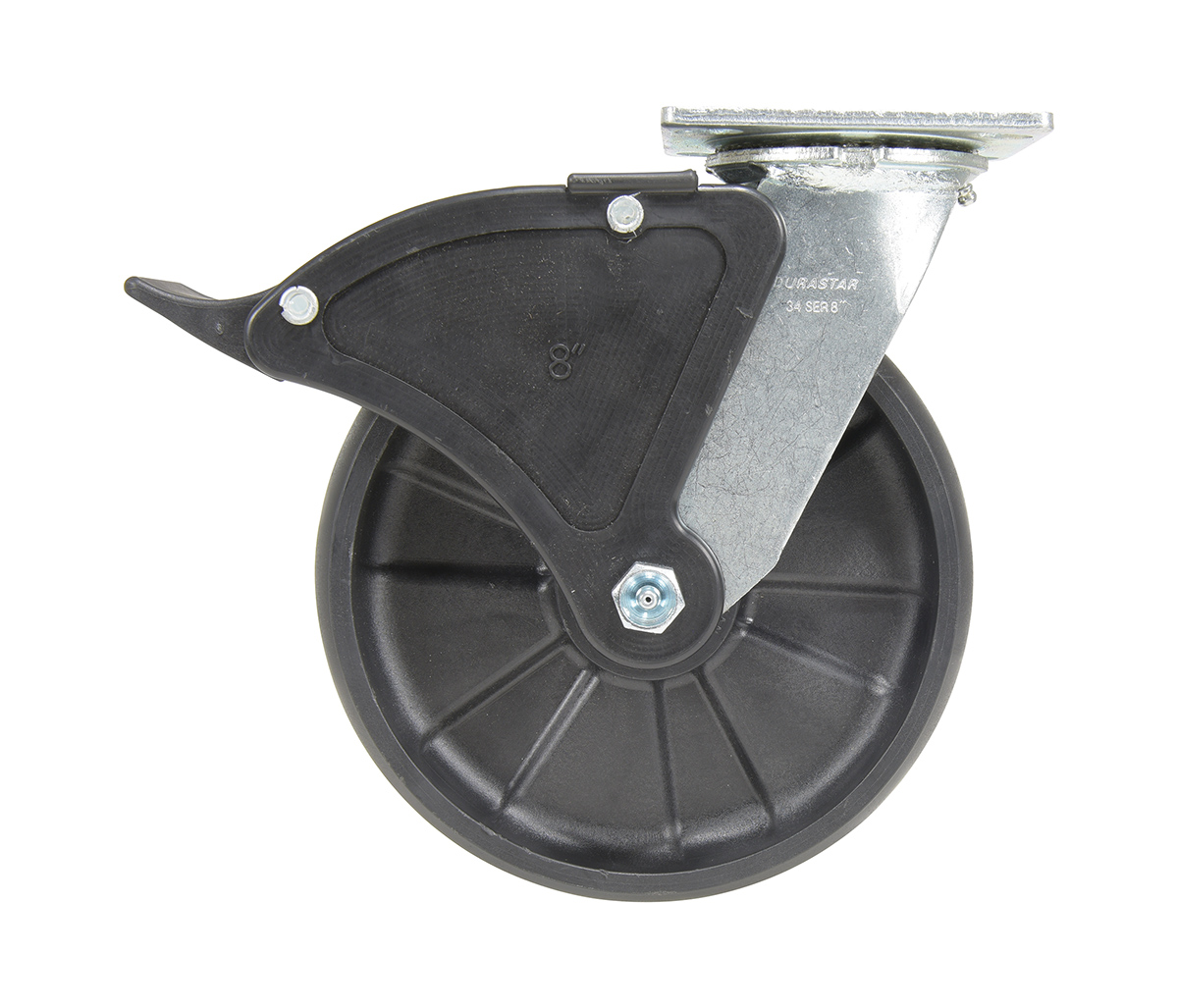

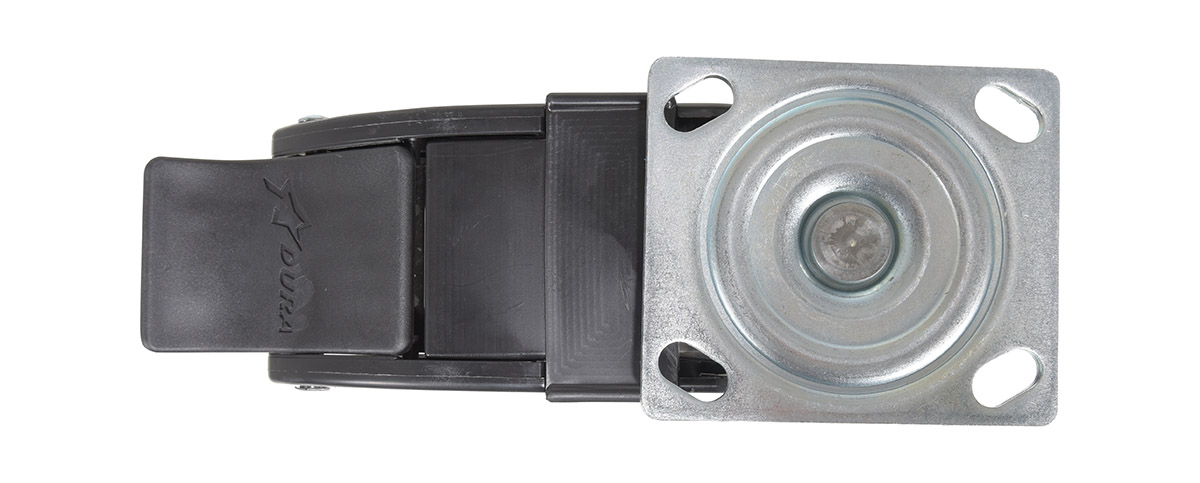

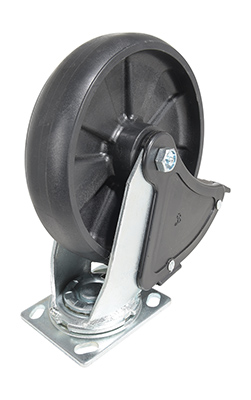

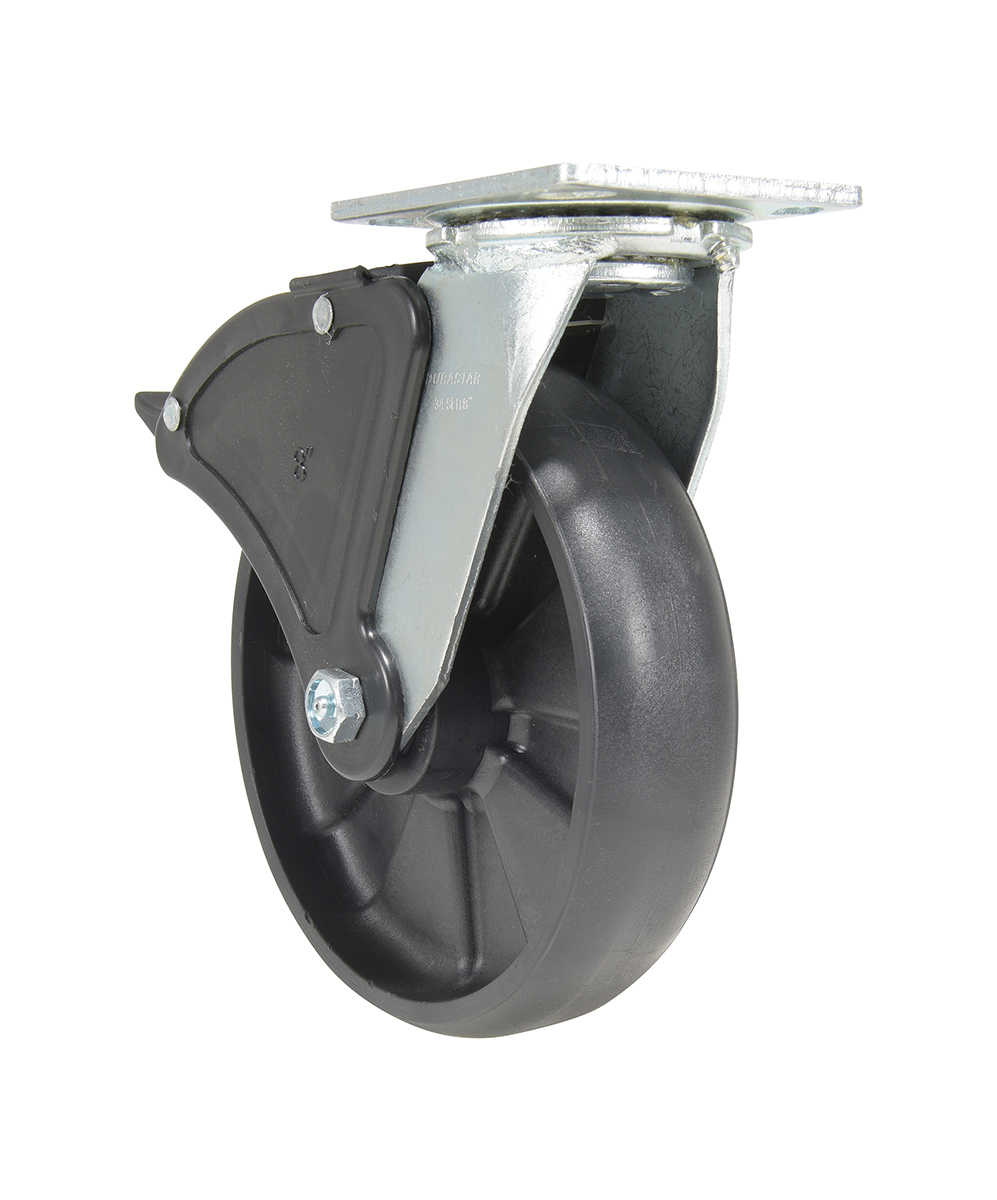

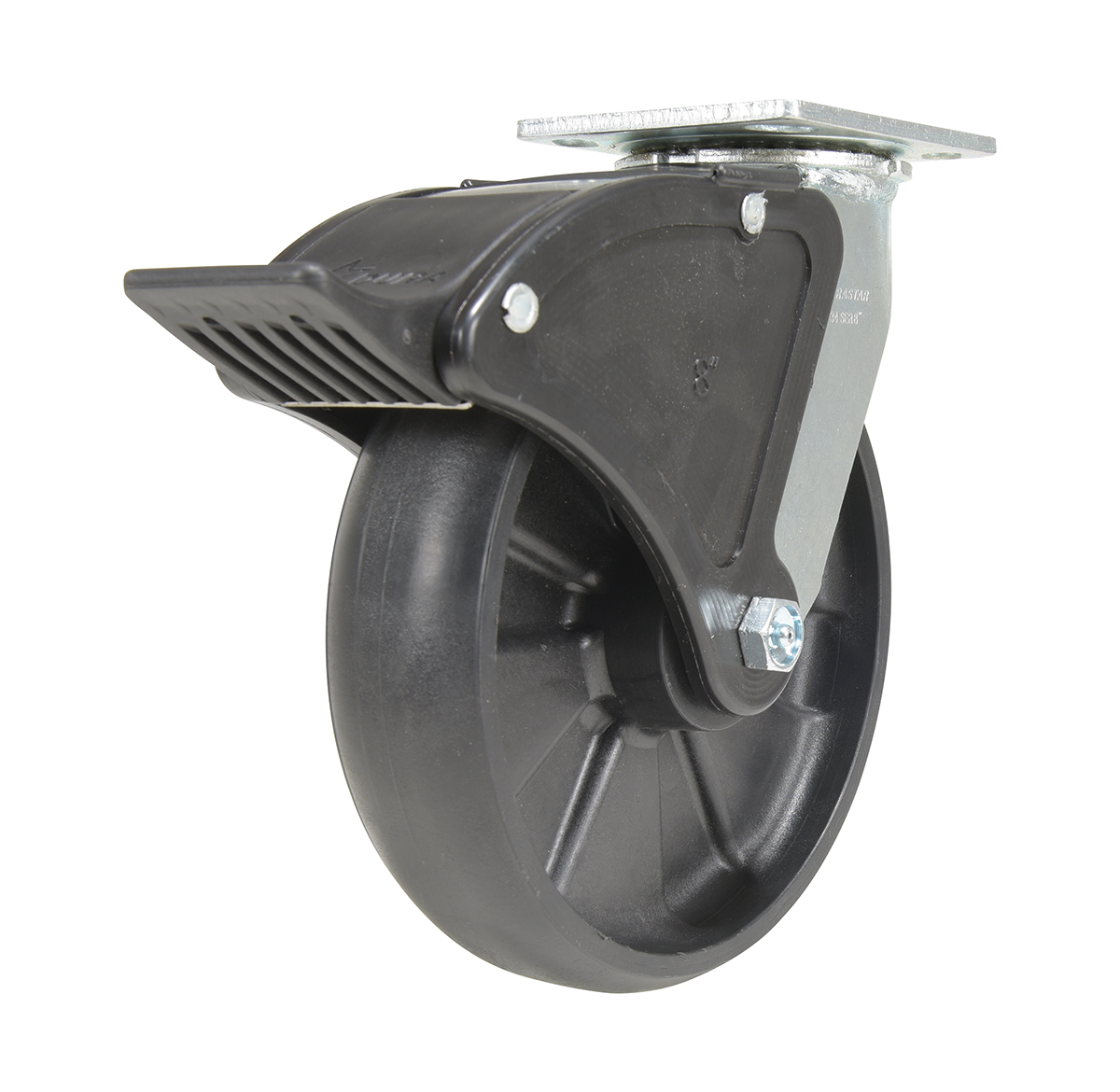

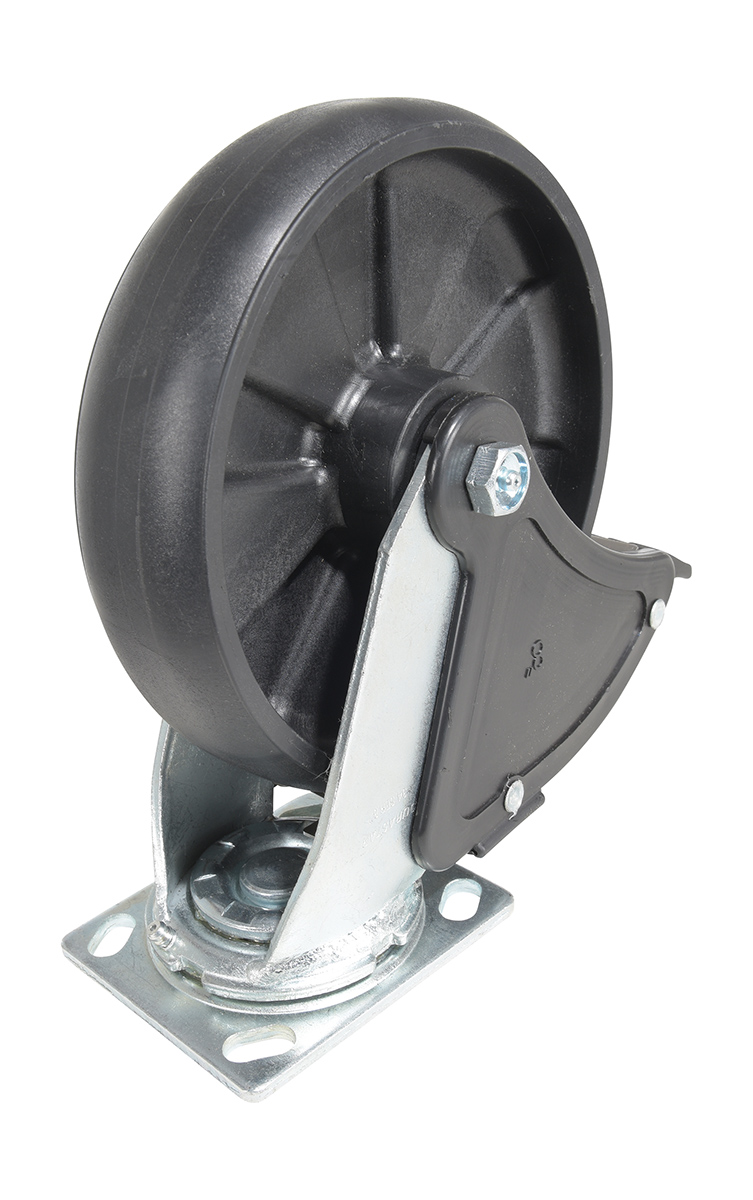

| CST-VE-8X2GFN-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 1250 | 9-1/2 | 4 x 4-1/2 | 7 |
