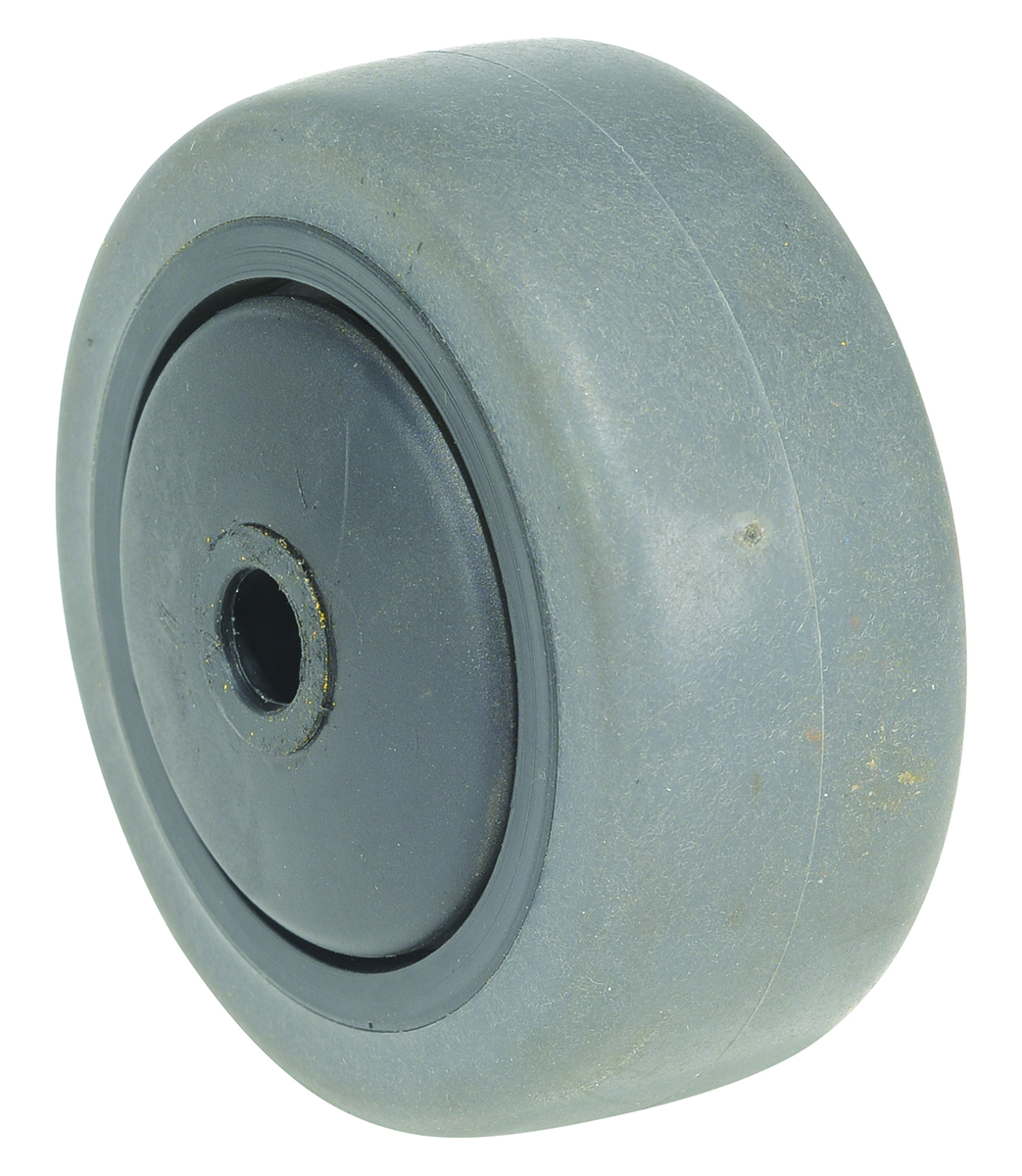

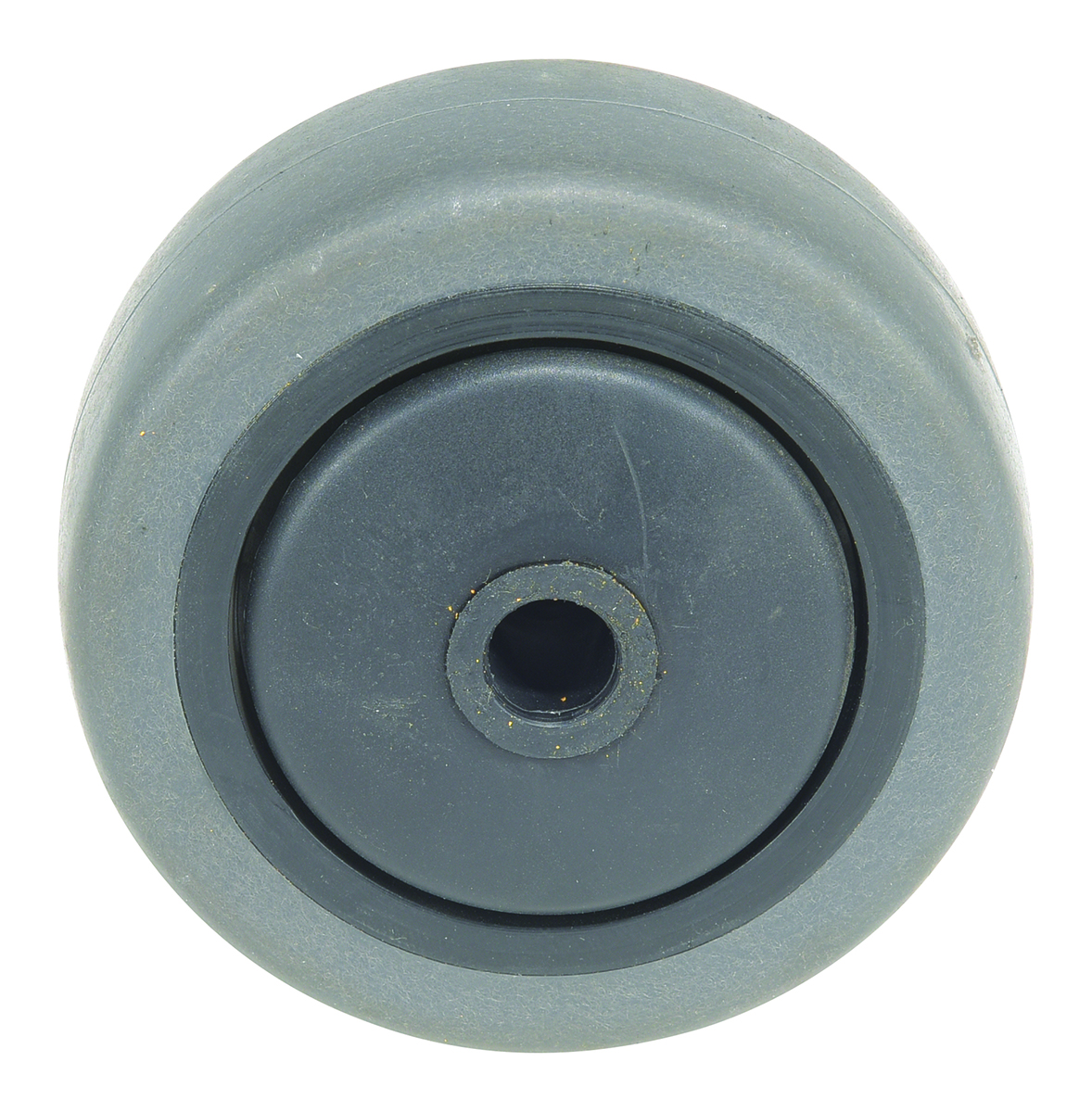

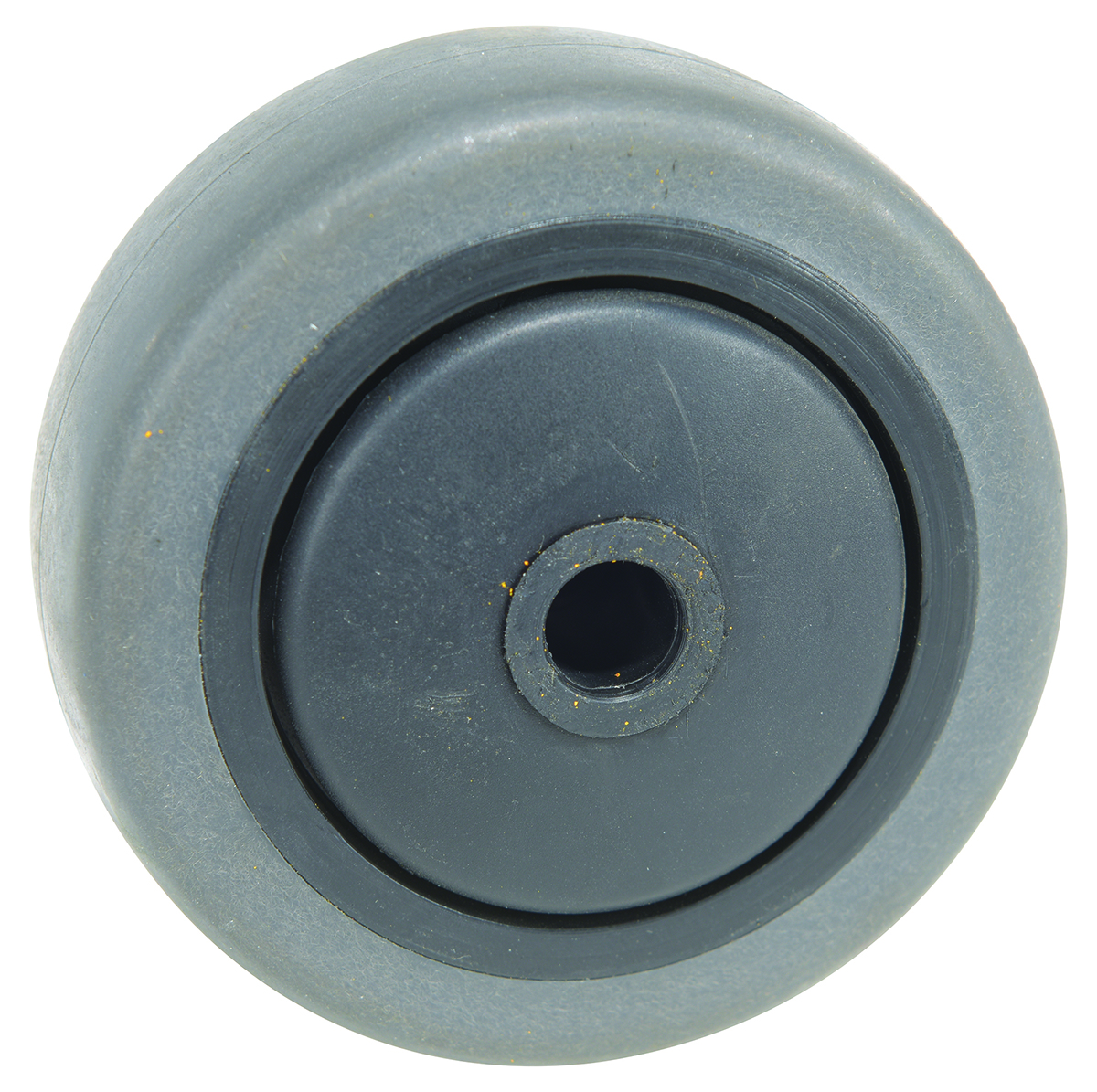

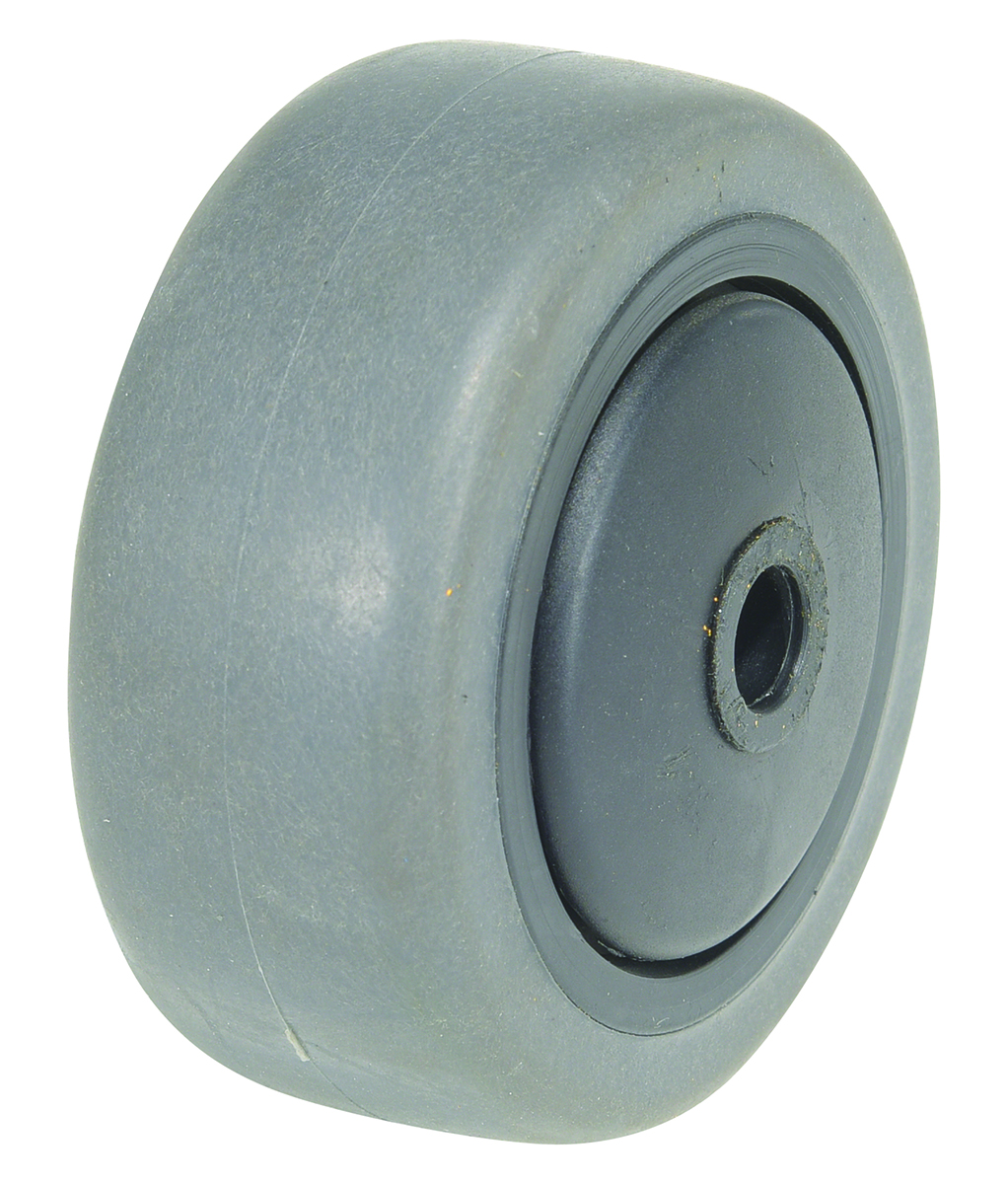

Conductive Rubber (TPR) WheelWith electrically conductive wheels on assembly carts is important for electronics companies, medical engineering and other industries to eliminate static build-up and discharge that can be generated by transport. Durastar Duratek conductive wheel is non-marking floor protective, quiet and smooth operation. There is no longer a need for chains or straps that can break or become entangled. The ohmic resistance of the conductive wheels is 10^3 ohms to 10^5 ohms, which exceed the requirements of federal standard FF-C-88C.
- Non-marking floor protective, quiet and smooth operation
- Maximum weather-ability
- Resists chemicals, water, and steam
- High grade rubber tread for impact resistance
Pneumatic Wheels
Hard Rubber Wheel
Polypropylene Wheel
VE Wheel
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|
| WHL-CR-3X1.25 |  | Limited Warranty | 3 x 1-1/4 | WHEEL | 225 | wheel | 4 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
Conductive Rubber (TPR) Wheel PDF's will open in a new window when clicked.
