Dock Seal/Shelter CombinationsDock Seal/Shelter Combinations are designed to provide both sealing and sheltering functions at loading docks, ensuring energy efficiency and protection from the elements. The Dock Seal/Shelter Combination is used with a 96"W x 120"H door. The top header is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114"W with a 30"L drop curtain. Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber. The verticals are mounted on wooden boards (the face of the vertical measures 12"W and tapers to 9-1/2" at wall) allowing wall mounting down the length of the vertical pieces. Application with flush dock to building in conjunction with an Edge-O-Dock use a 20" projection Dock Seal. To ensure proper size complete and fax the survey sheet shown below. Units are non-returnable.
Dock Seals & Shelters Survey Sheet
- Unique two-in-one design provides a dock seal & dock shelter
- Maximum compression design offers the maximum protection
- Built-in air tunnels allow air to escape when contacted by a trailer
- Mounting hardware and installation instructions make installation quick and easy
Dock Draft Mats
Dock Seal Draft Blockers
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| D-150/650-10 | POPULAR |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 10 In. 8 Ft. x 10 Ft. Black | Projection (in.): 10 Header Width (in.): 114 | 271 | |

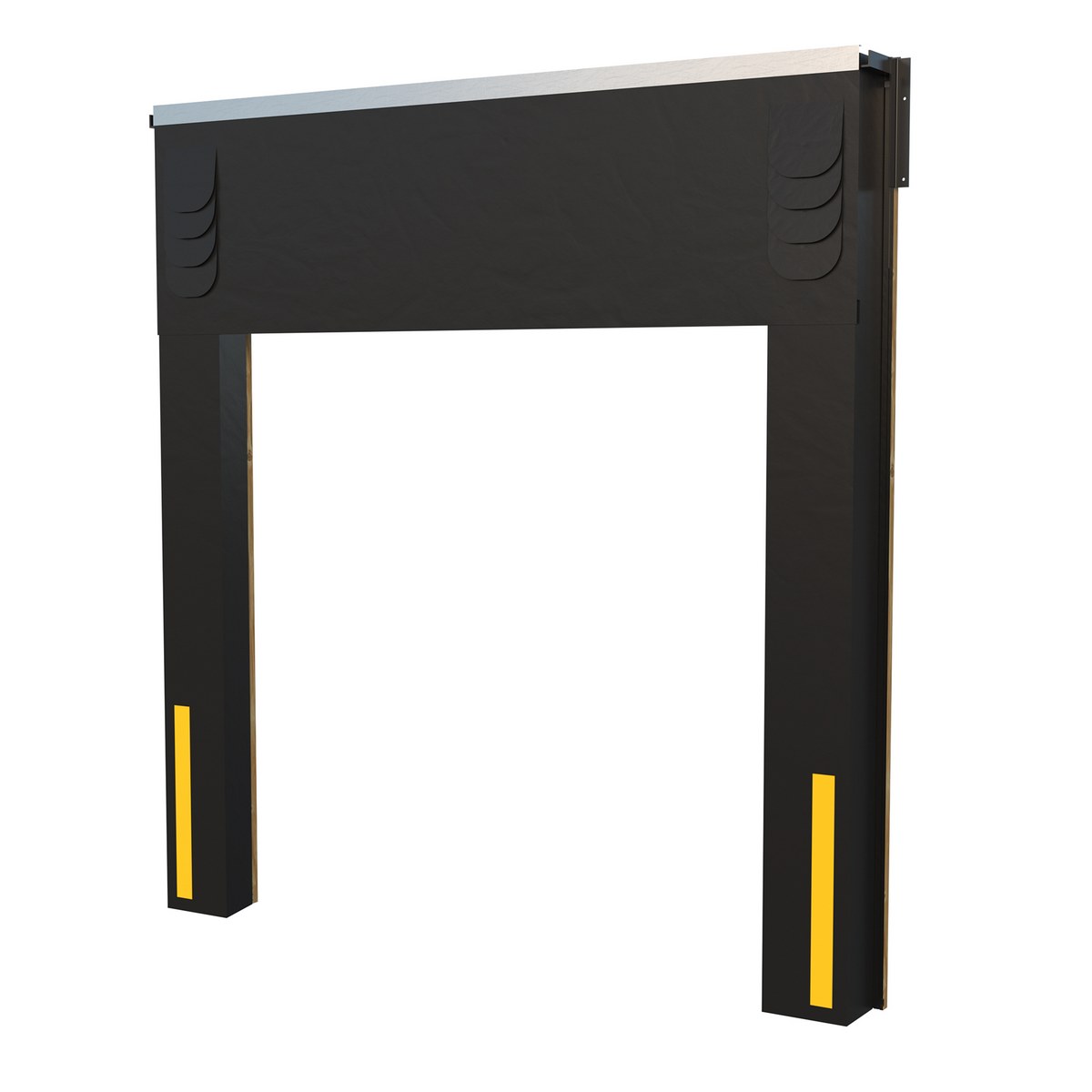

| D-150/650-11 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 11 In. 8 Ft. x 10 Ft. Black | Projection (in.): 11 Header Width (in.): 114 | 278 | ||
| D-150/650-12 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 12 In. 8 Ft. x 10 Ft. Black | Projection (in.): 12 Header Width (in.): 114 | 285 | ||
| D-150/650-13 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 13 In. 8 Ft. x 10 Ft. Black | Projection (in.): 13 Header Width (in.): 114 | 287 | ||
| D-150/650-14 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 14 In. 8 Ft. x 10 Ft. Black | Projection (in.): 14 Header Width (in.): 114 | 290 | ||
| D-150/650-15 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 15 In. 8 Ft. x 10 Ft. Black | Projection (in.): 15 Header Width (in.): 114 | 293 | ||
| D-150/650-16 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 16 In. 8 Ft. x 10 Ft. Black | Projection (in.): 16 Header Width (in.): 114 | 296 | ||
| D-150/650-17 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 17 In. 8 Ft. x 10 Ft. Black | Projection (in.): 17 Header Width (in.): 114 | 298 | ||

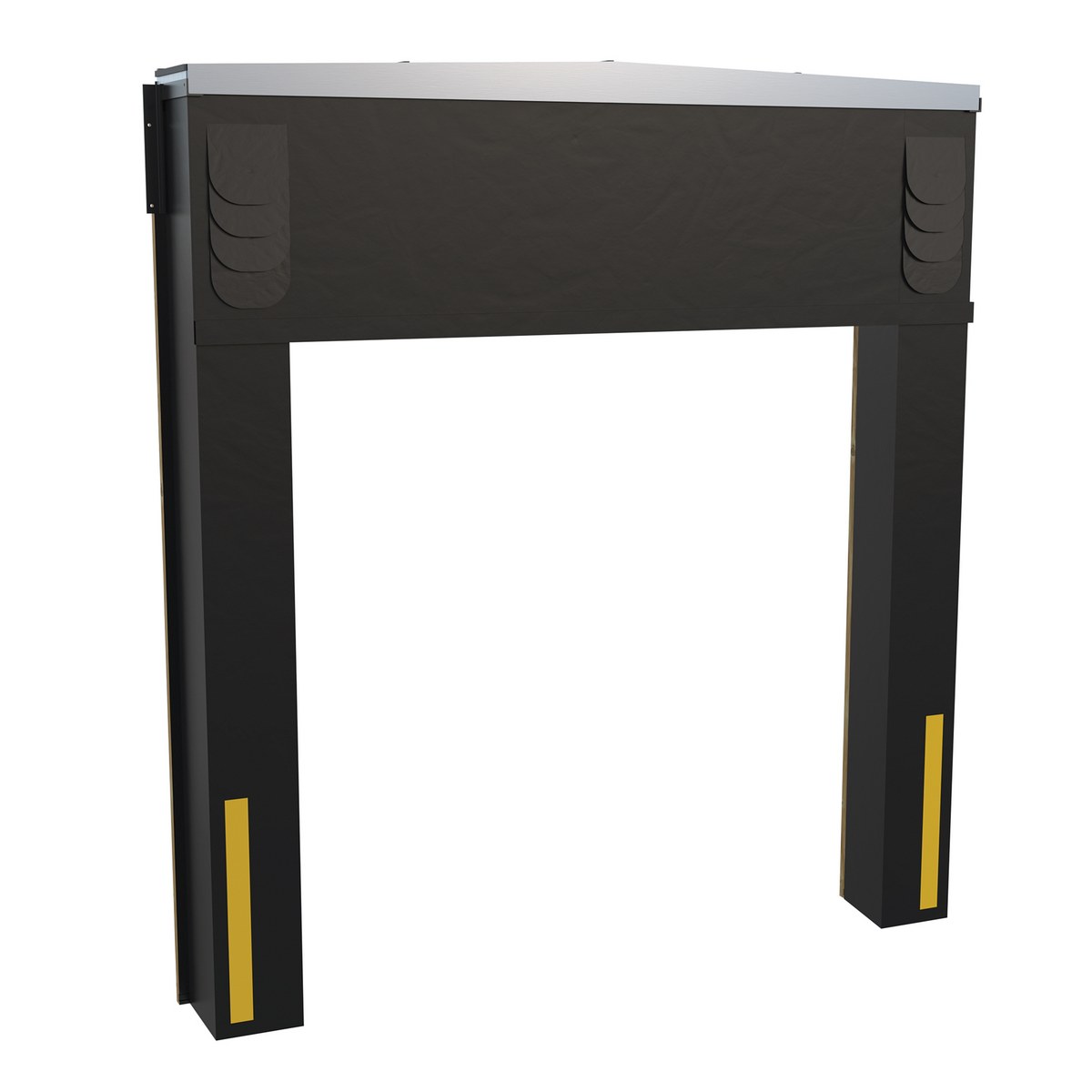

| D-150/650-18 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 18 In. 8 Ft. x 10 Ft. Black | Projection (in.): 18 Header Width (in.): 114 | 299 | ||
| D-150/650-19 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 19 In. 8 Ft. x 10 Ft. Black | Projection (in.): 19 Header Width (in.): 114 | 302 | ||
| D-150/650-20 |  | 90 Days Limited Warranty | Vinyl-Coated Nylon Dock Seal/Shelter Combination 20 In. 8 Ft. x 10 Ft. Black | Projection (in.): 20 Header Width (in.): 114 | 320 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 10
Header Width (in.): 114
Projection (in.): 10
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 11
Header Width (in.): 114
Projection (in.): 11
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 12
Header Width (in.): 114
Projection (in.): 12
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 13
Header Width (in.): 114
Projection (in.): 13
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 14
Header Width (in.): 114
Projection (in.): 14
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 15
Header Width (in.): 114
Projection (in.): 15
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 16
Header Width (in.): 114
Projection (in.): 16
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 17
Header Width (in.): 114
Projection (in.): 17
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 18
Header Width (in.): 114
Projection (in.): 18
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 19
Header Width (in.): 114
Projection (in.): 19
Header Width (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 20
Header Width (in.): 114
Projection (in.): 20
Header Width (in.): 114
For More Details of the Option Click the Red Model Button
| D-12F |  | 90 Days Limited Warranty | Factory Installed Vinyl Additional 12 In. Long Flap For Dock Seal/Shelter Combinations | Flap Length (in.): 12 | 3 | |
| D-18H |  | 90 Days Limited Warranty | Factory Installed Vinyl Additional 10 Ft. Width Header For Dock Seal/Shelter Combinations | Width (in.): 120 Height / Face (in.): 18 | ||
| D-54OZ | | 90 Days Limited Warranty | Factory Installed 54 Ounce Vinyl Material Face Only For Dock Seals and Dock Shelters | Brand / Model Compatibility: All D-150/650-XX, D-150-XX, and D-750-XX Models Additional Contents: Size Varies.. Factory Installed | 1 | |

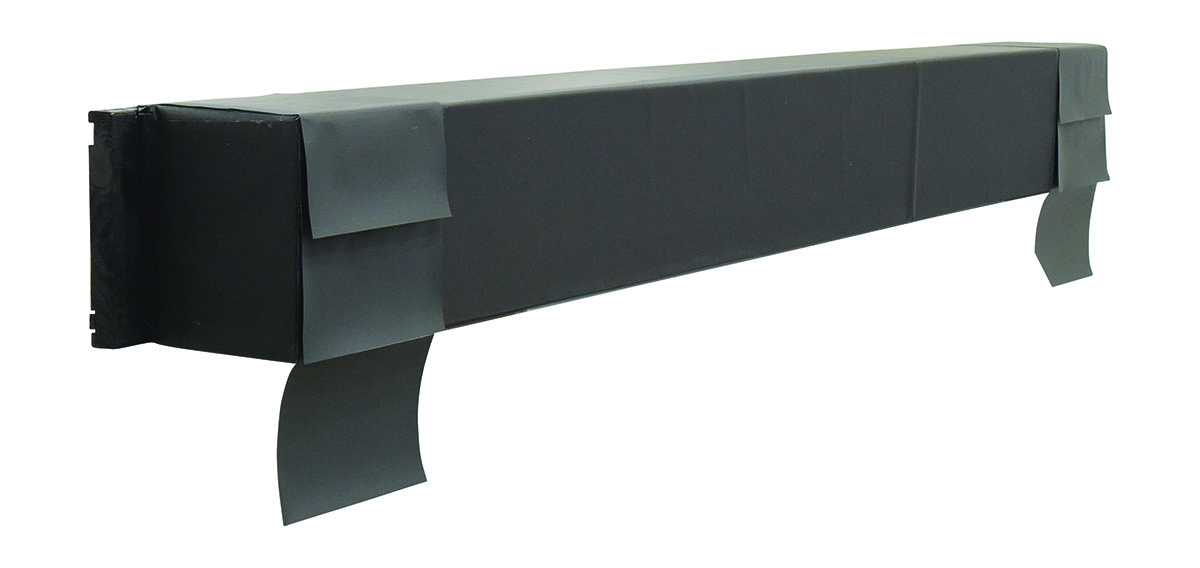

| D-AP |  | 90 Days Limited Warranty | Factory Installed Armor Pleats Top 24 In. Only For Dock Seals and Shelters | Brand / Model Compatibility: All D-150/650-XX, D-150-XX, and D-750-XX Models Additional Contents: Factory Installed | 2 | |
| D-BBF | | 90 Days Limited Warranty | Factory Installed Bottom Bun For Dock Seals | Brand / Model Compatibility: All D-150/650-XX, D-150-XX, and D-750-XX Models Additional Contents: Size Varies.. Factory Installed | ||

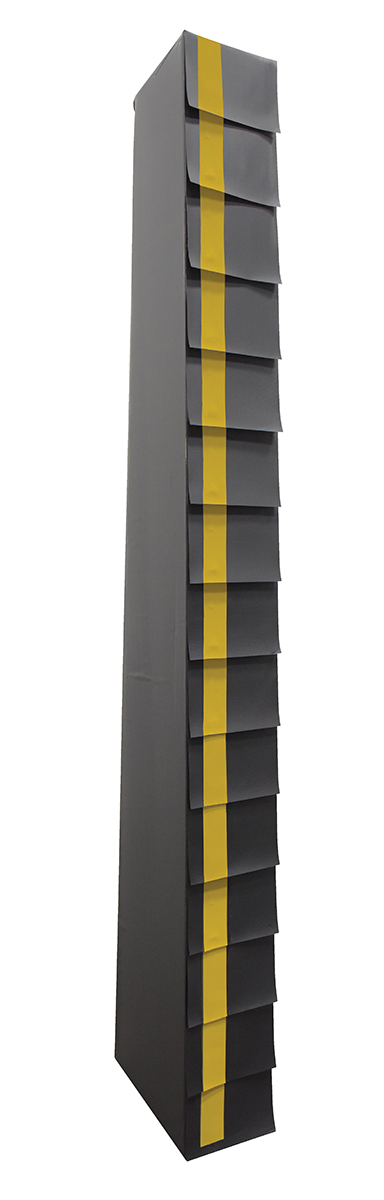

| D-FHPFS |  | 90 Days Limited Warranty | Factory Installed Full Height Pleats and Guide Strips For Dock Seal/Shelters | Guide Strip Height: Full | ||

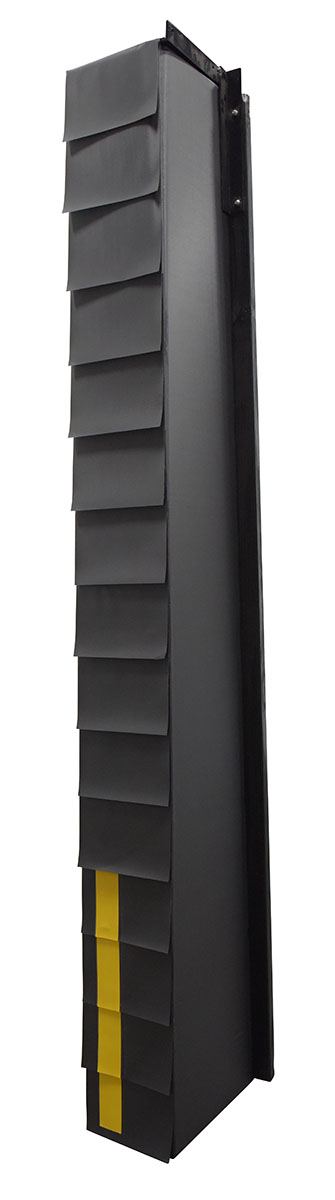

| D-FHPS |  | 90 Days Limited Warranty | Factory Installed Full Height Pleats and Standard Guide 24 In. Height For Dock Seal/Shelters | Guide Strip Height (in.): 24 | ||
| D-GS | | 90 Days Limited Warranty | Factory Installed Full Height Guide Strips For Dock Seal/Shelters | Guide Strip Height: Full | ||

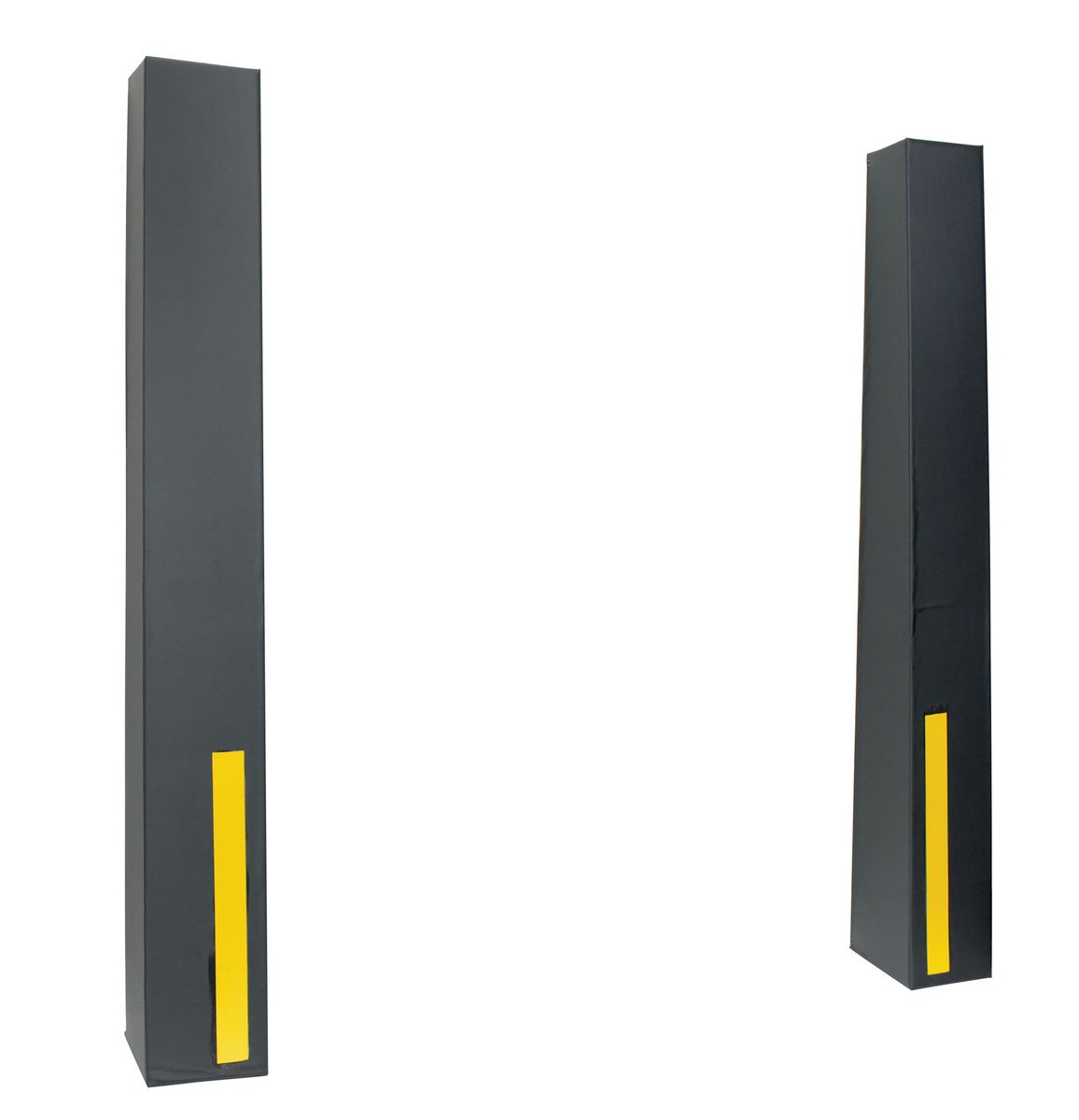

| D-SV |  | 90 Days Limited Warranty | Factory Installed Sloped Verticals For Dock Seal/Shelter Combinations | Brand / Model Compatibility: All D-150/650-XX, D-150-XX, and D-750-XX Models Additional Contents: Factory Installed/Size Varies |
| Model | Image | PDFs | Description | |||||
| D-KIT |  |
  |
Six piece black vinyl patch kit (Dock Seals - D-150, D-350 and D-150/650 only) | |||||
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Is installation hardware included?
A: Yes, installation hardware is included with the D-150/650 dock seal/shelter combo.
Q: How many ounces is the material the Dock Seal/Shelter, series D-150/650?
A: The face and side pads of the dock seal/shelter are constructed with 54 oz. material. The top flap is constructed with 40 oz. material.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
