Stockpicker Work PlatformsElevate personnel and pallets to overhead racks and shelving for safe, convenient access. Accommodates one person and a 42" long pallet. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Pin type tine lock standard. 42" high handrail with 21" high mid-rail on two sides. 60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications). Includes diamond floor plate platform and 36" long safety restraint with hook to attach platform to fork truck. The usable fork pocket size is 7-1/2"W x 2-1/2"H. Unit includes a welded steel construction with a powder coat blue finish for added toughness.
- Elevate to overhead racks and shelving for safe and convenient access
- Attaches to fork truck by securing platform to fork truck
- High expanded metal backing on fourth side
- Includes floor plate platform and long chain with hook
Loading Platforms for Fork Truck
Fold Down Work Platforms
Work Platforms
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

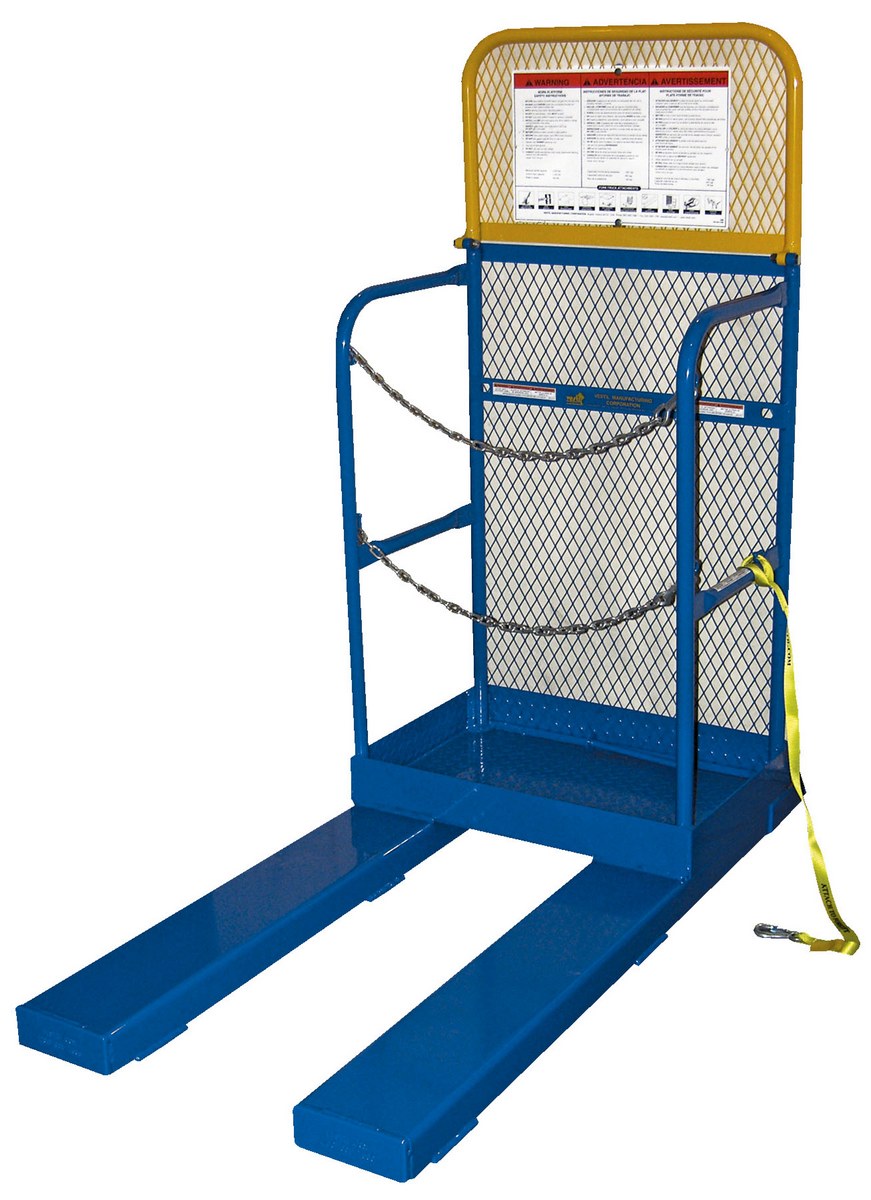

| SP-175 |  | 1 Year Limited Warranty | Steel Stock Picker Work Platform 60 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / Yellow | Maximum Uniform Capacity (lb.): 4,000 Uniform Basket Capacity (lb.): 1,000 | 174 | ||

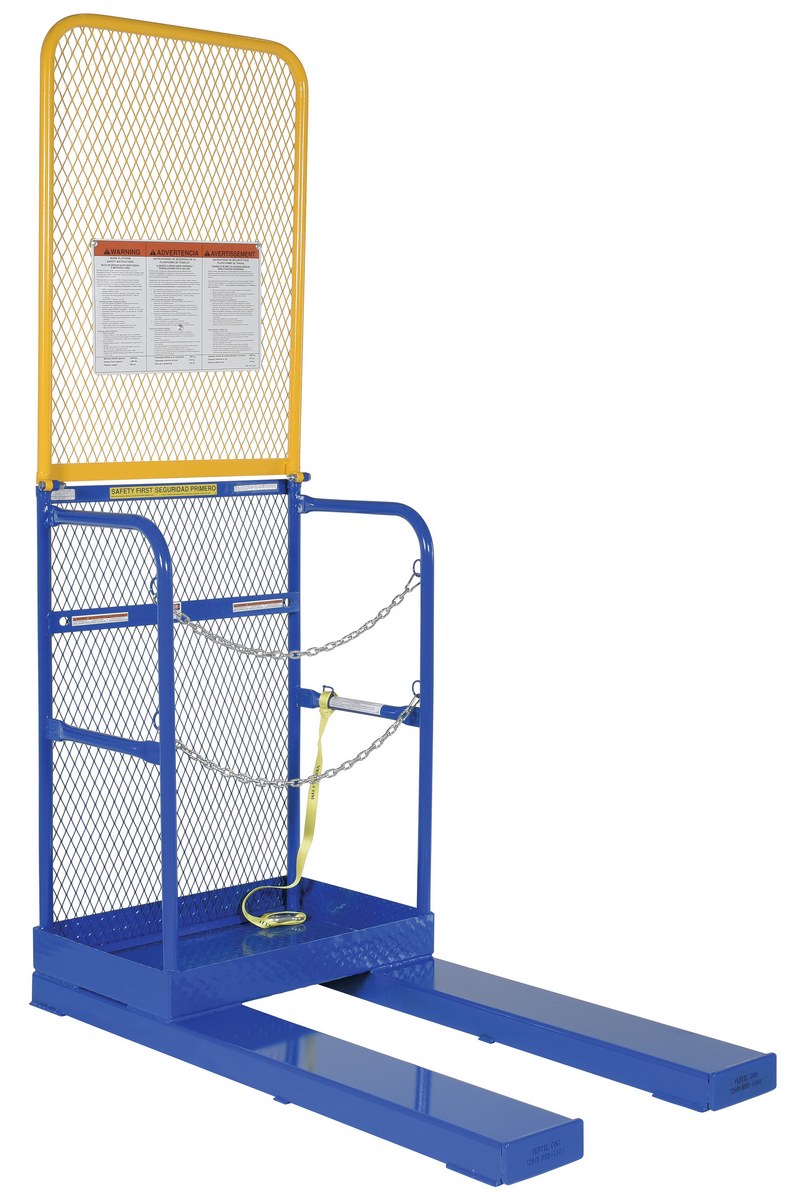

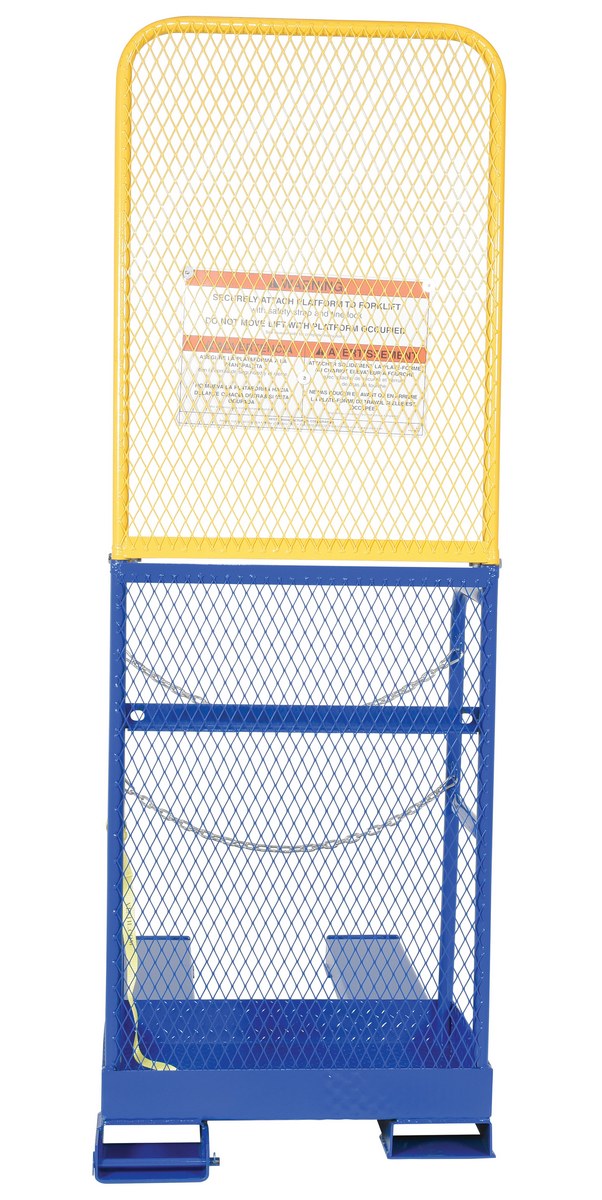

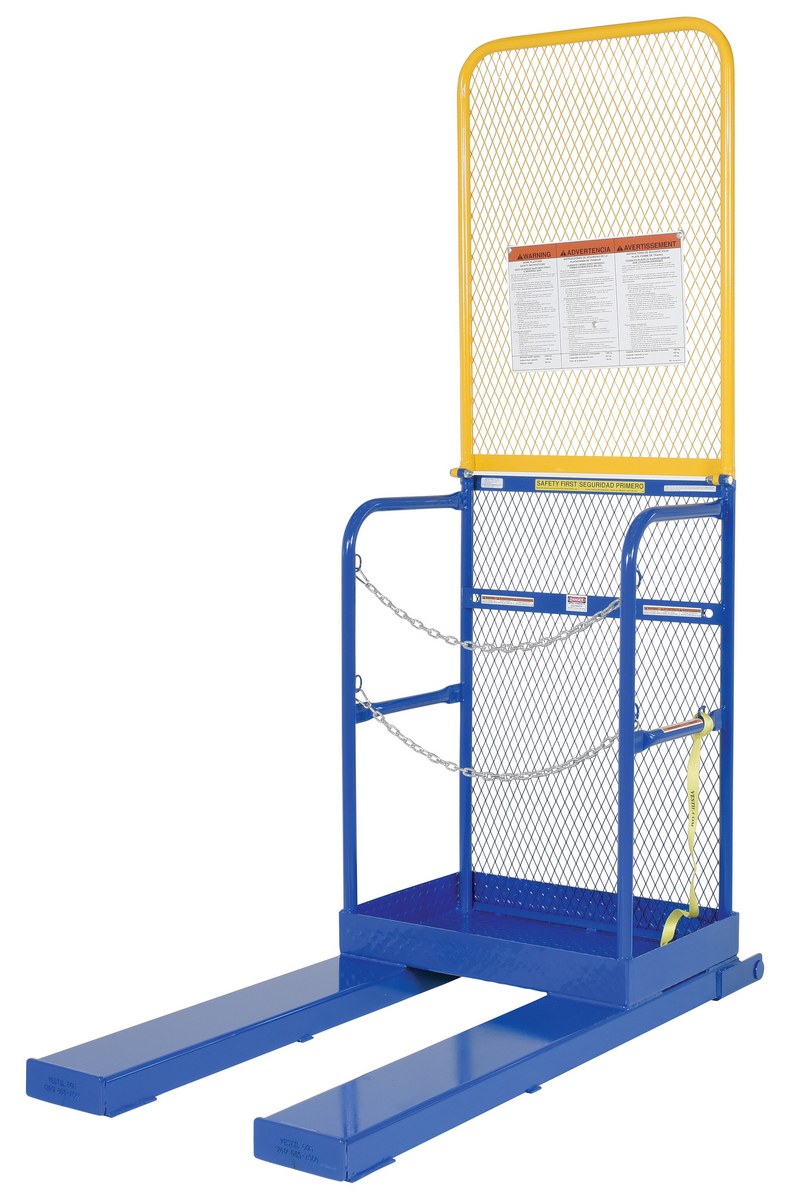

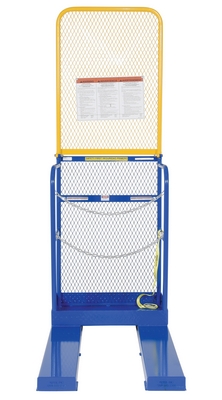

| SP-175-84B |  | 1 Year Limited Warranty | Steel Stock Picker Work Platform 84 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / Yellow | Maximum Uniform Capacity (lb.): 4,000 Uniform Basket Capacity (lb.): 1,000 | 210 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000
For More Details of the Option Click the Red Model Button
| Lanyard with Safety Harness or Safety Belt | |||||||
| Model | Image | Description | Capacity (lbs) |
Length of Lanyard | Wt. (lbs) |
||
| WP-LH-S |  |
  |
Harness Small | 350 | 6ft. | 5 | |
| WP-LH-M |  |
|
Harness Medium | 350 | 6ft. | 5 | |
| WP-LH-L |  |
|
Harness Large | 350 | 6ft. | 5 | |
| WP-LH-XL |  |
|
Harness X-Large | 350 | 6ft. | 5 | |
| WP-LH-XXL |  |
|
Harness XX-Large | 350 | 6ft. | 5 | |
| WP-LH-XXXL |  |
|
Harness XXX-Large *Note: Customer's Completion of this waiver form mandatory for this item |
350 | 6ft. | 7 | |
| Harness Sizing Chart | |||||||
| Height | - | 34"-36" | 38"-40" | 42"-44" | 46"-48" | 50"-54" | 56"-60" |
| Small (5'4-5'7") | - | Small | Small | Medium | Large | X-Large | XX-Large |
| Reg (5'8"-5'11") | - | Small | Medium | Large | X-Large | XX-Large | XXX-Large |
| Tall (6'0"- 6'3") | - | Medium | Medium | Large | X-Large | XX-Large | XXX-Large |
| X-Tall (6'3"-Plus) | - | Large | Large | X-Large | X-Large | XX-Large | XXX-Large |
