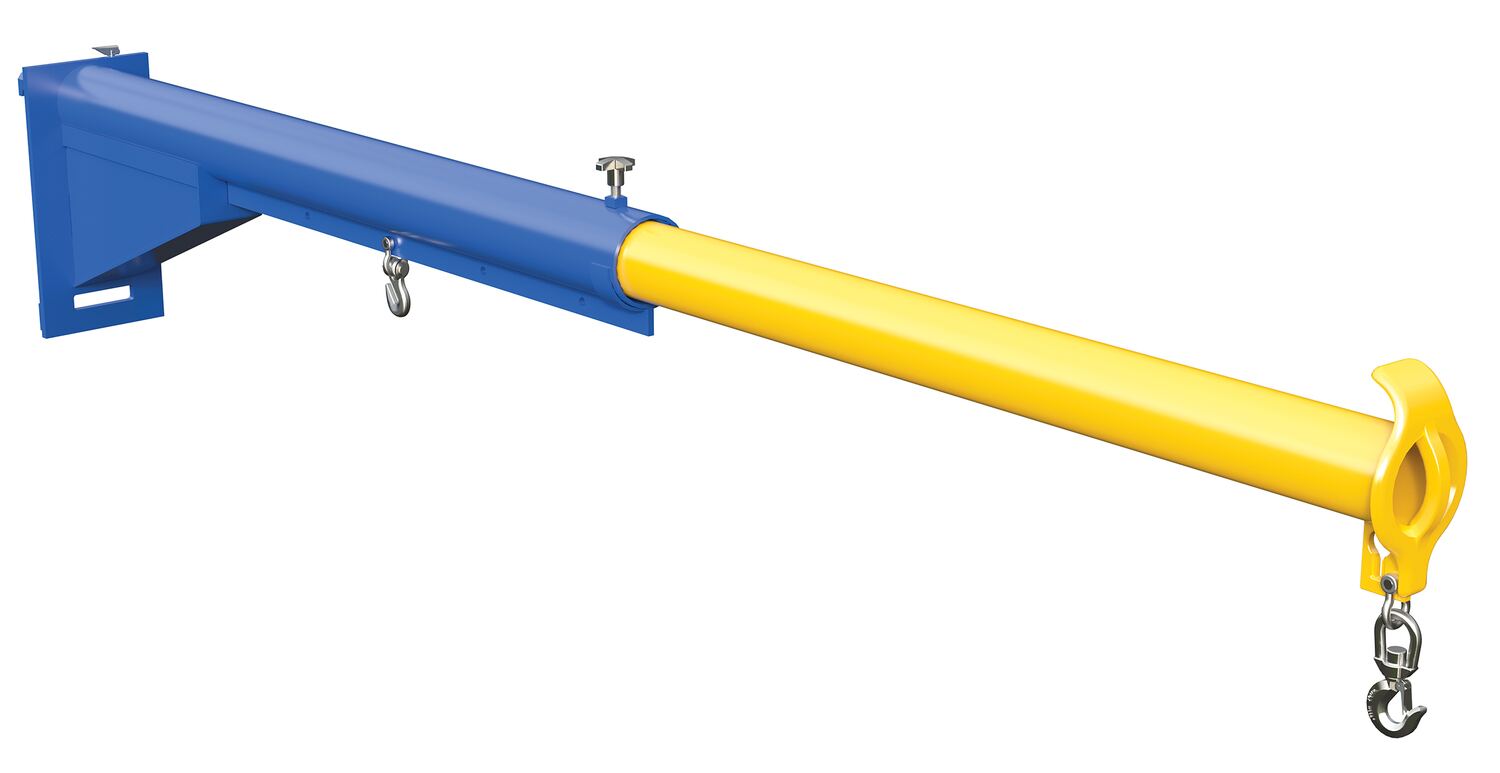

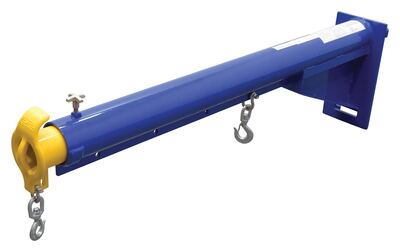

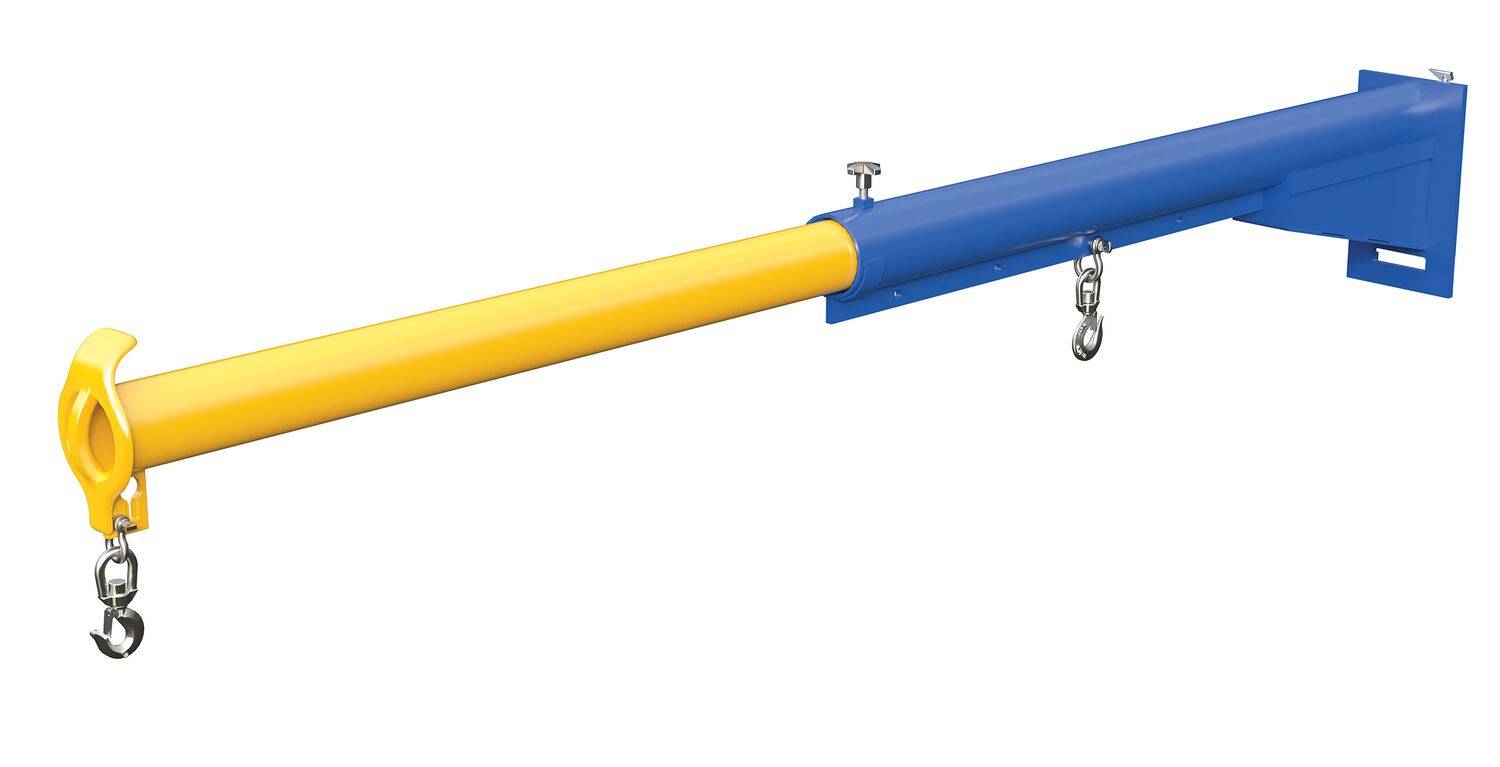

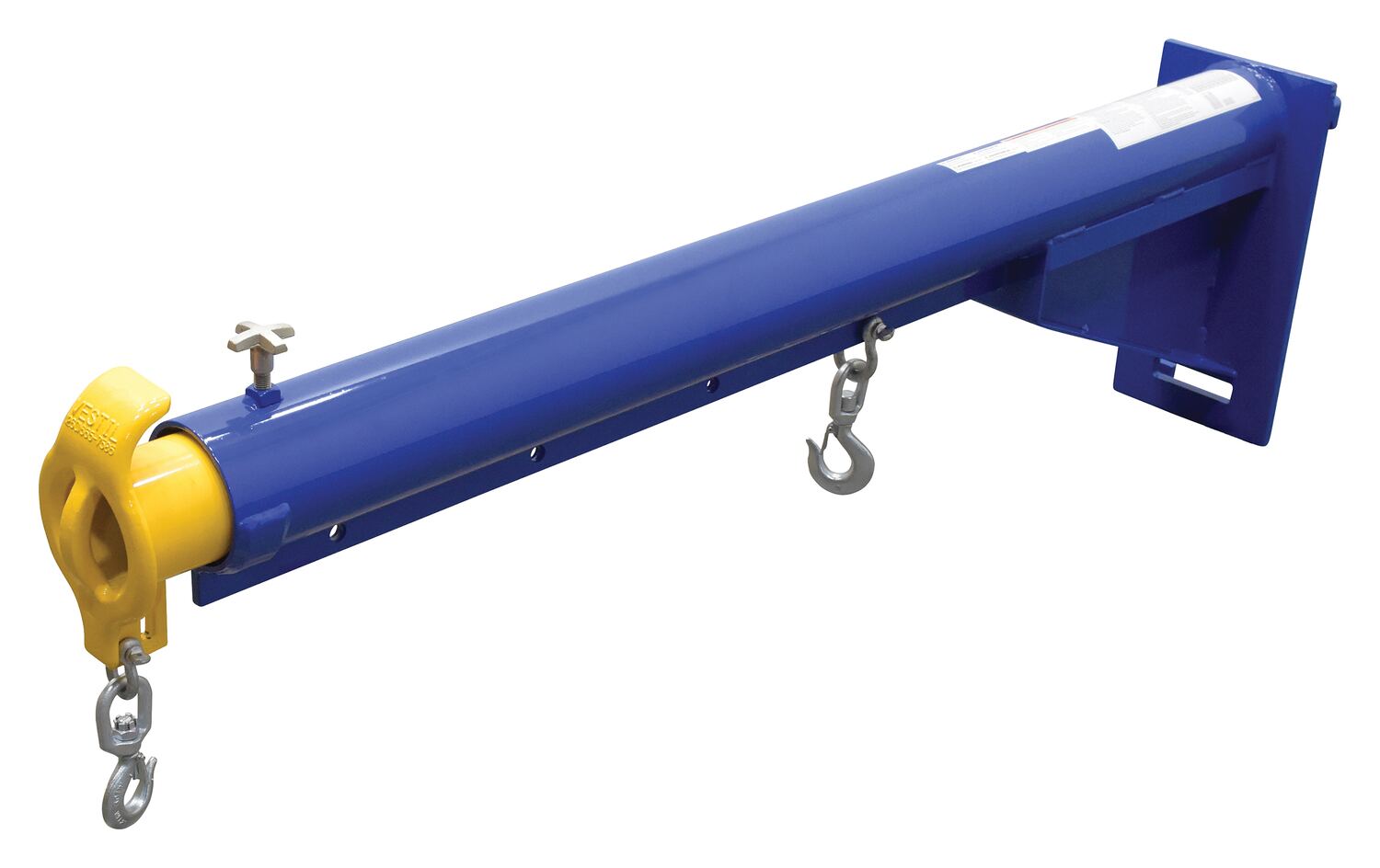

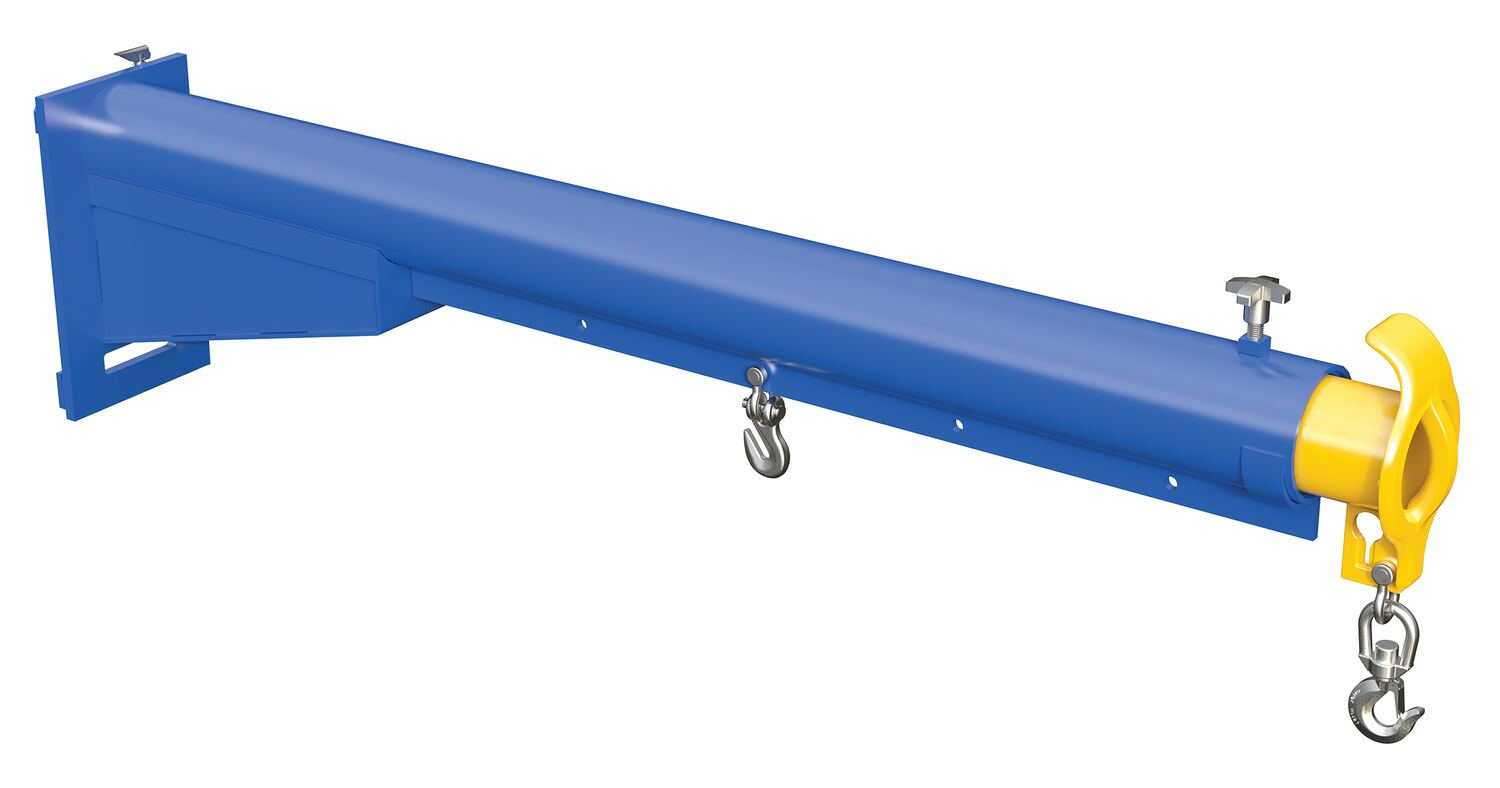

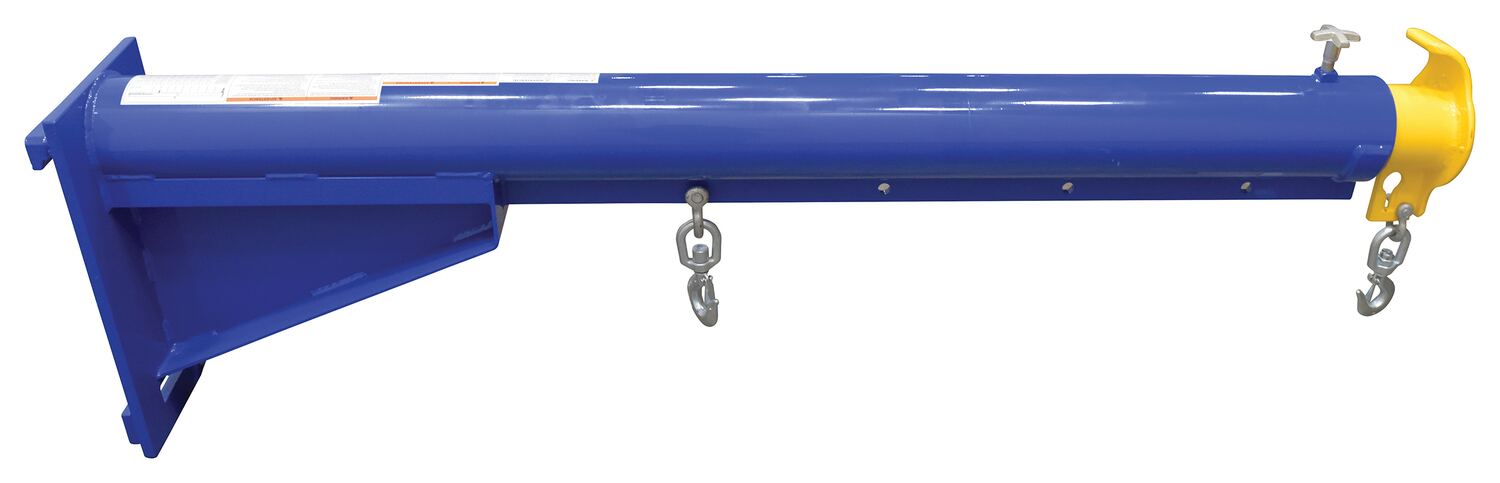

Carriage Mounted Fork Truck BoomsUnique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.
Carriage Mount Lift Master

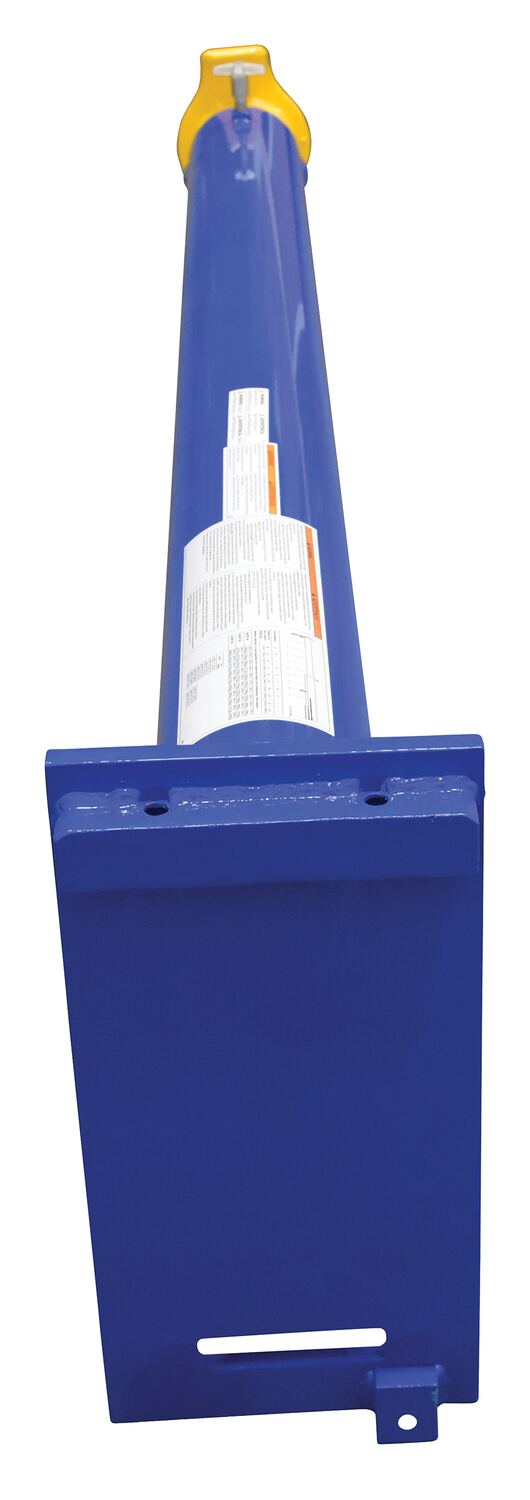

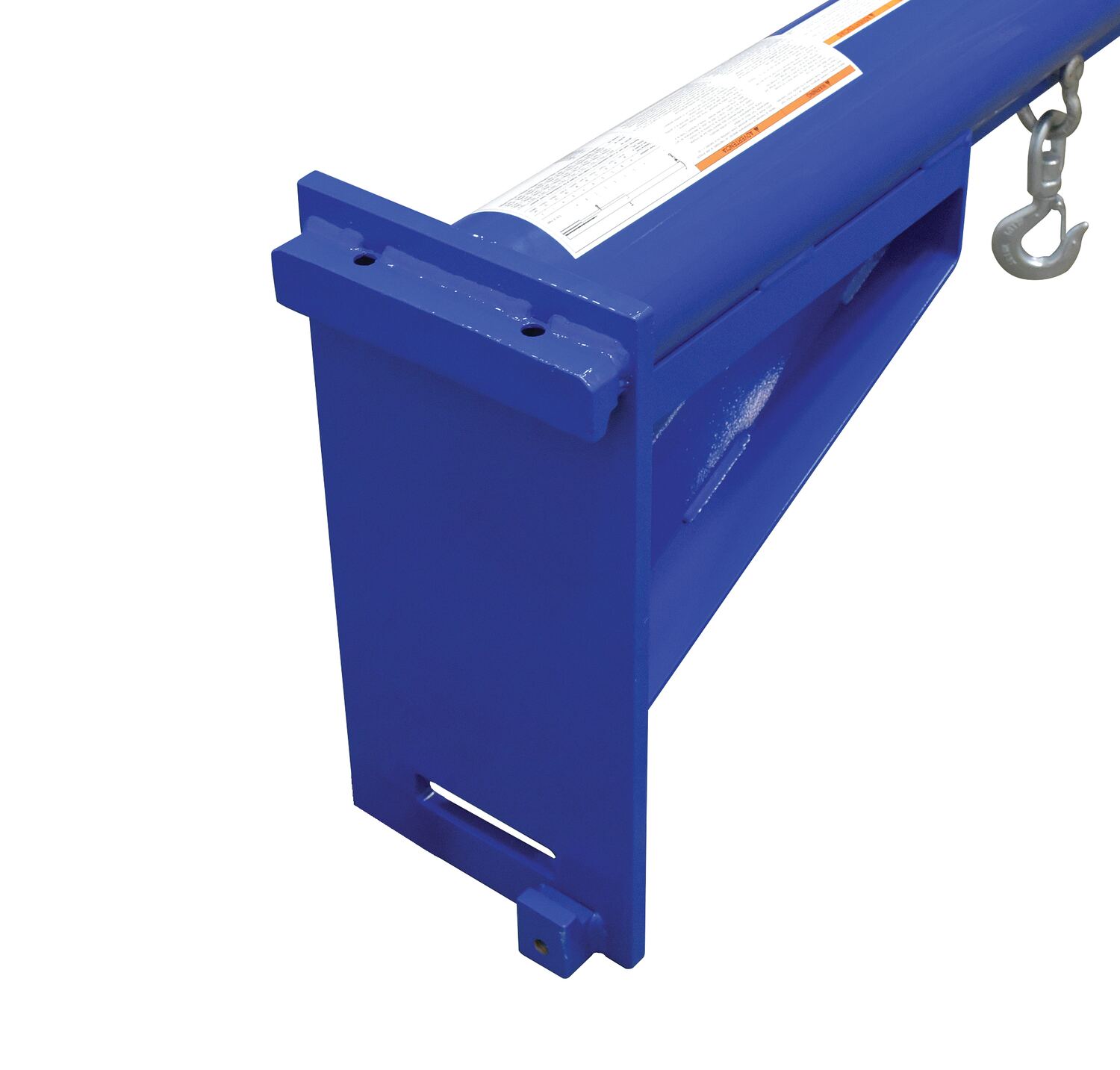

These booms are connected and secured to a new or existing fork truck by class 2 or class 3 carriage mount. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.
| Maximum Single Hook Capacities (lbs.) | ||||||||||
 |
||||||||||
| Model | A 36" |
B 48" |
C 60" |
D 72" |
E 84" |
F 96" |
G 108" |
H 120" |
I 132" |
J 144" |
| LM-CM2-EBT-4 | 4000 | 3750 | 3500 | 3250 | 3000 | 2750 | 2500 | 2250 | 2000 | 1750 |
| LM-CM2-EBT-6 | 6000 | 5000 | 4500 | 4000 | 3500 | 3000 | 2600 | 2300 | 2000 | 1800 |
| LM-CM3-EBT-4 | 4000 | 3750 | 3500 | 3250 | 3000 | 2750 | 2500 | 2250 | 2000 | 1750 |
| LM-CM3-EBT-6 | 6000 | 5000 | 4500 | 4000 | 3500 | 3000 | 2600 | 2300 | 2000 | 1800 |
Check Out Vestil's Other Fork Truck Boom Styles:
 Lift Master Fork Truck Booms |
 Hydraulic Powered Fork Truck Booms |
 High Rise Fork Truck Booms |
 Orbiting Fork Truck Booms |
. |  Shorty Fork Truck Booms |
Hydraulic Powered Fork Truck Booms
Orbiting Fork Truck Booms
Lift Master Fork Truck Booms
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| LM-CM3-EBT-6 | NEW |  | 1 Year Limited Warranty | Steel Carriage Mount Lift Master Boom Class III 6,000 Lb. Capacity Blue and Yellow | Mounting Style: Carriage Mount Class 3 Uniform Capacity (lbs): 6,000 | 416 | |
| LM-CM3-EBT-4 | NEW |  | 1 Year Limited Warranty | Steel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and Yellow | Mounting Style: Carriage Mount Class 3 Uniform Capacity (lbs): 4,000 | 414 | |
| LM-CM2-EBT-4 |  | 1 Year Limited Warranty | Steel Carriage Mount Lift Master Boom Class II 4,000 Lb. Capacity Blue and Yellow | Mounting Style: Carriage Mount Class 2 Uniform Capacity (lbs): 4,000 | 375 | ||
| LM-CM2-EBT-6 |  | 1 Year Limited Warranty | Steel Carriage Mount Lift Master Boom Class II 6,000 Lb. Capacity Blue and Yellow | Mounting Style: Carriage Mount Class 2 Uniform Capacity (lbs): 6,000 | 409 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 6,000
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 6,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 4,000
Mounting Style: Carriage Mount Class 3
Uniform Capacity (lbs): 4,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 4,000
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 4,000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 6,000
Mounting Style: Carriage Mount Class 2
Uniform Capacity (lbs): 6,000
