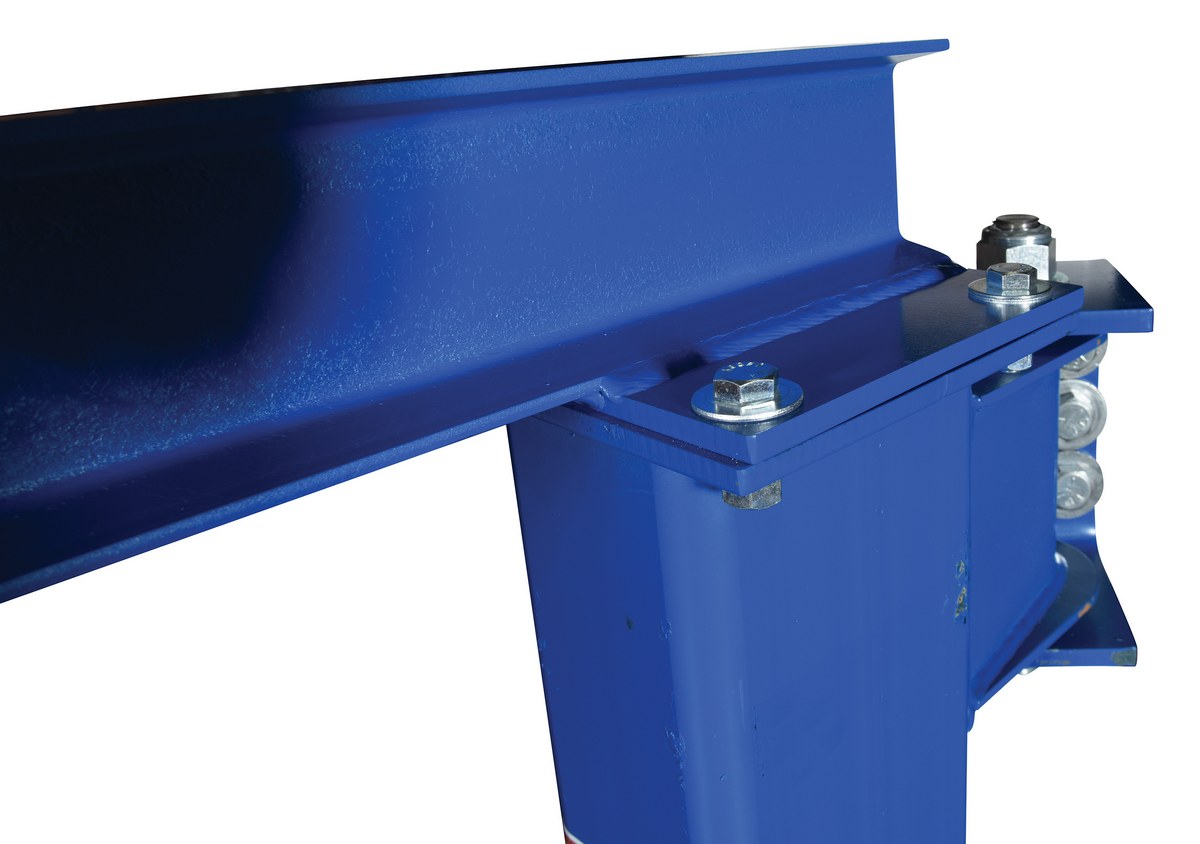

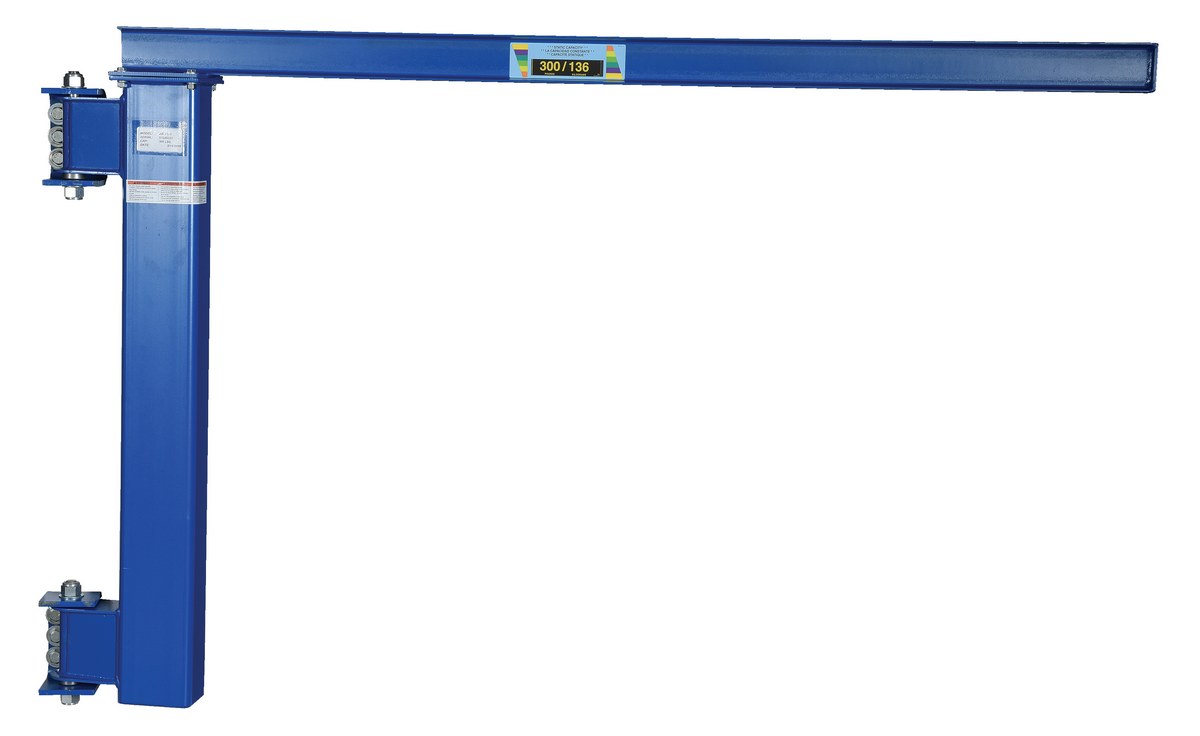

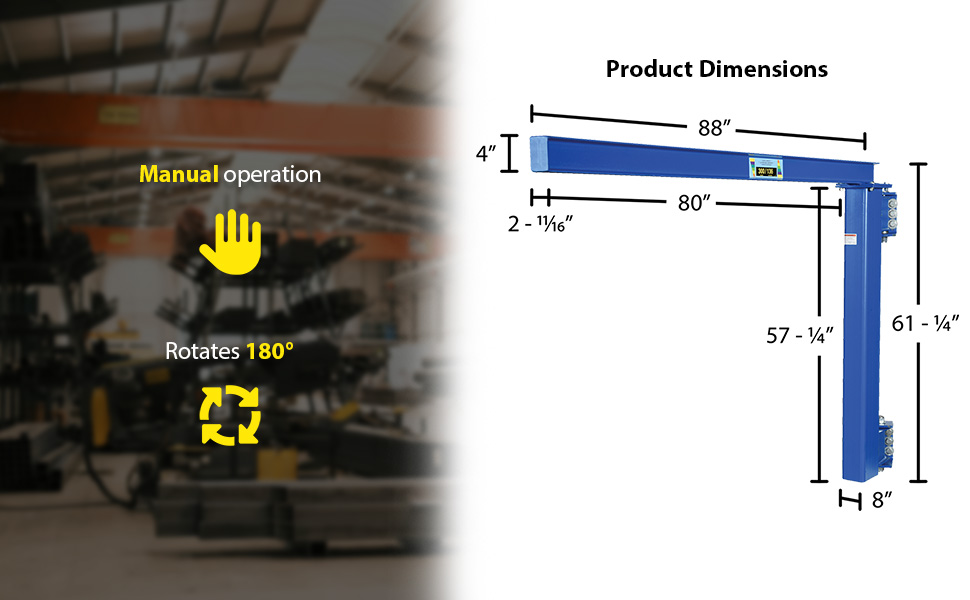

Wall JibsDesigned to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern. This cantilever style mounts to true vertical wall members. Increase personnel productivity by lifting awkward materials. The overall I-beam length is 88" with a usable length of 80". Overall length of jib is 96-1/8". Unit rotates 180 degrees. Steel construction with painted blue finish. Hoists & Trollies can be ordered seperately.
- Wall jib design assists workers in the maneuvering of materials

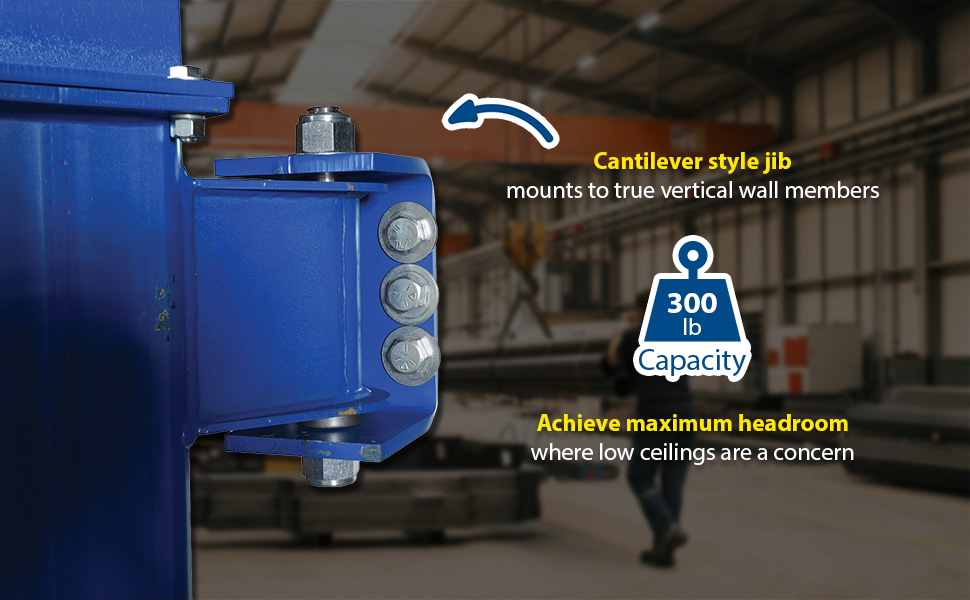

- Achieves maximum headroom where low ceilings are of concern

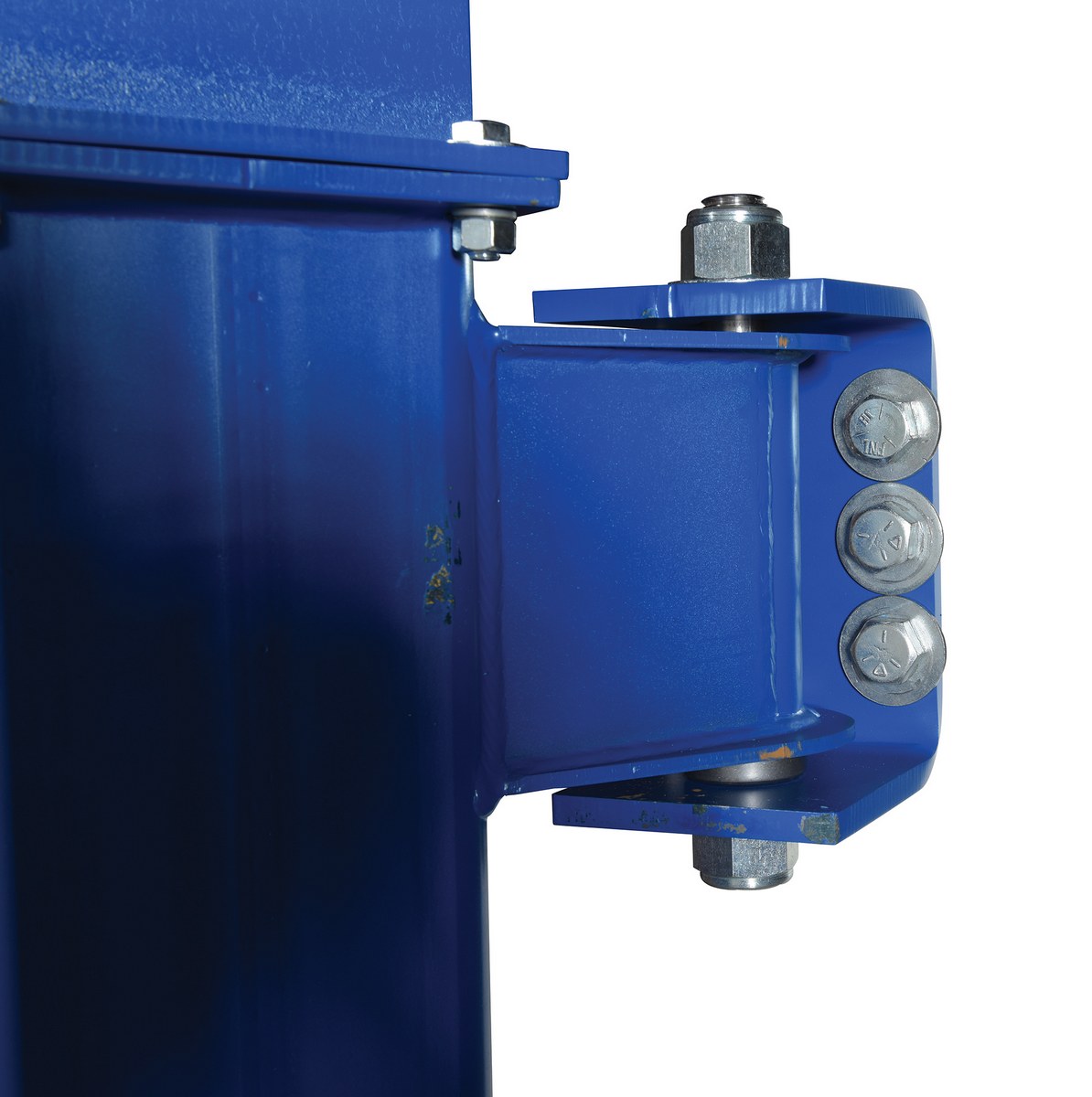

- Cantilever style jib mounts to true vertical wall members
- Increase personnel productivity by lifting awkward material capacities
Wall Mounting Hardware sold seperately
Tie Rod Jibs
Festoon System
Mini Overhead Cantilever Jibs
Portable Offset Jib Cranes
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

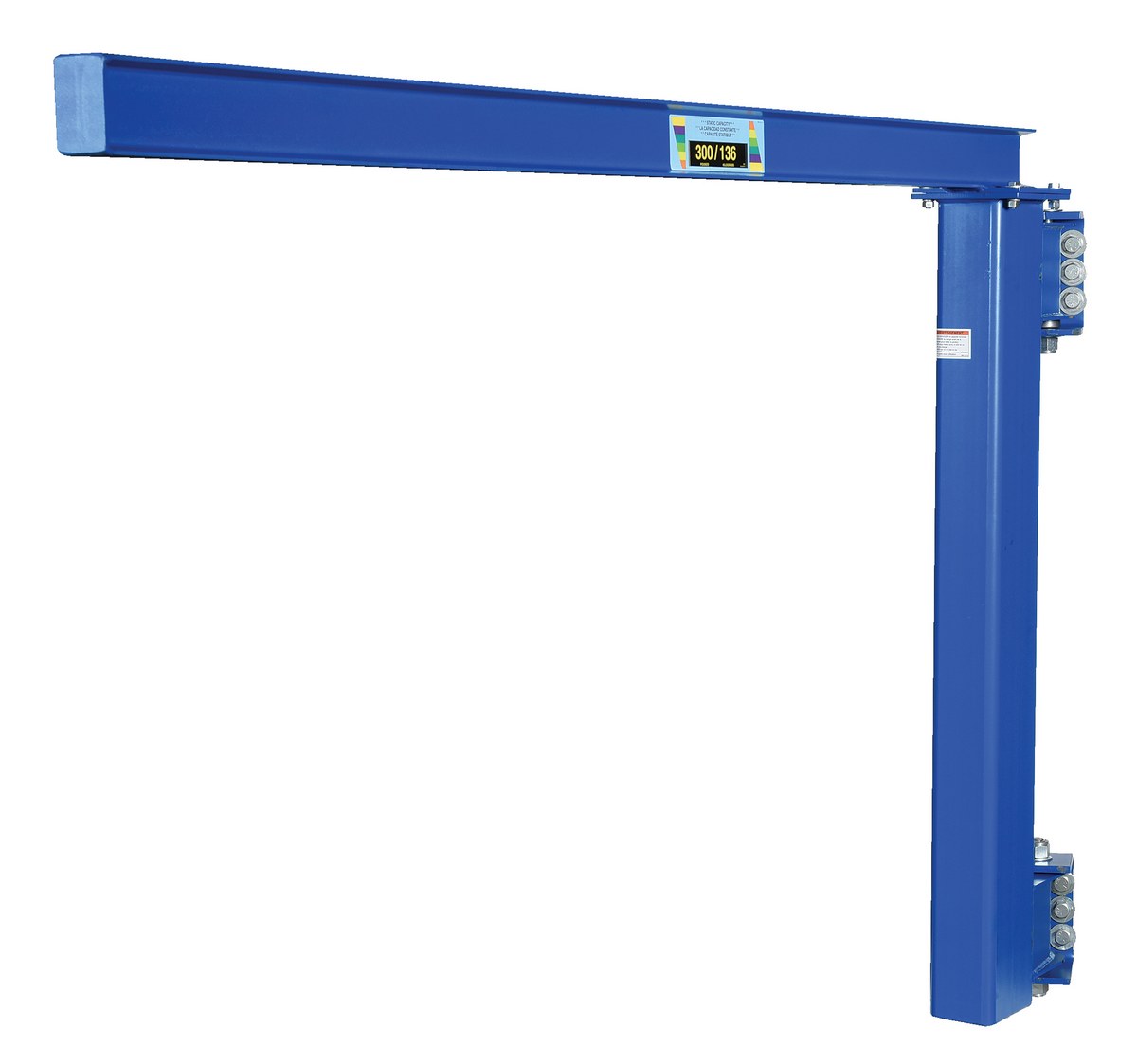

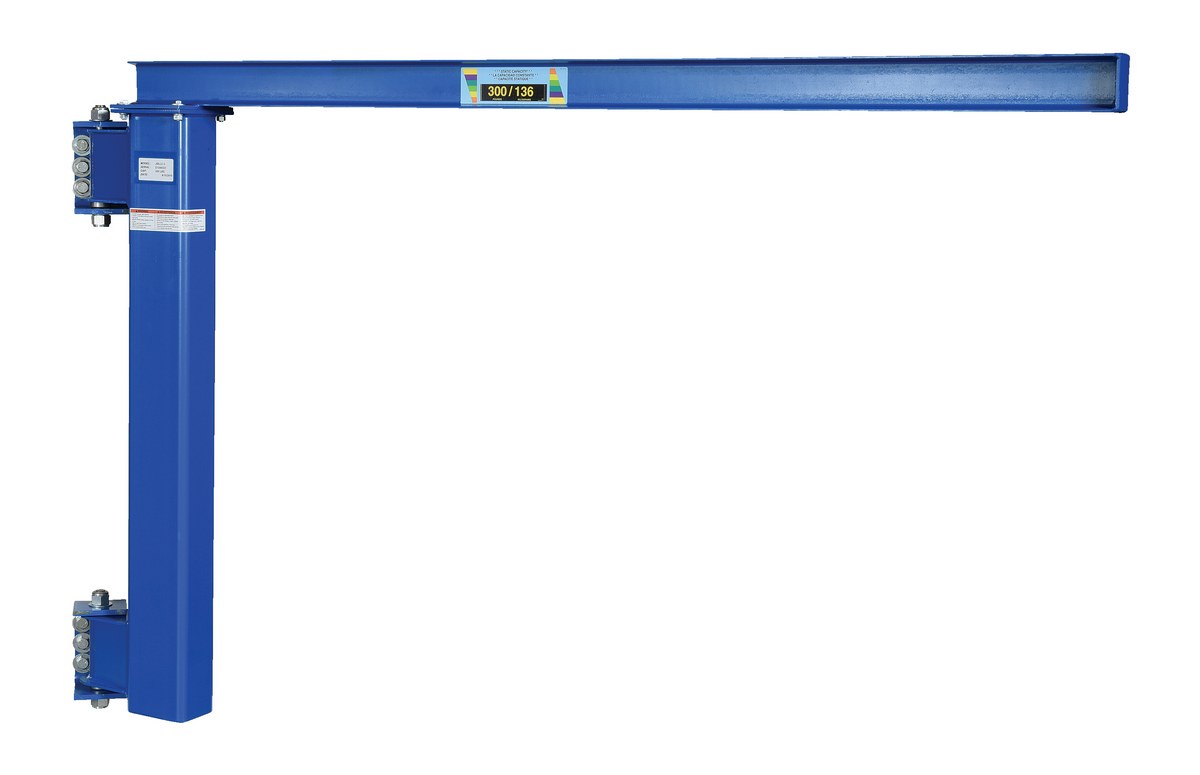

| JIB-LC-3 |  | 1 Year Limited Warranty | Steel Low Clearance Tie Rod Jib 80 In. I-Beam 300 Lb. Capacity Blue | Uniform Capacity (lb.): 300 Under I-Beam to Bottom Frame (in.): 57-1/4 | 349 | ||

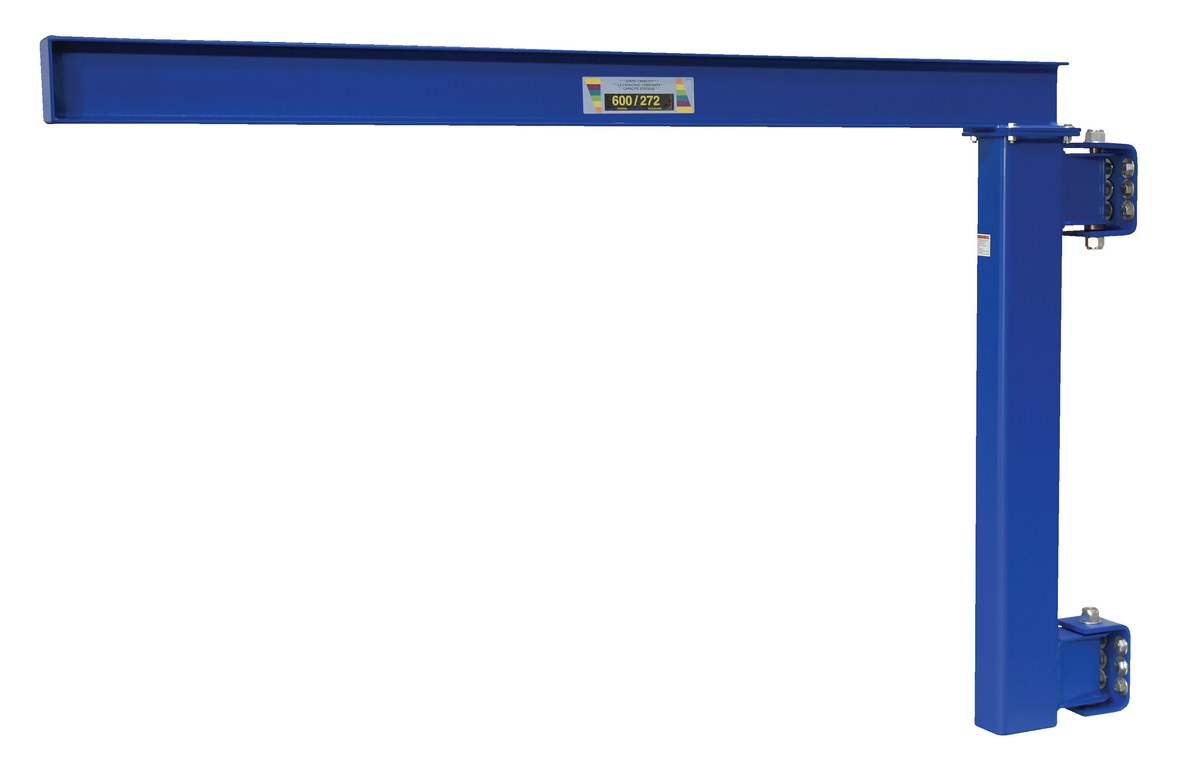

| JIB-LC-6 |  | 1 Year Limited Warranty | Steel Low Clearance Tie Rod Jib 80 In. I-Beam 600 Lb. Capacity Blue | Uniform Capacity (lb.): 600 Under I-Beam to Bottom Frame (in.): 57-1/4 | 399 | ||

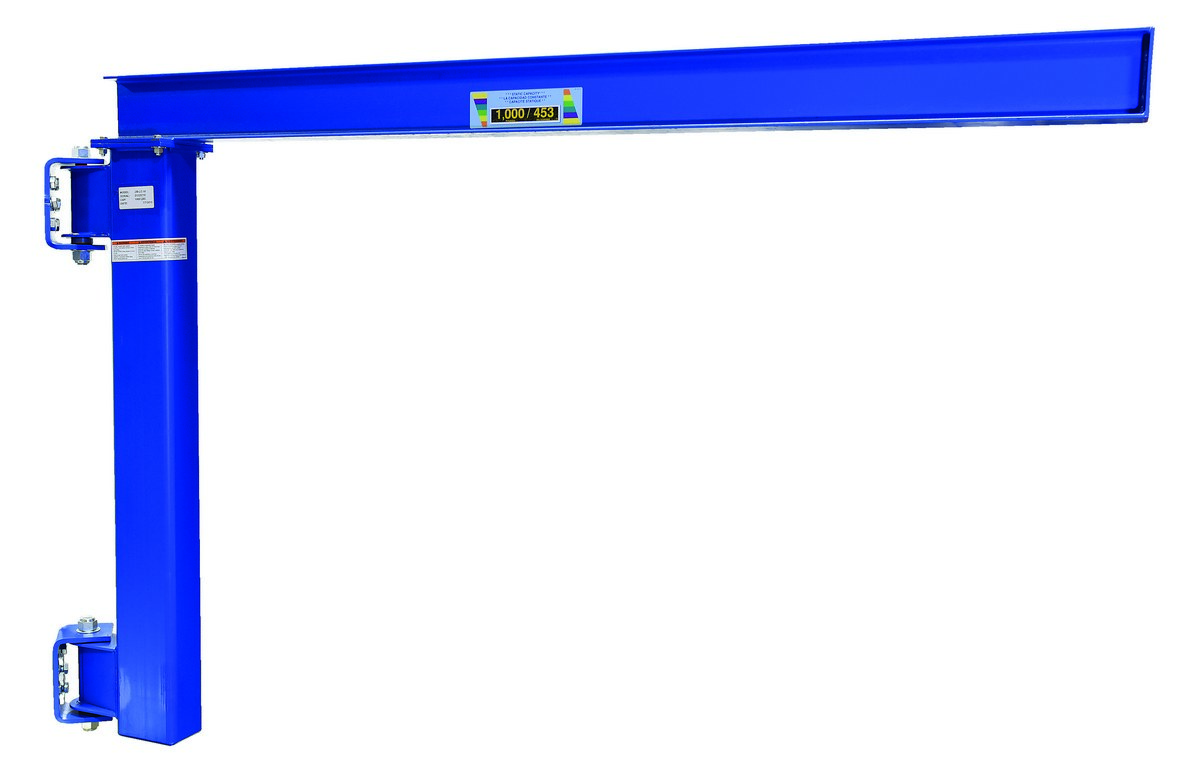

| JIB-LC-10 |  | 1 Year Limited Warranty | Steel Low Clearance Tie Rod Jib 80 In. I-Beam 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Under I-Beam to Bottom Frame (in.): 57-1/4 | 399 | ||

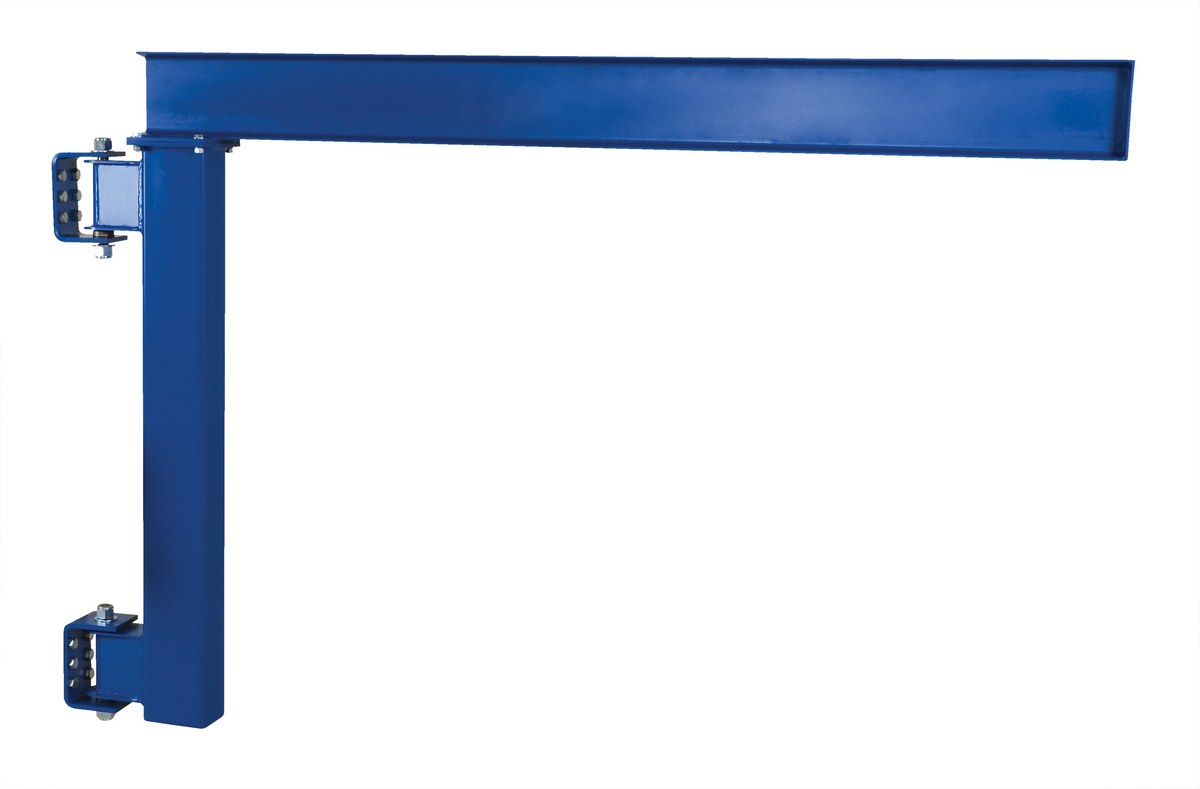

| JIB-LC-20 |  | 1 Year Limited Warranty | Steel Low Clearance Tie Rod Jib 80 In. I-Beam 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Under I-Beam to Bottom Frame (in.): 57-1/4 | 405 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam to Bottom Frame (in.): 57-1/4
Uniform Capacity (lb.): 300
Under I-Beam to Bottom Frame (in.): 57-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam to Bottom Frame (in.): 57-1/4
Uniform Capacity (lb.): 600
Under I-Beam to Bottom Frame (in.): 57-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Under I-Beam to Bottom Frame (in.): 57-1/4
Uniform Capacity (lb.): 1,000
Under I-Beam to Bottom Frame (in.): 57-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam to Bottom Frame (in.): 57-1/4
Uniform Capacity (lb.): 2,000
Under I-Beam to Bottom Frame (in.): 57-1/4
