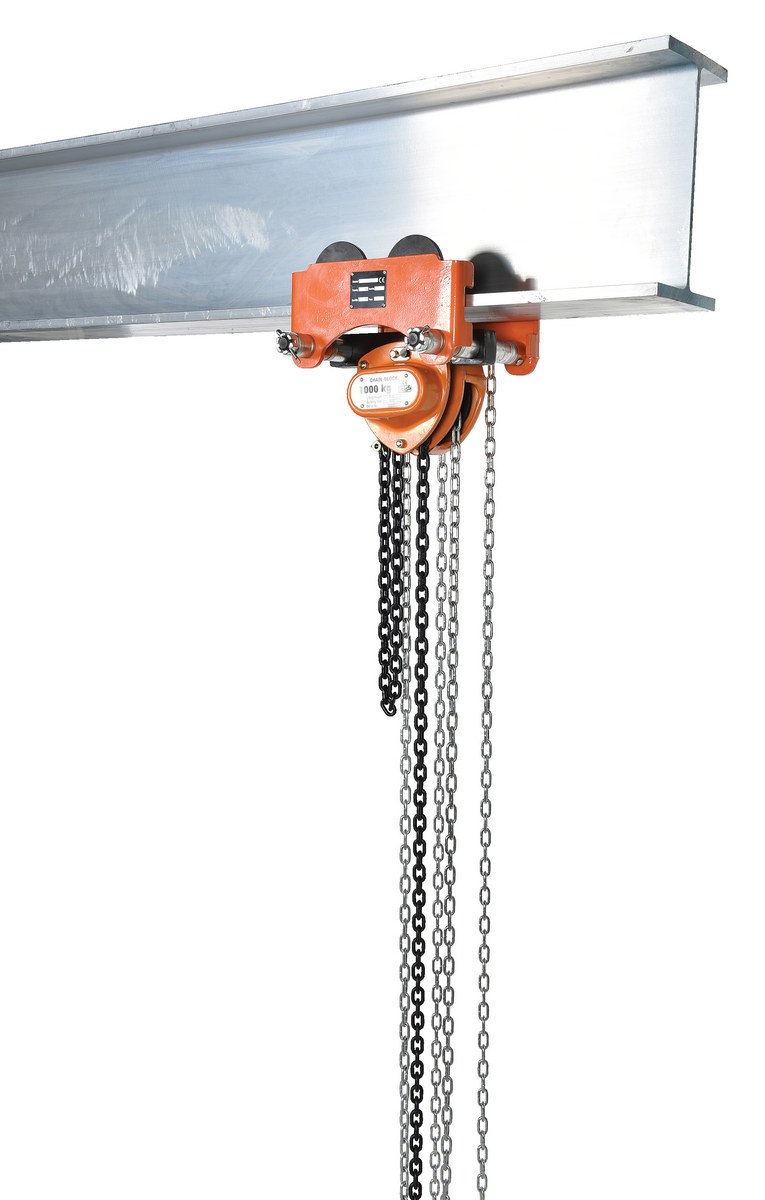

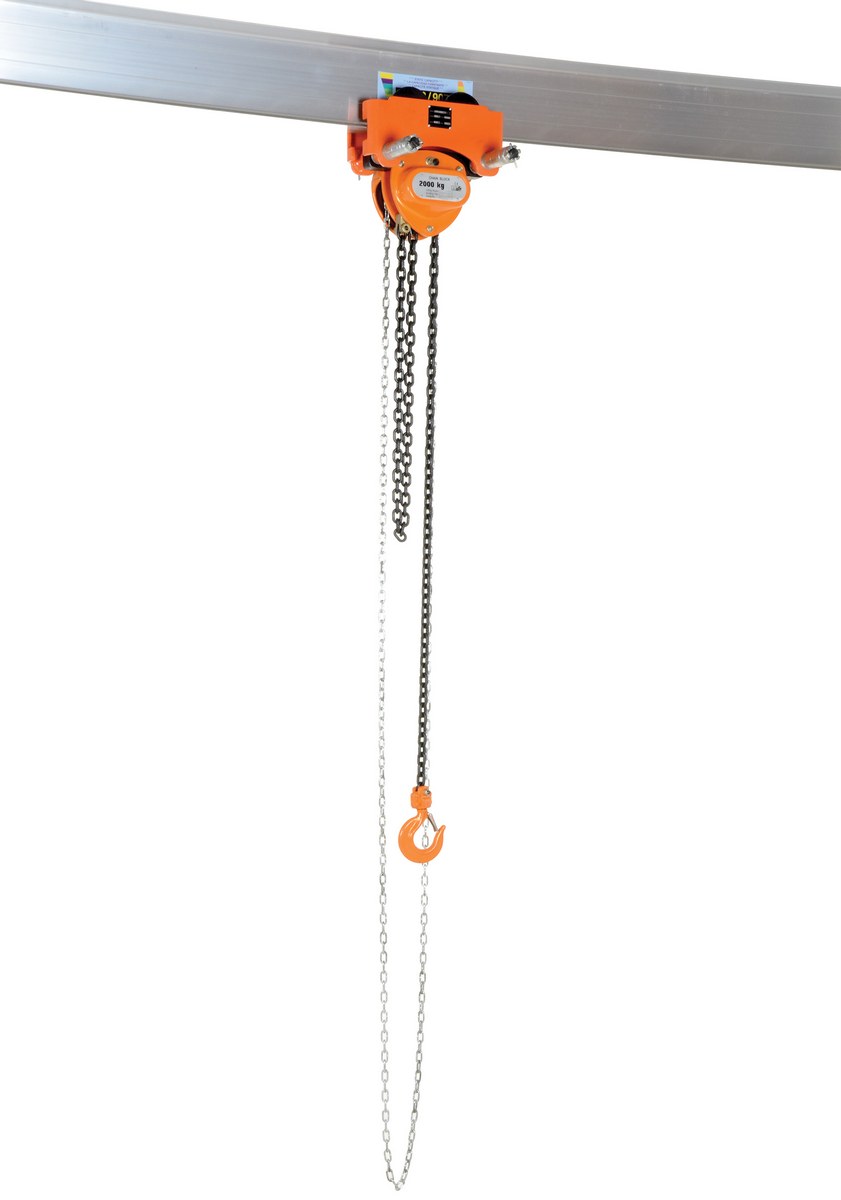

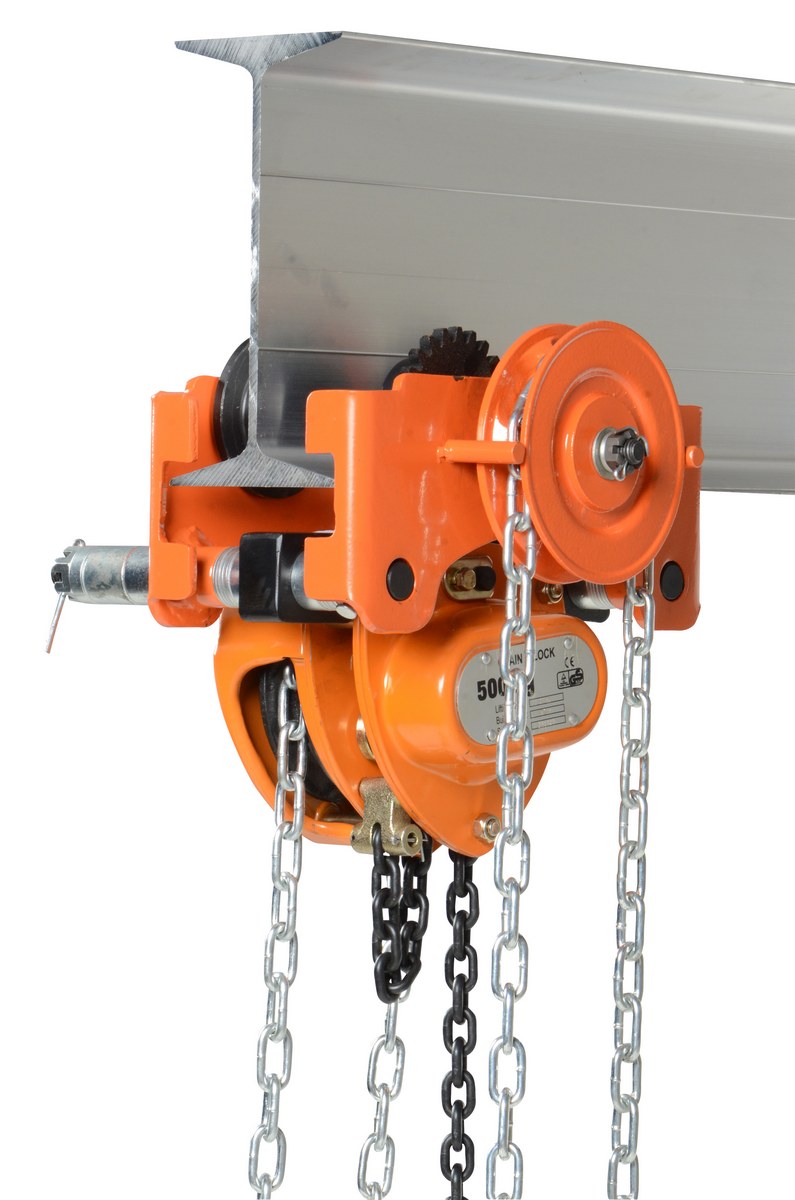

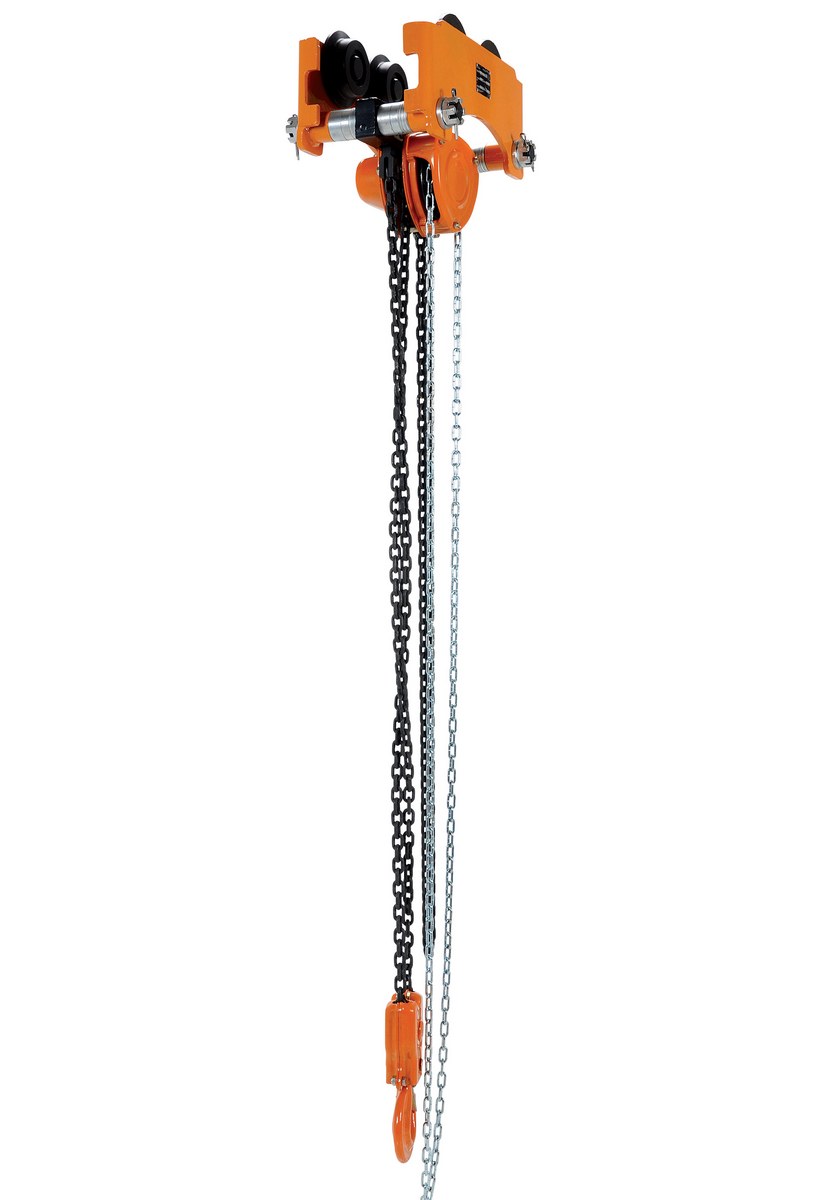

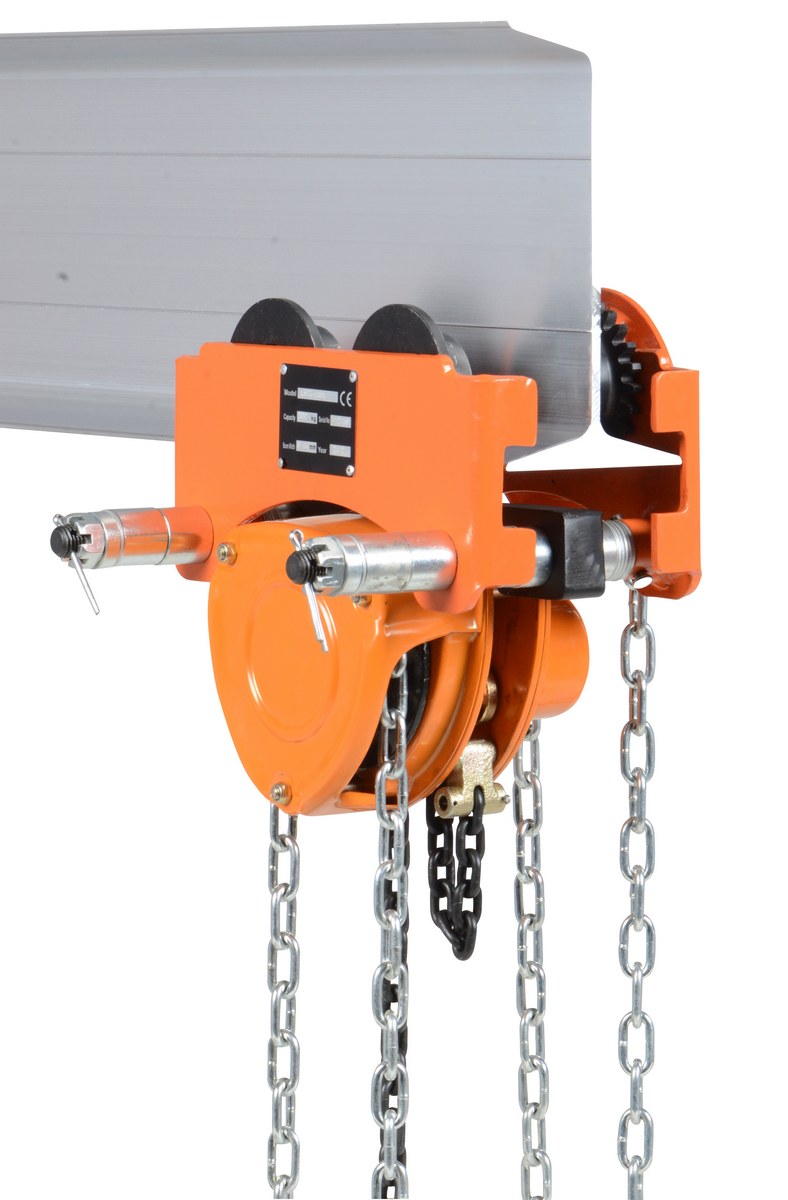

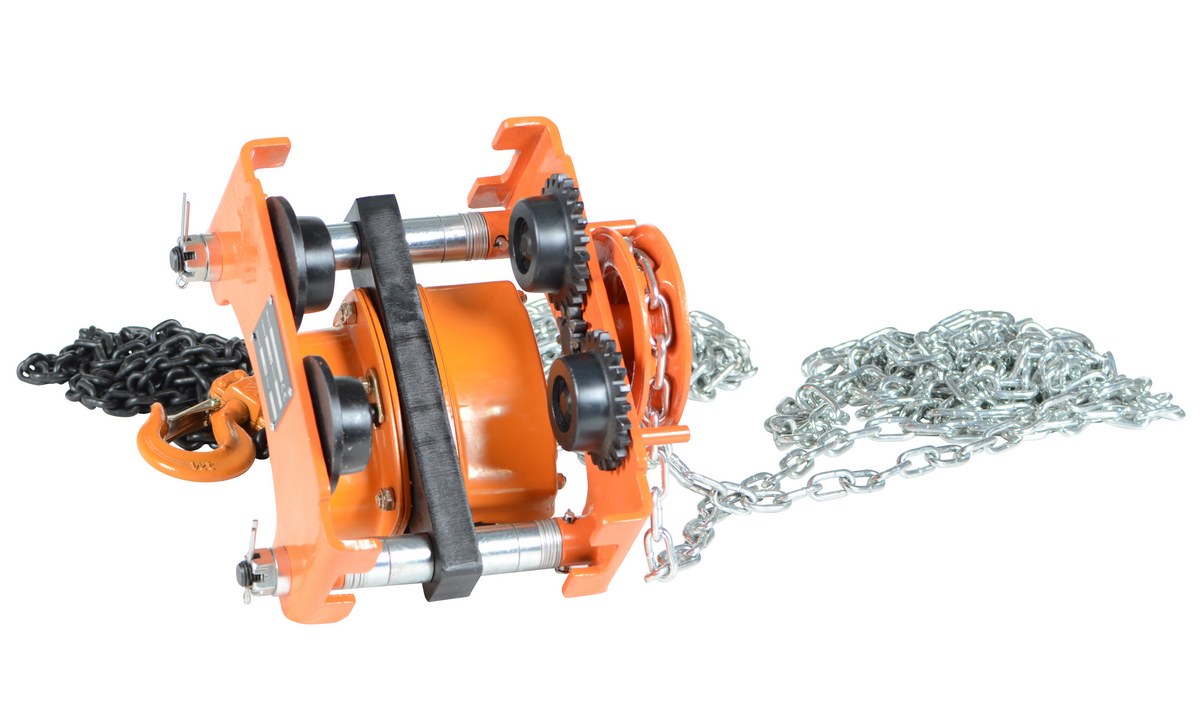

Low Headroom Combination Chain Hoist/TrolleyUse this Low Headroom Chain Hoist Geared Trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam. Load chain is alloy steel. Hand chain is carbon steel galvanized. Assembly required.
- Compact design works well in locations where more headroom is required
- Heavy-duty industrial steel construction provides long lasting use
- Chain hoist features ten foot of vertical lift
- Bright orange color for strong visibility
Low Profile Manual Trollies
Air Powered Chain Hoists
High Speed Electric Chain Hoist
Professional Hand Chain HoistsAdditional Models In This Family
LOW-6P
LOW-1G
LOW-6G
LOW-6P
LOW-4G
LOW-2G
LOW-2P
LOW-1P
LOW-1P
LOW-1P
LOW-4P
LOW-4G
LOW-4P
LOW-1G
LOW-4G
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

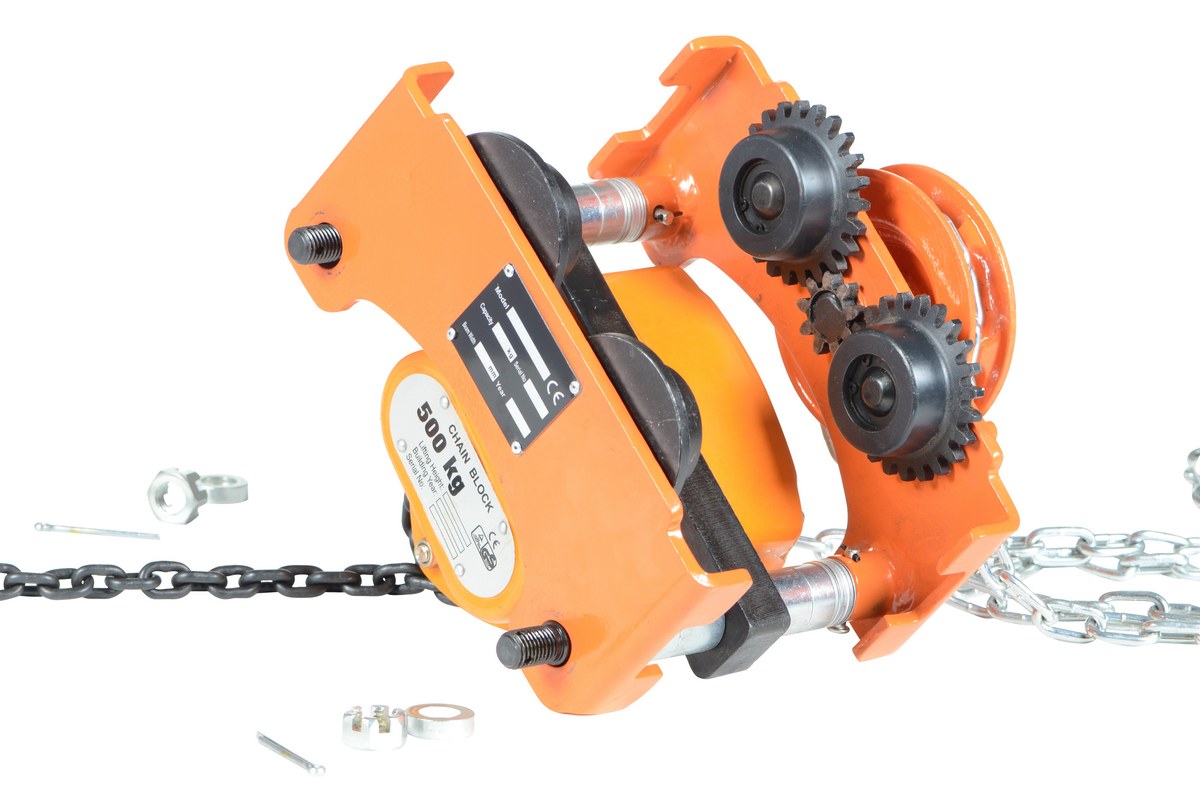

| LOW-1G |  | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Gear Trolley 9 In. x 10 In. x 10 In. 1,000 Lb. Capacity Orange | Uniform Capacity (lb.): 1,000 Fits Beam Flange Width (in.): 2 to 6 | 49 | ||

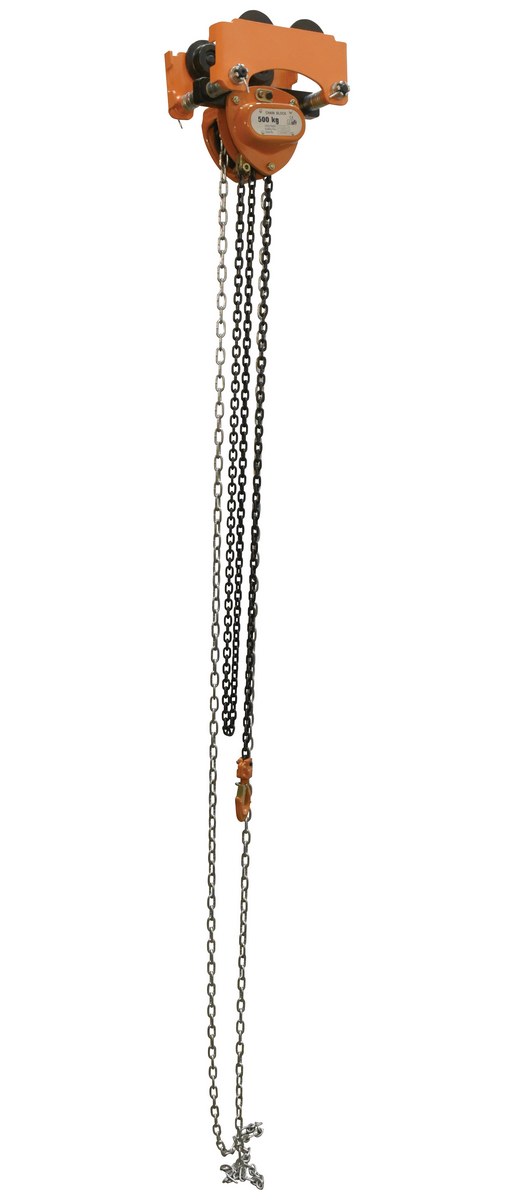

| LOW-1P | | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Push Trolley 10-1/4 In. x 9-1/2 In. x 10 In. 1,000 Lb. Capacity Orange | Uniform Capacity (lb.): 1,000 Fits Beam Flange Width (in.): 2 to 6 | 45 | ||

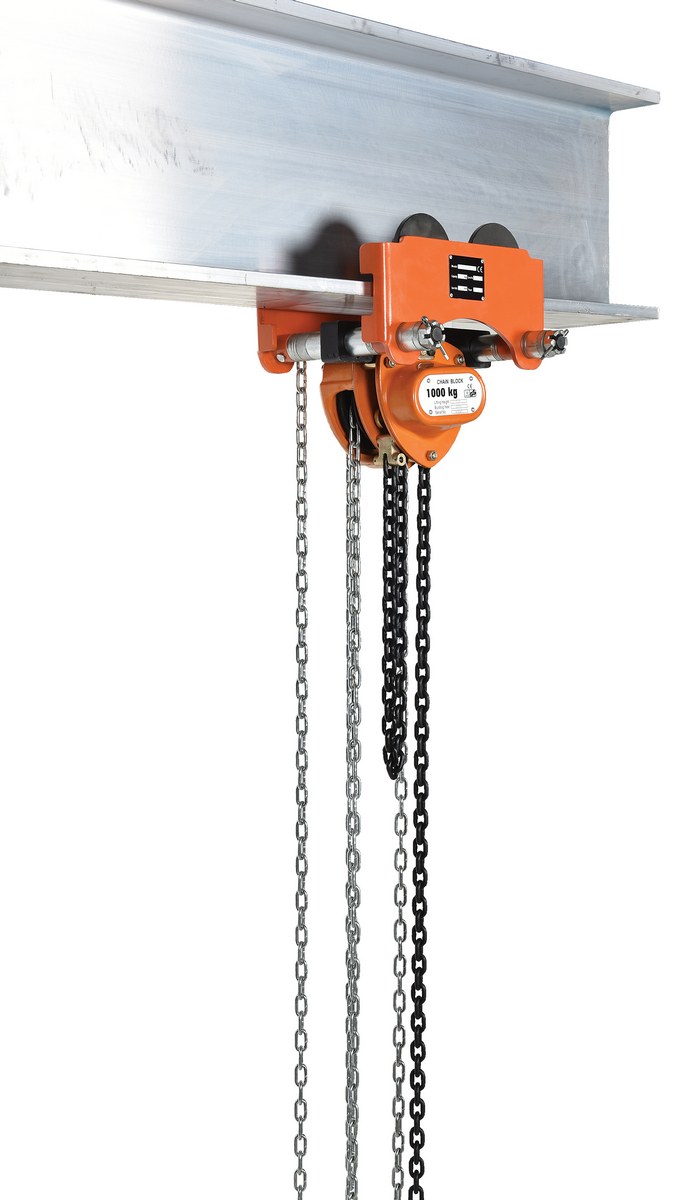

| LOW-2G |  | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Gear Trolley 11-1/2 In. x 11-1/2 In. x 10 In. 2,000 Lb. Capacity Orange | Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 2-1/2 to 8 | 73 | ||

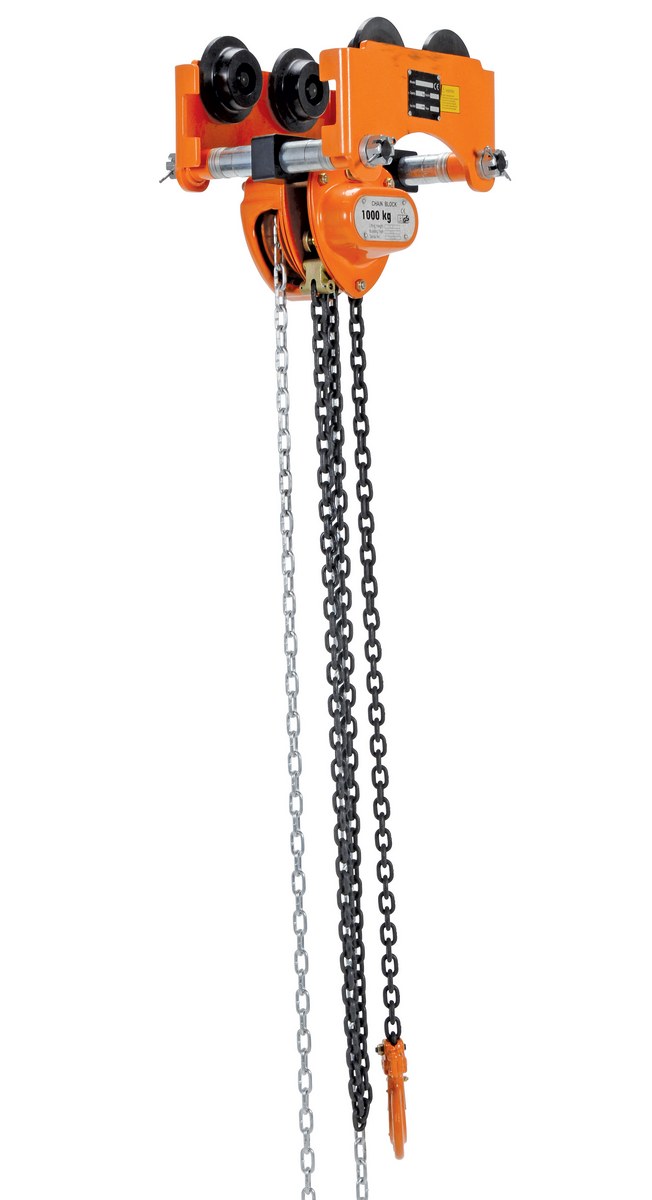

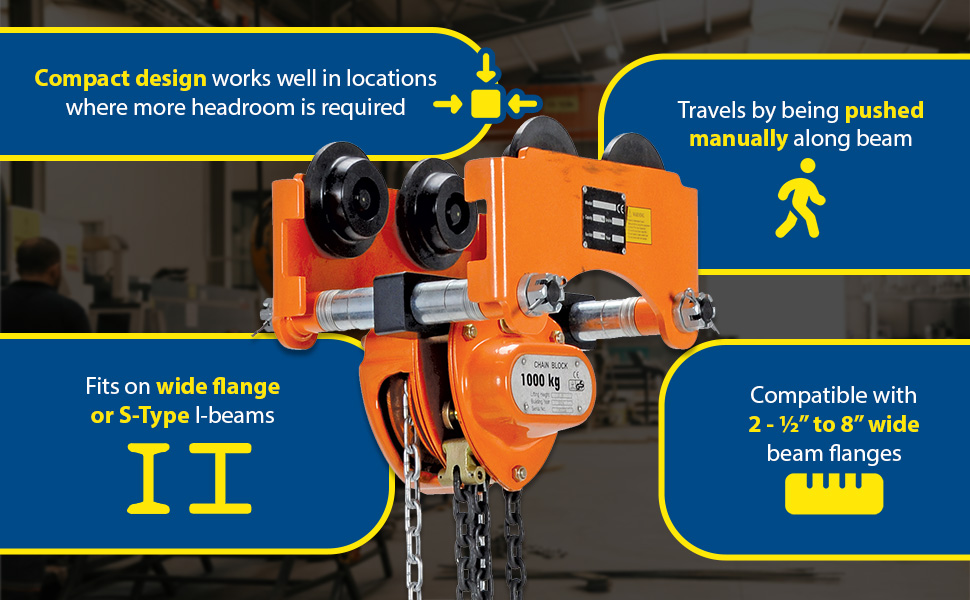

| LOW-2P | | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Push Trolley 12 In. x 10-1/2 In. x 10 In. 2,000 Lb. Capacity Orange | Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 2-1/2 to 8 | 63 | ||
| LOW-4G | | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Gear Trolley 14 In. x 12-1/2 In. x 14 In. 4,000 Lb. Capacity Orange | Uniform Capacity (lb.): 4,000 Fits Beam Flange Width (in.): 3-1/2 to 8 | 110 | ||

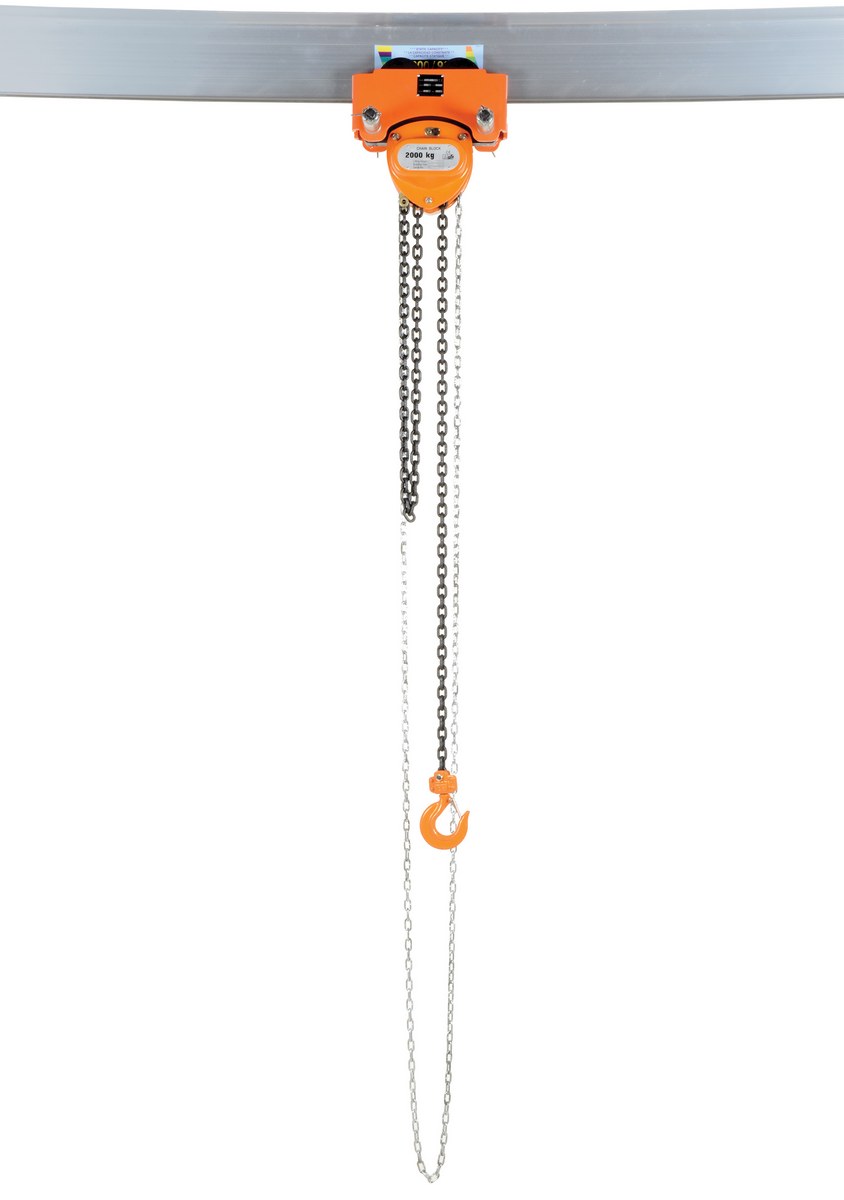

| LOW-4P | | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Push Trolley 14 In. x 11-1/2 In. x 14 In. 4,000 Lb. Capacity Orange | Uniform Capacity (lb.): 4,000 Fits Beam Flange Width (in.): 3-1/2 to 8 | 101 | ||

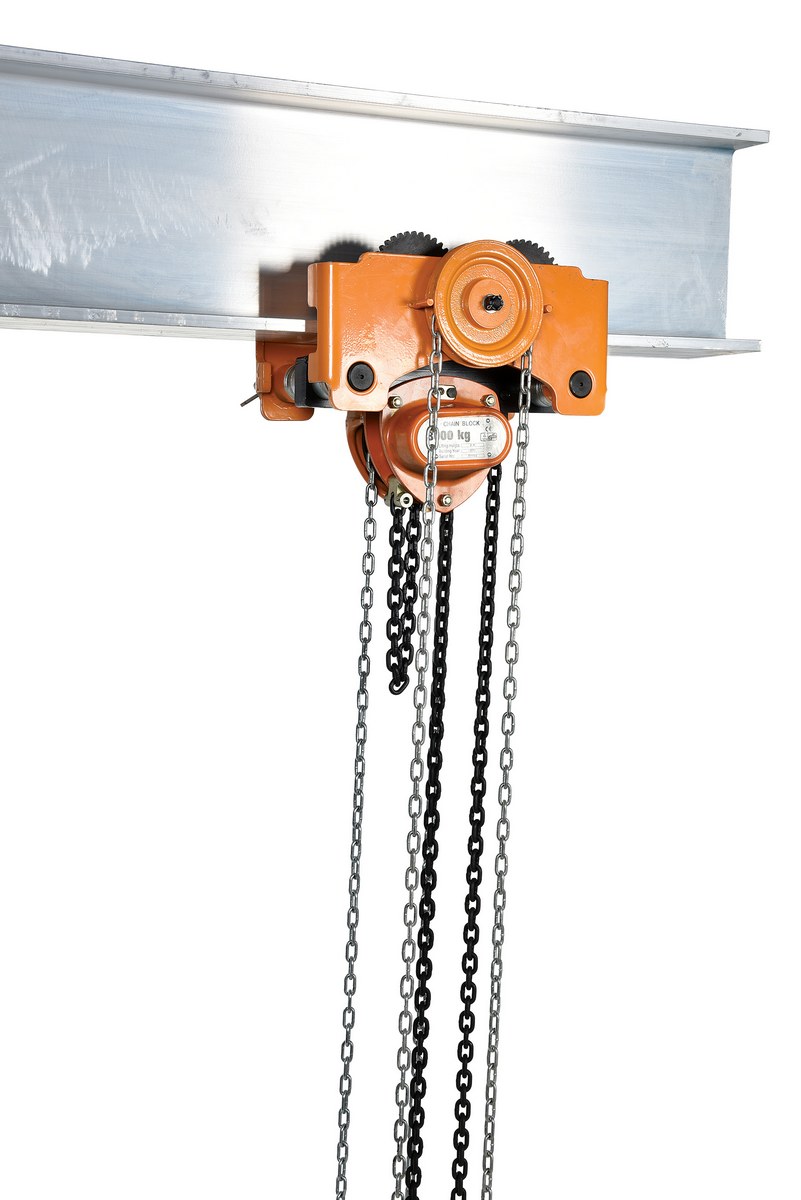

| LOW-6G |  | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Gear Trolley 17 In. x 13-1/2 In. x 15 In. 6,000 Lb. Capacity Orange | Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 4 to 8 | 158 | ||

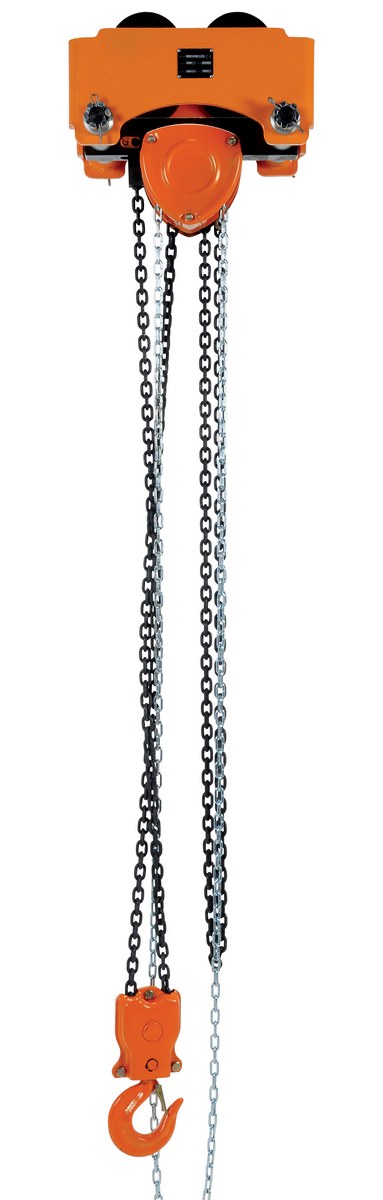

| LOW-6P | | 90 Days Limited Warranty | Steel Low Headroom Chain Hoist Push Trolley 17 In. x 12-1/2 In. x 15 In. 6,000 Lb. Capacity Orange | Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 4 to 8 | 144 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/2 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 4 to 8
Low Headroom Combination Chain Hoist/Trolley PDF's will open in a new window when clicked.
Manuals
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
No Approval Drawings For This Product
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What is the difference between the LOW-1P and the LOW-1G trolley?
A: The LOW-x-P (push trolley) is moved by pushing it along the I-beam. The LOW-x-G (geared trolley) is moved by pulling a chain which rotates gears and moves the trolley along the I-beam.
Q: What is the width of just the hoist? I can only find the width of the entire unit.
A: The width of the hoist is 5-3/8".
Q: What are the hand chain and load chain made of?
A: The load chain is alloy steel. The hand chain is carbon steel galvanized.
Q: What size I beam does this fit?
A: Fits on wide flange or S-type I-beam.
 |
|||||||||||||||||||||||||||||||||||||||||||||||
