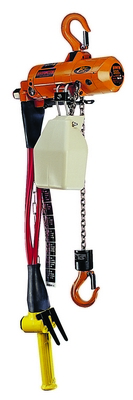

model: ACH-50



Featured Overhead Lifting


Magnetic Catcher
Heavy-Duty Beam Tongs
Hand Chain Hoists
Power Lift Jib Cranes
Clamps & Tongs
High Speed Electric Chain Hoist
Tie Rod Jibs
Bar Stock Material Positioners
Hoist Trailer
model chart

Product Family Overview

Print Friendly
Air Powered Chain Hoists
SERIES: ACH

Heavy duty air chain hoist can be used as a workstation hoist or as a production line hoist. The portability of the hoist makes it the perfect match for lifting applications. Quick attach hooks provide the safety that is always in need when lifting, lowering, or stabilizing heavy objects.

  • Lightweight, rugged, and compact design
  • Standard lift is 10 feet, assuming 90 PSI air pressure
  • Variable flow, two lever pendant for precise load spotting
  • Steel construction with orange finish

Heavy duty air chain hoist can be used as a workstation hoist or as a production line hoist. The portability of the hoist makes it the perfect match for lifting applications. Quick attach hooks provide the safety that is always in need when lifting, lowering, or stabilizing heavy objects.

  • Lightweight, rugged, and compact design
  • Standard lift is 10 feet, assuming 90 PSI air pressure
  • Variable flow, two lever pendant for precise load spotting
  • Steel construction with orange finish

Other Hoists & Trollies

 Mighty Mini Lever Hoists (disc brake) Professional Hand Chain Hoists Non-Sparking Chain Hoists Air Powered Chain Hoists

Additional Models In This Family
view entire Image Gallery

ACH-60

model ACH-60

ACH-100

model ACH-100

ACH-CC-C

model ACH-CC-C

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

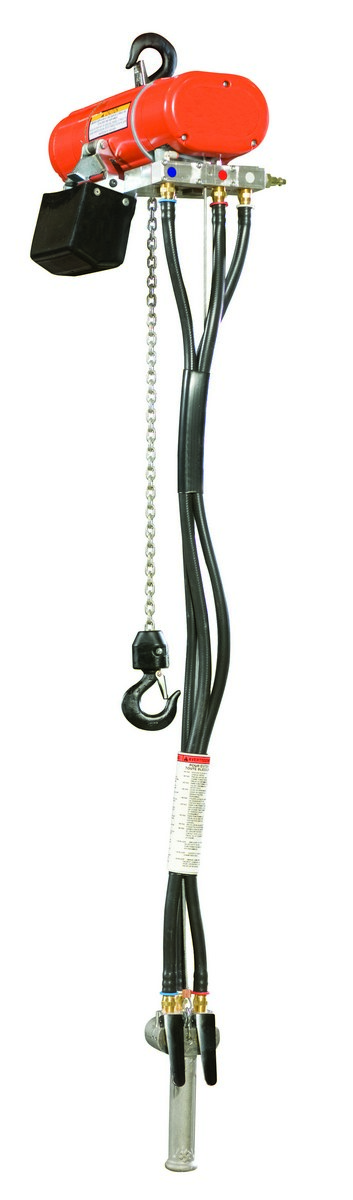

ACH-100 ACH-1001 Year Limited WarrantySteel Air Powered Chain Hoist 10 Ft. 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
F.P.M Rise with Load: 11		34

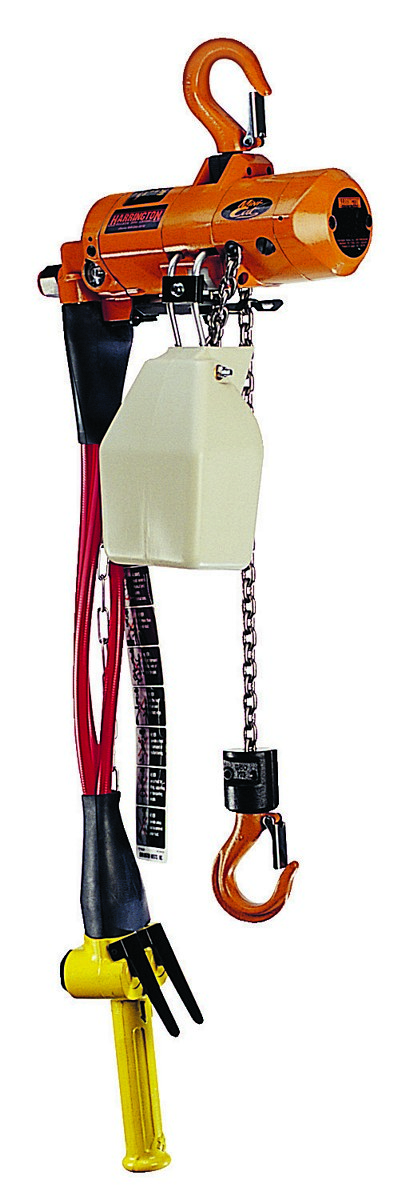

ACH-25 ACH-251 Year Limited WarrantySteel Air Powered Chain Hoist 10 Ft. 250 Lb. Capacity OrangeUniform Capacity (lb.): 250
F.P.M Rise with Load: 42		19

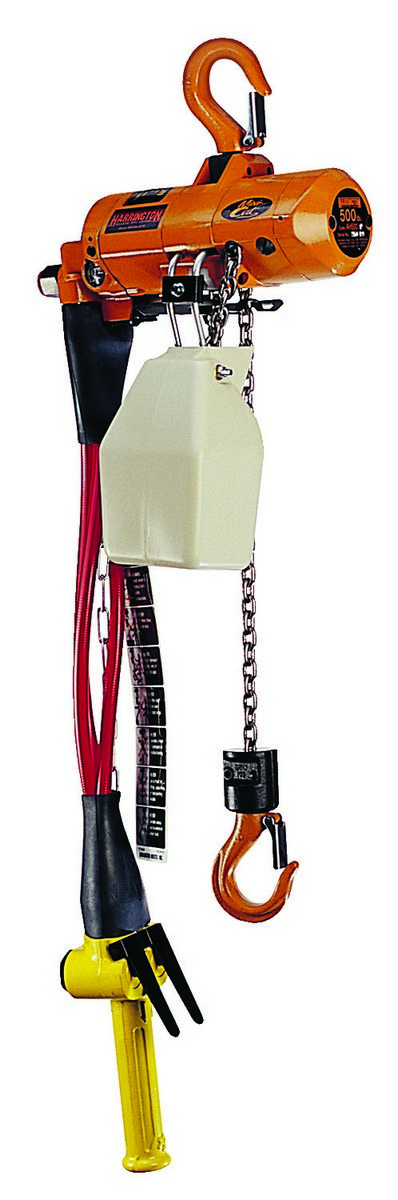

ACH-50 ACH-501 Year Limited WarrantySteel Air Powered Chain Hoist 10 Ft. 500 Lb. Capacity OrangeUniform Capacity (lb.): 500
F.P.M Rise with Load: 29		28

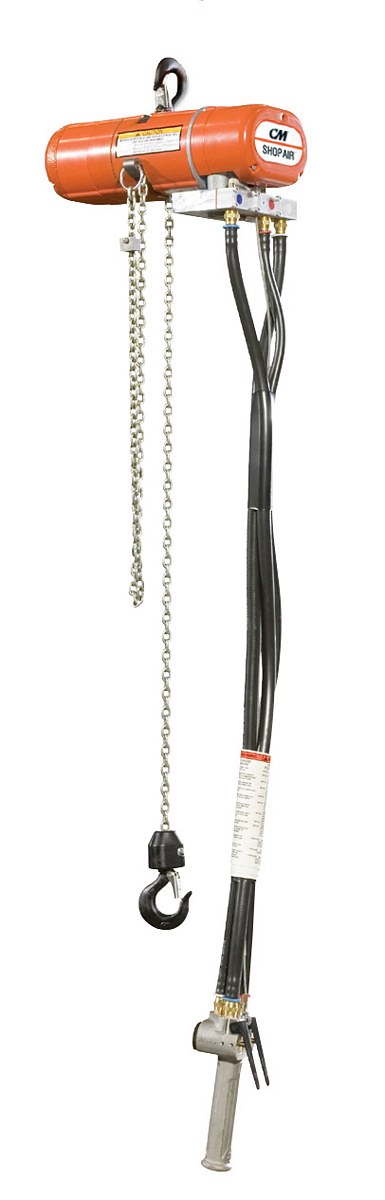

ACH-60 ACH-601 Year Limited WarrantySteel Air Powered Chain Hoist 10 Ft. 600 Lb. Capacity OrangeUniform Capacity (lb.): 600
F.P.M Rise with Load: 16		34

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ACH-100
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
F.P.M Rise with Load: 11
Uniform Capacity (lb.): 1,000
F.P.M Rise with Load: 11

ACH-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 250
F.P.M Rise with Load: 42
Uniform Capacity (lb.): 250
F.P.M Rise with Load: 42

ACH-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
F.P.M Rise with Load: 29
Uniform Capacity (lb.): 500
F.P.M Rise with Load: 29

ACH-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
F.P.M Rise with Load: 16
Uniform Capacity (lb.): 600
F.P.M Rise with Load: 16
For More Details of the Option Click the Red Model Button

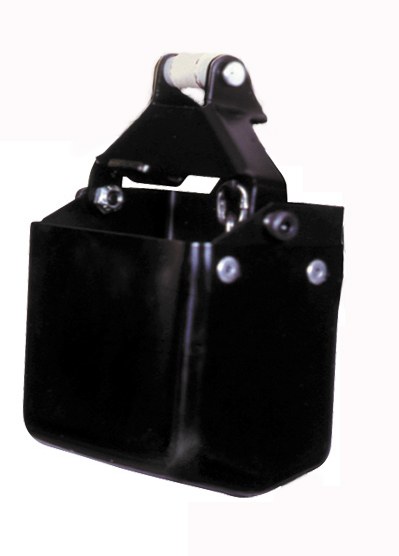

ACH-CC-C ACH-CC-C90 Days Limited WarrantyPlastic Heavy Duty Chain Container For Air Chain Hoist Models Black-
2

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Air Powered Chain Hoists PDF's will open in a new window when clicked.

Manuals


ACH-60, ACH-100
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ACH-100

ACH-60

Testing Certificates


ACH-100

ACH-60

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Can you tell me if the ACH series of air chain hoist is wash-down compliant?

A: The ACH hoists are not washdown compliant.
