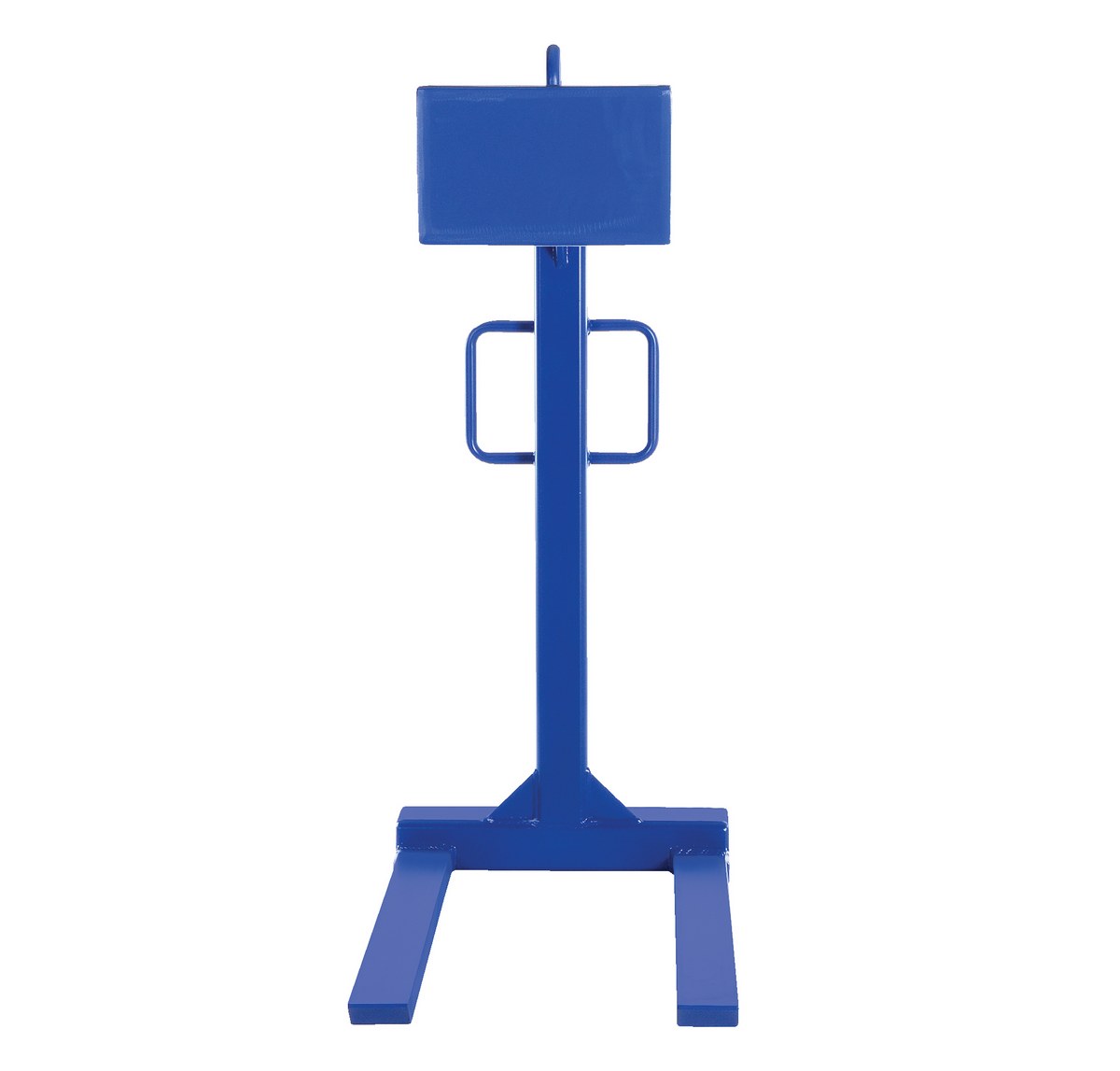

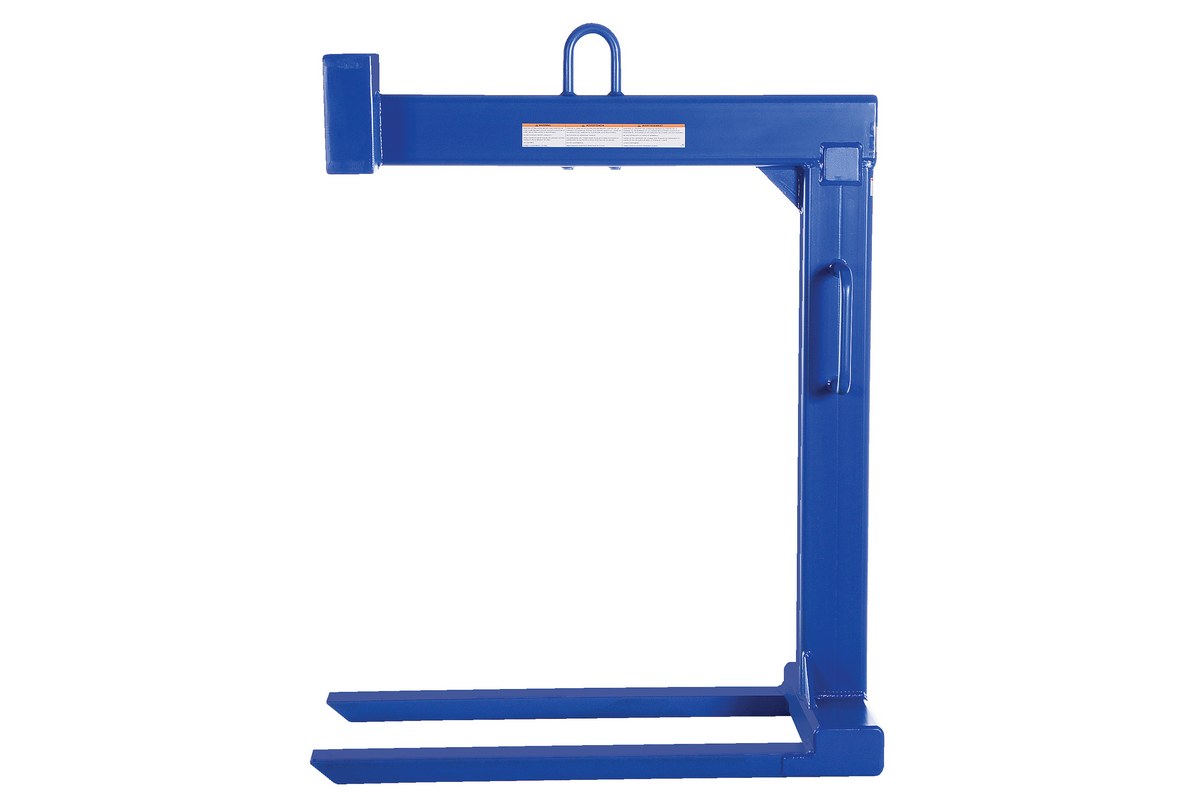

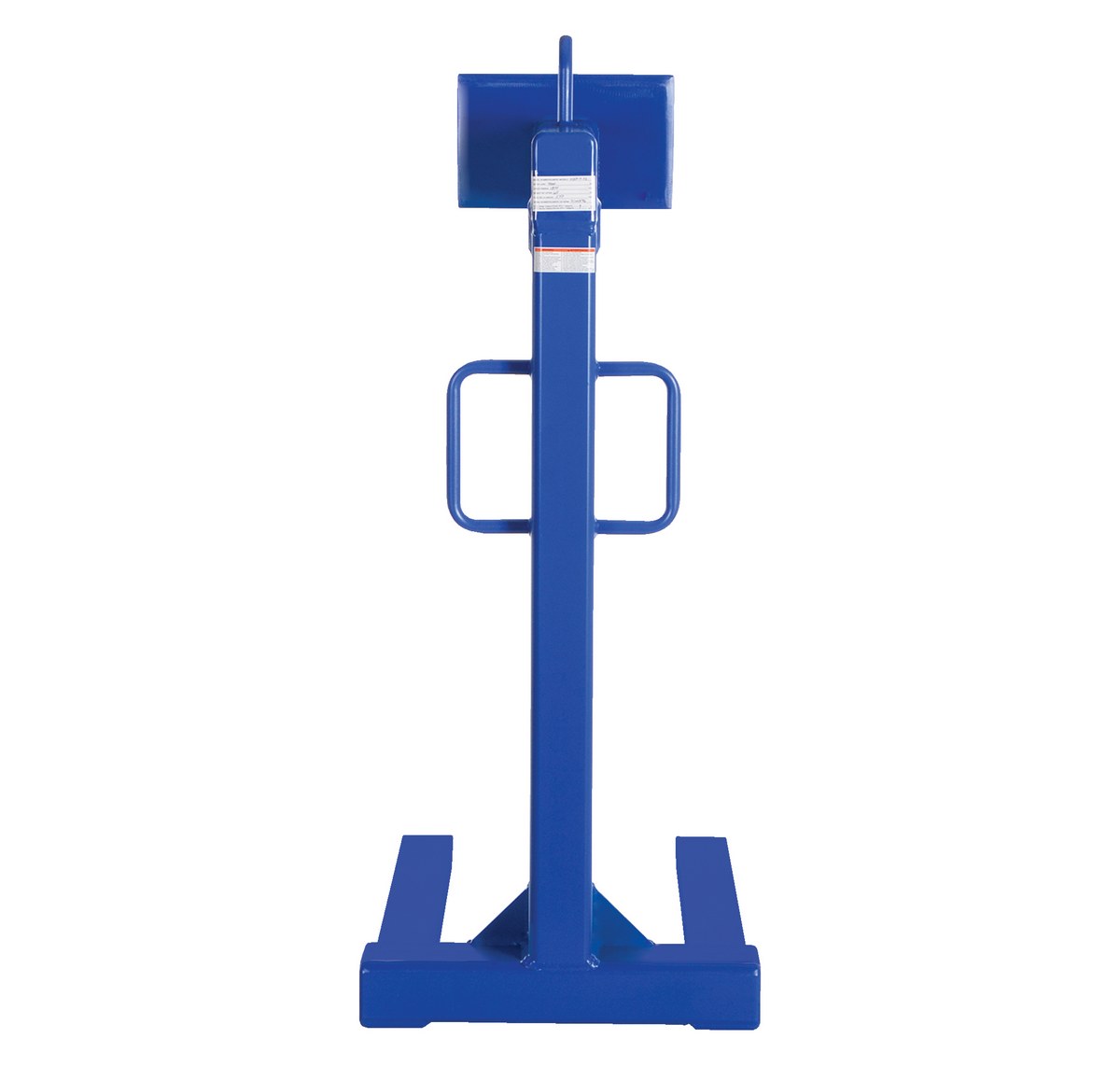

HDP-4-42_F.jpg HDP-4-42_G.jpg HDP-4-42_H.jpg HDP-4-42_A.jpg
HDP-4-42_B.jpg HDP-4-42_C.jpg HDP-4-42_D.jpg HDP-4-42_E.jpg
Pallet Lifters

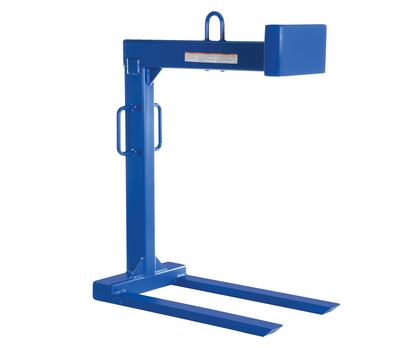

model: HDP-4-42



Featured Overhead Lifting


Aluminum Work Area Portable Gantry Cranes
Adjustable Steel Gantry Cranes with Pneumatic Casters
Vertical Plate Clamps
Heavy-Duty Die Lifting Tongs
Spreader Beam Roll Lifter
Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option
Adjustable Steel Gantry Cranes - Knockdown
Magnets
Economy Lever Hoists (disc brake)
model chart

Product Family Overview

Print Friendly
Pallet Lifters
SERIES: HDP

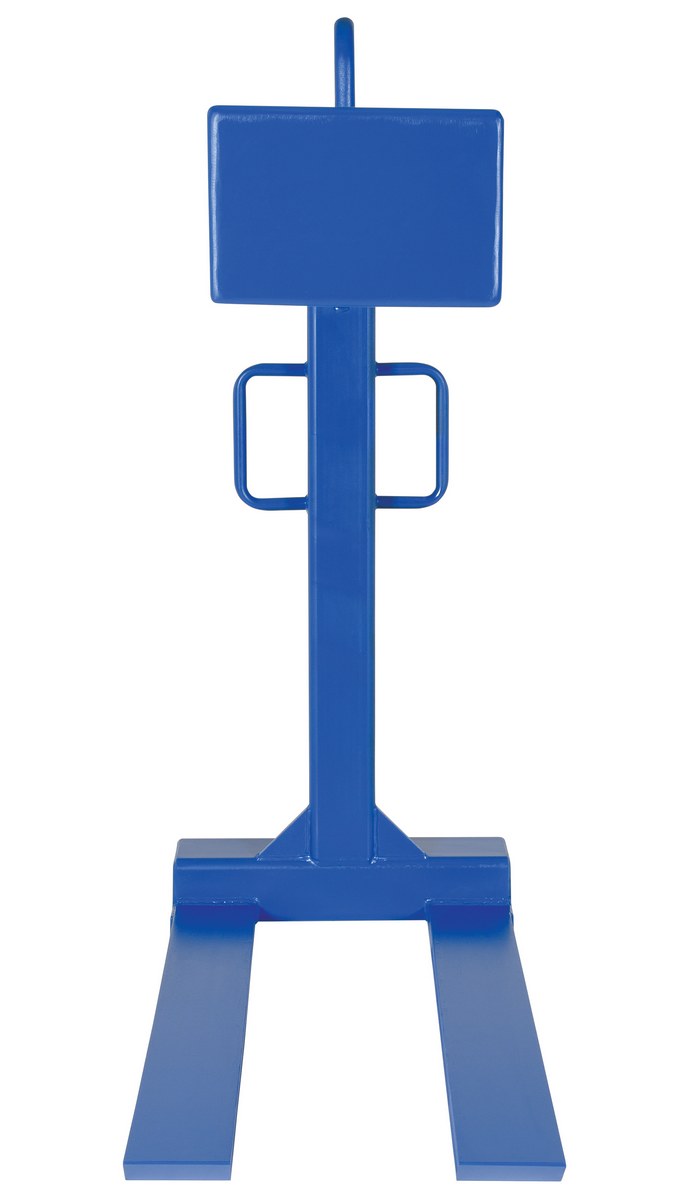

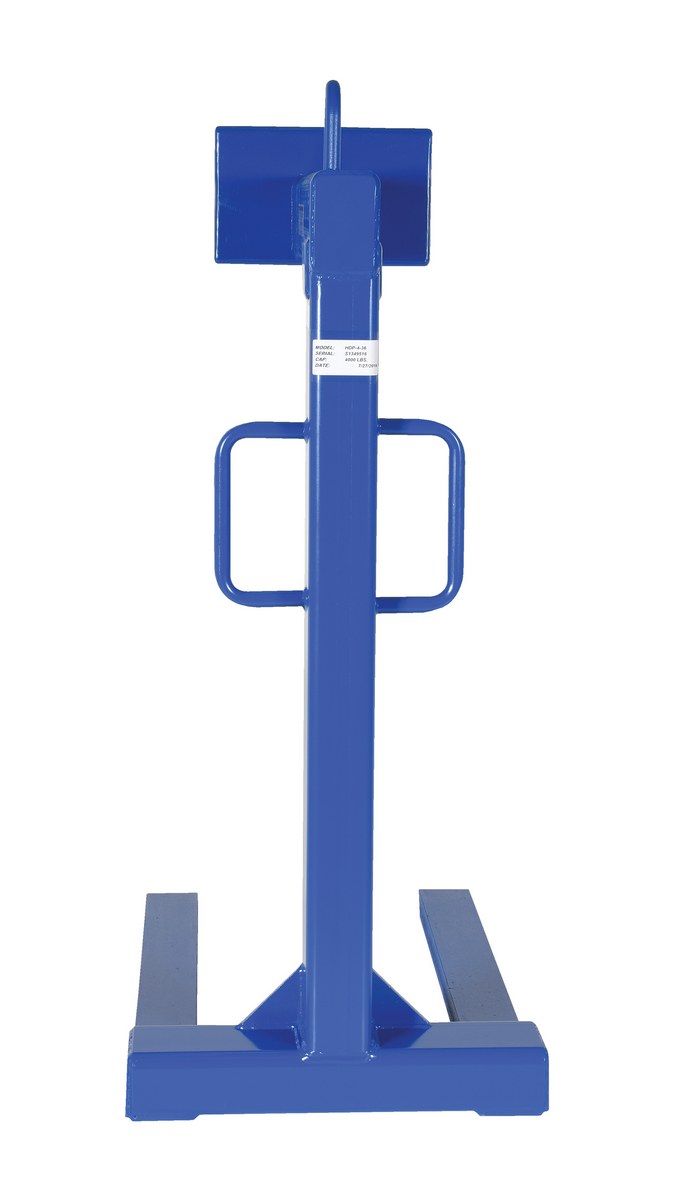

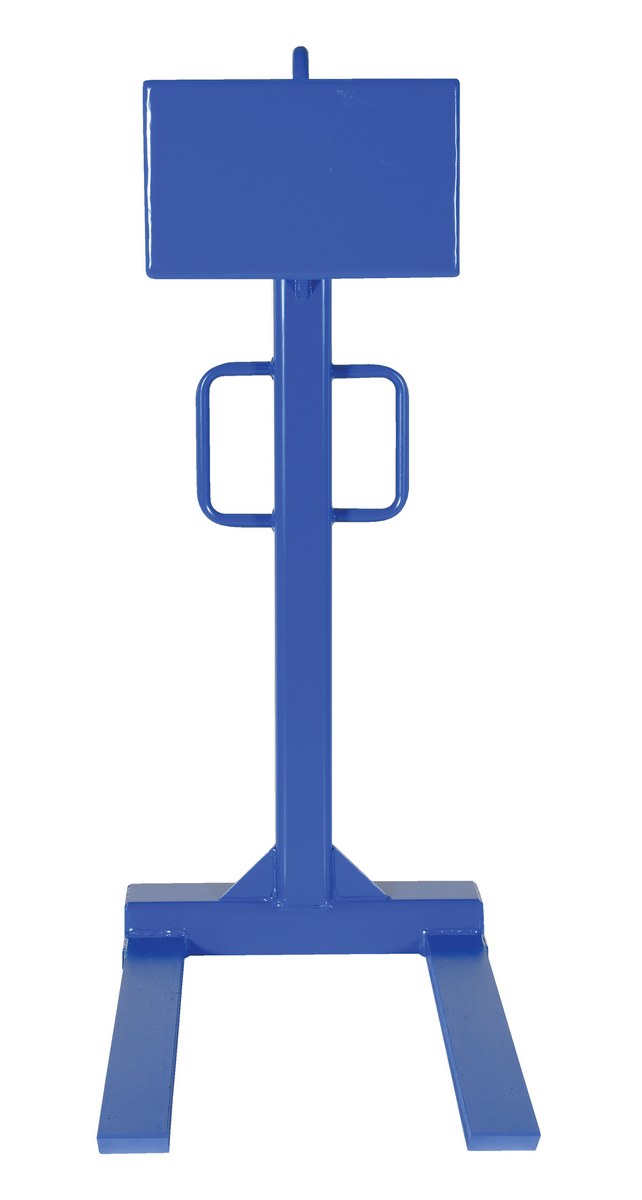

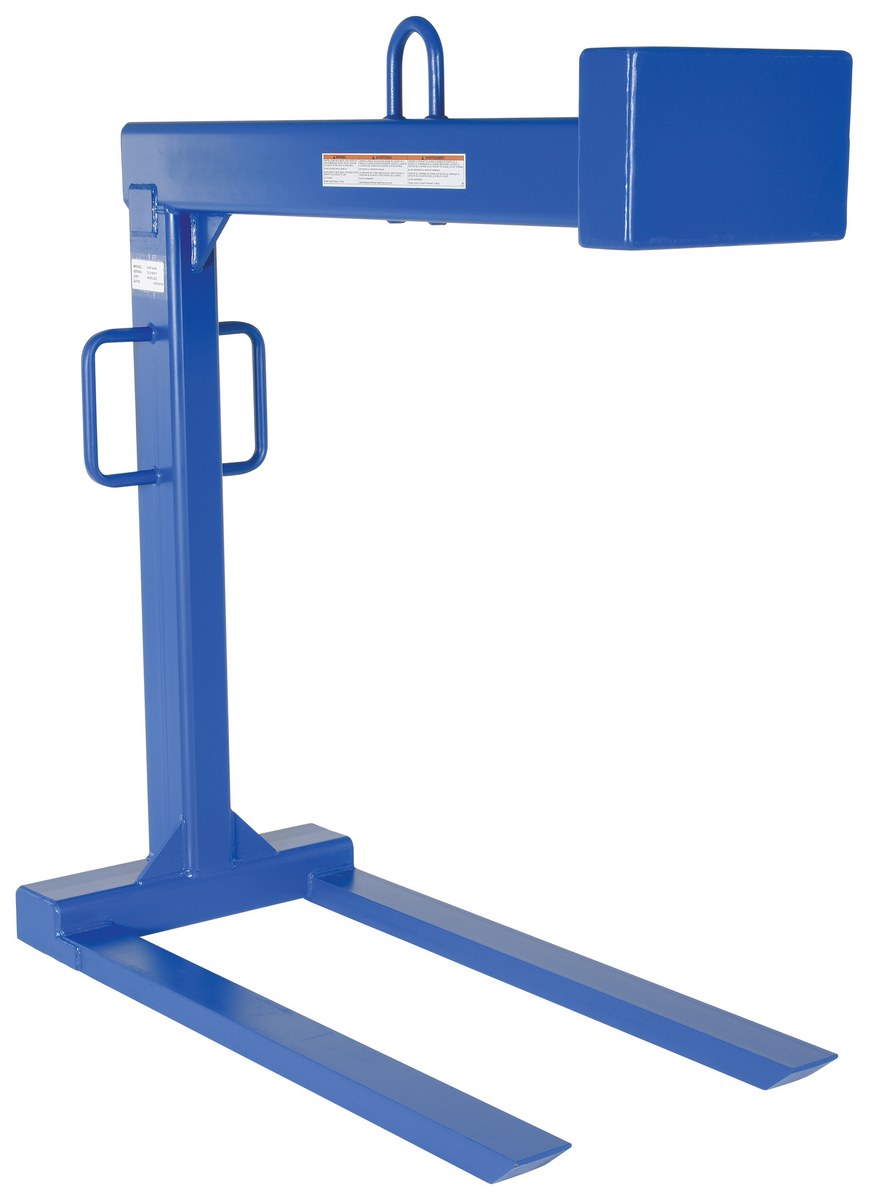

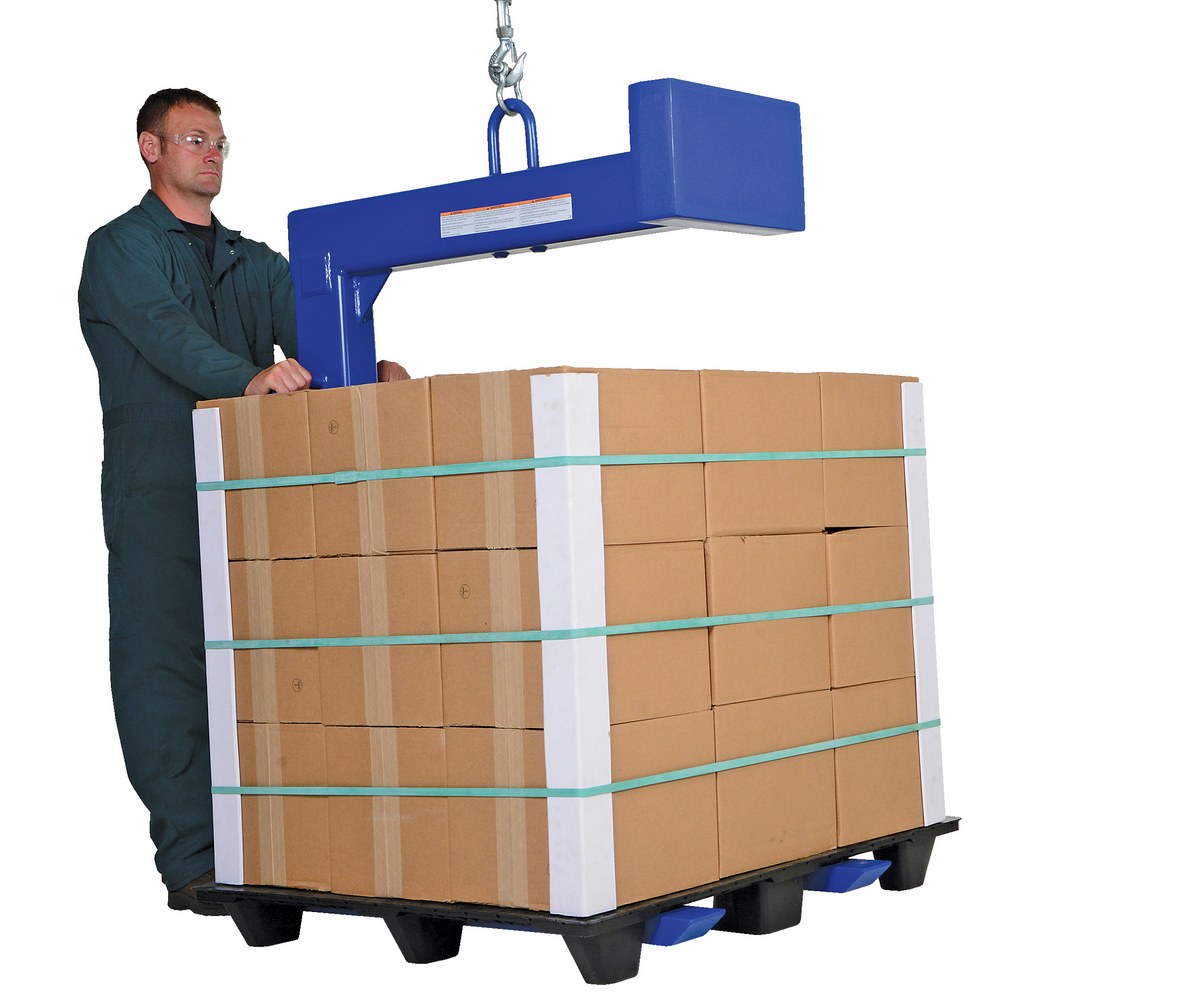

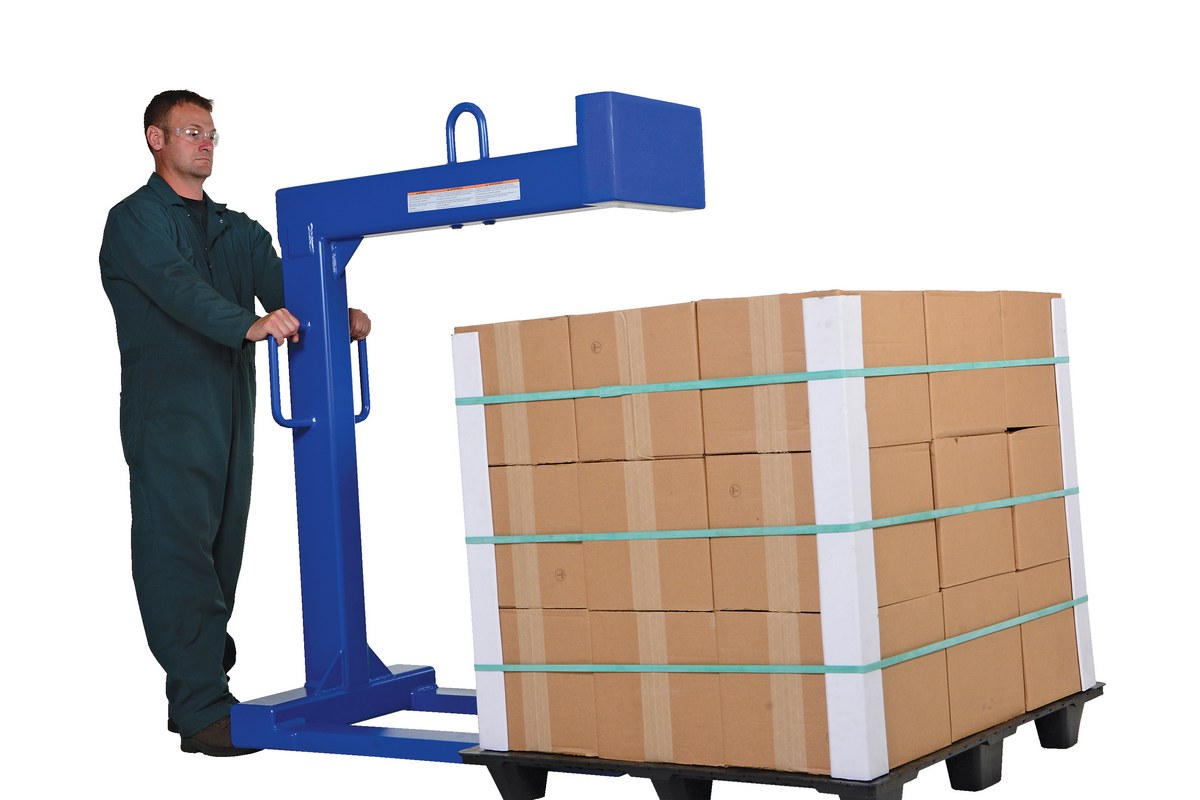

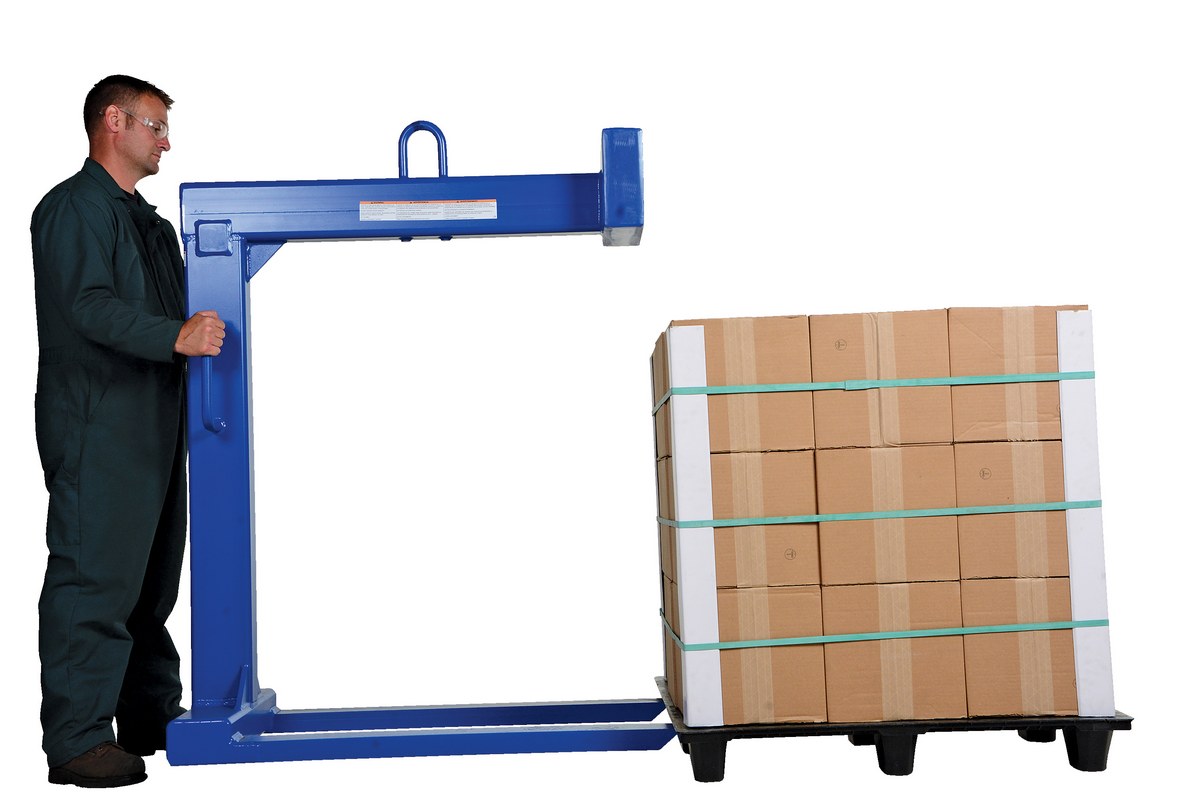

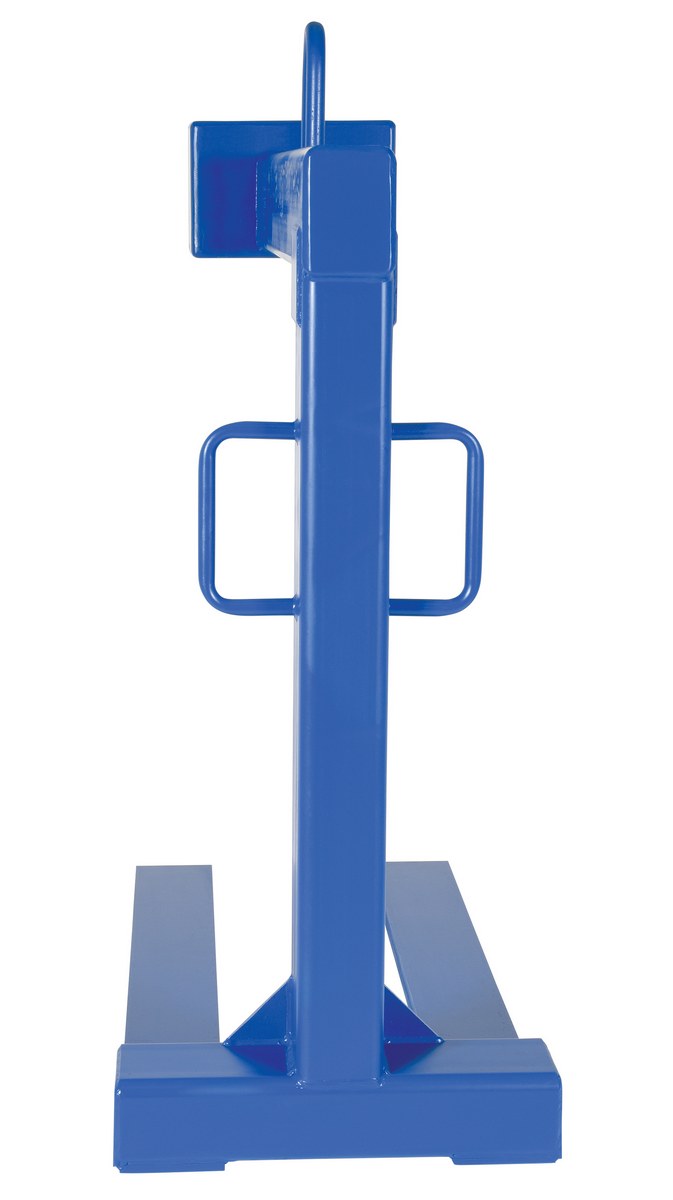

Easily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.

  • Tapered forks allow easy access under pallets
  • Main support contains handles to allow positioning
  • Large square head serves as a counterweight to keep level without a load
  • Unit meets ASME B30.20 standard 1993

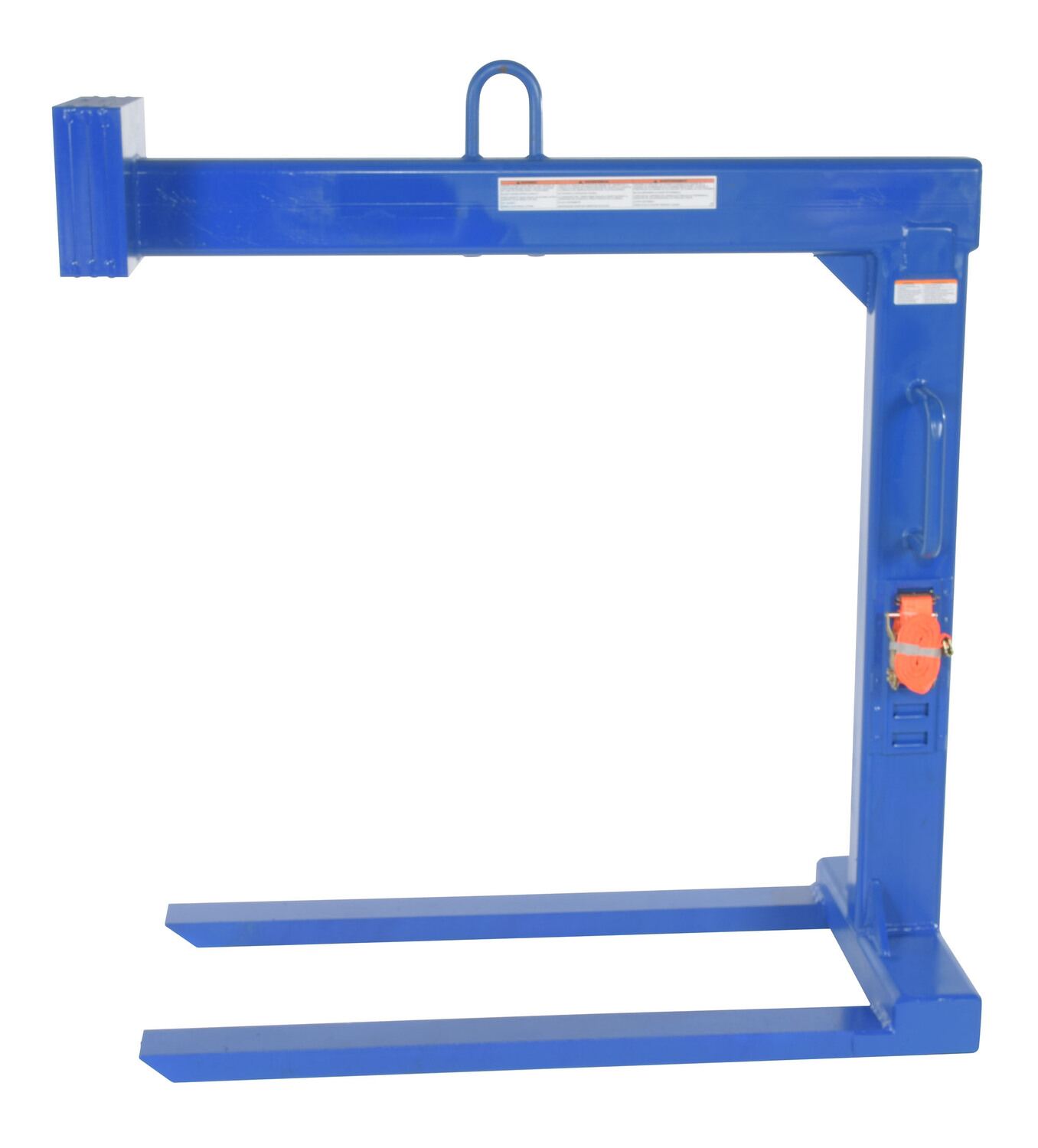

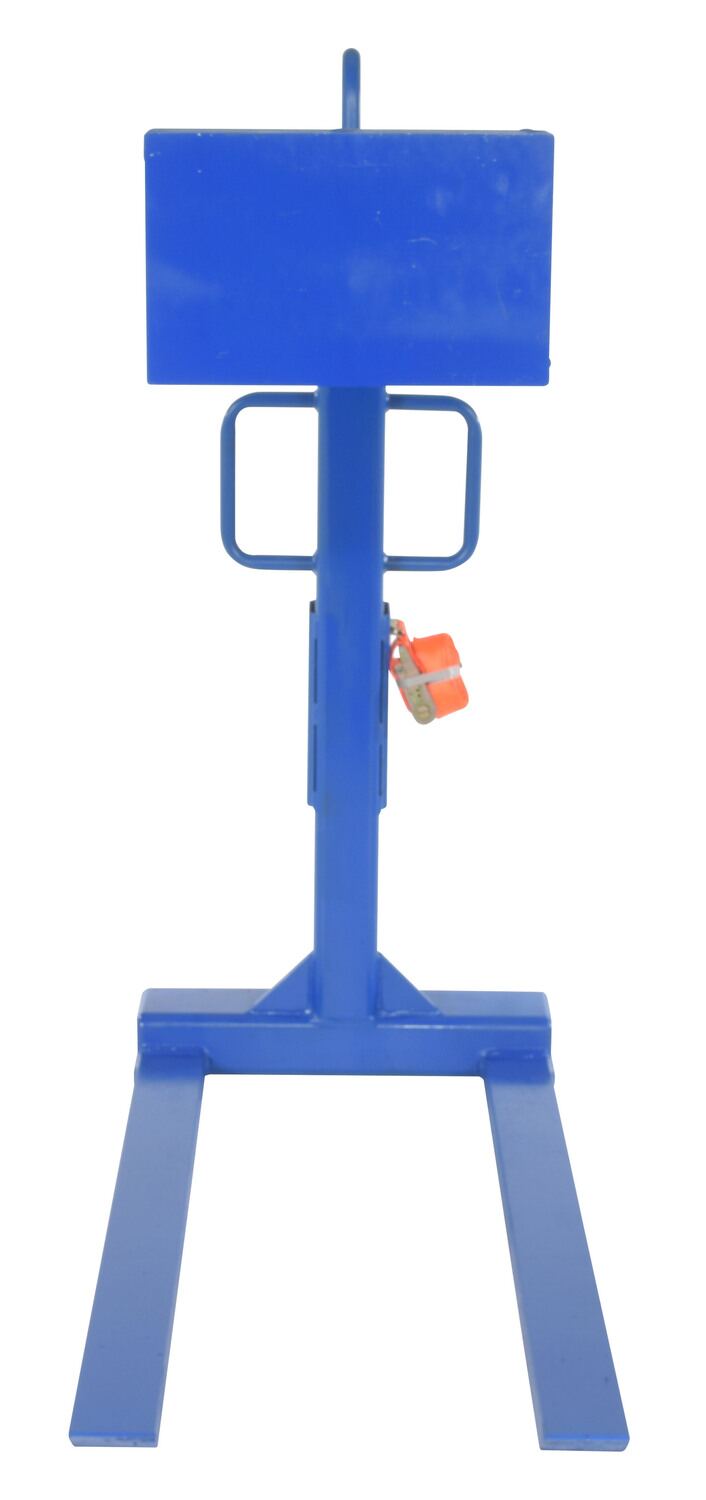

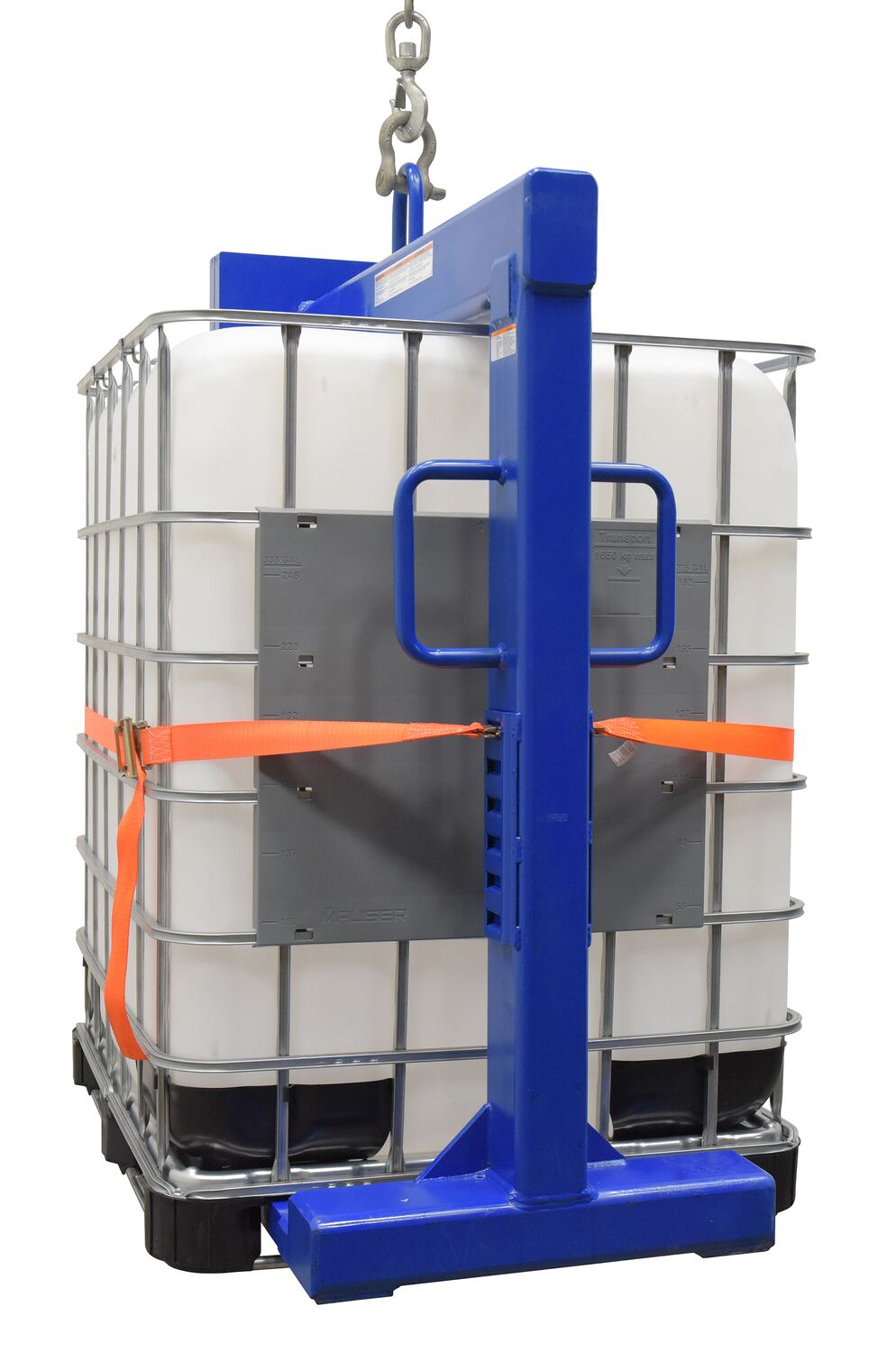

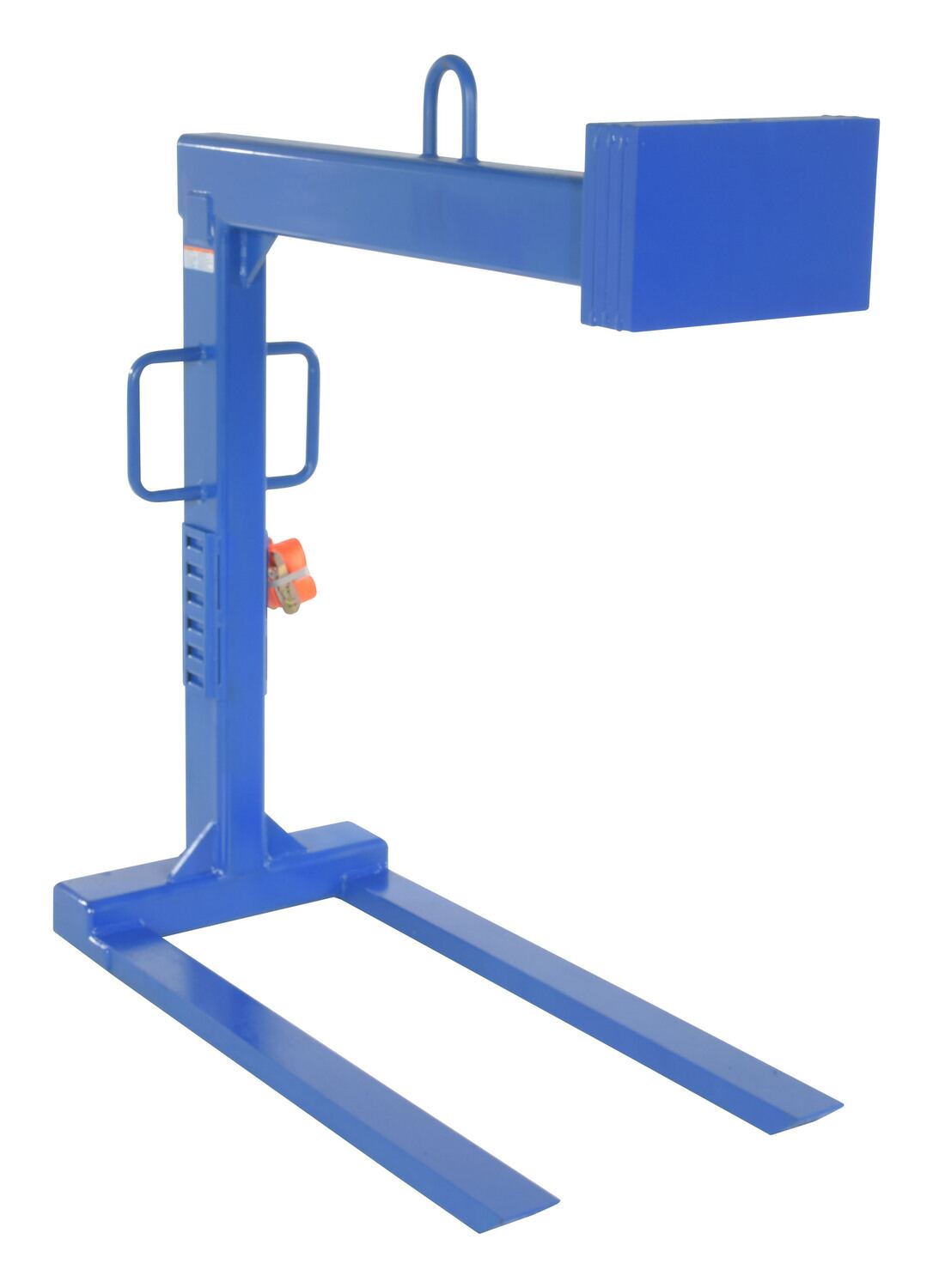

Optional Tie Down Track for HDP's - Factory Installed Option Only

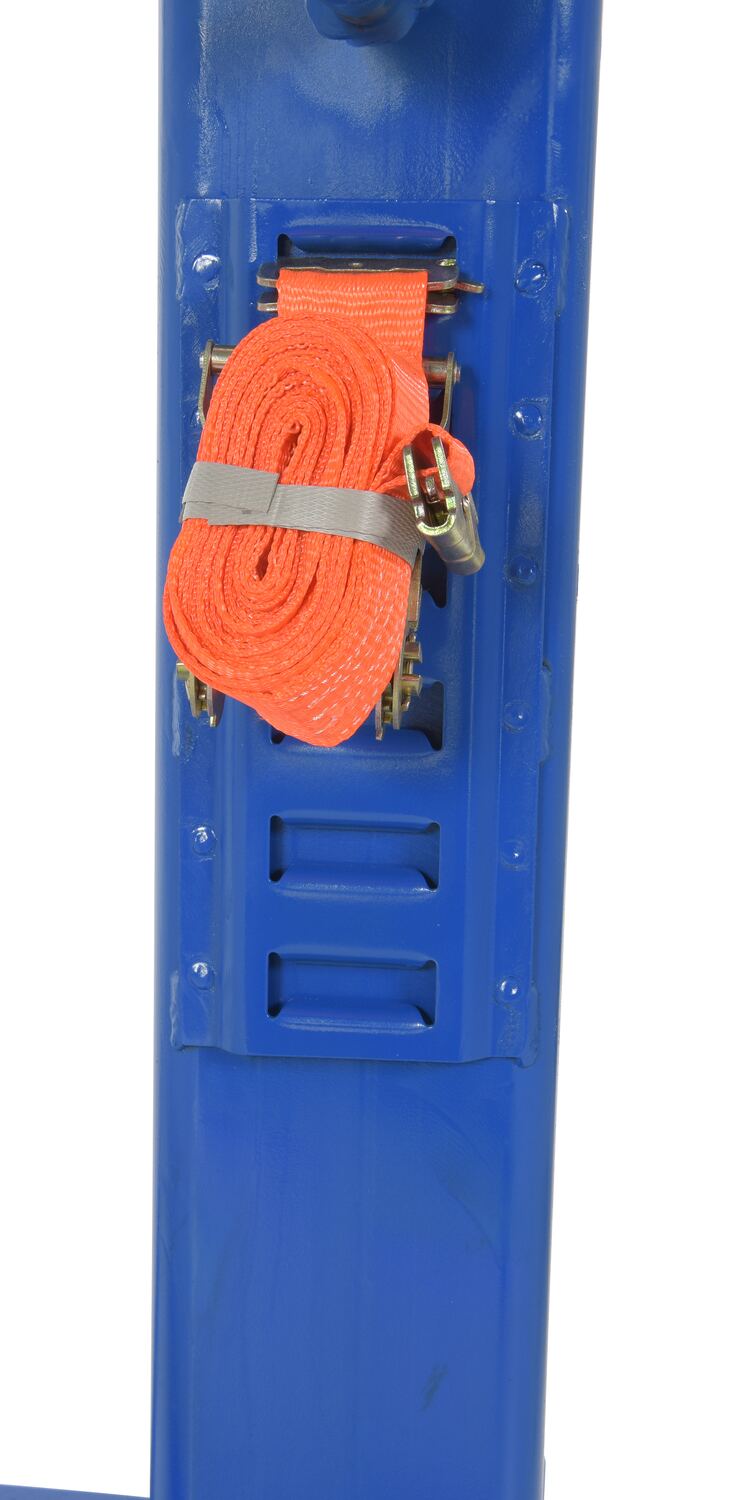

Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.

Easily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.

  • Tapered forks allow easy access under pallets
  • Main support contains handles to allow positioning
  • Large square head serves as a counterweight to keep level without a load
  • Unit meets ASME B30.20 standard 1993

Optional Tie Down Track for HDP's - Factory Installed Option Only
Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.

Other Overhead Load Lifters

 Polyester Lifting Slings - Double Ply Heavy Duty Load Lifter Overhead Self Dumping Bin Deluxe Drywall/Panel Hoist

Additional Models In This Family
view entire Image Gallery

HDP-TIE-DOWN

HDP-TIE-DOWN

HDP-6-AB

HDP-6-AB

HDP-4-48

HDP-4-48

HDP-6-42

HDP-6-42

HDP-TIE-DOWN

HDP-TIE-DOWN

HDP-2-AB

HDP-2-AB

HDP-2-36

HDP-2-36

HDP-4-48

HDP-4-48

HDP-6-42

HDP-6-42

HDP-4-36

HDP-4-36

HDP-4-42

HDP-4-42

HDP-2-42

HDP-2-42

HDP-2-42

HDP-2-42

HDP-6-42

HDP-6-42

HDP-4-42

HDP-4-42

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

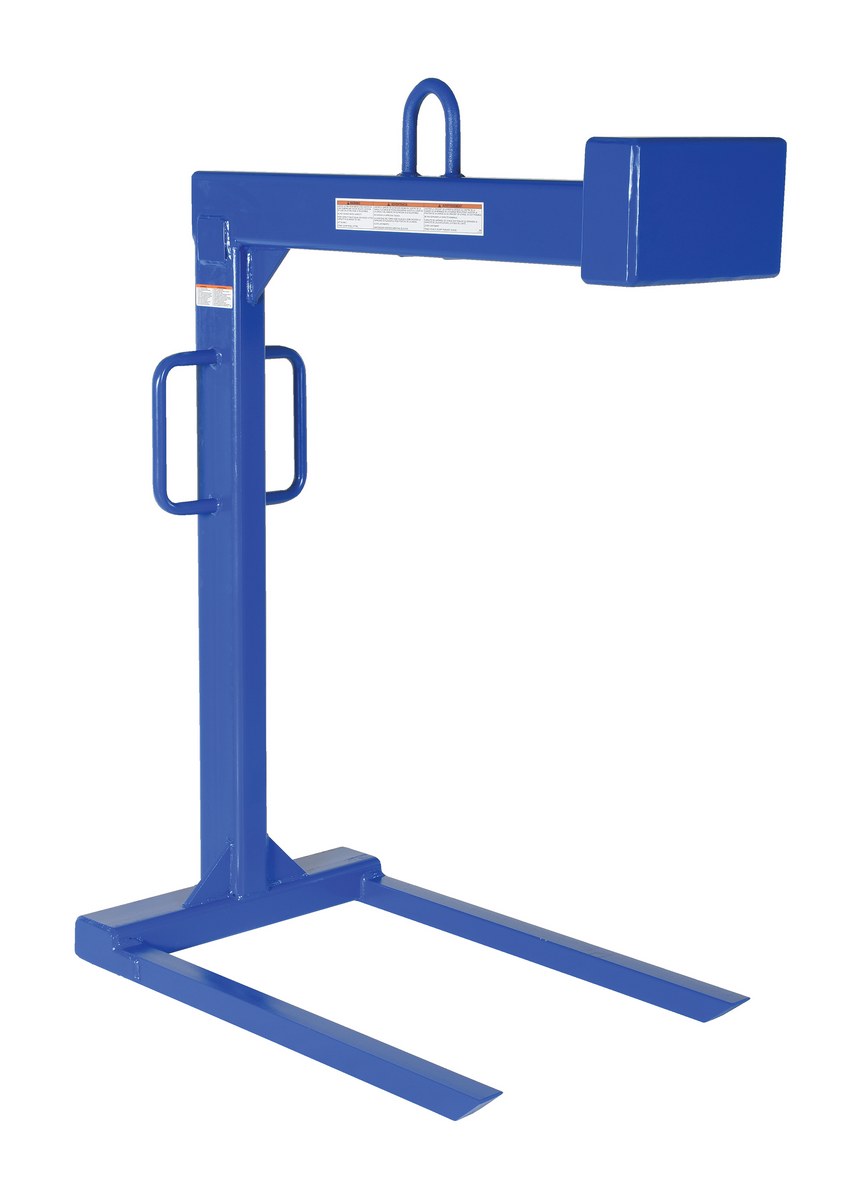

HDP-2-36 HDP-2-361 Year Limited WarrantySteel Pallet Lifter 36 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		436

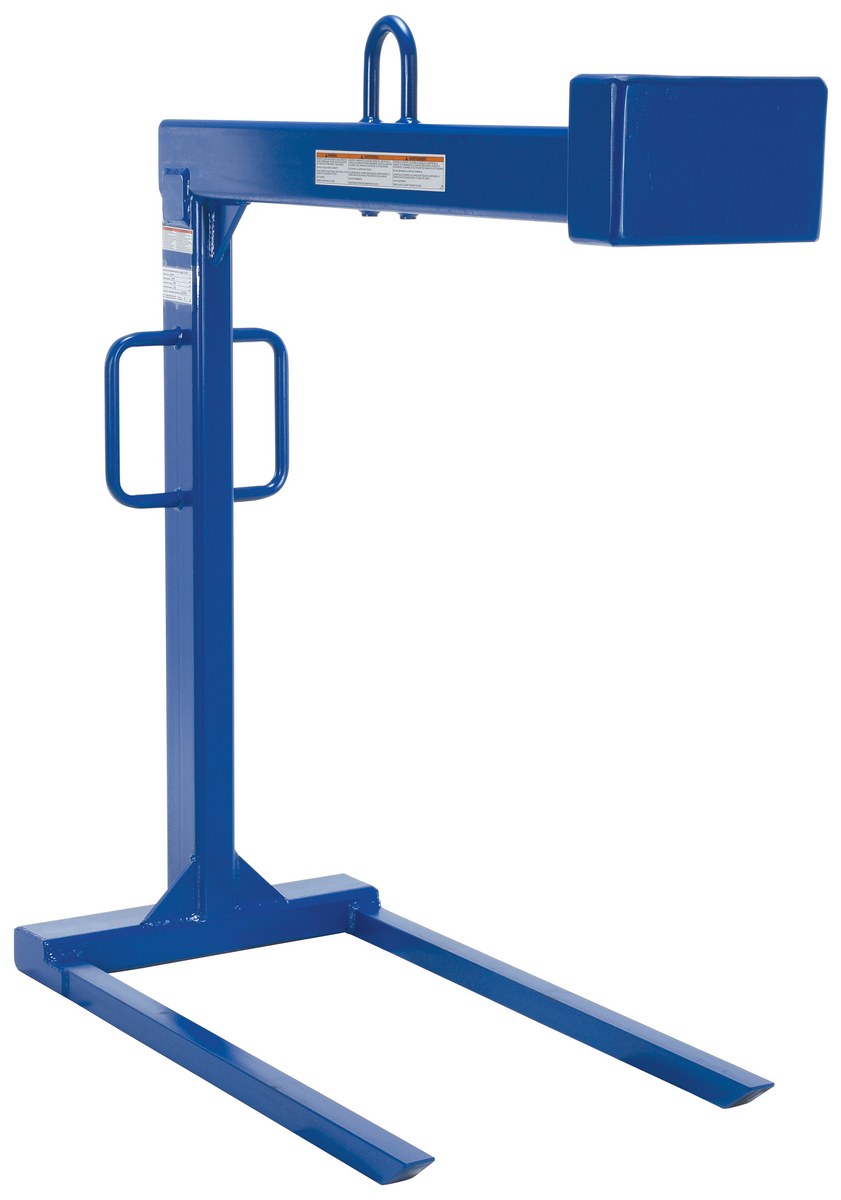

HDP-2-42 HDP-2-421 Year Limited WarrantySteel Pallet Lifter 42 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		470

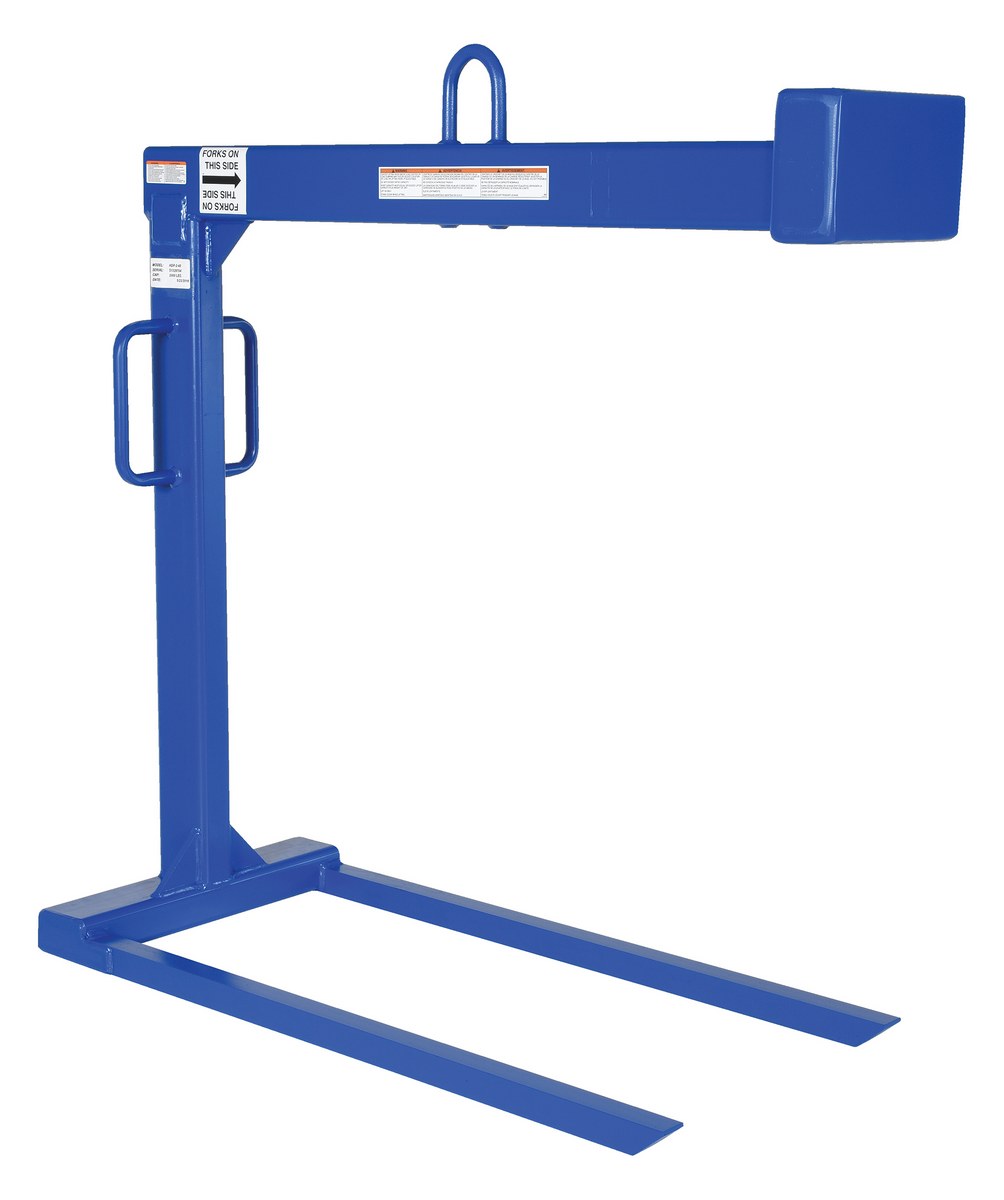

HDP-2-48 HDP-2-481 Year Limited WarrantySteel Pallet Lifter 48 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		474

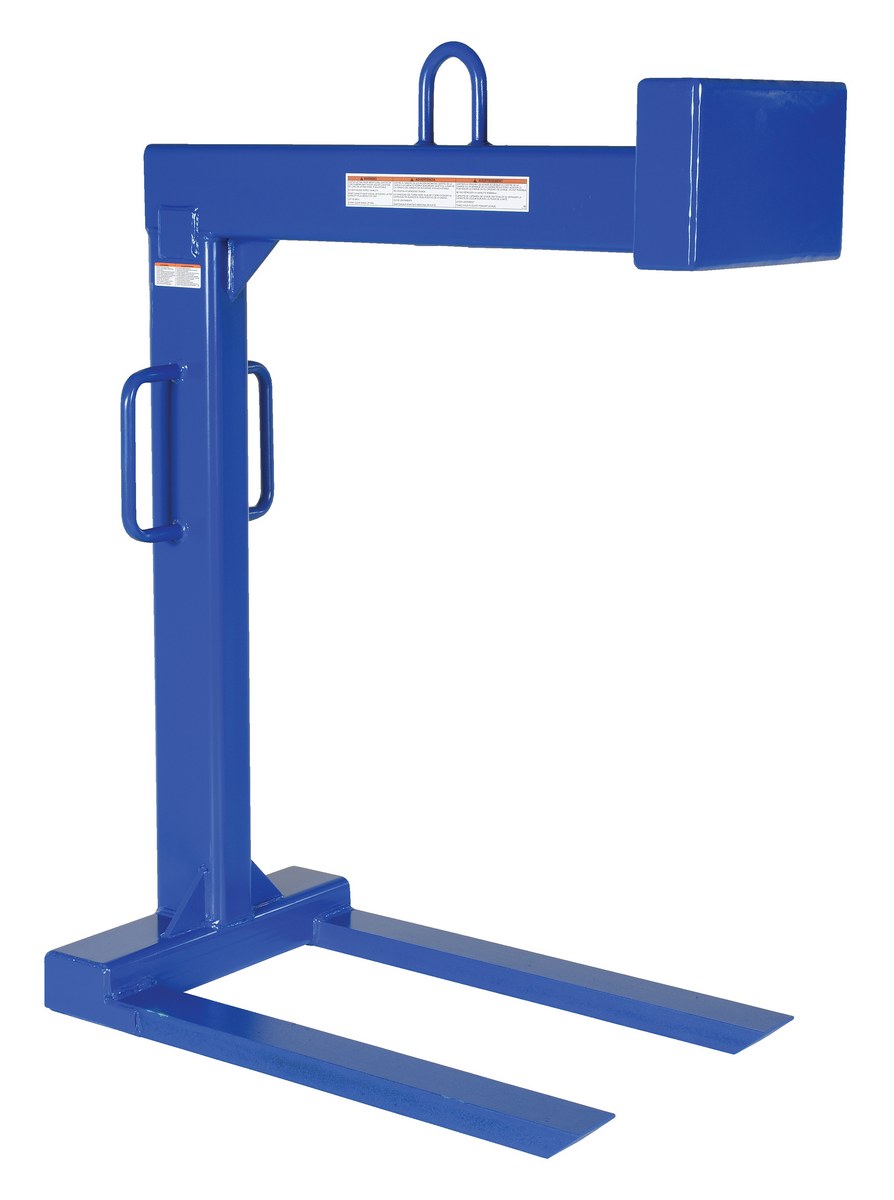

HDP-4-36 HDP-4-361 Year Limited WarrantySteel Pallet Lifter 36 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		629
HDP-4-42 HDP-4-421 Year Limited WarrantySteel Pallet Lifter 42 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		658
HDP-4-48 HDP-4-481 Year Limited WarrantySteel Pallet Lifter 48 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		693

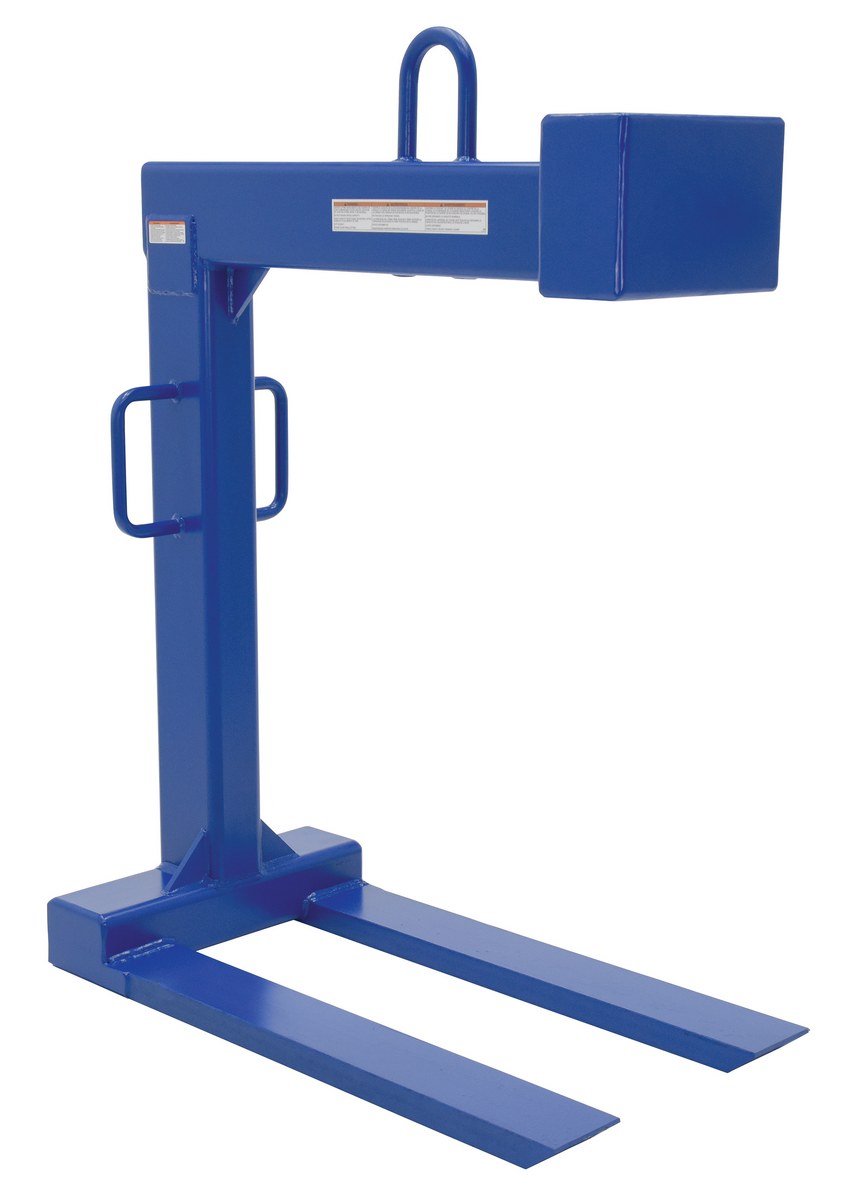

HDP-6-42 HDP-6-421 Year Limited WarrantySteel Pallet Lifter 42 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		675

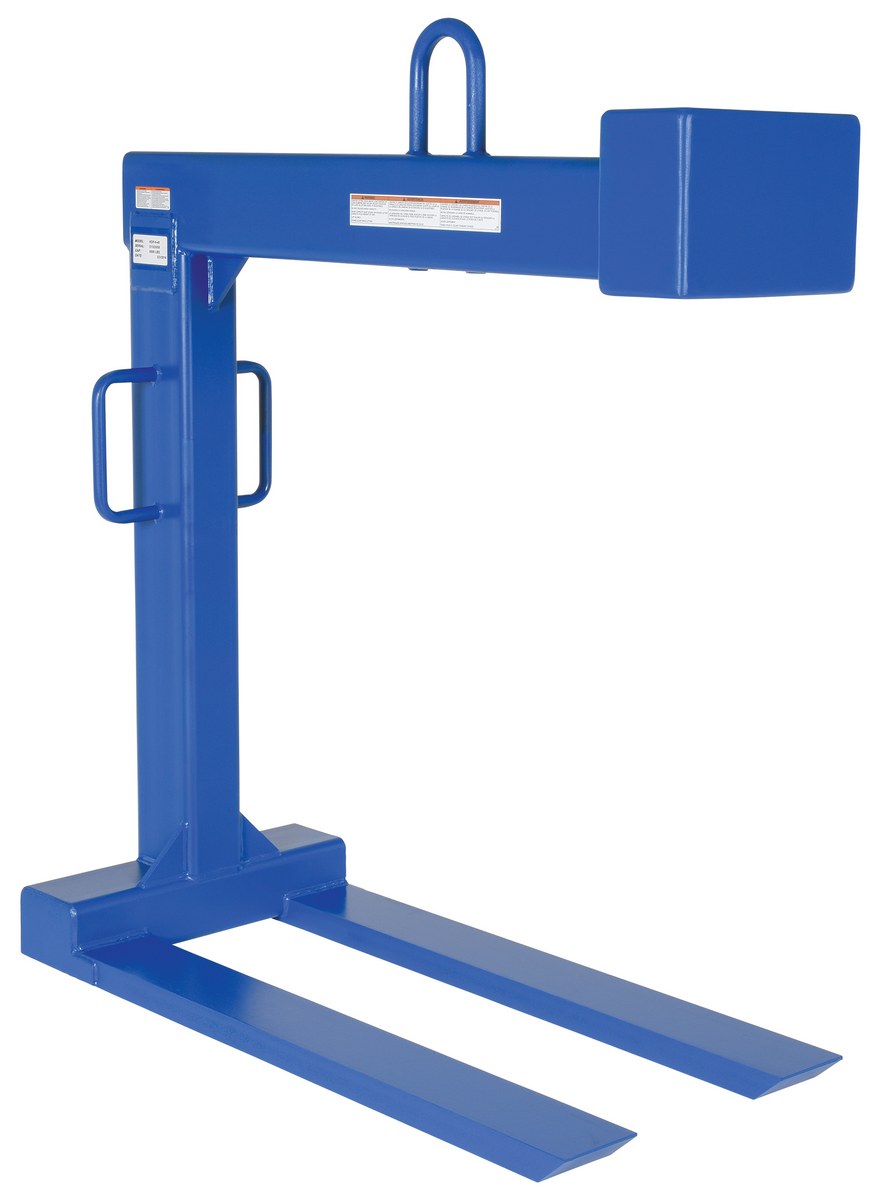

HDP-6-48 HDP-6-481 Year Limited WarrantySteel Pallet Lifter 48 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1005

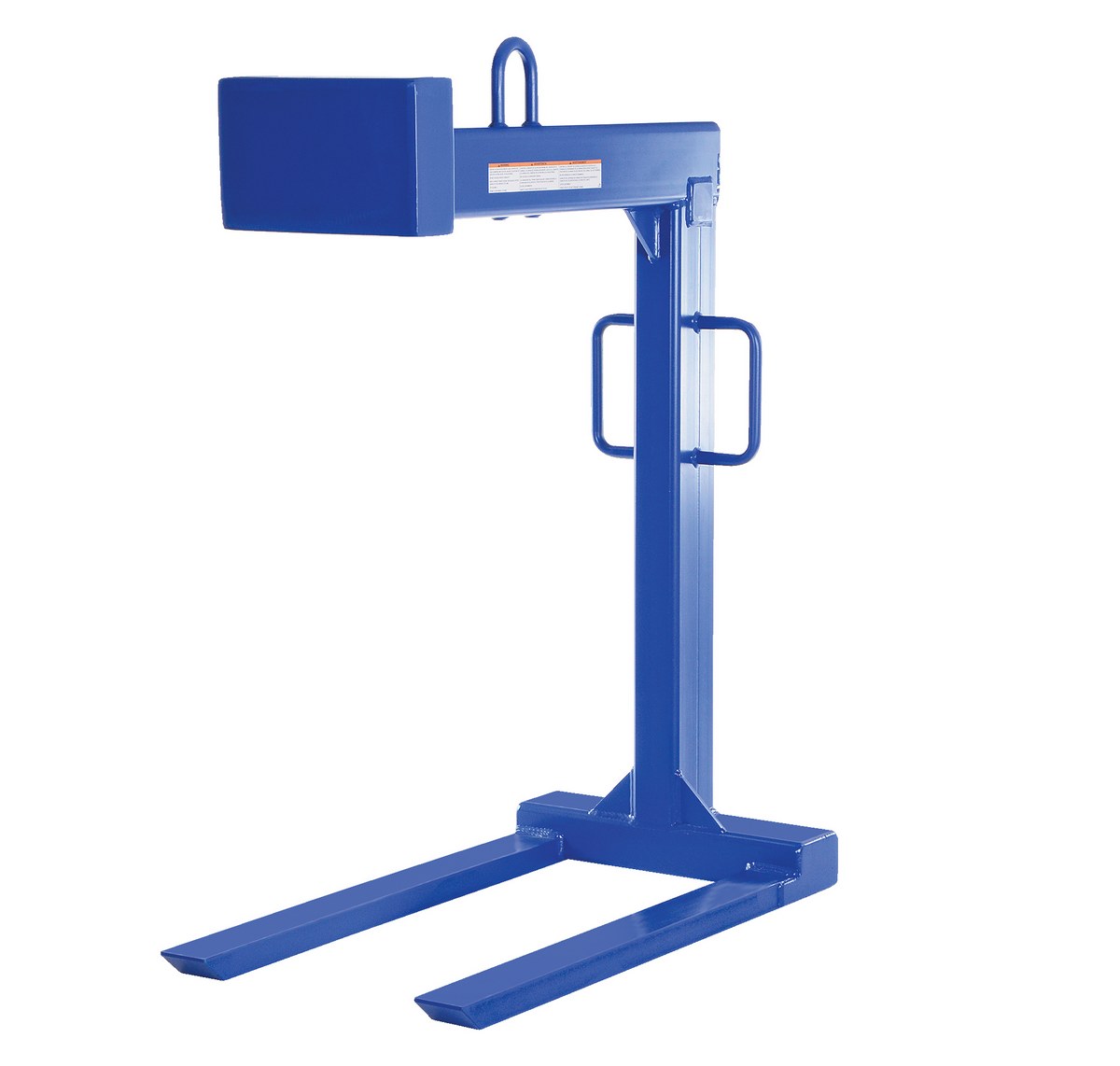

HDP-6-54 HDP-6-541 Year Limited WarrantySteel Pallet Lifter 54 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1006

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDP-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21

HDP-2-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21

HDP-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21
Uniform Capacity (lb.): 2,000
Fork Spacing (in.): 21

HDP-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17

HDP-4-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17

HDP-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17
Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 17

HDP-6-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13

HDP-6-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13

HDP-6-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
Uniform Capacity (lb.): 6,000
Fork Spacing (in.): 13
For More Details of the Option Click the Red Model Button
HDP-2-AB HDP-2-AB90 Days Limited WarrantyFactory Installed Steel Adjustable Bail For 2000 Lb. Capacity Solid Steel Pallet LiftersSizes: Fabricated to Fit 2000 Unit

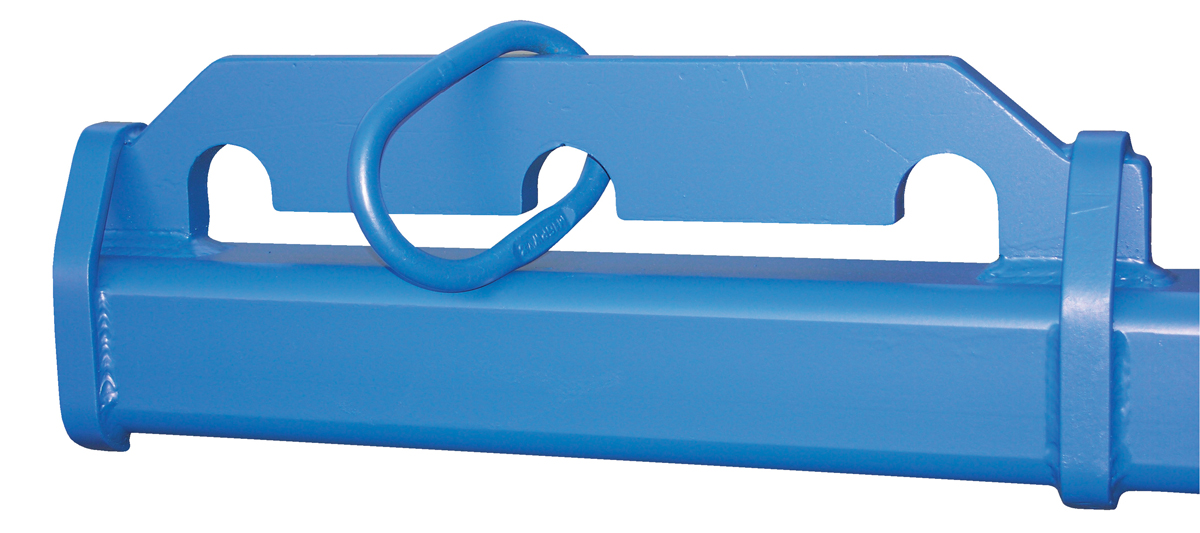

HDP-4-AB HDP-4-AB90 Days Limited WarrantyFactory Installed Steel Adjustable Bail For 4000 Lb. Capacity Solid Steel Pallet LiftersSizes: Fabricated to Fit 4000 Unit
HDP-6-AB HDP-6-AB90 Days Limited WarrantyFactory Installed Steel Adjustable Bail For 6000 Lb. Capacity Solid Steel Pallet LiftersSizes: Fabricated to Fit 6000 Unit
HDP-TIE-DOWN NEW HDP-TIE-DOWN90 Days Limited WarrantySteel Factory Installed Optional HDP Tie Down BlueBreak Strength (lbs):
Strap Length (ft): 		3

.
