Trailer Lock Systems
The Trailer Lock System is designed for installation directly in front of the loading dock. The electric hydraulic system captures the ICC bar on the back of semi-trailers. To ensure maximum safety the unit comes standard with an accumulator that allows the lock to follow the trailer up and down as it is loaded/unloaded. A beeper and flashing light warns the operator if the lock does not engage the trailer properly. A visual indication of the restraint's status is shown at all times by the traffic light outside and the control panel inside. It comes standard with light package, control panel and three (3) large visual signs. Draw pull shear strength is 22,500 lbs per foot. Pre-drilled holes included for wall or ground mounting.
Standard Safety Features
Operator Warned If Hook Misses Or If Hook Is Restricted - If the hook is interfered with or misses the ICC bar, it will automatically retract and the control panel will alert the attendant. The attendant must then chock the wheels and change the lights manually on the control panel.
- Hydraulic system captures the ICC bar on back of semi-trailers
- Beeper and flashing light warns if the lock does not engage properly
- Traffic light outside for visual indication is shown at all times
- Includes light package, control panel, and three (3) large visual signs
Economical Overhead Door Warning Barriers
Trailer Wheel Locks
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

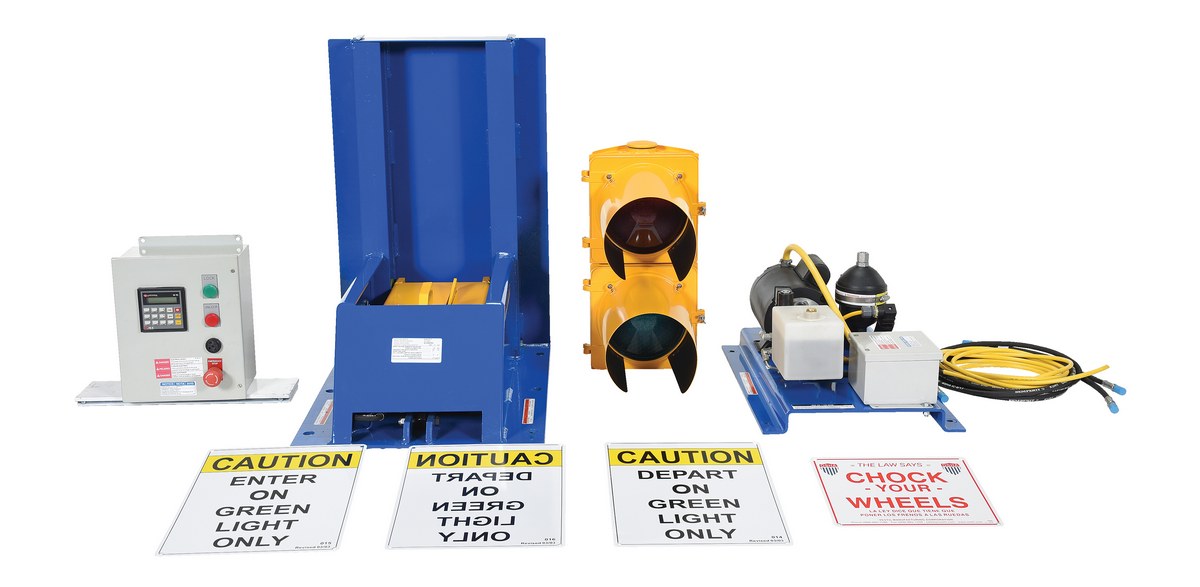

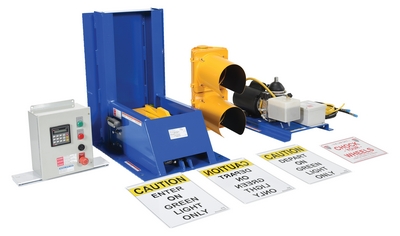

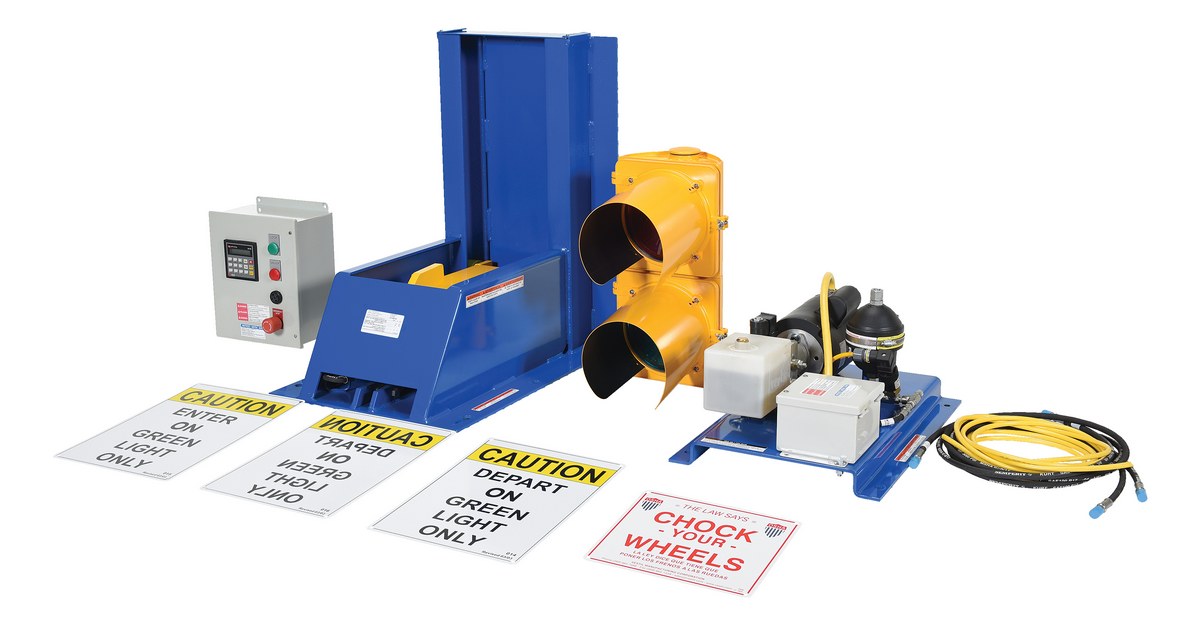

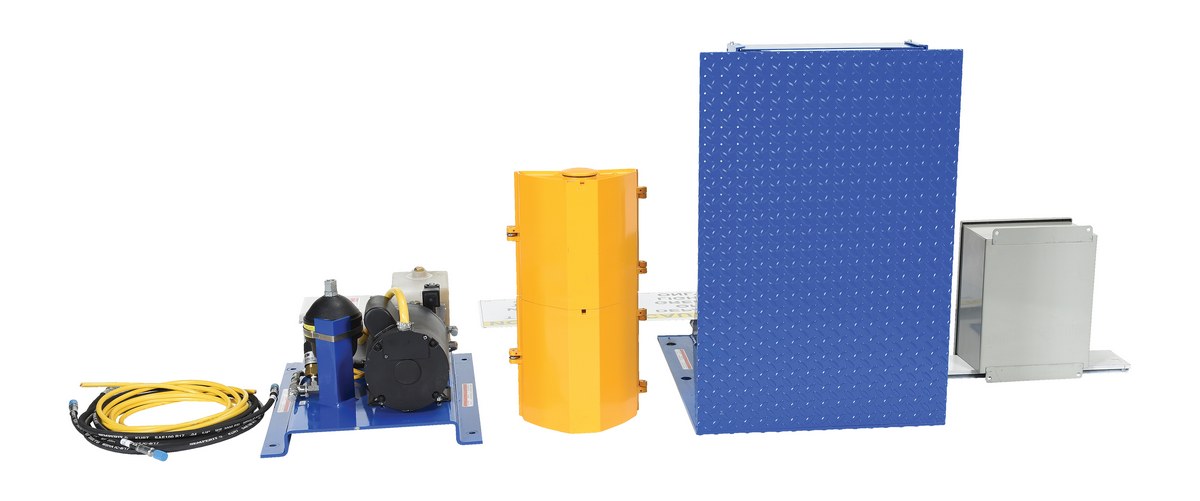

| TL-100-F | POPULAR |  | 1 Year Limited Warranty | Steel Electric Hydraulic with Aluminum Light Package Trailer Lock System Blue / Yellow | Draw Pull Shear Strength (lbs. per ft.): 22500 Light Package: Aluminum | 470 | |
| TL-100-F-S |  | 1 Year Limited Warranty | Steel Electric Hydraulic with Polypropylene Light Package Trailer Lock System Blue / Yellow | Draw Pull Shear Strength (lbs. per ft.): 22500 Light Package: Polypropylene | 518 | ||

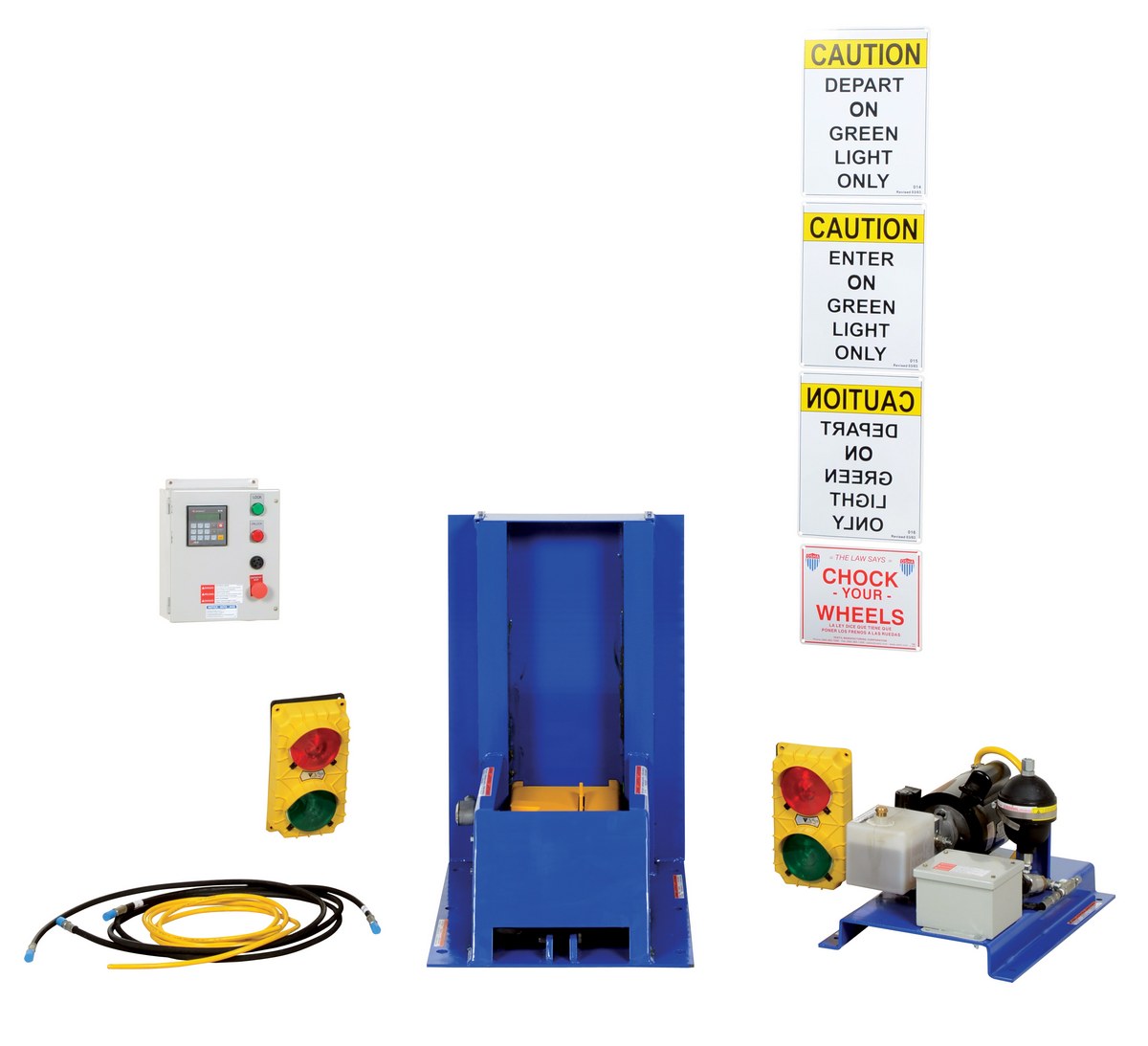

| TL-100-F-S-LED |  | 1 Year Limited Warranty | Steel Electric Hydraulic with Polypropylene LED Light Package Trailer Lock System Blue / Yellow | Draw Pull Shear Strength (lbs. per ft.): 22500 Light Package: Polypropylene LED | 470 | ||

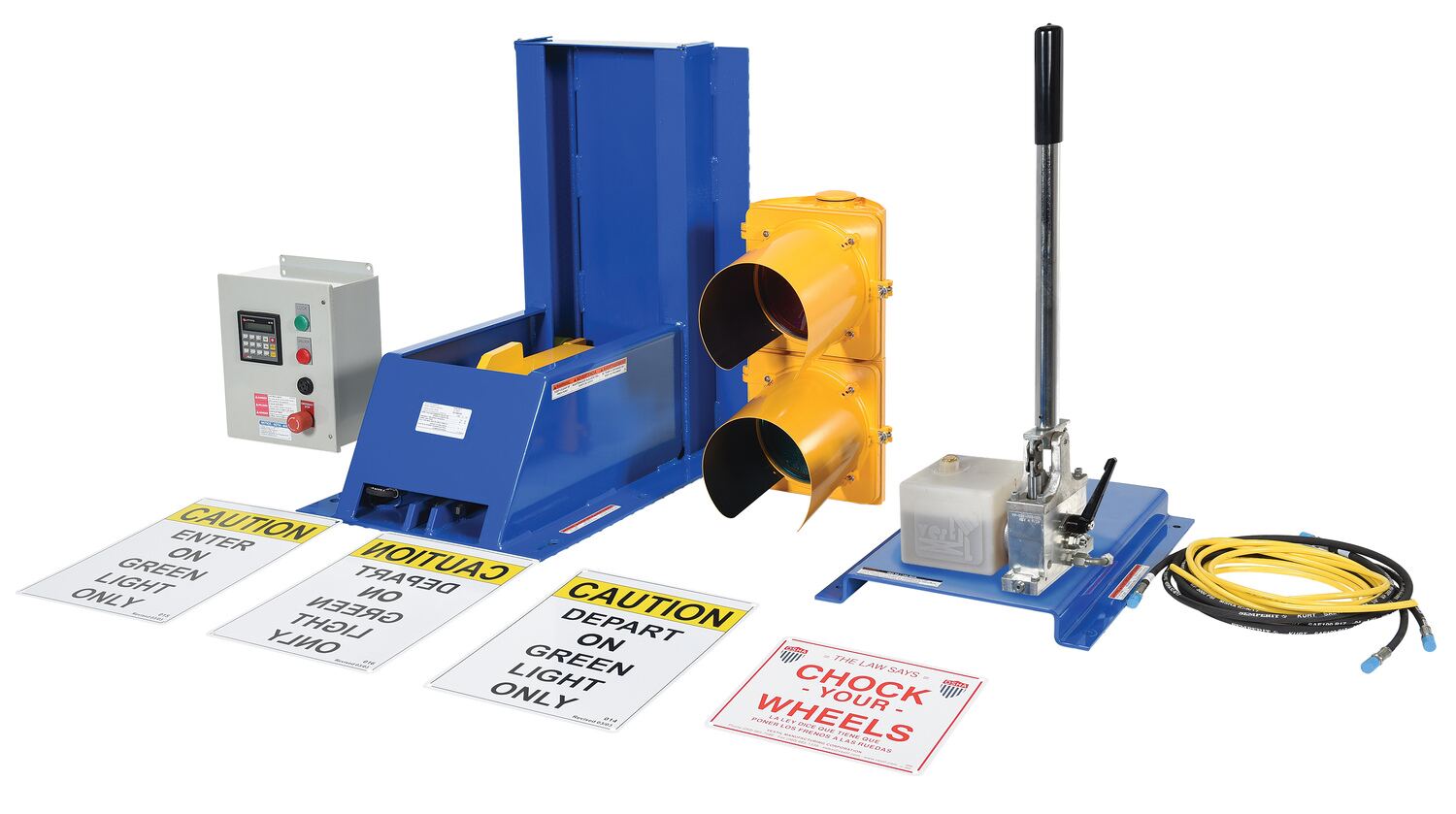

| TL-200-HP-F |  | 1 Year Limited Warranty | Steel Hydraulic Hand Pump with Aluminum Light Package Trailer Lock System Blue / Yellow | Draw Pull Shear Strength (lbs. per ft.): 22500 Light Package: Aluminum | 405 | ||

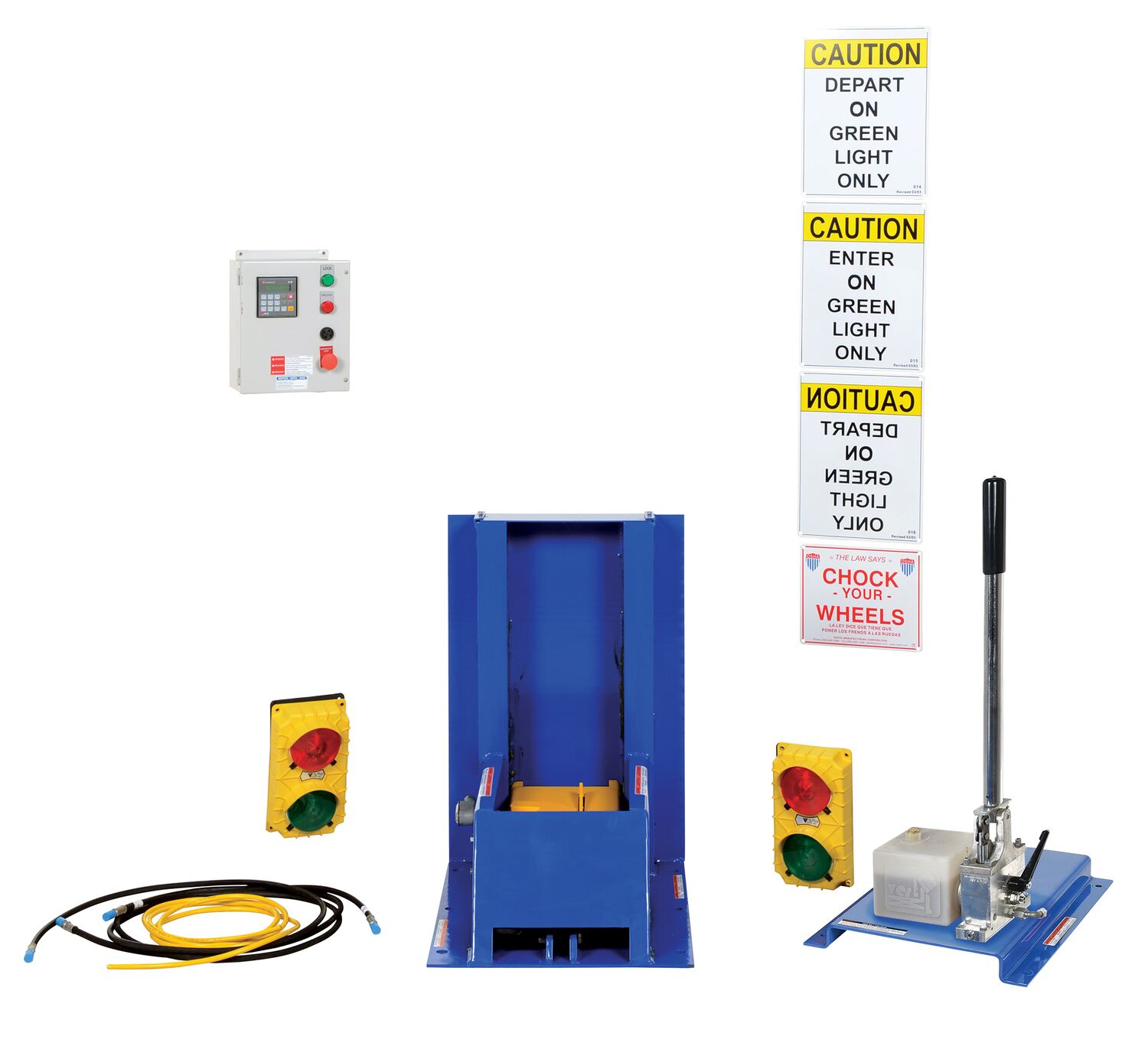

| TL-200-HP-F-S |  | 1 Year Limited Warranty | Steel Hydraulic Hand Pump Trailer Lock System Blue / Yellow | Draw Pull Shear Strength (lbs. per ft.): 22500 Light Package: Polypropylene | 495 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene LED
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene LED
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Aluminum
Unit:
Size: W x L x H
Weight:
Limited Warranty
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene
Draw Pull Shear Strength (lbs. per ft.): 22500
Light Package: Polypropylene
For More Details of the Option Click the Red Model Button
| Model | Image | Description | Wt. (lbs) |
| RRC-2PB |  |
Radio remote Control 2-Button System (Lift-Hold-Lower Circuit) | 1 |
| CWHF-SM | - | Cold weather oil, less than 1/2 gallon, oil pour point -50F | - |
| CWHF-MD | - | Cold weather oil, up to 1 gallon, oil pour point -50F | - |
| CWHF-LG | - | Cold weather oil, up to 3 gallons, oil pour point -50F | - |
| CWHF-XLG | - | Cold weather oil, up to 16 gallons, oil pour point -50F | - |
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: TL-100-F
Hydraulic Oil SDS Sheet for: TL-100-F-S
Hydraulic Oil SDS Sheet for: TL-200-HP-F
Hydraulic Oil SDS Sheet for: TL-200-HP-F-S
Other PDF's
Directory Links Of Available PDF's For All Products
Q: How well do these lock systems operate in cold, freezing weather elements? I have a customer that is based in MN.
A: We suggest using the low temp oil in freezing climates.
Q: Can these systems be used with Edge-O-Dock Levelers?
A: No. The trailer lock systems can only be used with pit levelers.
 |
||||||||||||||||||||||||||||||||
Trailer Lock Systems |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
Standard Safety Features"Floats" with Trailers - Once the hook is raised into position the motor shuts off. The hook will follow the various trailer heights, up or down, during Loading/Unloading. This accomplished through an in-line accumulator.
Operator Warned If Hook Misses Or If Hook Is Restricted - If the hook is interfered with or misses the ICC bar, it will automatically retract and the control panel will alert the attendant. The attendant must then chock the wheels and change the lights manually on the control panel.
|
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
