Mezzanine Safety Gates

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

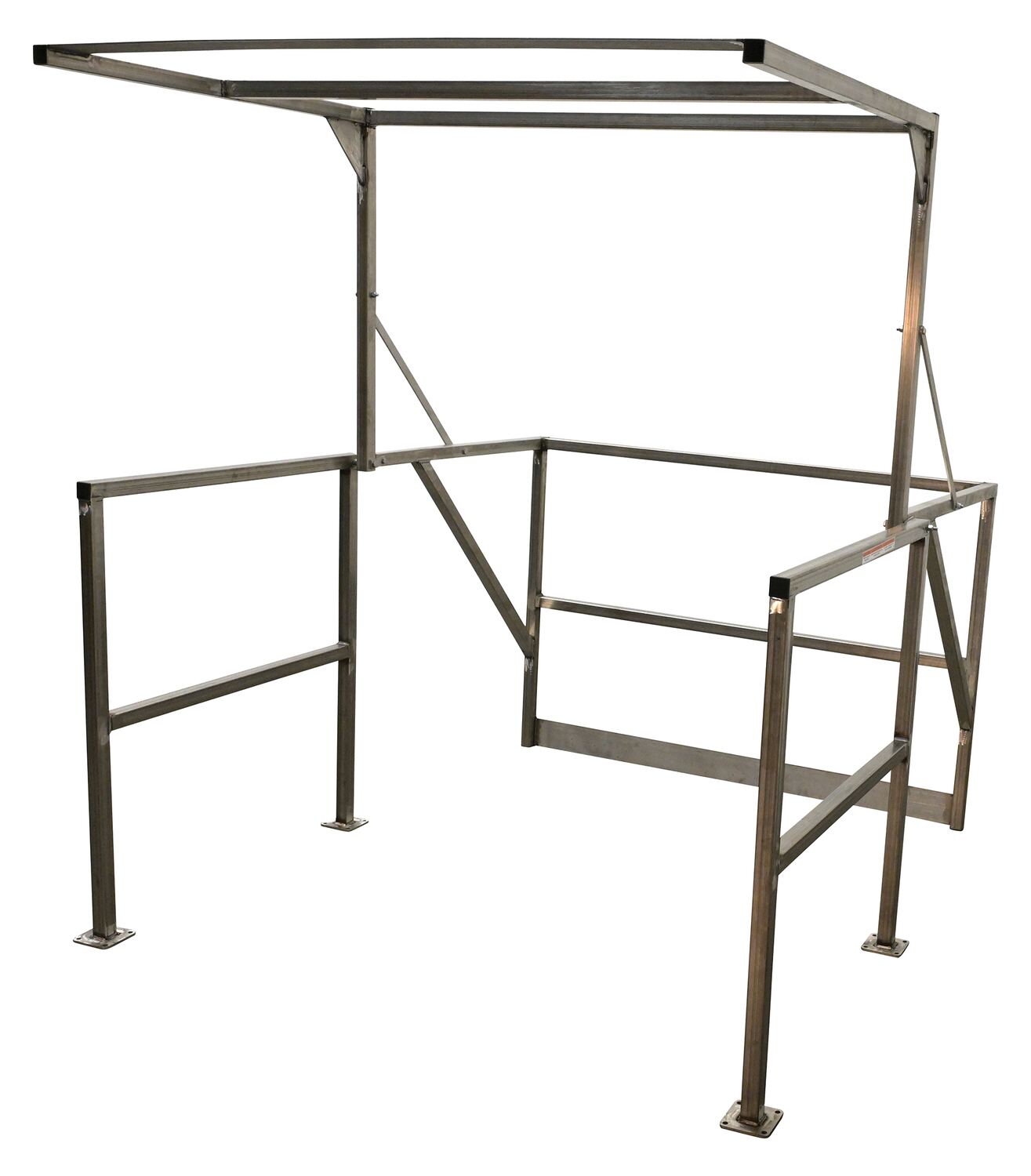

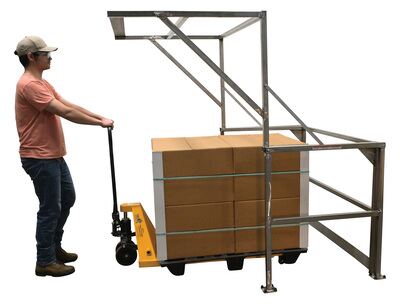

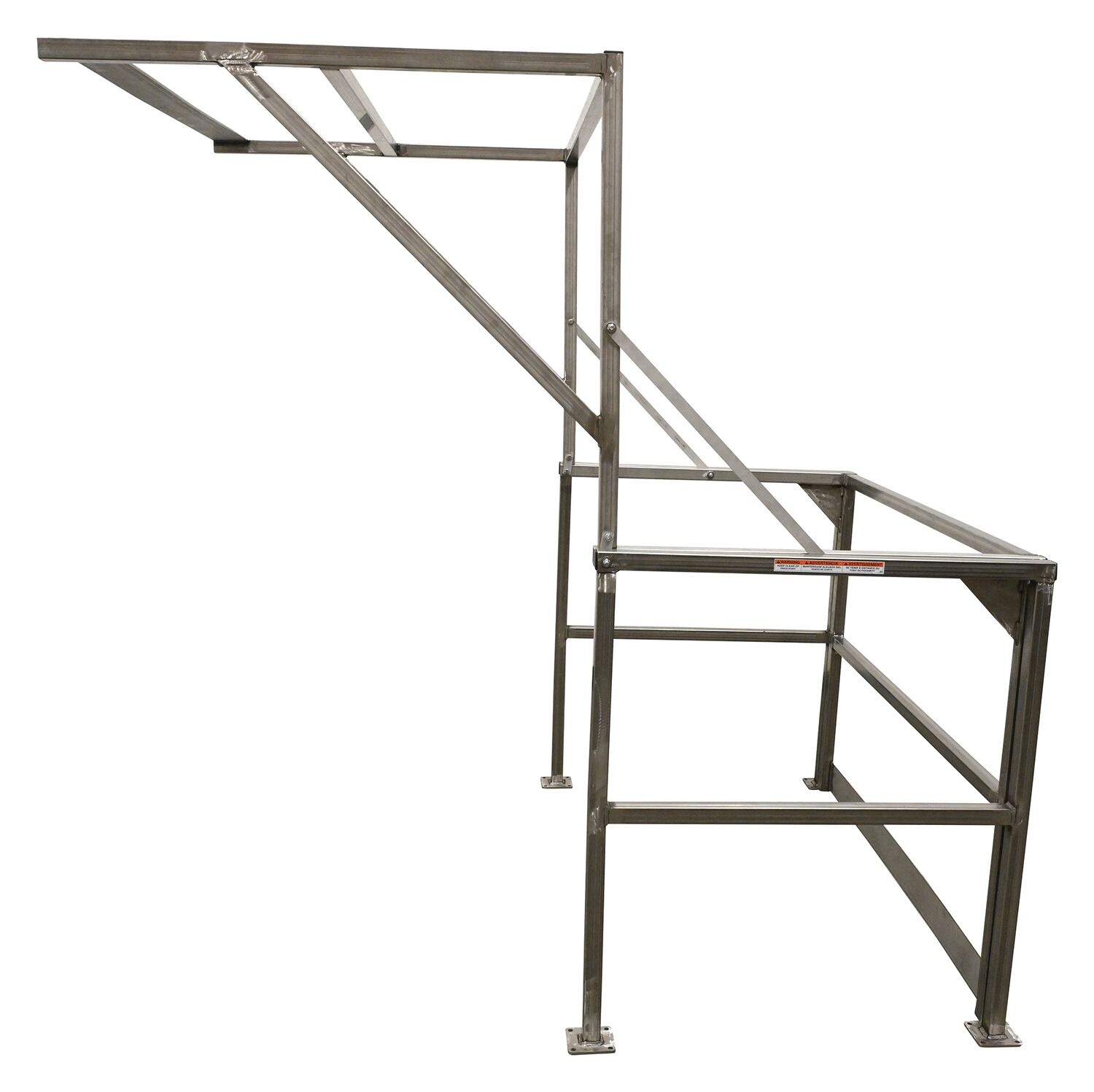

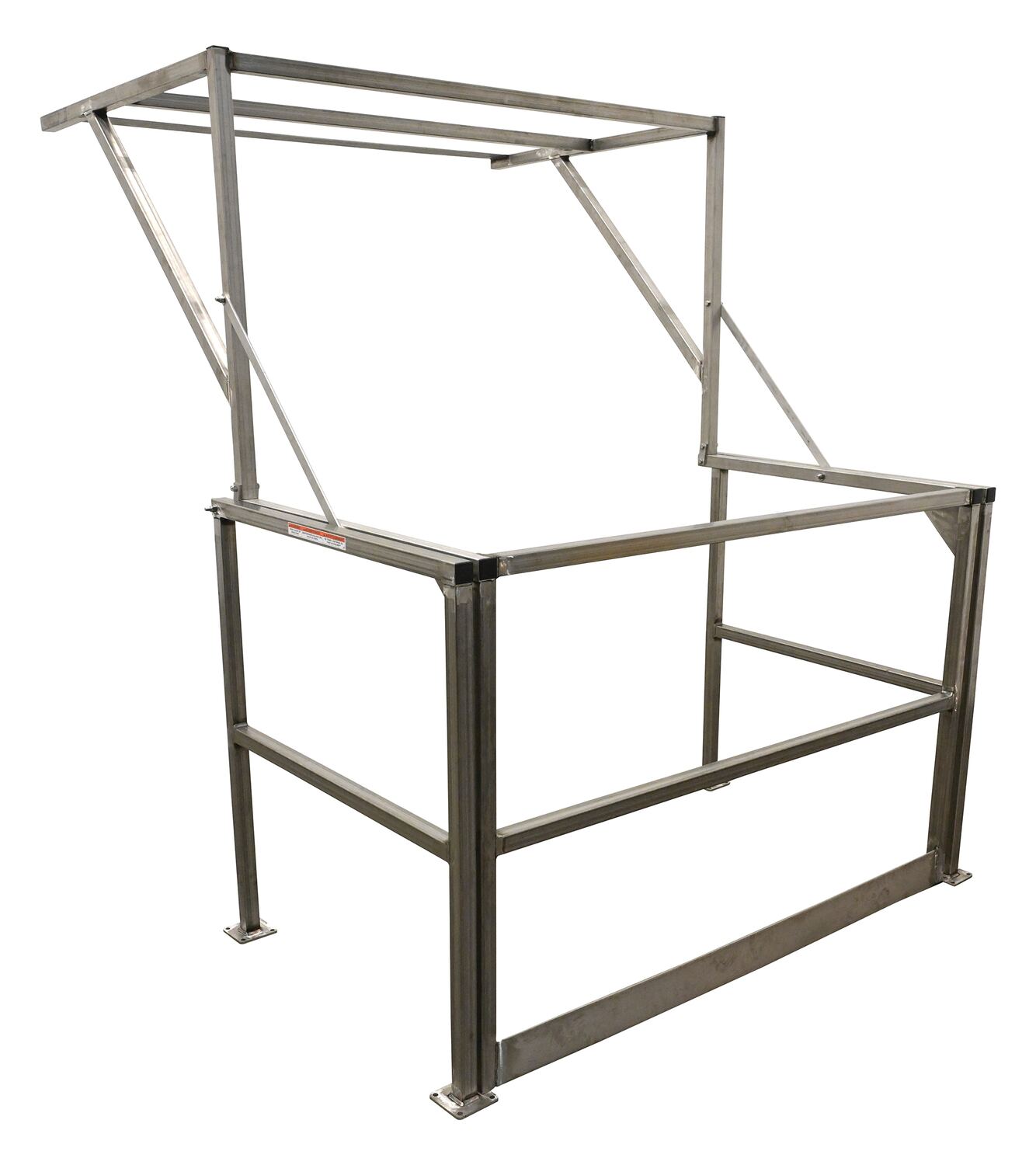

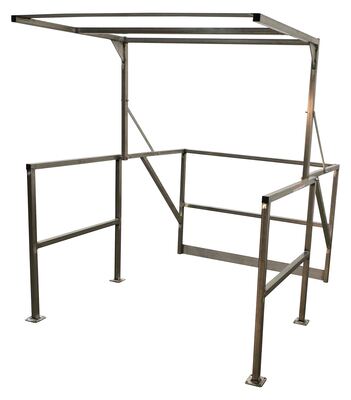

MEZZ-200-SS_A.jpg MEZZ-200-SS_B.jpg MEZZ-200-SS_C.jpg MEZZ-200-SS_D.jpg

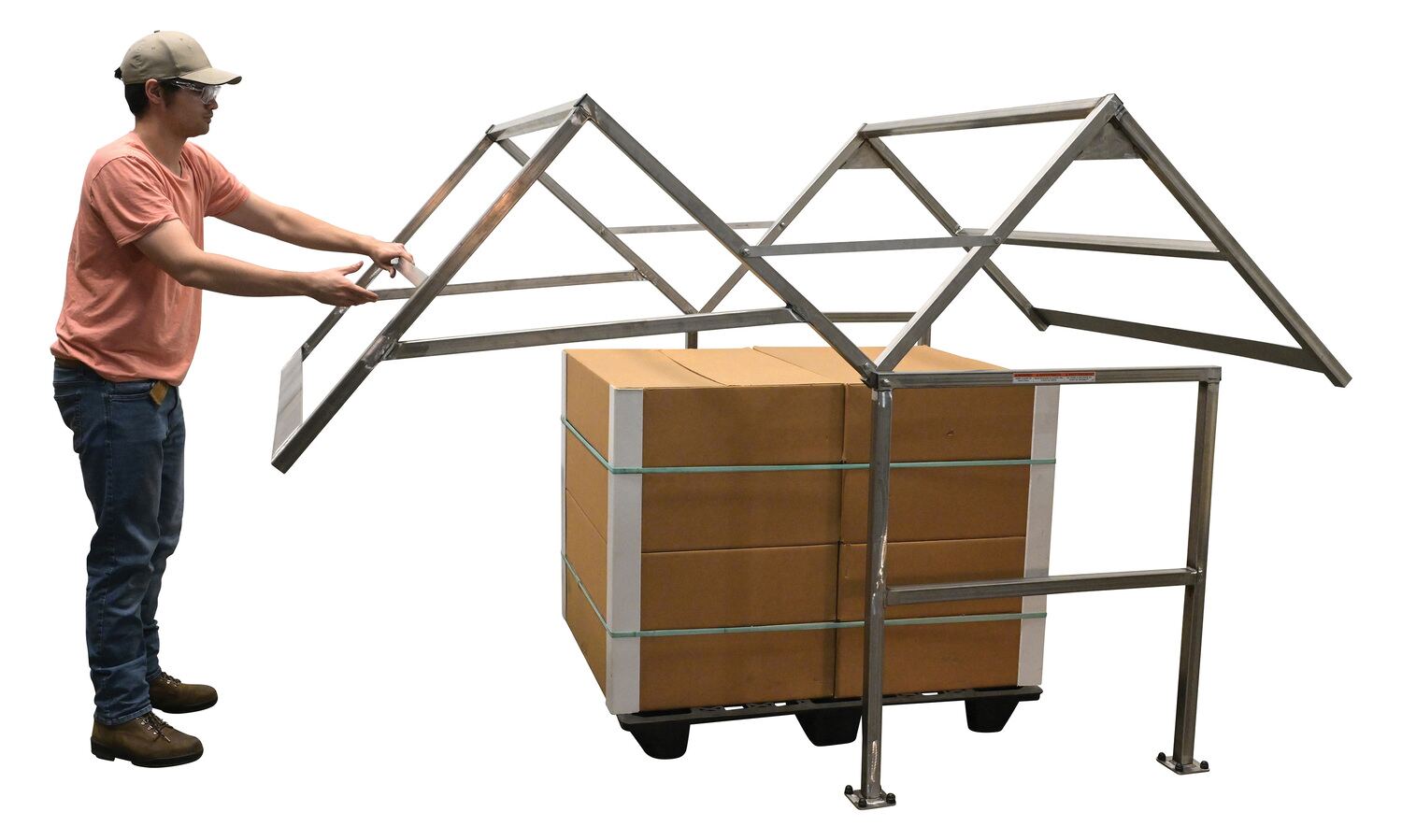

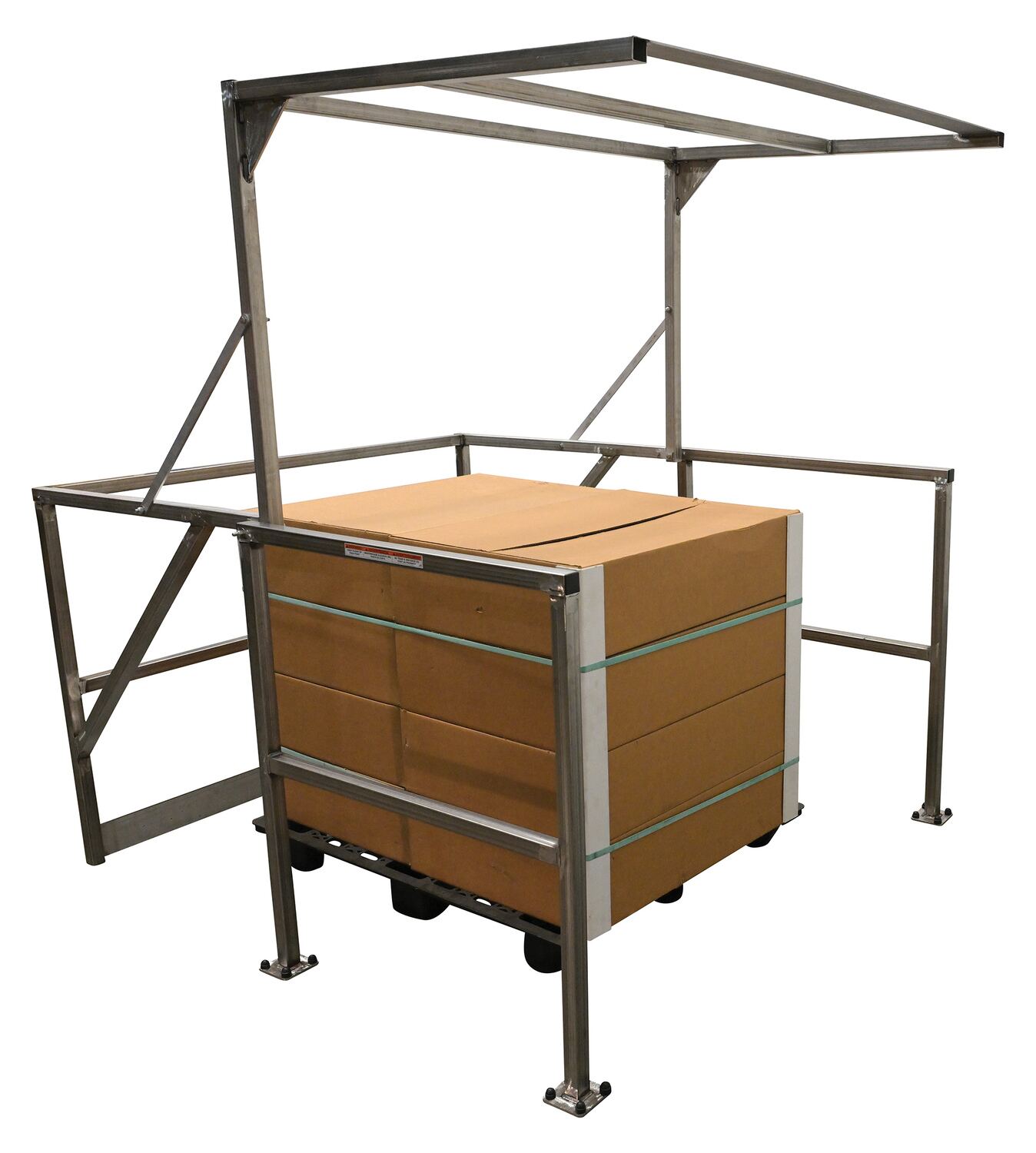

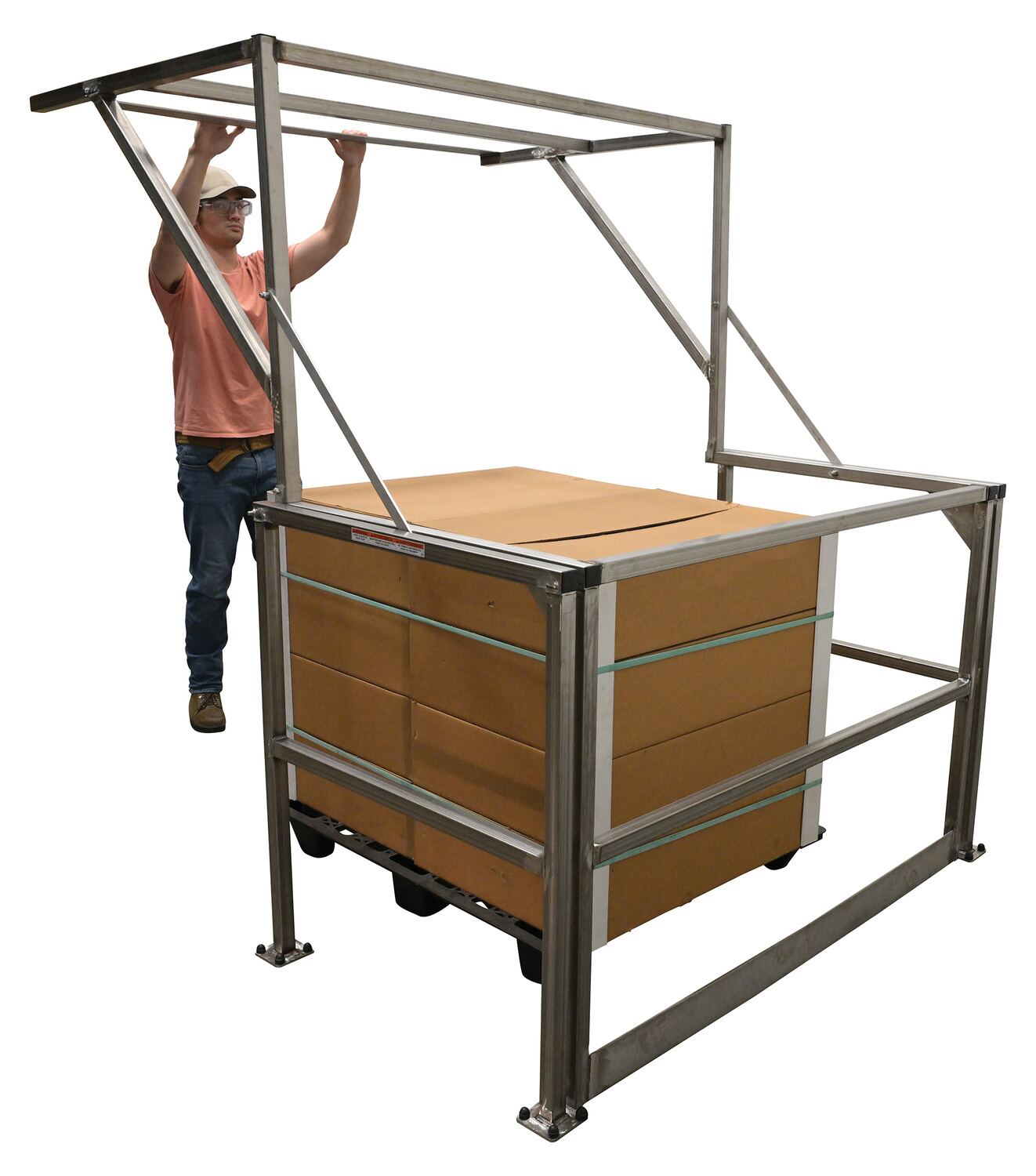

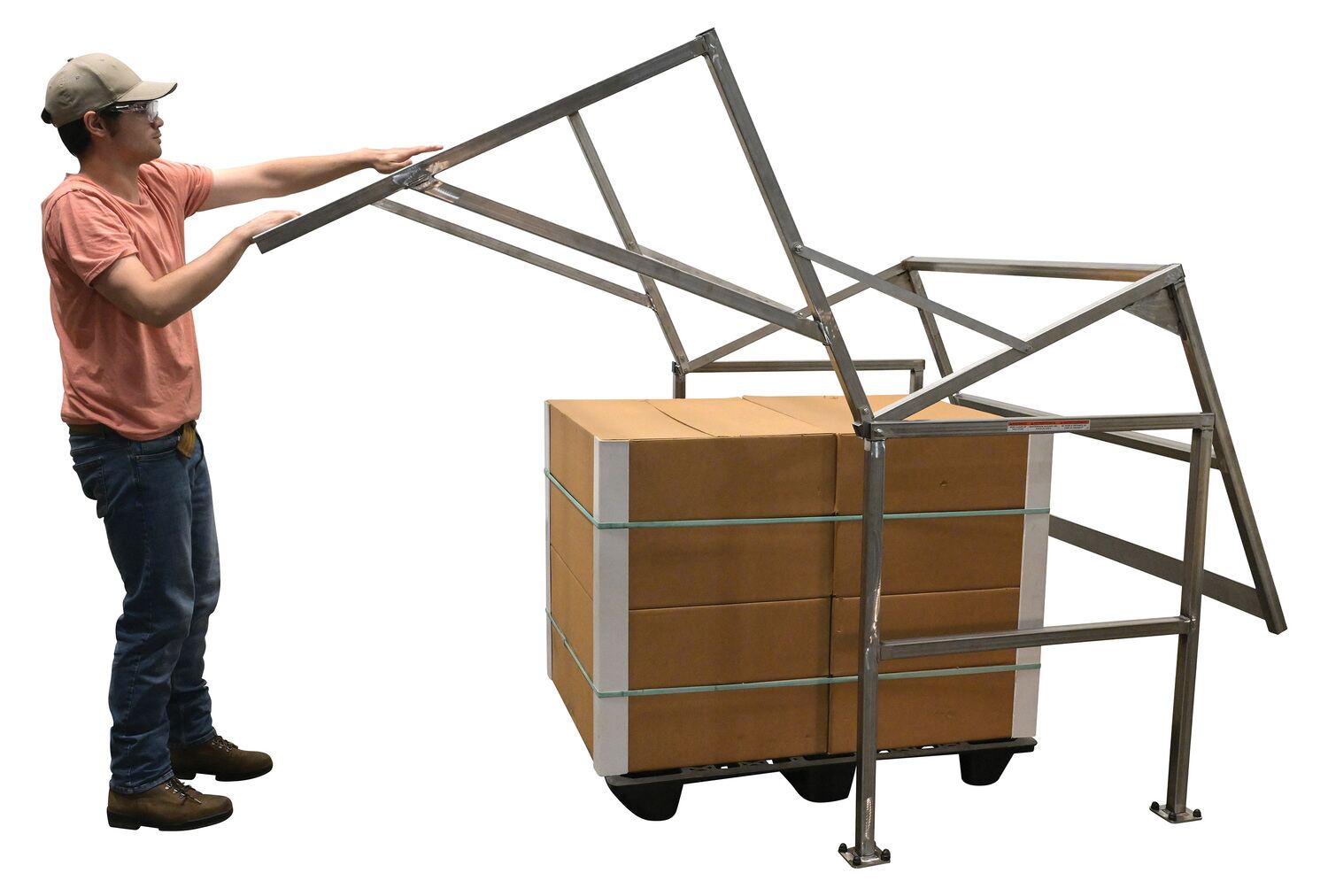

MEZZ-200-SS_E.jpg MEZZ-200-SS_F.jpg MEZZ-200-SS_G.jpg MEZZ-200-SS_I.jpg
Mezzanine Safety Gates

model: MEZZ-200-SS



Featured Protective Barriers


Stainless Steel Bollards
Aluminum Safety Railings
Square Steel Bollard
Wall Mount Guard Rails
Chrome-Plated Steel Bollard
Clearance Bars
Plastic Bollard
Adjustable Perimeter Guard Systems
Orange Plastic Bollards
model chart

Product Family Overview

Print Friendly
Mezzanine Safety Gates
SERIES: MEZZ

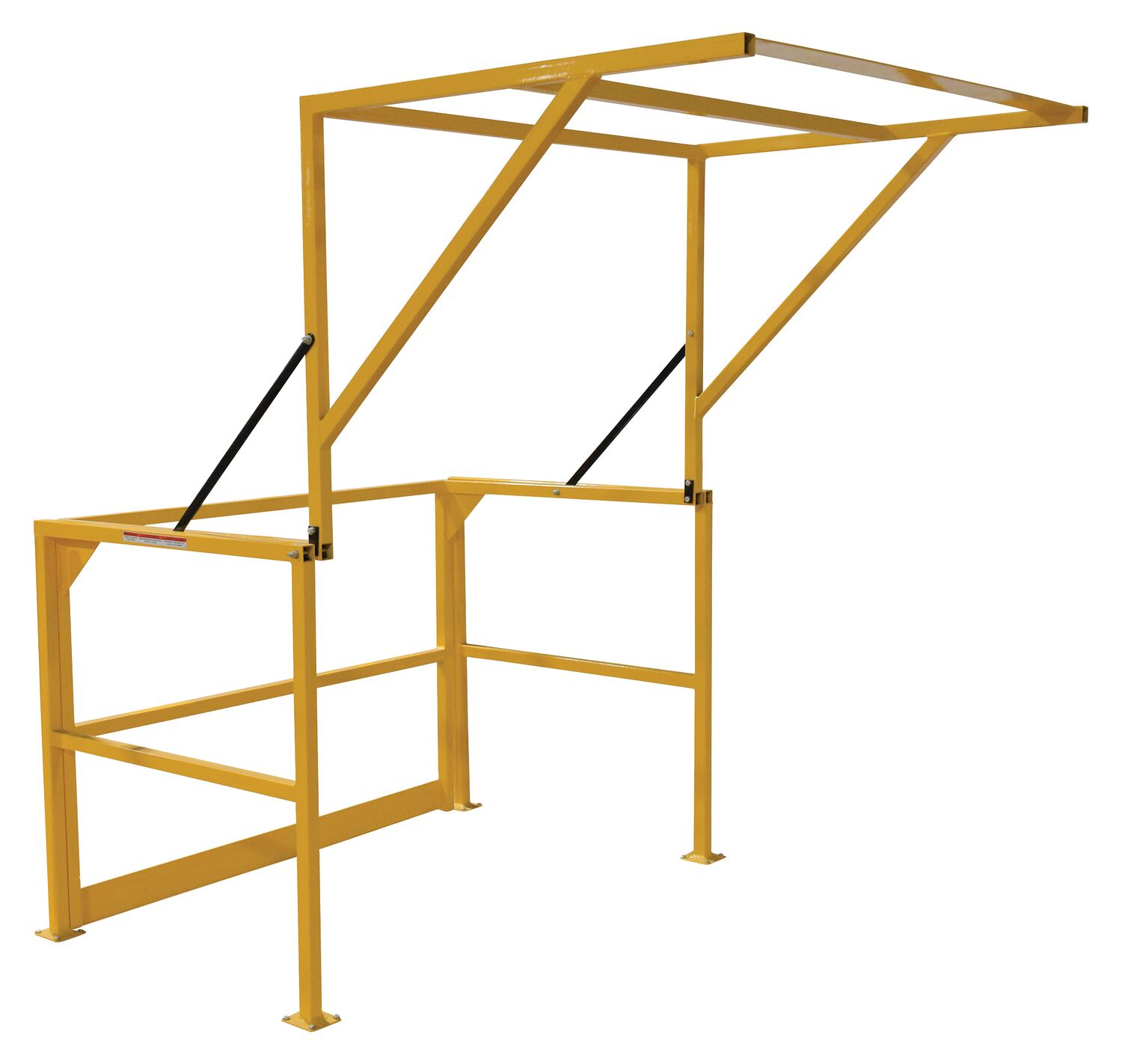

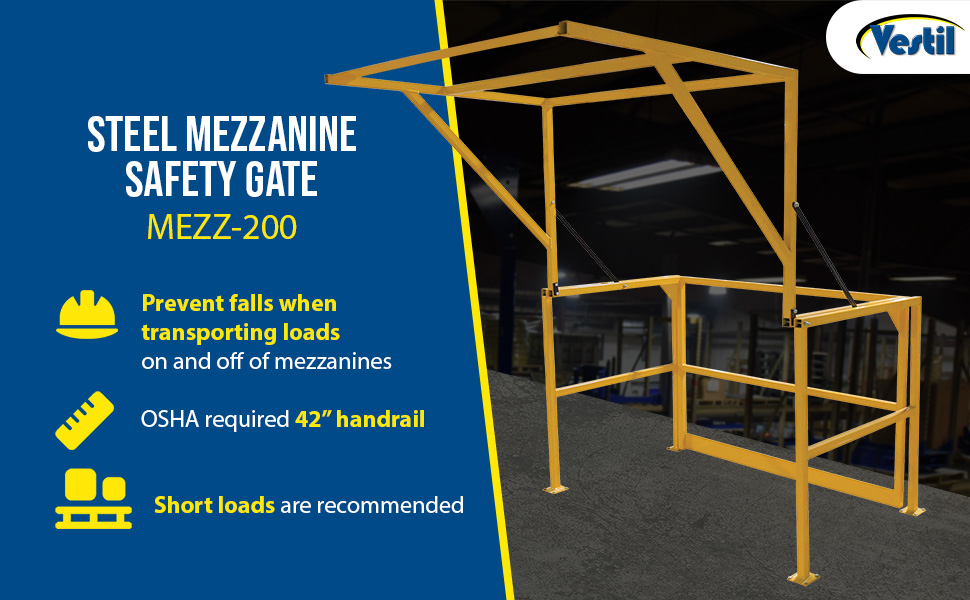

MEZZ-200The Mezzanine Safety Gate provides an OSHA required 42-3/8" high handrail, 21" high mid-rail, and 4" high toe board for mezzanines without sacrificing load accessibility. To accommodate the maximum load height of 68", when utilizing a standard 48"W x 48"D pallet (two standard, side by side pallets for models MEZZ-200-DW & MEZZ-200-DW-SS) load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Baked-in powder-coated toughness. Welded steel construction.

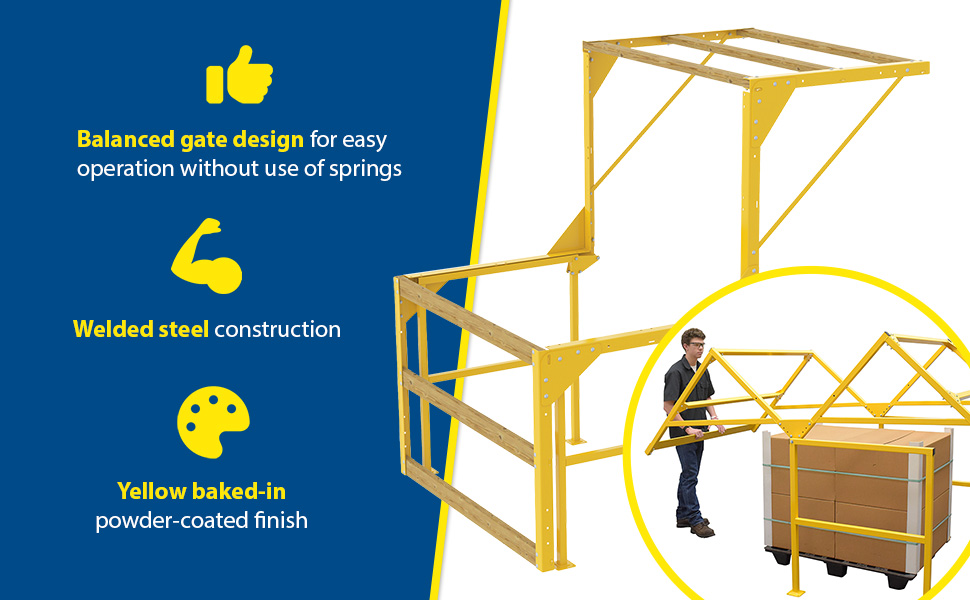

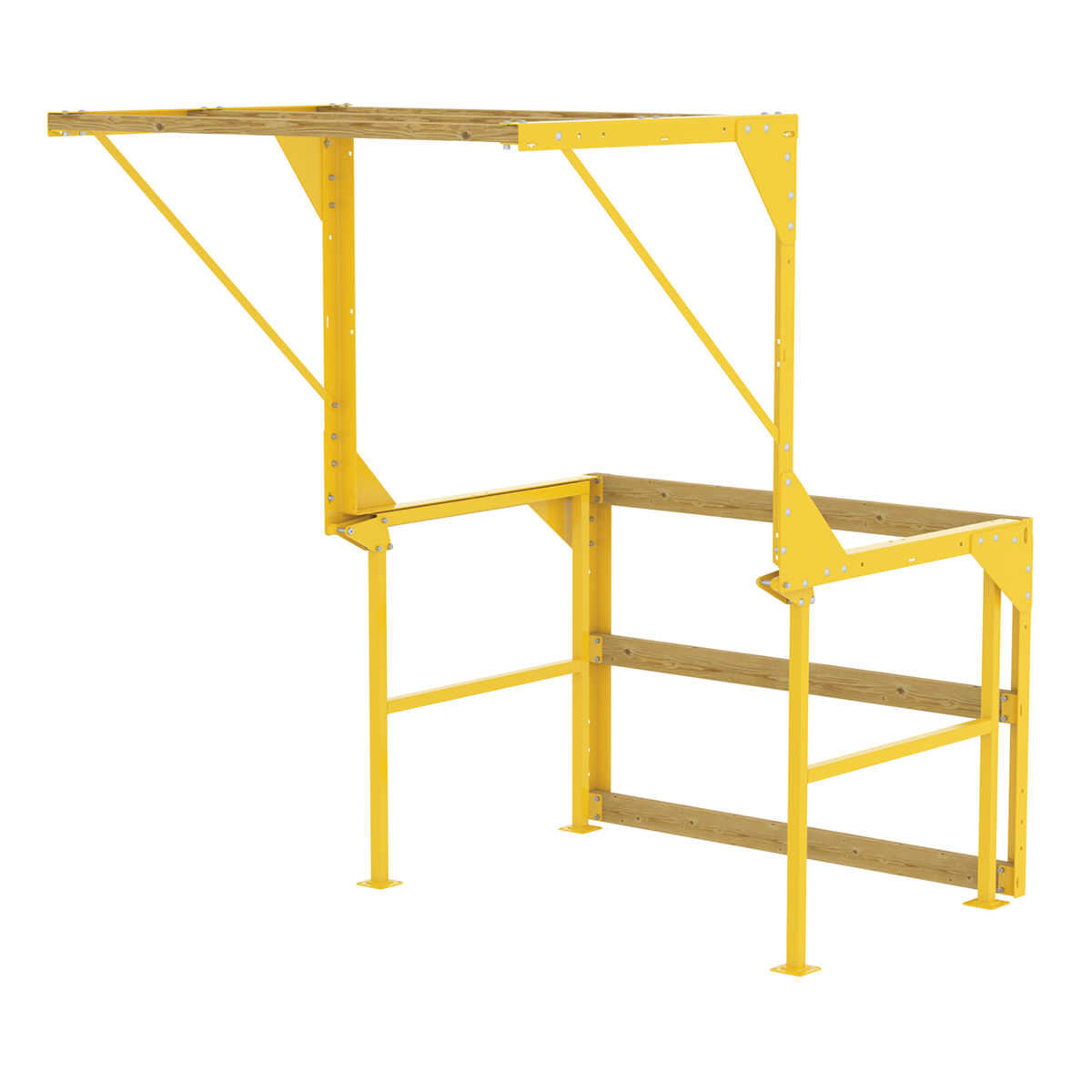

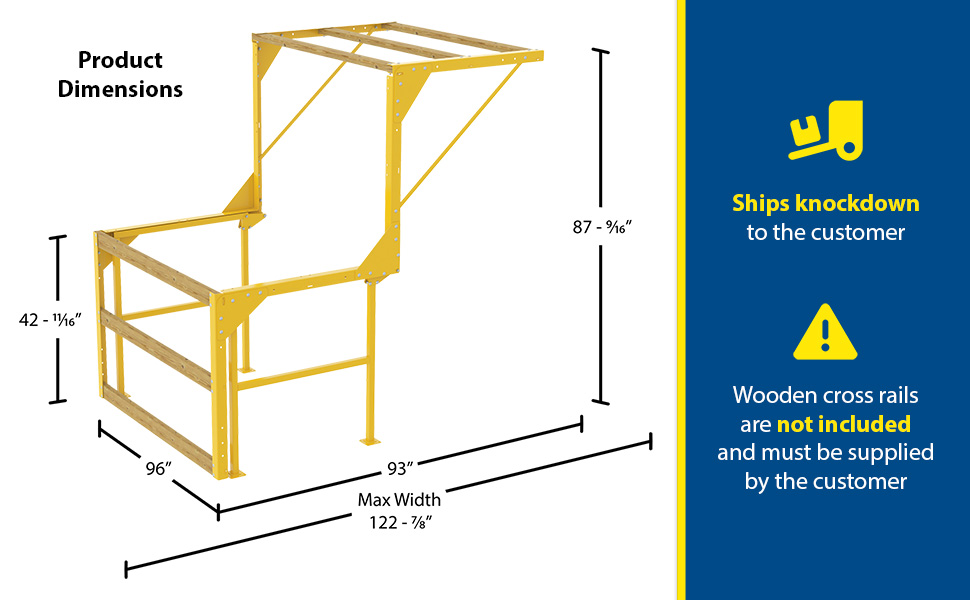

The MEZZ-KD-88T-93D ships knockdown to the customer. The 6 wooden cross rails are not included and must be supplied by the customer. Cross rails can have a maximum overall length up to 96"

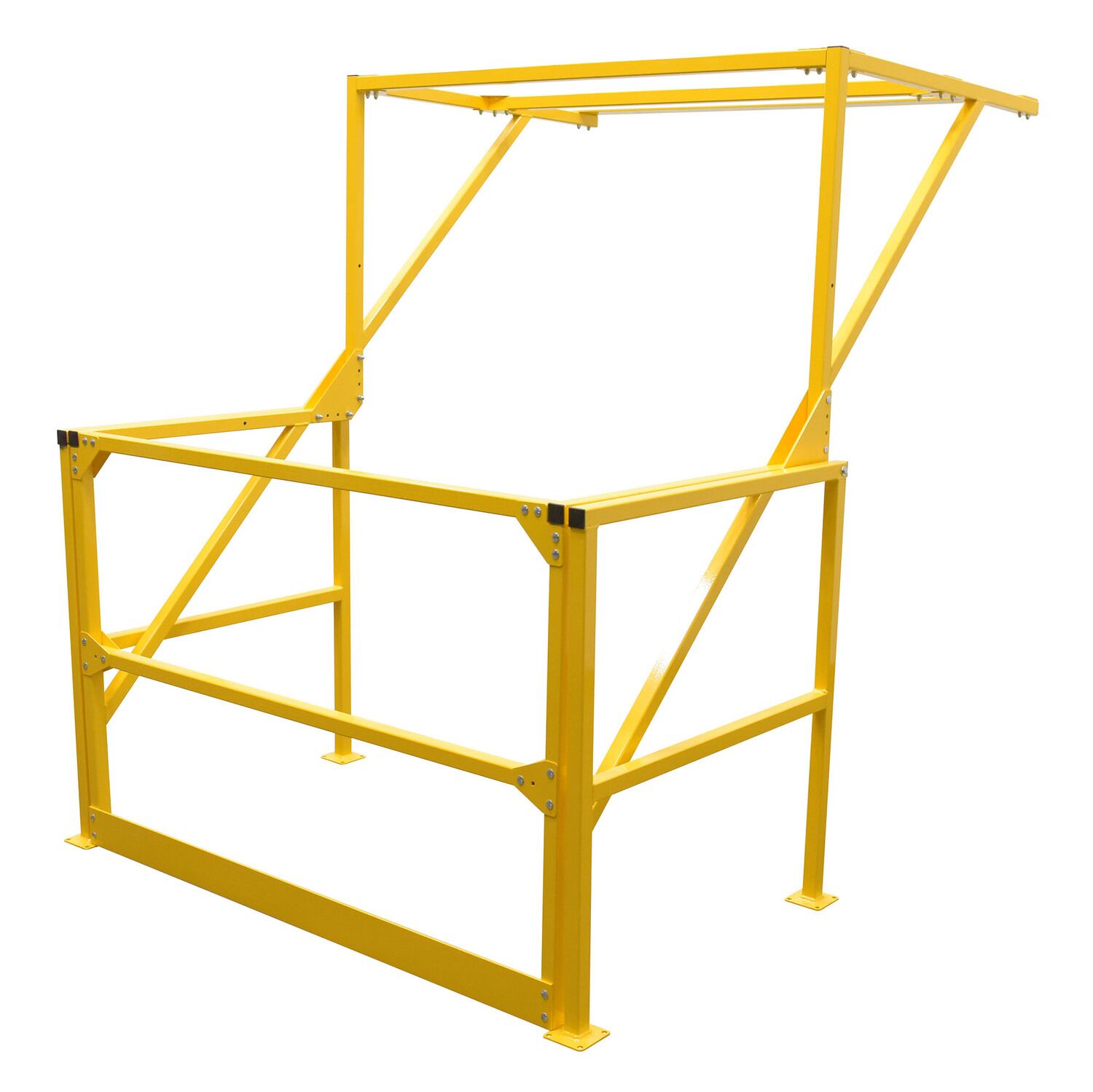

The MEZZ-200-BT has a bolt-together design, so the gate can be constructed, disassembled, or easily transferred to a new location.

Other Mezzanine Safety Gates:

Sliding Mezzanine Safety Gates | Rotating Mezzanine Gate System

MEZZ-200The Mezzanine Safety Gate provides an OSHA required 42-3/8" high handrail, 21" high mid-rail, and 4" high toe board for mezzanines without sacrificing load accessibility. To accommodate the maximum load height of 68", when utilizing a standard 48"W x 48"D pallet (two standard, side by side pallets for models MEZZ-200-DW & MEZZ-200-DW-SS) load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Baked-in powder-coated toughness. Welded steel construction.

The MEZZ-KD-88T-93D ships knockdown to the customer. The 6 wooden cross rails are not included and must be supplied by the customer. Cross rails can have a maximum overall length up to 96"

The MEZZ-200-BT has a bolt-together design, so the gate can be constructed, disassembled, or easily transferred to a new location.

Other Mezzanine Safety Gates:

Sliding Mezzanine Safety Gates | Rotating Mezzanine Gate System

Other Safety Railing

 Manhole Guard Rail Safety Lift Gates Steel Safety Railings w/ Welded Baseplate Economical Safety Swing Gate

Additional Models In This Family
view entire Image Gallery

MEZZ-200-SS

MEZZ-200-SS

MEZZ-200-BT

MEZZ-200-BT

MEZZ-200

MEZZ-200

MEZZ-200-DW

MEZZ-200-DW

MEZZ-200-SS

MEZZ-200-SS

MEZZ-KD-88T-93D

MEZZ-KD-88T-93D

MEZZ-200-SS

MEZZ-200-SS

MEZZ-KD-88T-93D

MEZZ-KD-88T-93D

MEZZ-200-DW-A

MEZZ-200-DW-A

MEZZ-200-DW-SS

MEZZ-200-DW-SS

MEZZ-200-SS

MEZZ-200-SS

MEZZ-200-BT

MEZZ-200-BT

MEZZ-200

MEZZ-200

MEZZ-200-DW-SS

MEZZ-200-DW-SS

MEZZ-200-BT

MEZZ-200-BT

Applications



Construction Projects

Trucking Companies

Warehouses

Gas Stations

Superstores
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
MEZZ-200 POPULAR MEZZ-20090 Days Limited WarrantySteel Mezzanine Safety Gate 79-5/16 In. x 68-1/2 In. x 80-1/16 In. YellowHandrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21		215

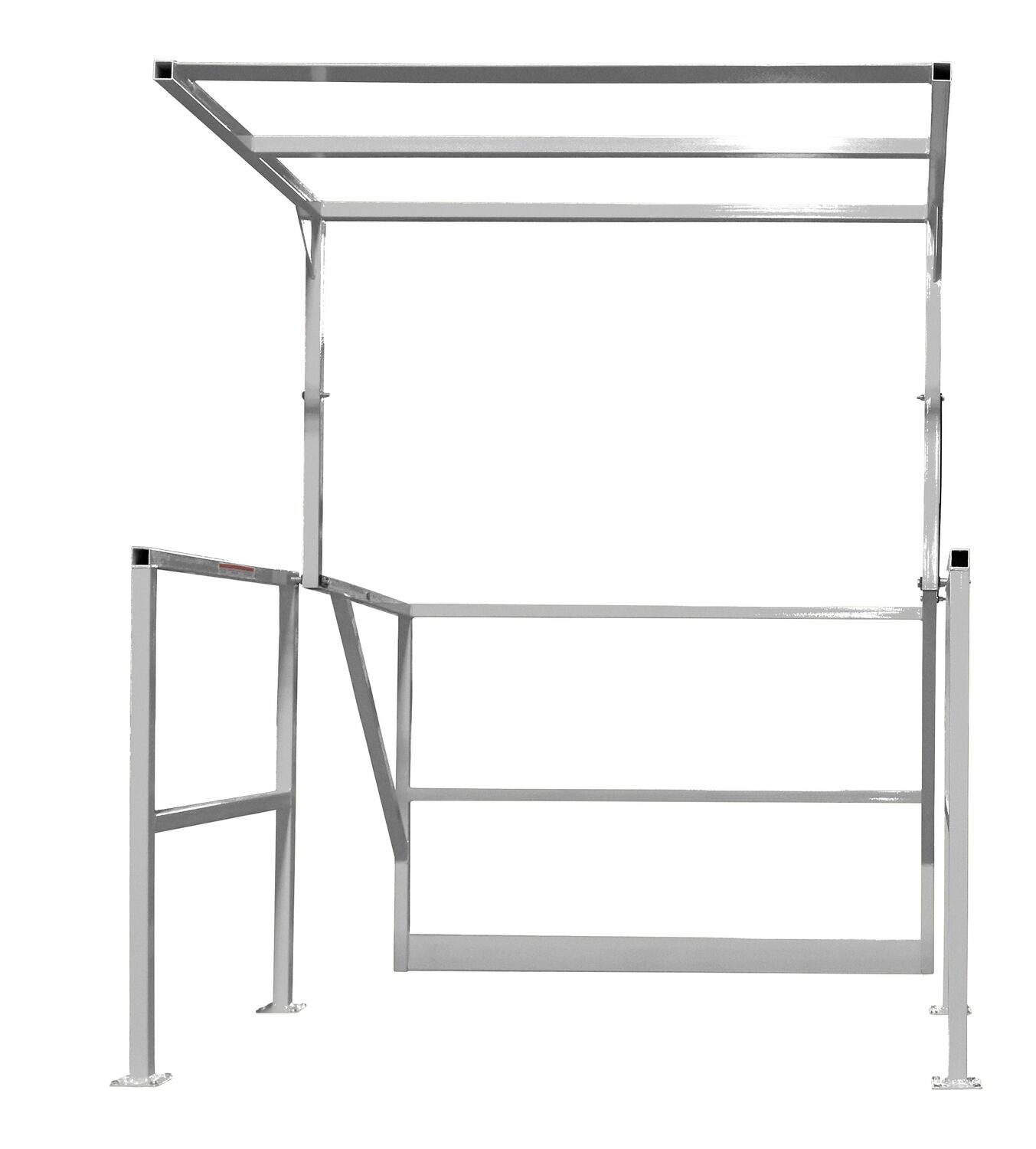

MEZZ-200-A MEZZ-200-A90 Days Limited WarrantyAluminum Mezzanine Safety Gate 56 In. Width SilverUsable Width (IN):: 56
Handrail Height (IN): 42-7/16"		149
MEZZ-200-BT NEW MEZZ-200-BT90 Days Limited WarrantySteel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. YellowBase Plate Width (in.): 4
Base Plate Length (in.): 4		258

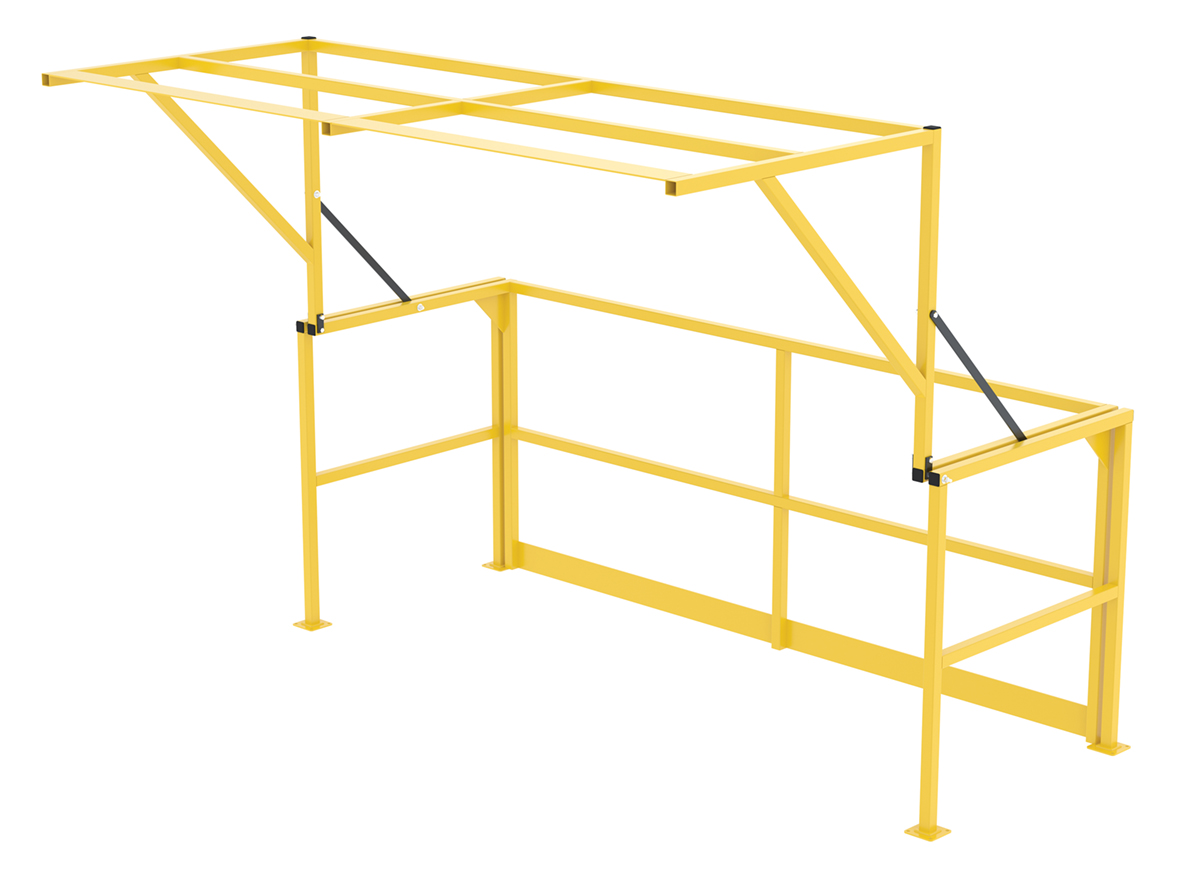

MEZZ-200-DW MEZZ-200-DW90 Days Limited WarrantySteel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. YellowHandrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21		284

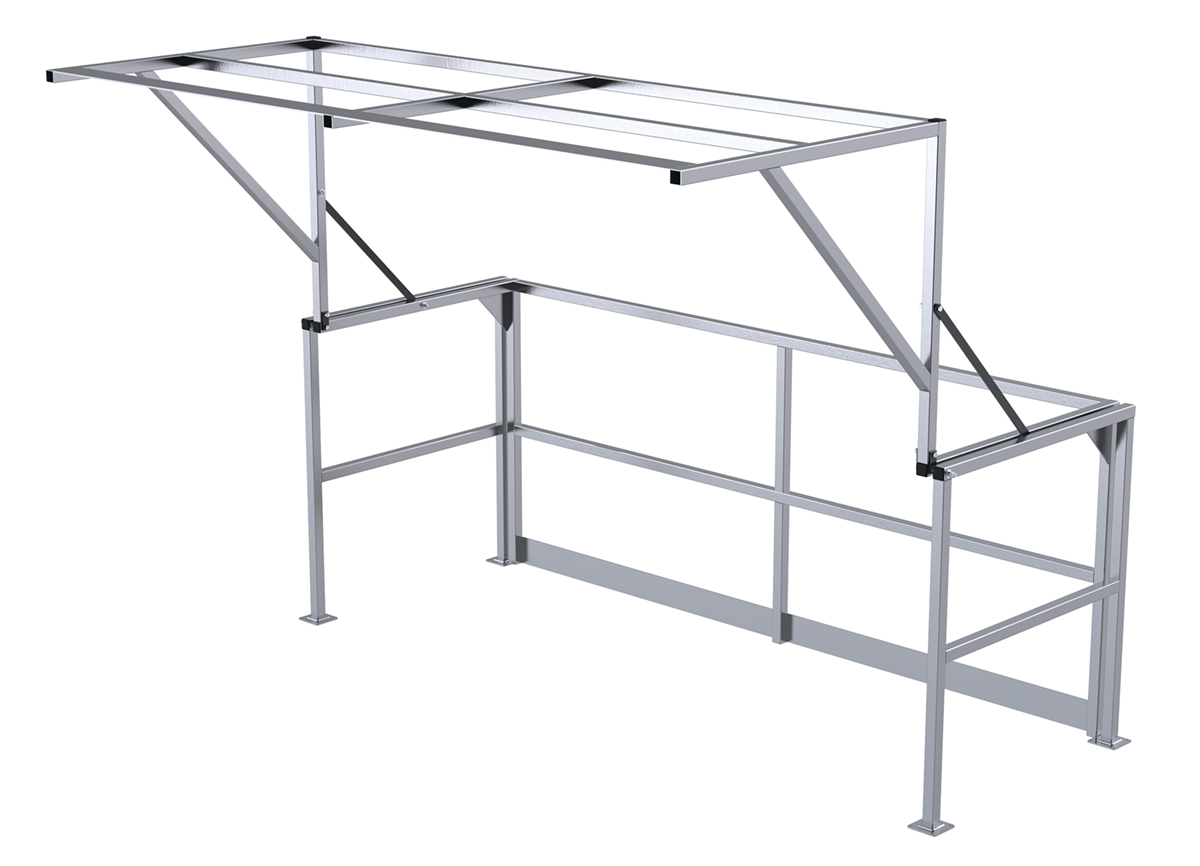

MEZZ-200-DW-A MEZZ-200-DW-A90 Days Limited WarrantyAluminum Double Wide Mezzanine Safety Gate 42-3/8 In. Handrail Height SilverHandrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21		218

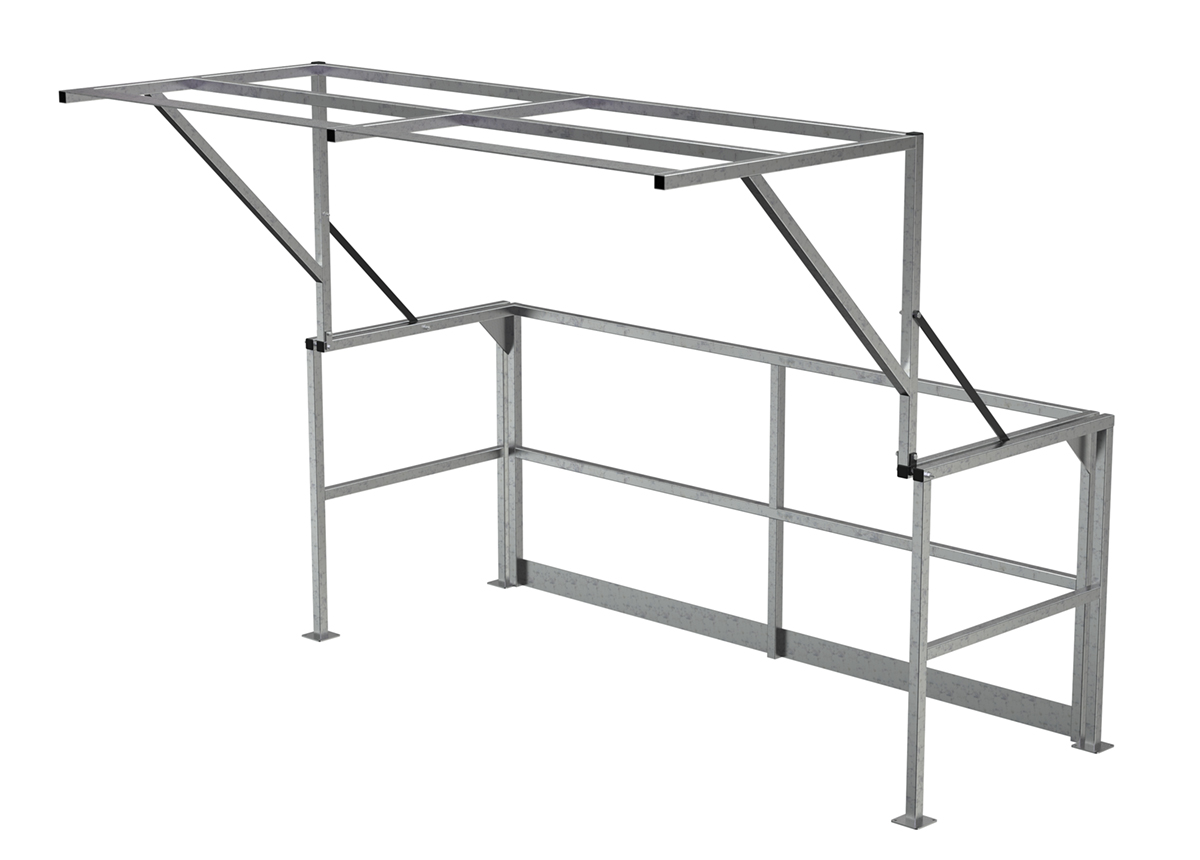

MEZZ-200-DW-SS
MEZZ-200-DW-SS90 Days Limited WarrantyStainless Steel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. SilverHandrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21		284
MEZZ-200-SS

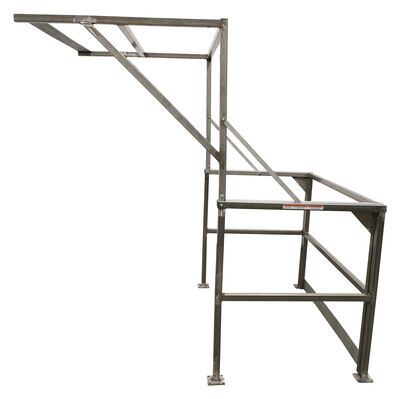

MEZZ-200-SS90 Days Limited WarrantyStainless Steel Mezzanine Safety Gate 79-5/16 In. x 68-1/2 In. x 80-1/16 In. SilverHandrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21		215
MEZZ-KD-88T-93D MEZZ-KD-88T-93D90 Days Limited WarrantySteel Mezzanine Safety Gate Knockdown 87-3/16 In x 96 In x 87-9/16 In YellowBase Plate Thickness (in.): 3/16
Base Plate Width/Length (in.): 4/4		186

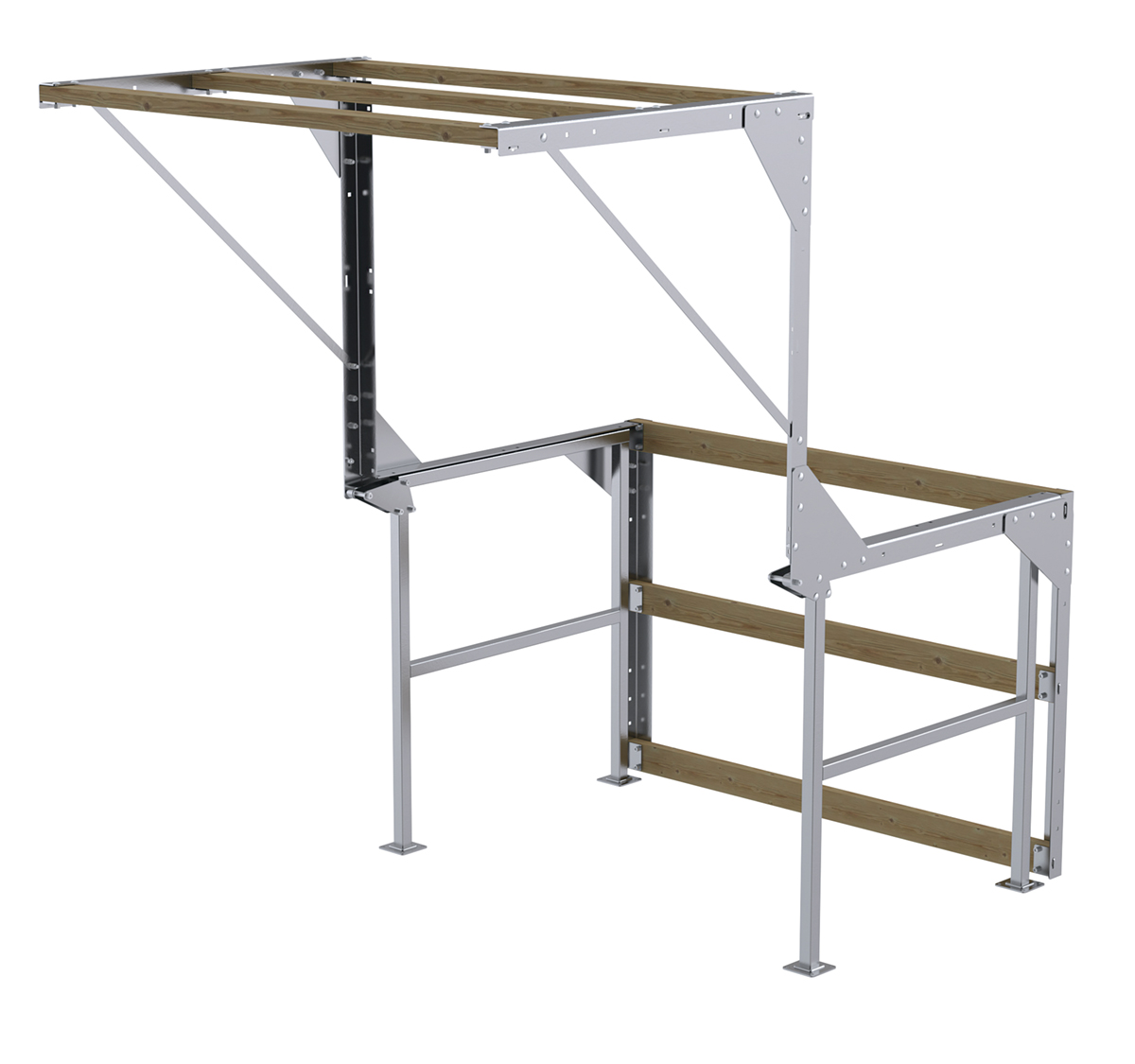

MEZZ-KD-88T-93D-A MEZZ-KD-88T-93D-A90 Days Limited WarrantyAluminum Knockdown Mezzanine Safety Gate 42-7/8 In Handrail Height SilverHandrail Height: 42-7/8"
71

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MEZZ-200
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21

MEZZ-200-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (IN):: 56
Handrail Height (IN): 42-7/16"
Usable Width (IN):: 56
Handrail Height (IN): 42-7/16"

MEZZ-200-BT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Width (in.): 4
Base Plate Length (in.): 4
Base Plate Width (in.): 4
Base Plate Length (in.): 4

MEZZ-200-DW
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21

MEZZ-200-DW-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21

MEZZ-200-DW-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21

MEZZ-200-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21
Handrail Height (in.): 42-3/8
Mid-Rail Height (in.): 21

MEZZ-KD-88T-93D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Thickness (in.): 3/16
Base Plate Width/Length (in.): 4/4
Base Plate Thickness (in.): 3/16
Base Plate Width/Length (in.): 4/4

MEZZ-KD-88T-93D-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Height: 42-7/8"

Handrail Height: 42-7/8"

For More Details of the Option Click the Red Model Button
M-BUMP M-BUMP30 Days Limited WarrantyPolyethylene Wall Guard/Surface Bumper 2 In. x 72 In. x 10 In. YellowAttachment Method: Bolt On
Hardware Included: Yes		27

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
