Removable Bollards

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
BOL-R-36-5.5_A.jpg BOL-R-36-5.5_B.jpg BOL-R-36-5.5_C.jpg BOL-R-36-5.5_D.jpg
Removable Bollards

model: BOL-R-36-5.5



Featured Protective Barriers


Clearance Bars
Rack Shields
Curved Guardrail Reflectors
PVC Plastic Corner Protectors (Aluminum Insert)
Semi-Permanent Barriers
Indoor Personnel Guidance Barriers
Plastic Interlocking Barriers
PVC Edge Guards
Pour In Place Bollards
model chart

Product Family Overview

Print Friendly
Removable Bollards
SERIES: BOL-R

The Removable Bollard includes one (1) mounting sleeve and one (1) bollard. When access is needed into an area that is protected by the bollard, simply lift the bollard out of the sleeve. Replace the bollard in its sleeve to reinstate the protective barrier. When the bollard is removed, consider the cover sleeve option to prevent debris from collecting in the mounting sleeve. Yellow baked in powder coat finish for added toughness.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection

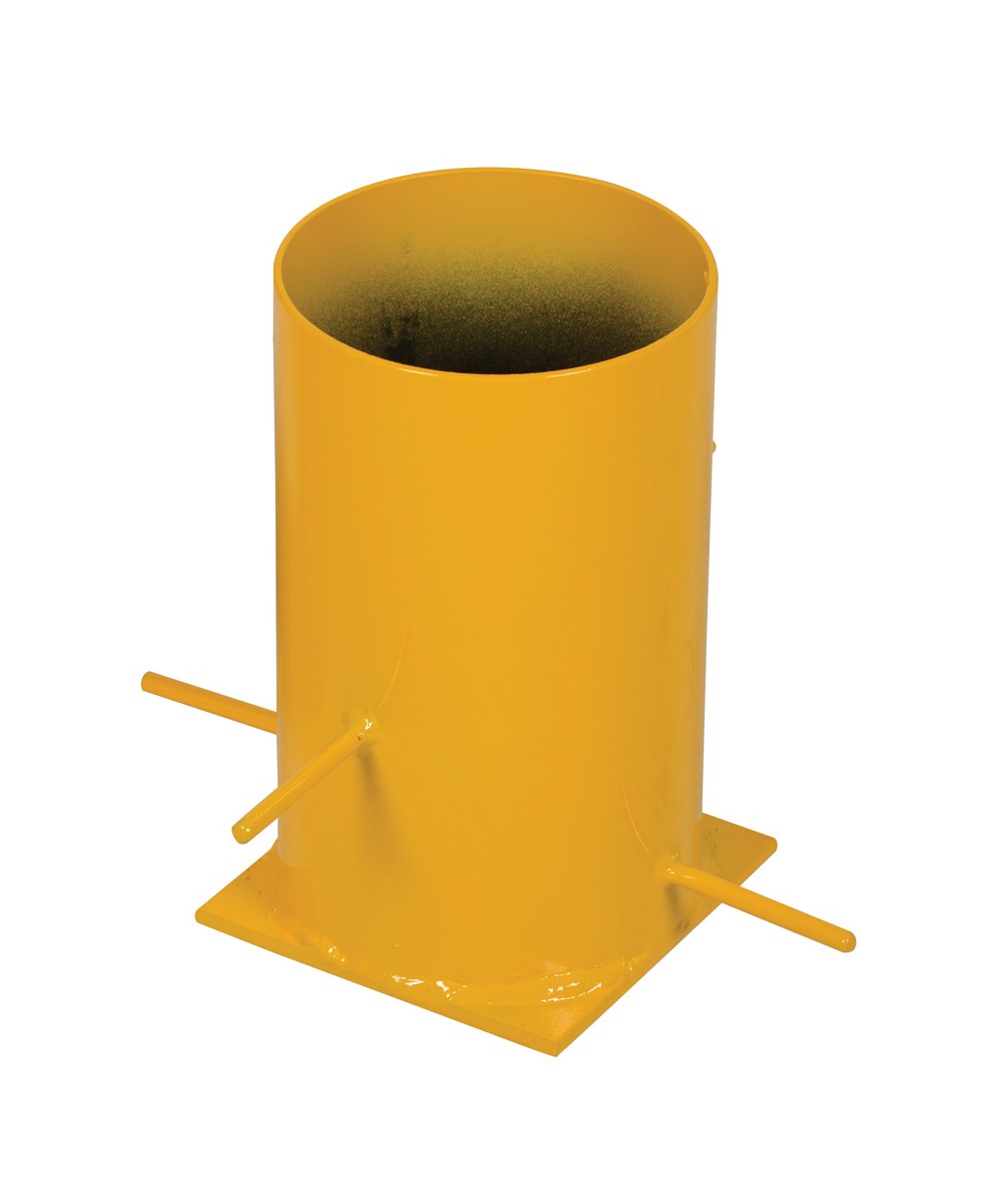

  • Unique sleeve design sets in concrete to hold the bollard

The Removable Bollard includes one (1) mounting sleeve and one (1) bollard. When access is needed into an area that is protected by the bollard, simply lift the bollard out of the sleeve. Replace the bollard in its sleeve to reinstate the protective barrier. When the bollard is removed, consider the cover sleeve option to prevent debris from collecting in the mounting sleeve. Yellow baked in powder coat finish for added toughness.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Unique sleeve design sets in concrete to hold the bollard

Other Bollards

 Chain & Attachments for Bollards Ductile Iron Decorative Bollards Folding Bollards Dock Chain Bollard Barrier Systems

Additional Models In This Family
view entire Image Gallery

BOL-R-48-5.5

model BOL-R-48-5.5

BOL-R-SLV-CV

model BOL-R-SLV-CV

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

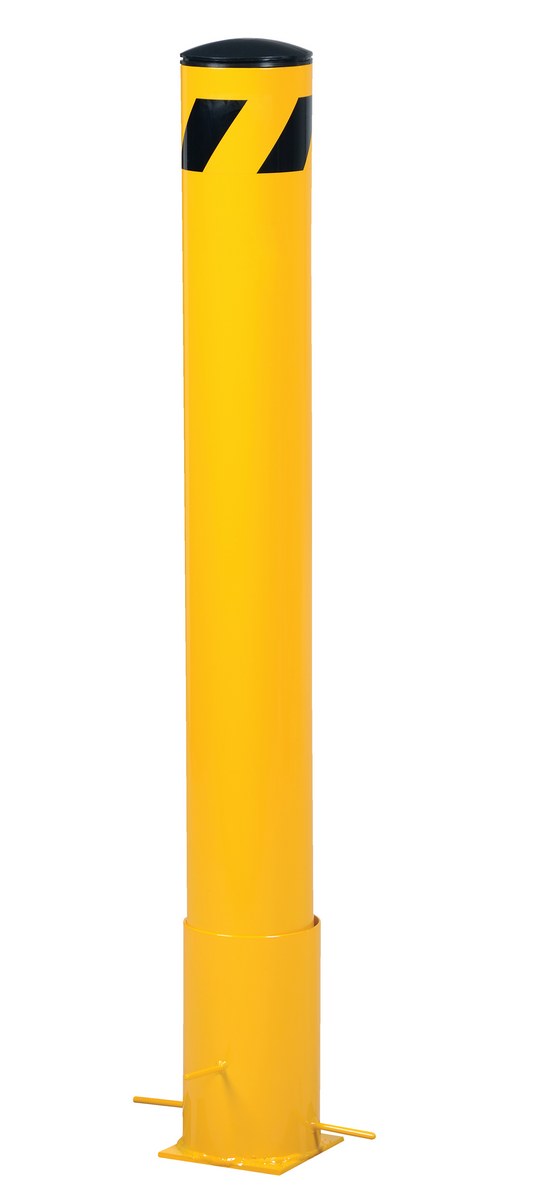

BOL-R-36-5.5 BOL-R-36-5.590 Days Limited WarrantySteel Removable Pipe Safety Bollard 36 In x 5-1/2 In YellowUsable Height (in.): 36-3/4
Bollard Diameter (in.): 5-9/16		249

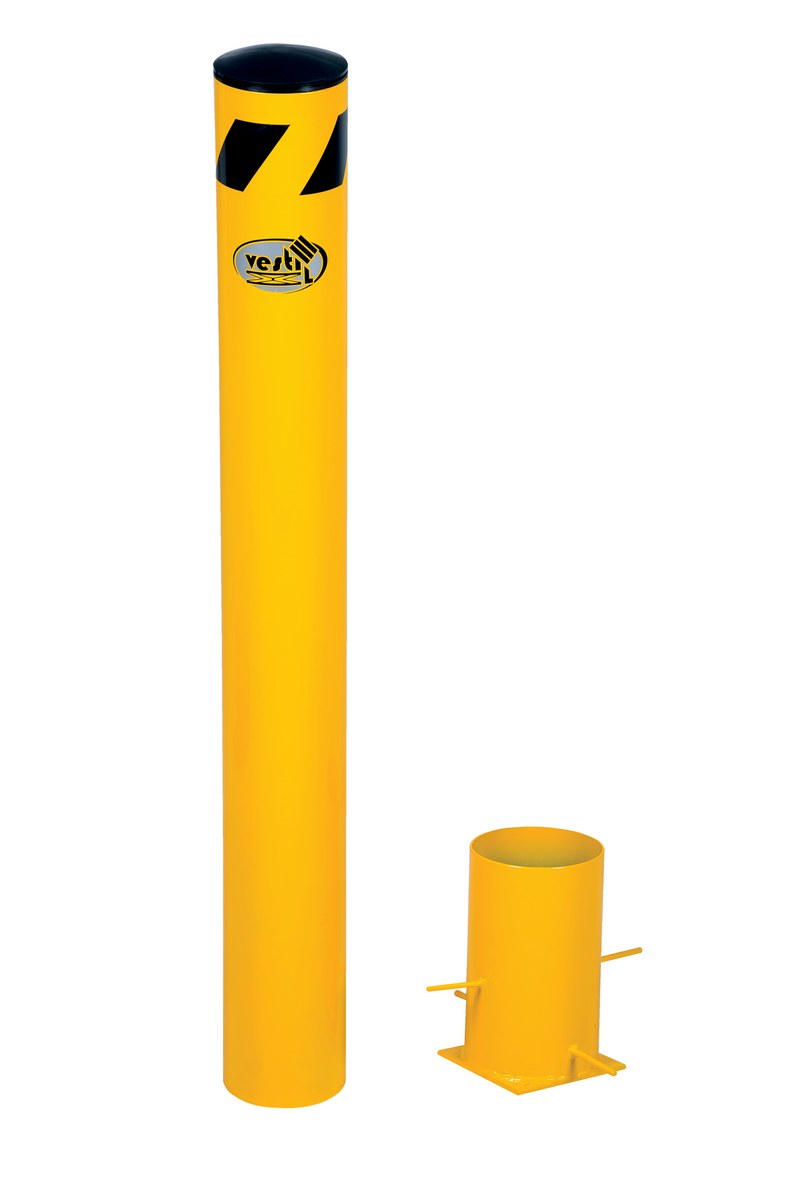

BOL-R-42-5.5 BOL-R-42-5.590 Days Limited WarrantySteel Removable Pipe Safety Bollard 46 In x 5-1/2 In YellowUsable Height (in.): 42-3/4
Bollard Diameter (in.): 5-9/16		45

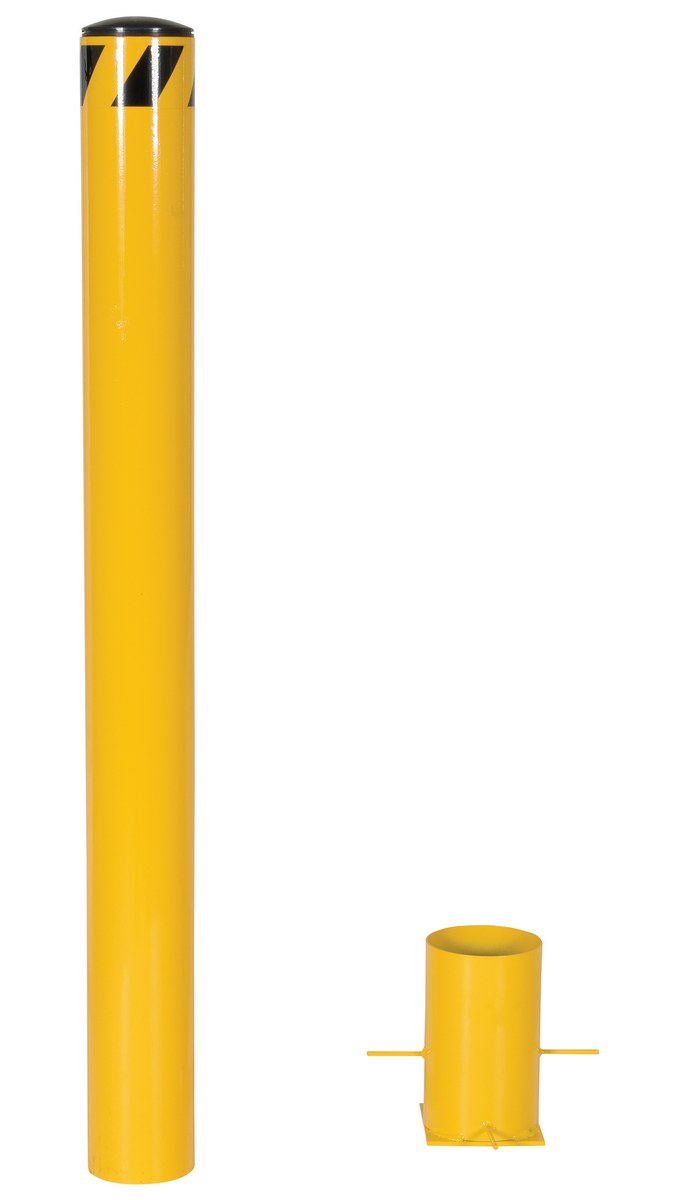

BOL-R-48-5.5 BOL-R-48-5.590 Days Limited WarrantySteel Removable Pipe Safety Bollard 48 In x 5-1/2 In YellowUsable Height (in.): 48-3/4
Bollard Diameter (in.): 5-9/16		248

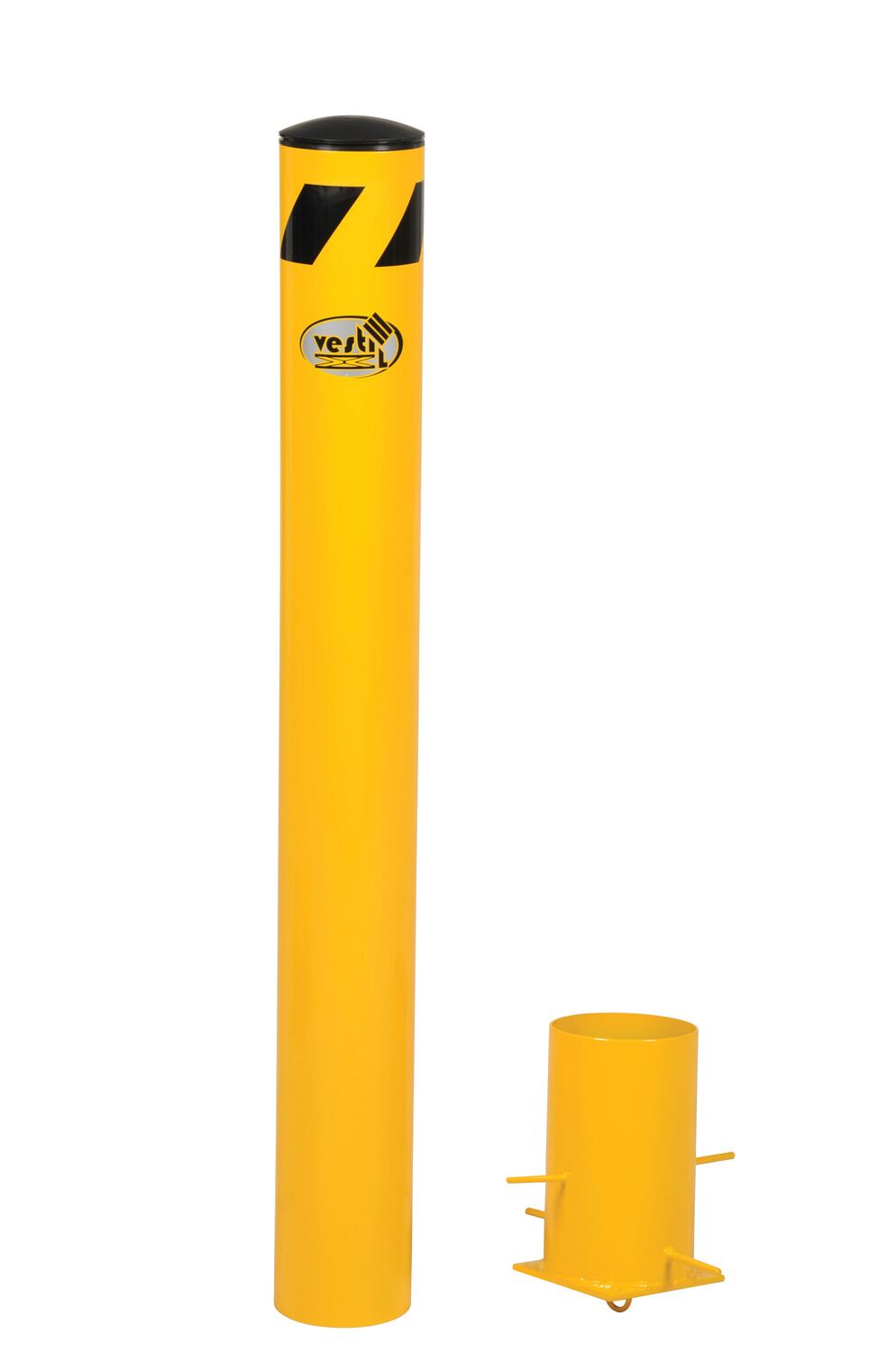

BOL-R-72-5.5 BOL-R-72-5.590 Days Limited WarrantySteel Removable Pipe Safety Bollard 72 In x 5-1/2 In YellowUsable Height (in.): 72-3/4
Bollard Diameter (in.): 5-9/16		87

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

BOL-R-36-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 36-3/4
Bollard Diameter (in.): 5-9/16
Usable Height (in.): 36-3/4
Bollard Diameter (in.): 5-9/16

BOL-R-42-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 42-3/4
Bollard Diameter (in.): 5-9/16
Usable Height (in.): 42-3/4
Bollard Diameter (in.): 5-9/16

BOL-R-48-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 48-3/4
Bollard Diameter (in.): 5-9/16
Usable Height (in.): 48-3/4
Bollard Diameter (in.): 5-9/16

BOL-R-72-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Height (in.): 72-3/4
Bollard Diameter (in.): 5-9/16
Usable Height (in.): 72-3/4
Bollard Diameter (in.): 5-9/16
For More Details of the Option Click the Red Model Button

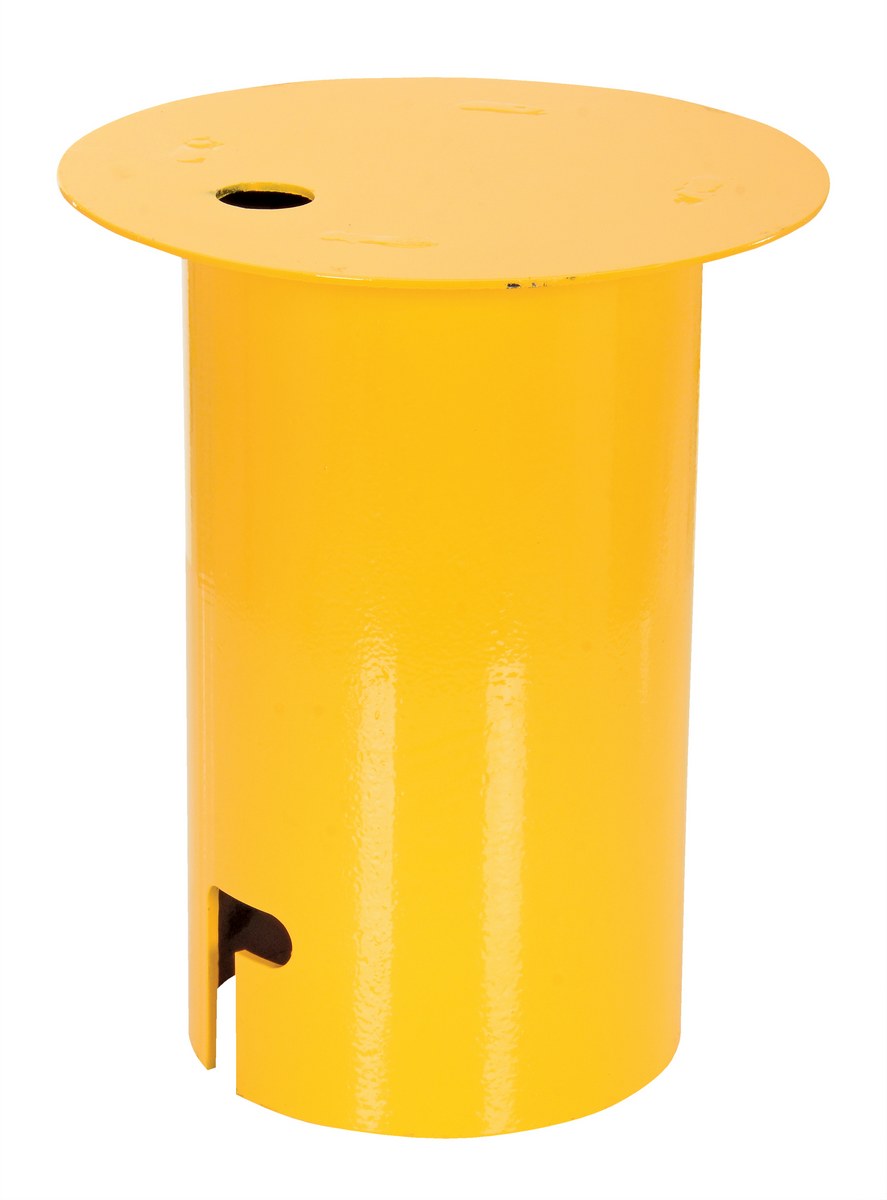

BOL-R-SLV-CV BOL-R-SLV-CV90 Days Limited WarrantySteel Removable Bollard Sleeve Cover 8 In. x 8 In. x 9-13/16 In. YellowCompatible Bollard Diameter (in.): 5-9/16
8
Model Image Description WT.
BOL-CAP-5.5-P BOL-CAP-5.5-P Plastic Bollard Cap Replacement For Schedule 10 Steel 5 In. Pipe Black 2
AS-344 Concrete (1) 3/4"x 4" Anchor Bolts (Other Units) 1
AS-344-4PK Concrete (4) 3/4"x 4" Anchor Bolts (Other Units) 4
DCBB-B-KIT Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow 2
BOL-CHAIN Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow 2
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Removable Bollards PDF's will open in a new window when clicked.

Manuals


BOL-R
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


BOL-R-36-5.5

BOL-R-42-5.5

BOL-R-48-5.5

BOL-R-72-5.5

BOL-R-SLV-CV

Testing Certificates


BOL-R-36-5.5

BOL-R-42-5.5

BOL-R-48-5.5

BOL-R-72-5.5

BOL-R-SLV-CV

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Parking Lot Safety Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the impact rating of the bollard?

A: The 5.5" bollard has an impact rating of 4,000 lbs. of force at 4 MPH.




Related or Similar Products:

Chain & Attachments for Bollards
Product

Chain & Attachments for Bollards

Pour In Place Bollards
Product

Pour In Place Bollards

Bollard Chain Caps
Product

Bollard Chain Caps

Movable Bollards
Product

Movable Bollards

Offset Steel Bollards
Product

Offset Steel Bollards

Steel Pipe Bollard with Chain Slots
Product

Steel Pipe Bollard with Chain Slots

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Removable Bollards




The Removable Bollard includes one (1) mounting sleeve and one (1) bollard. When access is needed into an area that is protected by the bollard, simply lift the bollard out of the sleeve. Replace the bollard in its sleeve to reinstate the protective barrier. When the bollard is removed, consider the cover sleeve option to prevent debris from collecting in the mounting sleeve. Yellow baked in powder coat finish for added toughness.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Unique sleeve design sets in concrete to hold the bollard

Model # Description Attributes Net Wt.
(lbs)
BOL-R-36-5.5 BOL-R-36-5.5Steel Removable Pipe Safety Bollard 36 In x 5-1/2 In YellowUsable Height (in.): 36-3/4
Bollard Diameter (in.): 5-9/16		39
BOL-R-42-5.5 BOL-R-42-5.5Steel Removable Pipe Safety Bollard 46 In x 5-1/2 In YellowUsable Height (in.): 42-3/4
Bollard Diameter (in.): 5-9/16		45
BOL-R-48-5.5 BOL-R-48-5.5Steel Removable Pipe Safety Bollard 48 In x 5-1/2 In YellowUsable Height (in.): 48-3/4
Bollard Diameter (in.): 5-9/16		38
BOL-R-72-5.5 BOL-R-72-5.5Steel Removable Pipe Safety Bollard 72 In x 5-1/2 In YellowUsable Height (in.): 72-3/4
Bollard Diameter (in.): 5-9/16		87

Options


Model Image Description WT.
BOL-CAP-5.5-P BOL-CAP-5.5-P Plastic Bollard Cap Replacement For Schedule 10 Steel 5 In. Pipe Black 2
AS-344 Concrete (1) 3/4"x 4" Anchor Bolts (Other Units) 1
AS-344-4PK Concrete (4) 3/4"x 4" Anchor Bolts (Other Units) 4
DCBB-B-KIT Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow 2
BOL-CHAIN Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow 2
