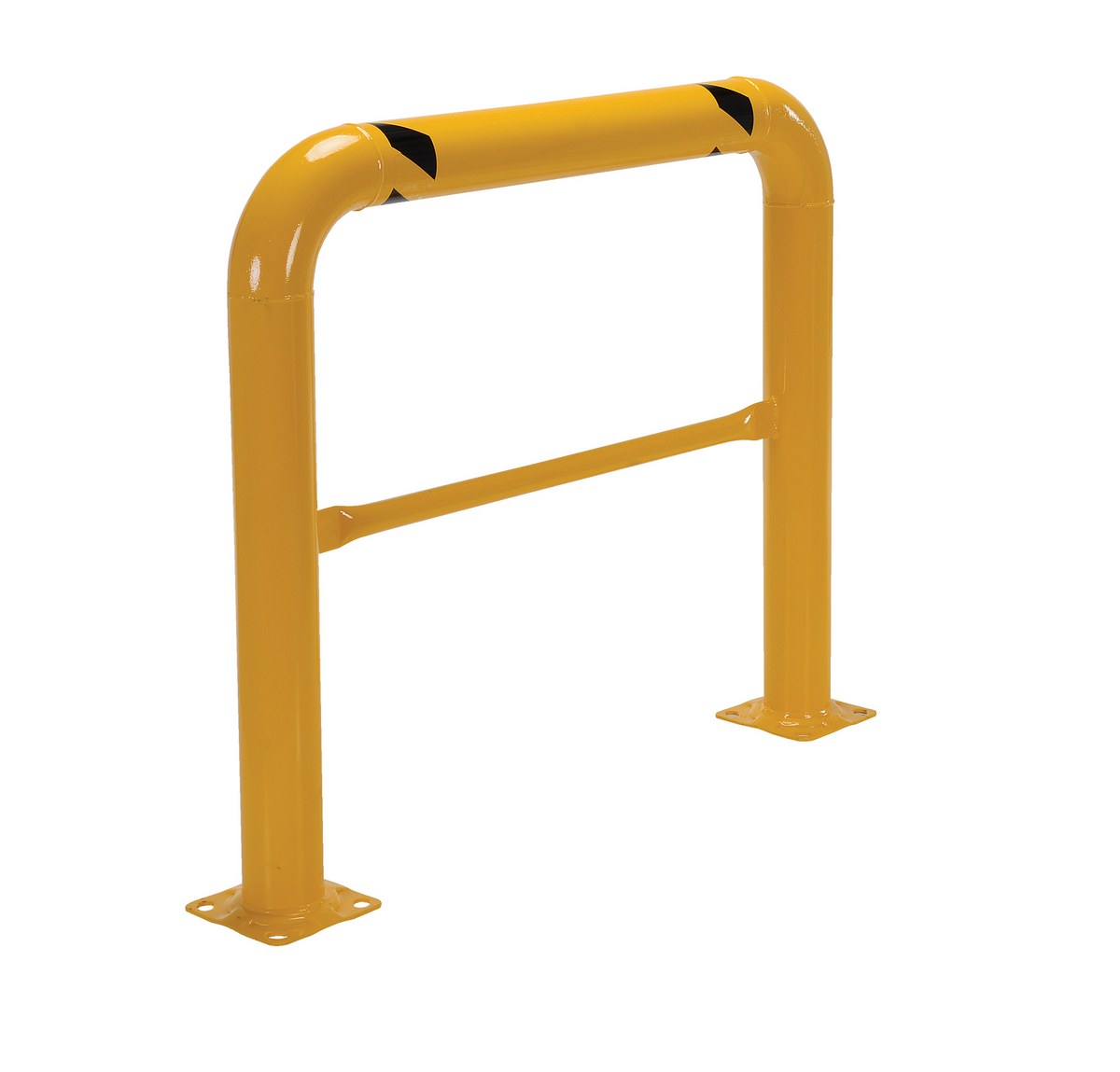

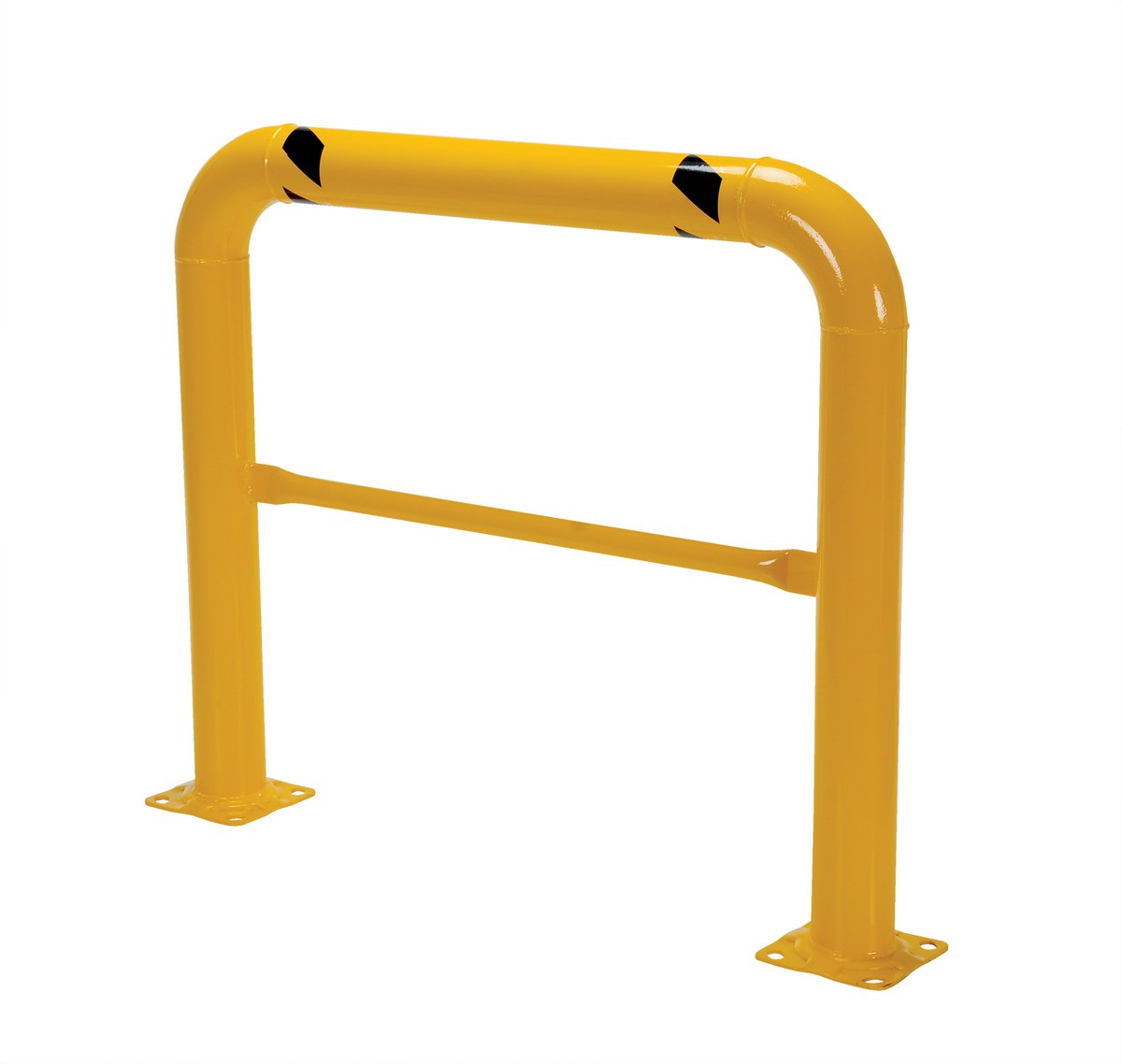

High Profile Machinery GuardsHeavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA requirements. Available with a baked-in yellow powder coated finish for toughness. A 304 stainless steel polished finish is also available. Two base plates with four pre-drilled mounting holes in each plate.

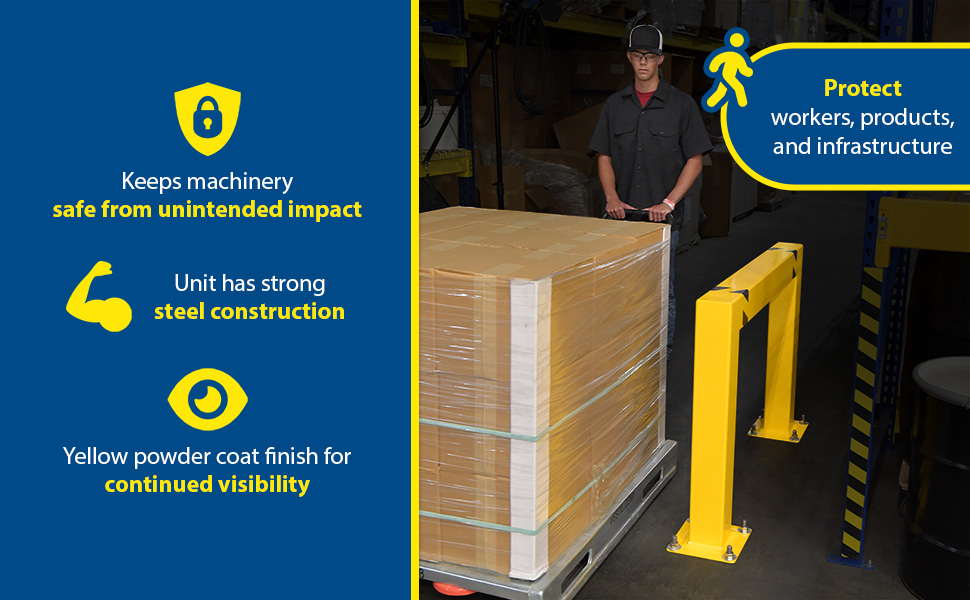

- High profile design provides added protection to personnel and equipment

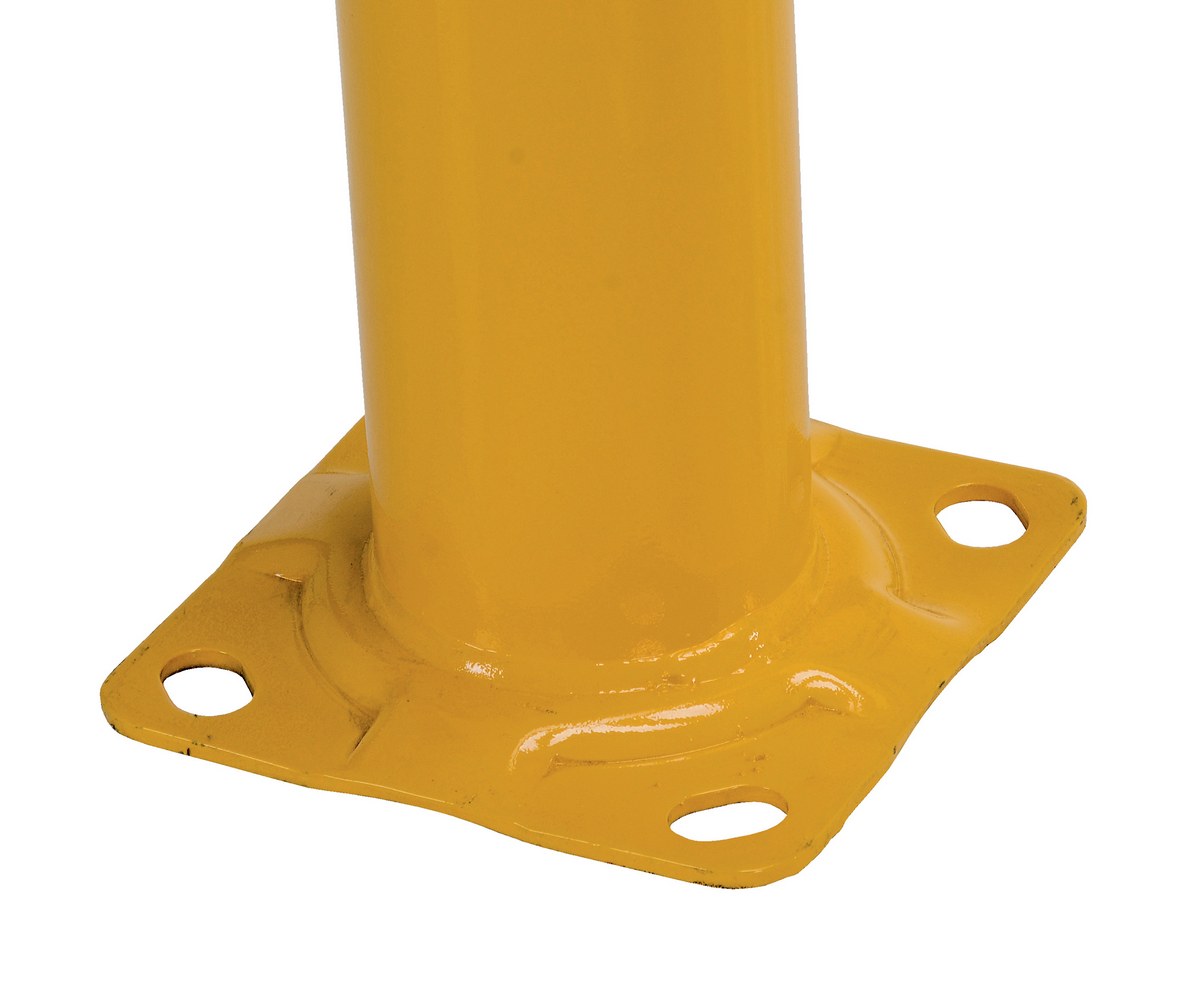

- Four pre-drilled mounting holes in base plate allow quick lag down installation
- Powder coat yellow or Stainless Steel finish provides long lasting durable coverage
- Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Low Profile Machinery Guards
Triple Elbow Guards with Center Support
Floor Stop Bollards
Building Protective Column PadsAdditional Models In This Family
HPRO-SQ-36-24-5
HPRO-60-42-4
HPRO-SS-48-36-4
HPRO-48-42-4
HPRO-36-36-4
HPRO-SS-48-42-4
HPRO-48-24-4
HPRO-48-36-2
HPRO-60-42-4
HPRO-SQ-36-24-5
HPRO-48-42-4
HPRO-SQ-36-42-5
HPRO-SQ-48-42-5
HPRO-48-36-4
HPRO-SS-48-42-4
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

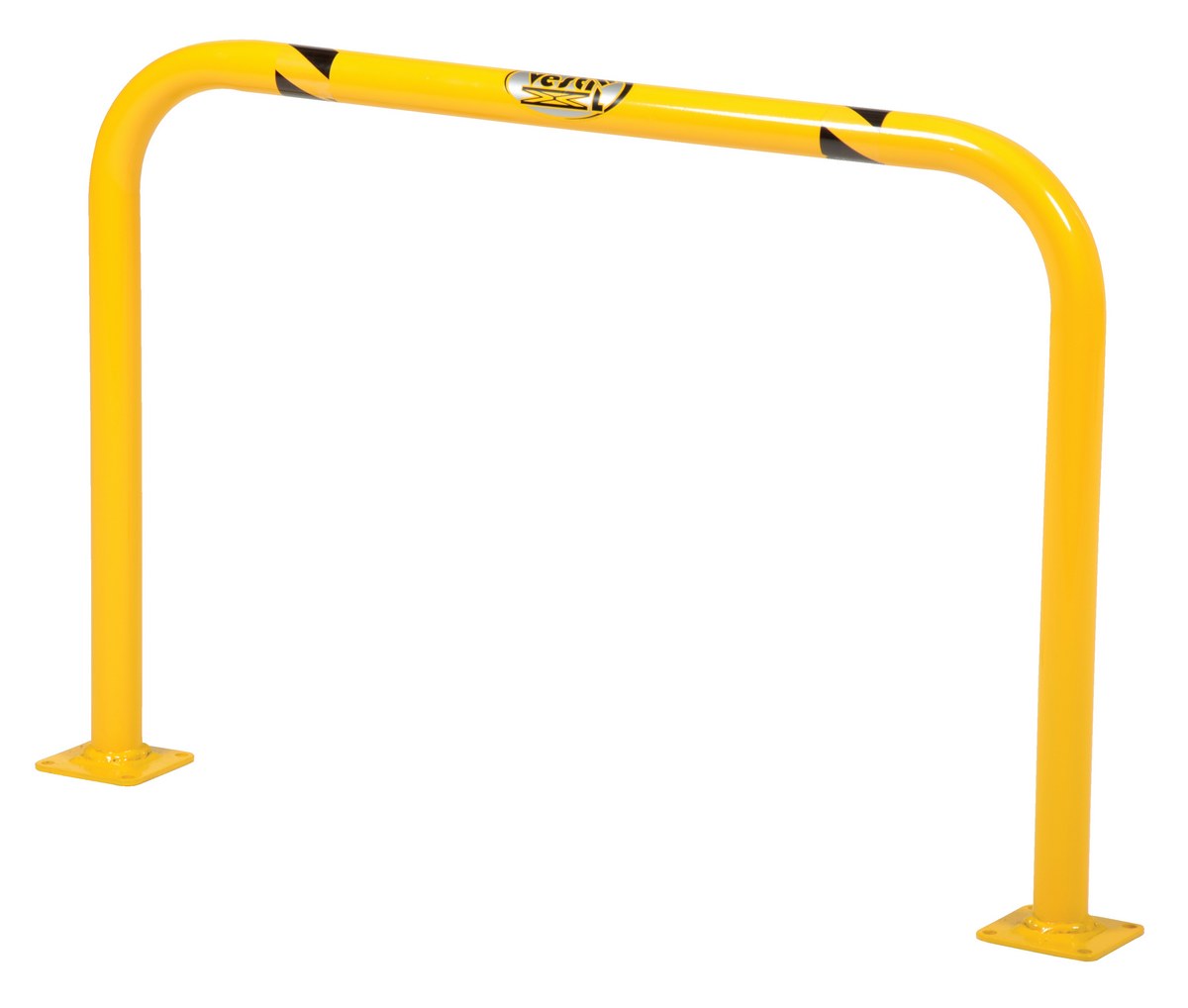

| HPRO-36-24-2 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 36 | 12 | ||

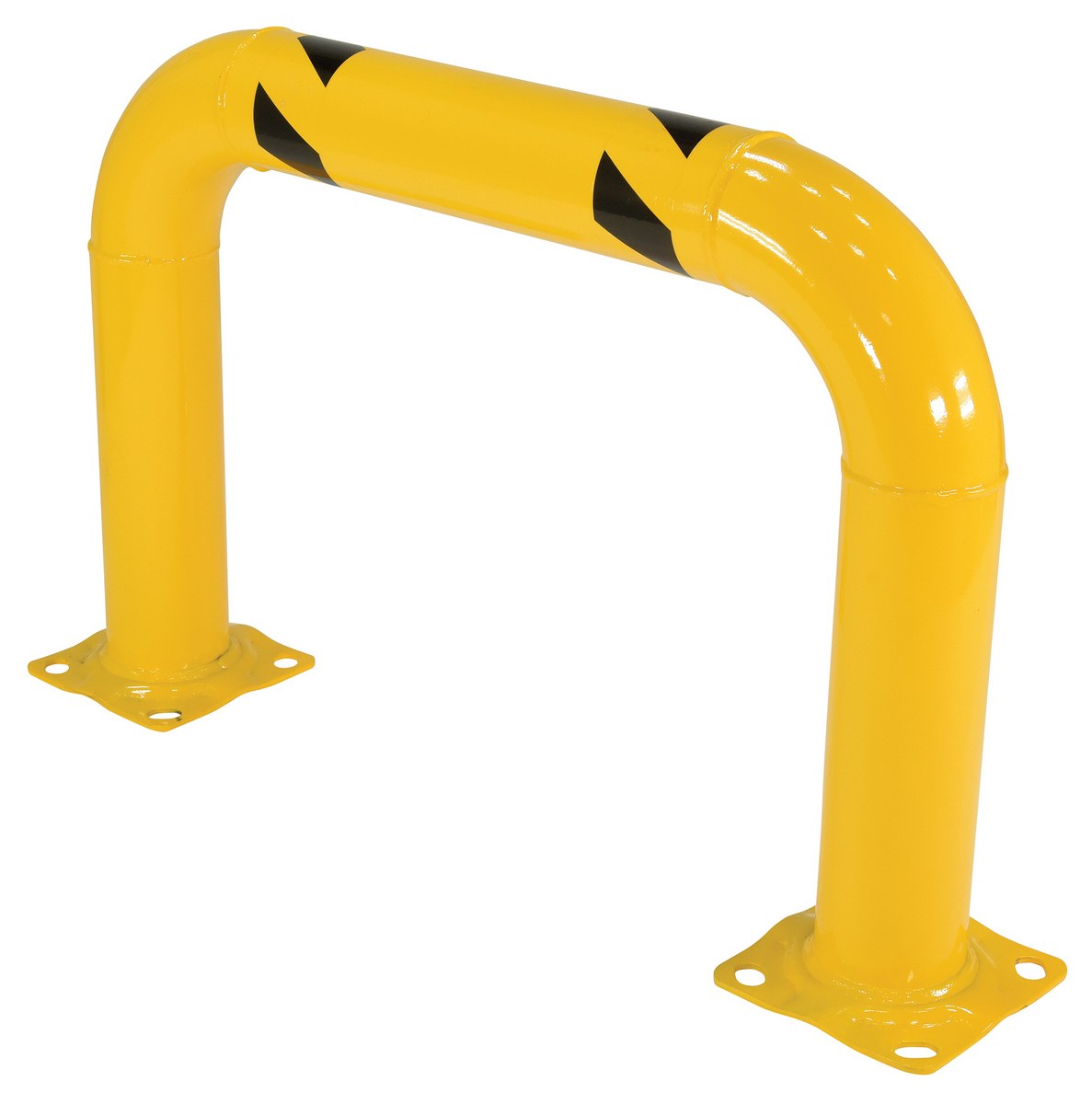

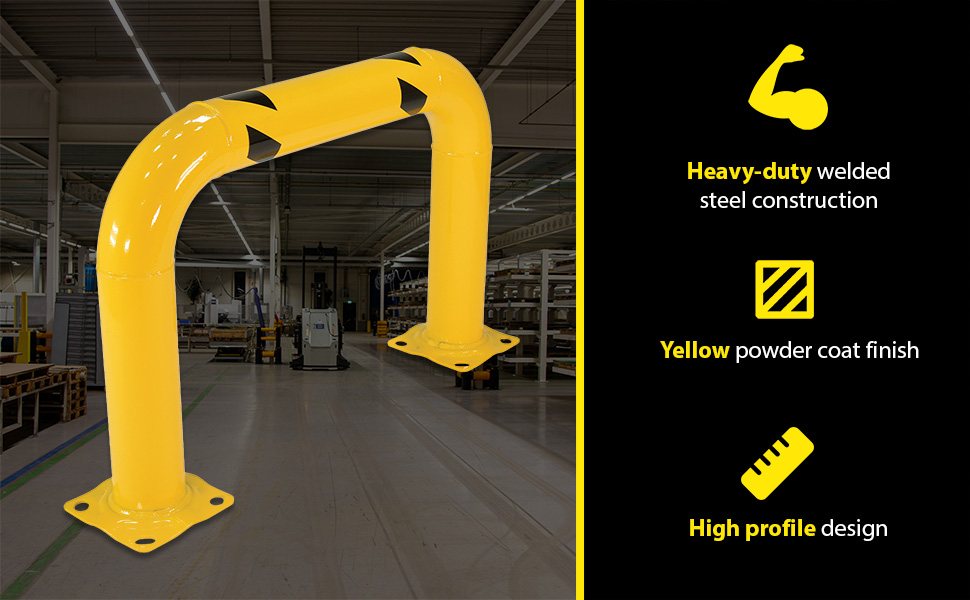

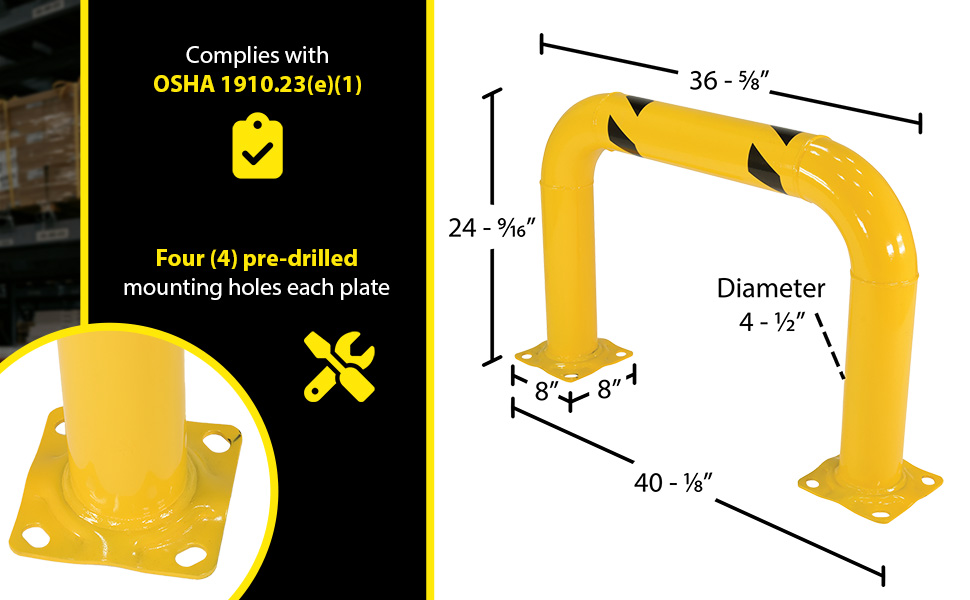

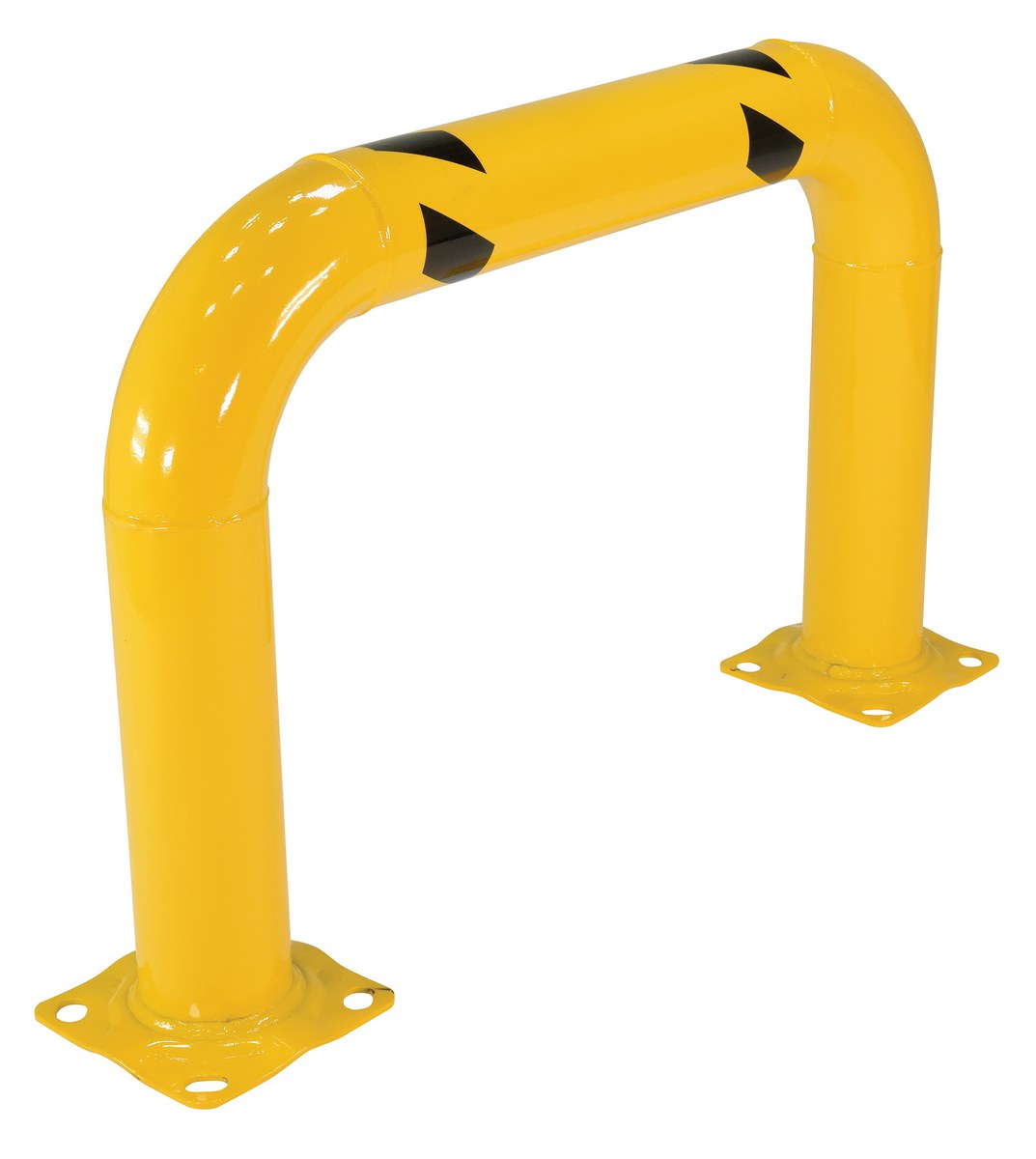

| HPRO-36-24-4 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 36-5/8 | 48 | ||

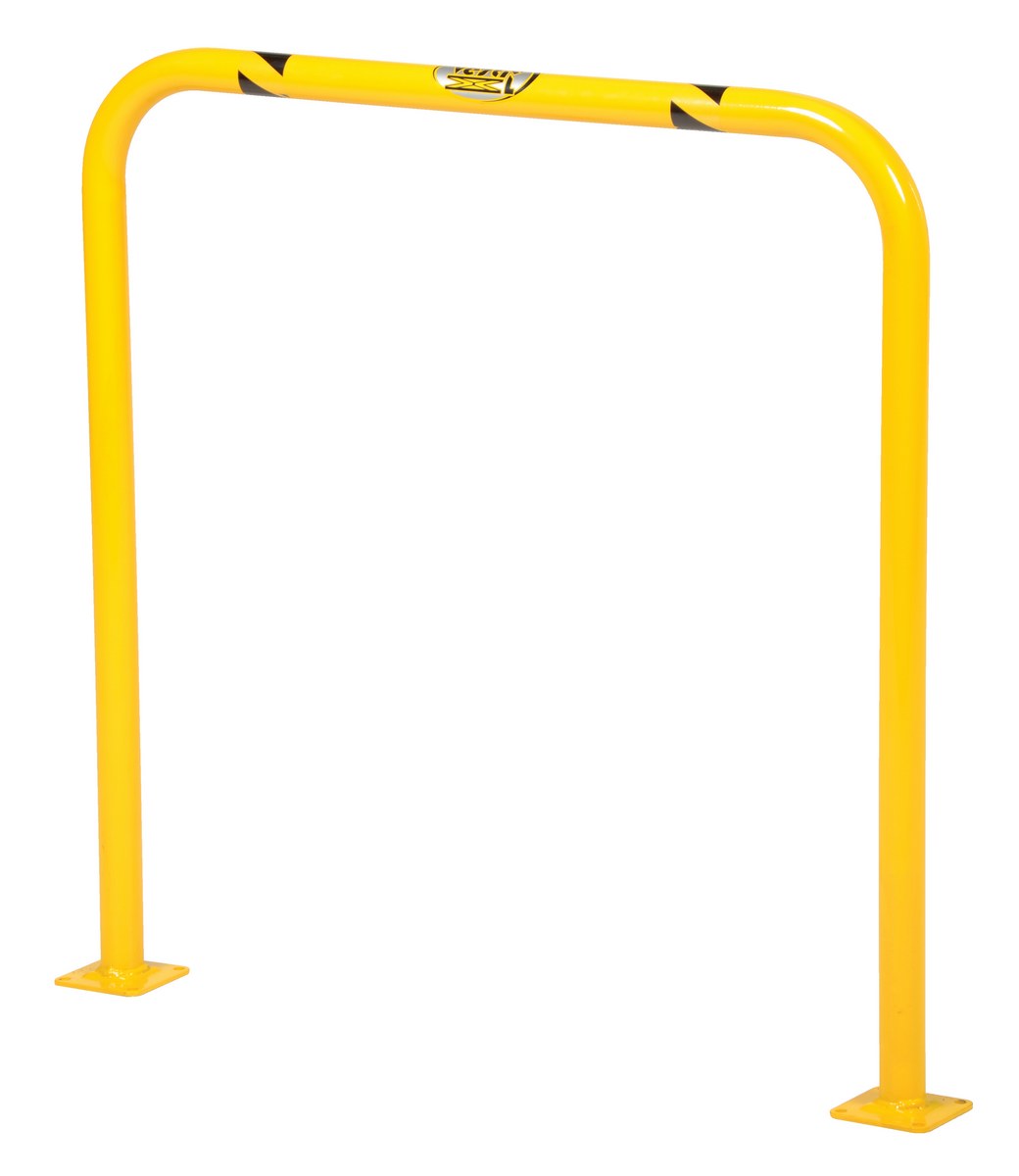

| HPRO-36-36-2 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 36 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 36 | 18 | ||

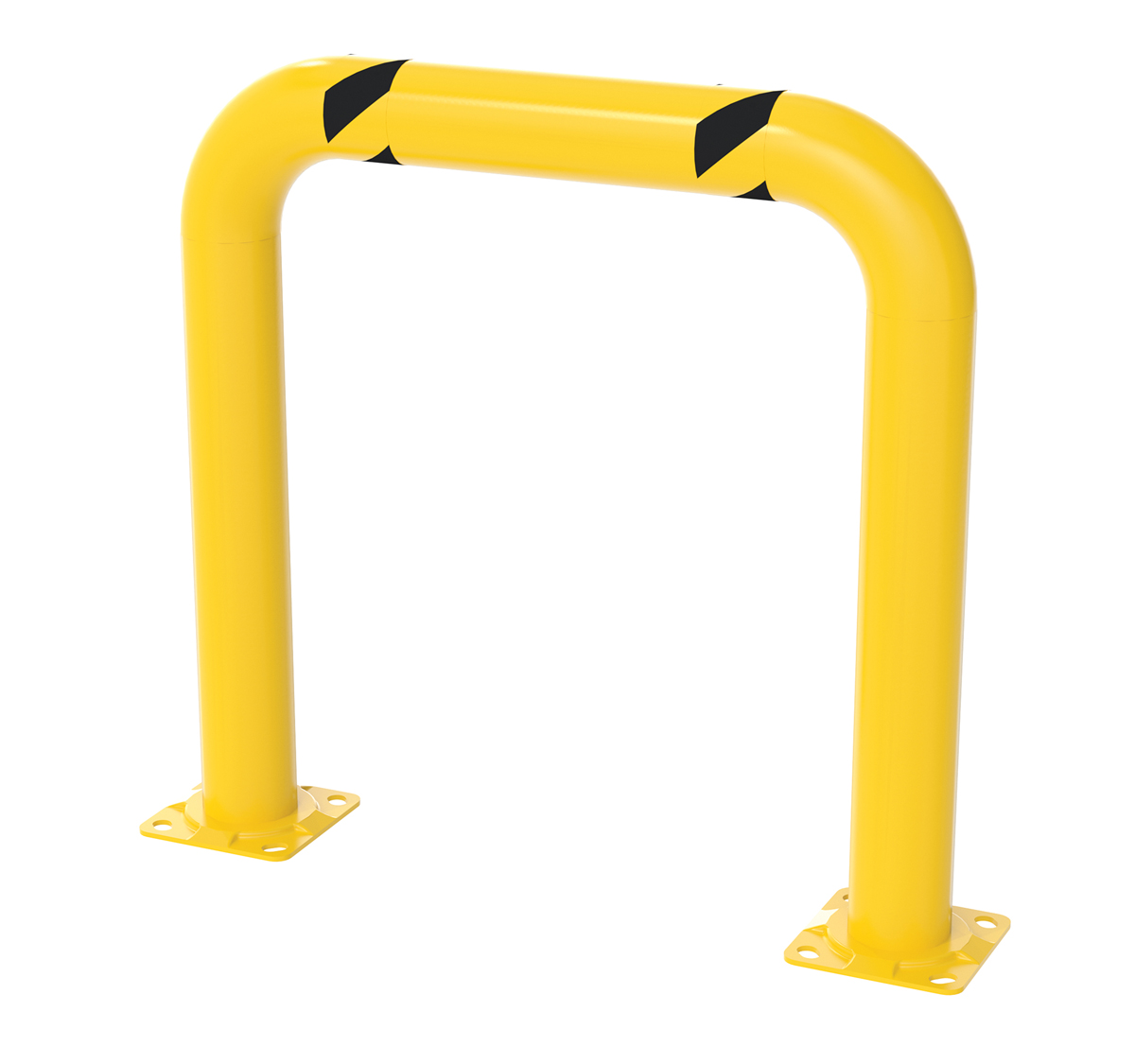

| HPRO-36-36-4 | | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 36 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 36-5/8 | 100 | ||

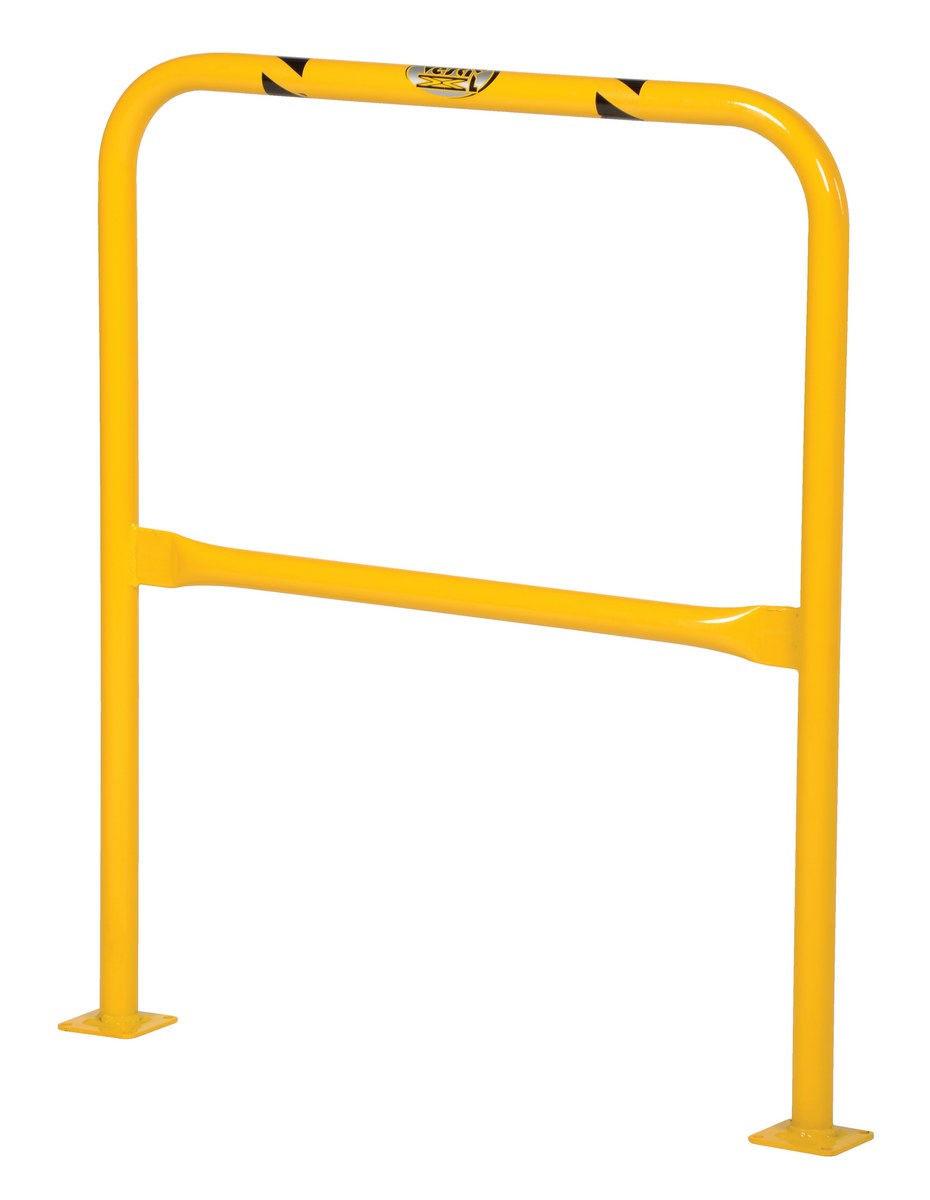

| HPRO-36-42-2 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 42 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 36 | 20 | ||

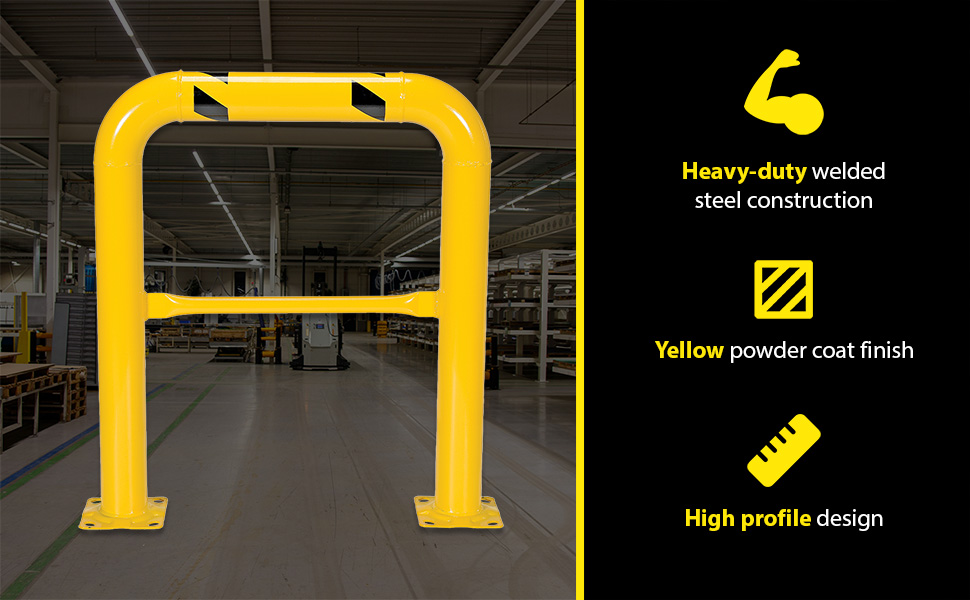

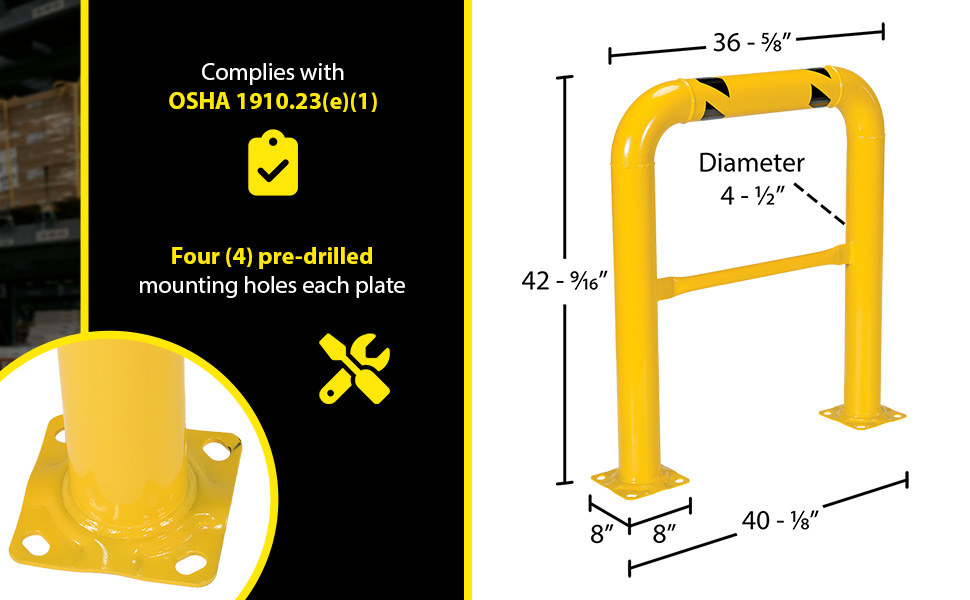

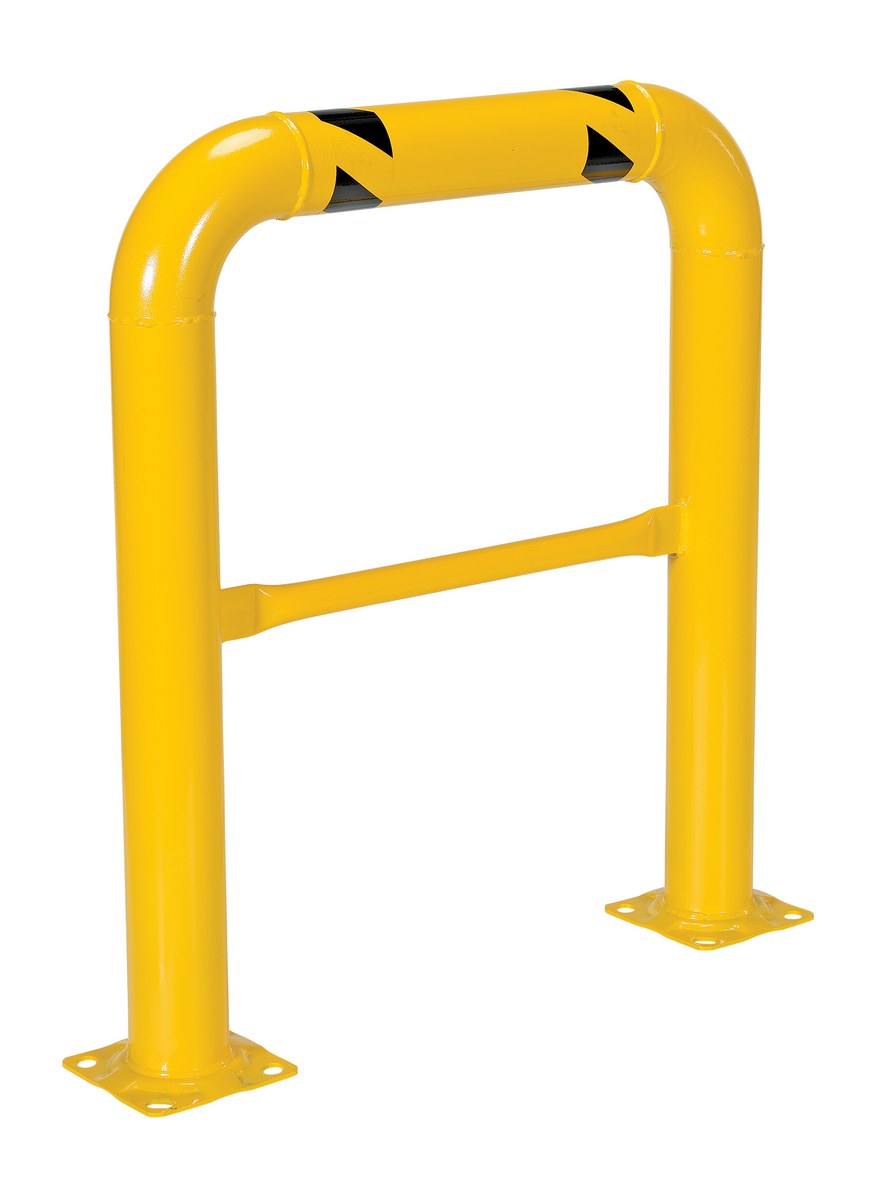

| HPRO-36-42-4 | POPULAR |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 36-5/8 | 69 | |

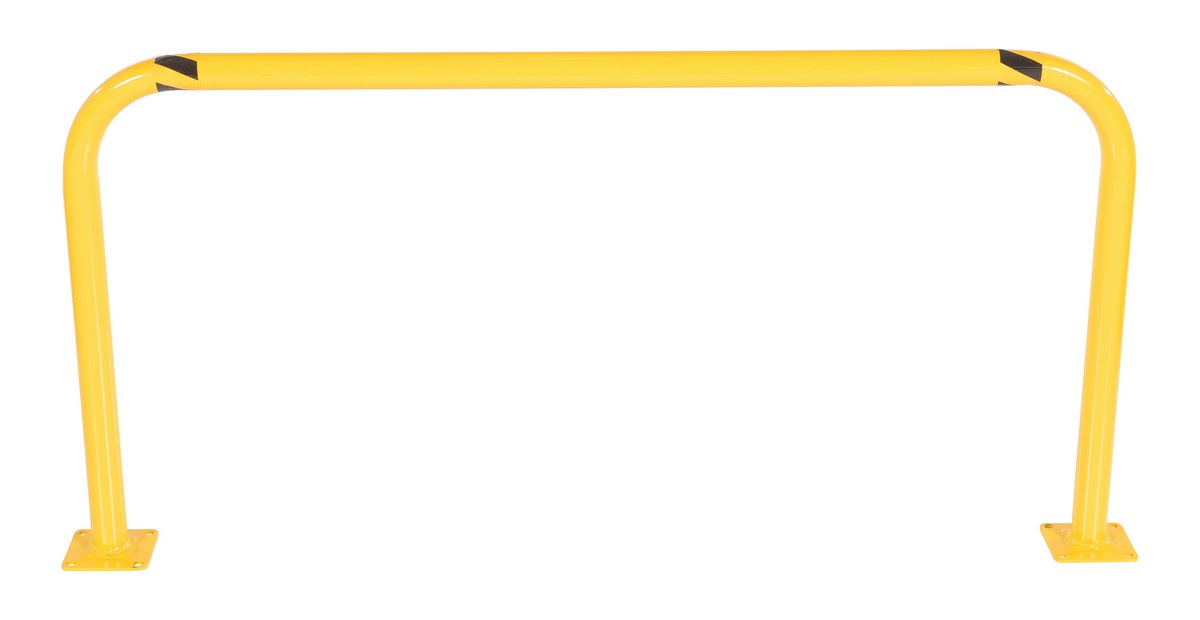

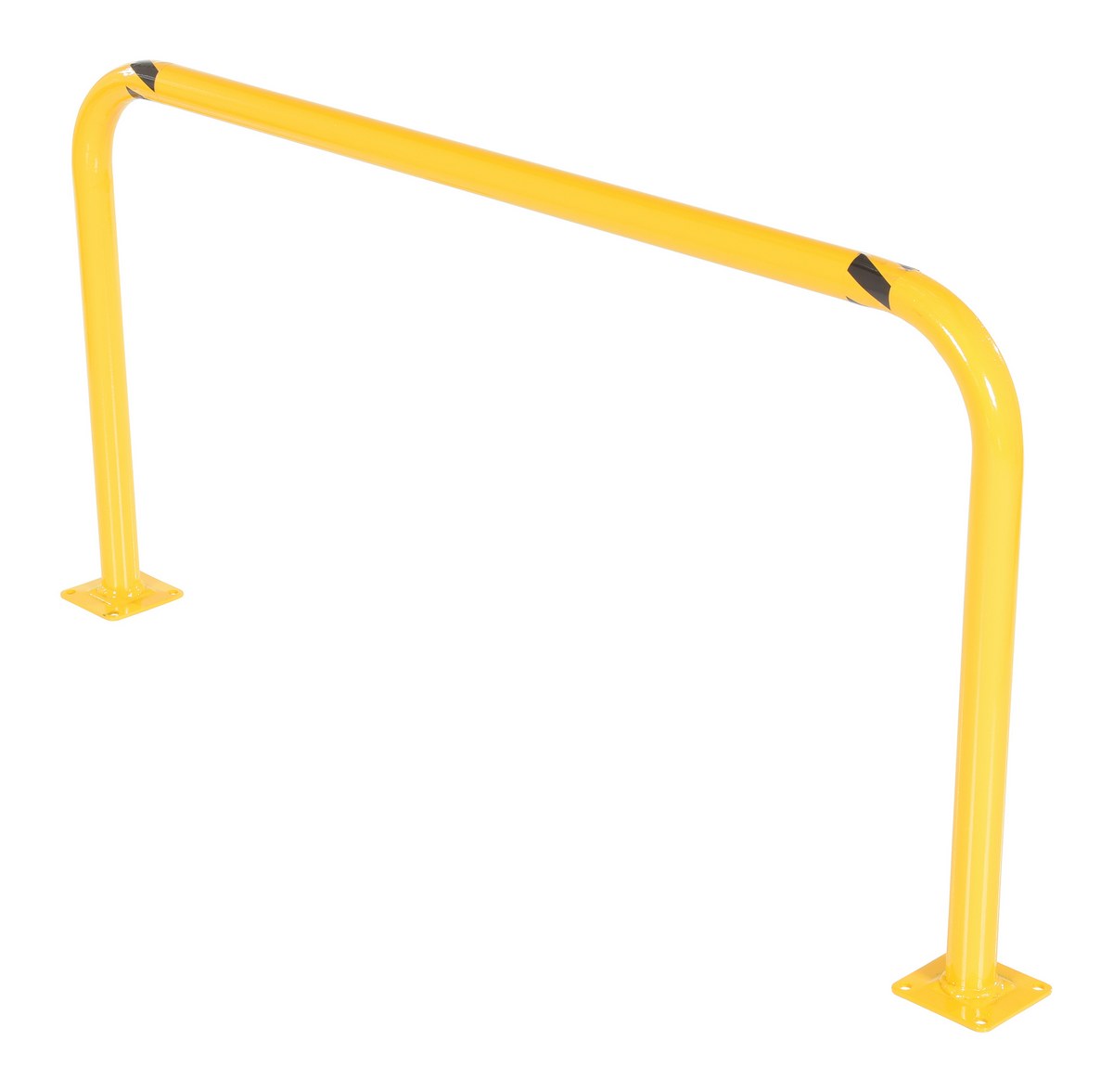

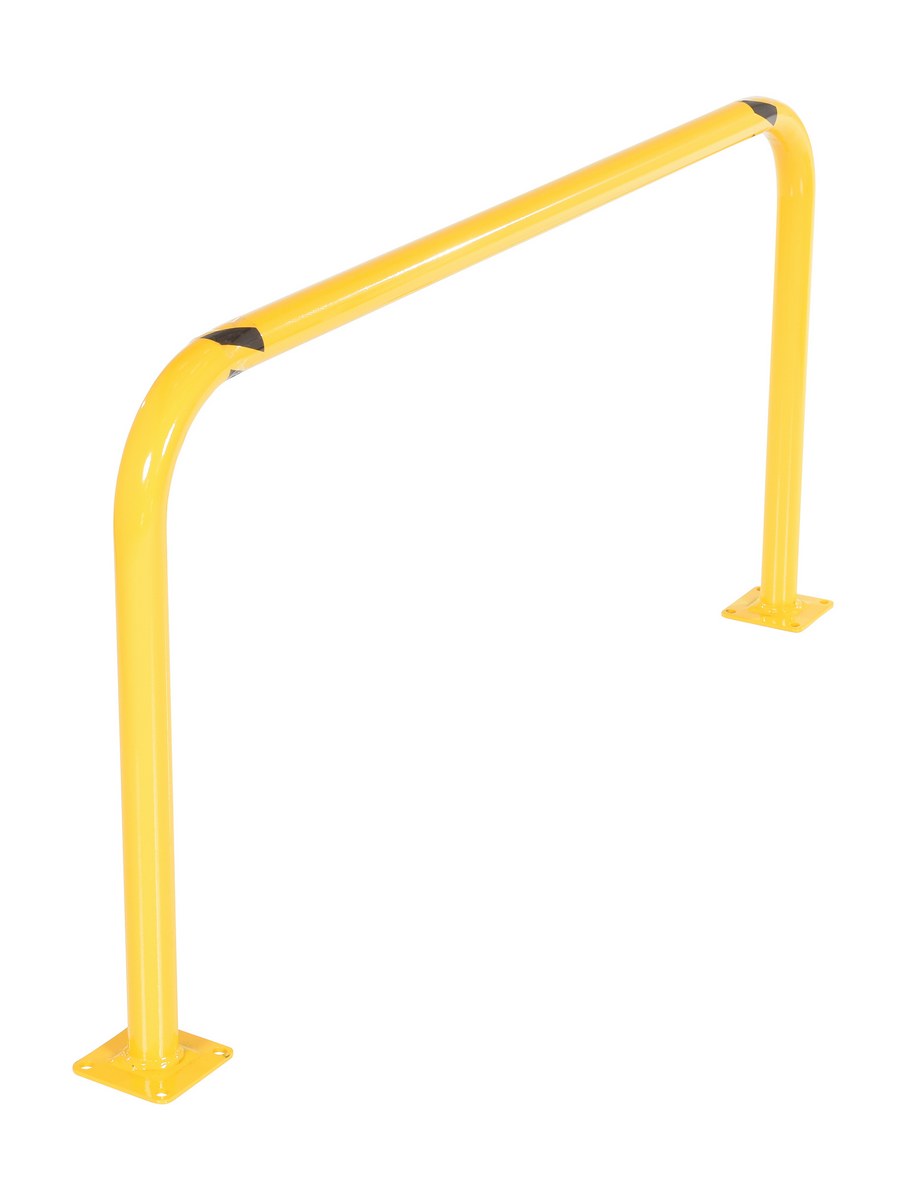

| HPRO-48-24-2 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 24 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 48 | 19 | ||

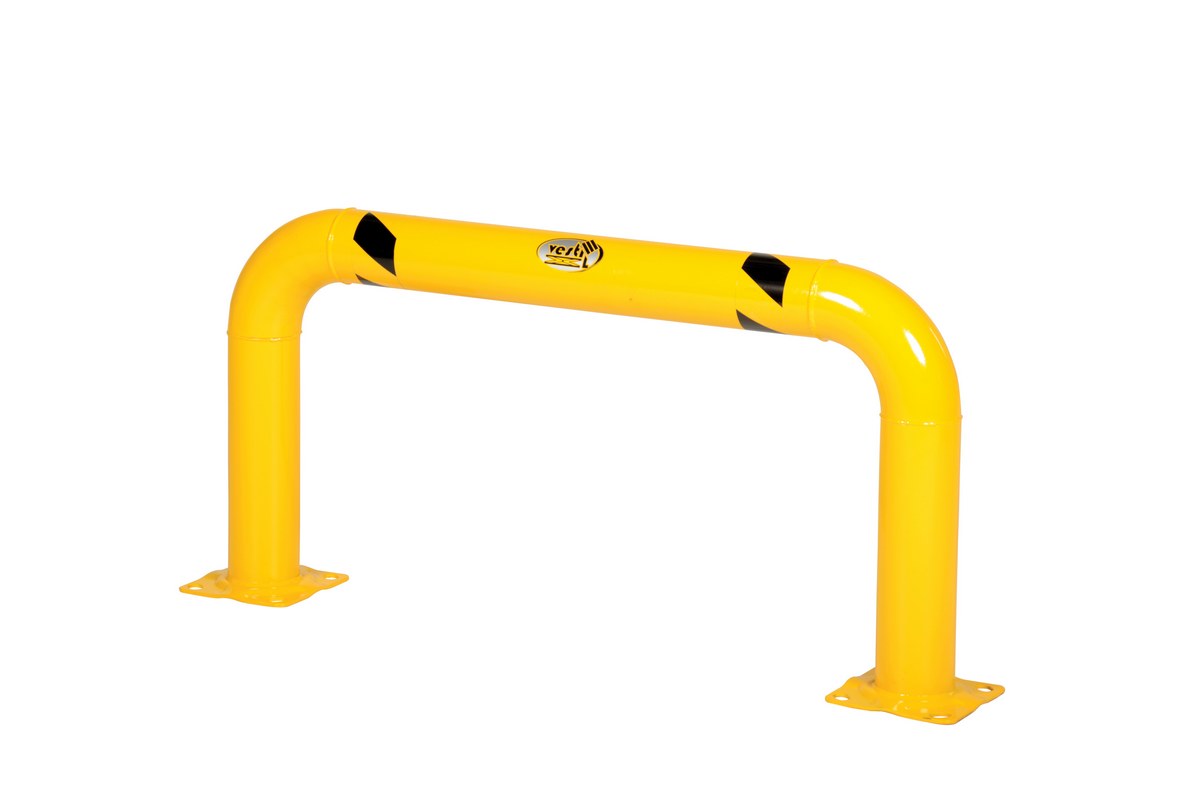

| HPRO-48-24-4 | | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 24 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 48-5/8 | 51 | ||

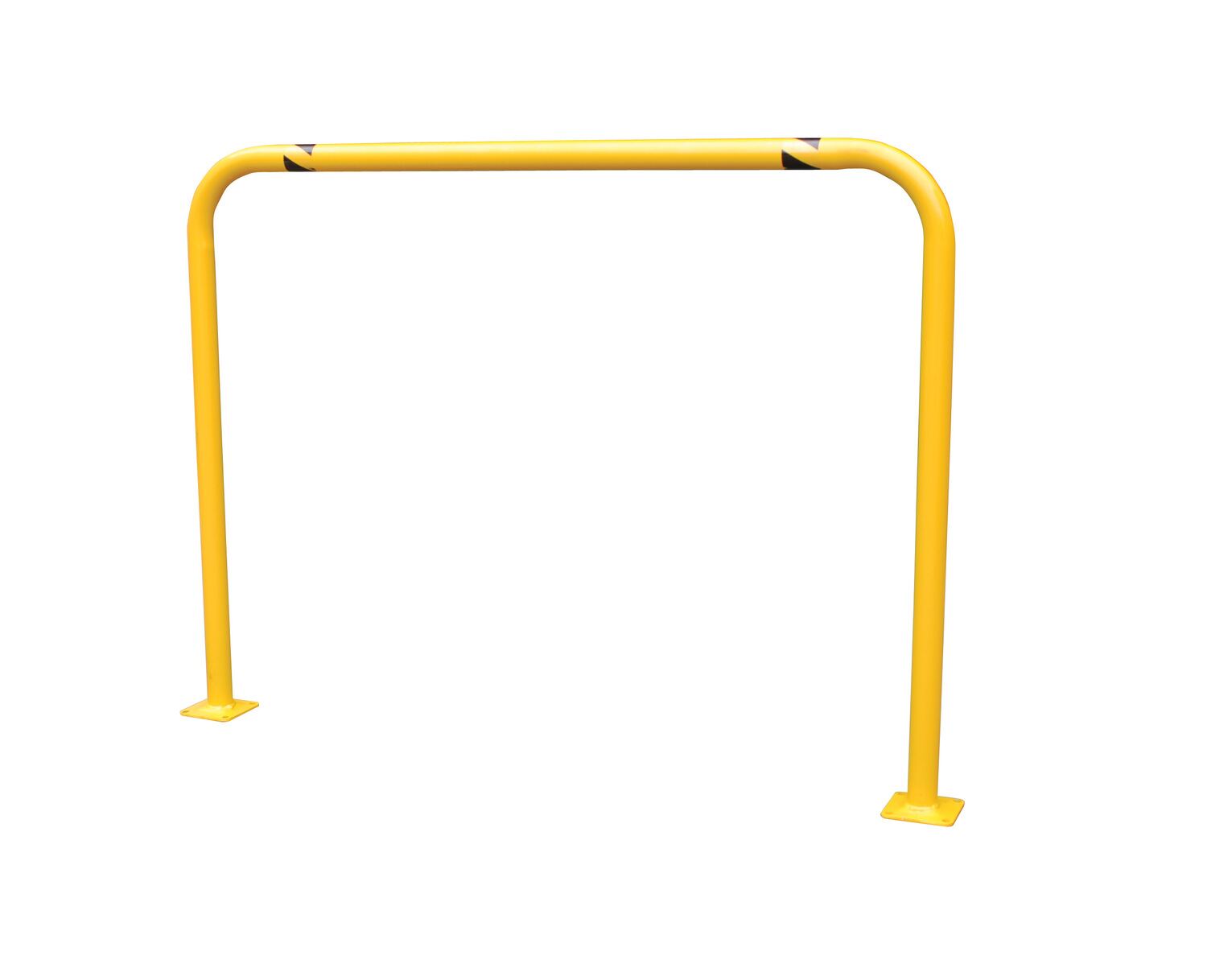

| HPRO-48-36-2 | | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 36 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 48 | 21 | ||

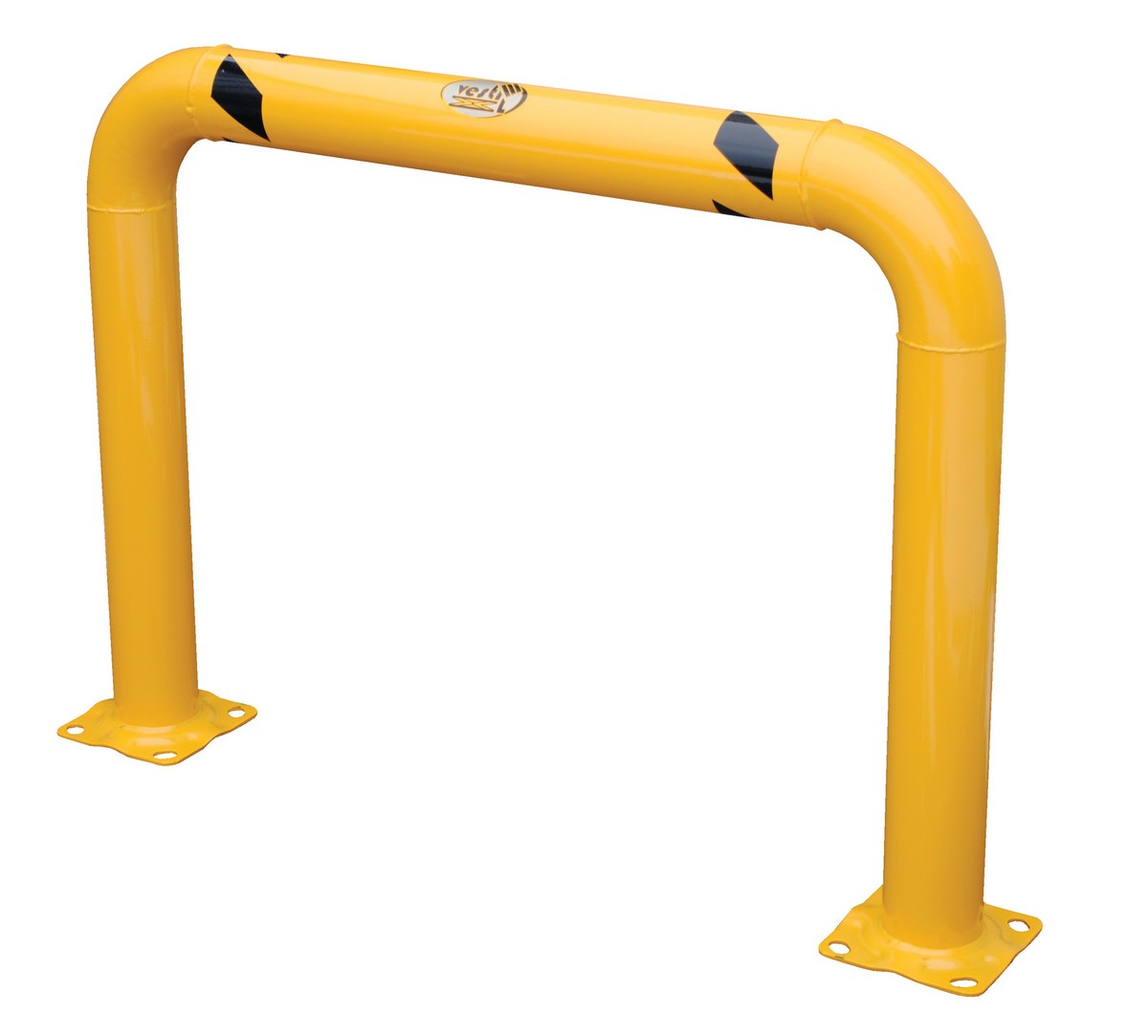

| HPRO-48-36-4 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 36 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 48-5/8 | 122 | ||

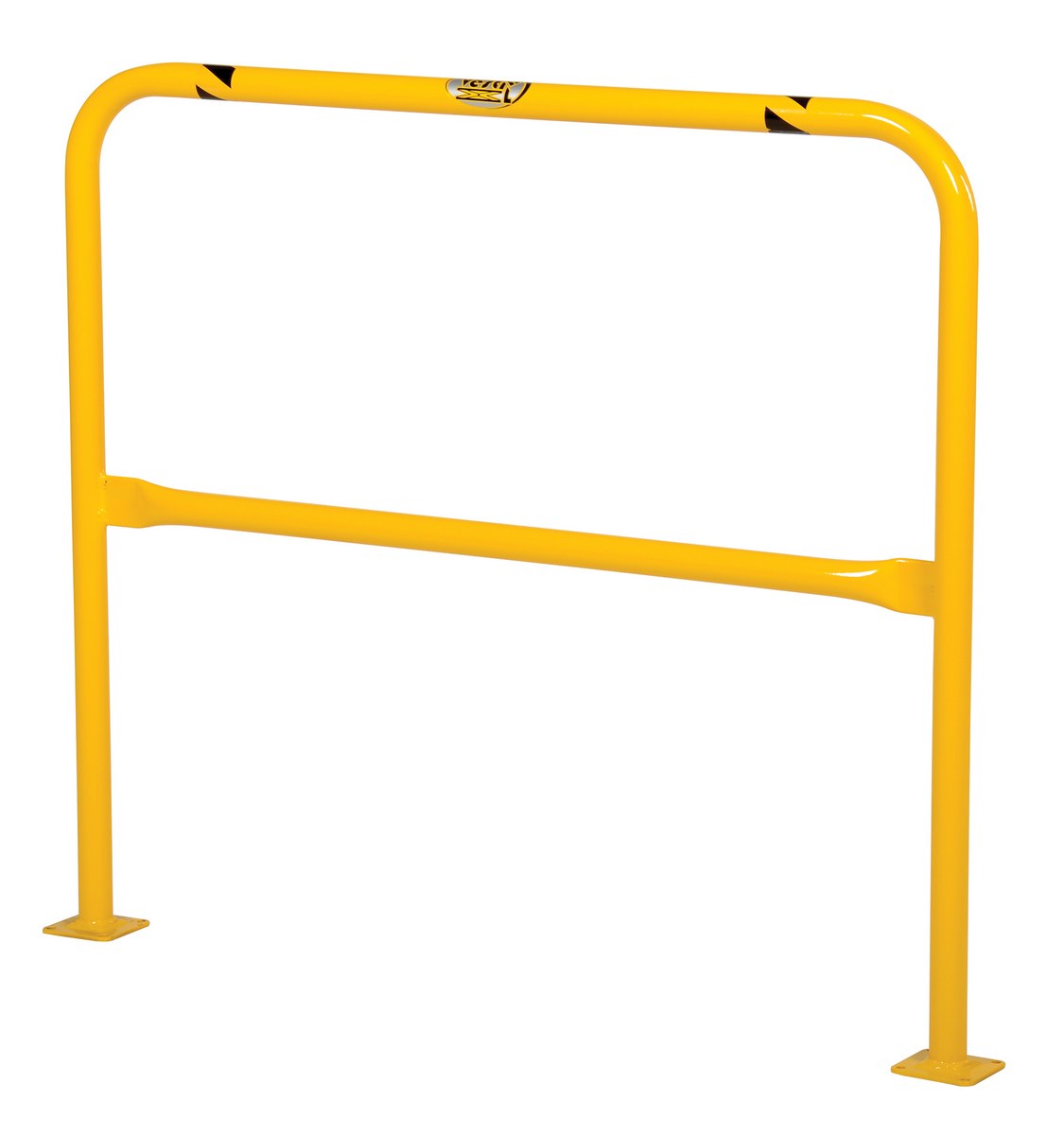

| HPRO-48-42-2 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 42 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 48 | 26 | ||

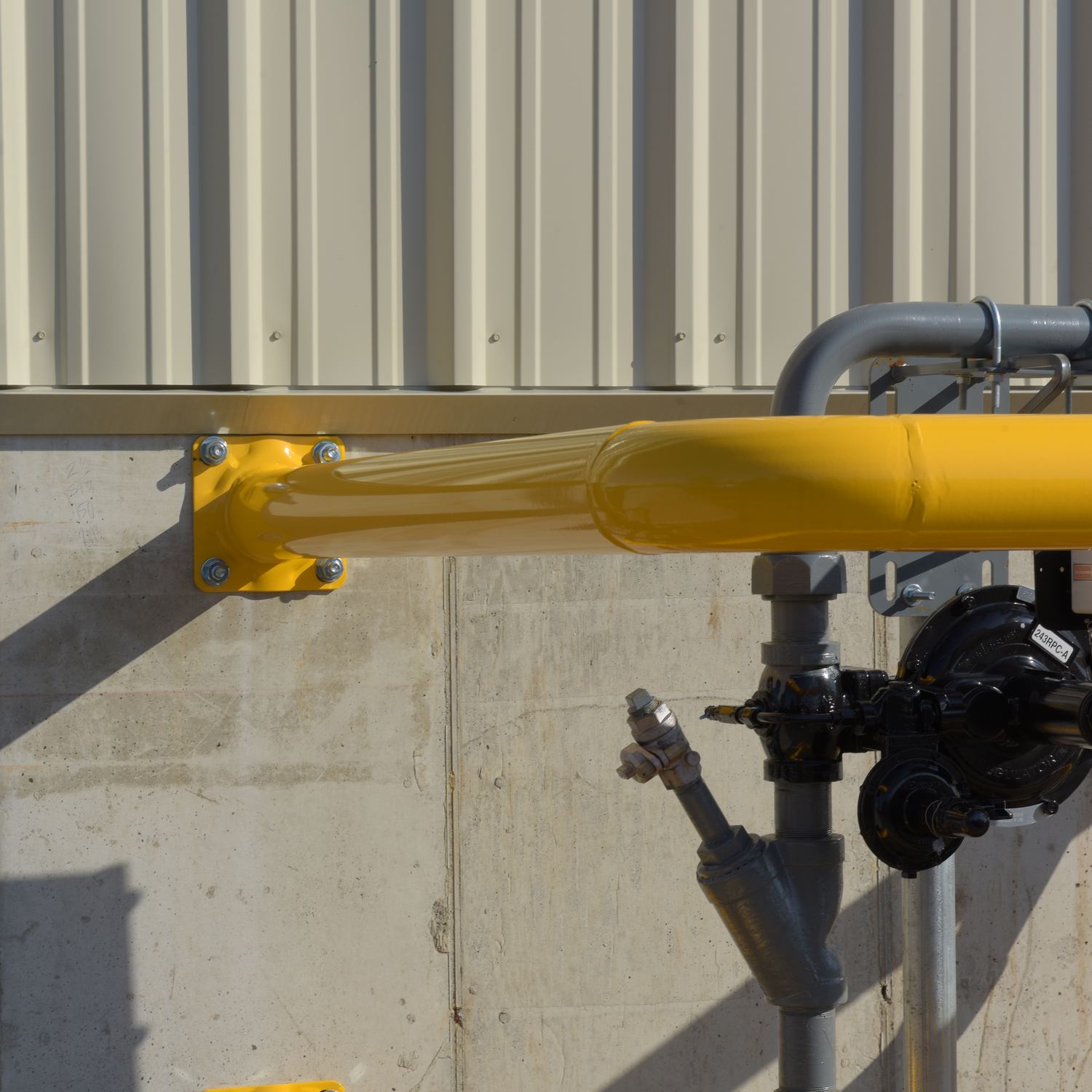

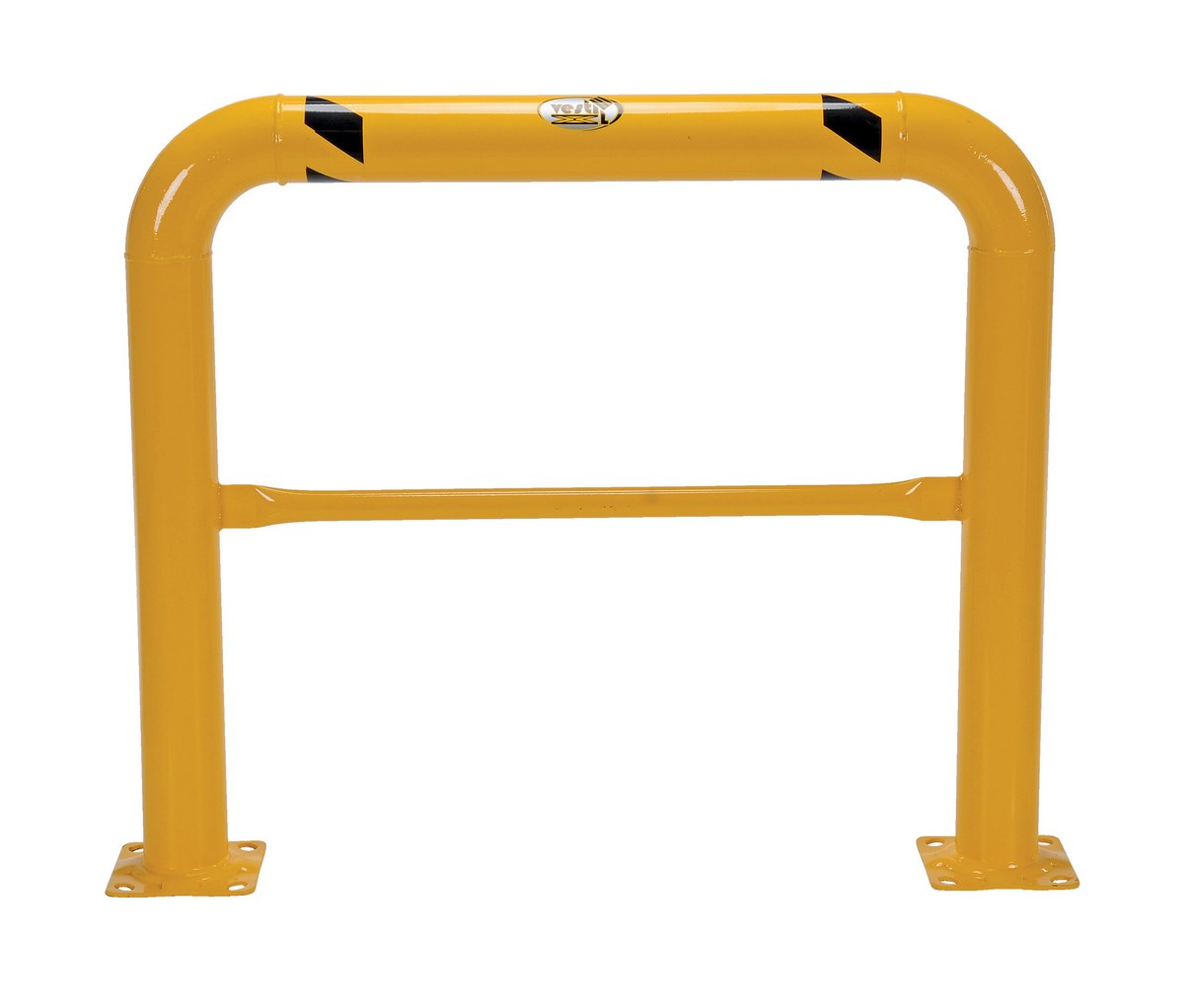

| HPRO-48-42-4 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 48-5/8 | 120 | ||

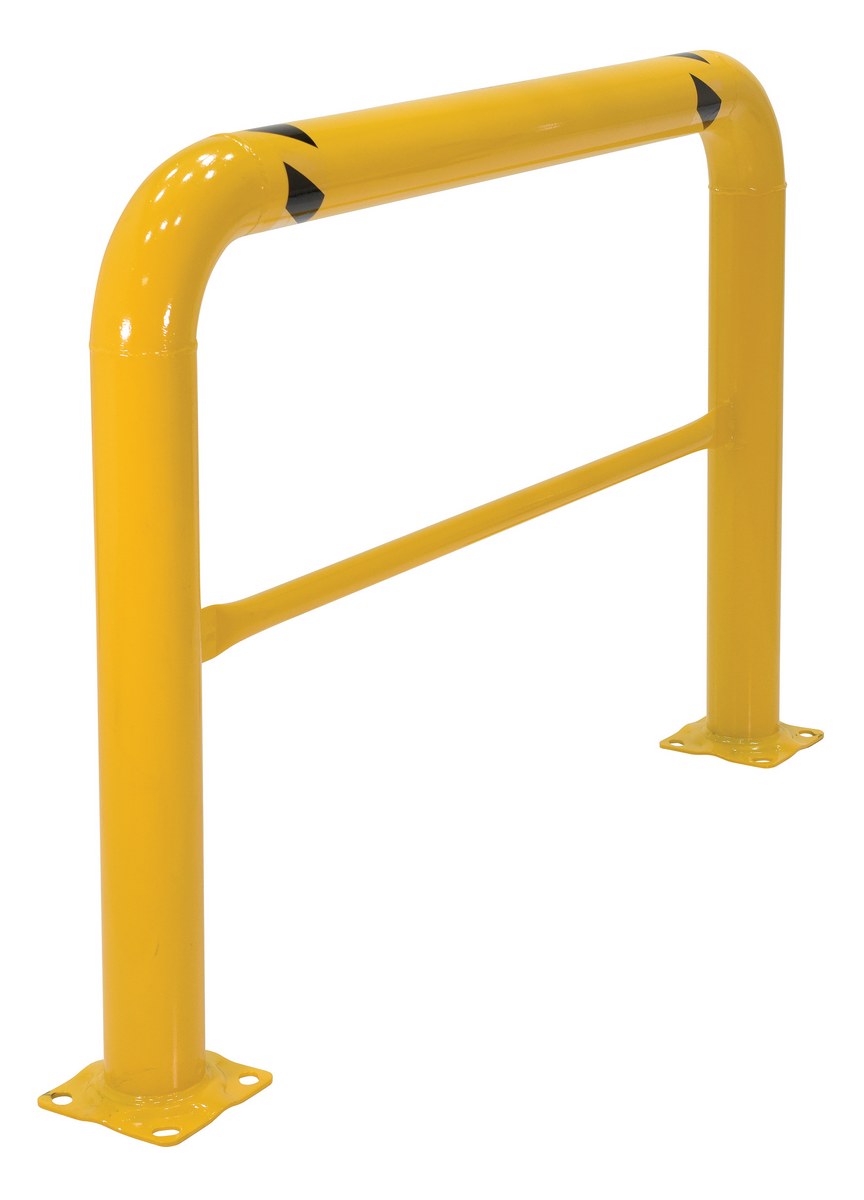

| HPRO-60-42-4 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 60 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 60-5/8 | 126 | ||

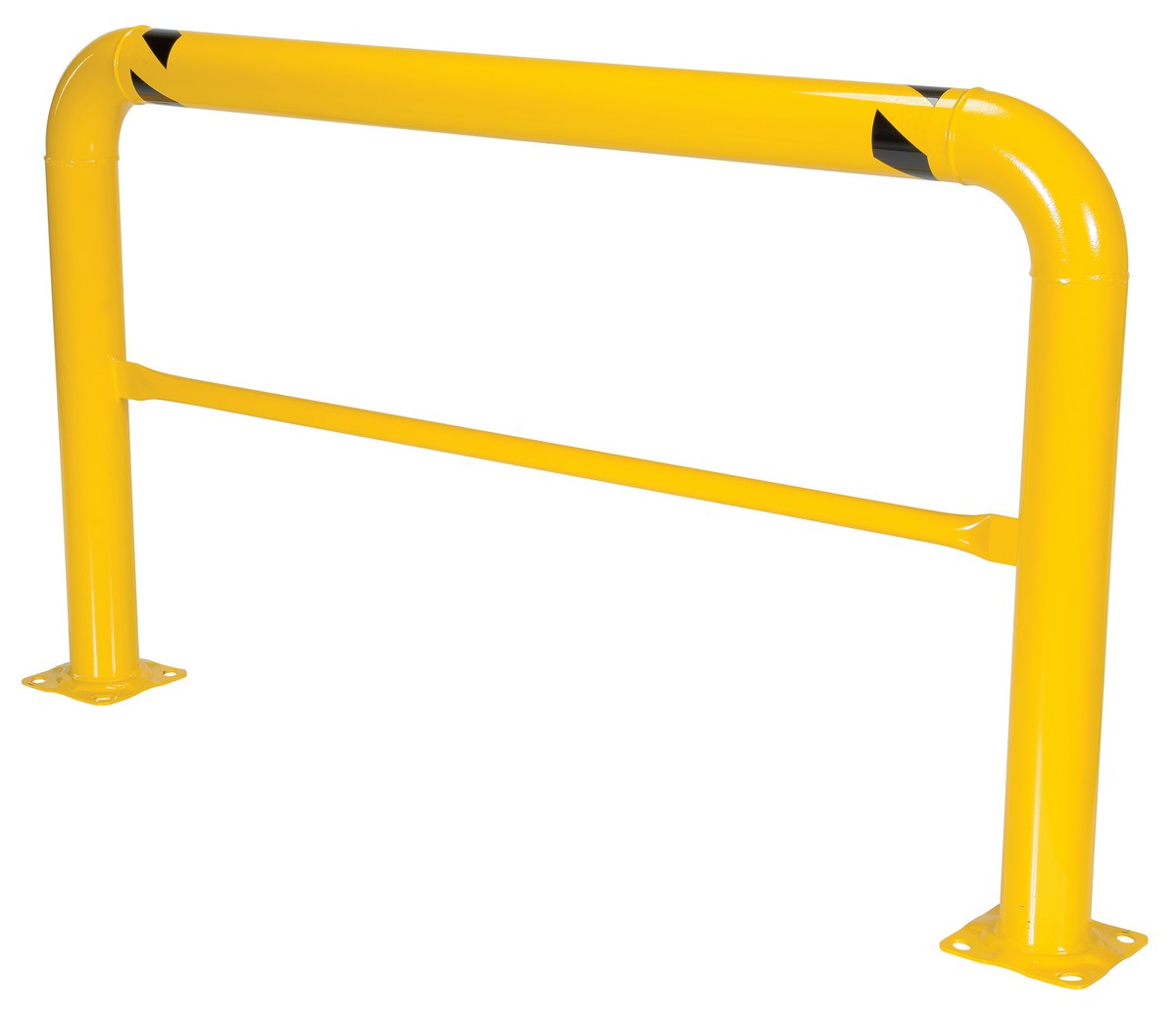

| HPRO-72-42-4 |  | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 72 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 72-5/8 | 129 | ||

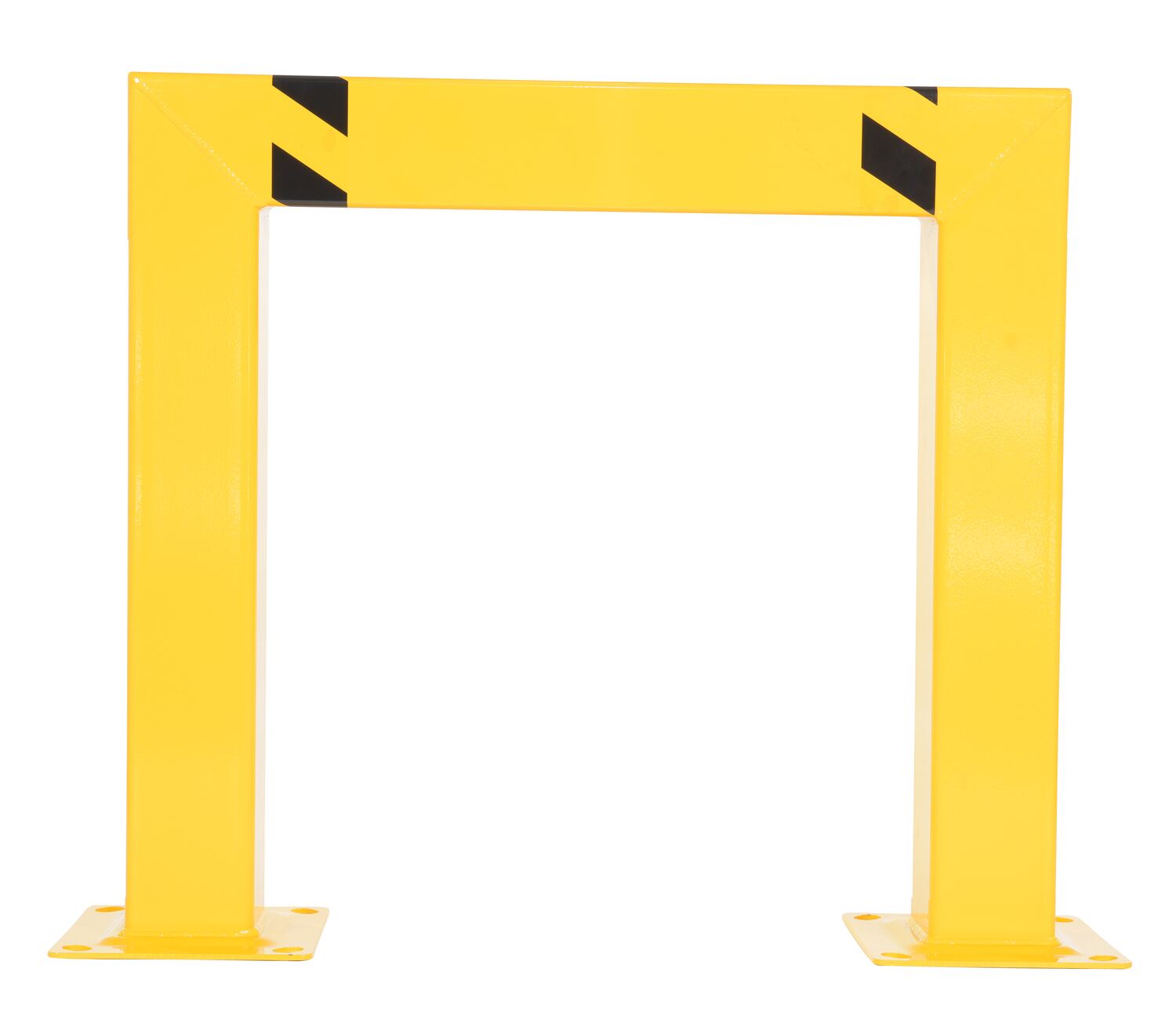

| HPRO-SQ-36-24-5 |  | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 36 In. x 24 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 36 | 84 | ||

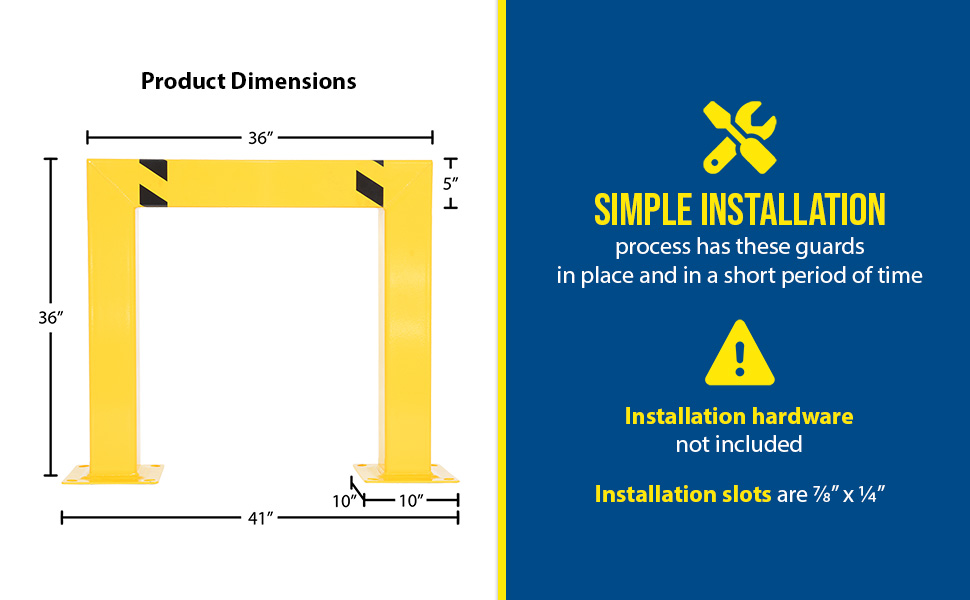

| HPRO-SQ-36-36-5 |  | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 36 In. x 36 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 36 | 108 | ||
| HPRO-SQ-36-42-5 | | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 36 In. x 42 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 36 | 120 | ||

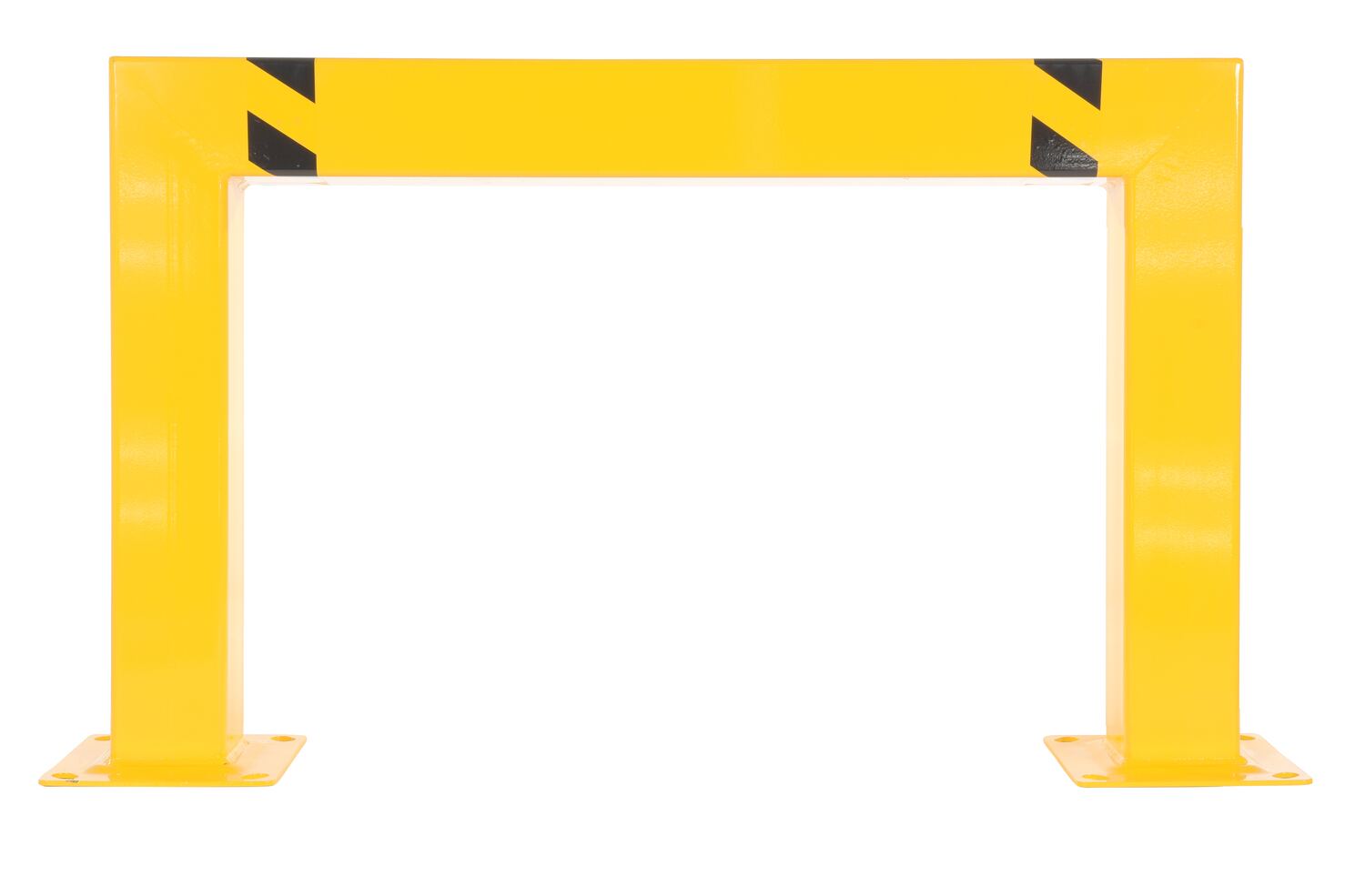

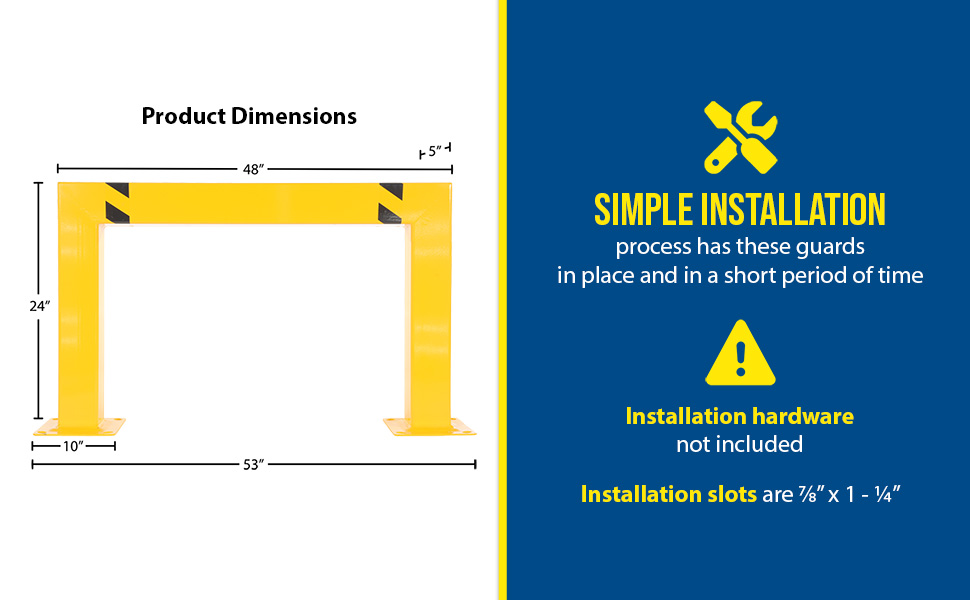

| HPRO-SQ-48-24-5 |  | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 48 In. x 24 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 48 | 96 | ||

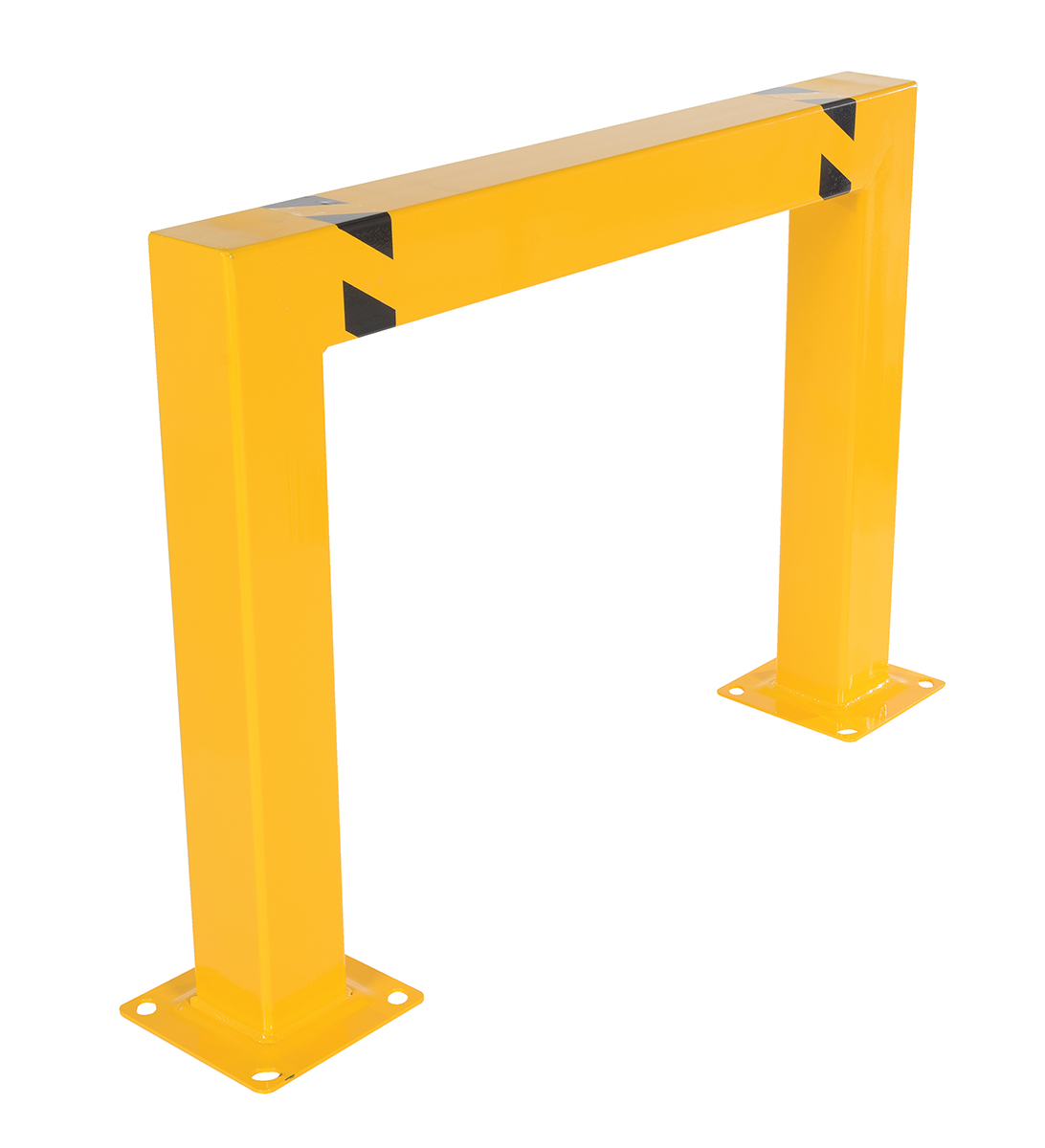

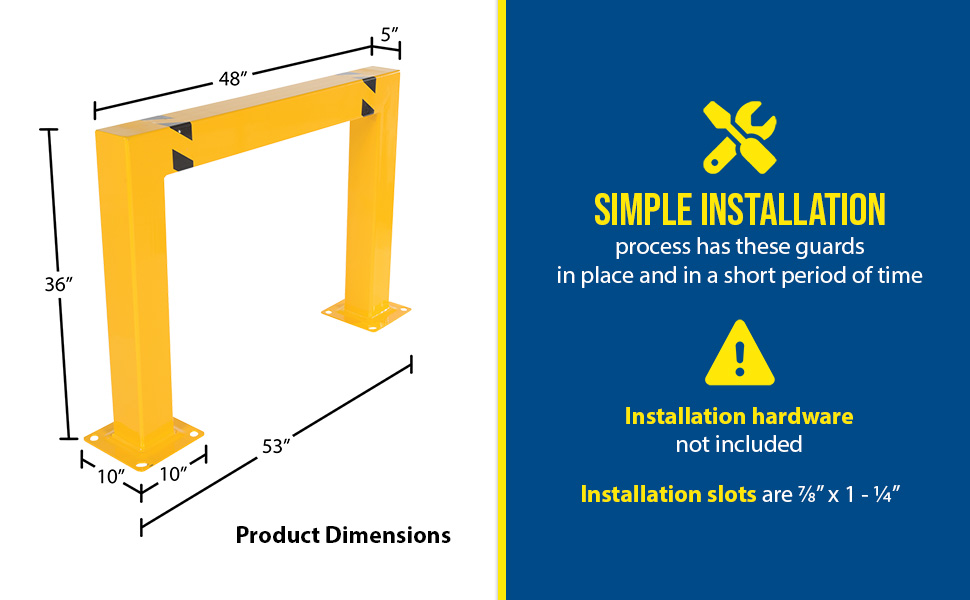

| HPRO-SQ-48-36-5 |  | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 48 In. x 36 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 48 | 120 | ||

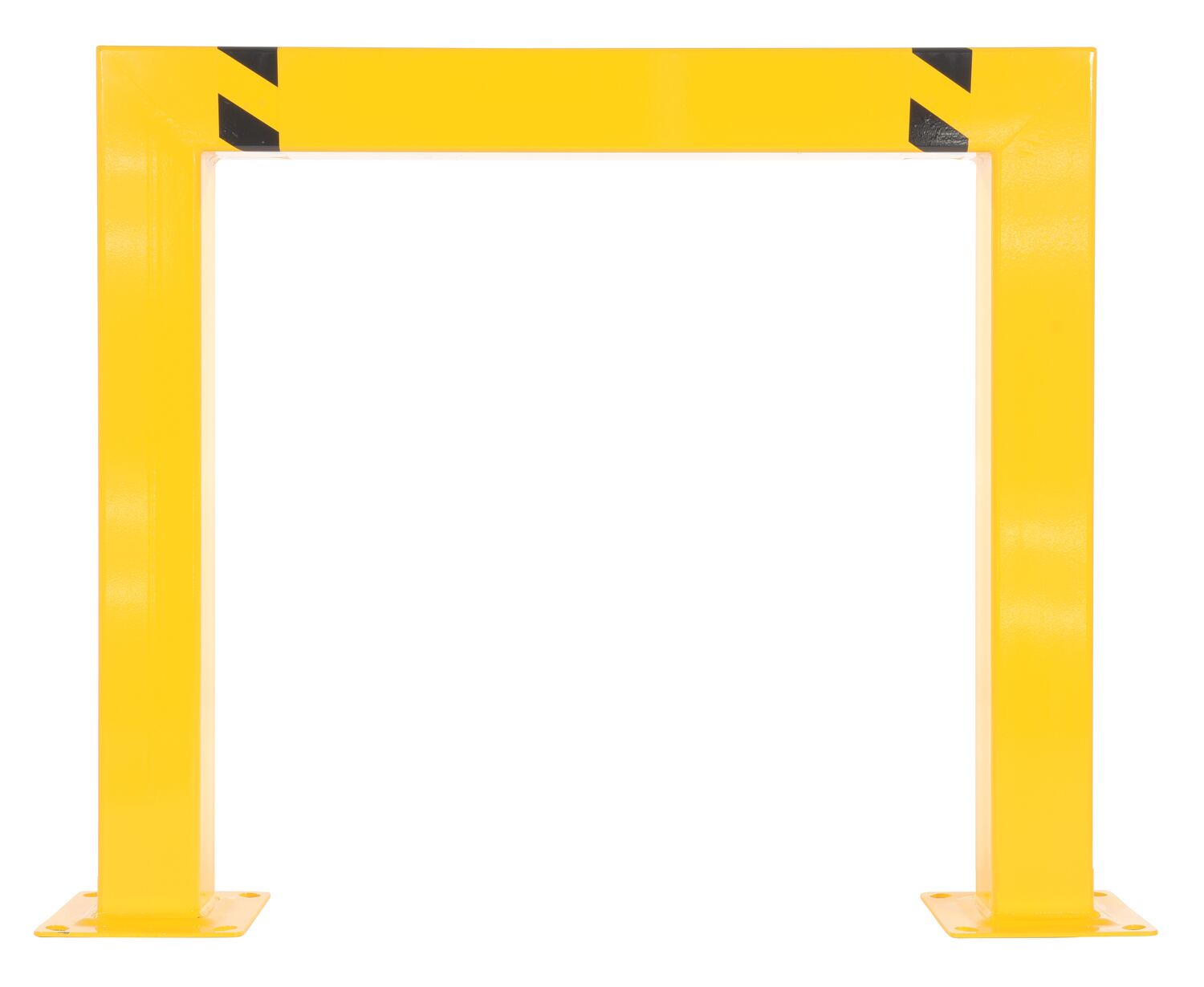

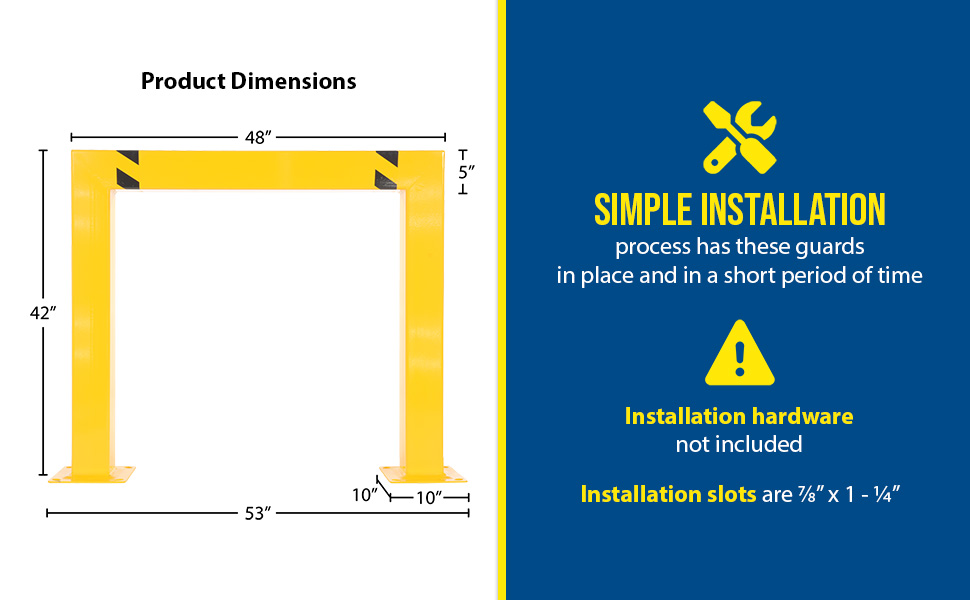

| HPRO-SQ-48-42-5 | | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 48 In. x 42 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 48 | 132 | ||

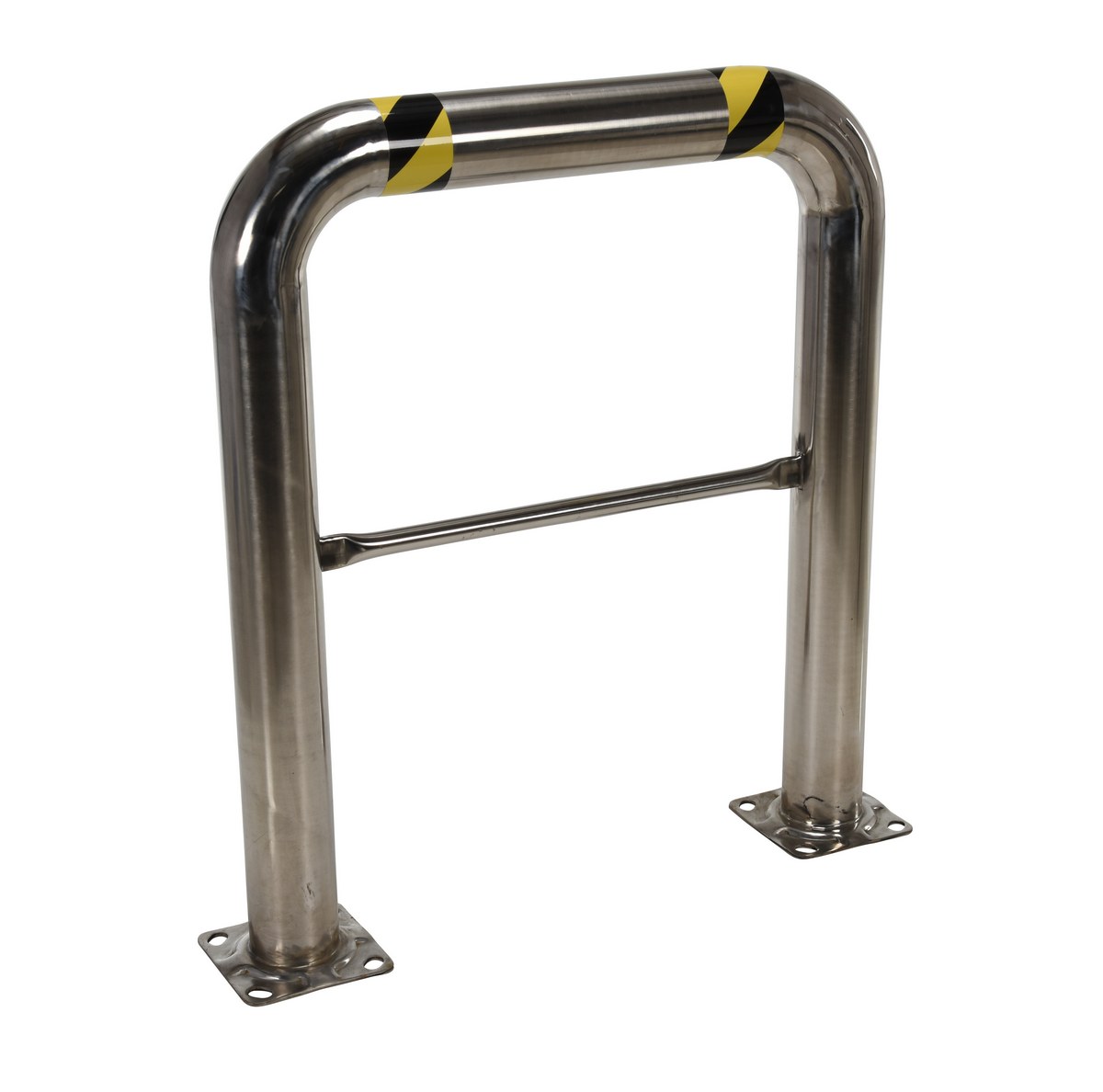

| HPRO-SS-36-42-4 |  | 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 36 In. x 42 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 36-5/8 | 100 | ||

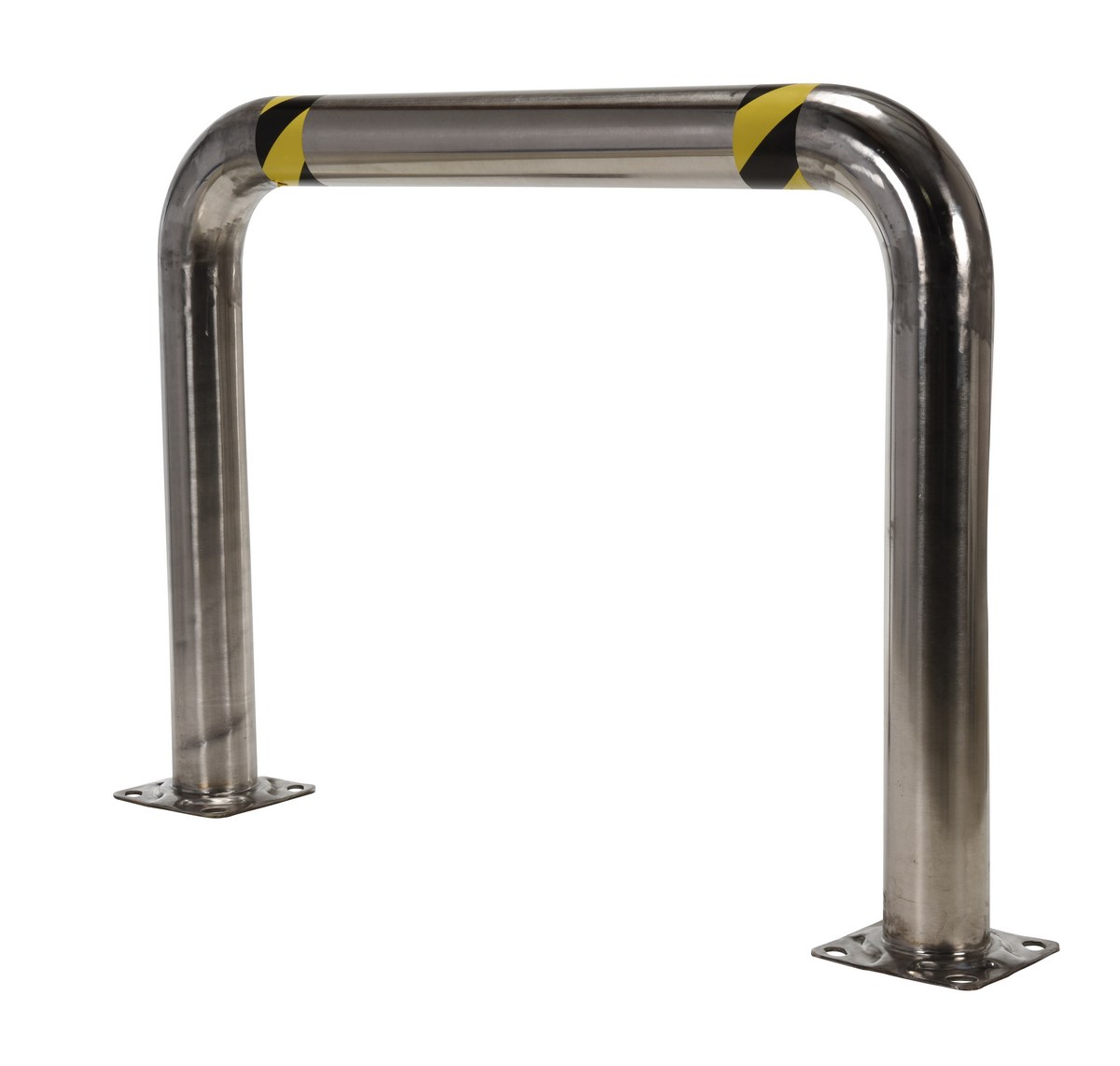

| HPRO-SS-48-36-4 | | 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 48 In. x 36 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 48-3/8 | 102 | ||

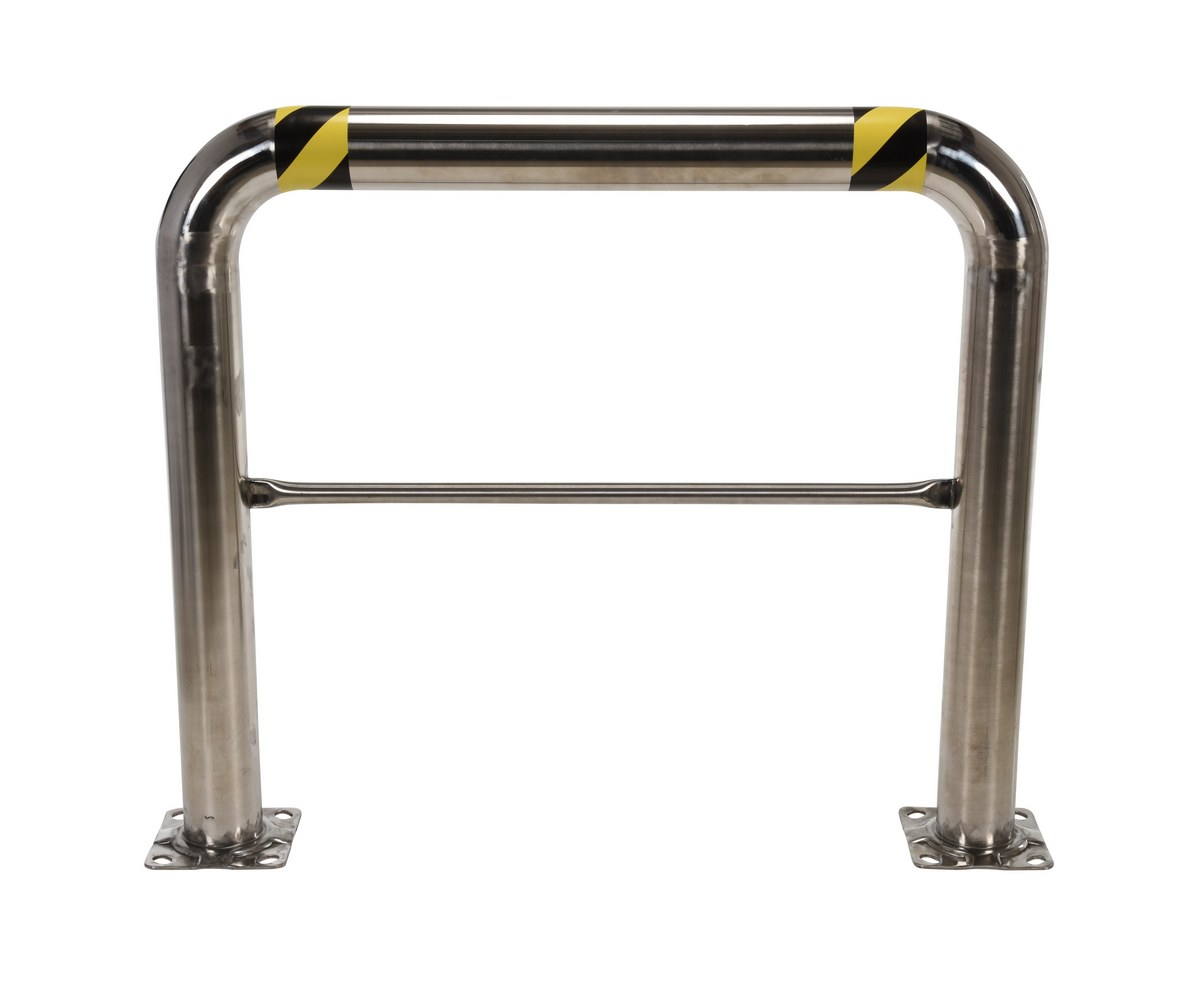

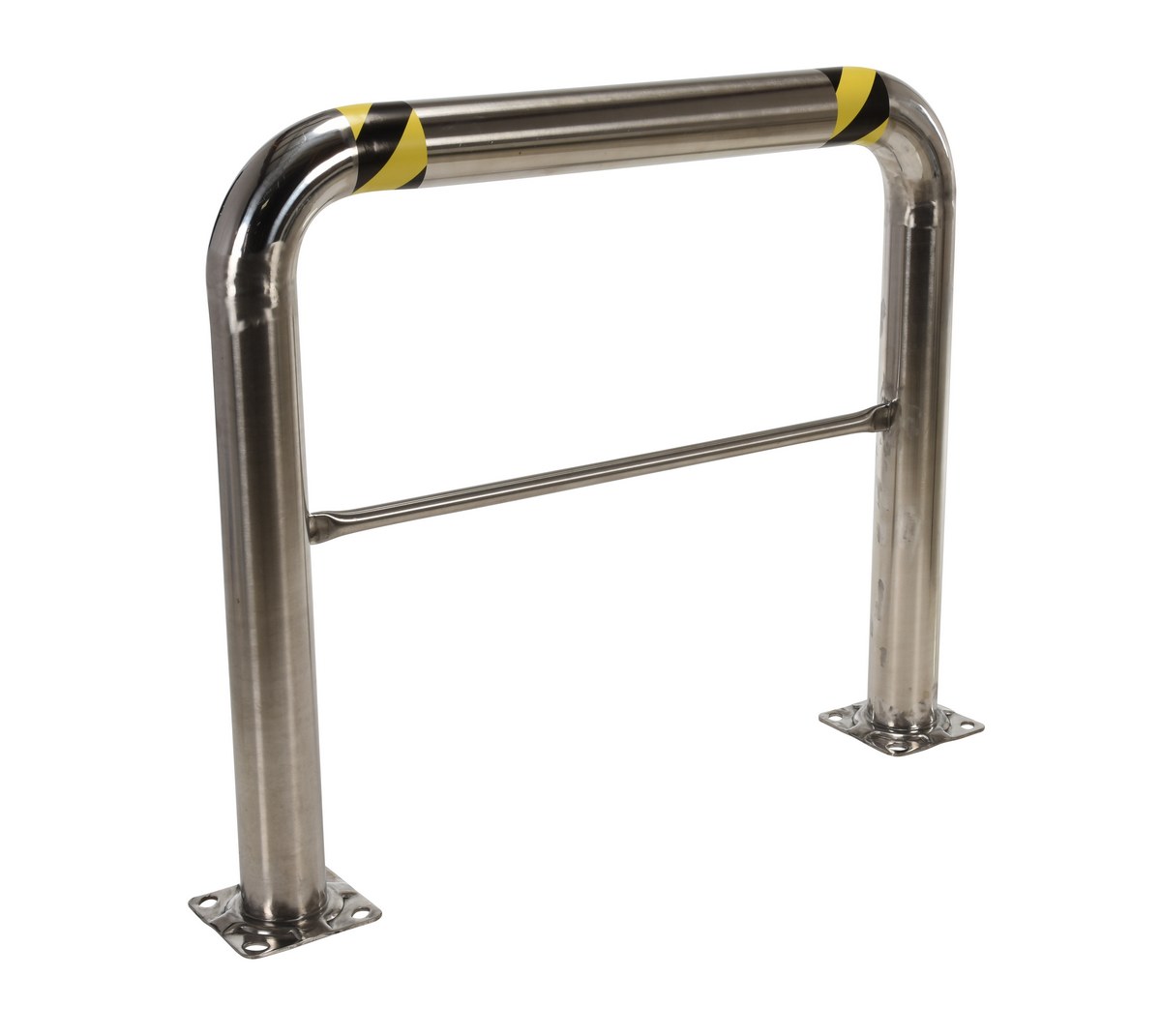

| HPRO-SS-48-42-4 |  | 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 48 In. x 42 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 48-3/8 | 107 | ||

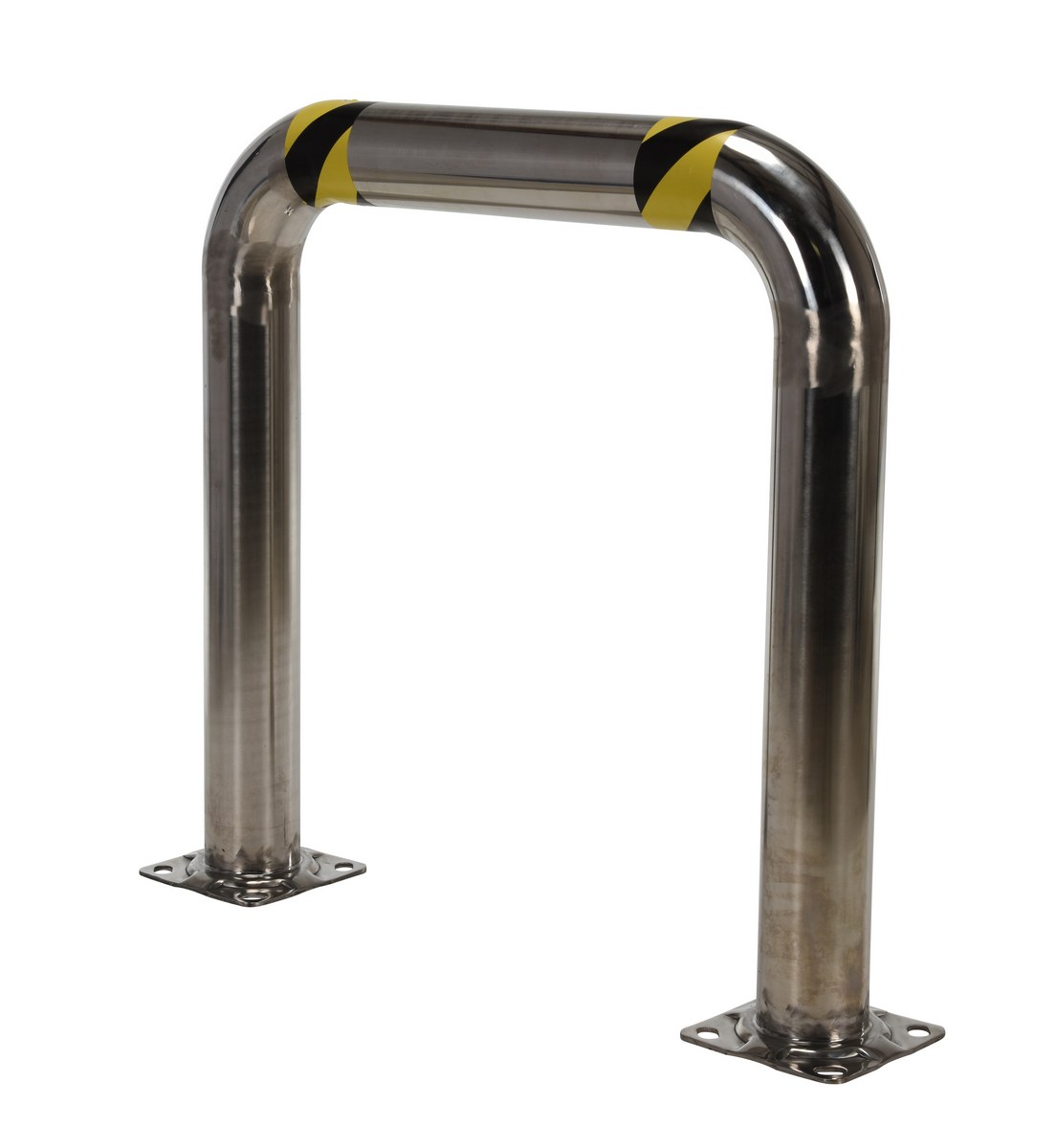

| HPRO-SS-36-36-4 |  | 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 36 In. x 36 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 36-5/8 | 94 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 60-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 60-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 72-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 72-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 36
Usable Width (in.): 5
Usable Length (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 36
Usable Width (in.): 5
Usable Length (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 36
Usable Width (in.): 5
Usable Length (in.): 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 48
Usable Width (in.): 5
Usable Length (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 48
Usable Width (in.): 5
Usable Length (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 48
Usable Width (in.): 5
Usable Length (in.): 48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
For More Details of the Option Click the Red Model Button

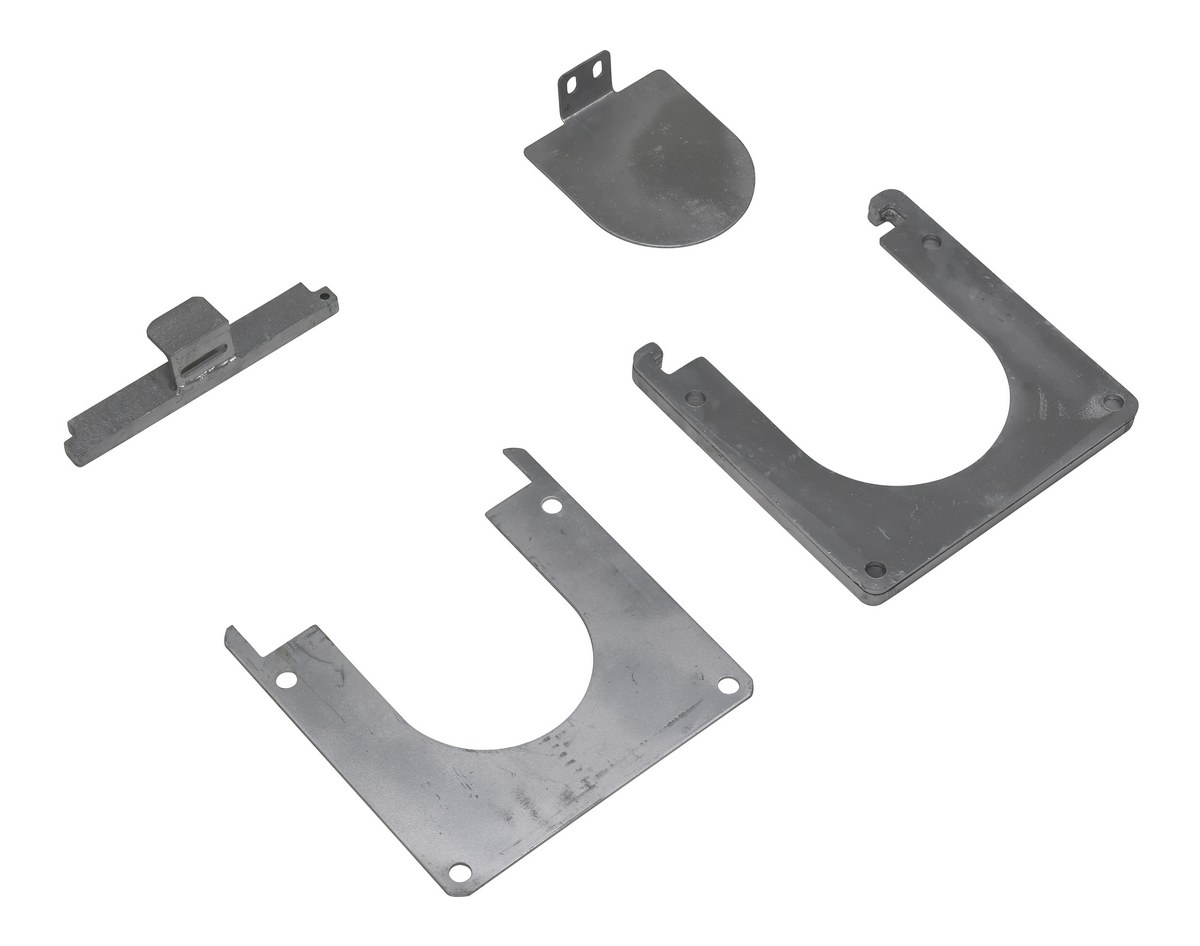

| HPRO-RF-BASE |  | 90 Days Limited Warranty | Steel Removable Bollard Base For High Profile Machinery Guards Silver | Bolt Holes (qty.): 4 Usable Width (in.): 6-3/4 | 12 |
| Model | Image | Description | Wt (lbs.) | |||
| AS-383 |  |
Anchor Bolts For Concrete (1) 3/8"x 3" (1-11/16" units) | 1 | |||
| AS-383-4PK |  |
Anchor Bolts For Concrete (4) 3/8"x 3" (1-11/16" units) | 4 | |||
| AS-344 |  |
Anchor Bolts For Concrete (1) 3/4" x 4" (4-1/2" units) | 1 | |||
| AS-344-4PK |  |
Anchor Bolts For Concrete (4) 3/4" x 4" (4-1/2" units) | 4 | |||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
High Profile Machinery Guards PDF's will open in a new window when clicked.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: How thick are the "walls' on the HPRO-48-36-4?
A: The HPRO is made from ASTM-A-36 metal and has a wall thickness of .120". (We use 4" schedule-10 pipe to build these.) This is the same for all of our 4.5" diameter HPROs.
Q: What is the impact rating for the HPRO-48-36-4?
A: It is 4,000 lbs. force @ 4 MPH. This is the same for all of our 4.5" diameter HPROs.
Q: What is the thickness of the wall on the HPRO-36-24-2?
A: The walls are made from ASTM-A-36 metal and has a wall thickness of .109". This is the same for all of our 2" HPROs.
Q: Is there an option for a removeable base with this guard?
A: Yes. You can purchase the HPRO-RF-BASE for the HPRO-60-42-4.
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
High Profile Machinery Guards |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA requirements. Available with a baked-in yellow powder coated finish for toughness. A 304 stainless steel polished finish is also available. Two base plates with four pre-drilled mounting holes in each plate.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
