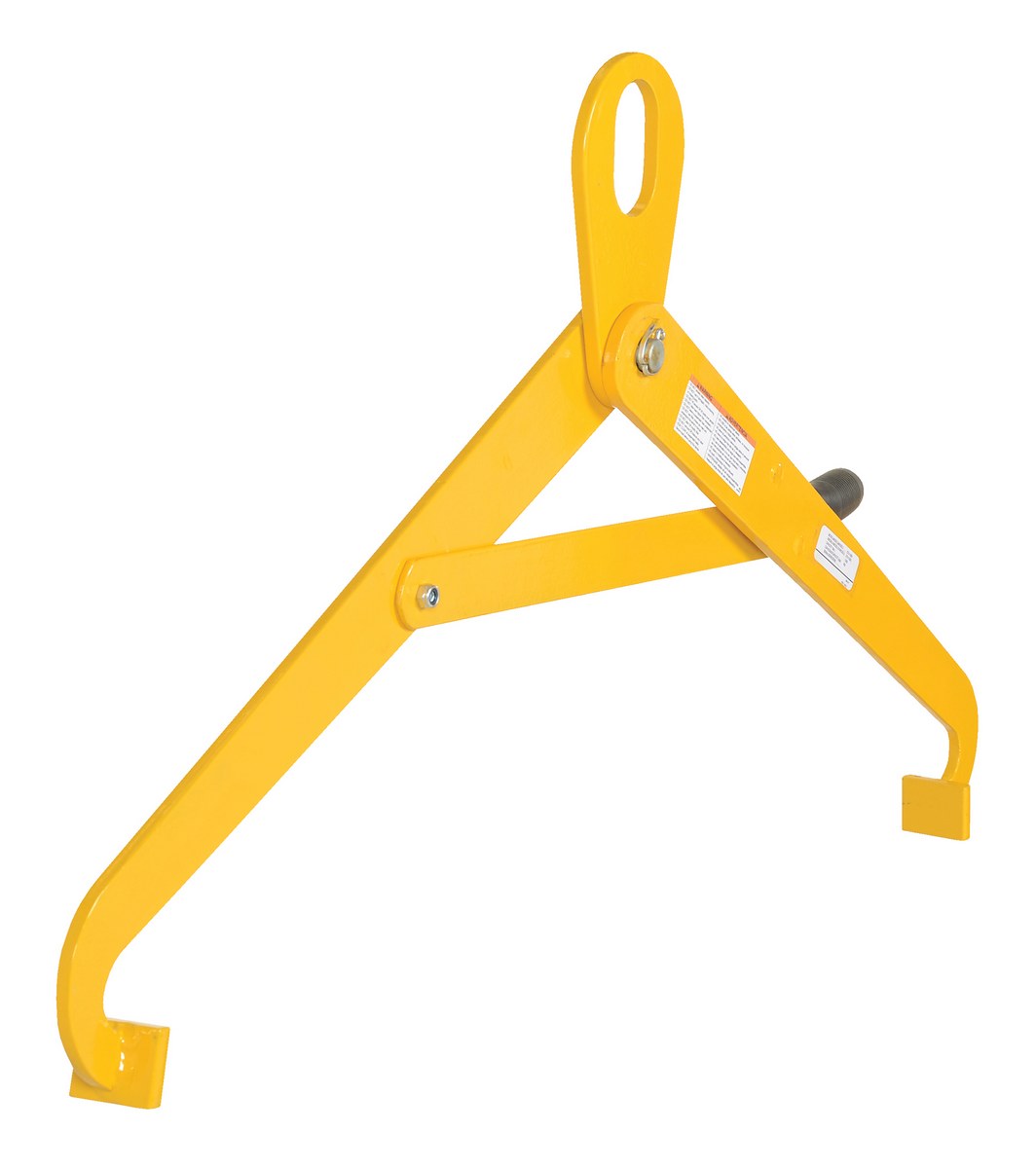

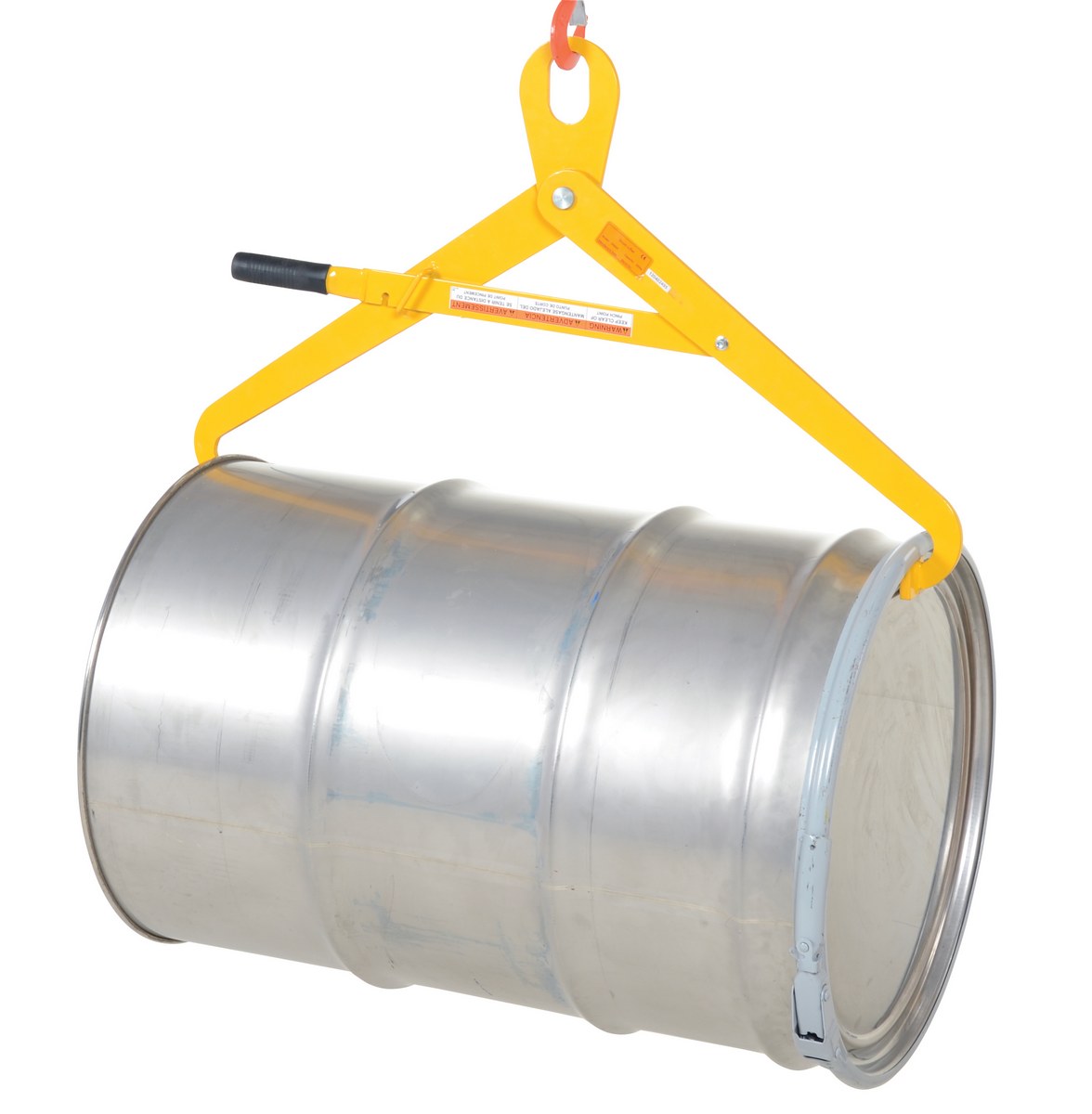

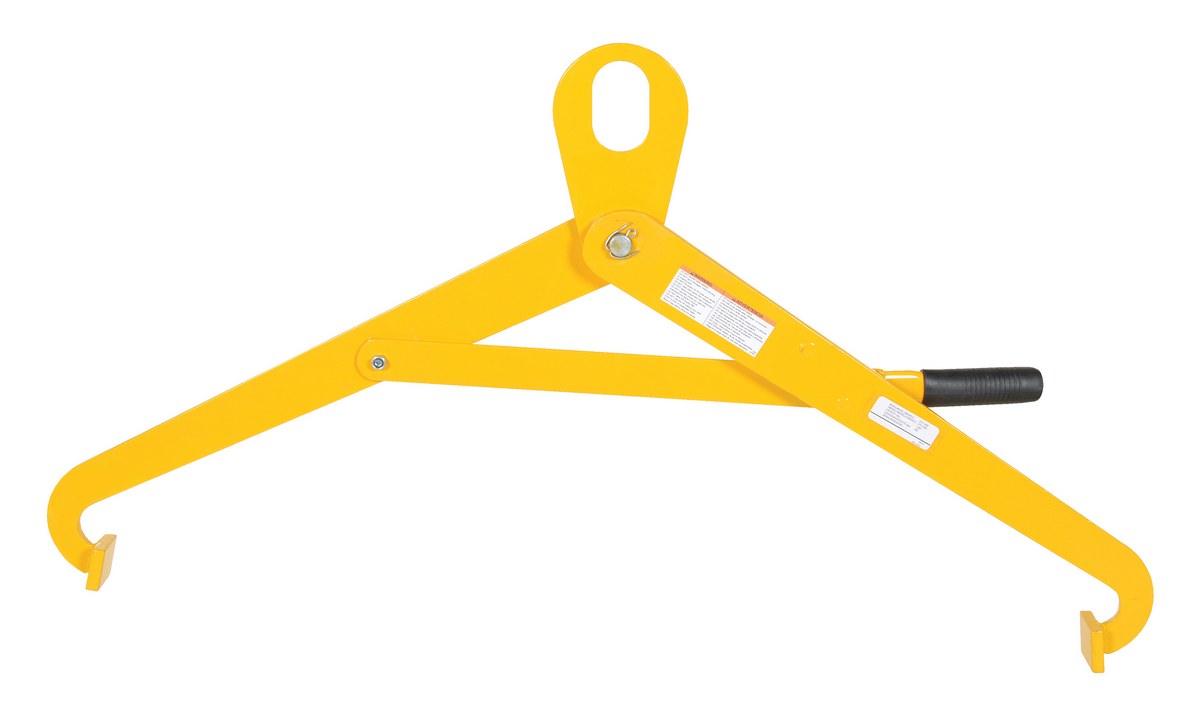

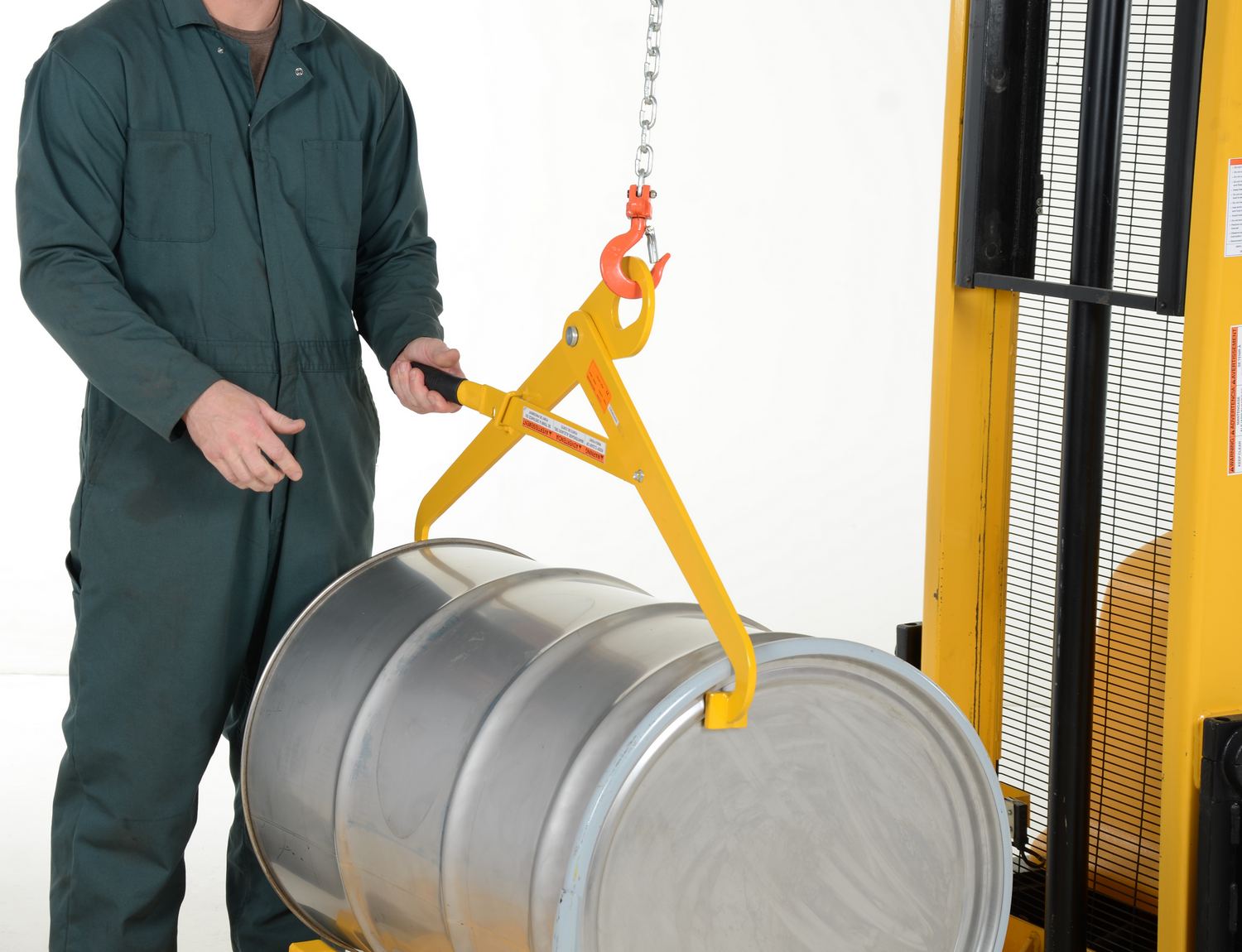

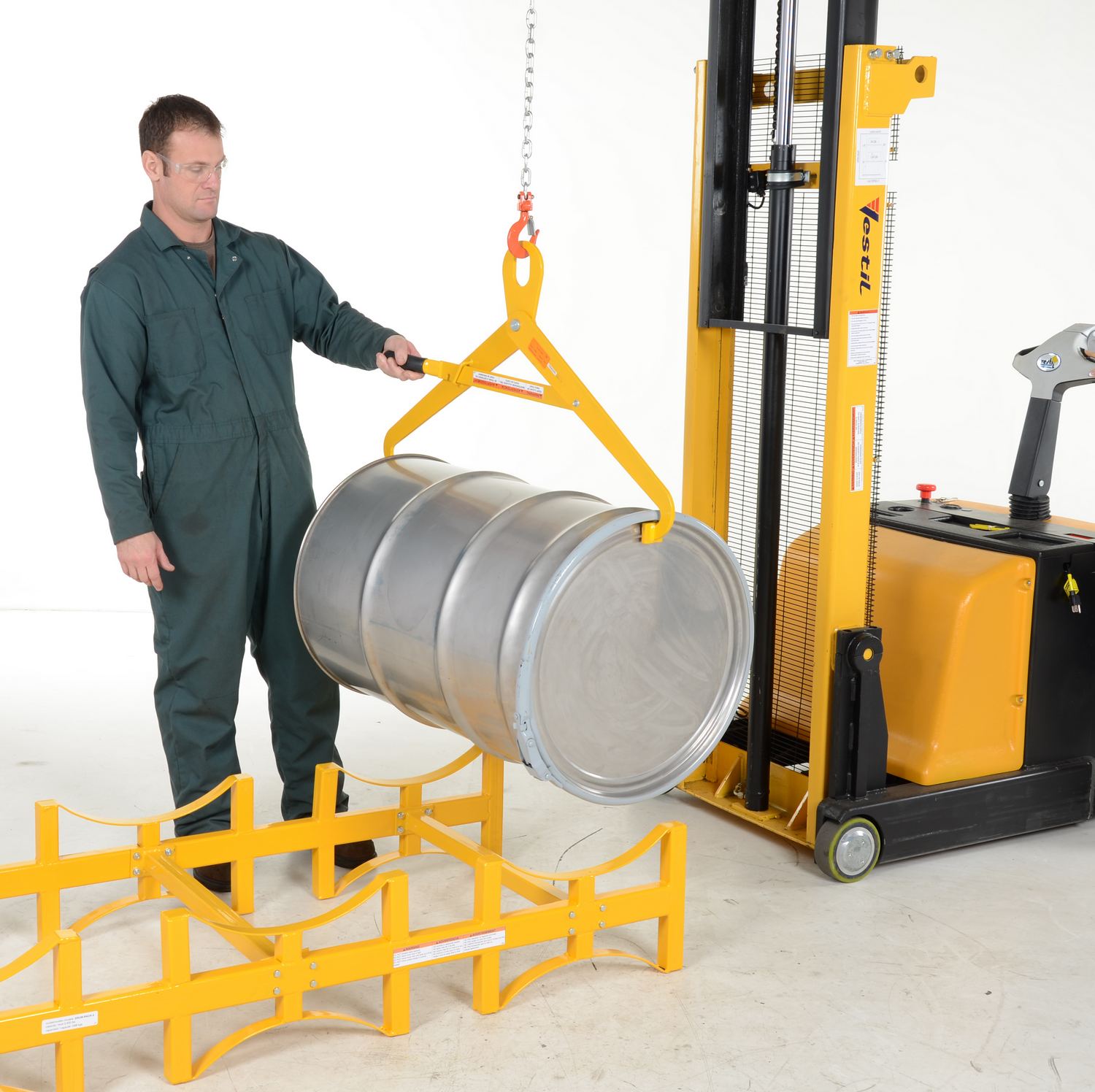

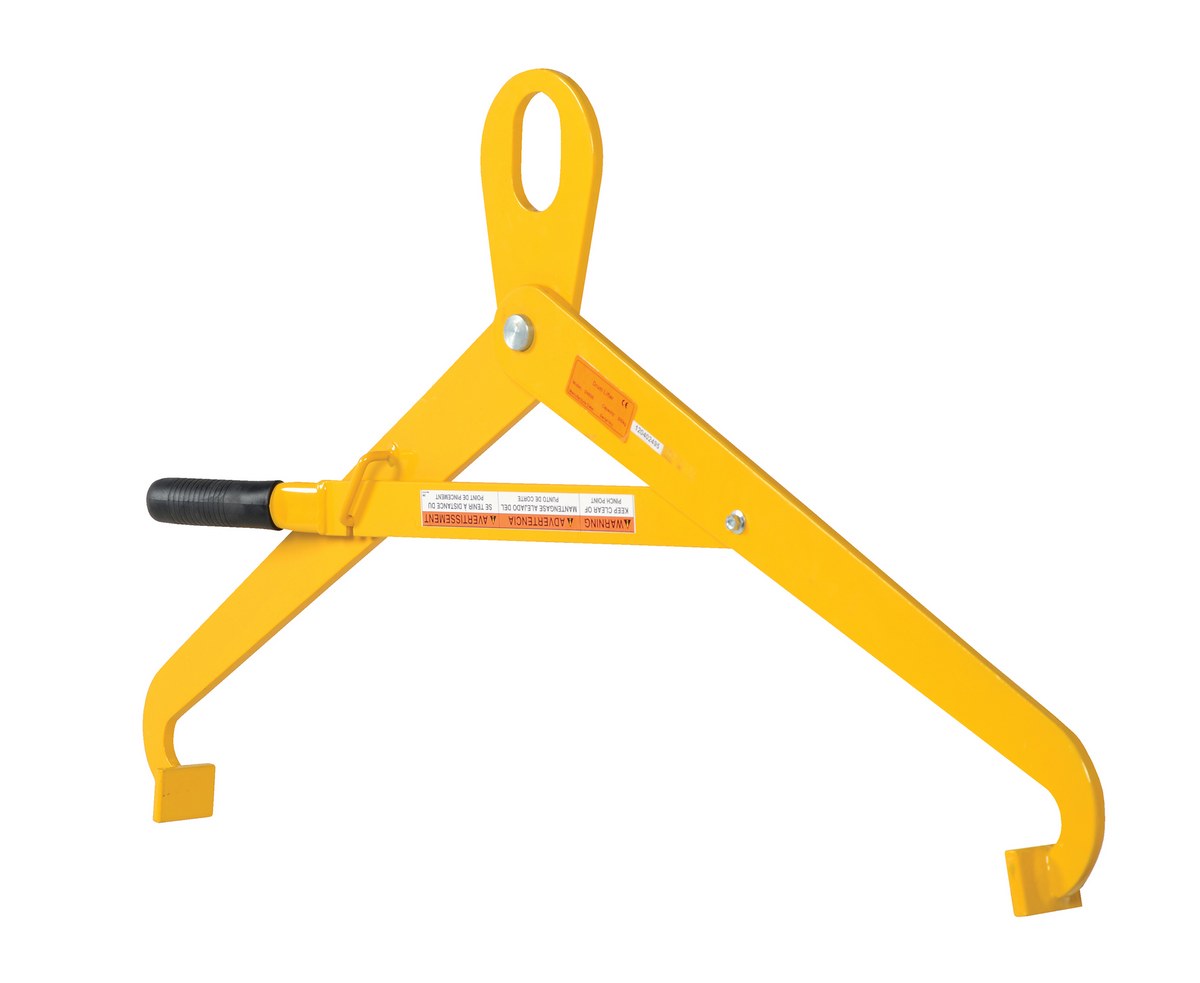

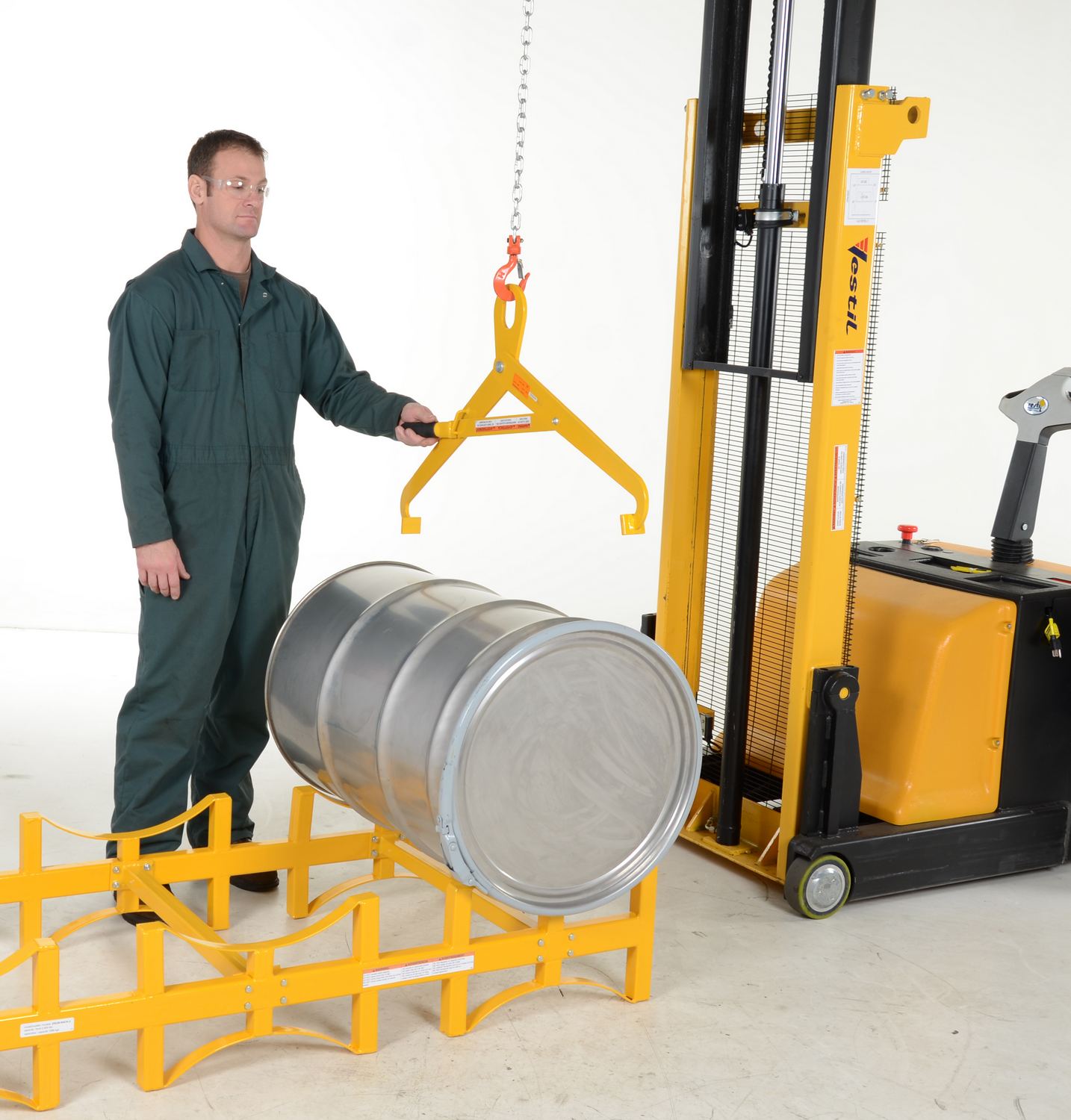

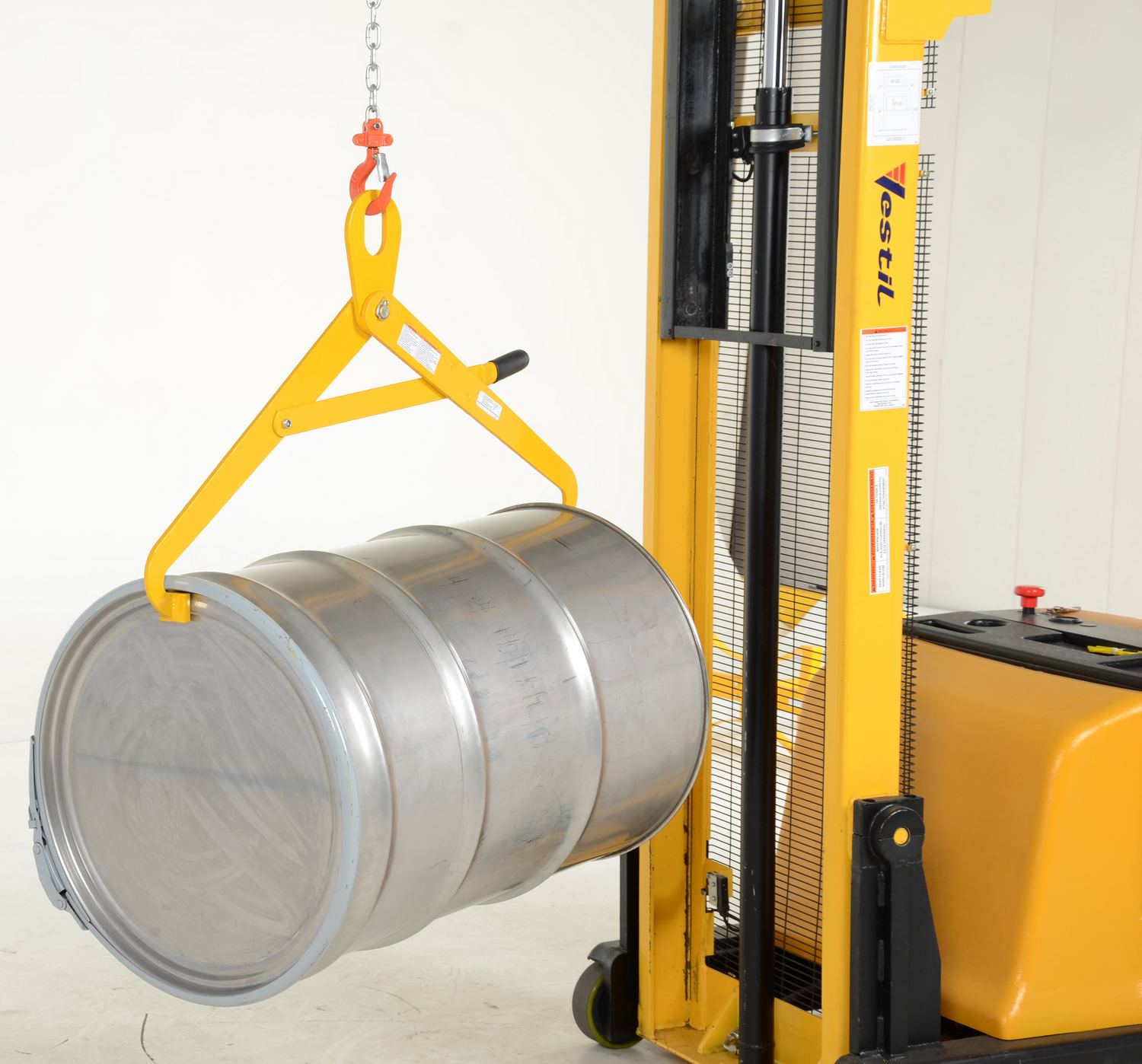

Horizontal Semi-Automatic Drum TongMade to lift 55 gallon steel or fiber drums with an overhead hoist. Suitable for open top or tight head steel drum which have a ring. To operate set locking lever in locked open position. When central over the horizontal drum release lever to allow hooks to fall and locate under both rims. Hook automatically engage as it is lifted and disengage as drum is set down.
- Tong is made to lift drums with an overhead hoist with ease
- Ideal for open or closed head steel, fiber drums with ring
- Release lever allows hooks to fall and locate under both rims
- Hook engages as it's lifted and disengages as drum is set down
Drum Clutchers
Stainless Steel Vertical Drum Lifter
Multi-Purpose Overhead Drum Lifters/Wrenches
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| DTH-1000 |  | 90 Days Limited Warranty | Steel Horizontal Semi Automatic Drum Tong 3-1/2 In. x 41-1/4 In. x 21-3/4 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,000 Clearance Between Legs (in.): 35-7/8 | 18 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Clearance Between Legs (in.): 35-7/8
Uniform Capacity (lb.): 1,000
Clearance Between Legs (in.): 35-7/8
Horizontal Semi-Automatic Drum Tong PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
