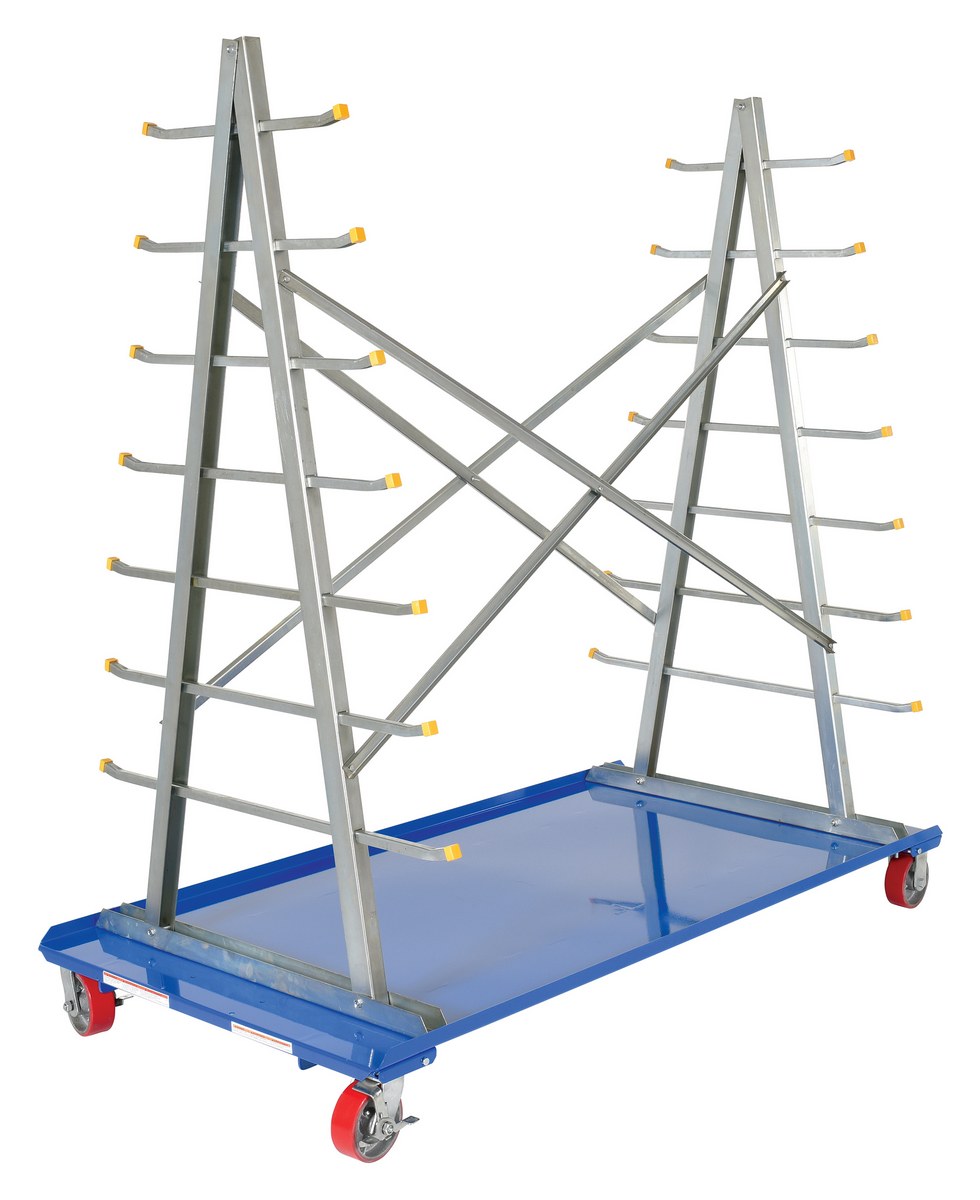

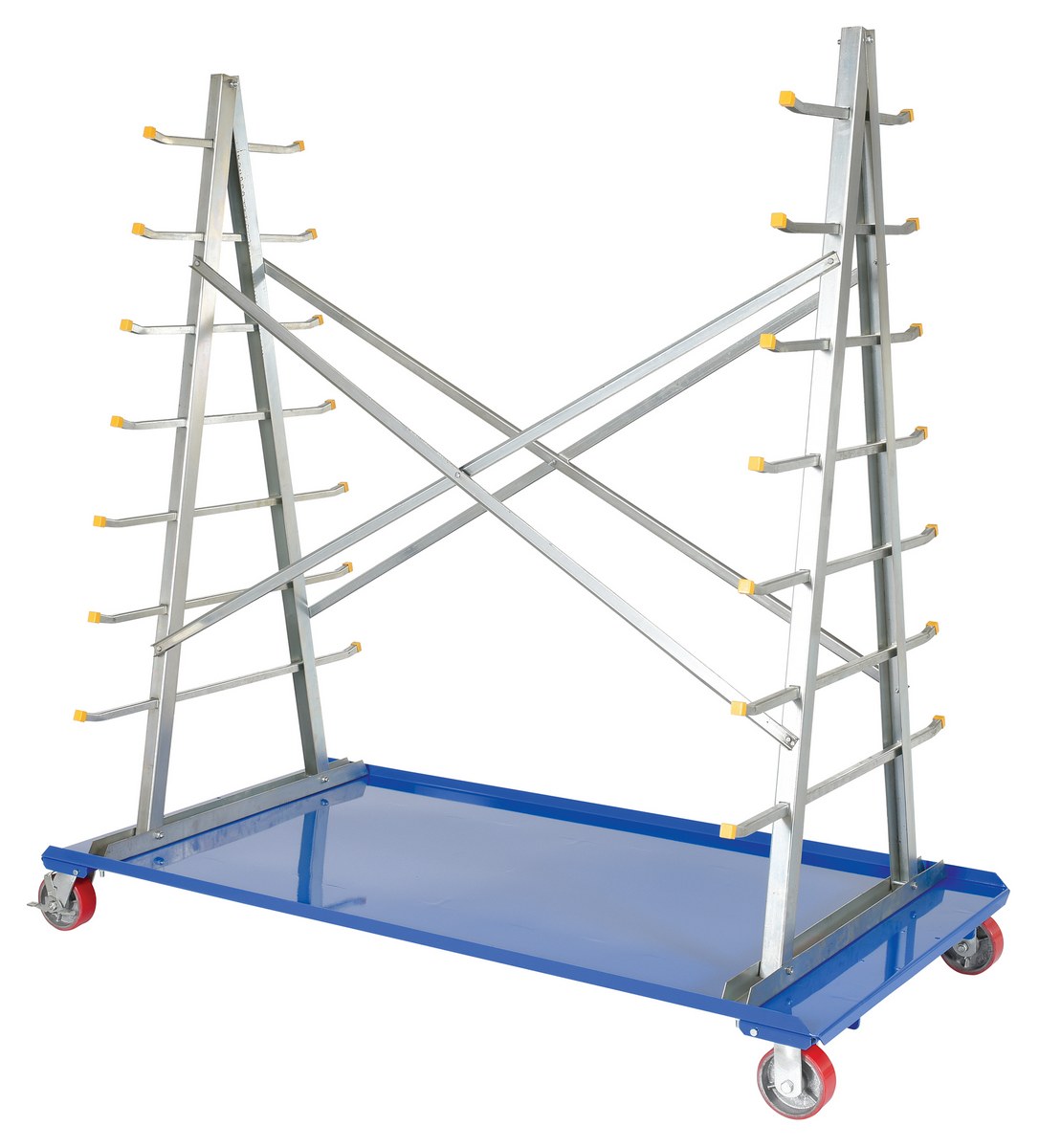

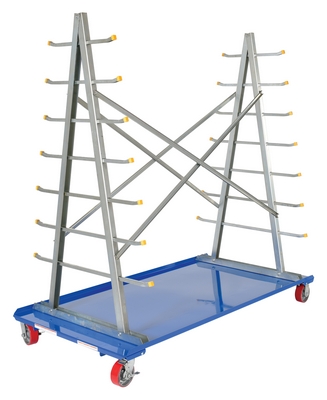

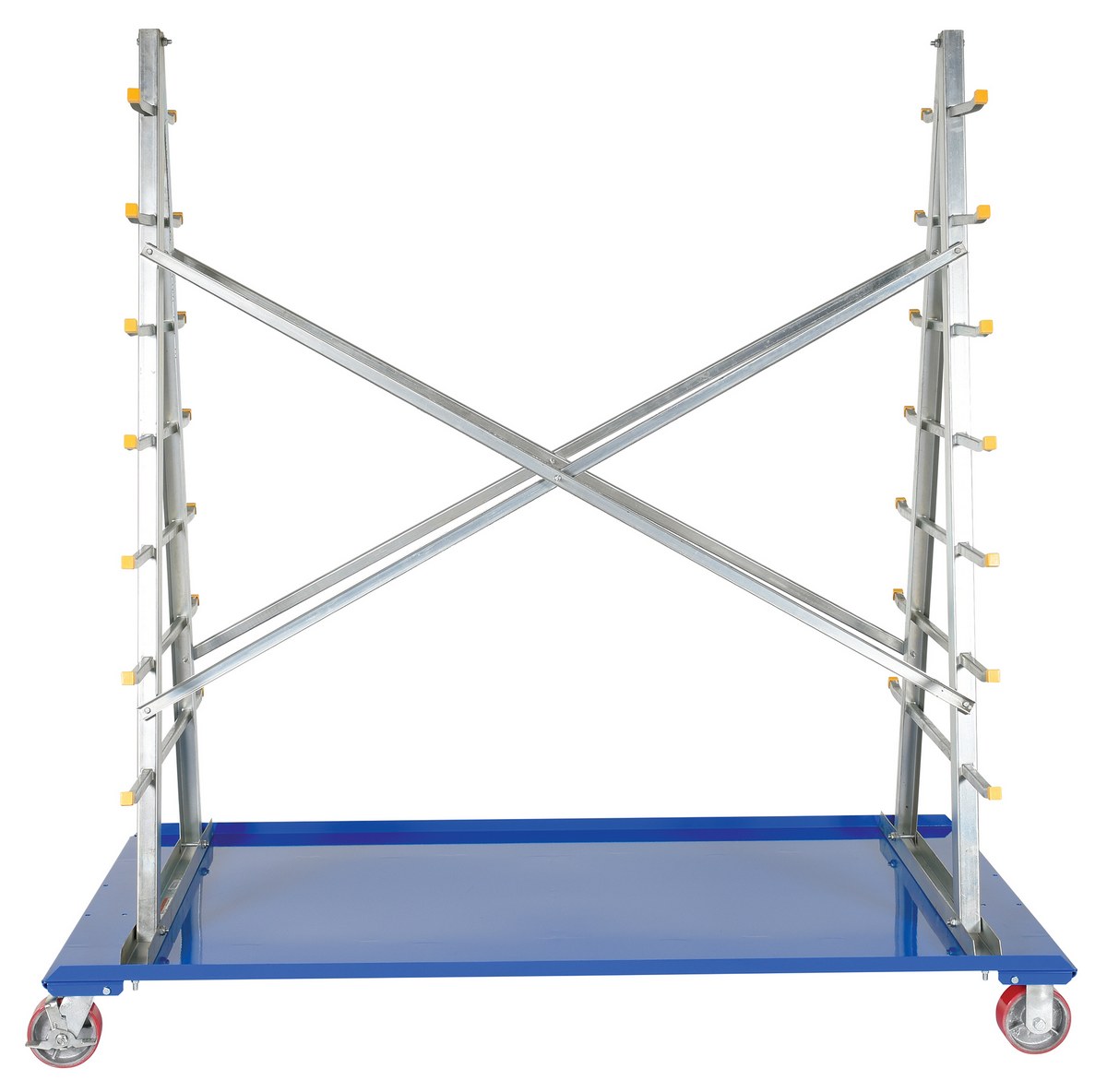

A-Frame Storage Cart

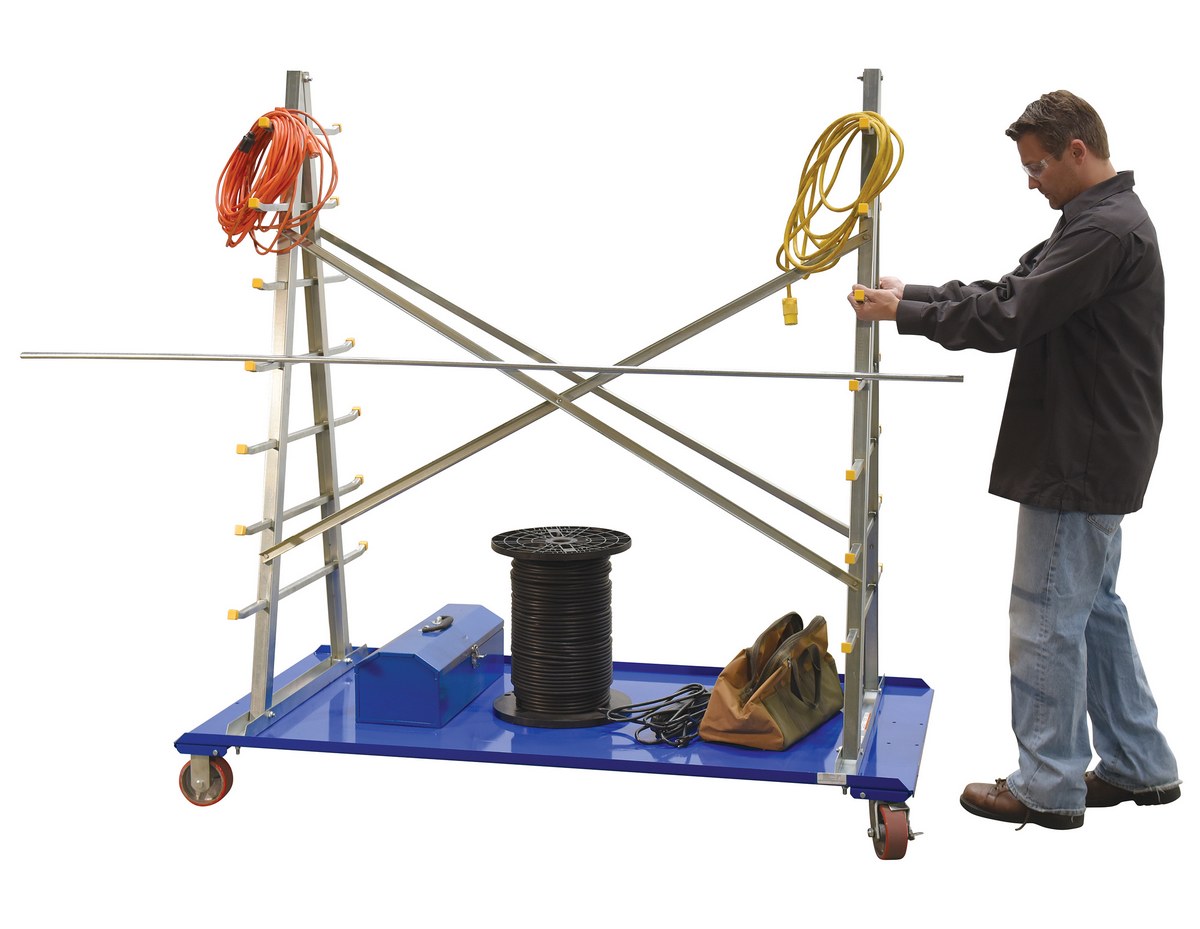

The portable A-Frame Cart with storage rack is ideal for storage and transporting pipe, conduit and other types of bar material. Storage arms extend 12" beyond frame with a clearance of 7-1/4" between arms. Unit rolls on (2) rigid and (2) swivel 5" poly-on-steel casters with brakes. Base is powder coat blue while the storage rack is zinc plated.
Standard Features:
-

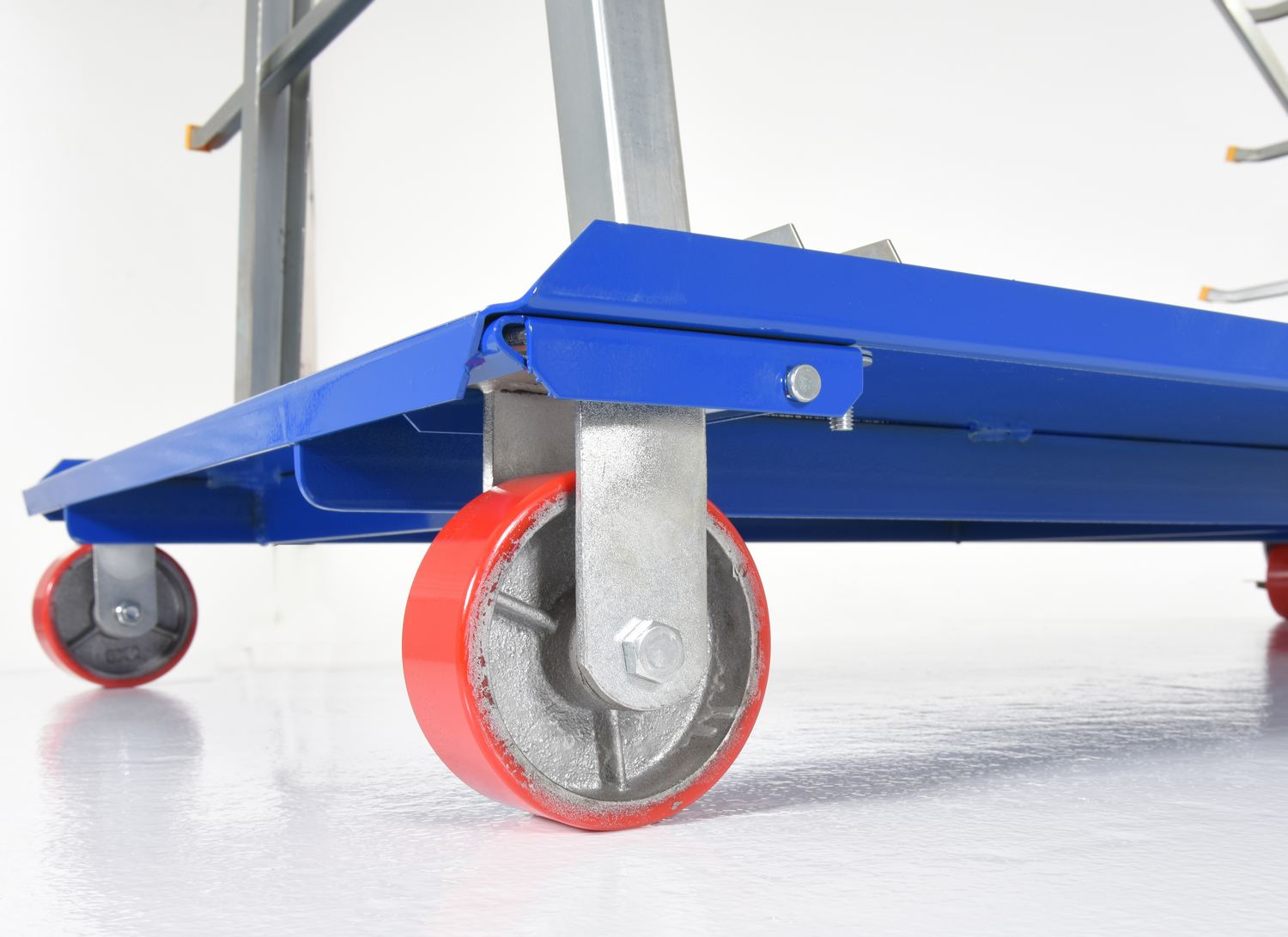

Portable with two rigid & two swivel 5" poly-on-steel casters
-
Overall deck size is 36-3/4"W x 72"L
-
Storage rack is 72-1/2"H with 8 storage levels
-

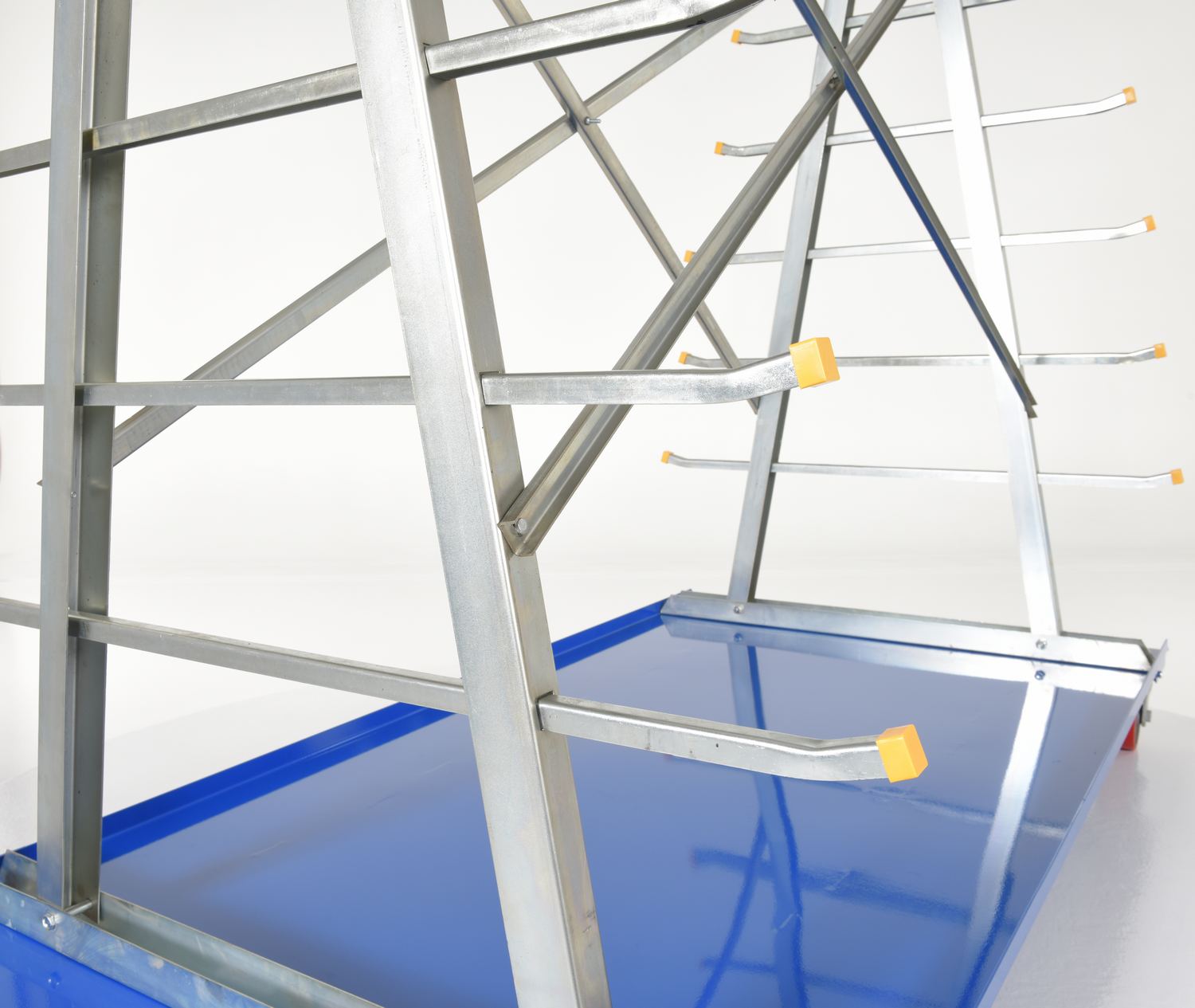

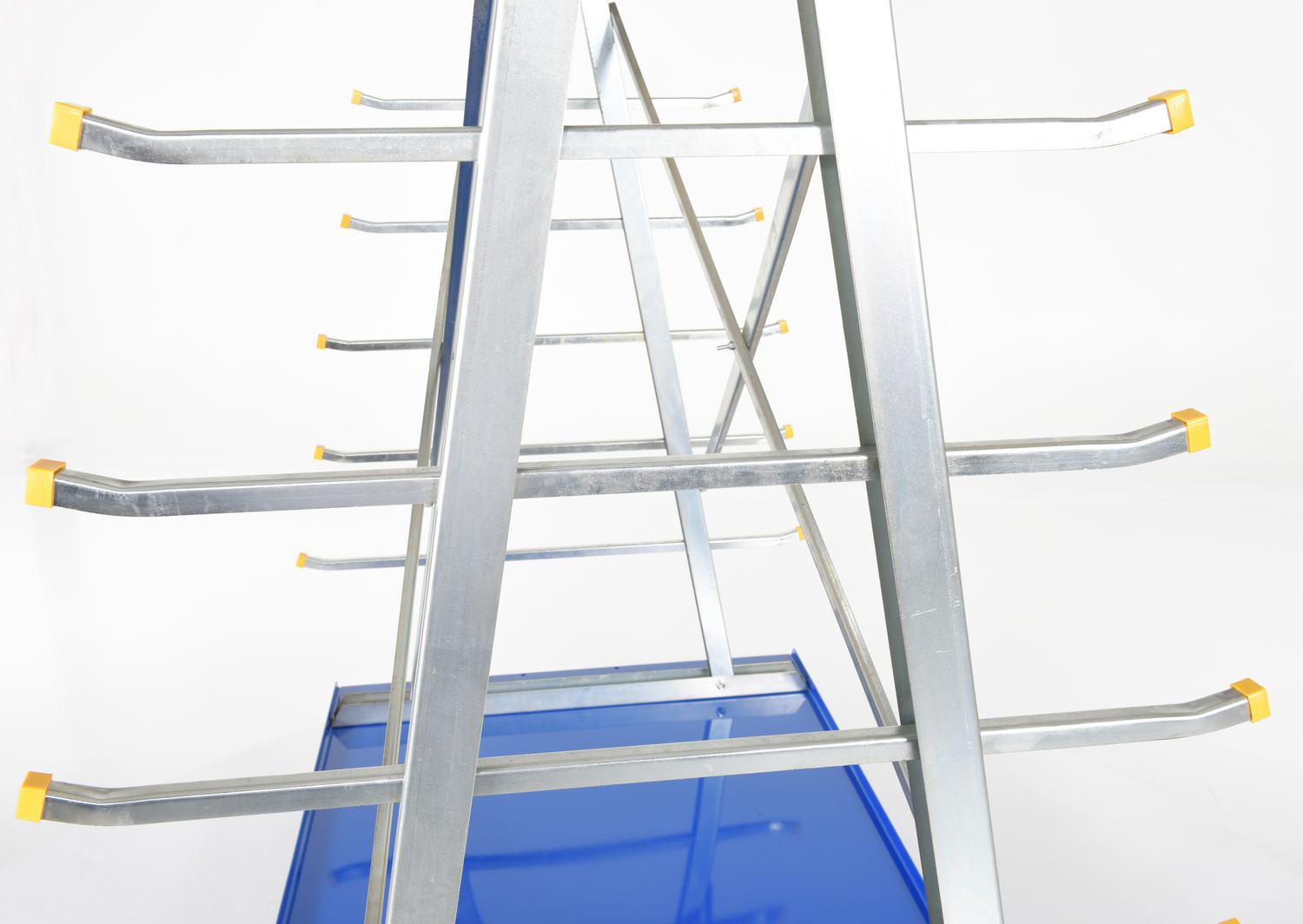

Storage arms extend 12" beyond frame
-
Distance between storage arms is 7-1/4"
-
Maximum capacity is 2000 lbs.
-

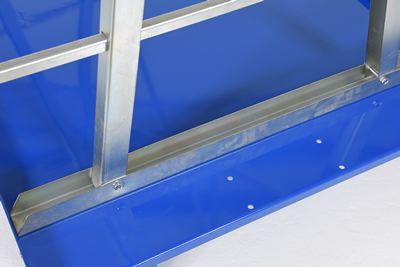

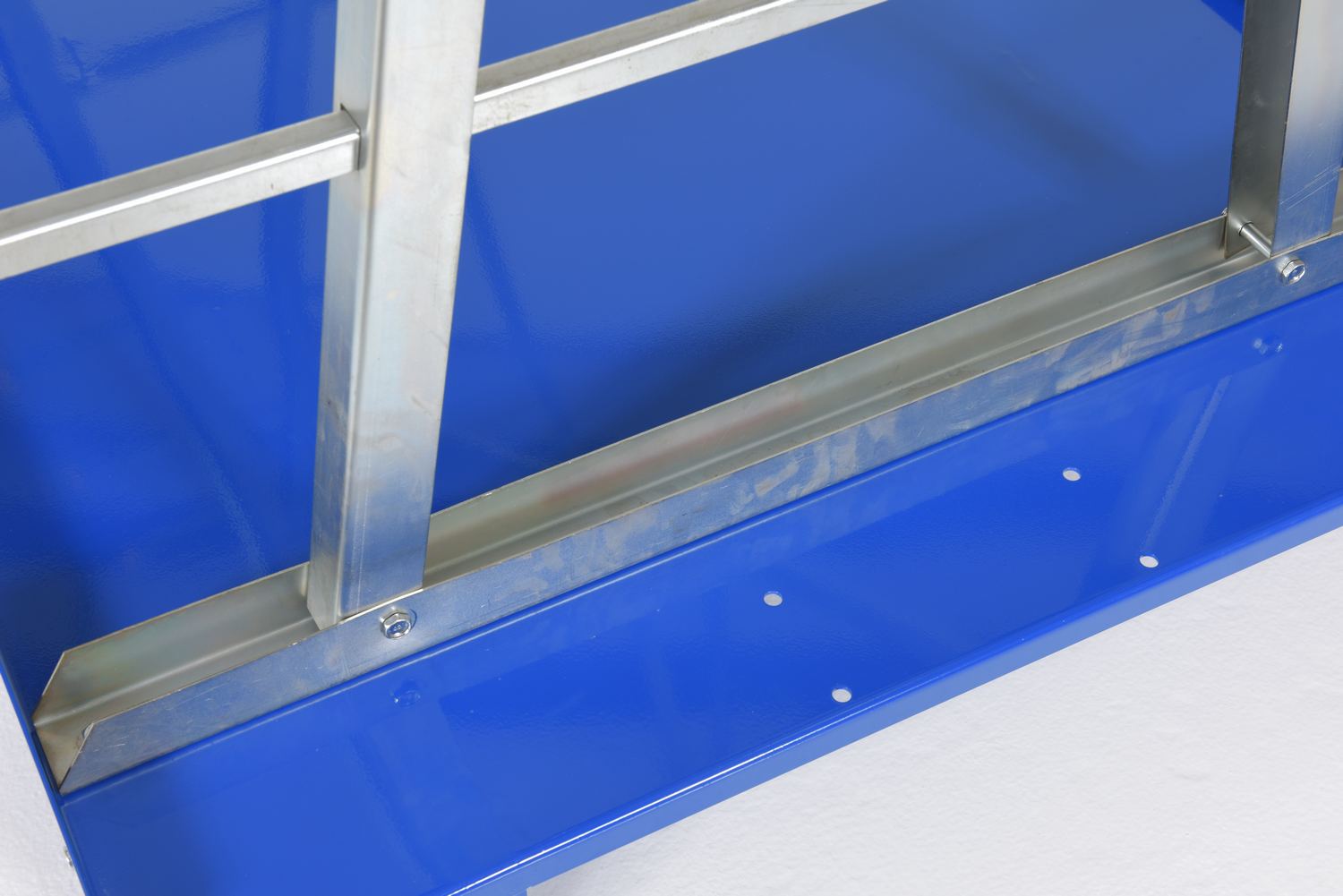

Base is powder coated blue
-
Storage rack is zinc-plated
-
Unit must be statically and uniformly loaded
-
Each sides capacity equals half the total system capacity
-
Each support arm must be statically and uniformly loaded
A-Frame Steel Trucks
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| AFSR-3672 |  | 90 Days Limited Warranty | Steel A-Frame Rack Cart With Poly-On-Steel Casters 36 In. x 72 In. 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Deck Width/Length (in.): 36-3/4 x 72 | 245 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Deck Width/Length (in.): 36-3/4 x 72
Uniform Capacity (lb.): 2,000
Deck Width/Length (in.): 36-3/4 x 72
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the capacity of the arms on the AFSR-3672?
A: The capacity of the arm is 70lbs. each. Each storage bay can accommodate up to 140 lbs. The load must be evenly distributed.
 |
||||||||||||
