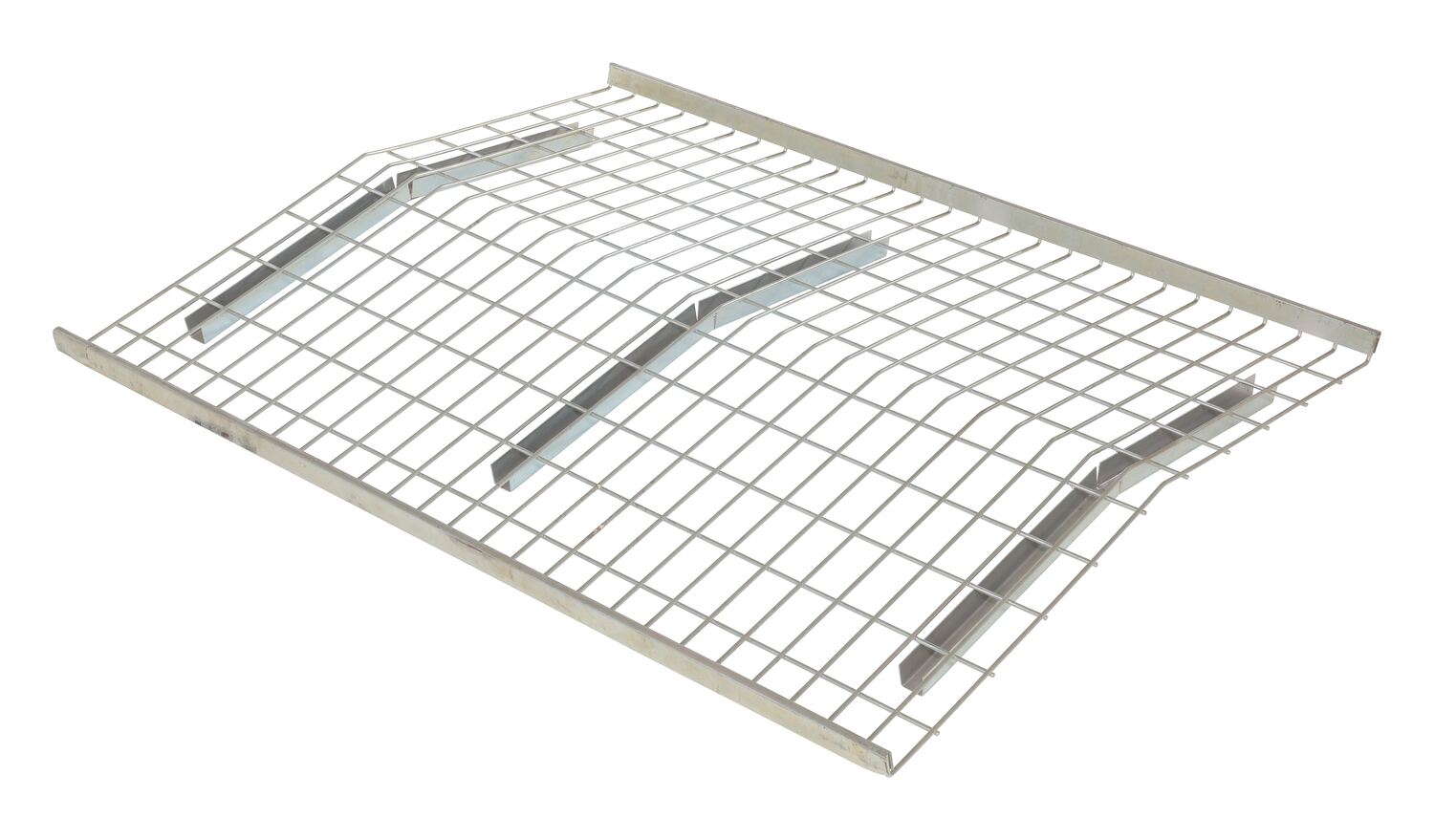

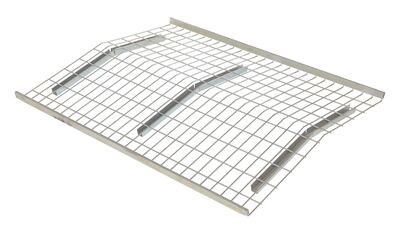

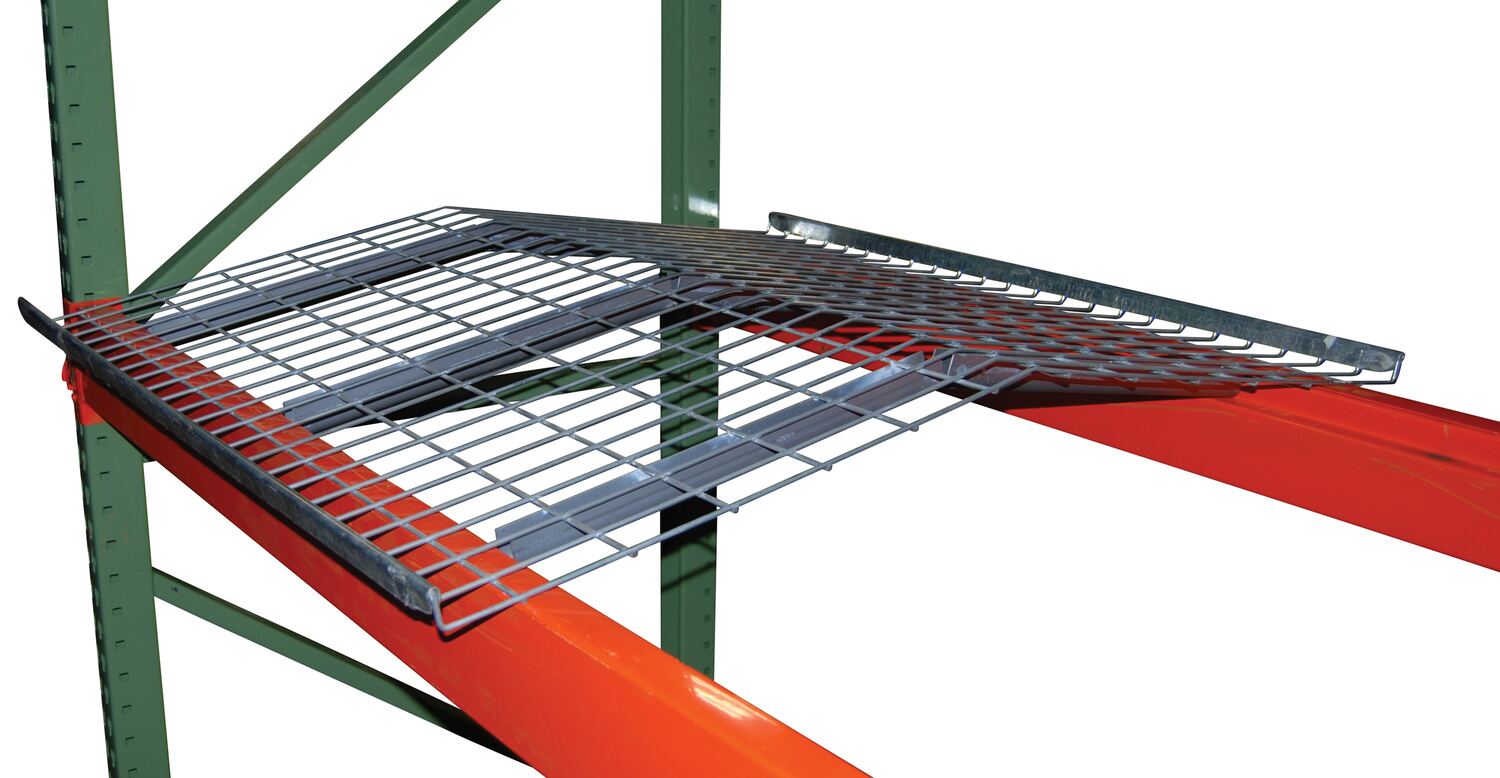

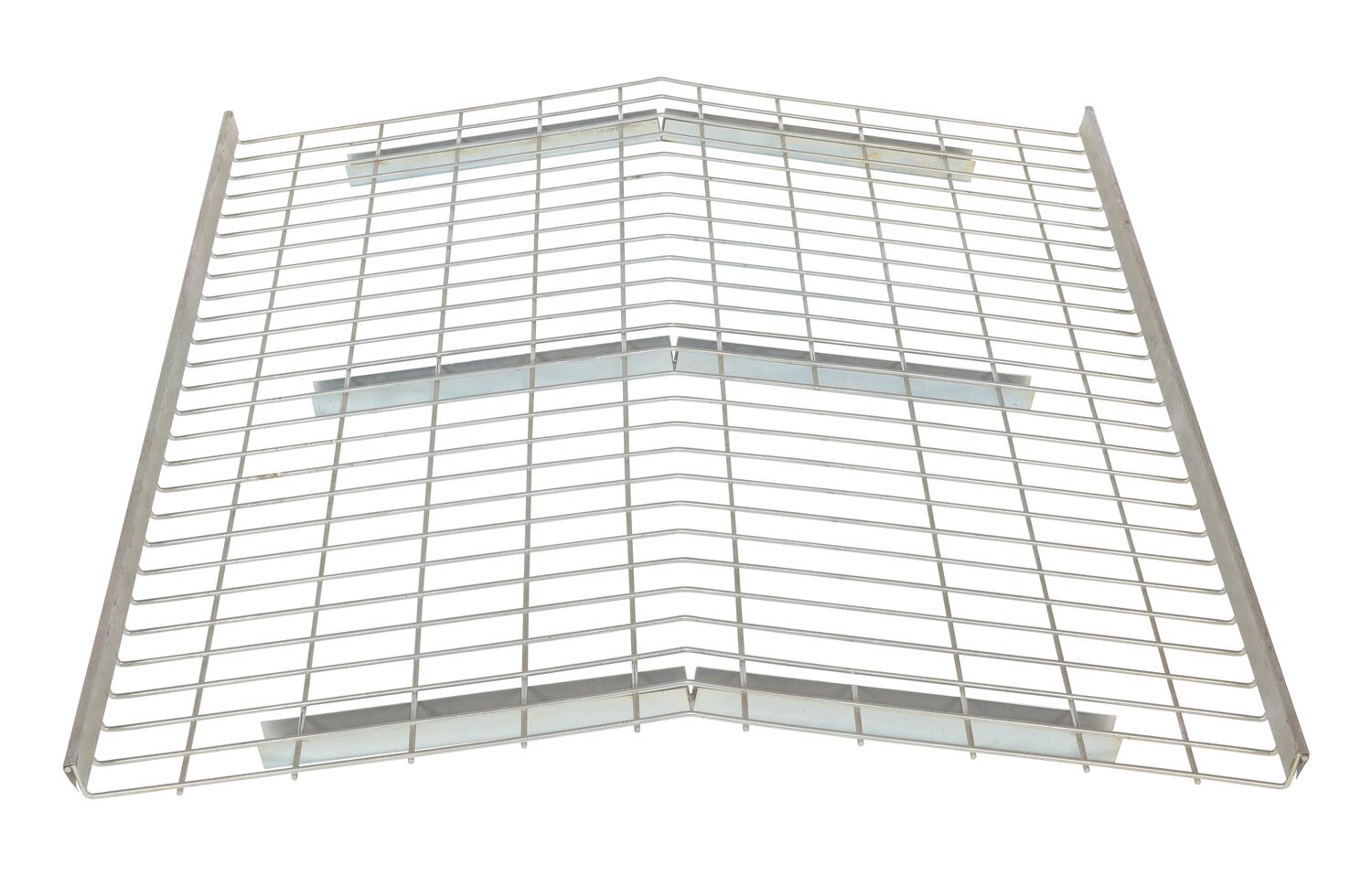

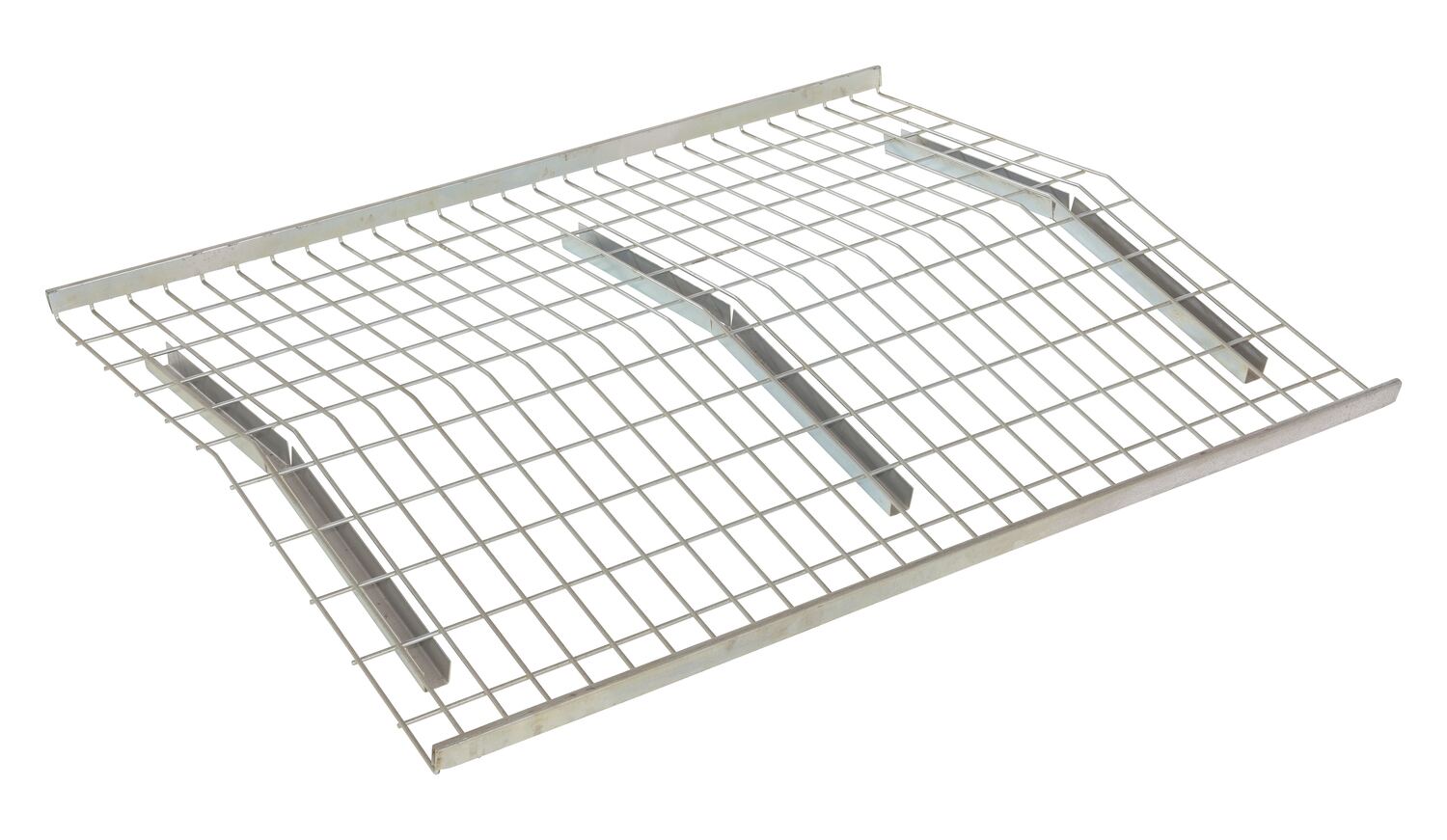

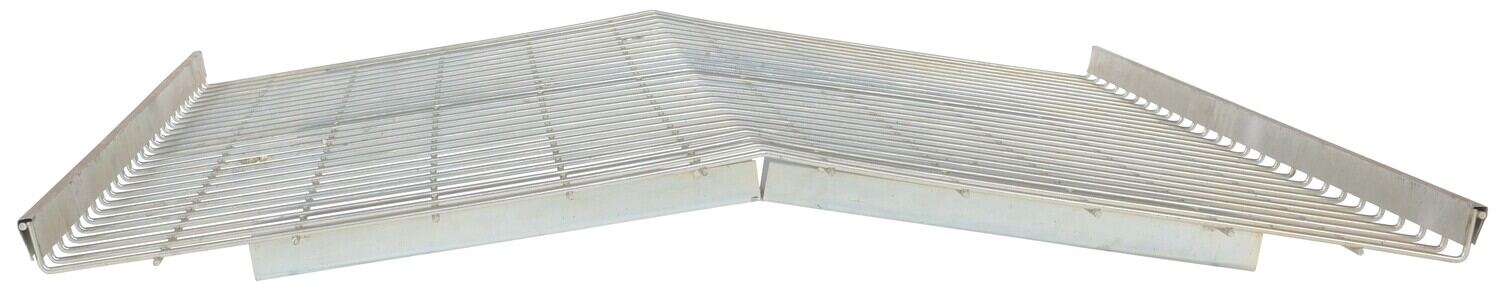

Crown Pallet Rack DeckingAdd convenience, visibility and efficiency to your rack. By sloping the decking you help the user do their job. The 6 gauge wire mesh provide 650 lbs. (uniformly distributed) capacity. Slope is 4-1/2" in 21". Designed for our 42" deep x 1-1/2" step type pallet rack beam. Powder coat finish.
- Adds convenience, visibility and efficiency to the rack
- Sloping deck helps user do their job more efficiently
- Designed for step type pallet rack beam
- Powder-coat finish for long life & durability
Pallet Rack Gravity Flow Shelves
Pallet Support Bars
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| SWMD-4246 |  | 30 Days Limited Warranty | Steel Pallet Rack Crown Wire Deck 42 In. x 46 In. 650 Lb. Capacity Silver | Uniform Capacity (lb.): 650 Slope (in.): 4-1/2 in 21 | 64 | ||
| SWMD-4258 |  | 30 Days Limited Warranty | Steel Pallet Rack Crown Wire Deck 42 In. x 58 In. 650 Lb. Capacity Silver | Uniform Capacity (lb.): 650 Slope (in.): 4-1/2 in 21 | 82 | ||
| SWMD-4252 |  | 30 Days Limited Warranty | Steel Pallet Rack Crown Wire Deck 42 In. x 52 In. 650 Lb. Capacity Silver | Uniform Capacity (lb.): 650 Slope (in.): 4-1/2 in 21 | 74 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 650
Slope (in.): 4-1/2 in 21
Uniform Capacity (lb.): 650
Slope (in.): 4-1/2 in 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 650
Slope (in.): 4-1/2 in 21
Uniform Capacity (lb.): 650
Slope (in.): 4-1/2 in 21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 650
Slope (in.): 4-1/2 in 21
Uniform Capacity (lb.): 650
Slope (in.): 4-1/2 in 21
