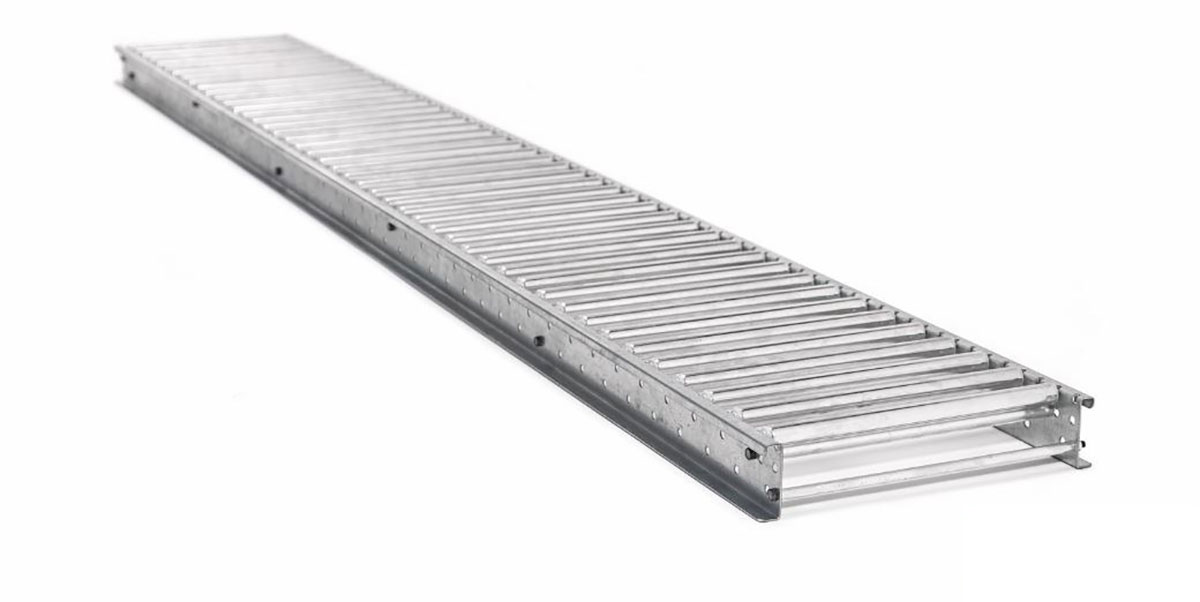

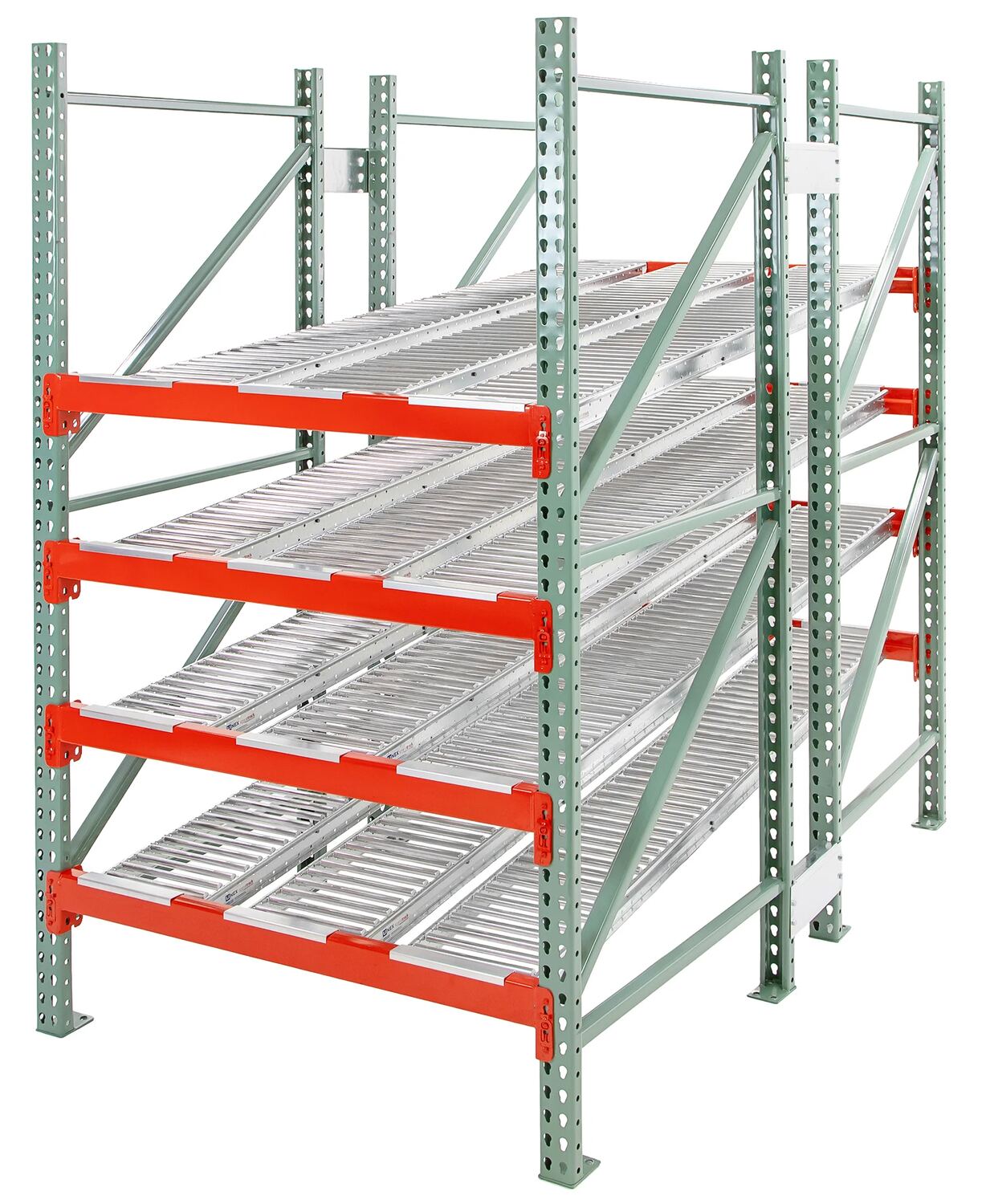

Gravity Flow InsertsConvert your pallet rack into flow rack simply by inserting our Gravity Flow Inserts between pallet rack beams. Inserts measure 36-5/8" long for use in 42" deep pallet rack frames. Aluminum roller diameter is 3/4" on 2" centers. Side frames are constructed of galvanized steel with aluminum end hangers. Uniform capacity is 50 pounds per foot.
- Gravity flow inserts are a convenient way to transfer goods quickly and easily

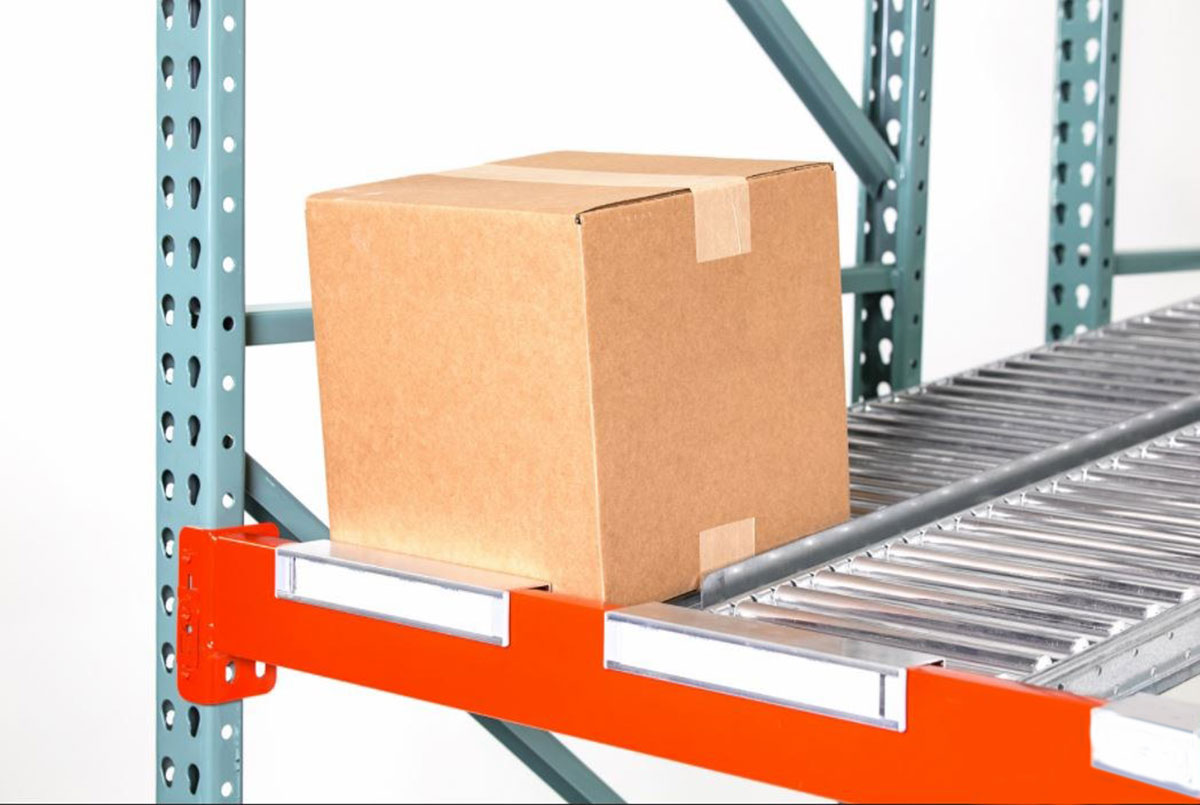

- Attach the flow inserts between pallet rack beams for ideal use
- Galvanized steel side frames and aluminum end hangers are for maximum efficiency
- Use in industrial applications for optimal results
Pallet Guide Stop
Structural Rack Guards
Rack Shields
Pallet Support Bars
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| RFLOW-12-42 |  | 30 Days Limited Warranty | Galvanized Steel Gravity Flow Insert 36-5/8 In. x 12-3/4 In. x 2-21/32 In. 50 Lb. Capacity Gray | Load Capacity (lbs. per ft.): 50 Decking: Roller | 13 | ||
| RFLOW-9-42 |  | 30 Days Limited Warranty | Galvanized Steel Gravity Flow Insert 36-5/8 x 9-3/4 In. x 2-21/32 In. 50 Lb. Capacity Gray | Load Capacity (lbs. per ft.): 50 Decking: Roller | 13 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Load Capacity (lbs. per ft.): 50
Decking: Roller
Load Capacity (lbs. per ft.): 50
Decking: Roller
Unit:
Size: W x L x H
Weight:
Limited Warranty
Load Capacity (lbs. per ft.): 50
Decking: Roller
Load Capacity (lbs. per ft.): 50
Decking: Roller
