Standard-Duty Cantilever RackingStandard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities. The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments. The adjustable arms allow the unit to be customized to fit the needs of individual circumstances. Individual components are sold separately to accommodate your requirements. Capacity listed is per upright.
- Maneuverable to accommodate users needs
- Quick fitting and easily removable for instantaneous use
- Steel structure for utmost strength
- Provides the option of more surface area for merchandise
Check Out Vestil's Other Cantilever Racking:
 Medium-Duty Cantilever Racking |
 Heavy-Duty Cantilever Racking |
 Cantilever Rack Kits |
Structural Cantilever Racking
Galvanized Cantilever Rack Kits
Cantilever Rack KitsAdditional Models In This Family
SSA-C-24
SDU-C-10-12
SU-C-6-24
SDU-C-8-12
SU-C-10-18
SB-C-8-36
SIA-C-18
SU-C-10-24
SDU-C-8-36
SDU-C-8-12
SDU-C-8-24
SDU-C-6-18
SDU-C-6-24
SDU-C-8-18
SU-C-8-36
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

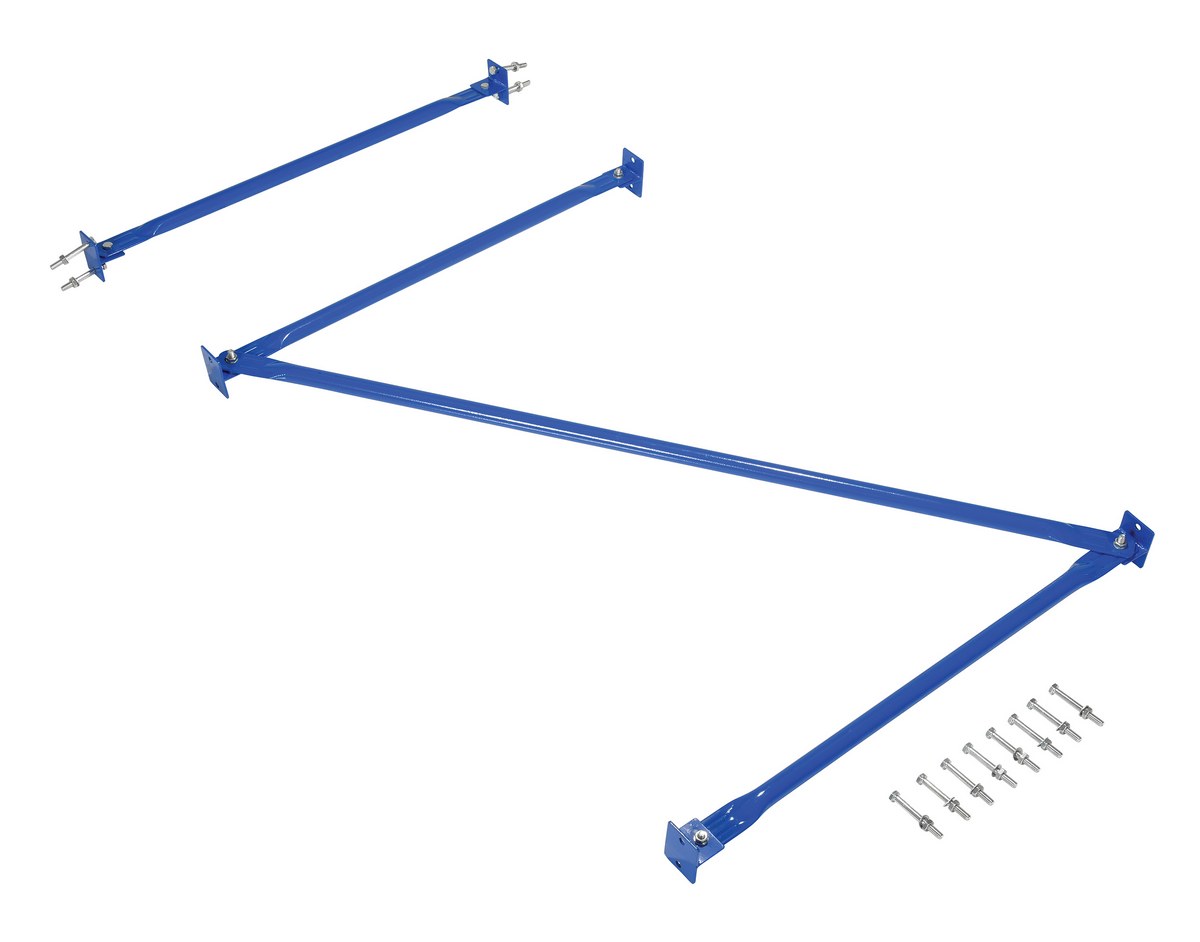

| SB-C-10-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 120 In. x 36 In. Blue | Hardware Included: Yes | 30 | ||
| SB-C-10-48 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 120 In. x 48 In. Blue | Hardware Included: Yes | 44 | ||
| SB-C-10-60 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 120 In. x 60 In. Blue | Hardware Included: Yes | 50 | ||
| SB-C-10-72 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 120 In. x 72 In. Blue | Hardware Included: Yes | 54 | ||
| SB-C-10-96 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 120 In. x 96 In. Blue | Hardware Included: Yes | 90 | ||

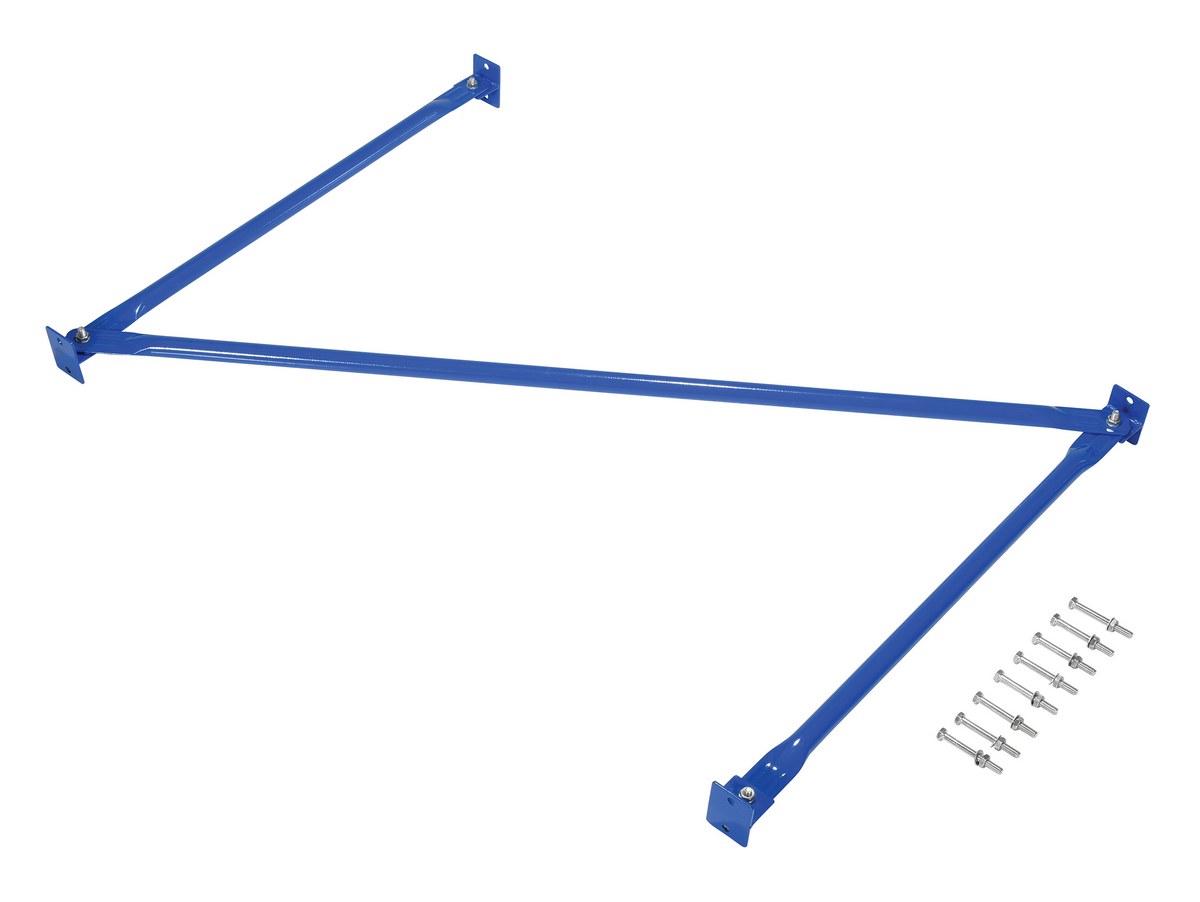

| SB-C-6-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 72 In. x 36 In. Blue | Hardware Included: Yes | 26 | ||
| SB-C-6-48 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 72 In. x 48 In. Blue | Hardware Included: Yes | 38 | ||
| SB-C-6-60 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 72 In. x 60 In. Blue | Hardware Included: Yes | 44 | ||
| SB-C-6-72 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 72 In. x 72 In. Blue | Hardware Included: Yes | 50 | ||
| SB-C-6-96 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 72 In. x 96 In. Blue | Hardware Included: Yes | 64 | ||
| SB-C-8-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 96 In. x 36 In. Blue | Hardware Included: Yes | 28 | ||
| SB-C-8-48 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 96 In. x 48 In. Blue | Hardware Included: Yes | 42 | ||
| SB-C-8-60 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 96 In. x 60 In. Blue | Hardware Included: Yes | 48 | ||
| SB-C-8-72 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 96 In. x 72 In. Blue | Hardware Included: Yes | 52 | ||

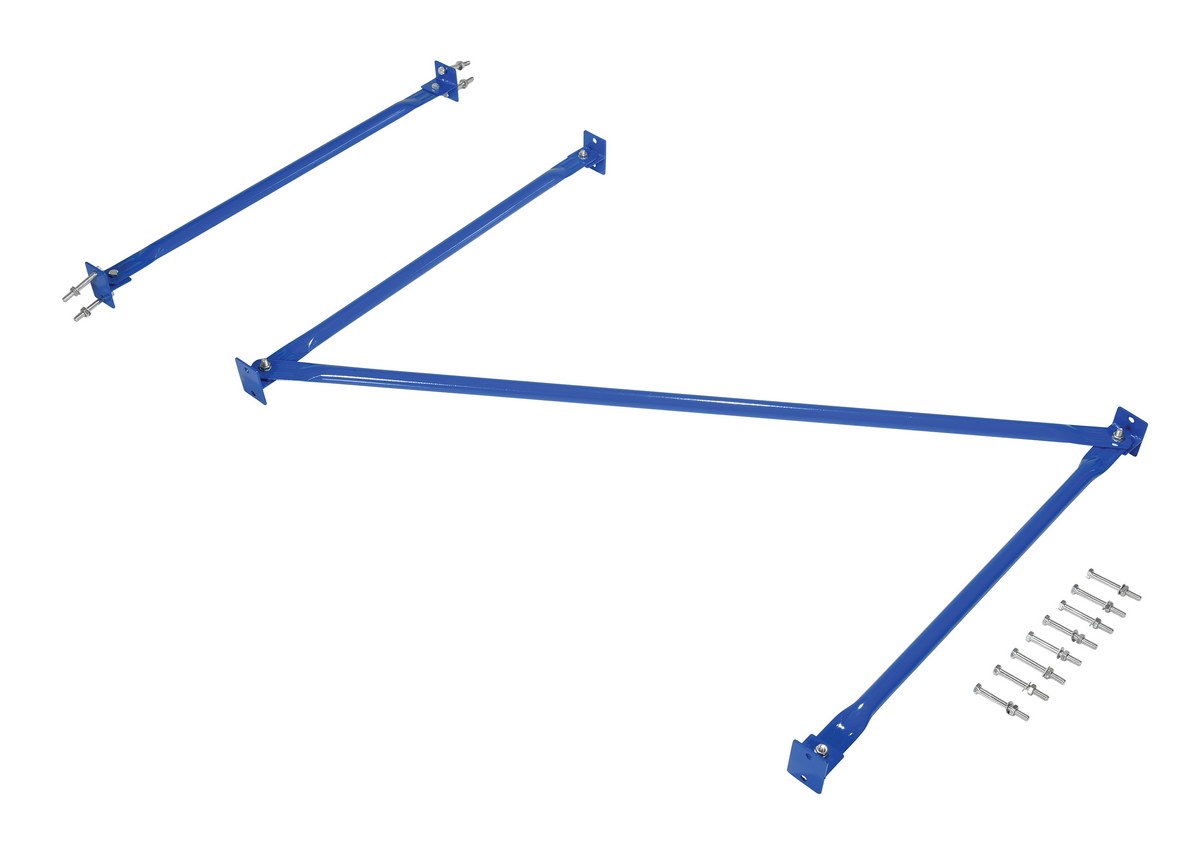

| SB-C-8-96 |  | 1 Year Limited Warranty | Steel Standard Cantilever Brace Set 96 In. x 96 In. Blue | Hardware Included: Yes | 66 | ||

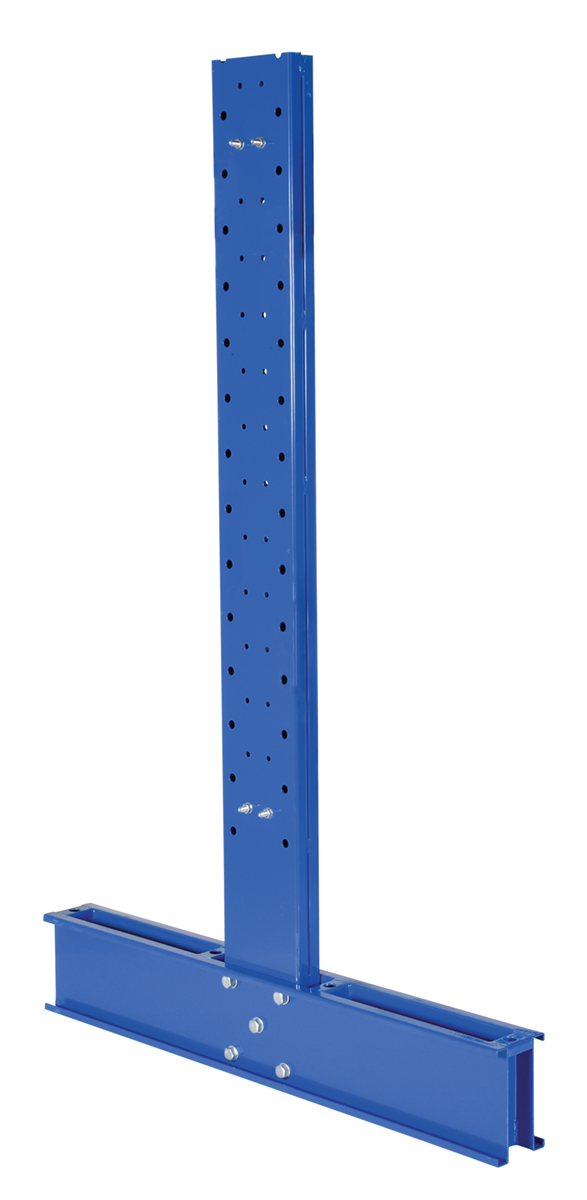

| SDU-C-10-12 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 10 Ft. Height 12 In. Arm Use Length 9,300 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 9,300 Arm(s) to Use Length (in.): 12 | 225 | ||
| SDU-C-10-18 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 10 Ft. Height 18 In. Arm Use Length 7,300 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 7,300 Arm(s) to Use Length (in.): 18 | 236 | ||
| SDU-C-10-24 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 10 Ft. Height 24 In. Arm Use Length 6,500 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 6,500 Arm(s) to Use Length (in.): 24 | 249 | ||
| SDU-C-10-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 10 Ft. Height 36 In. Arm Use Length 5,000 Lb. Capacity Blue | Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,000 / 4,300 Arm(s) to Use Length (in.): 30 / 36 | 270 | ||
| SDU-C-6-12 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 6 Ft. Height 12 In. Arm Use Length 11,000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 11,000 Arm(s) to Use Length (in.): 12 | 183 | ||
| SDU-C-6-18 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 6 Ft. Height 18 In. Arm Use Length 8,600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 8,600 Arm(s) to Use Length (in.): 18 | 183 | ||
| SDU-C-6-24 | | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 6 Ft. Height 24 In. Arm Use Length Set 7,700 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 7,700 Arm(s) to Use Length (in.): 24 | 195 | ||
| SDU-C-6-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 6 Ft. Height 36 In. Arm Use Length Set 6,000 Lb. Capacity Blue | Uniform Capacity per Upright 30" / 36" Arm (lb.): 6,000 / 5,200 Arm(s) to Use Length (in.): 30 / 36 | 215 | ||
| SDU-C-8-12 | | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 8 Ft. Height 12 In. Arm Use Length 10,100 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 10,100 Arm(s) to Use Length (in.): 12 | 197 | ||
| SDU-C-8-18 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 8 Ft. Height 18 In. Arm Use Length 8,000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 8,000 Arm(s) to Use Length (in.): 18 | 208 | ||
| SDU-C-8-24 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 8 Ft. Height 24 In. Arm Use Length 7,100 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 7,100 Arm(s) to Use Length (in.): 24 | 219 | ||

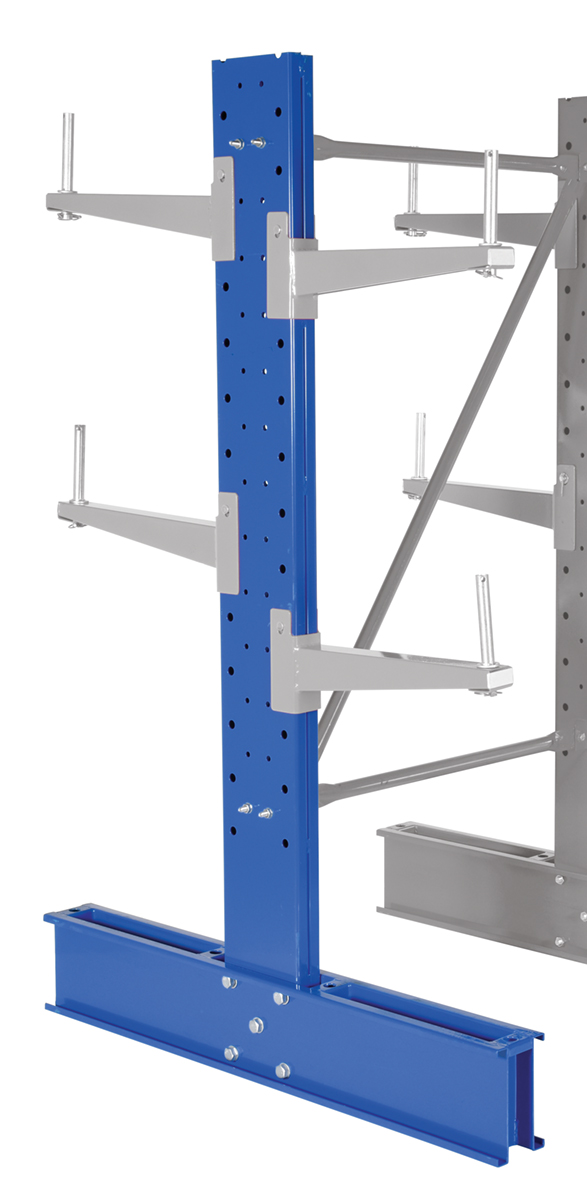

| SDU-C-8-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever Double Upright 8 Ft. Height 36 In. Arm Use Length 5,500 Lb. Capacity Blue | Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,500 / 4,800 Arm(s) to Use Length (in.): 30 / 36 | 242 | ||

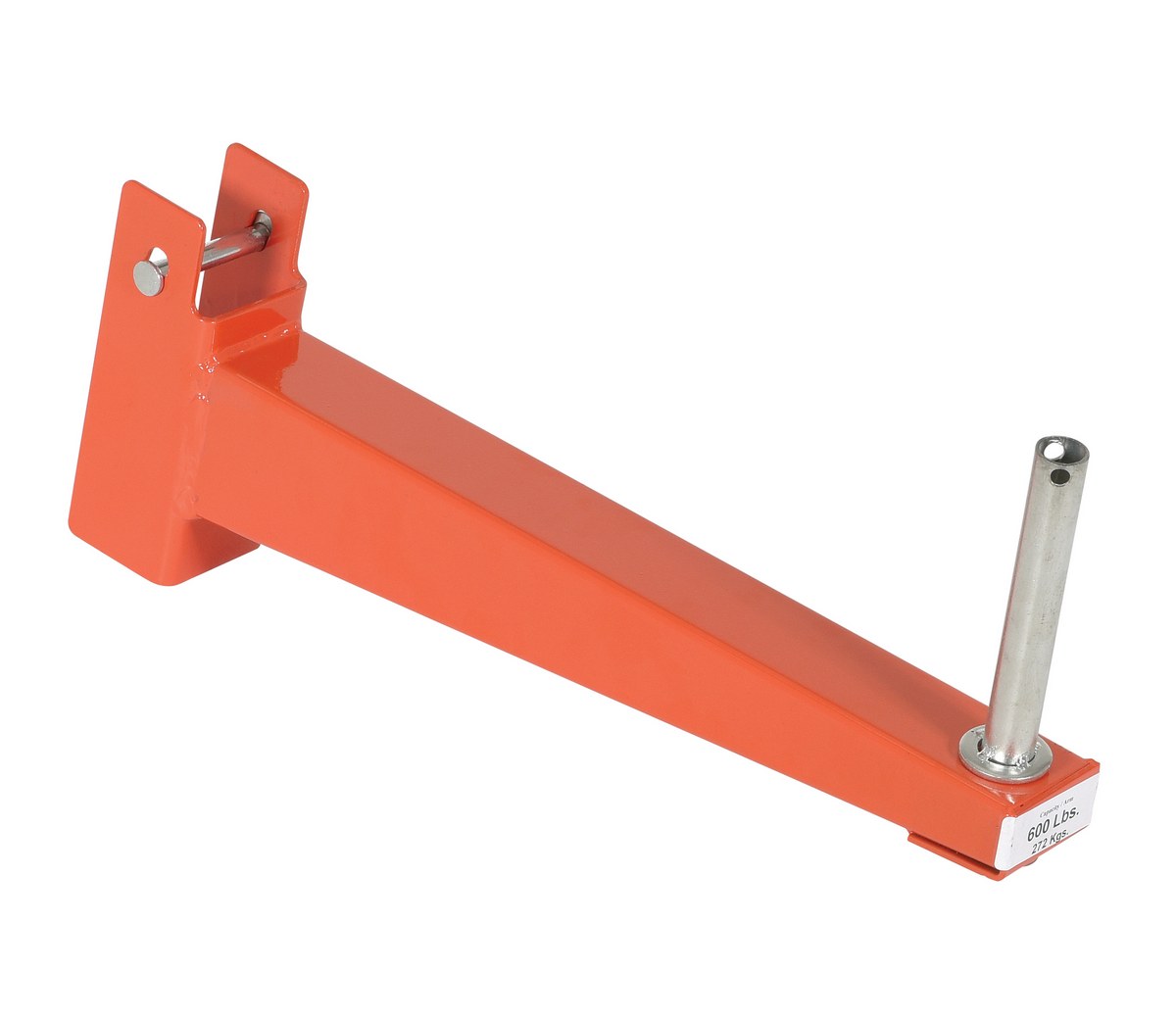

| SIA-C-12 |  | 1 Year Limited Warranty | Steel Standard Cantilever 10 Degree Incline Arm 12 In. Length 800 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 800 Component: 10 Degree Inclined Arm | 10 | ||

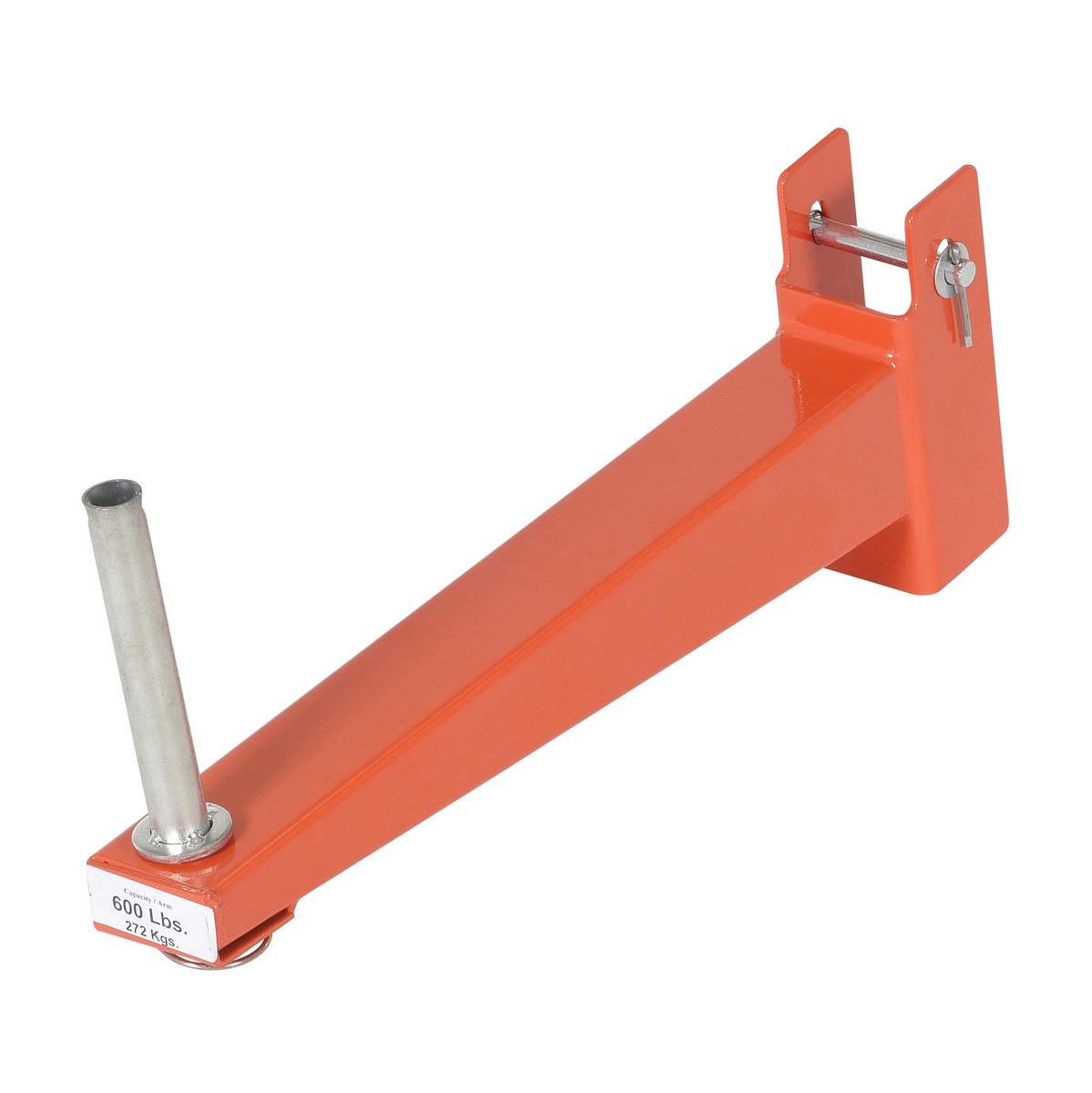

| SIA-C-18 |  | 1 Year Limited Warranty | Steel Standard Cantilever 10 Degree Incline Arm 18 In. Length 600 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 600 Component: 10 Degree Inclined Arm | 12 | ||

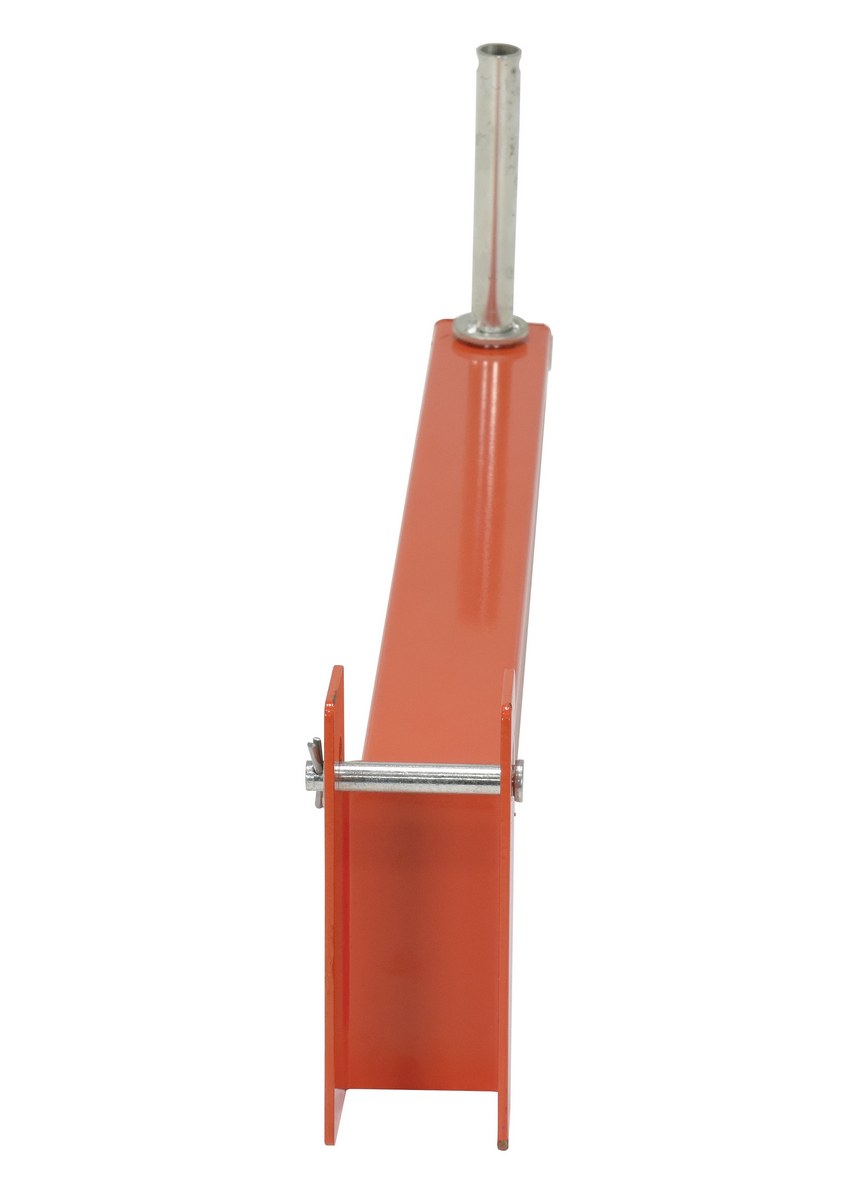

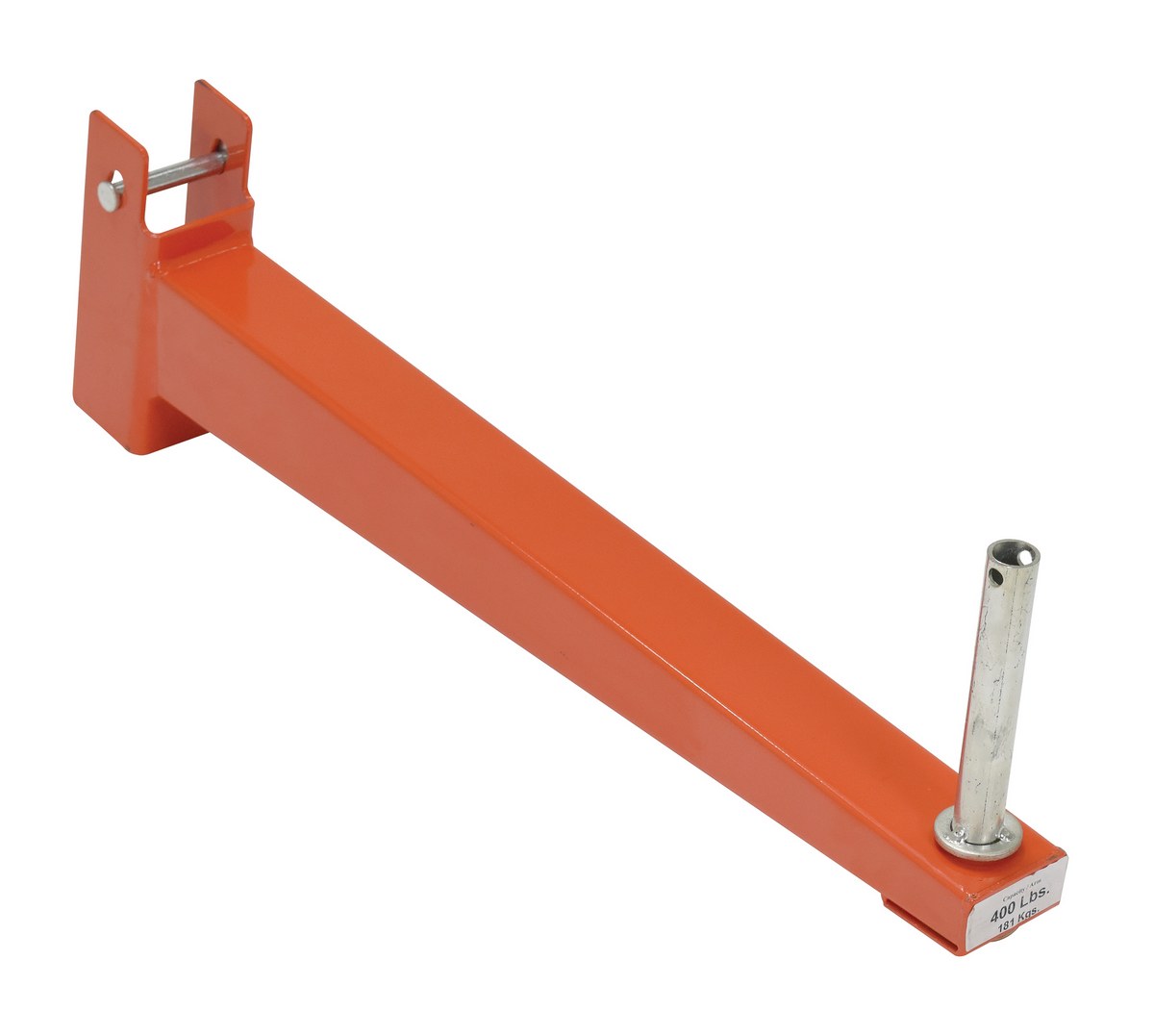

| SIA-C-24 |  | 1 Year Limited Warranty | Steel Standard Cantilever 10 Degree Incline Arm 24 In. Length 400 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 400 Component: 10 Degree Inclined Arm | 15 | ||
| SIA-C-30 |  | 1 Year Limited Warranty | Steel Standard Cantilever 10 Degree Incline Arm 30 In. Length 300 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 300 Component: 10 Degree Inclined Arm | 17 | ||
| SIA-C-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever 10 Degree Incline Arm 36 In. Length 200 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 200 Component: 10 Degree Inclined Arm | 21 | ||

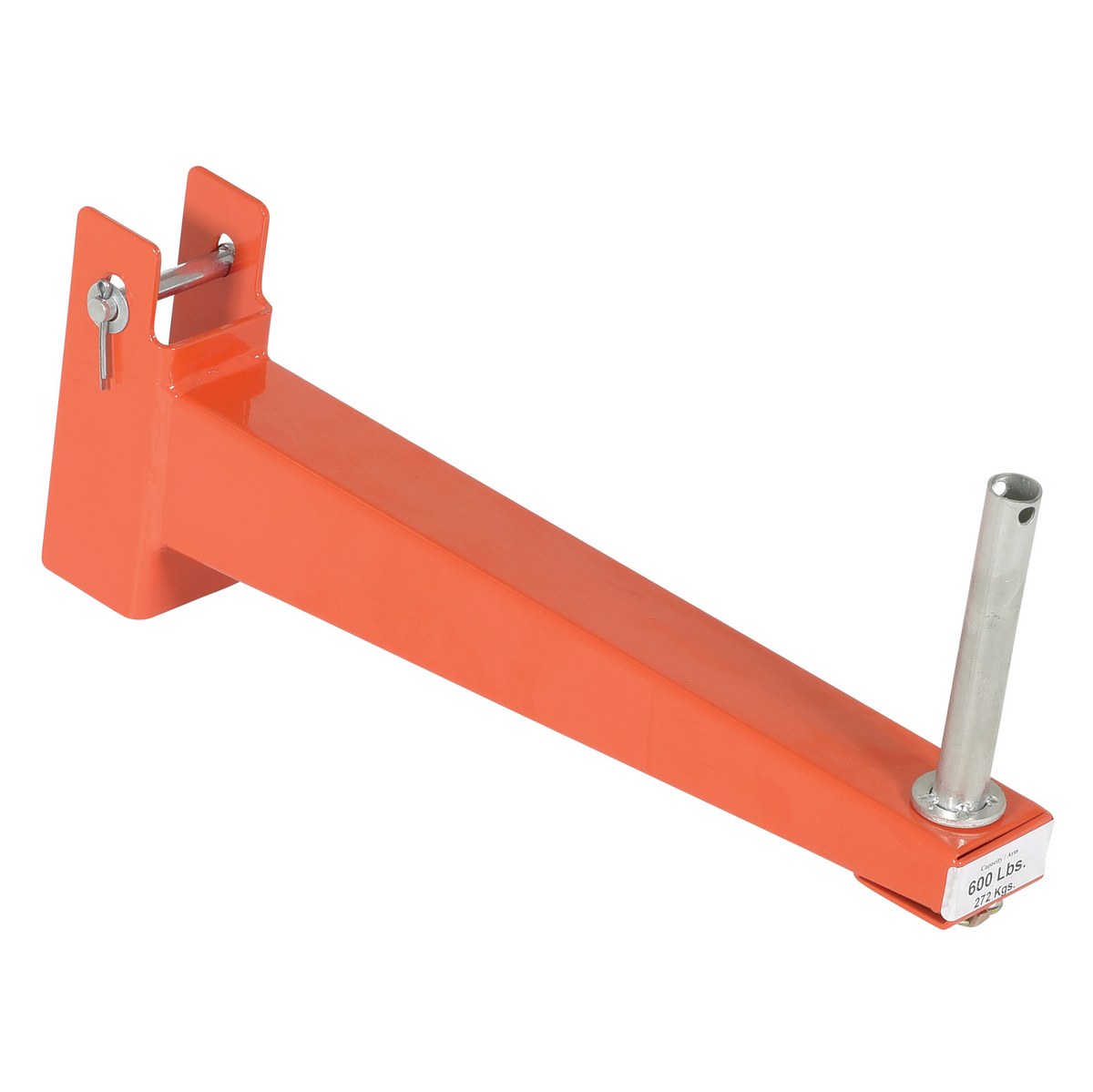

| SSA-C-12 |  | 1 Year Limited Warranty | Steel Standard Cantilever Racking Straight Arm 12 In. Length 800 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 800 Component: Straight Arm | 10 | ||
| SSA-C-18 |  | 1 Year Limited Warranty | Steel Standard Cantilever Racking Straight Arm 18 In. Length 600 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 600 Component: Straight Arm | 12 | ||

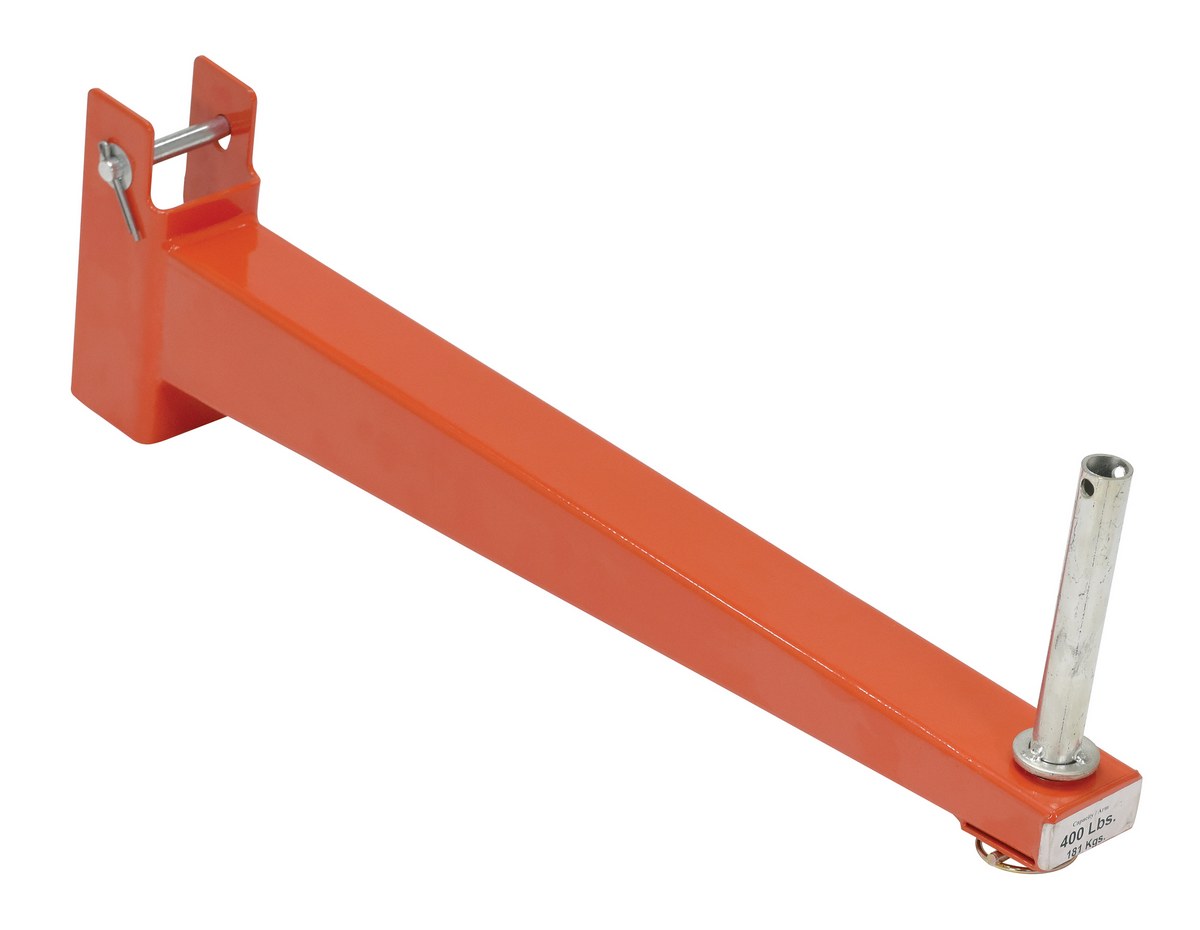

| SSA-C-24 | | 1 Year Limited Warranty | Steel Standard Cantilever Racking Straight Arm 24 In. Length 400 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 400 Component: Straight Arm | 15 | ||
| SSA-C-30 |  | 1 Year Limited Warranty | Steel Standard Cantilever Racking Straight Arm 30 In. Length 300 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 300 Component: Straight Arm | 17 | ||
| SSA-C-36 |  | 1 Year Limited Warranty | Steel Standard Cantilever Racking Straight Arm 36 In. Length 200 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 200 Component: Straight Arm | 21 | ||

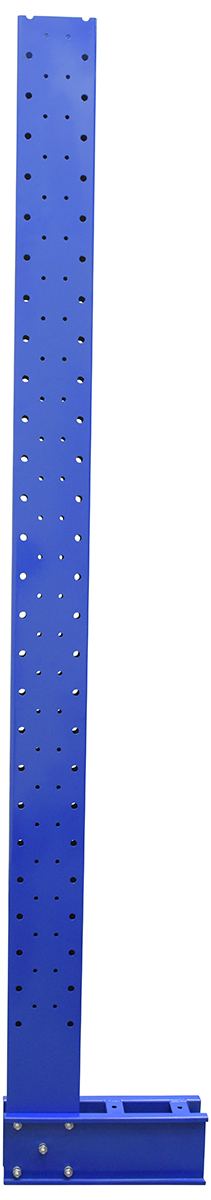

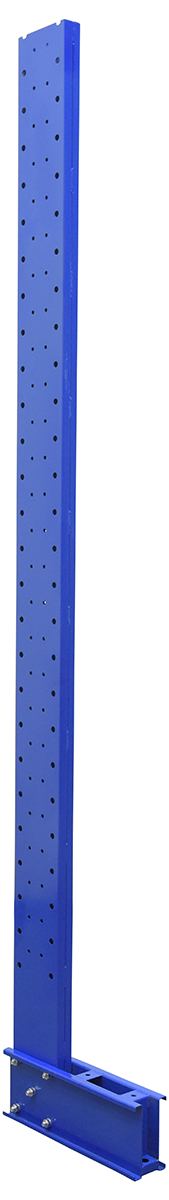

| SU-C-10-12 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 12 In. Arm Blue | Uniform Capacity per Upright (lb.): 4,600 Arm(s) to Use Length (in.): 12 | 214 | ||

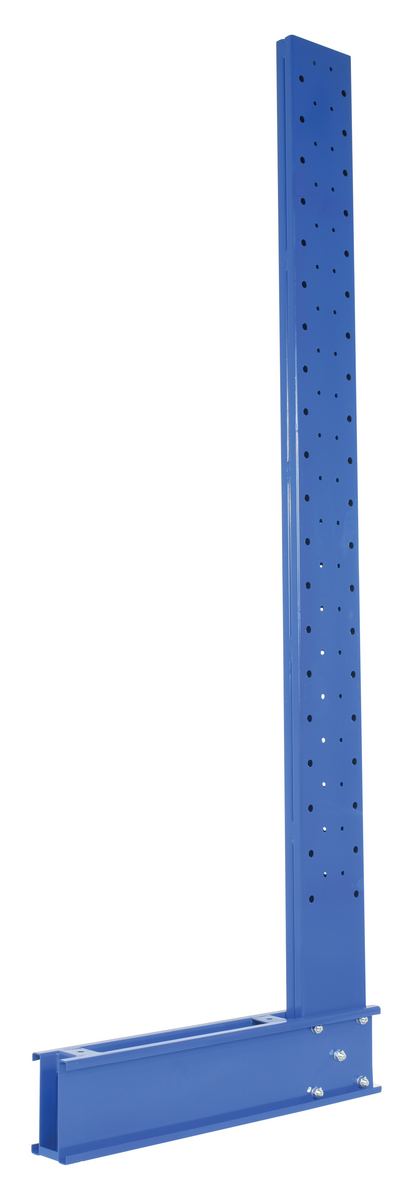

| SU-C-10-18 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 18 In. Arm Blue | Uniform Capacity per Upright (lb.): 3,600 Arm(s) to Use Length (in.): 18 | 219 | ||

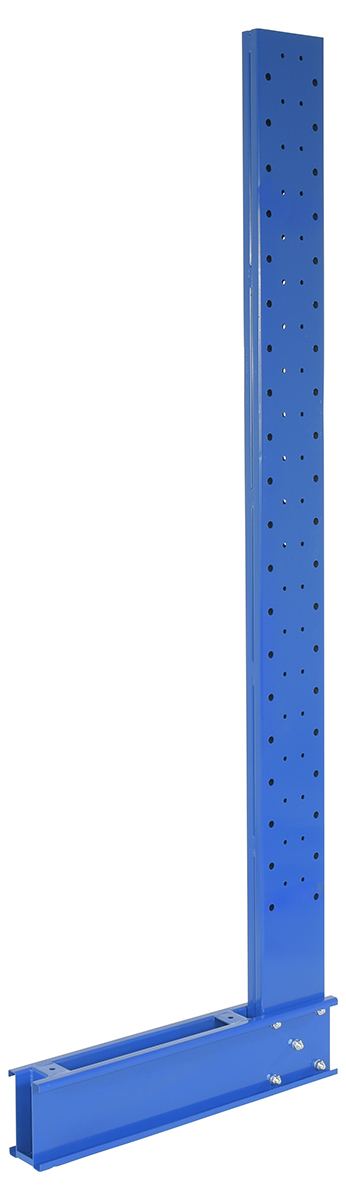

| SU-C-10-24 | | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 24 In. Arm Blue | Uniform Capacity per Upright (lb.): 3,200 Arm(s) to Use Length (in.): 24 | 225 | ||

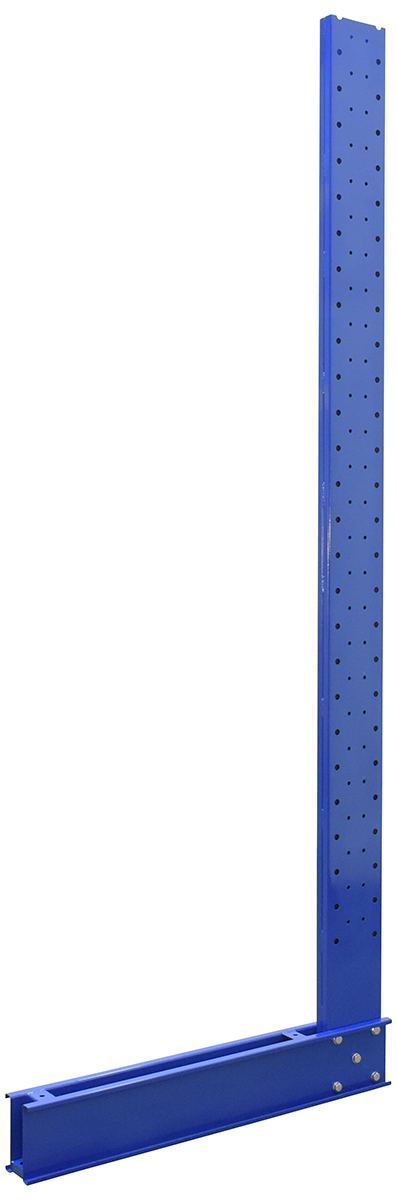

| SU-C-10-36 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 30 In. To 36 In. Arm Blue | Uniform Capacity per Upright 30"/36" Arm (lb.): 2,500 / 2,100 Arm(s) to Use Length (in.): 30 / 36 | 237 | ||

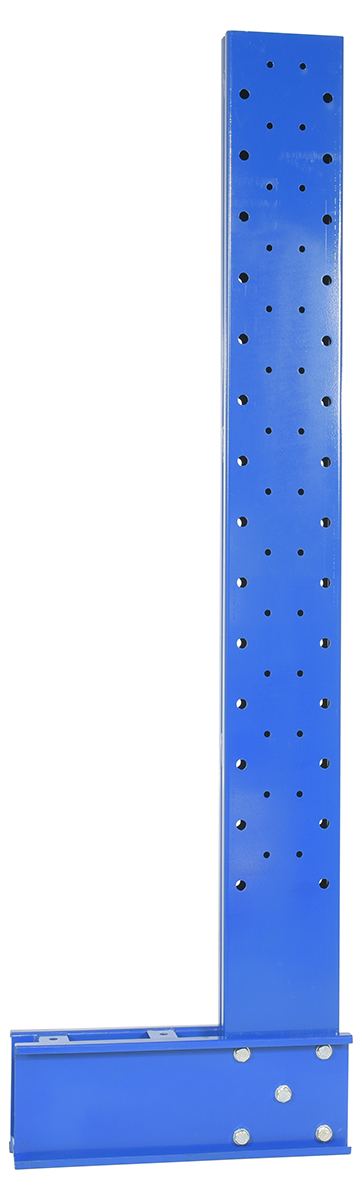

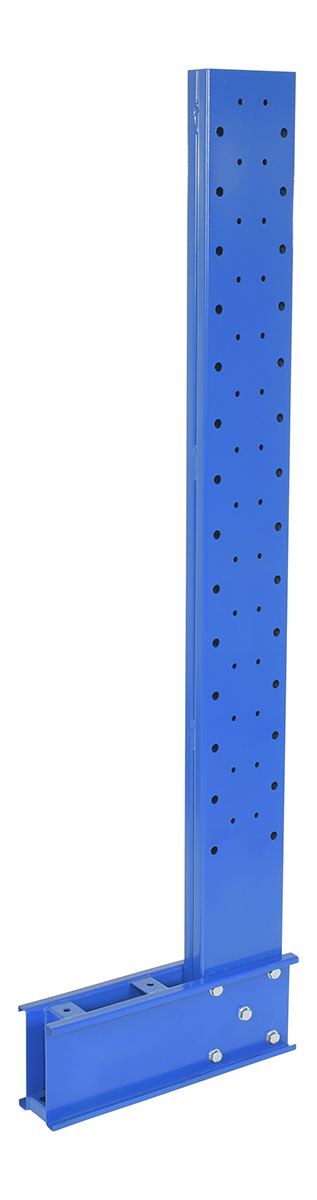

| SU-C-6-12 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 12 In. Arm Blue | Uniform Capacity per Upright (lb.): 5,500 Arm(s) to Use Length (in.): 12 | 172 | ||

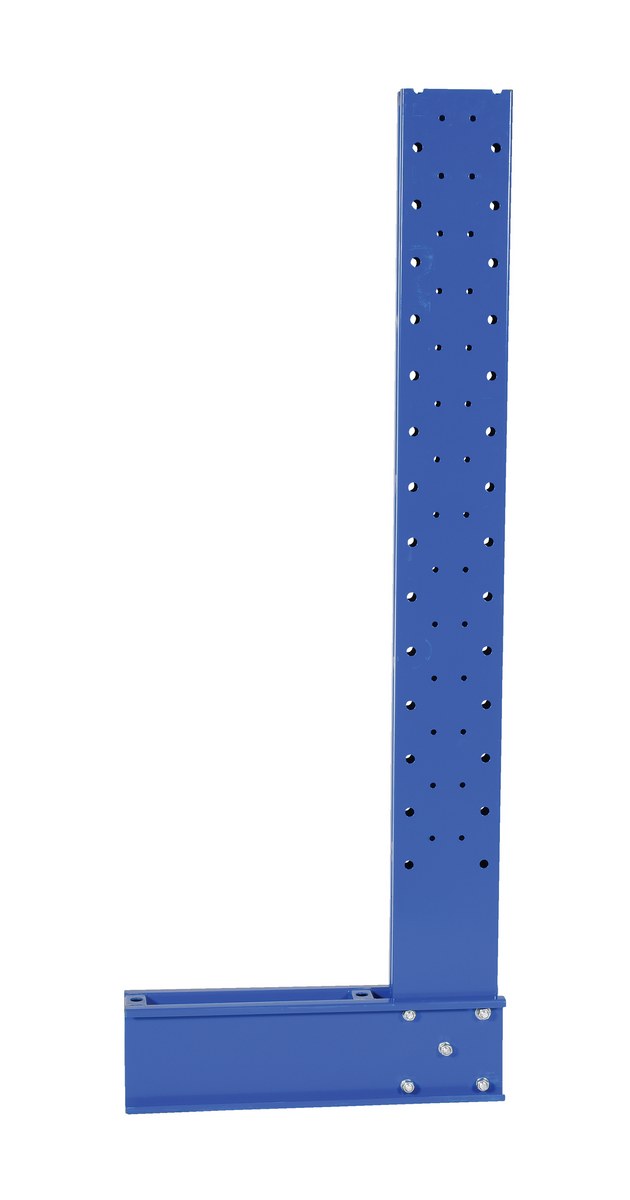

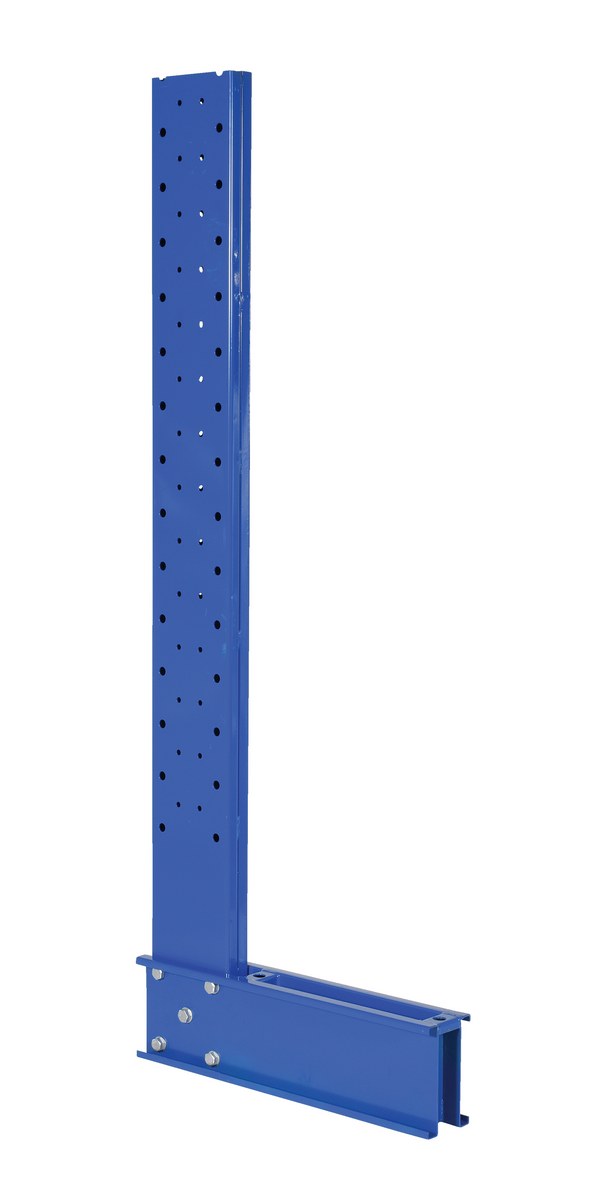

| SU-C-6-18 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 18 In. Arm Blue | Uniform Capacity per Upright (lb.): 4,300 Arm(s) to Use Length (in.): 18 | 182 | ||

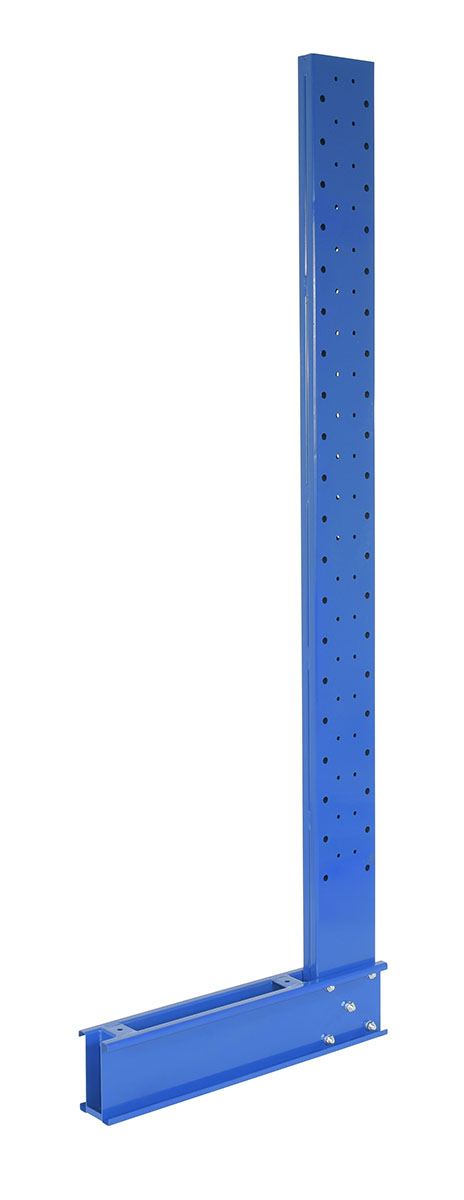

| SU-C-6-24 | | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 24 In. Arm Blue | Uniform Capacity per Upright (lb.): 3,800 Arm(s) to Use Length (in.): 24 | 195 | ||

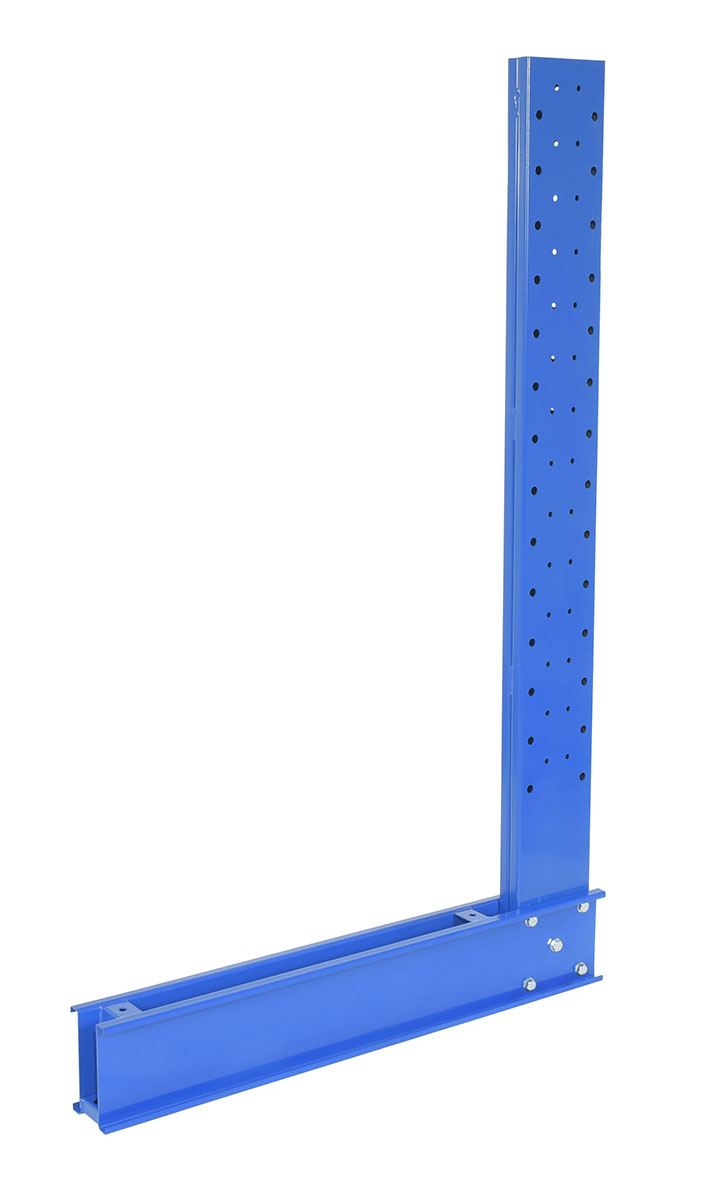

| SU-C-6-36 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 30 In. To 36 In. Arm Blue | Uniform Capacity per Upright 30"/36" Arm (lb.): 3,000 / 2,600 Arm(s) to Use Length (in.): 30 / 36 | 198 | ||

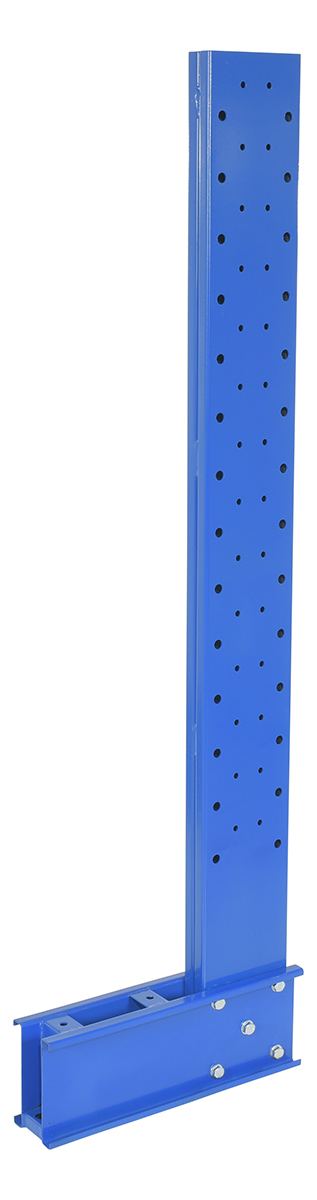

| SU-C-8-12 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 12 In. Arm Blue | Uniform Capacity per Upright (lb.): 5000 Arm(s) to Use Length (in.): 12 | 186 | ||

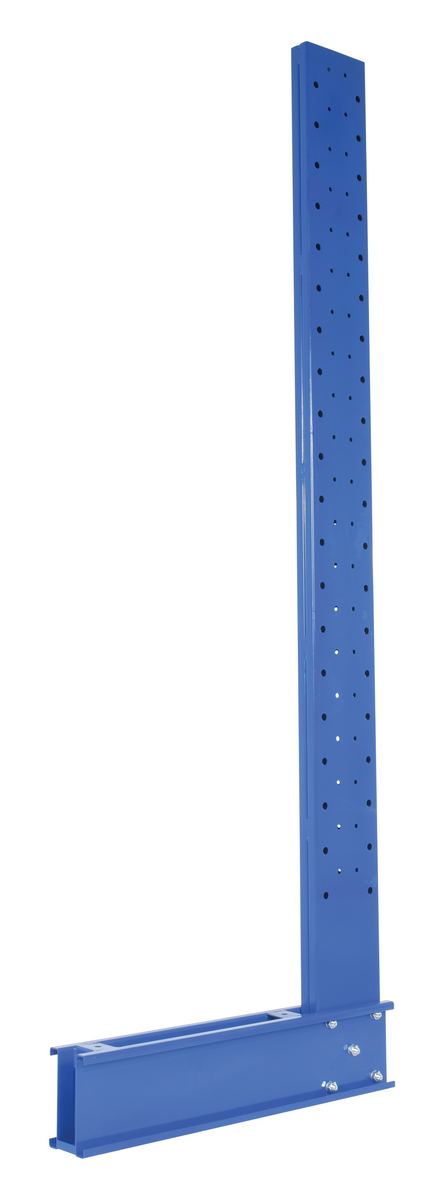

| SU-C-8-18 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 18 In. Arm Blue | Uniform Capacity per Upright (lb.): 4000 Arm(s) to Use Length (in.): 18 | 191 | ||
| SU-C-8-24 |  | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 24 In. Arm Blue | Uniform Capacity per Upright (lb.): 3500 Arm(s) to Use Length (in.): 24 | 197 | ||

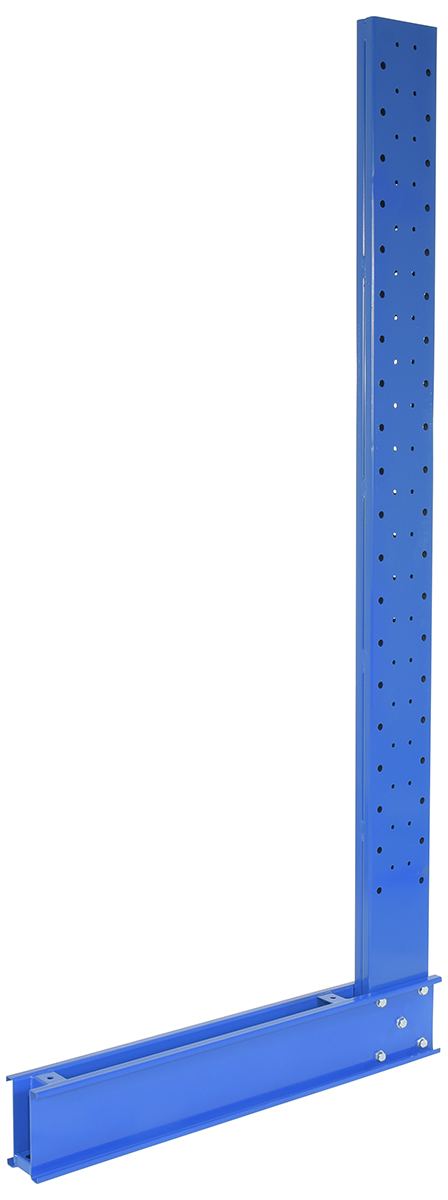

| SU-C-8-36 | | 1 Year Limited Warranty | Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 30 In. To 36 In. Arm Blue | Uniform Capacity per Upright 30"/36" Arm (lb.): 2700 / 2400 Arm(s) to Use Length (in.): 30 / 36 | 208 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,300
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 9,300
Arm(s) to Use Length (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 7,300
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 7,300
Arm(s) to Use Length (in.): 18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 6,500
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 6,500
Arm(s) to Use Length (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,000 / 4,300
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,000 / 4,300
Arm(s) to Use Length (in.): 30 / 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,000
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 11,000
Arm(s) to Use Length (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,600
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 8,600
Arm(s) to Use Length (in.): 18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 7,700
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 7,700
Arm(s) to Use Length (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30" / 36" Arm (lb.): 6,000 / 5,200
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30" / 36" Arm (lb.): 6,000 / 5,200
Arm(s) to Use Length (in.): 30 / 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 10,100
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 10,100
Arm(s) to Use Length (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,000
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 8,000
Arm(s) to Use Length (in.): 18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 7,100
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 7,100
Arm(s) to Use Length (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,500 / 4,800
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,500 / 4,800
Arm(s) to Use Length (in.): 30 / 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 800
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 800
Component: 10 Degree Inclined Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 600
Component: 10 Degree Inclined Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 400
Component: 10 Degree Inclined Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 300
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 300
Component: 10 Degree Inclined Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 200
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 200
Component: 10 Degree Inclined Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 800
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 800
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 600
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 300
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 300
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 200
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 200
Component: Straight Arm
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,600
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 3,600
Arm(s) to Use Length (in.): 18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,200
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 3,200
Arm(s) to Use Length (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30"/36" Arm (lb.): 2,500 / 2,100
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30"/36" Arm (lb.): 2,500 / 2,100
Arm(s) to Use Length (in.): 30 / 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 5,500
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 5,500
Arm(s) to Use Length (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,300
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 4,300
Arm(s) to Use Length (in.): 18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30"/36" Arm (lb.): 3,000 / 2,600
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30"/36" Arm (lb.): 3,000 / 2,600
Arm(s) to Use Length (in.): 30 / 36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 5000
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 5000
Arm(s) to Use Length (in.): 12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4000
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 4000
Arm(s) to Use Length (in.): 18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3500
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 3500
Arm(s) to Use Length (in.): 24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30"/36" Arm (lb.): 2700 / 2400
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30"/36" Arm (lb.): 2700 / 2400
Arm(s) to Use Length (in.): 30 / 36
Standard-Duty Cantilever Racking PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
No Survey Sheets For This Product
Approval Drawings
No Approval Drawings For This Product
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What type of paint is used on the racking? We'd like to use it outdoors.
A: The powder used for the cantilever racking is not suitable for outdoor use.
Q: Is the hardware for the cantilever racking metric?
A: Yes, the hardware for the cantilever racking is metric.
Q: What are the dimensions of the arm where they attached to the upright for SSA-C-18?
A: The arm bracket is 7-1/4" wide and the opening is 2-1/4" where it attaches to the upright.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard-Duty Cantilever Racking |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities. The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments. The adjustable arms allow the unit to be customized to fit the needs of individual circumstances. Individual components are sold separately to accommodate your requirements. Capacity listed is per upright.
Check Out Vestil's Other Cantilever Racking:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
