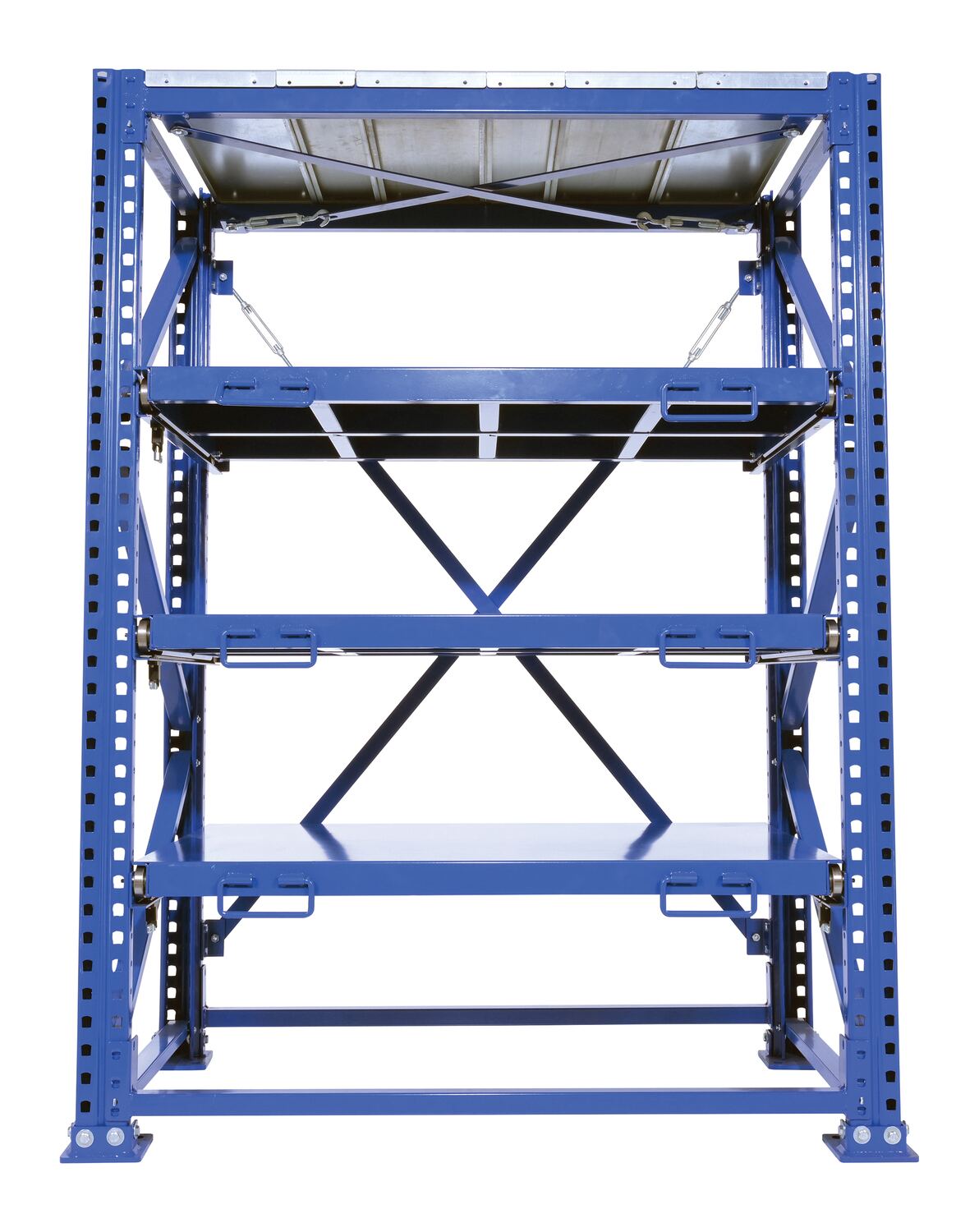

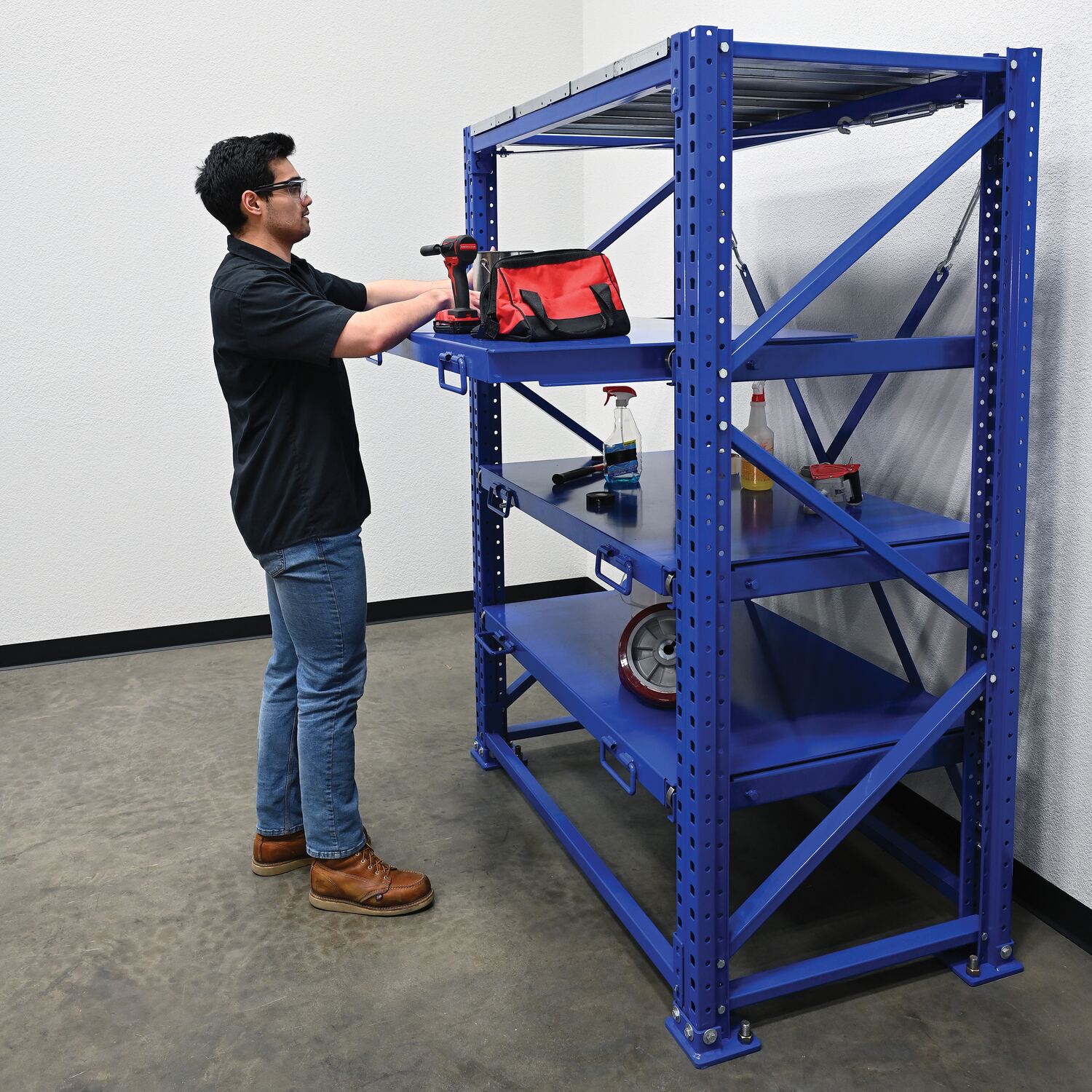

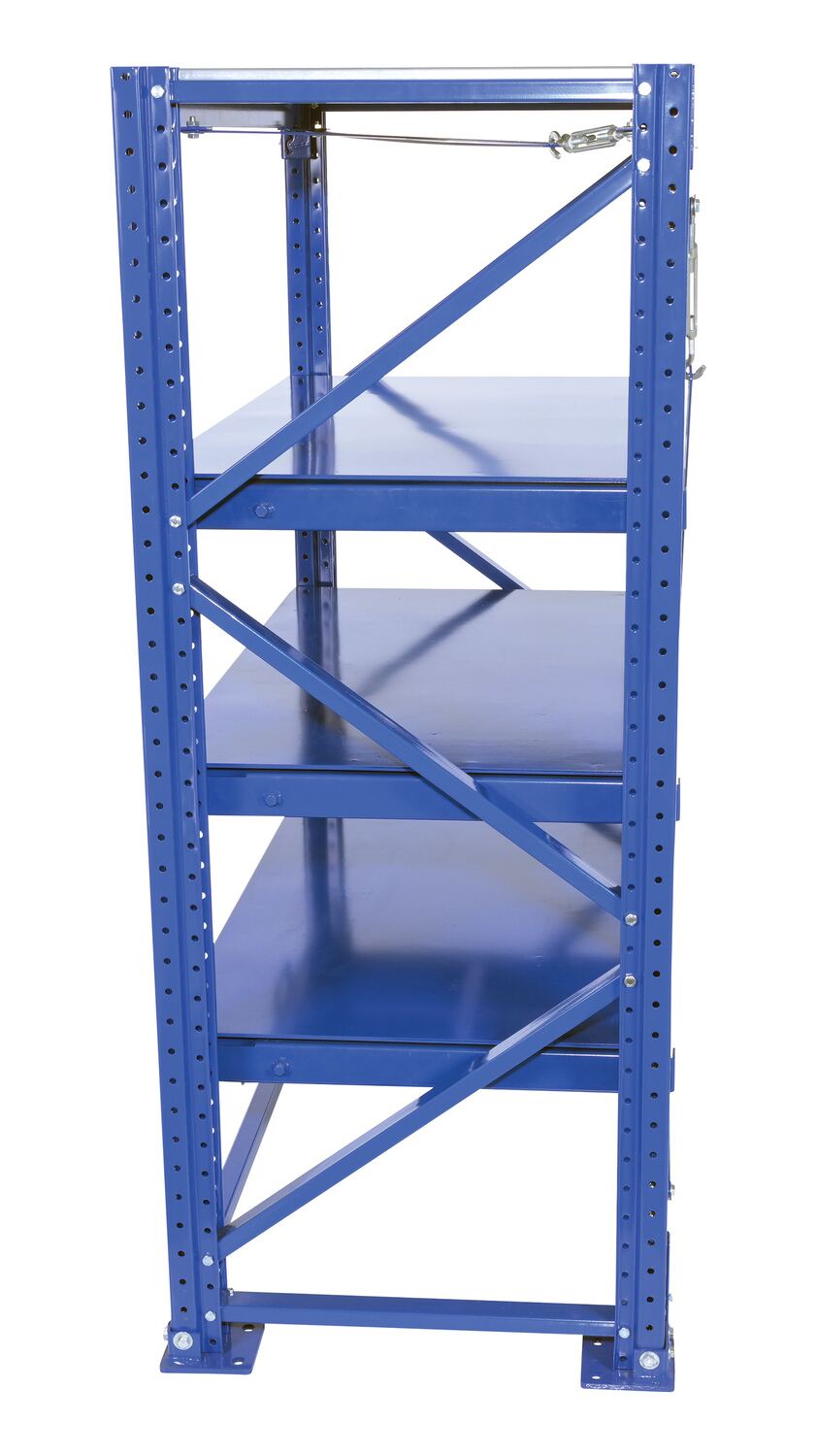

Heavy Duty Roll-Out ShelvingHeavy Duty roll-out shelving supports and stores heavy dies, fixtures and machinery. Shelves should be rolled out one at a time for simple product placement, as well as, personnel safety. All steel construction with powder coat finish. Mounting holes are predrilled. Assembly hardware is included. Mounting hardware is available separately.

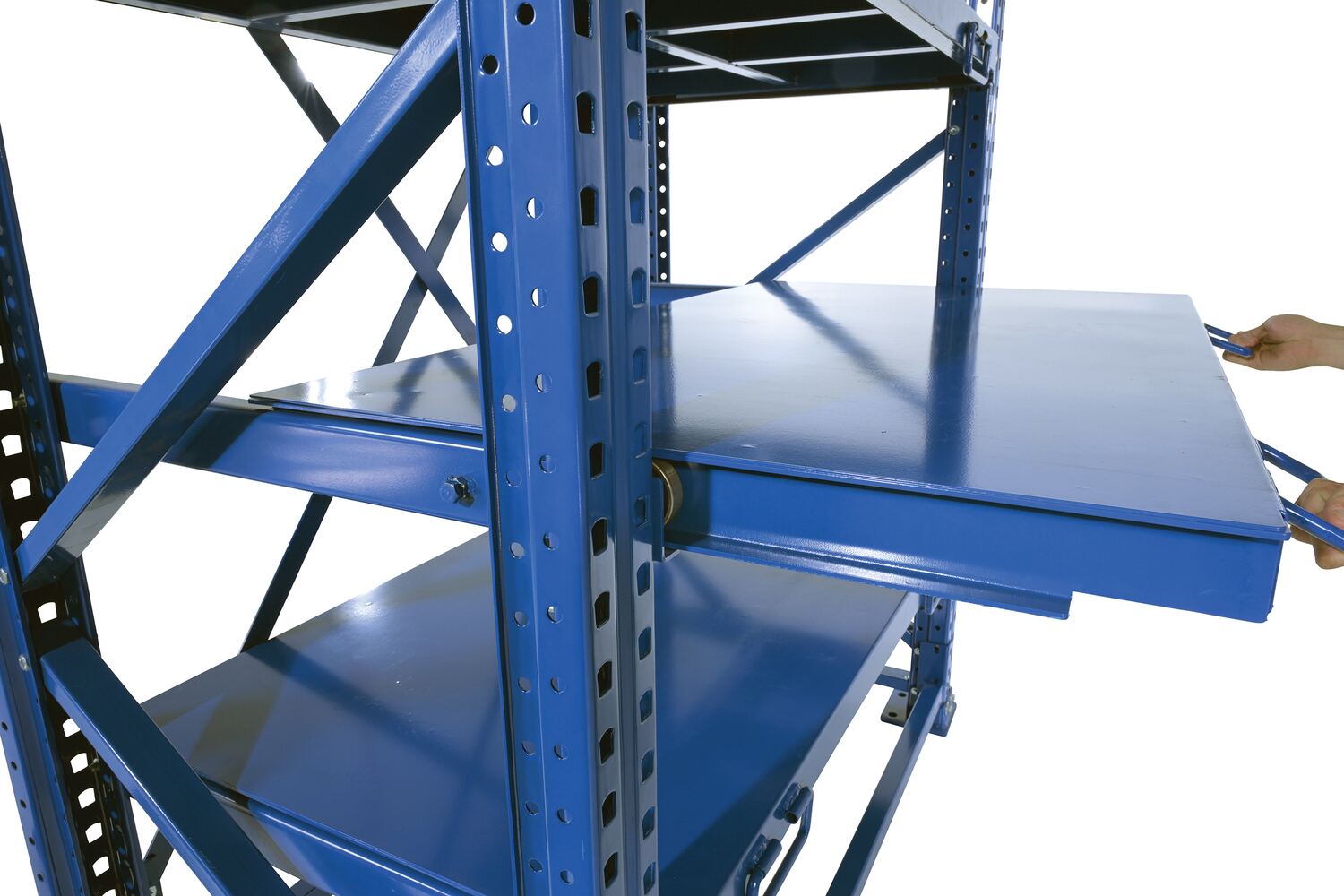

- Shelves can be extended outward 20"
- Shelves are lockable in extended position
- Individual shelf heights are adjustable

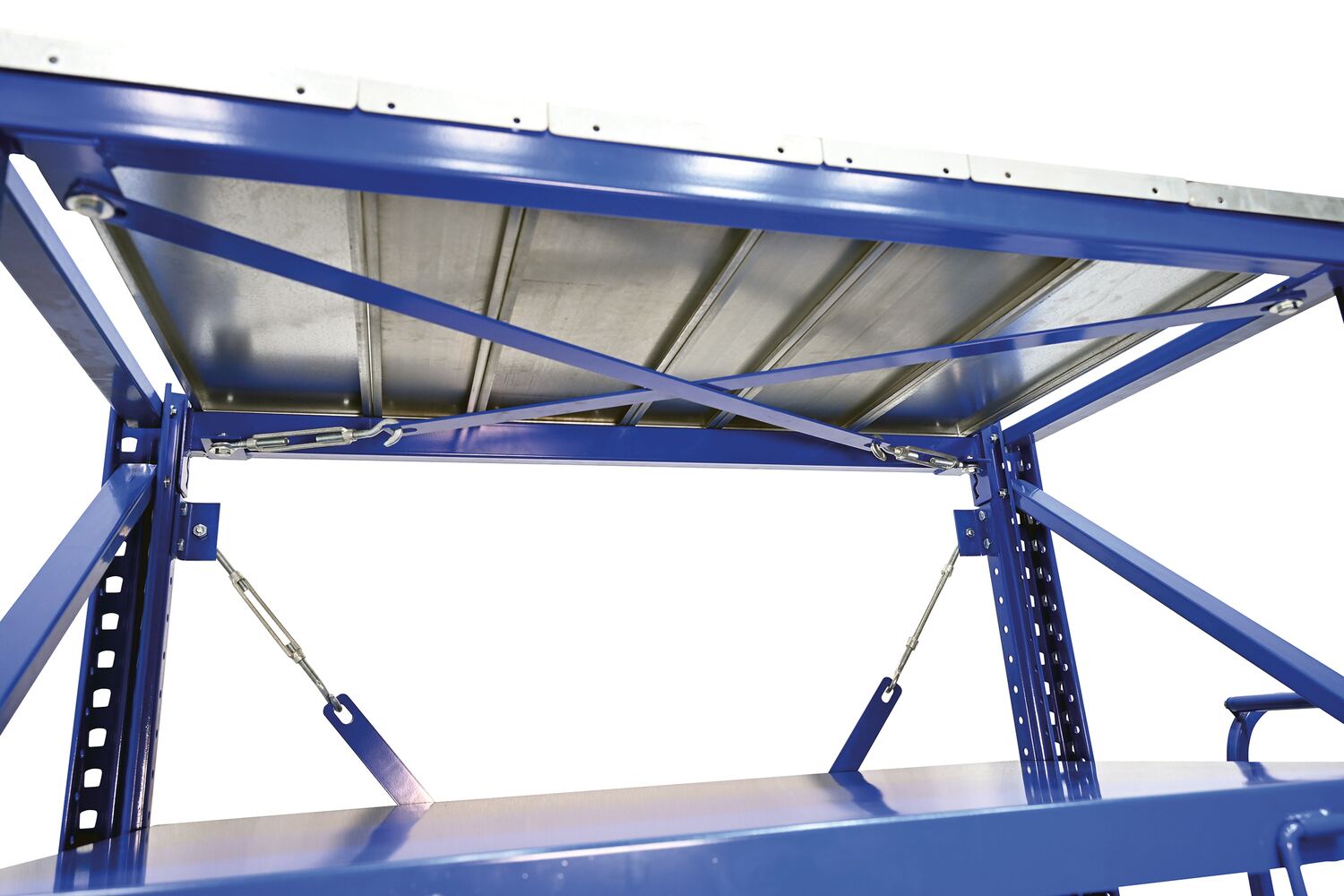

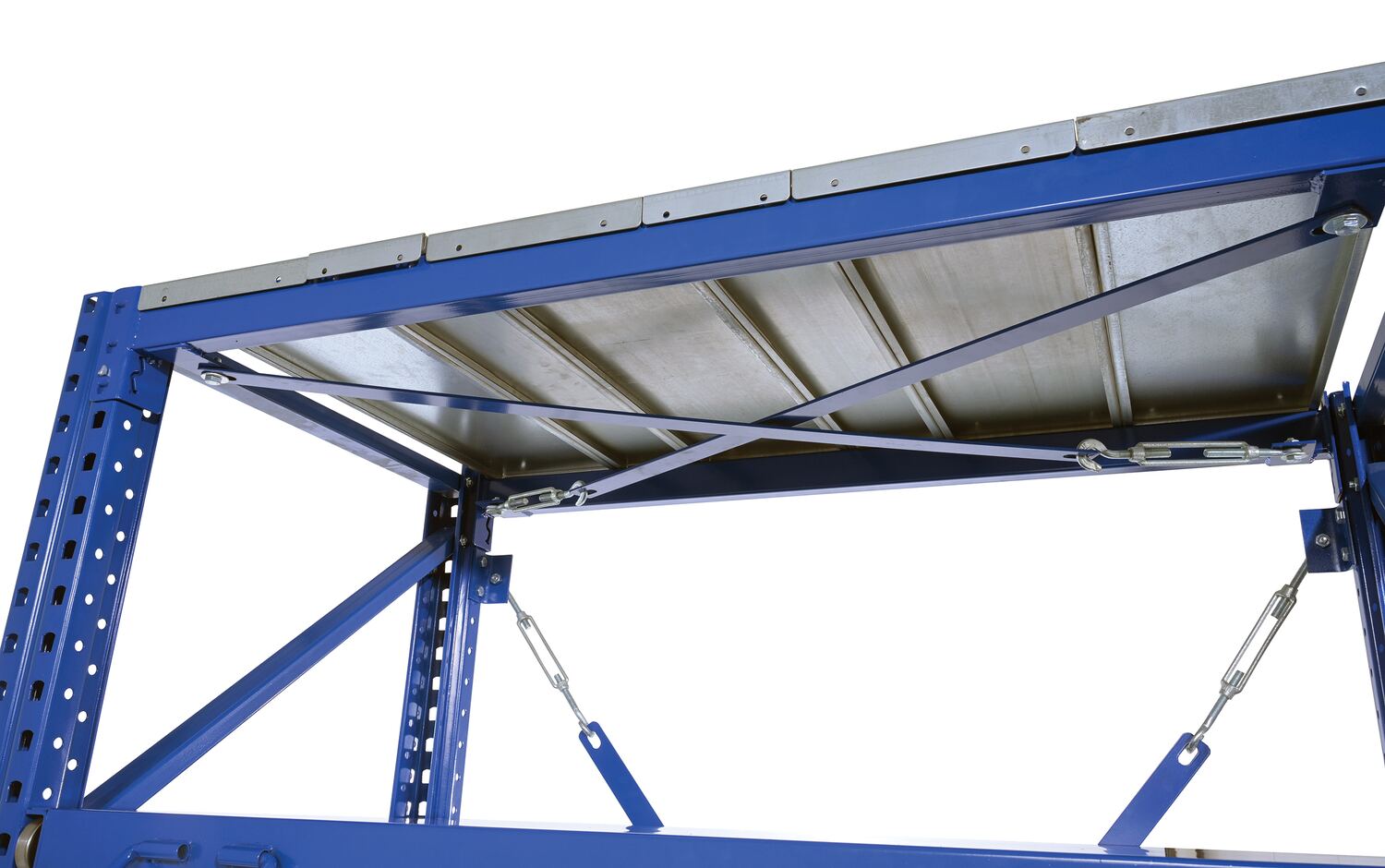

- Top shelf is fixed and non-adjustable
Add-On Kit
Add on unit is available for the VRSOR-60 unit. Simply bolt on the VRSOR-A-60 to the existing VRSOR-60 to add another bay of shelves. Add On Unit is 32"L x 57"W x 80"H with a 6,000 Lb. Capacity
Vertical Storage Racks
Dunnage RacksAdditional Models In This Family
VRSOR-60
VRSOR-120
VRSOR-A-60
VRSOR-60
VRSOR-60
VRSOR-60
VRSOR-60
VRSOR-60
VRSOR-60-SLF
VRSOR-60-SLF
VRSOR-60-SLF
VRSOR-60
VRSOR-60
VRSOR-60
VRSOR-A-60
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

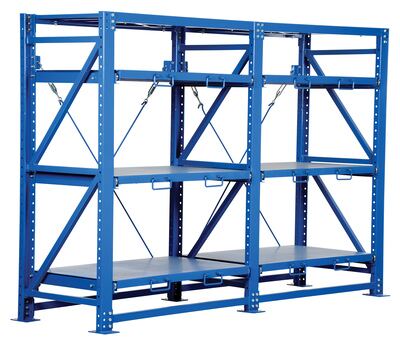

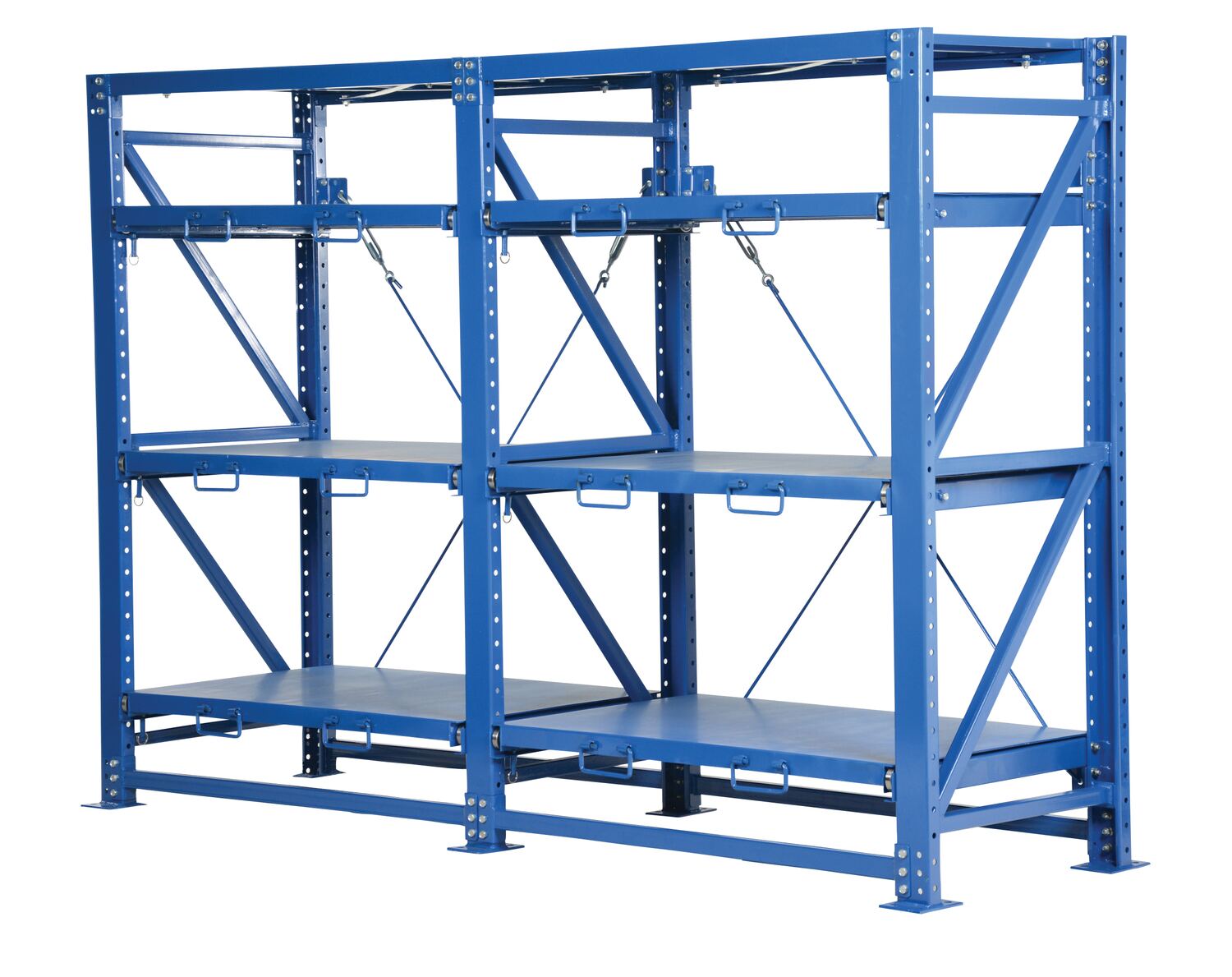

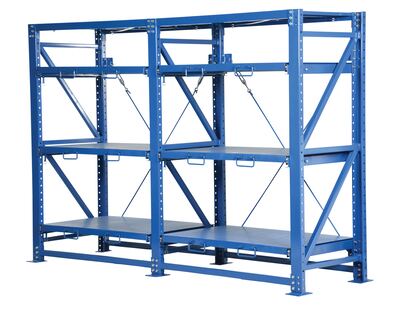

| VRSOR-120 | NEW | | 90 Days Limited Warranty | Steel Heavy Duty Roll-Out Shelving 32L X 120W X 80H 6,000 Lb. Capacity Blue | Tiers: 3 Edge Finish: Square | 1148 | |

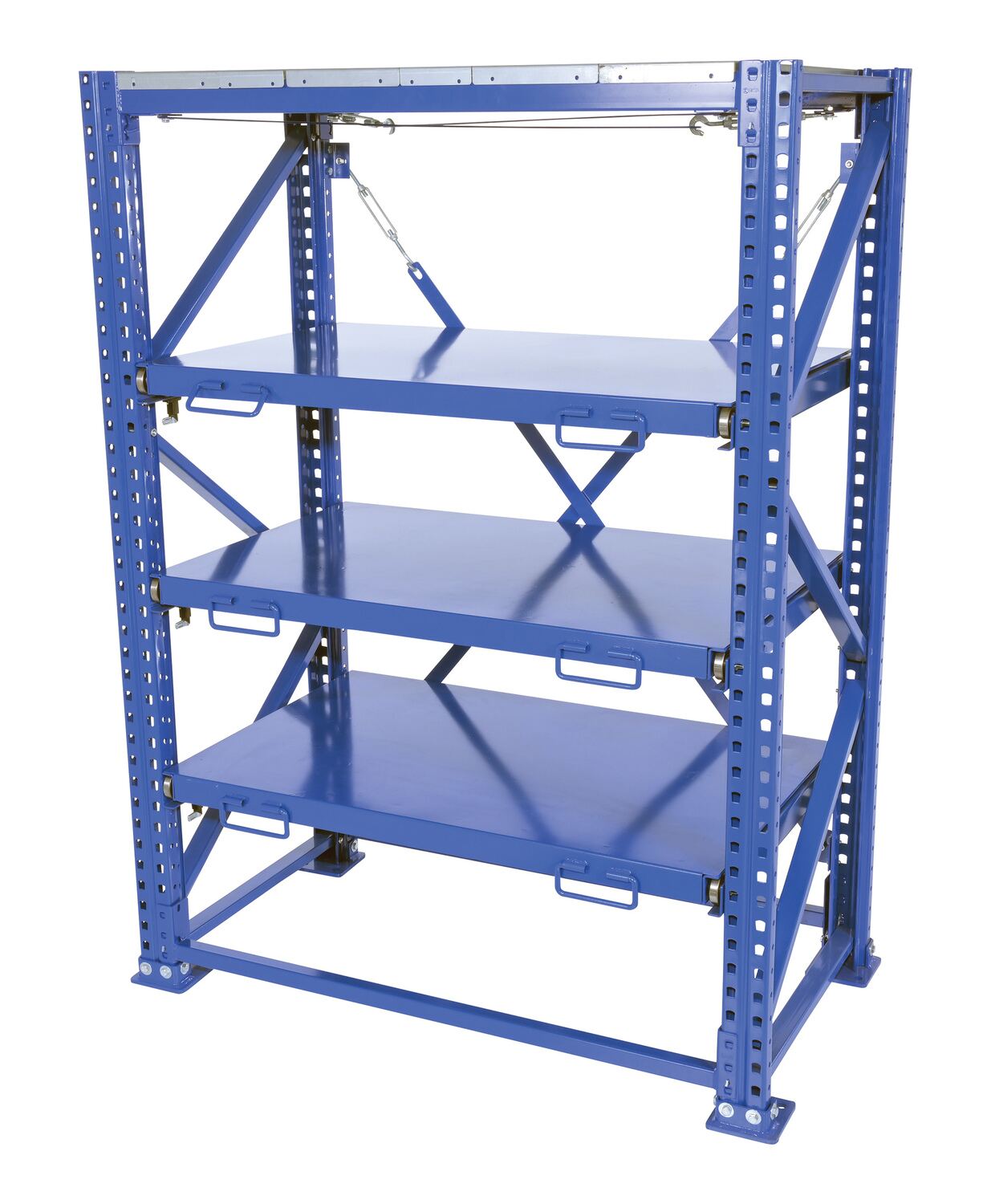

| VRSOR-60 | NEW | | 90 Days Limited Warranty | Steel Heavy Duty Roll-Out Shelving 32L X 60W X 80H 6,000 Lb. Capacity Blue | Tiers: 3 Edge Finish: Square | 636 | |
| VRSOR-A-60 | NEW |  | 90 Days Limited Warranty | Steel Roll Out Shelving-Add On Unit 32"l X 57"w X 80"h 6,000 Lb. Capacity Blue | Tiers: 3 Edge Finish: Square | 423 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square
For More Details of the Option Click the Red Model Button

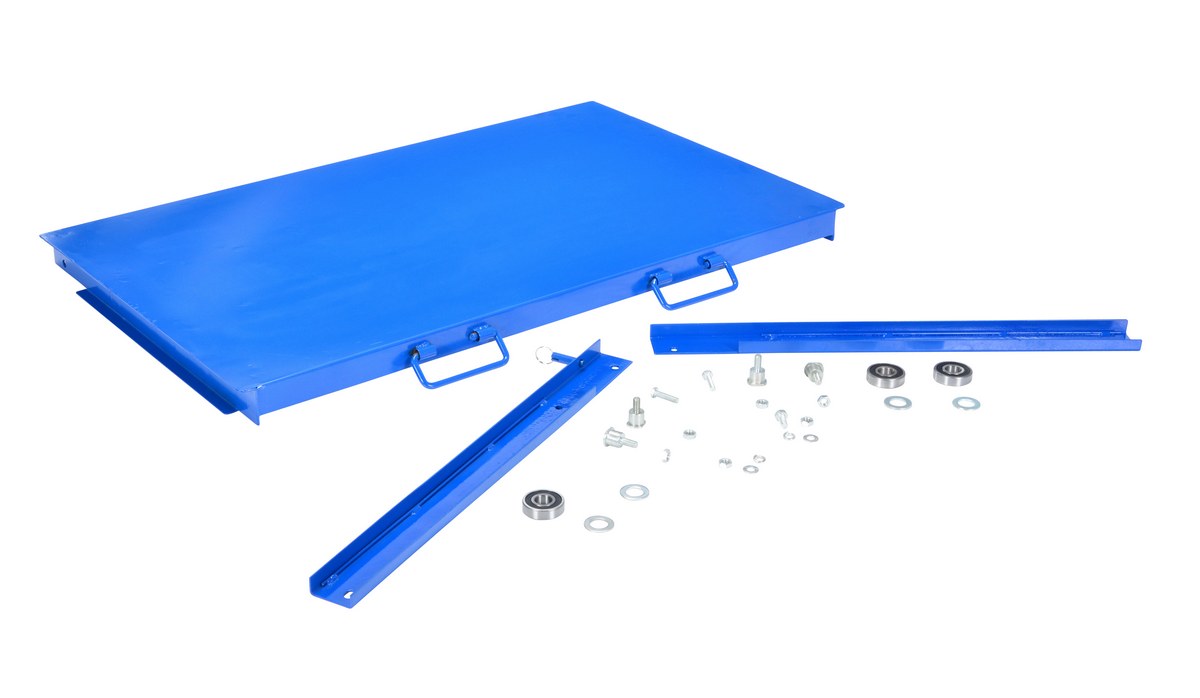

| VRSOR-SLF |  | 90 Days Limited Warranty | Steel Additional Shelf 32 In. Length 1,500 Lb. Capacity For VRSOR Models Blue | Uniform Capacity per Shelf (lb.): 1500 Shelf Steel (gauge): 10 | 110 | |

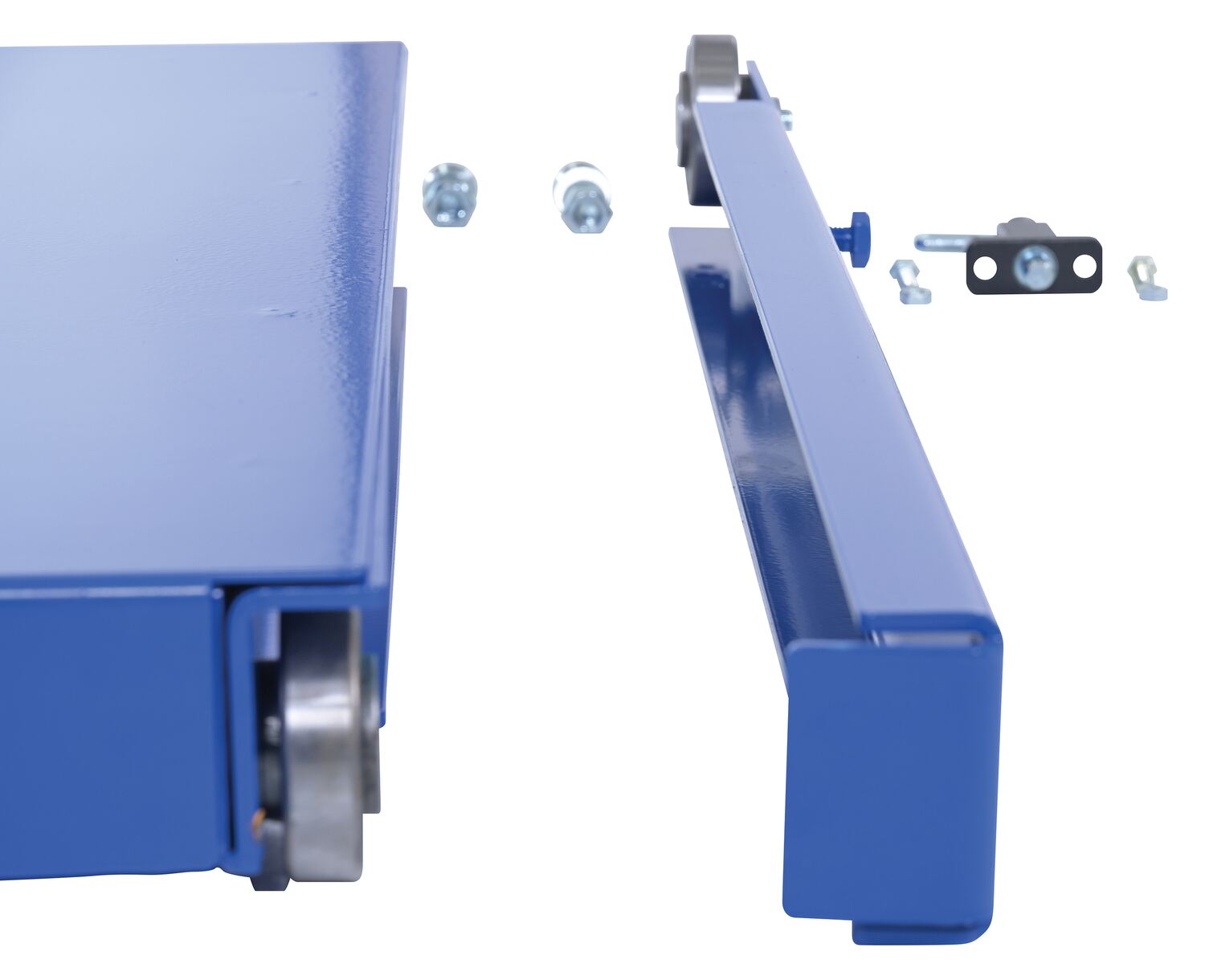

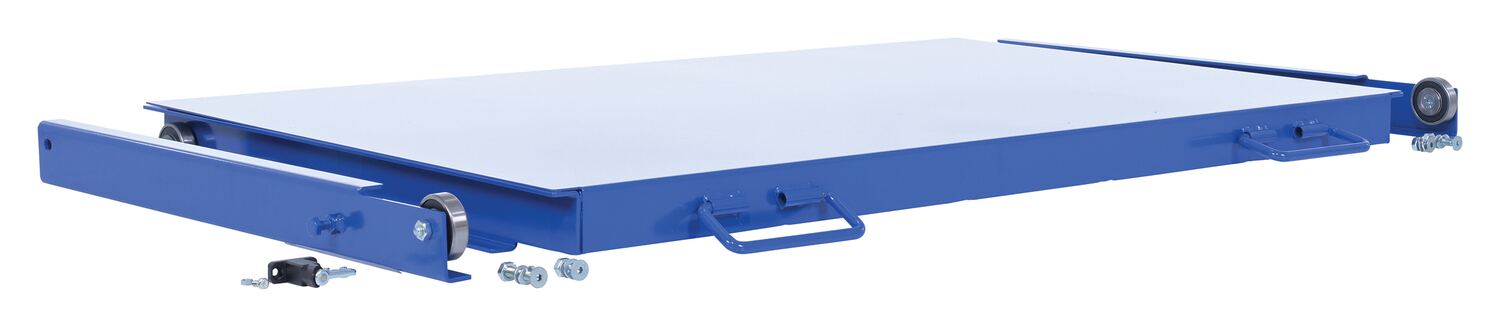

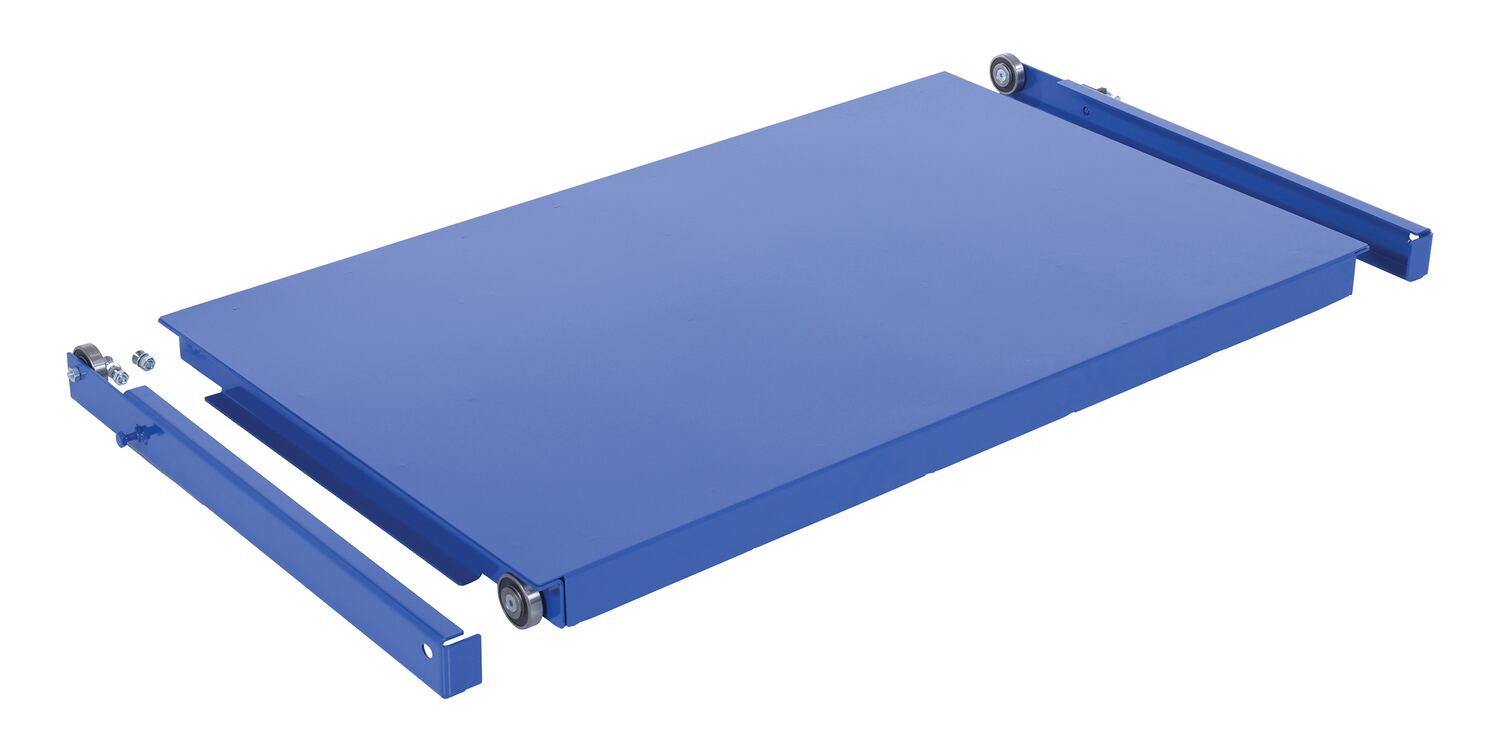

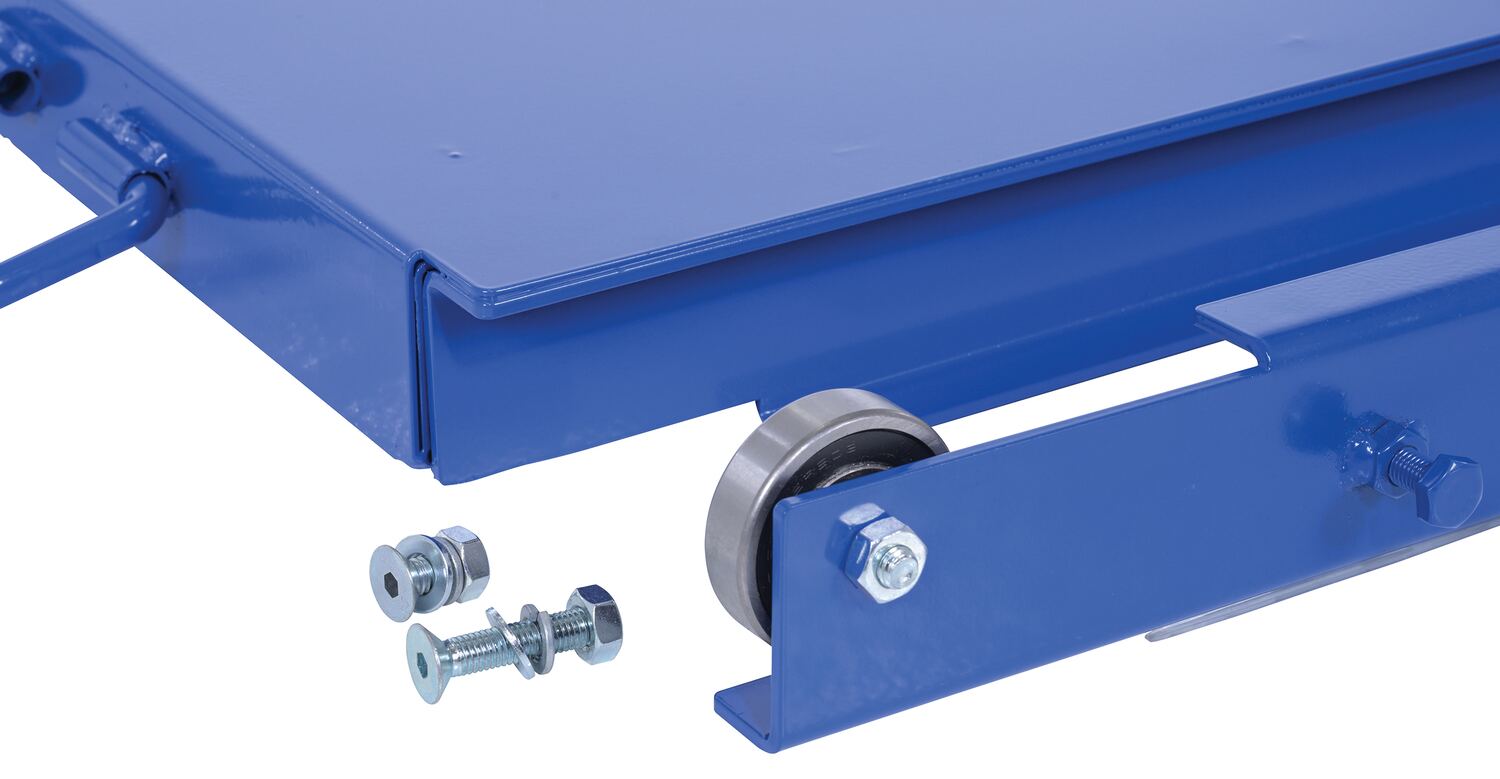

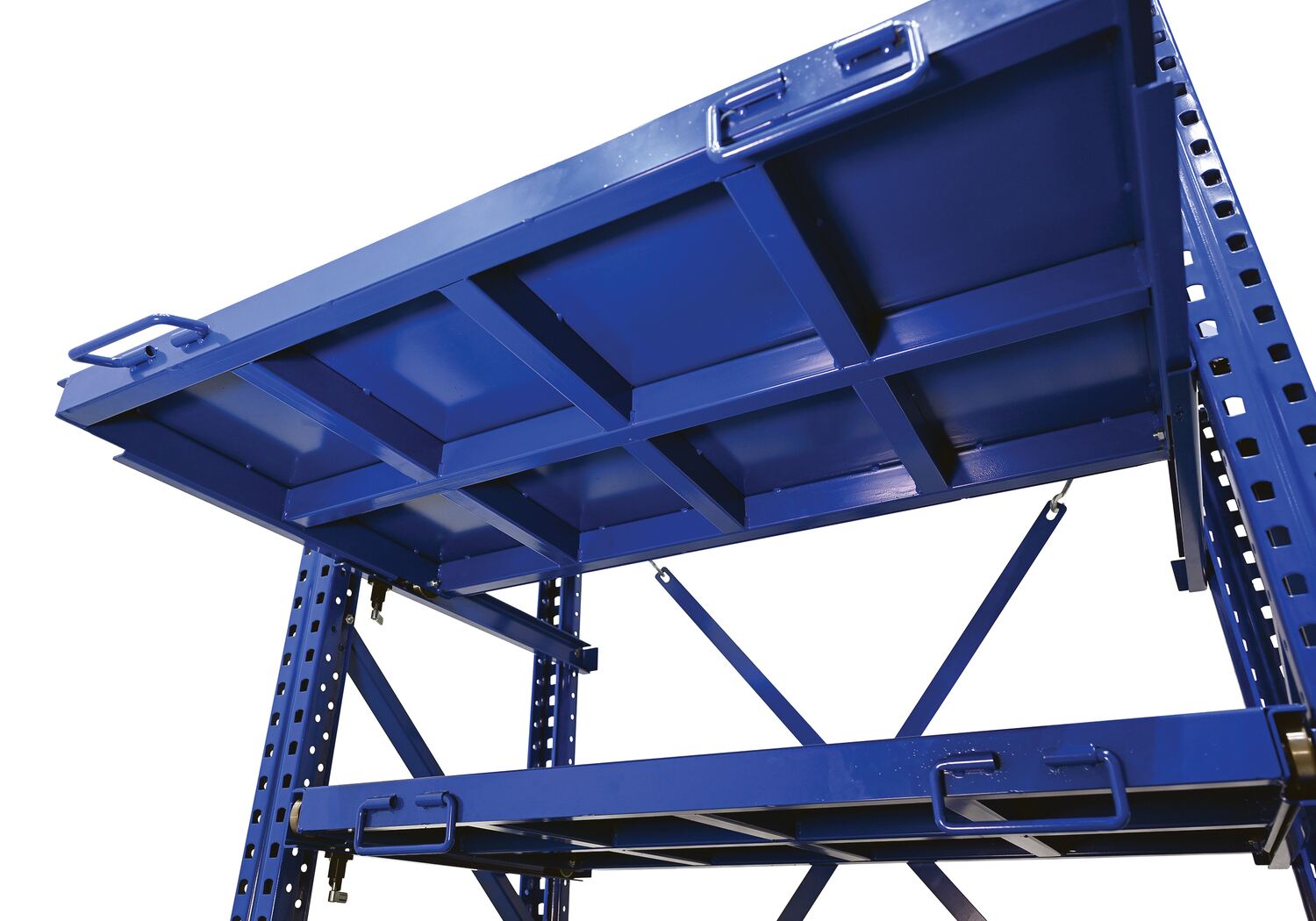

| VRSOR-60-SLF | NEW |  | 90 Days Limited Warranty | Steel Additional Shelf 32 In. Length 51-1/4 In Width 3 In Height 1,500 Lb. Capacity For VRSOR Models Blue | Uniform Capacity per Shelf (lb.): 1500 Width Bay (In.): 60 | 105 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Can I add a shelf to this racking?
A: Yes, the (VRSOR-SLF) shelf can be added to the VRSOR-120 or the VRSOR-60.
Q: What is the maximum number of shelves can be added for VRSOR-60?
A: The unit has 67 in useable space with mounting holes 2-1/4 in apart. Each shelf needs approximately 6 in to function properly. Capacity is 6,000 per set and 1,500 per shelf.
 |
||||||||||||||||||||||
