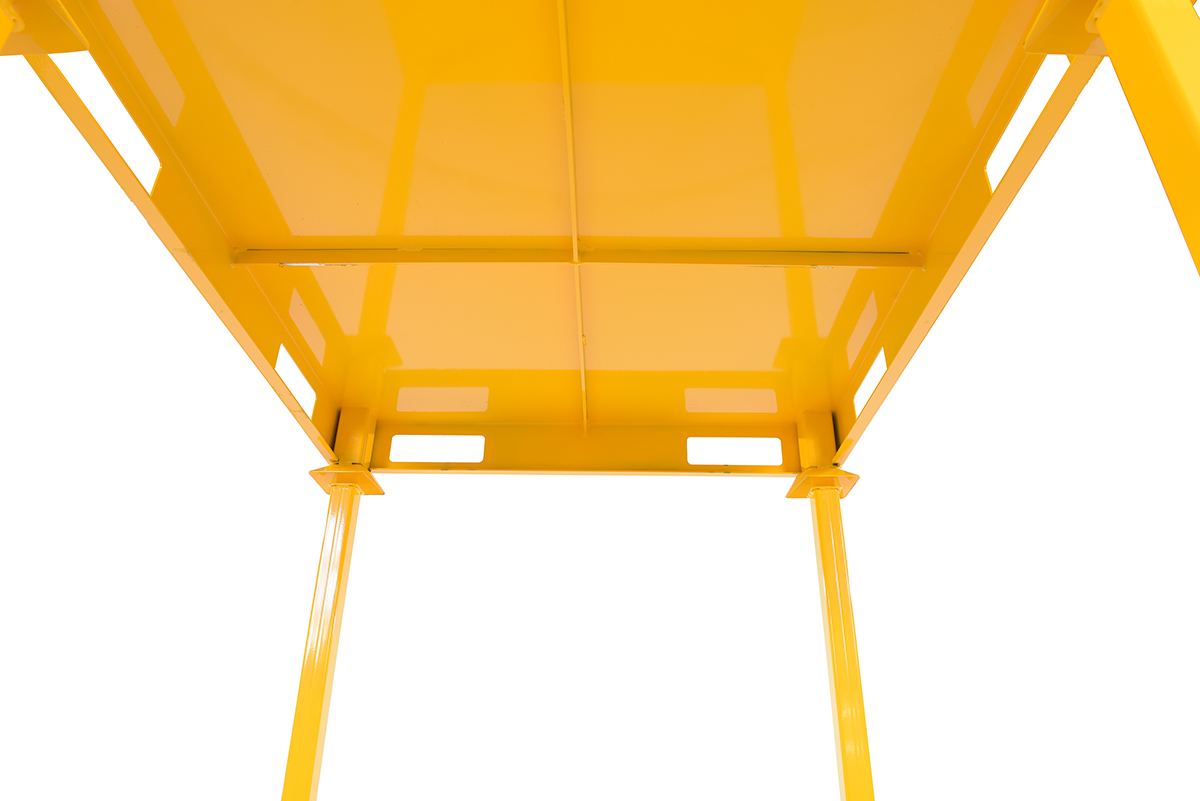

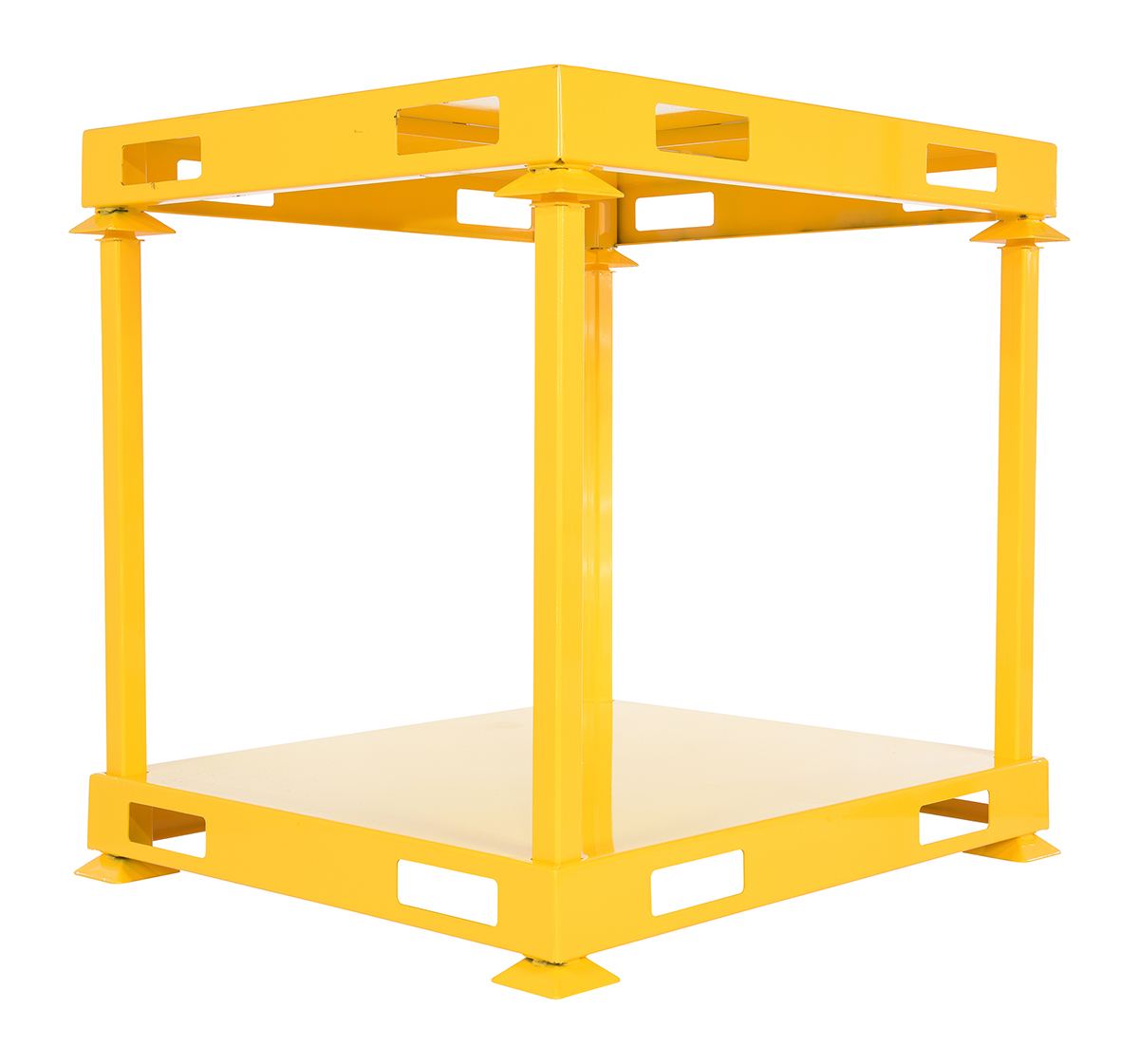

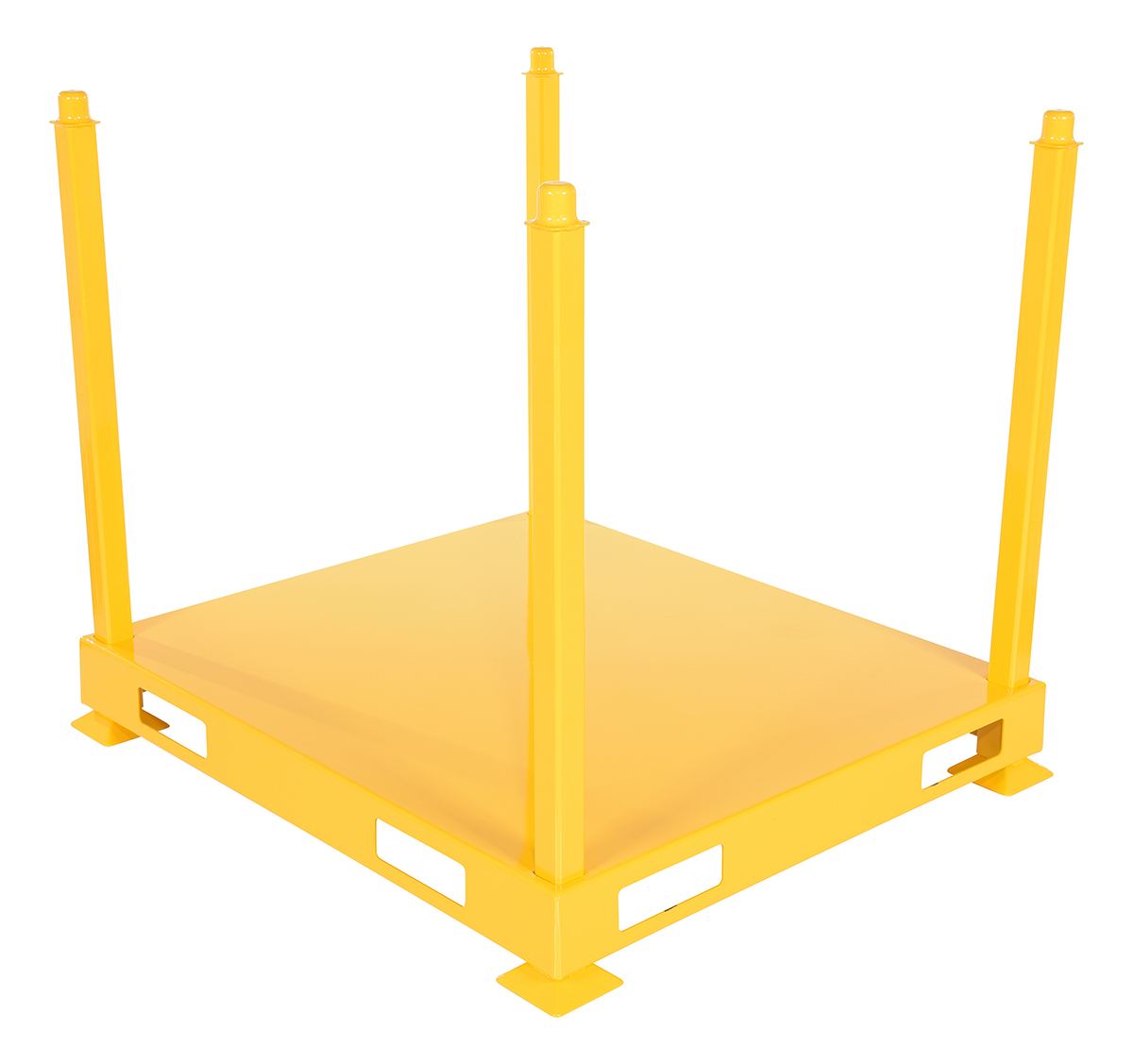

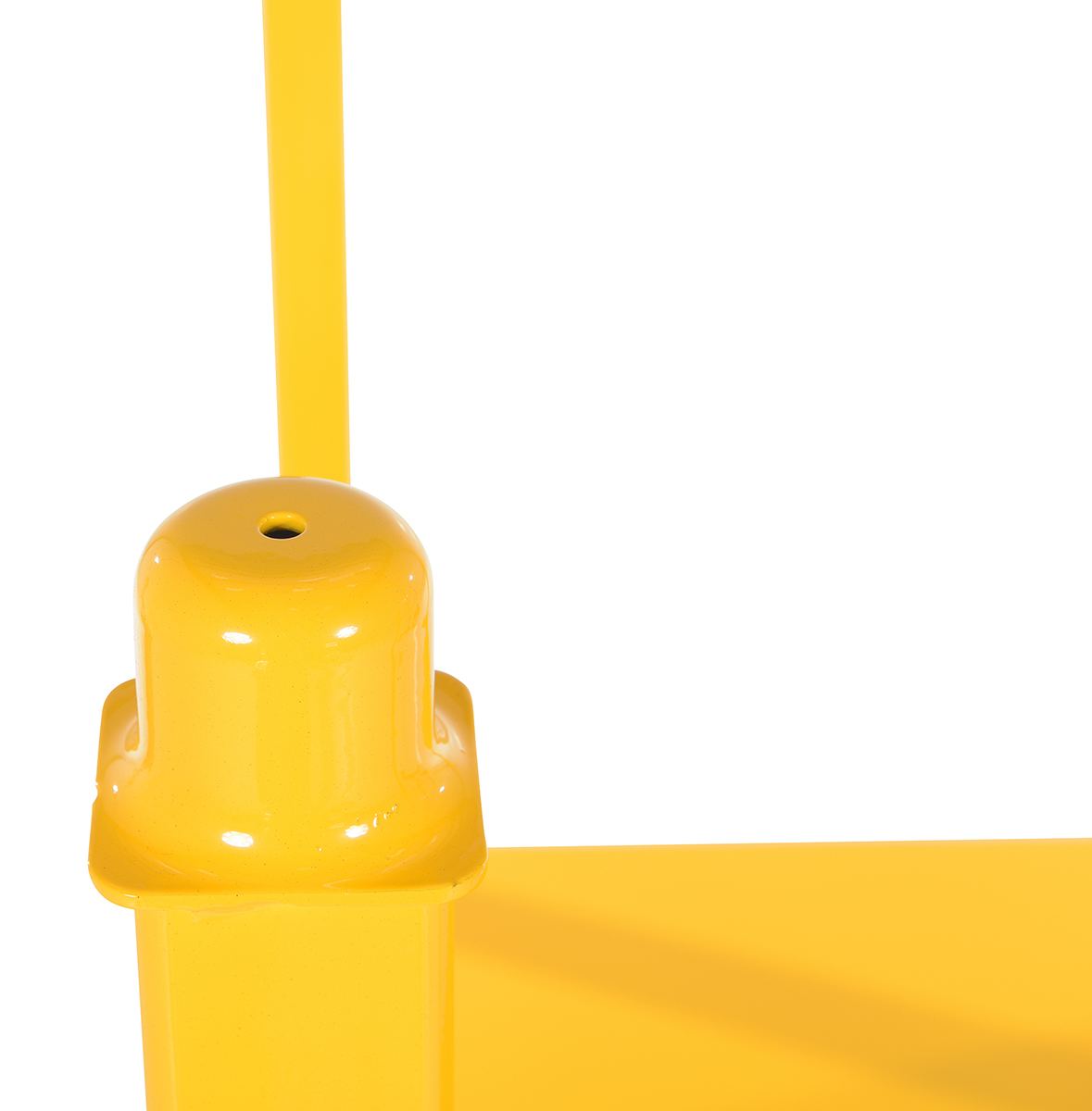

Versa RacksVersa Racks are great for transporting or storing items. Steel construction provides versatility, efficiency, and durability. Baked-in powder-coated toughness. Corner posts can be removed or changed to fit the needs of various applications. Double post pins provide support up to 4,000 uniform pounds. All models contain a four way fork entry for simple transference and can be stacked five (5) units high, while models using the 24"and 36" posts can be stacked three (3) high, during use. Four-way fork entry on all models. Usable fork opening is 8"W x 2-1/2"H. The overall model size is 49-7/16"W x 43-7/16"L. Custom sizes and configurations are available upon request.

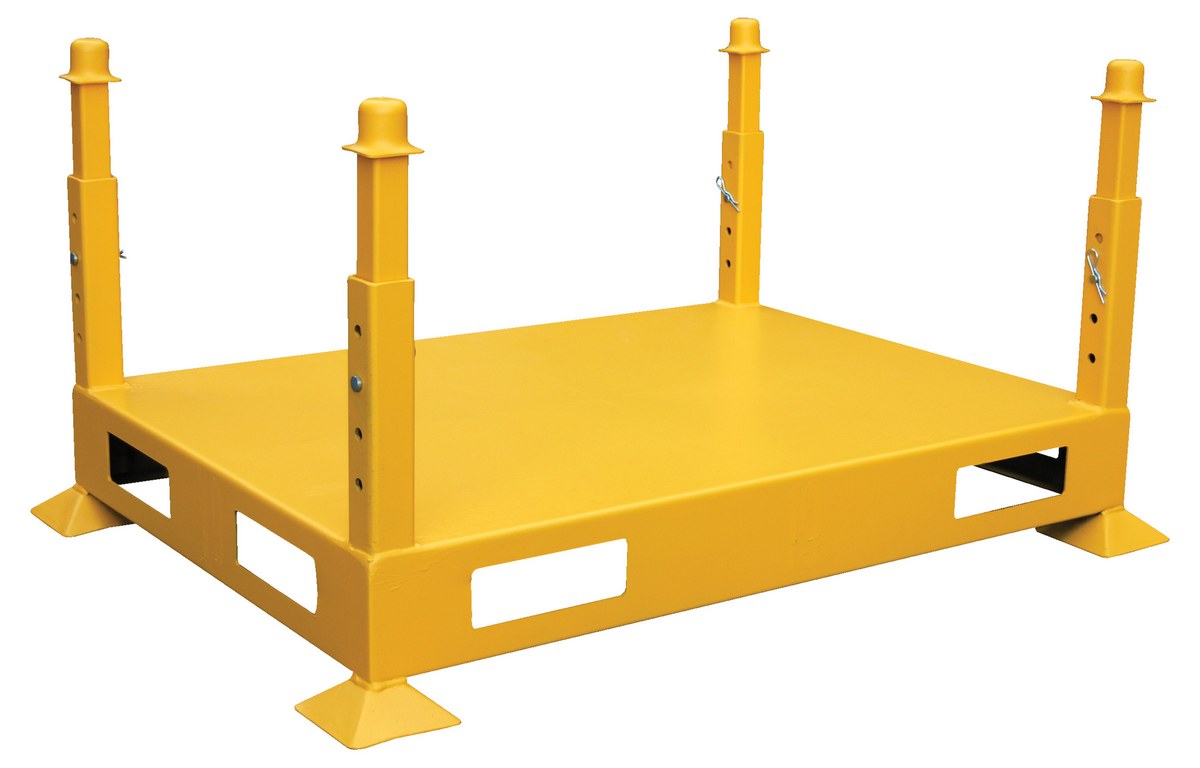

Model V-1 has four adjustable-height non-removable posts, fixed base targets, 4-way fork entry, and solid steel deck. The usable height is adjustable in 1" increments from 11-1/4" to 17-1/4". These carts may be stacked no more than five (5) units high.

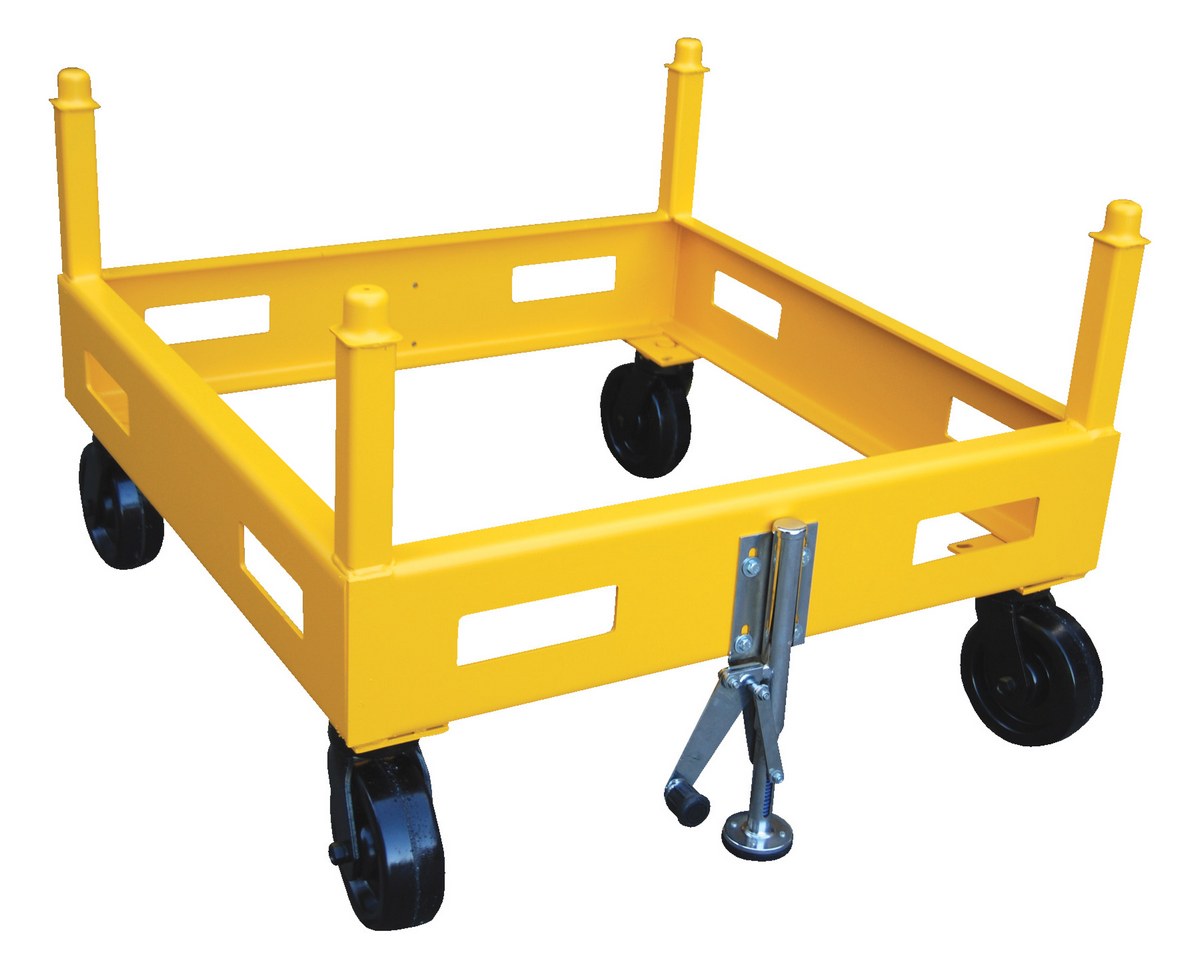

Model V-3 is ideal for transporting long, oversized loads of material. The model is a stand/ cart which has 8" phenolic caster and a floor lock. 12" high non-removable fixed-height corner posts. Overall height is 30-1/2".

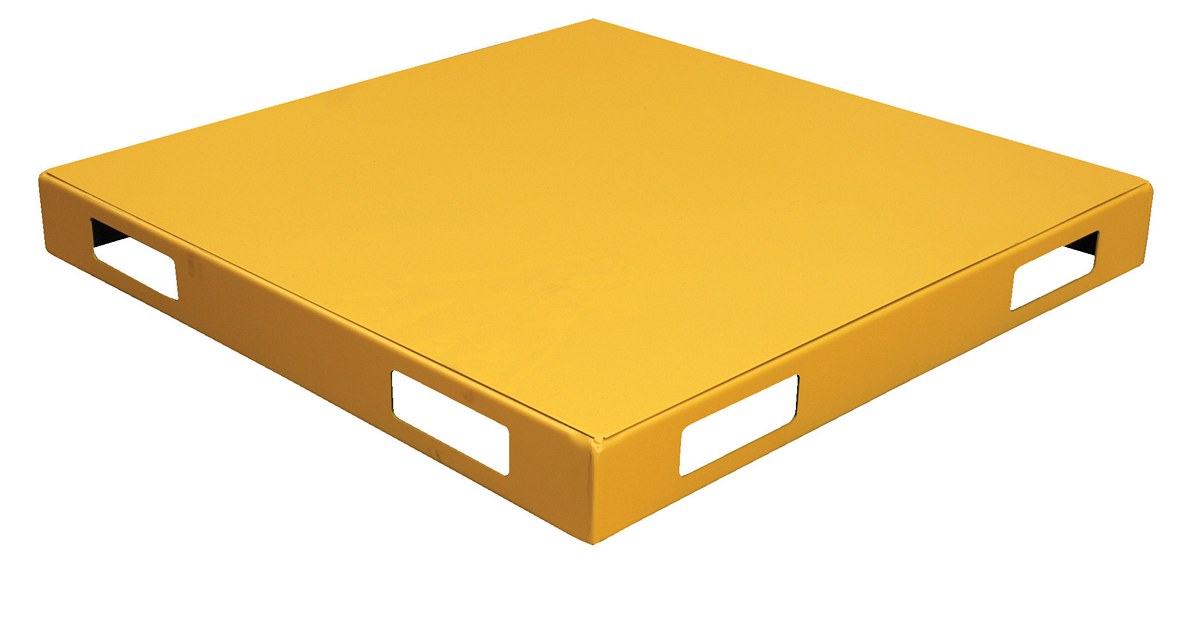

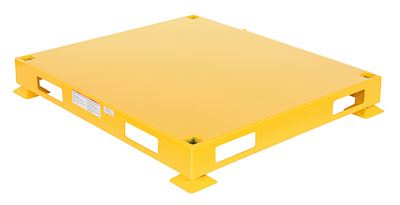

Model V-4 is a versa rack pallet with no posts or sockets. Solid deck steel pallet is a durable way to transfer products.

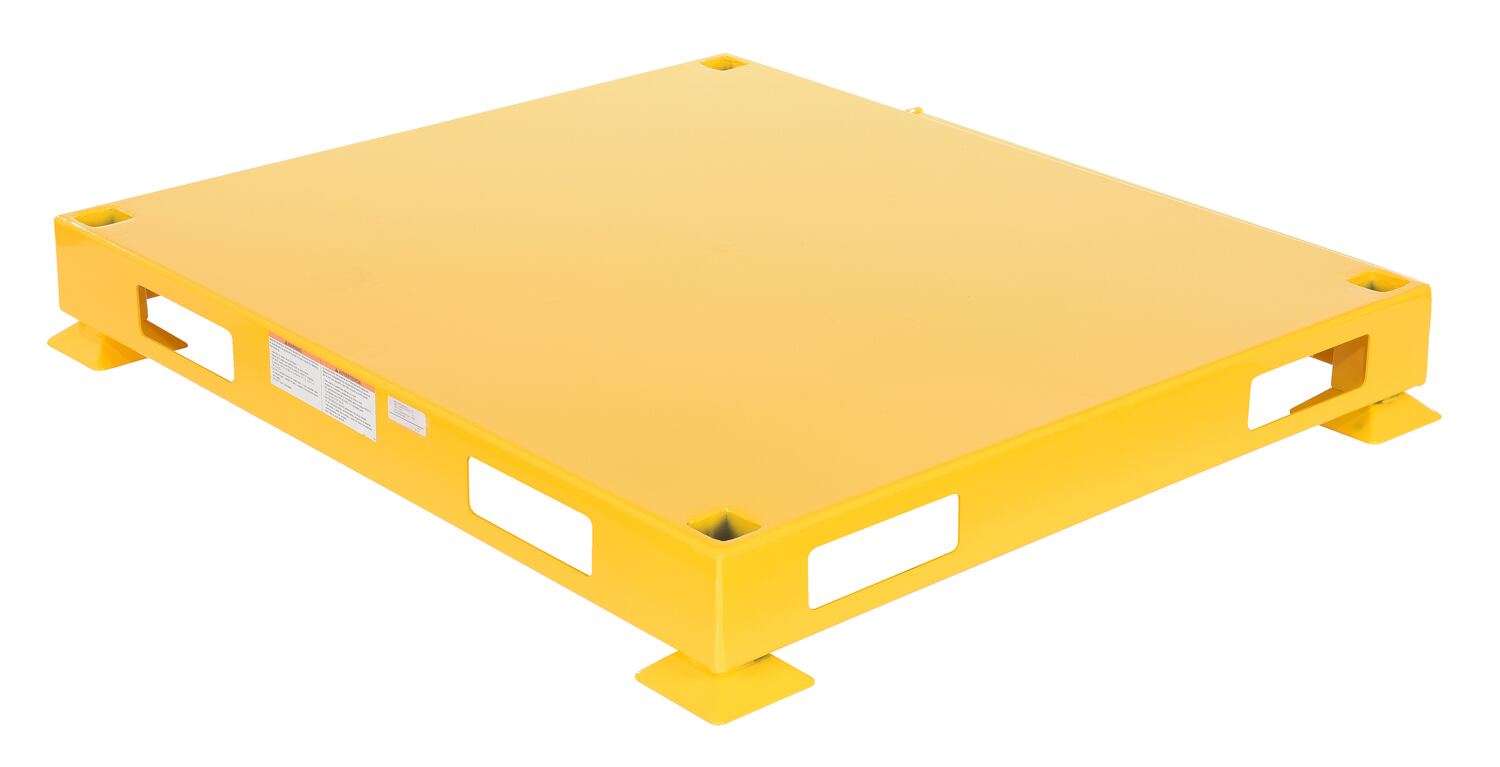

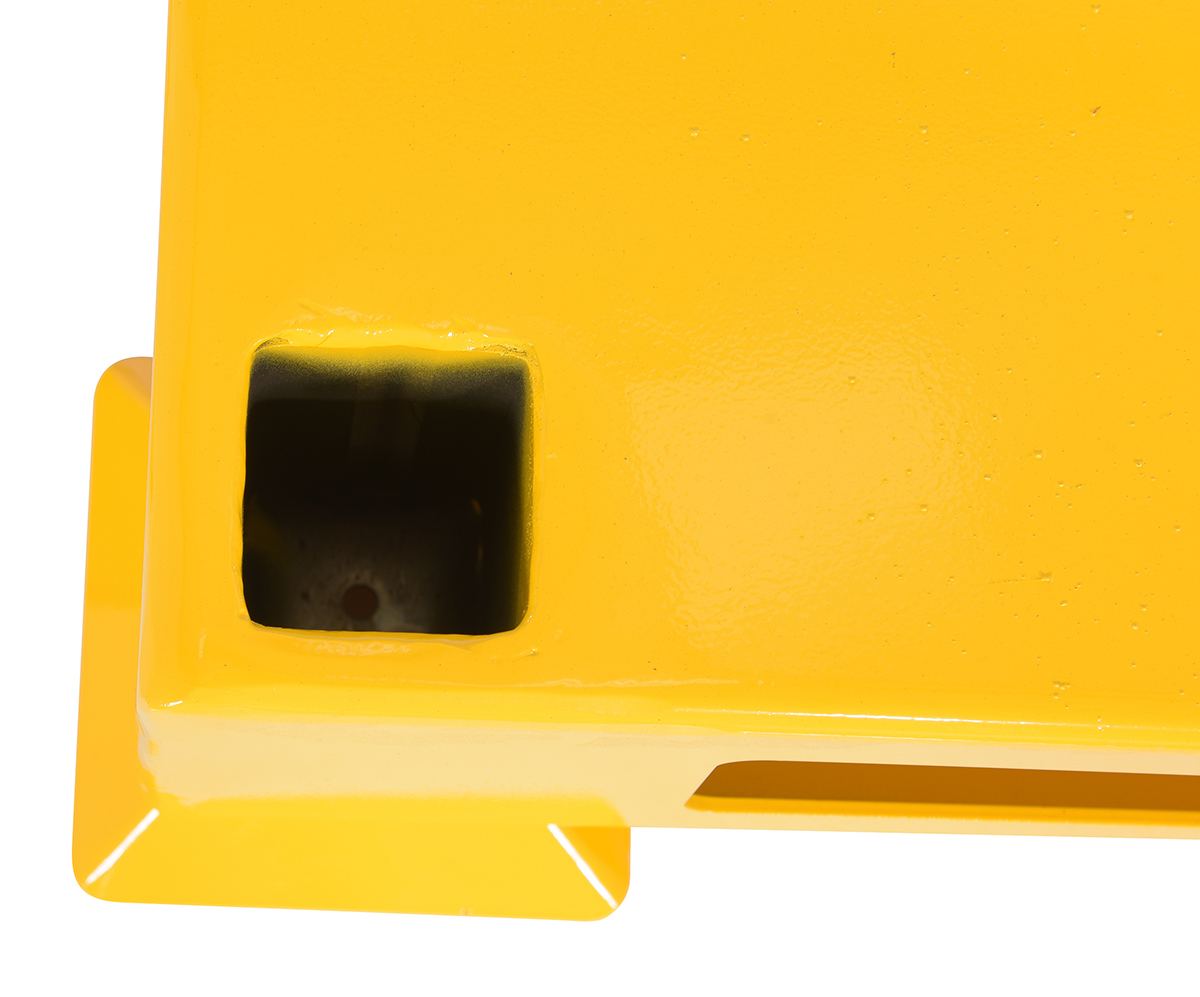

Model V-2 is a versa rack base, with no posts. Sockets included. The V-2 and V-3 can be used together by stacking a single V-2 onto a V-3 to create a larger, more versatile, model. A four way fork entrance enables the unit to be quickly transferred from workstation to workstation.
Double Sided Horizontal Bar Rack
Slab Transport Rack
Single/Dual Sided Bar Stock Trees
Economical Material RacksAdditional Models In This Family
VP-12
V-2
VP-4
VP-24
V-1
V-4
V-3
V-2
VP-36
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| V-1 | | 90 Days Limited Warranty | Welded Steel Versa Rack Base with Non-Removable Post 4,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Component: Base w/Non-Removable Posts | 214 | ||
| V-2 | | 90 Days Limited Warranty | Welded Steel Versa Rack Base Only (No Post) 8 In. x 2-1/2 In. Fork Pockets 4,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Component: Base/No Posts | 162 | ||
| V-3 | | 90 Days Limited Warranty | Welded Steel Versa Rack Stand/Cart 4,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Component: Stand/Cart | 248 | ||
| V-4 | | 90 Days Limited Warranty | Welded Steel Versa Rack Base (No Post or Socket) 8 In. x 2-1/2 In. Fork Pockets 4,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Component: Base/No Posts or Sockets | 133 | ||

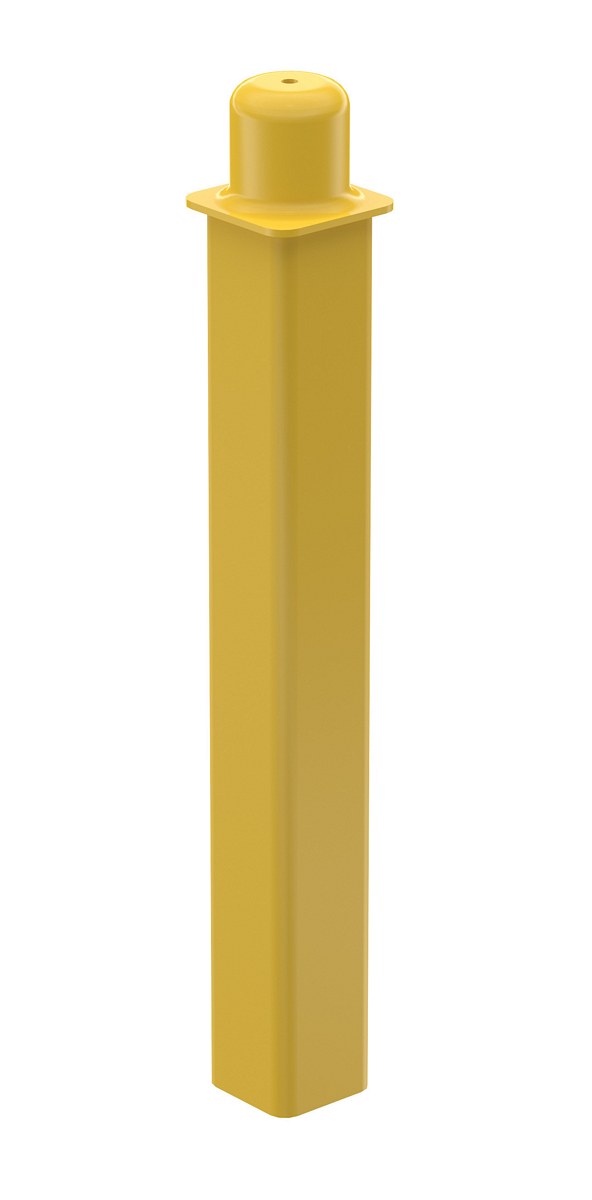

| VP-12 | | 90 Days Limited Warranty | Welded Steel Versa Rack Removable Post Kit 17 In. Height Yellow | Total Stackable (qty.): 5 Component: Removable Posts | 25 | ||

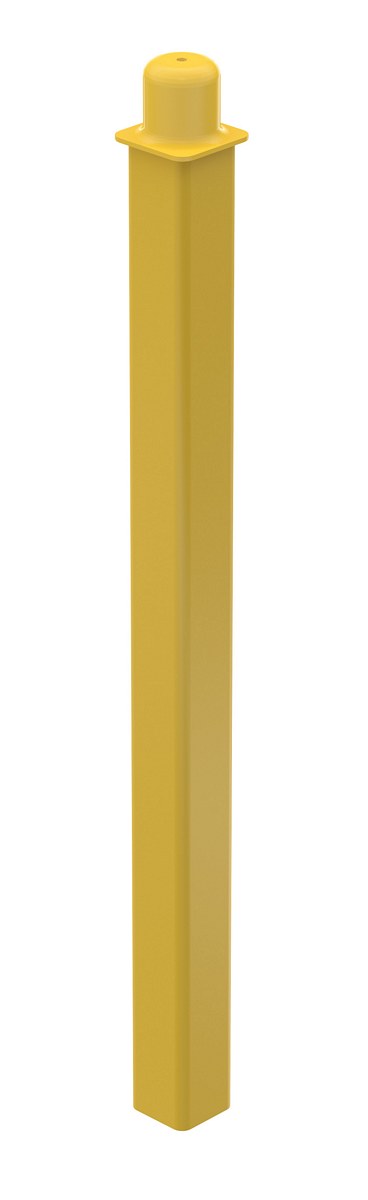

| VP-24 | | 90 Days Limited Warranty | Welded Steel Versa Rack Removable Post Kit 29 In. Height Yellow | Total Stackable (qty.): 3 Component: Removable Posts | 40 | ||

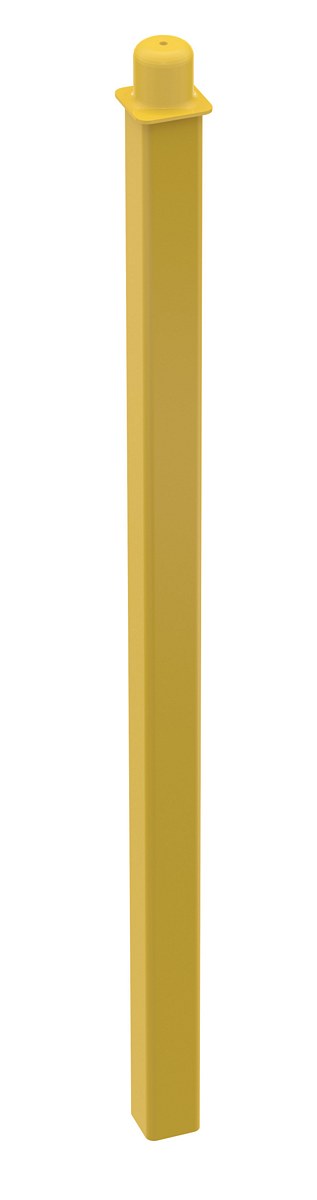

| VP-36 | | 90 Days Limited Warranty | Welded Steel Versa Rack Removable Post Kit 41 In. Height Yellow | Total Stackable (qty.): 3 Component: Removable Posts | 50 | ||

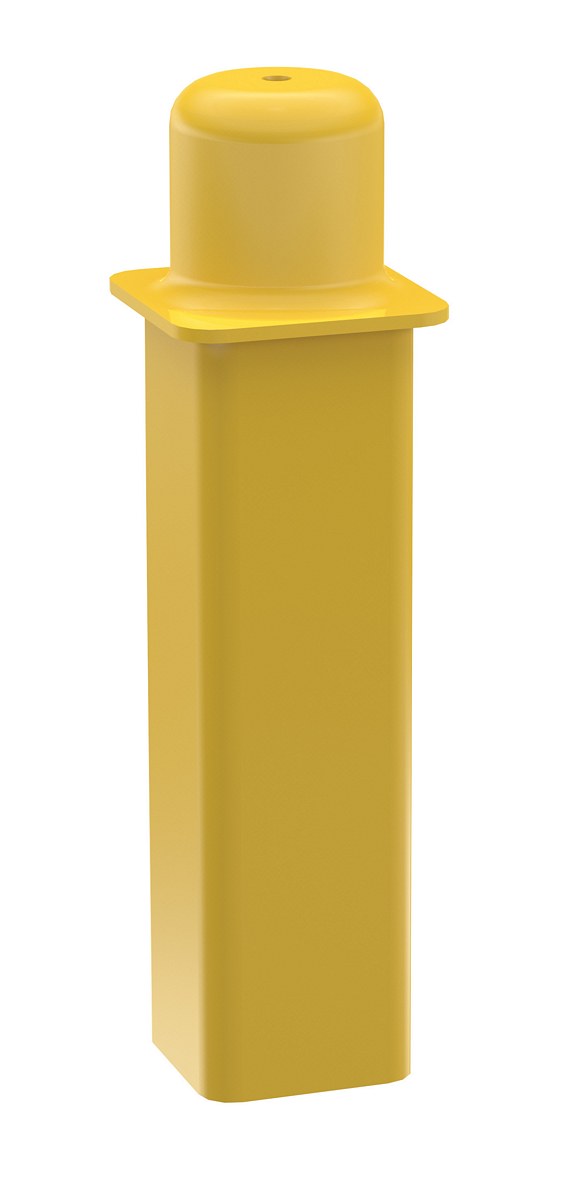

| VP-4 | | 90 Days Limited Warranty | Welded Steel Versa Rack Removable Post Kit 9 In. Height Yellow | Total Stackable (qty.): 5 Component: Removable Posts | 15 |
