Polyurethane On Poly CastersPolyurethane casters are the perfect asset for an assortment of commercial and non-commercial settings. The medium duty capacity diminishes the number of trips needed to be taken while reducing the amount of physical labor needed to transport products. The polyurethane construction lessens the amount of noise caused through travel across rough surfaces. These casters are resistant to a variety of chemicals. Swivel design allows the user to maneuver and change directions instantaneously. Maroon tread color.
- Precision double ball bearing
- Anti-corrosive & rust resistant Zinc Plated finish
- Non-marking for good floor preservation
- Chemical & moisture resistant
Yellow Polyurethane Tread Casters (Blickle)
Polyurethane-Elastomer
Polyurethane (SI - Electrostatic Dissipating) Casters
High Quality Non-Marking Polyurethane-Elastomer (blue)
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

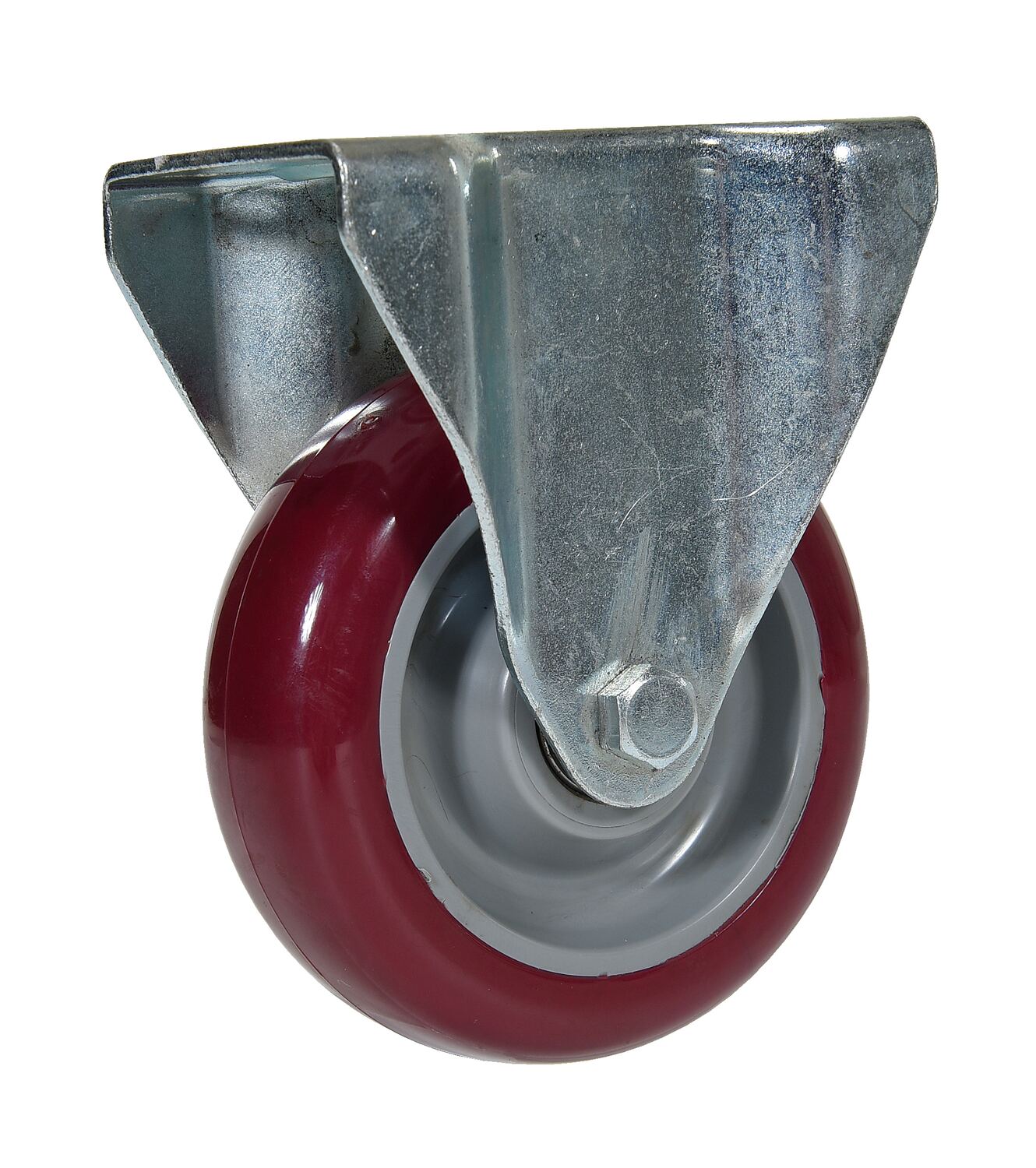

| CST-VE-4X1.25PUP-R |  | 90 Days Limited Warranty | 4 x 1.25 | Rigid | 350 Lbs. | 5.125 | 2.375 x 3.625 | 5 |
| CST-VE-5X2PUP-R |  | 1 Year Limited Warranty | 5 x 2 | Rigid | 600 Lbs. | 6-1/2 | 4 x 4-1/2 | 6 |
| CST-VE-6X2PUP-R |  | 1 Year Limited Warranty | 6 x 2 | Rigid | 720 Lbs. | 7-1/2 | 4 x 4-1/2 | 6 |

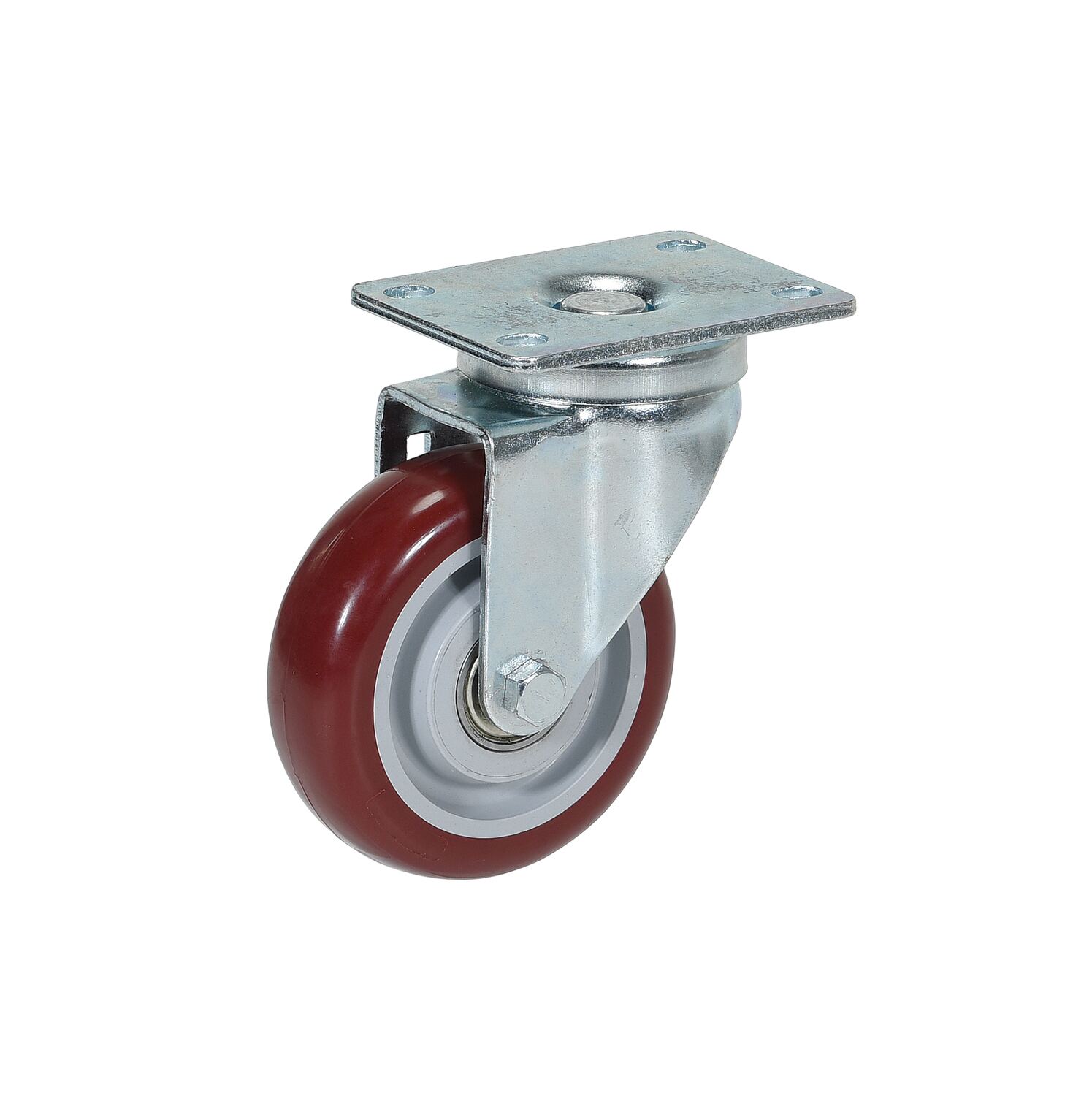

| CST-VE-4X1.25PUP-S |  | 90 Days Limited Warranty | 4 x 1.25 | Swivel | 350 Lbs. | 5.125 | 2.375 x 3.625 | 5 |
| CST-VE-5X2PUP-S |  | 1 Year Limited Warranty | 5 x 2 | Swivel | 600 Lbs. | 6-1/2 | 4 x 4-1/2 | 6 |
| CST-VE-6X2PUP-S |  | 1 Year Limited Warranty | 6 x 2 | Swivel | 720 Lbs. | 7-1/2 | 4 x 4-1/2 | 7 |
| CST-VE-5X2PUP-SWB |  | 1 Year Limited Warranty | 5 x 2 | Swivel w/brake | 600 Lbs. | 6-1/2 | 4 x 4-1/2 | 7 |

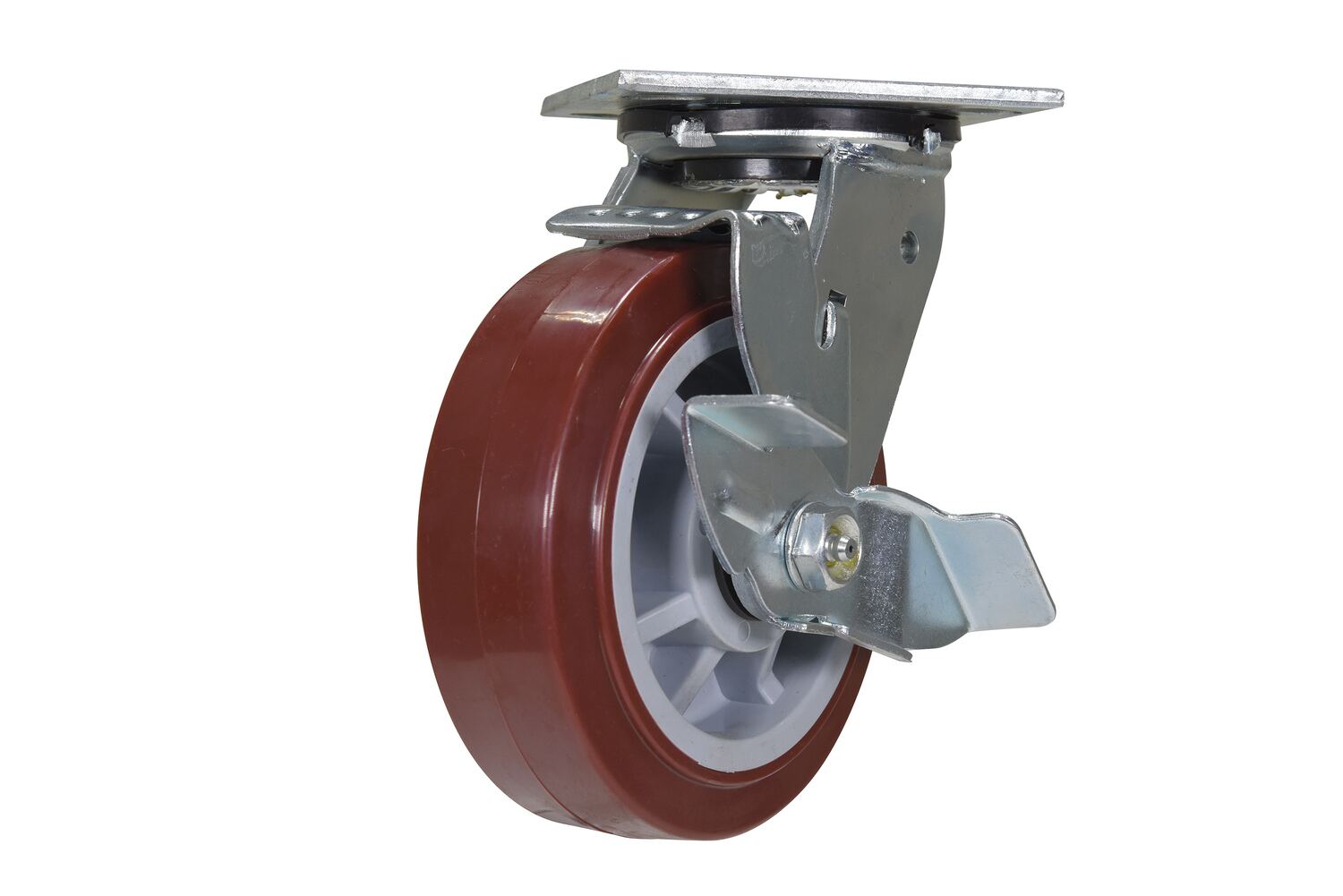

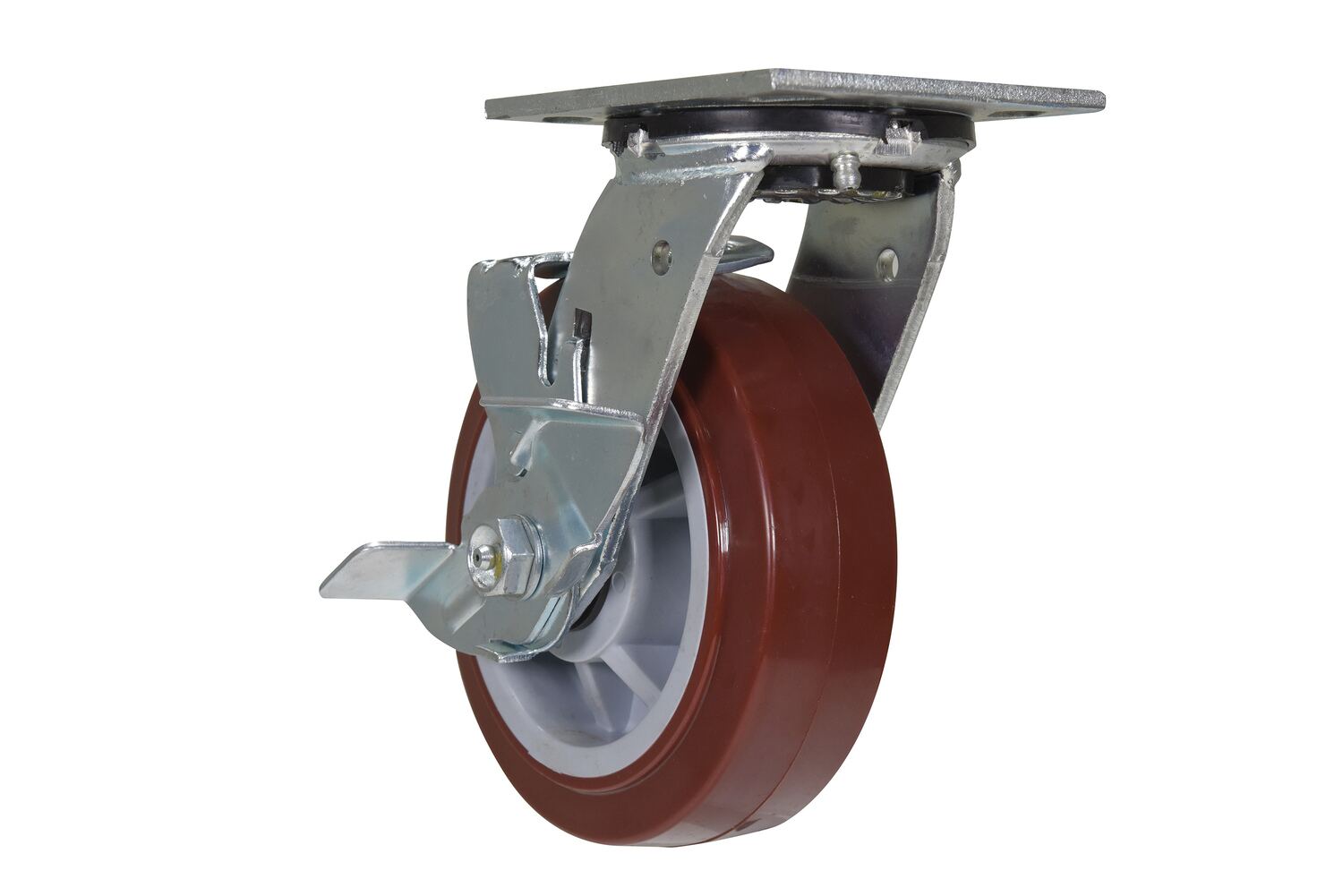

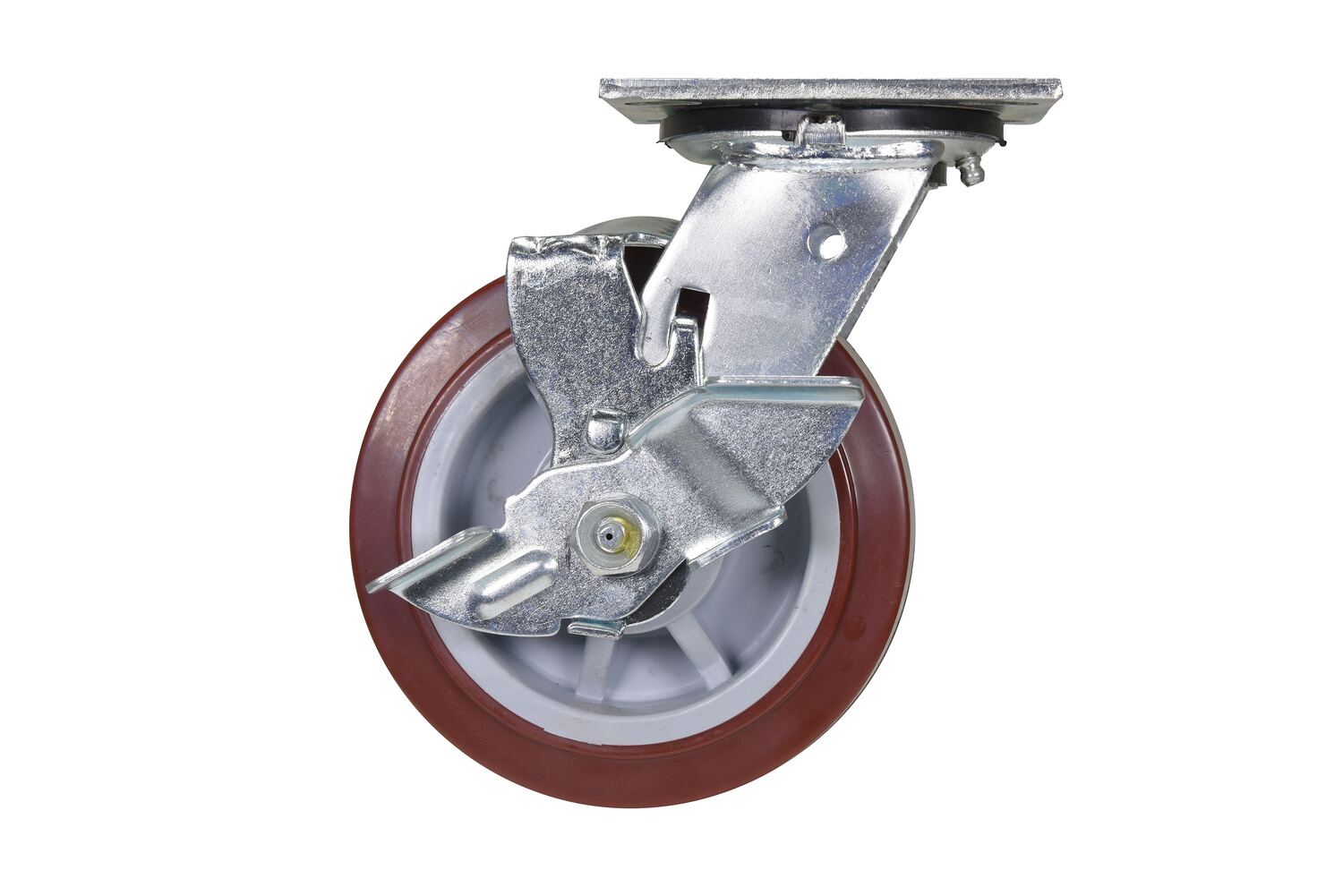

| CST-VE-6X2PUP-SWB |  | 1 Year Limited Warranty | 6 x 2 | Swivel w/brake | 720 Lbs. | 7-1/2 | 4 x 4-1/2 | 7 |
| CST-VE-4X1.25PUP-SWB |  | 90 Days Limited Warranty | 4 x 1.25 | Swivel with Brake | 350 Lbs. | 5.125 | 2.375 x 3.625 | 6 |

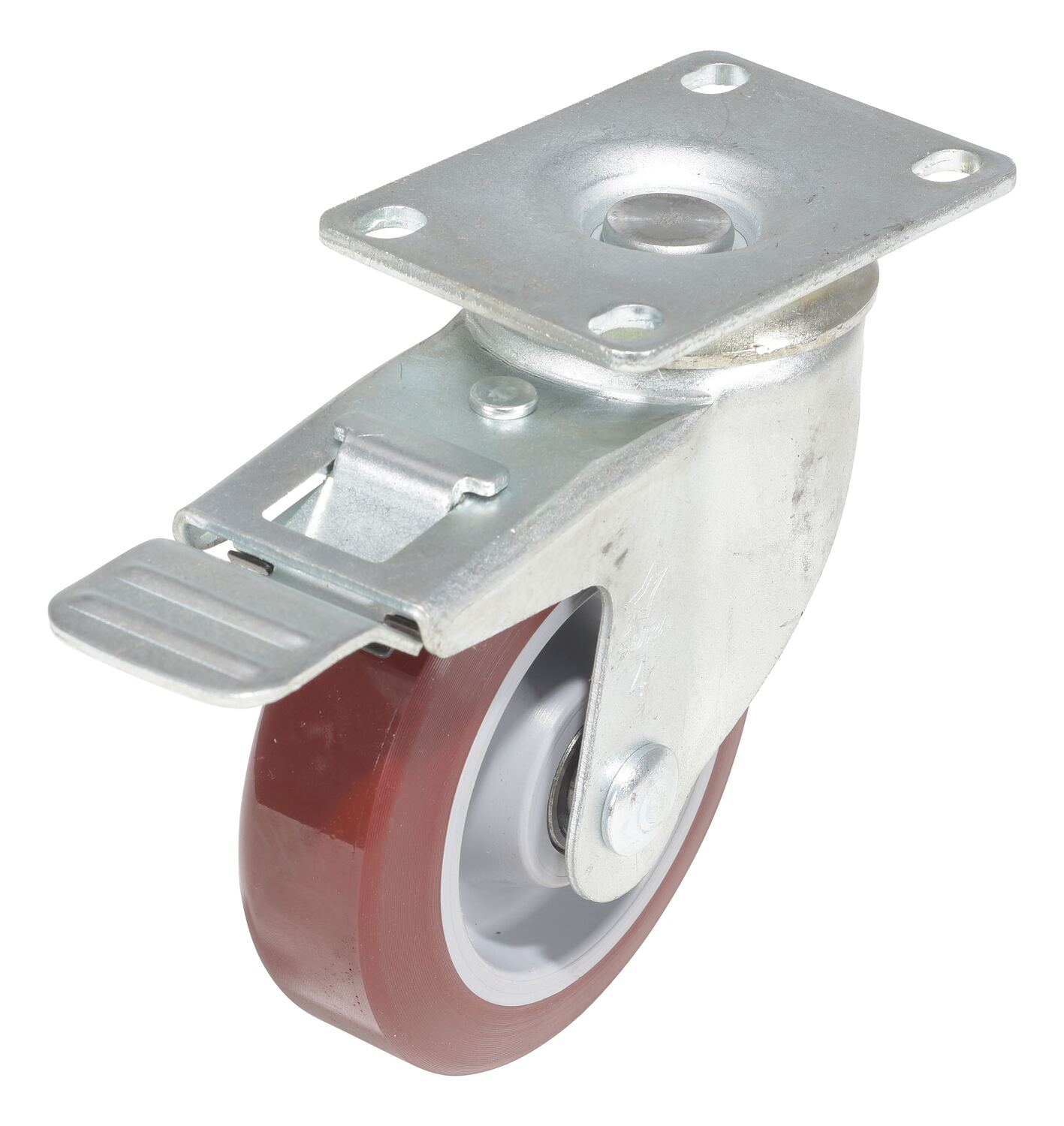

| CST-VE-4X1.25PUP-STL |  | 90 Days Limited Warranty | 4 x 1.25 | Swivel with Total Brake | 350 Lbs. | 5.125 | 2.375 x 3.625 | 6 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the diameter of the bolt for CST-VE-5X2PUP-SWB?
A: The bolt diameter is 1/2".
 |
|||||||
Polyurethane On Poly Casters |
|||||||
 |
|||||||
Polyurethane casters are the perfect asset for an assortment of commercial and non-commercial settings. The medium duty capacity diminishes the number of trips needed to be taken while reducing the amount of physical labor needed to transport products. The polyurethane construction lessens the amount of noise caused through travel across rough surfaces. These casters are resistant to a variety of chemicals. Swivel design allows the user to maneuver and change directions instantaneously. Maroon tread color.
|
|||||||
|
|
|||||||
|
|||||||
