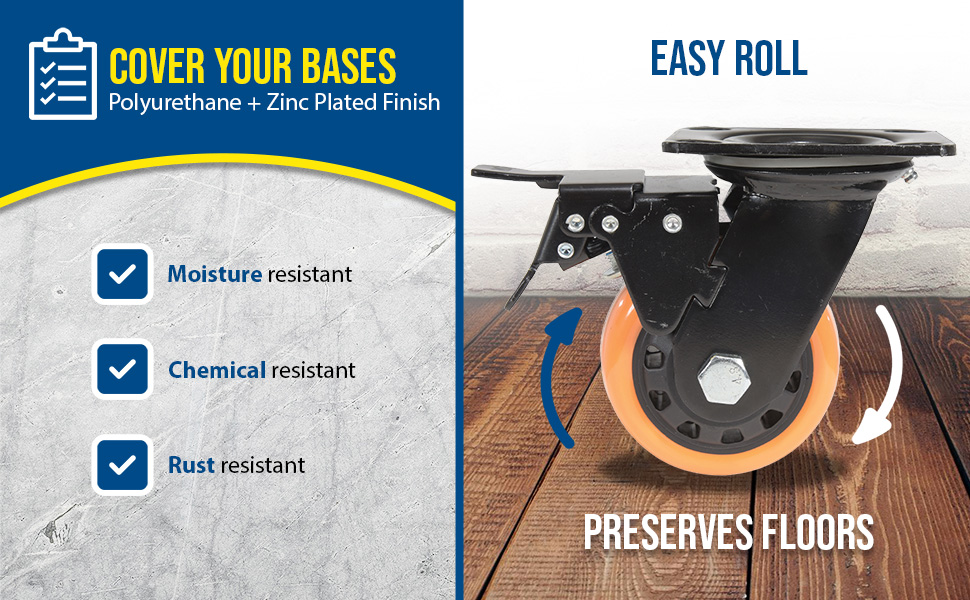

Poly On Poly Casters (Orange)Polyurethane is ideal for most environments. It is resistant to a variety of chemicals, and produces an easy roll for ergonomic applications. It also provides good floor preservation and works effectively in both indoor and outdoor environments. The unique spoke design allows for a lighter weight caster with the same amount of capacity.
- Non-marking
- Resistant to chemicals & Moisture
- Easy roll performance
- Anti-corrosive & Rust Resistant Zinc Plated Finish
- Spoke design
- Precision ball bearings
Polyurethane Casters
Polyurethane CastersAdditional Models In This Family
CST-BN-6X2PUP-SWTB
CST-BN-5X2PUP-SWB
CST-BN-8X2PUP-SWB
CST-BN-6X2PUP-SWTB
CST-BN-4X2PUP-R
CST-BN-5X2PUP-R
CST-BN-8X2PUP-R
CST-BN-5X2PUP-SWB
CST-BN-8X2PUP-S
CST-BN-8X2PUP-R
CST-BN-4X2PUP-S
CST-BN-4X2PUP-SWTB
CST-BN-5X2PUP-R
CST-BN-6X2PUP-S
CST-BN-6X2PUP-SWTB
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

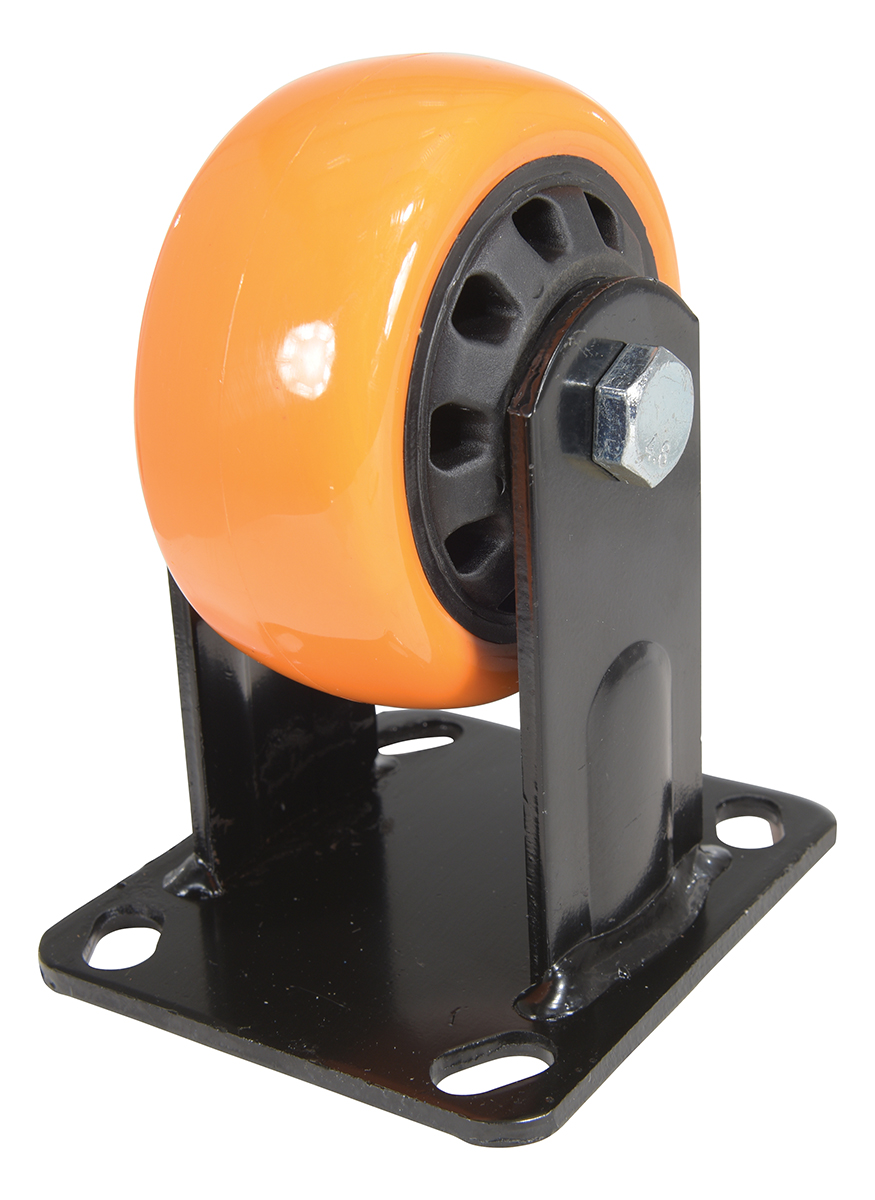

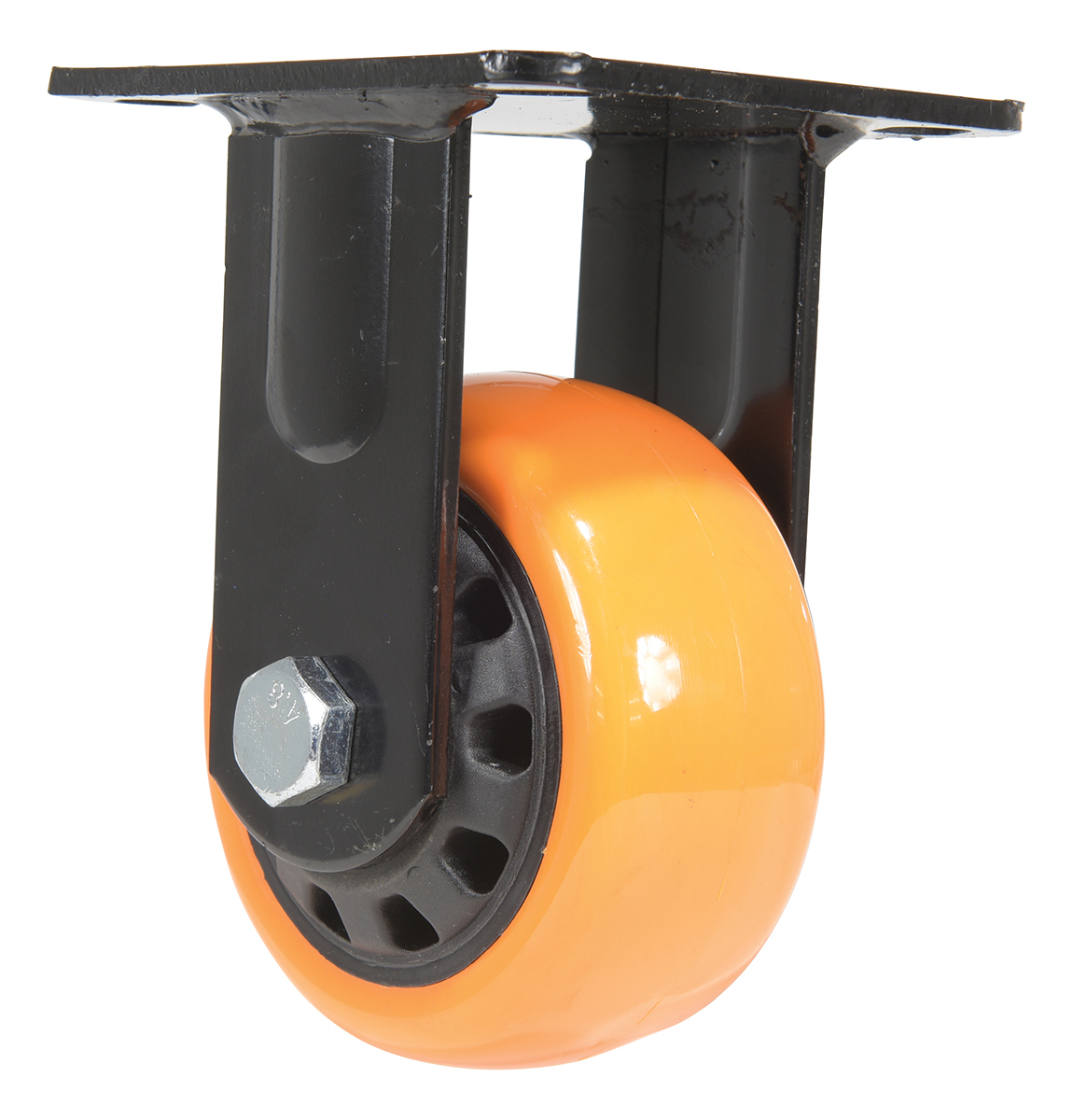

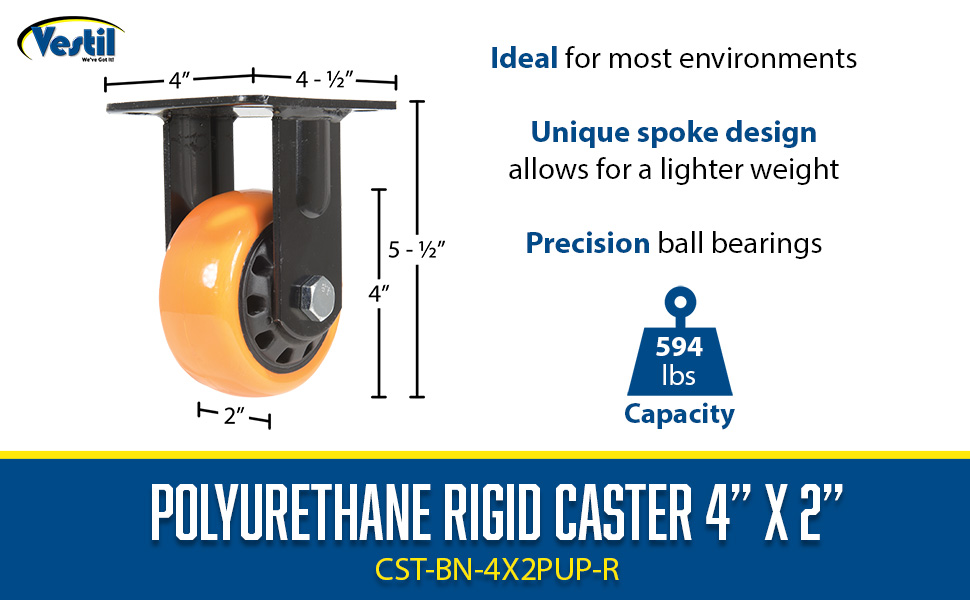

| CST-BN-4X2PUP-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 594 | 5.5 | 4 x 4-1/2 | 4 |

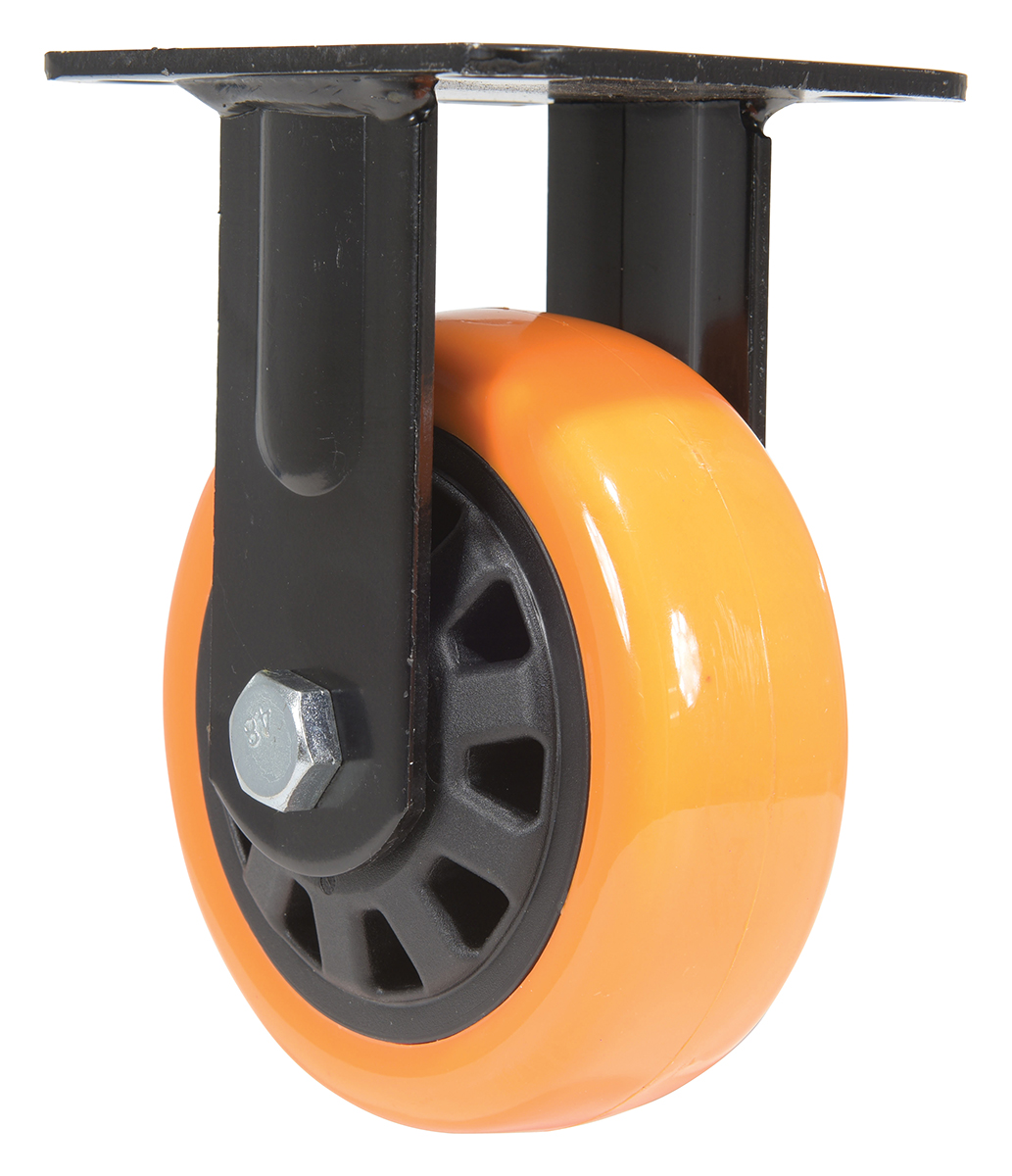

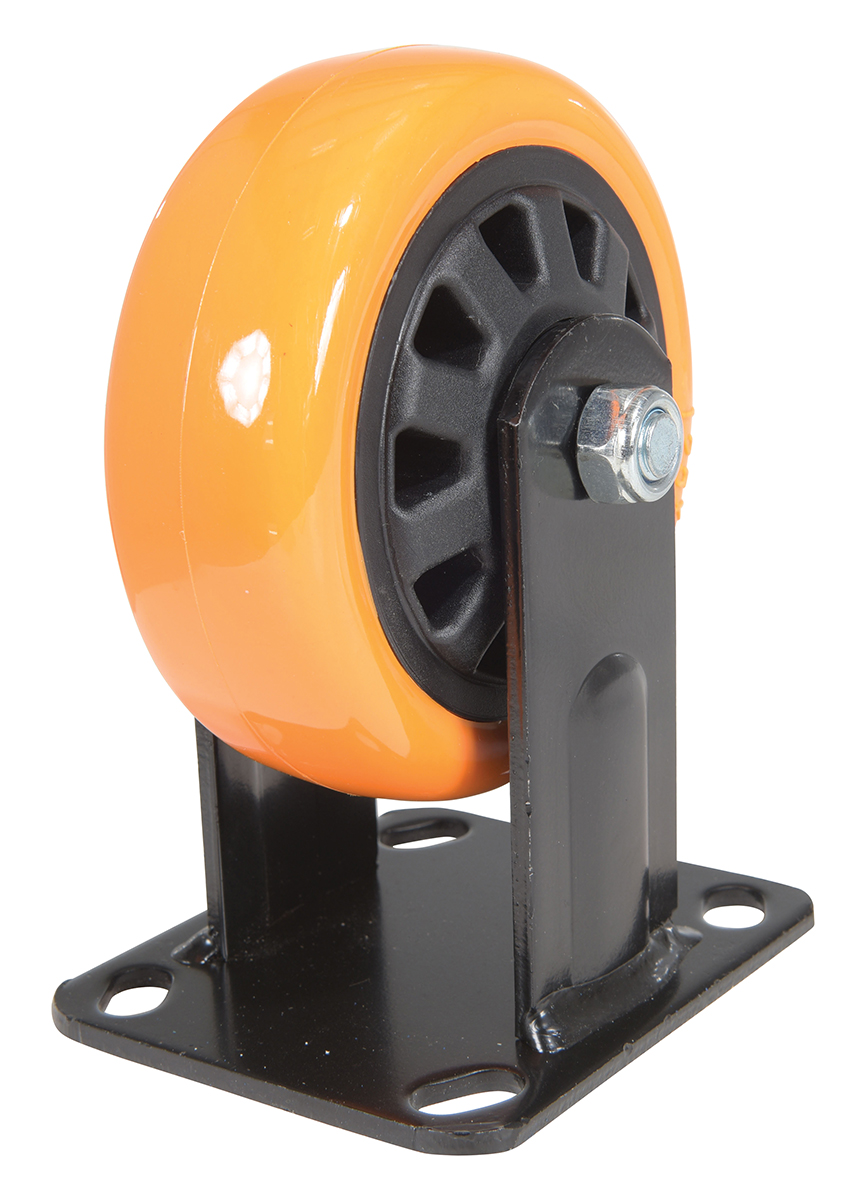

| CST-BN-5X2PUP-R | | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 726 | 6-1/2 | 4 x 4-1/2 | 4 |
| CST-BN-6X2PUP-R |  | 1 YEAR Limited Warranty | 6 x 2 | RIGID | 836 | 7-1/2 | 4 x 4-1/2 | 5 |

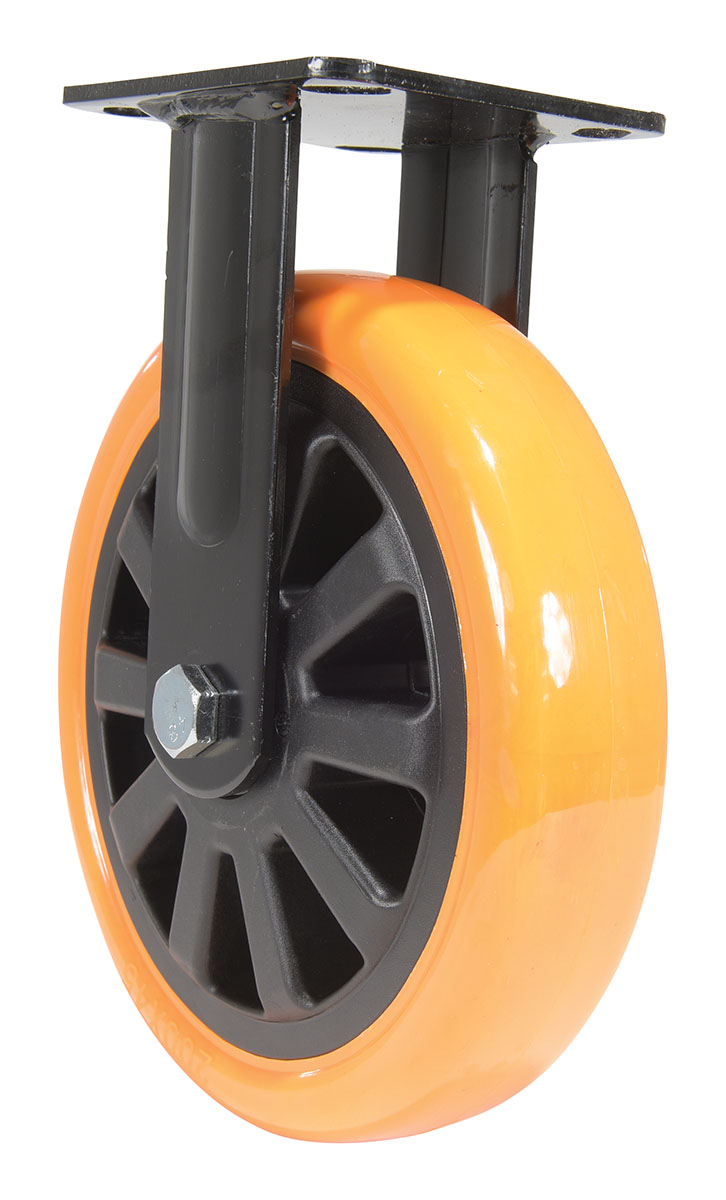

| CST-BN-8X2PUP-R |  | 1 YEAR Limited Warranty | 8 x 2 | RIGID | 902 | 9-1/2 | 4 x 4-1/2 | 6 |

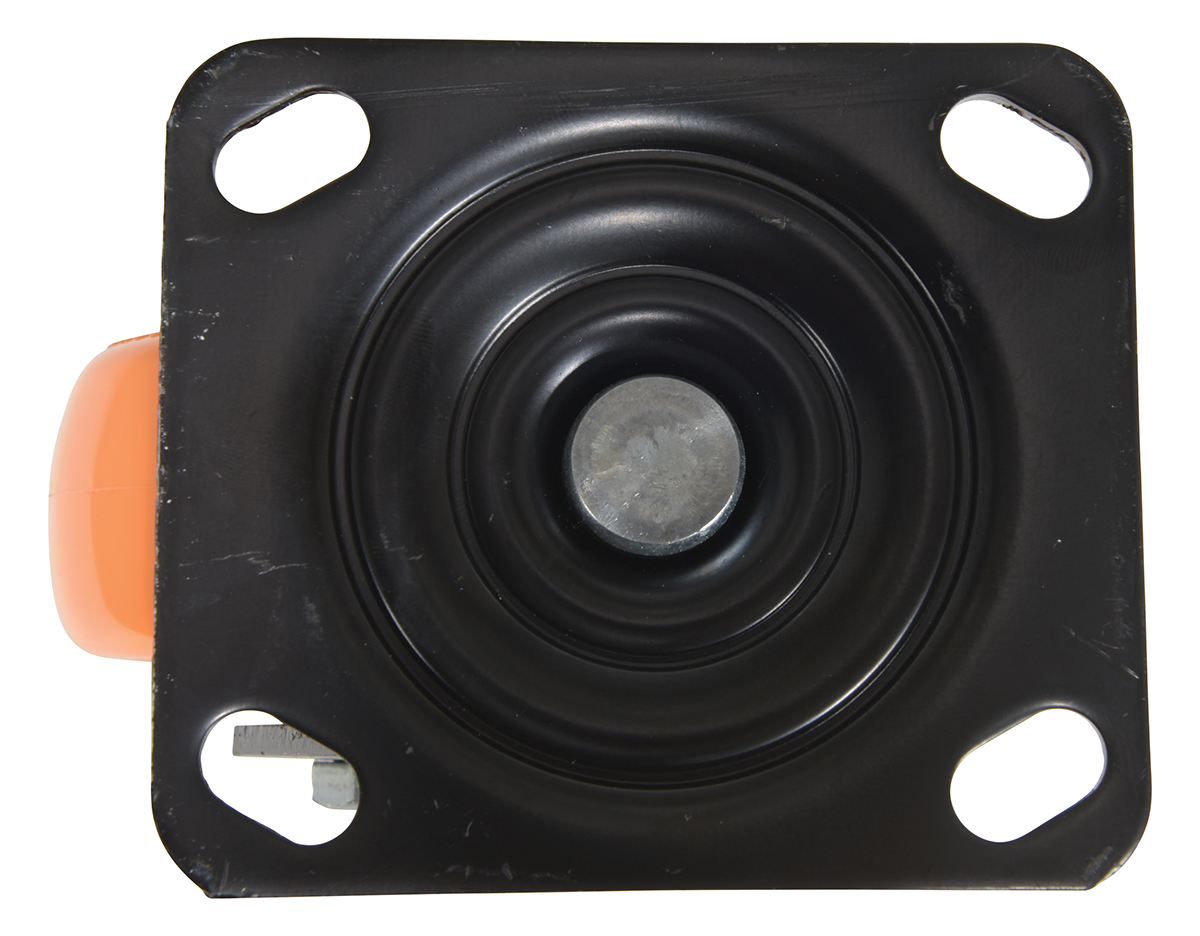

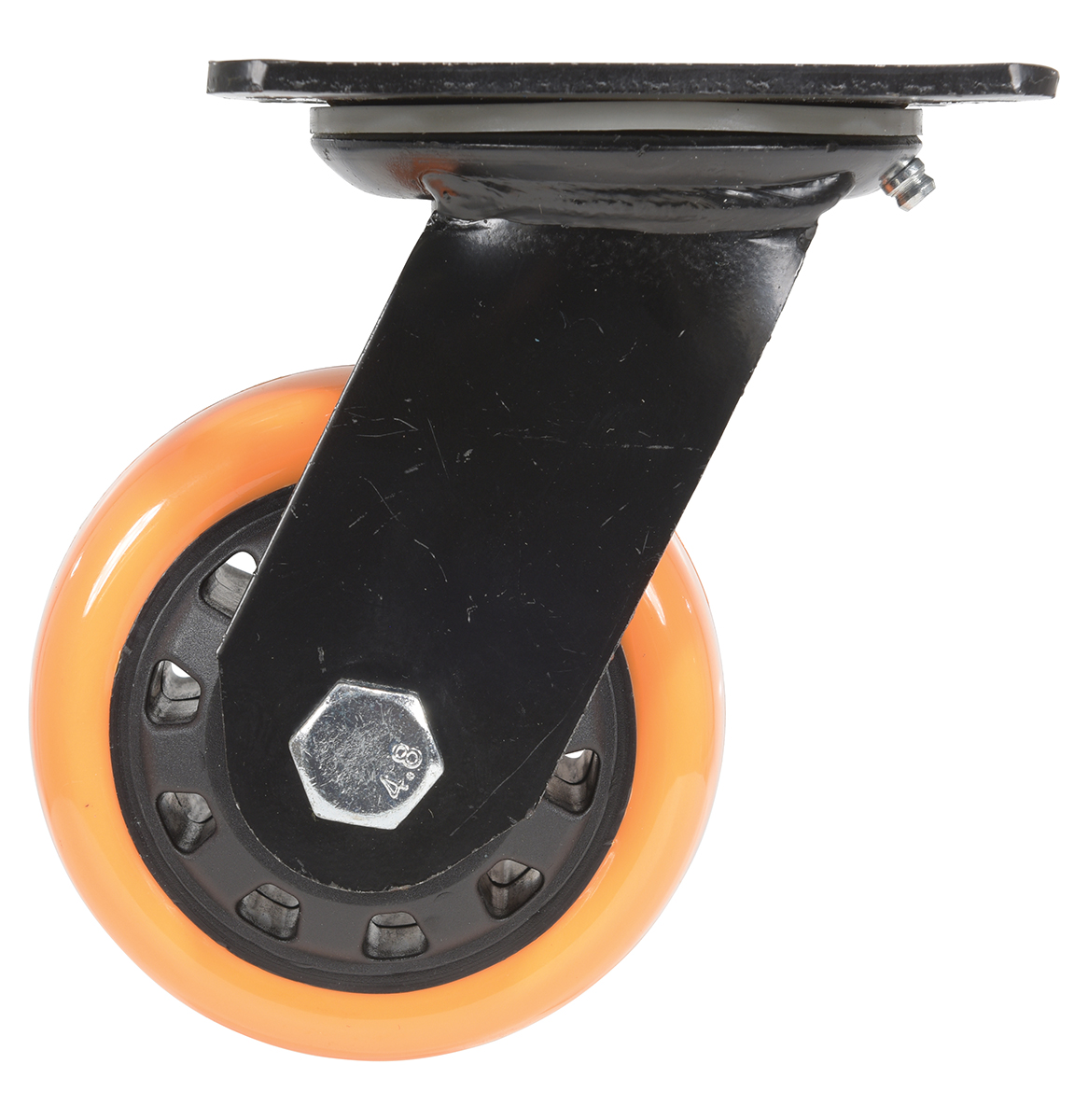

| CST-BN-4X2PUP-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 594 | 5-1/2 | 4 x 4-1/2 | 4 |

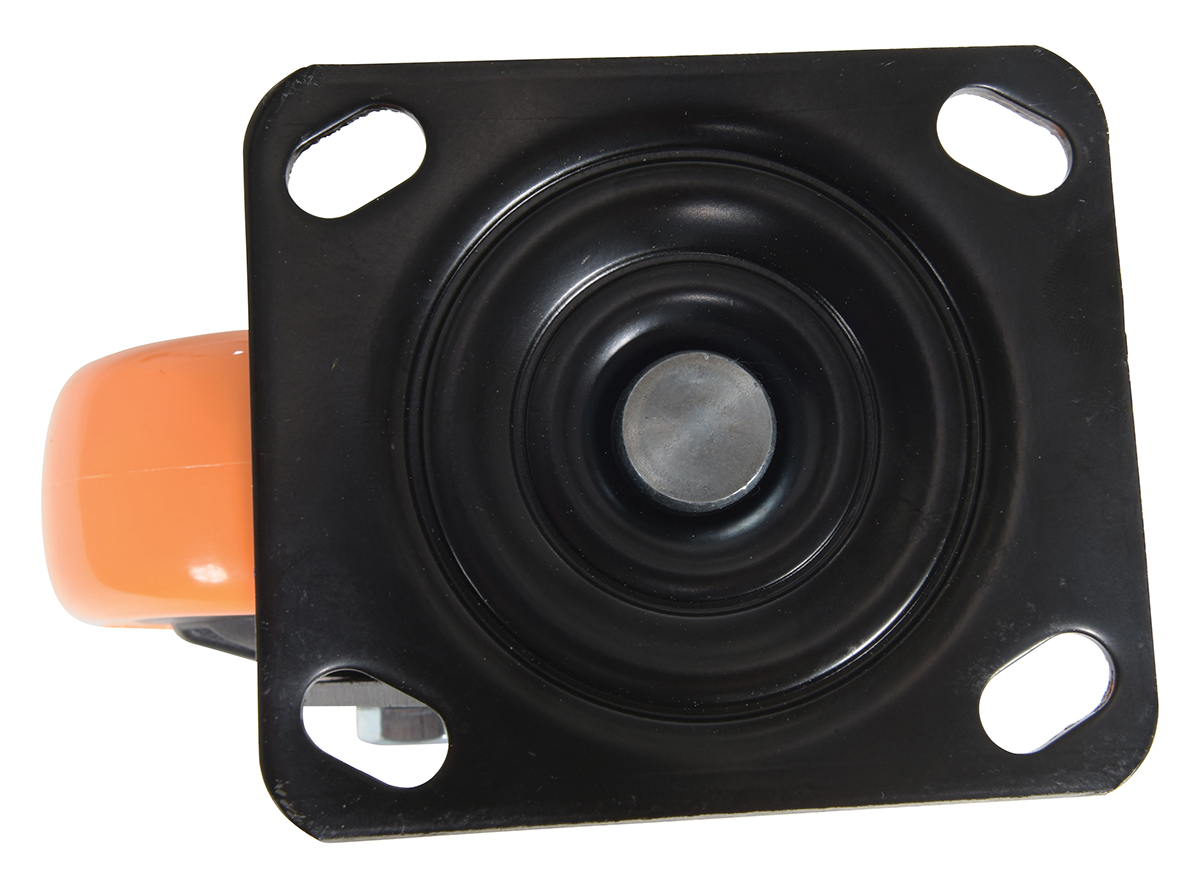

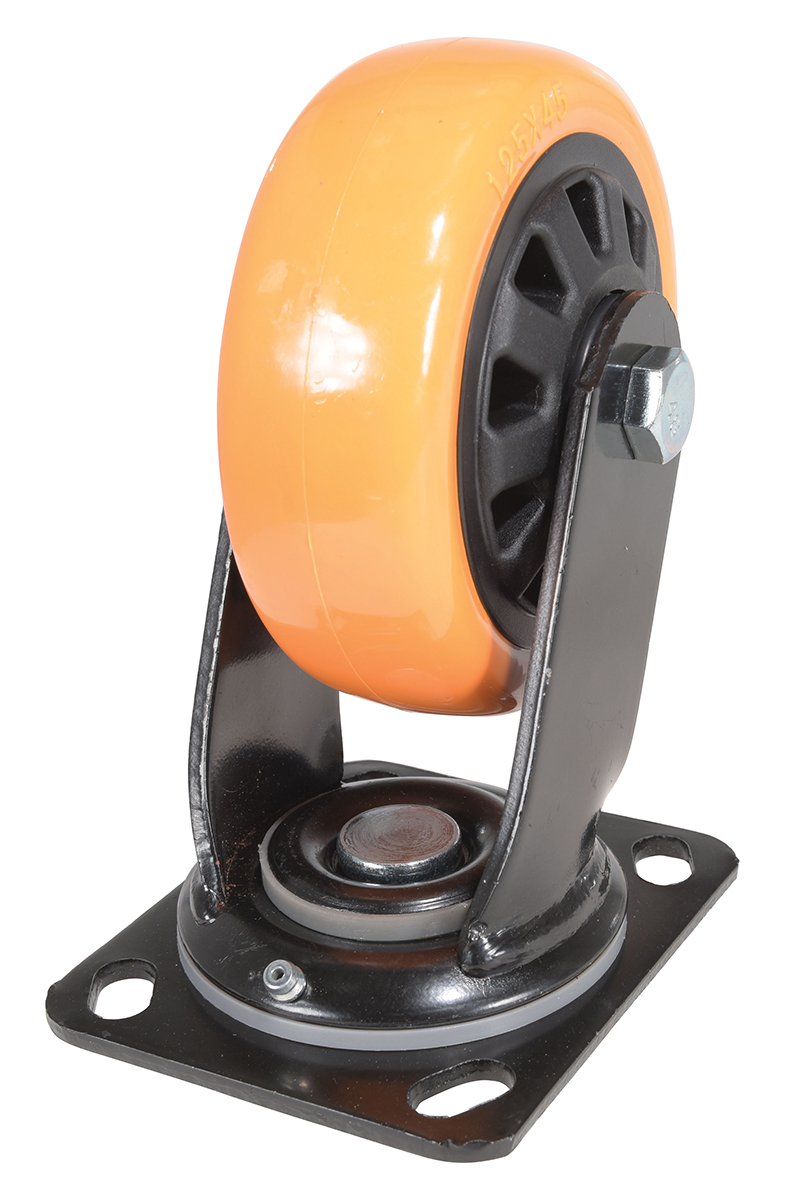

| CST-BN-5X2PUP-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 726 | 6-1/2 | 4 x 4-1/2 | 5 |

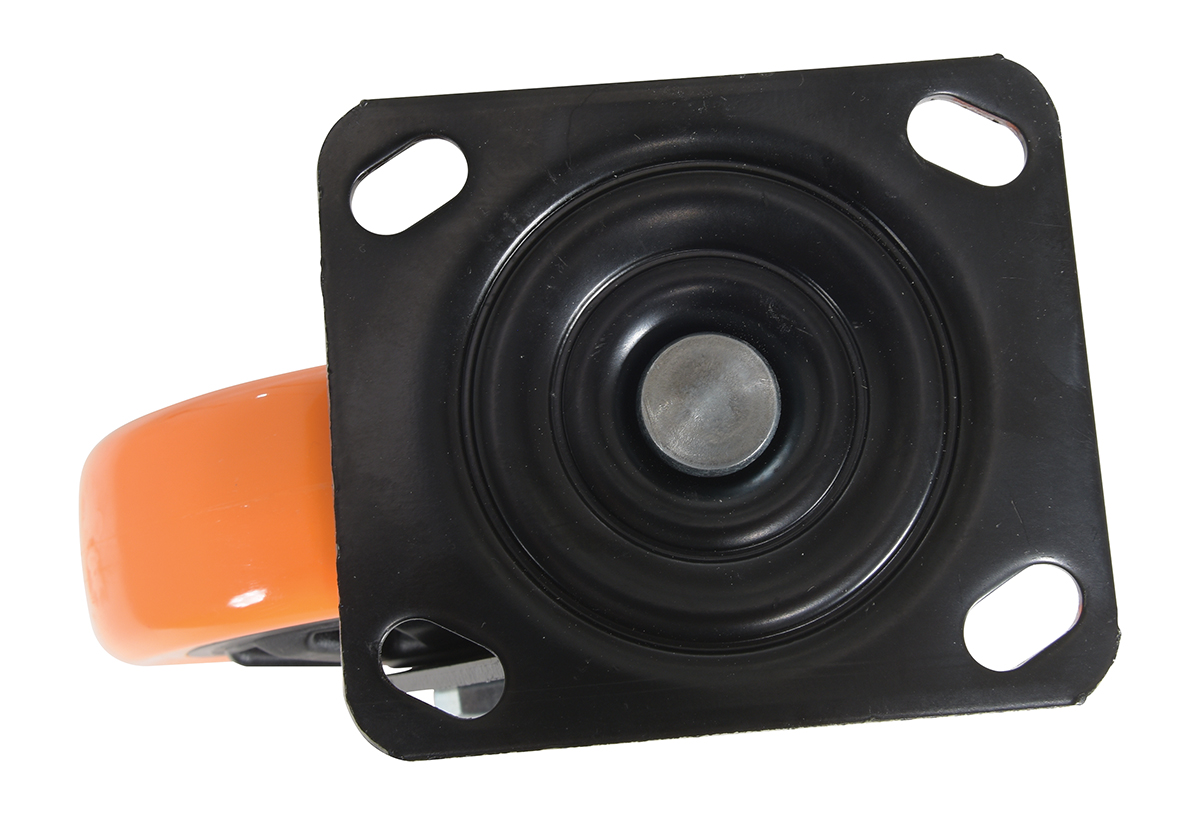

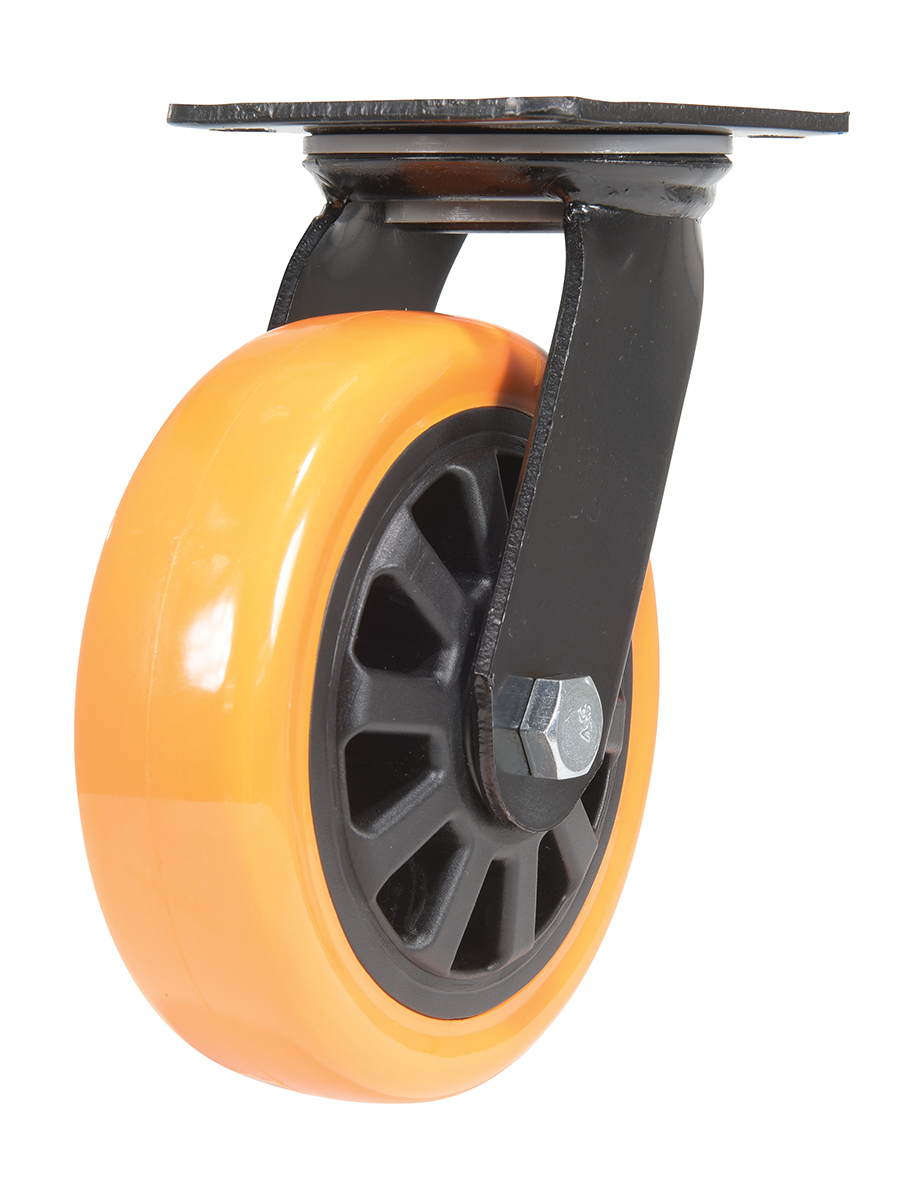

| CST-BN-6X2PUP-S |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL | 836 | 7-1/2 | 4 x 4-1/2 | 6 |

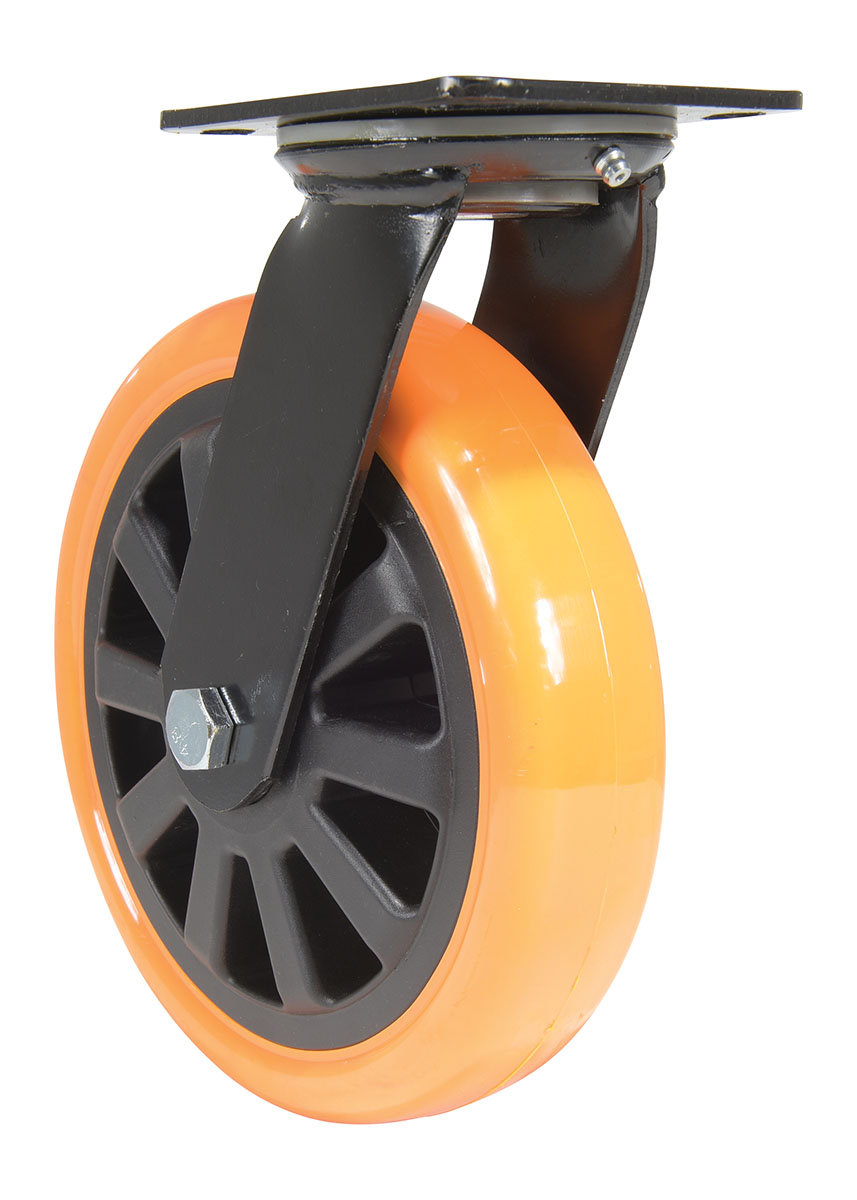

| CST-BN-8X2PUP-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 902 | 9.5 | 4 x 4-1/2 | 7 |

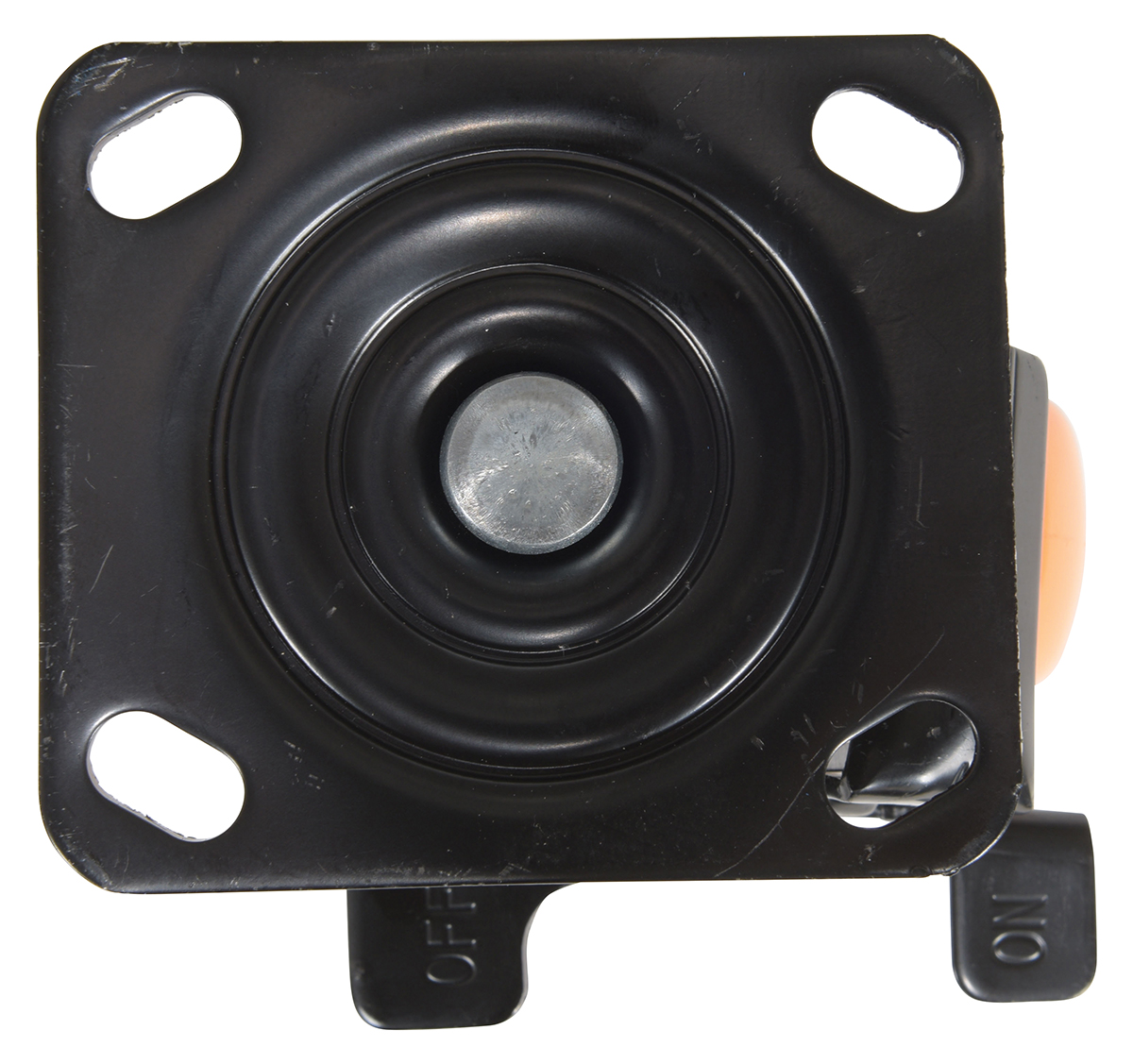

| CST-BN-4X2PUP-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 594 | 5-1/2 | 4 x 4-1/2 | 4 |

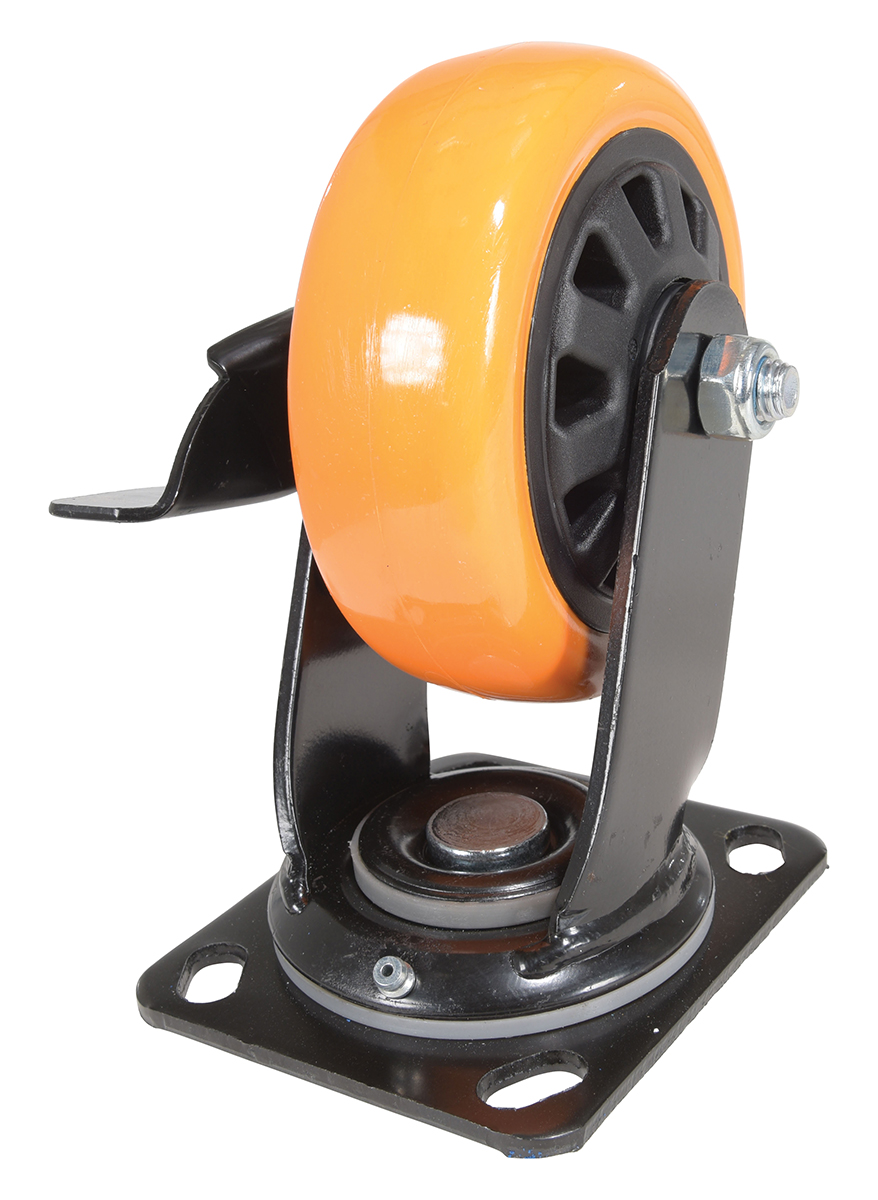

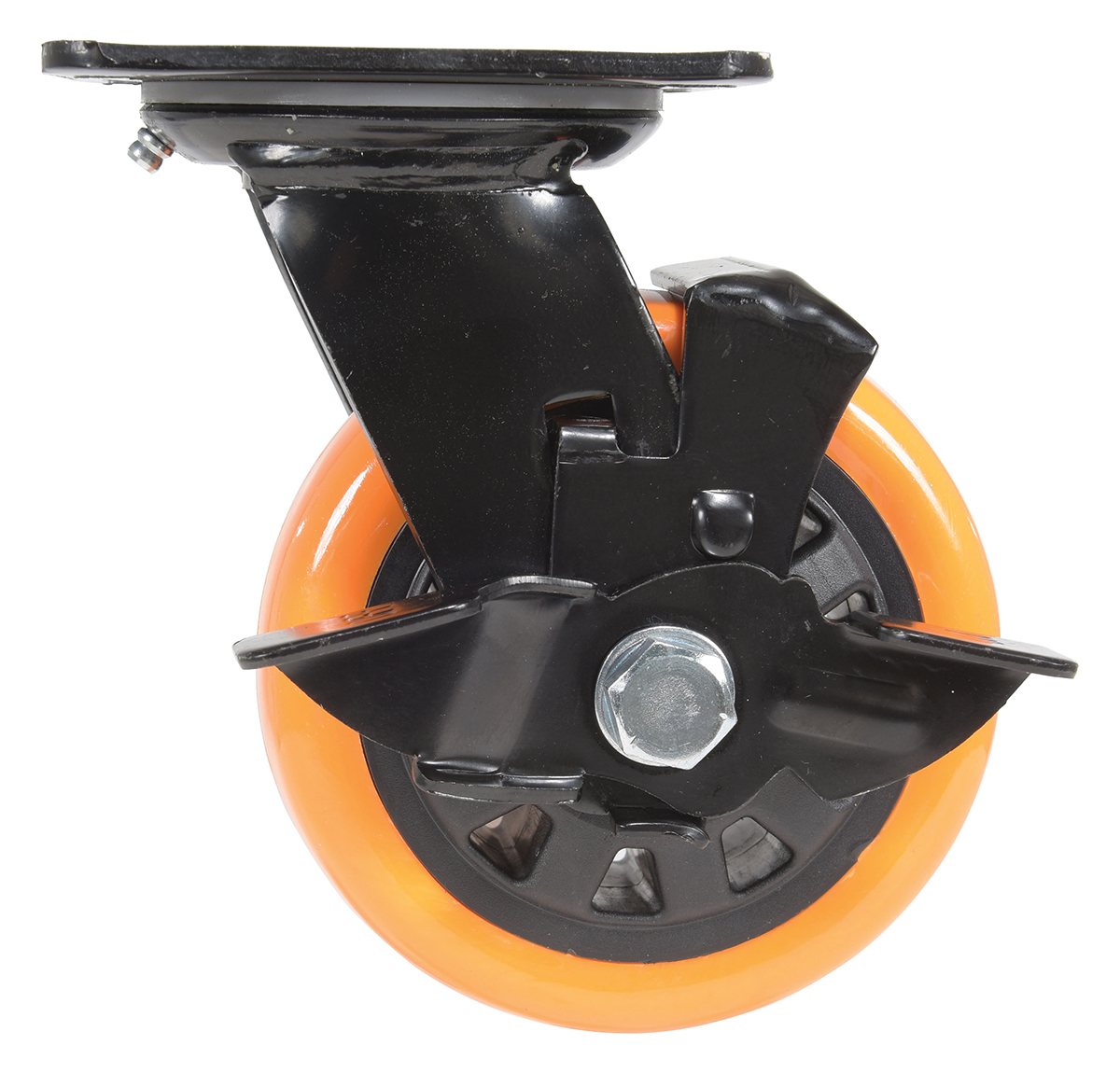

| CST-BN-5X2PUP-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 726 | 6-1/2 | 4 x 4-1/2 | 6 |

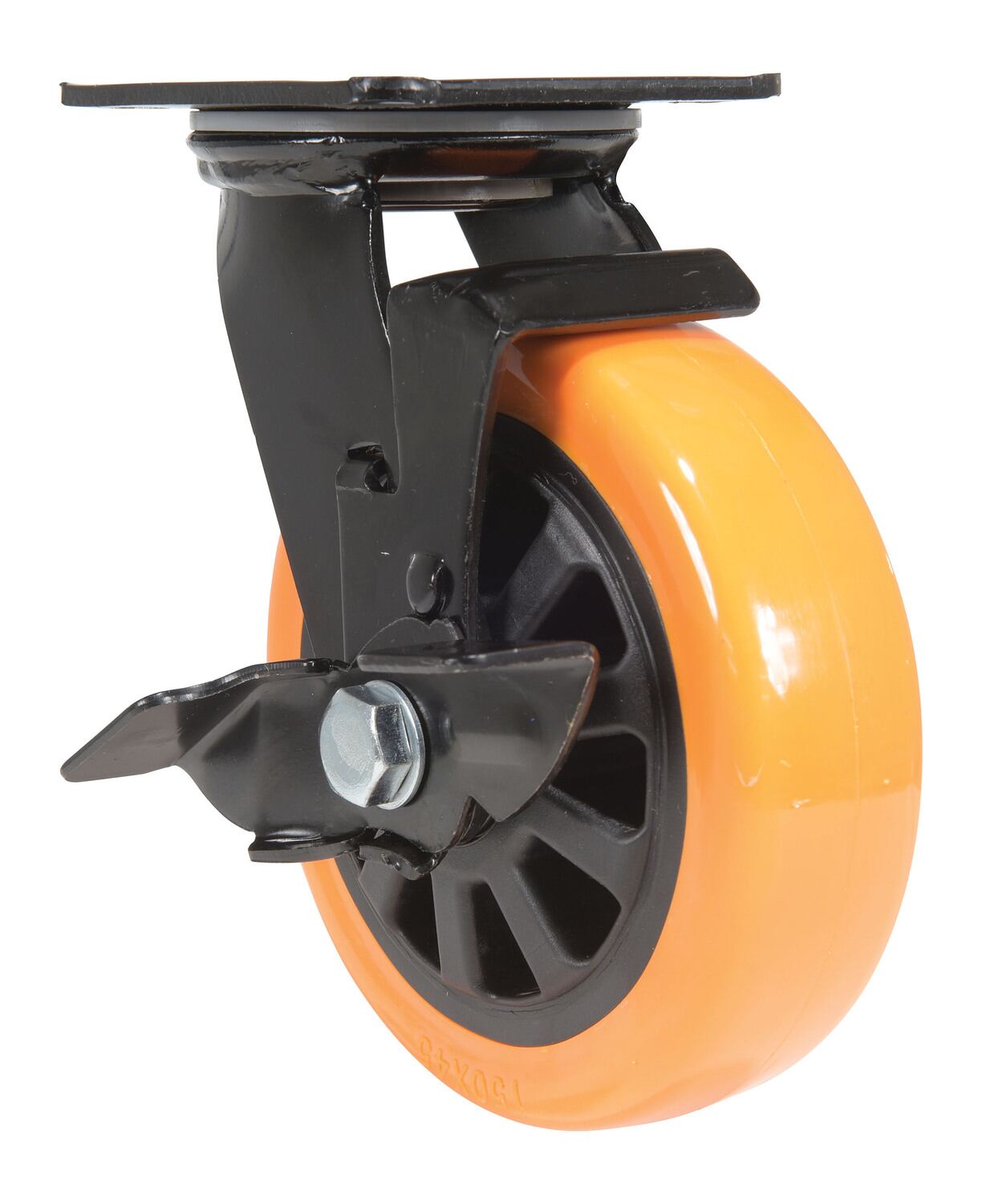

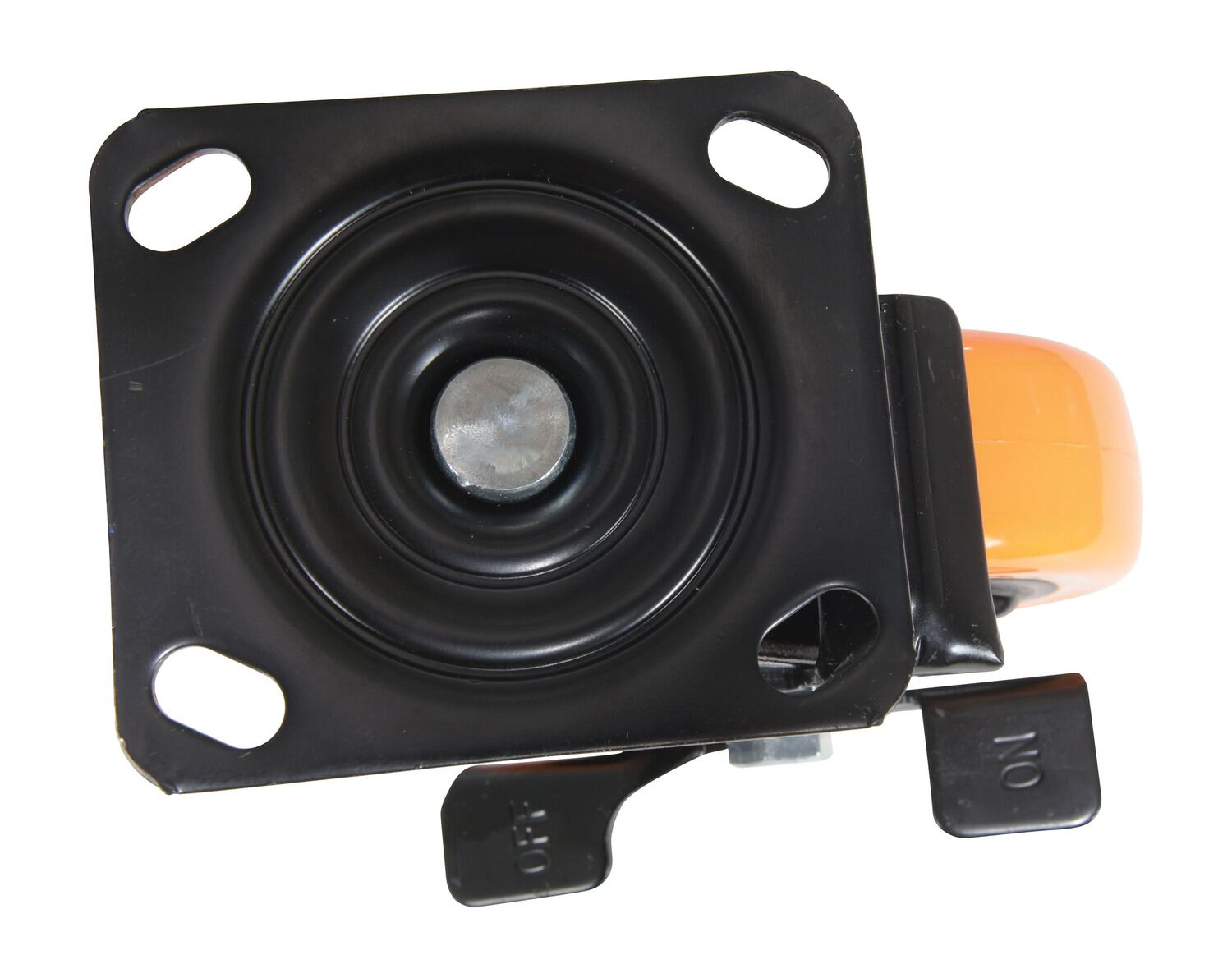

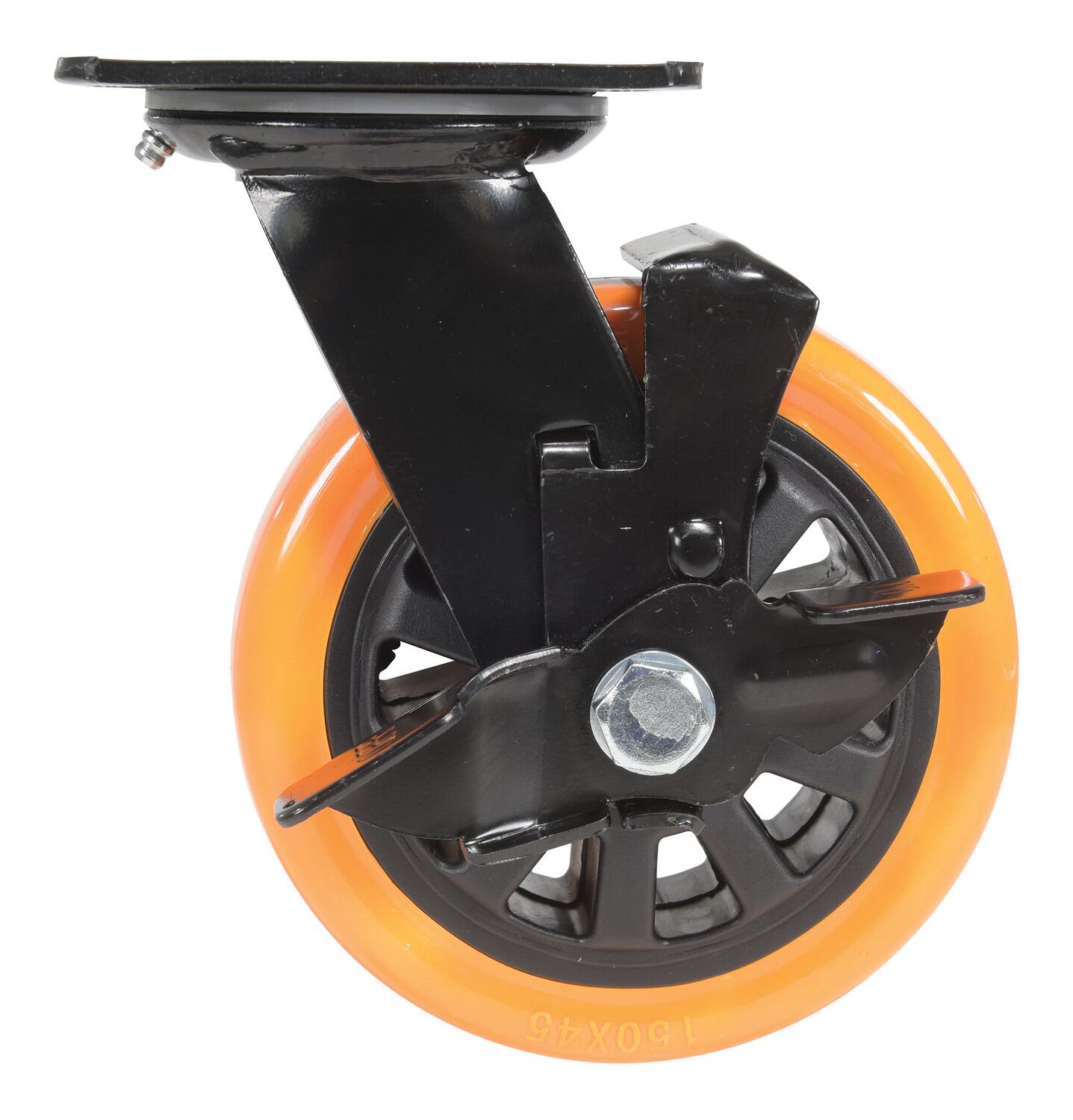

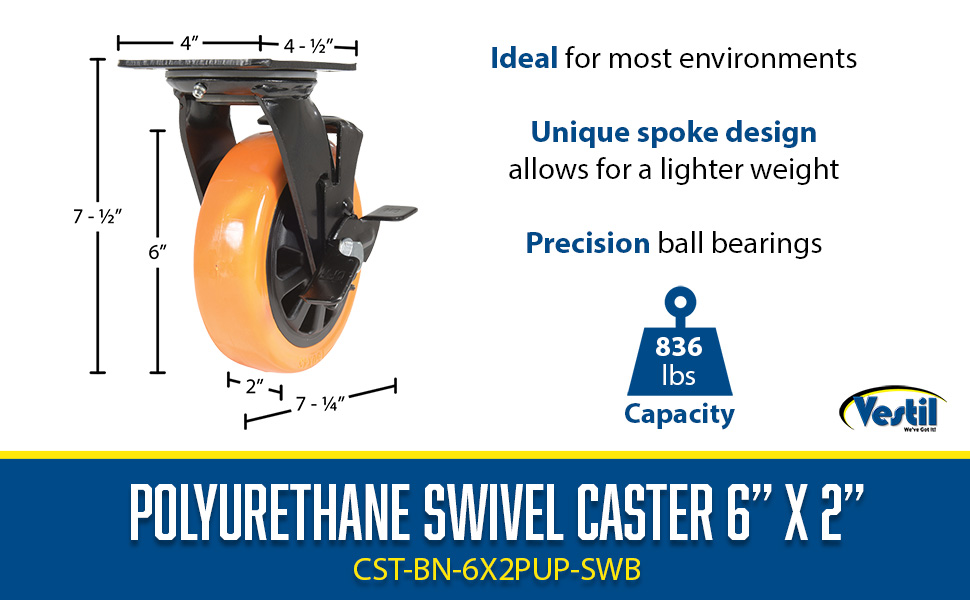

| CST-BN-6X2PUP-SWB |  | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/BRAKE | 836 | 7-1/2 | 4 x 4-1/2 | 6 |

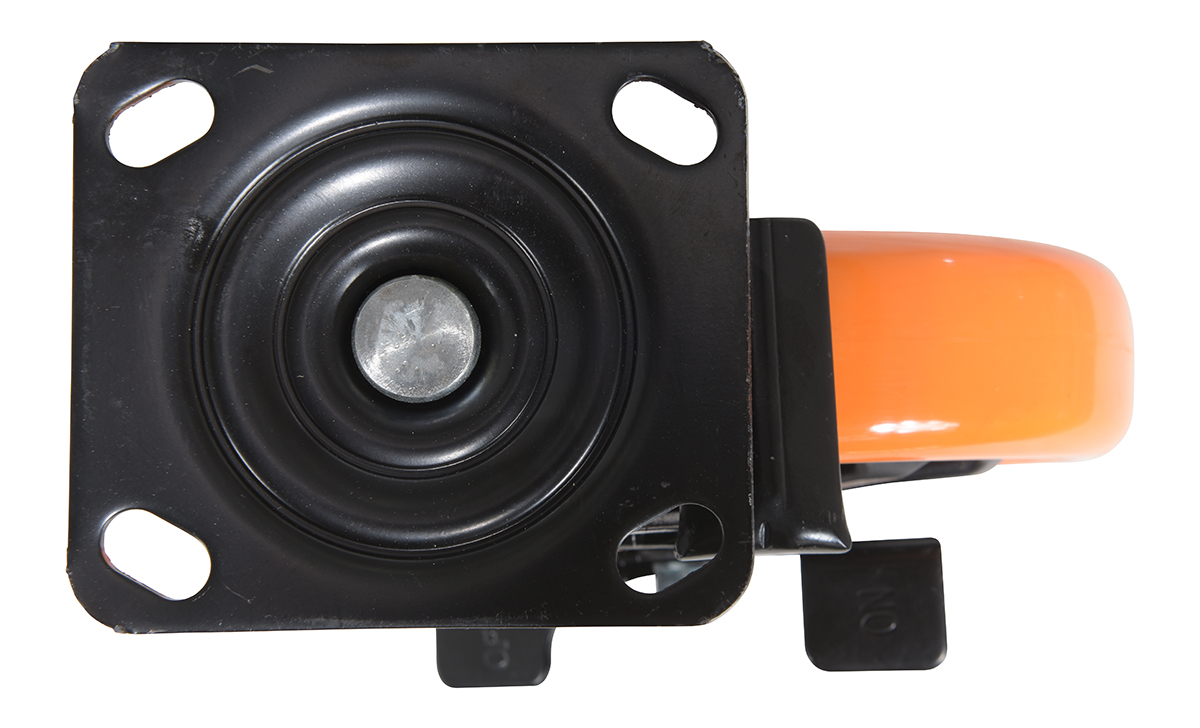

| CST-BN-8X2PUP-SWB | | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/BRAKE | 902 | 9-1/2 | 4 x 4-1/2 | 8 |

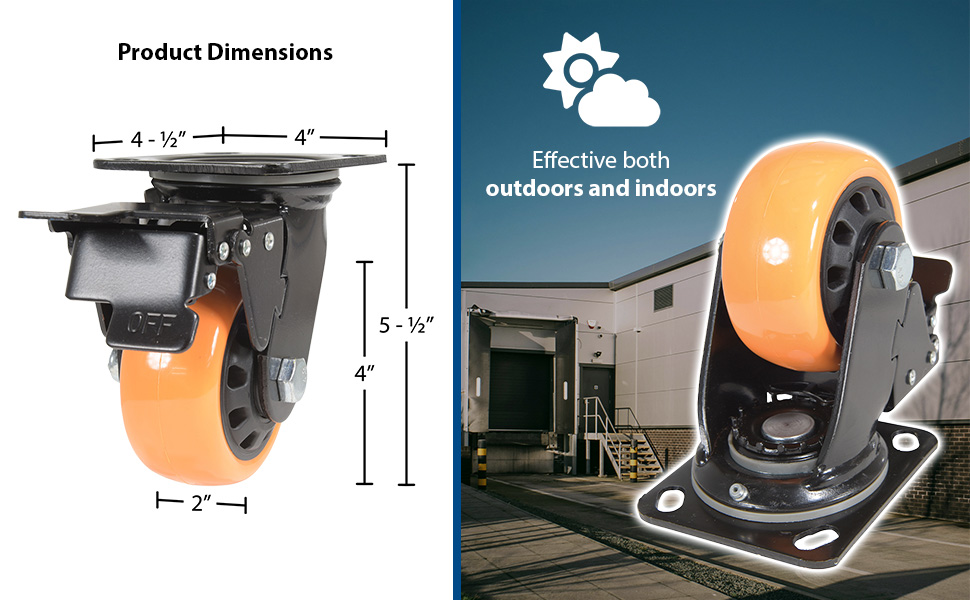

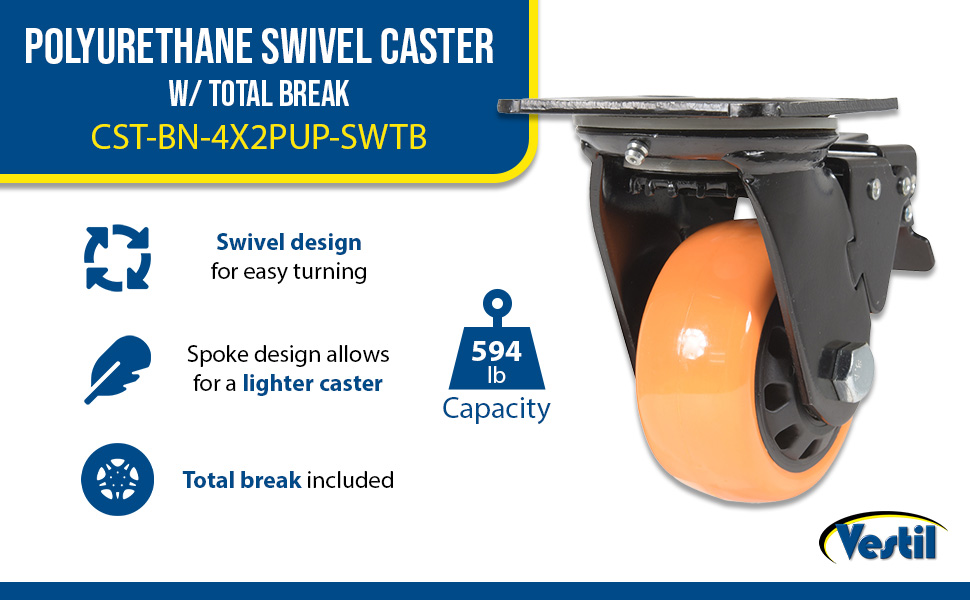

| CST-BN-4X2PUP-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 594 | 5-1/2 | 4 x 4-1/2 | 6 |

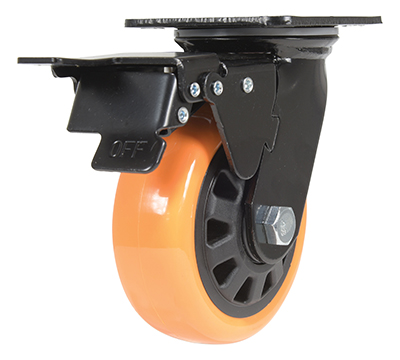

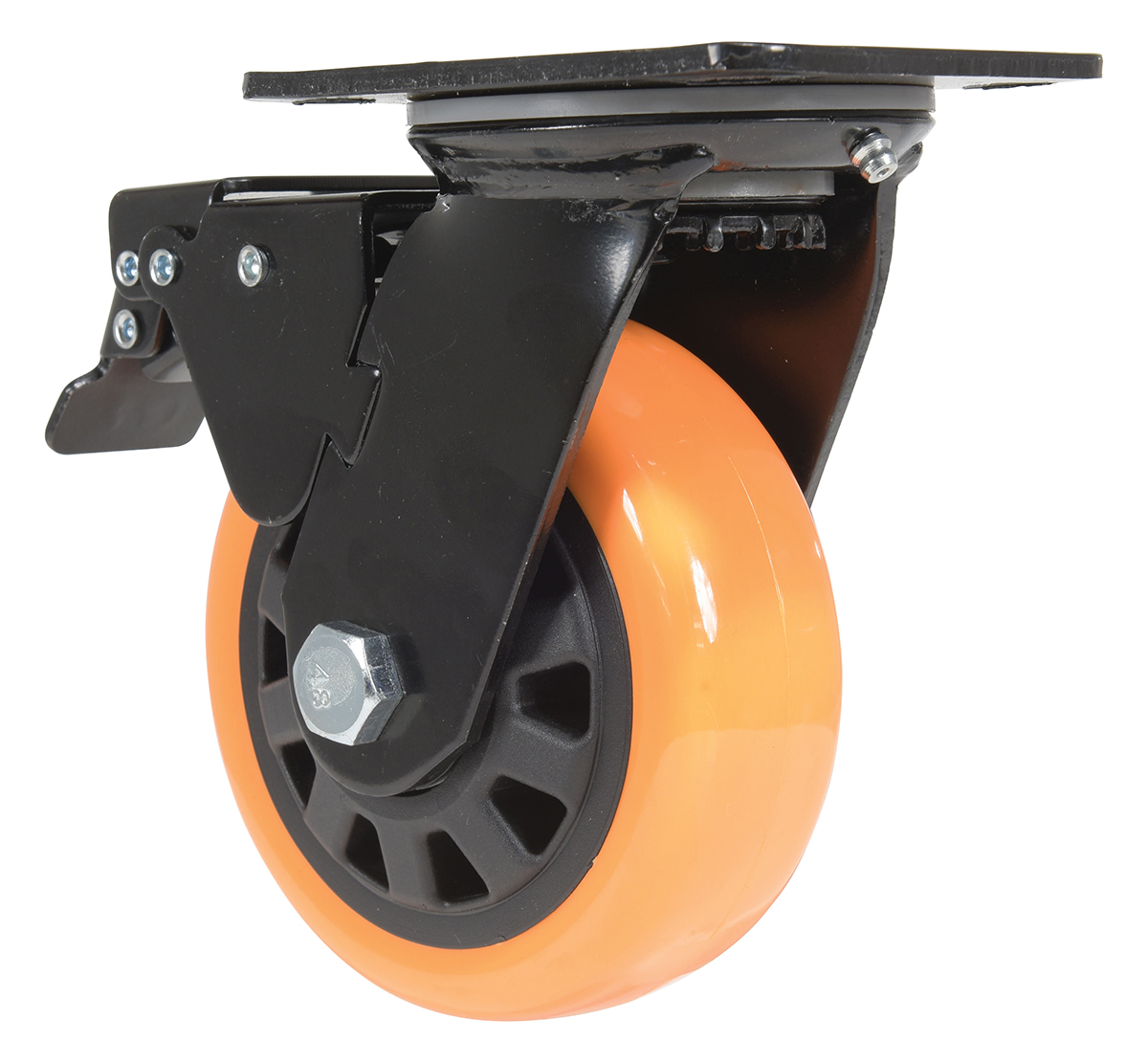

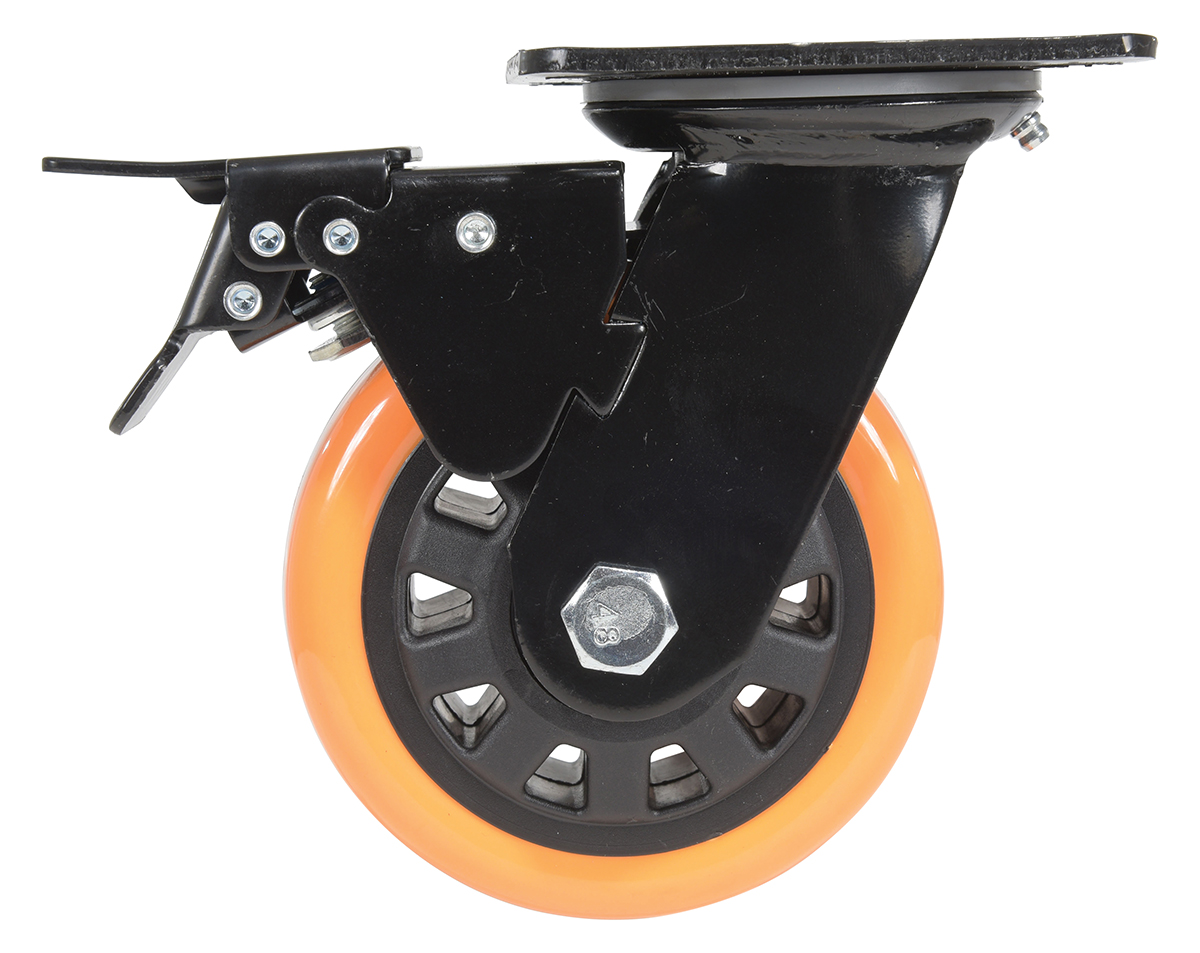

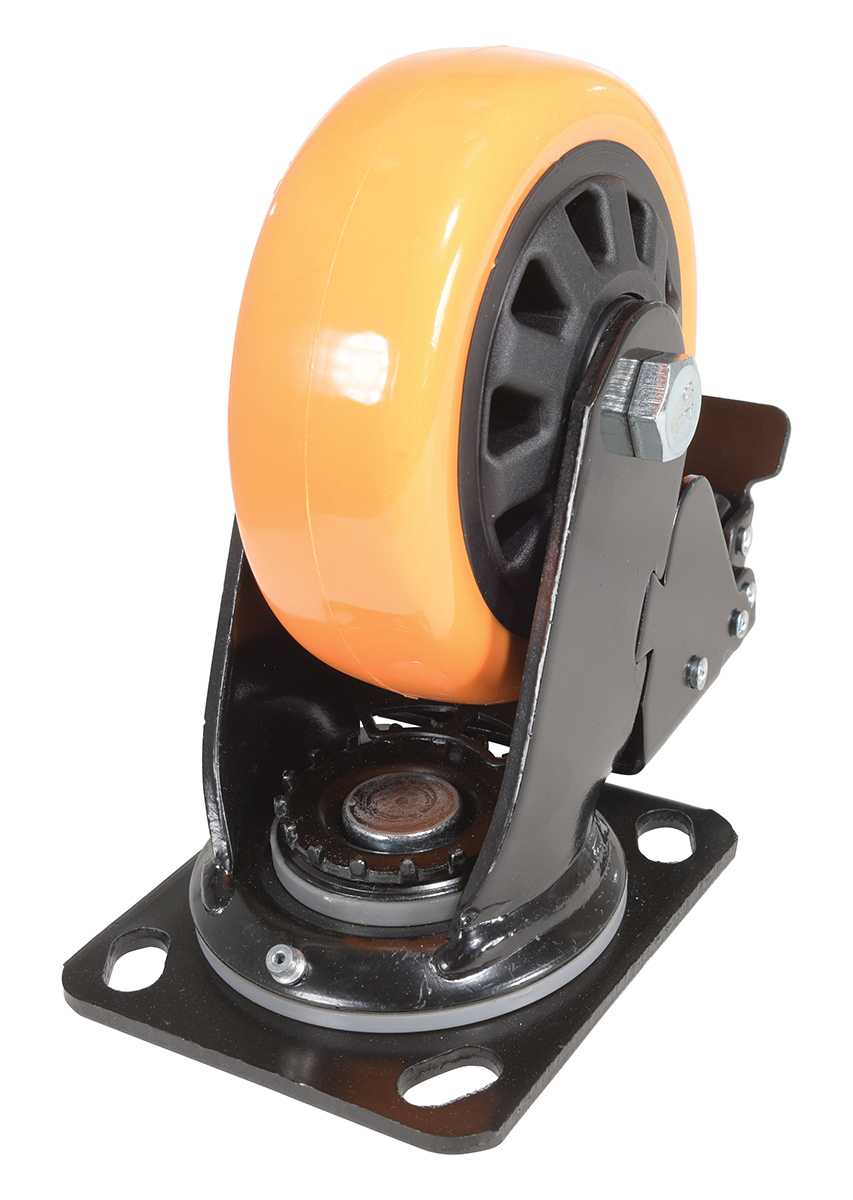

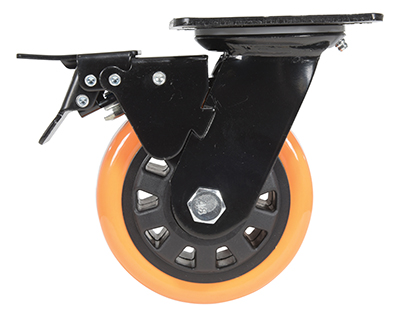

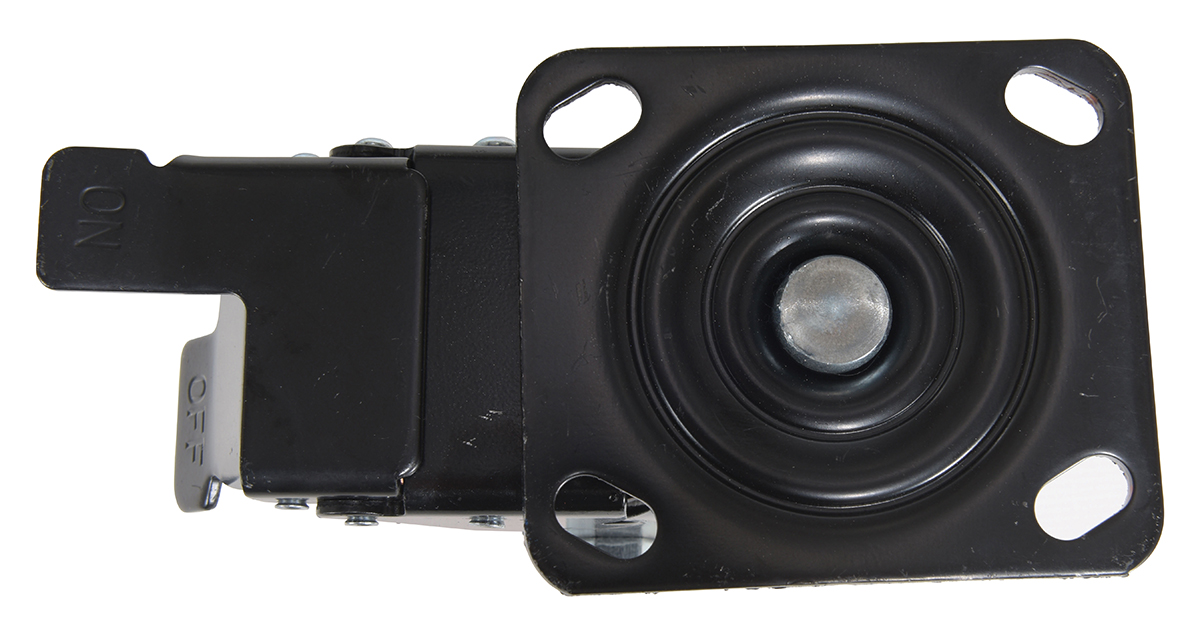

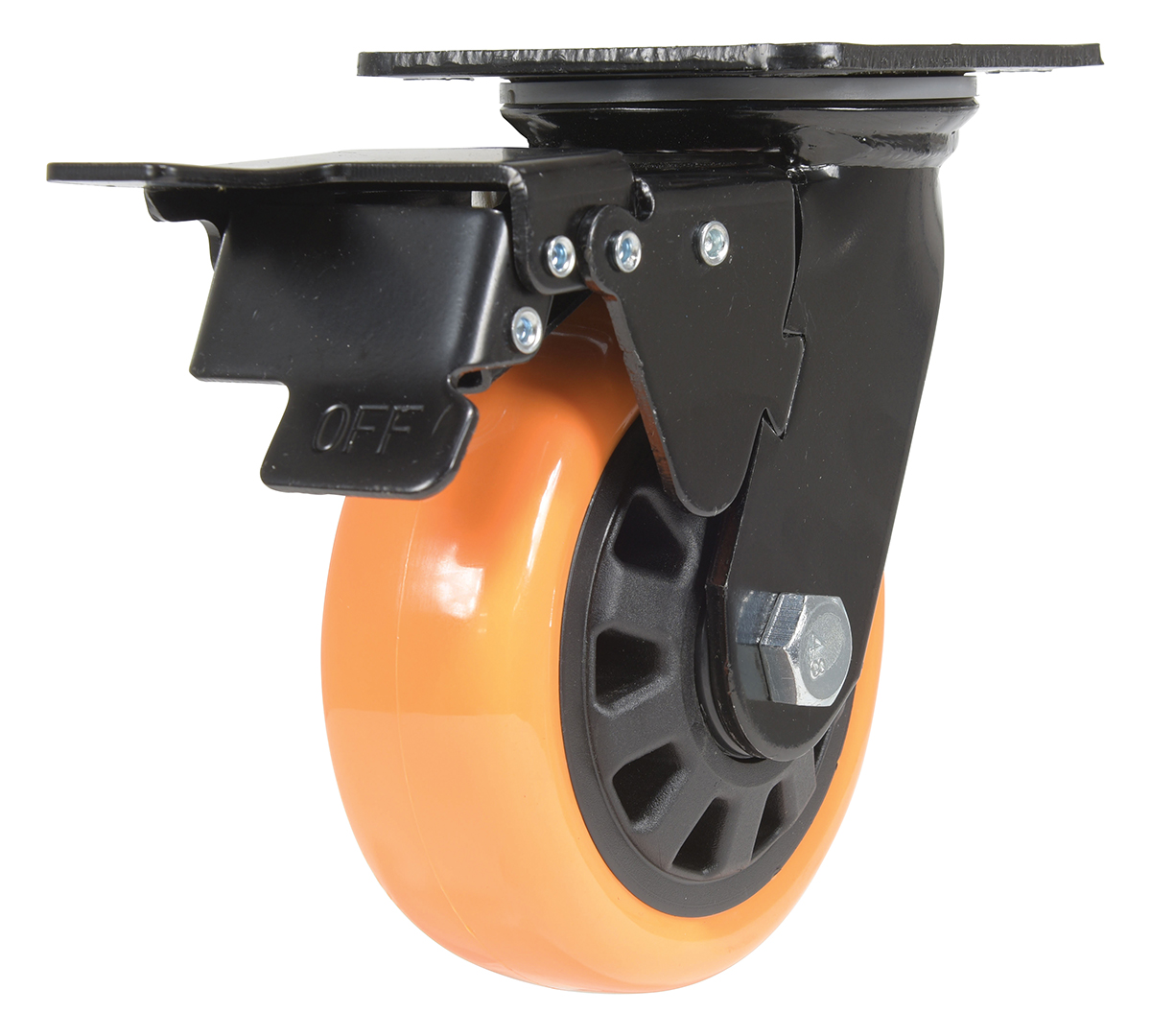

| CST-BN-5X2PUP-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 726 | 6-1/2 | 4 x 4-1/2 | 6 |

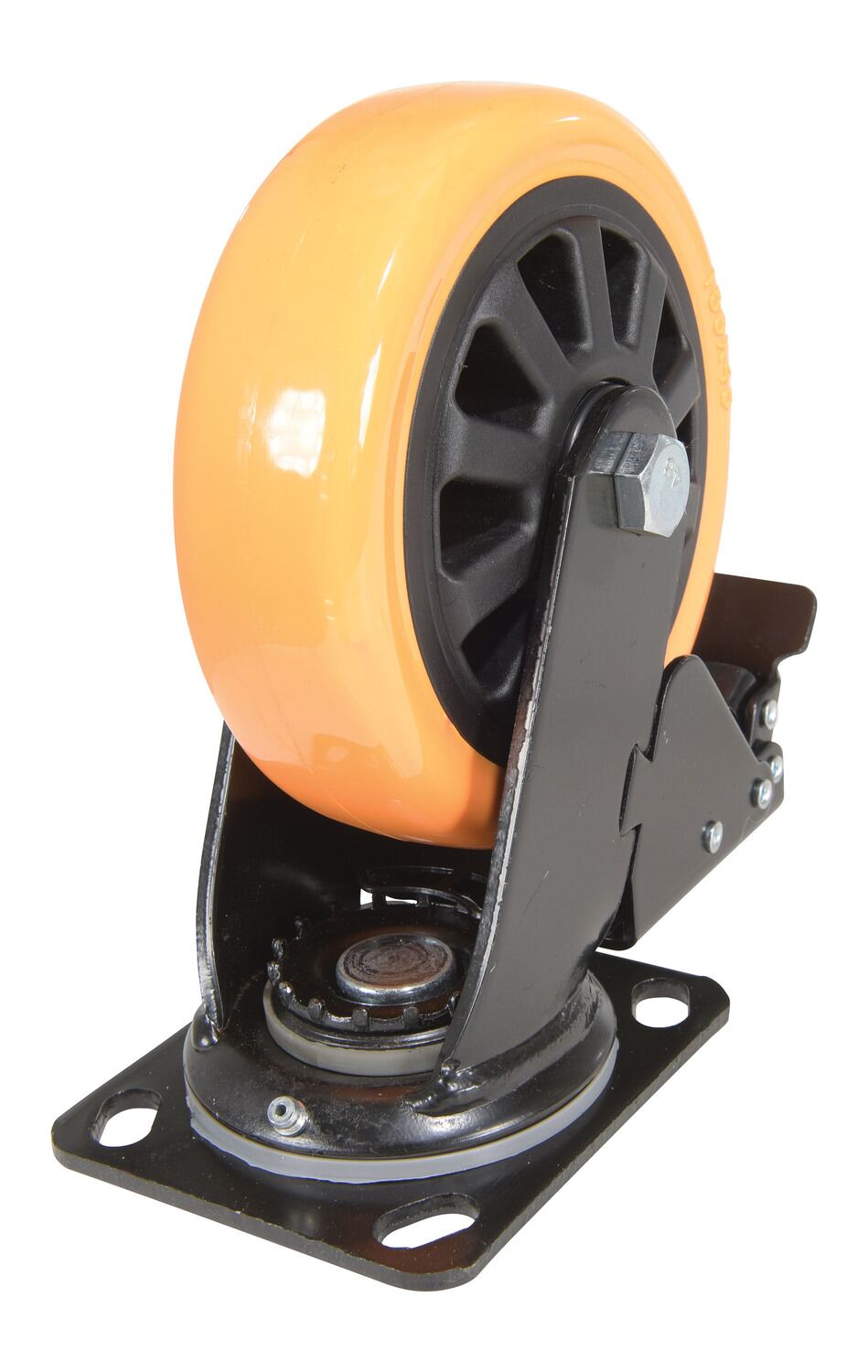

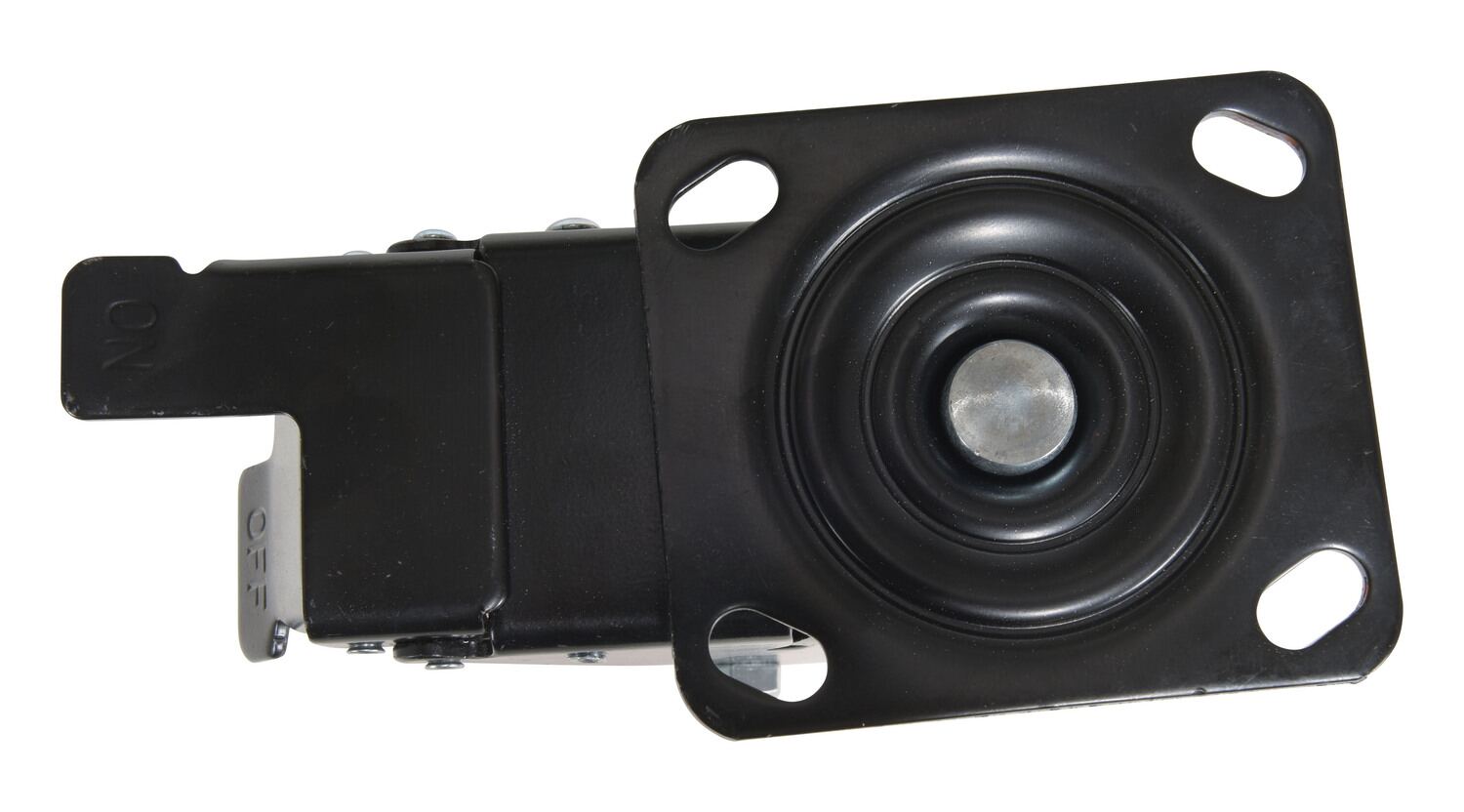

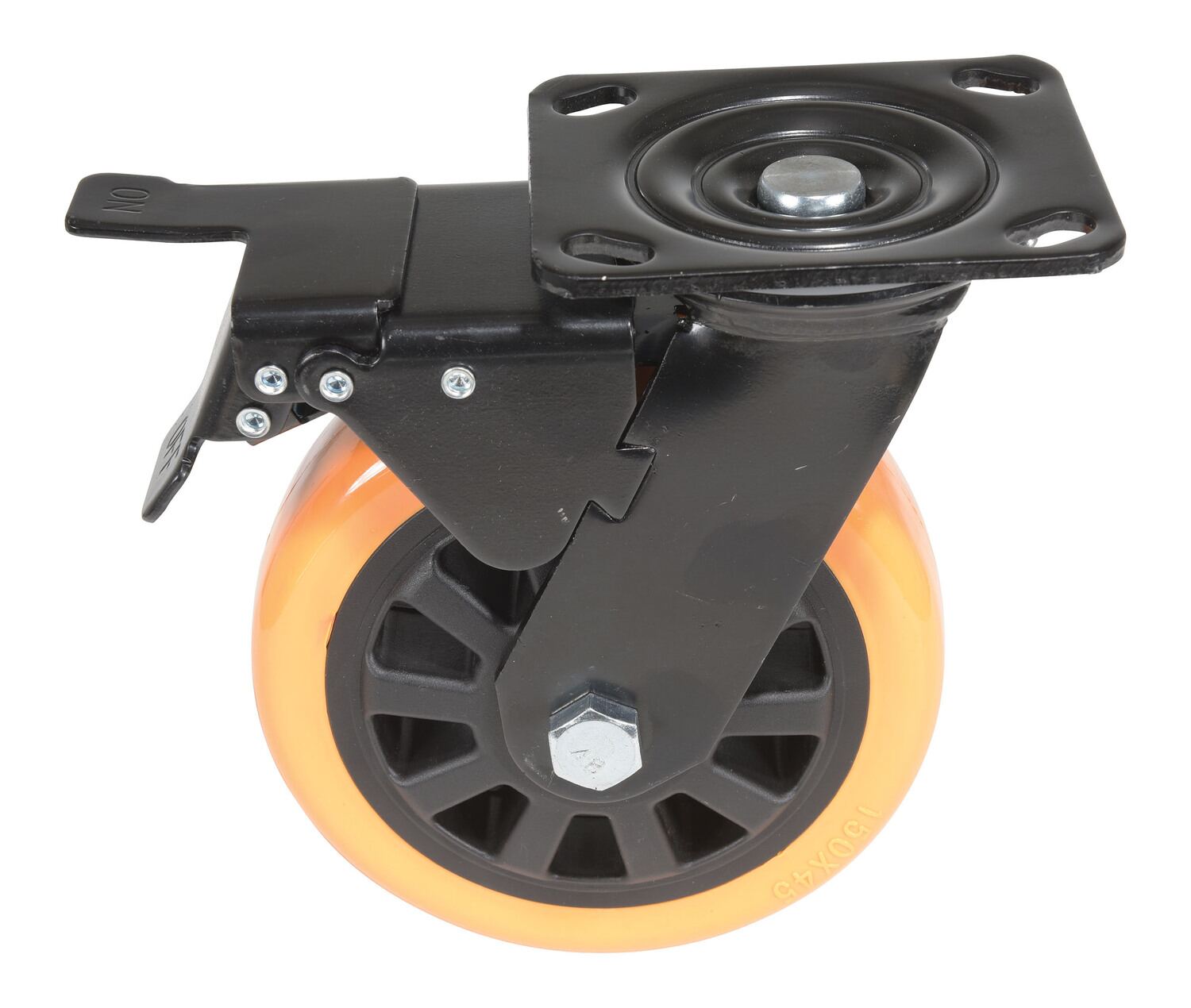

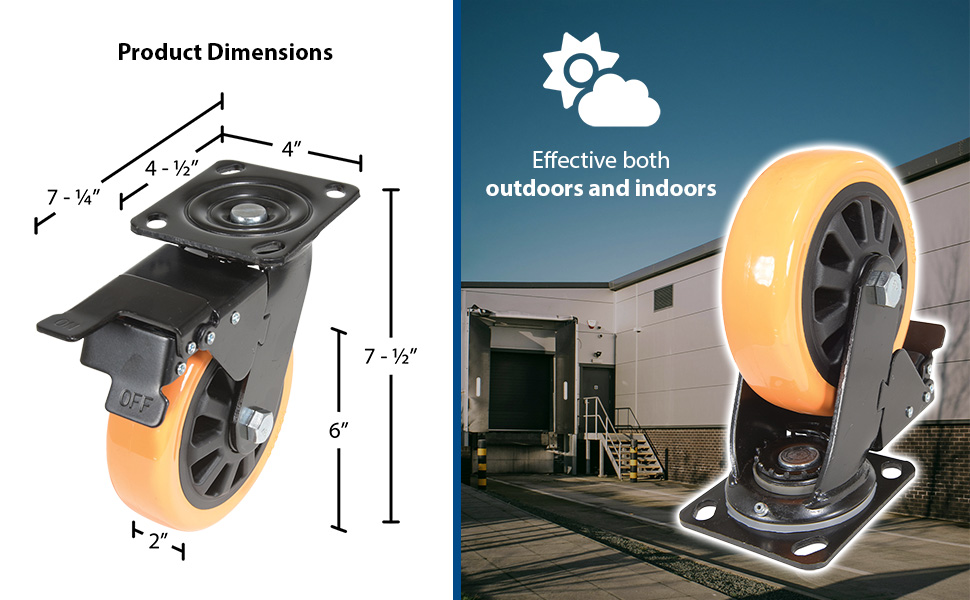

| CST-BN-6X2PUP-SWTB | | 1 YEAR Limited Warranty | 6 x 2 | SWIVEL W/TOTAL BRAKE | 836 | 7-1/2 | 4 x 4-1/2 | 7 |

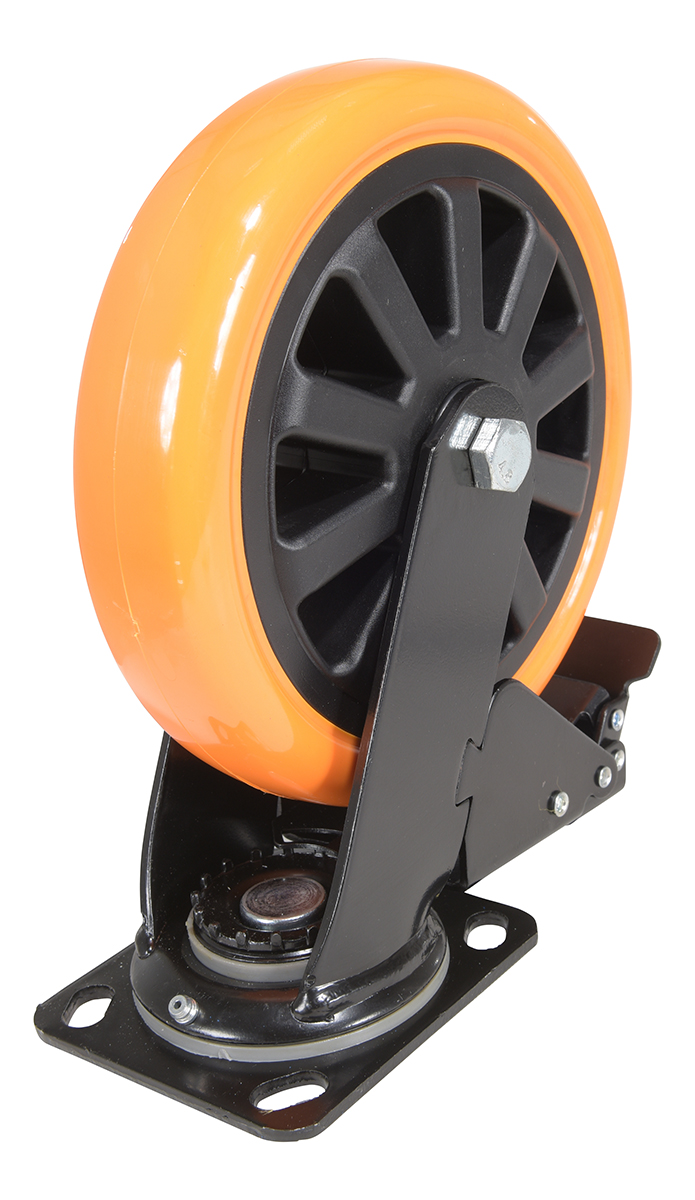

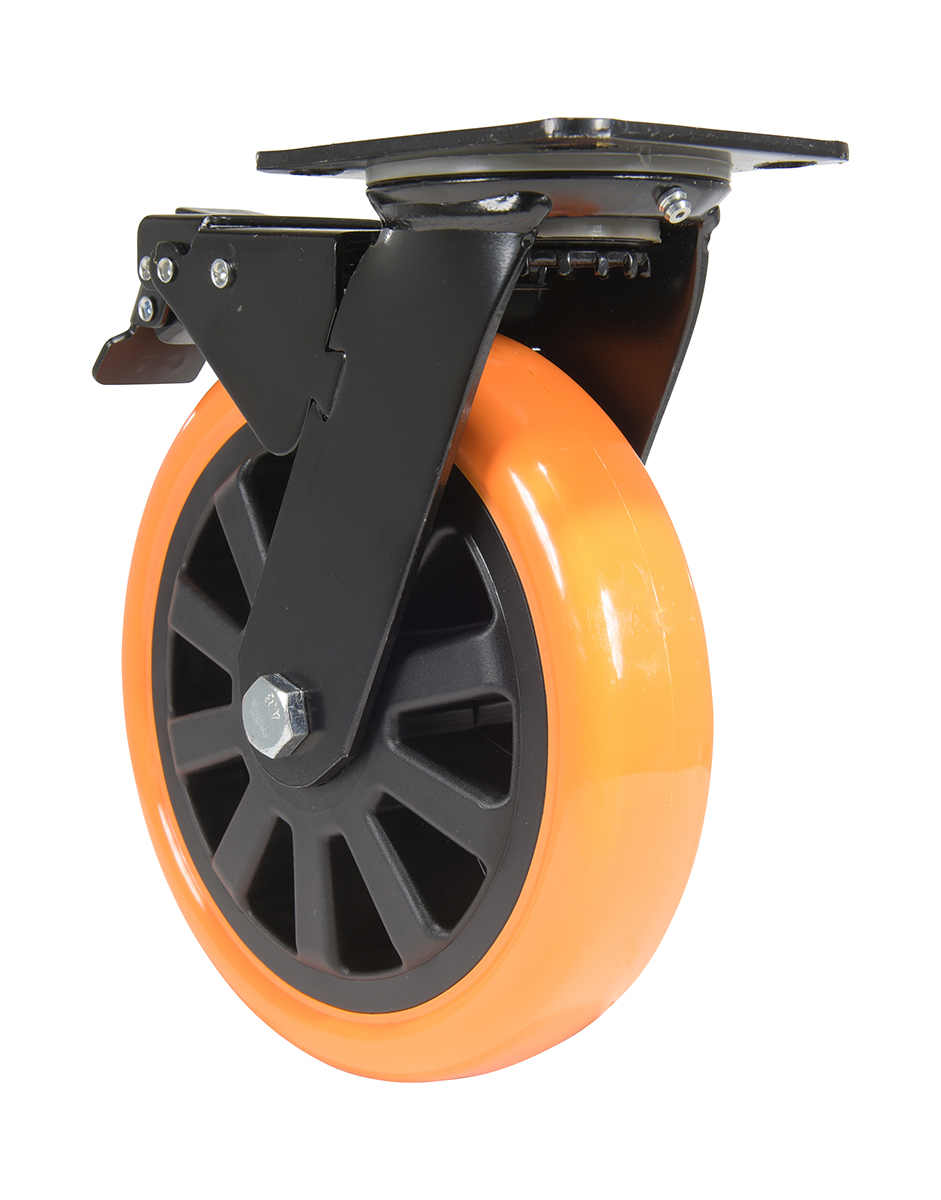

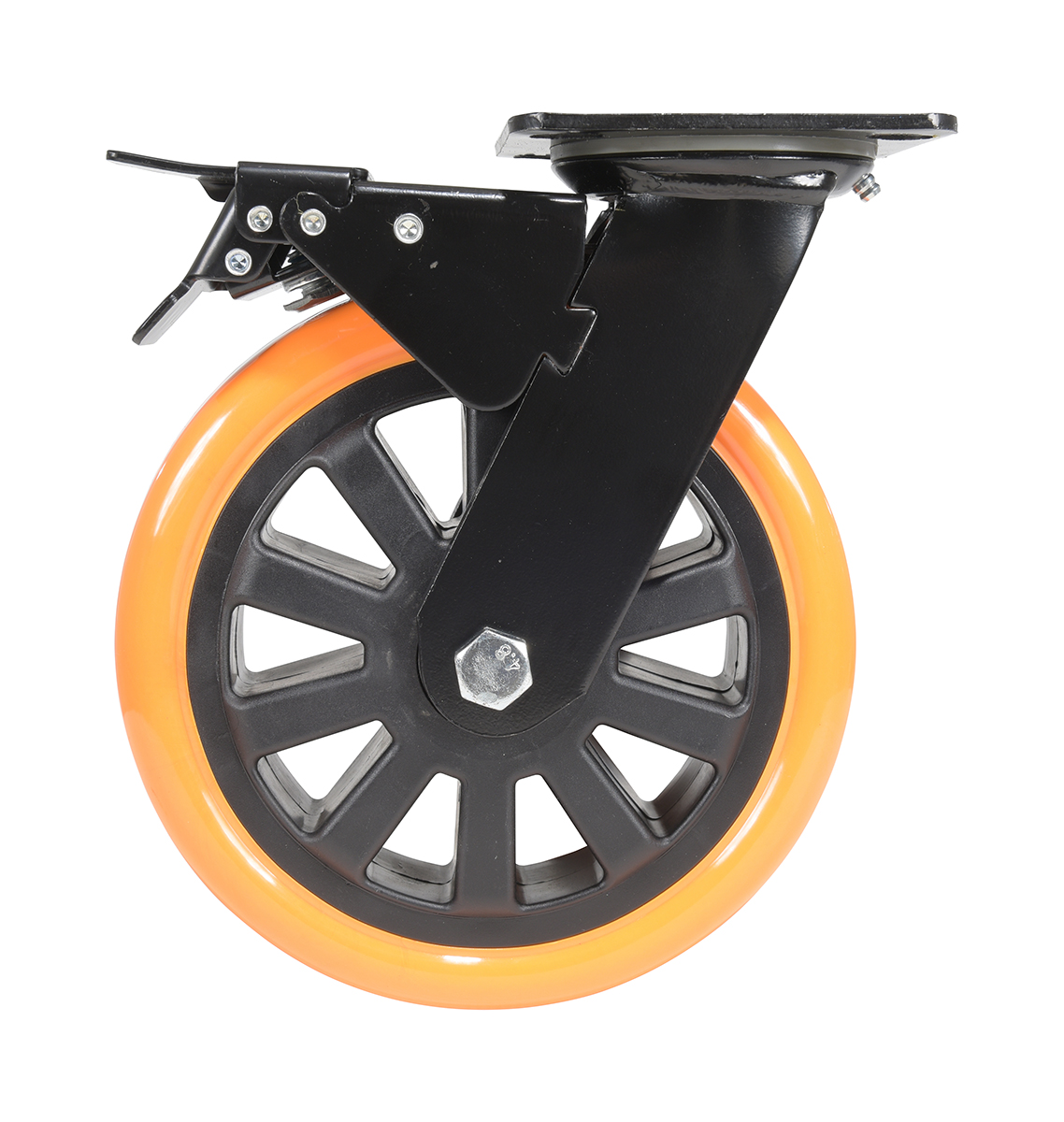

| CST-BN-8X2PUP-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 902 | 9.5 | 4 x 4-1/2 | 8 |
